HDP135V6 DC Power Supply User Manual
I. Product Introduction
HDP135V6 power supply is a high quality,
cost-effectiveDC power supply. It has four-digit LED
voltage and current display. It also has over voltage
protection (OVP), over current protection (OCP), over
temperature protection (OTP) and USB quick charging
functions.
II. Product Model
Model CH Output V/A LCD
digits
RS232 AC input
HDP135V6
1
35.2V/6.2A
4
None
115/230VAC
HDP135V6A
1
35.2V/6.2A
4
None
230VAC
HDP135V6B
1
35.2V/6.2A
4
None
115VAC
HDP135V6S
1
35.2V/6.2A
4
Yes
115/230VAC
III. PerformanceSpecifications
1 Rated Working Condition
AC input: 115 VAC ± 10%, 230 VAC ± 10%, 50/60Hz
Working Conditions: Temperature -10℃~40℃
Relative humidity ≤80%
Storage Conditions: Temperature -20℃~60℃
Relative humidity ≤80%
2 Specifications
All technical specifications can only be guaranteed
when the instrument is operated continuously for more
than 30 minutes at the specified operating temperature
(18℃to 28℃).
Voltage
Load Regulation
≤0.1% + 5mV
Line Regulation
≤0.01% + 5mV
Set Resolution
10mV
Set Accuracy
≤0.1% + 1 digits
Readback
Resolution
10mV
Readback Accuracy
≤0.1% + 1 digits
Ripple
10mVrms
Current
Load Regulation
≤0.2% + 3mA
Line Regulation
≤0.2% + 3mA
Set Resolution
1mA
Set Accuracy
≤0.2% + 3mA
Readback
Resolution
1mA
Readback Accuracy
≤0.2% + 3 digits
Ripple
5mArms
OVP
0 ~ 35.2V ± 0.2%FS
Maximum Voltage
35.2V ± 0.2%
OCP
0 ~ 6.2A ± 0.2%FS
Maximum Current
6.2A ± 0.2%
Quick Charge
Output Voltage
Range
5V ~ 12V
Output Power
Maximum: 18W
Supported Quick
Charging Protocol
DCP (Apple, Samsung and BC1.2),
Qualcomm QC2.0/QC3.0, Huawei
Quick Charge Protocol FCP, Samsung
Quick Charge Protocol AFC
General Features
Remote Interface
RS232 (Optional)
Baud rate: 2400
Data bit: 8
Stop bit: 1
No parity check
AC Input 115 VAC
± 10%, 230 VAC ± 10%,
50/60Hz
Working Conditions Temperature -10 ℃to 40 ℃
Relative Humidity ≤ 80%
Storage Conditions Temperature -20 ℃to 60 ℃
Relative Humidity ≤ 80%
Cooling
Air cooling
Weight
2.2 Kg
Size
85 * 150 * 230 (mm)
IV.Front Panel
1 Voltage Display
2 Current Display
3 Save and Recall Keys M1 ~ M10
M1 ~ M4: Press [M*] once, and the indicator lights
up to display the group settings.Use the voltage and
current adjustment knobs to adjust the settings that
need to be saved, and then long press the [M*]key
until the indicator lights up, the settings will be saved
in the [M*] position.
M5 ~ M10: To use M5 ~ M10 to save and recall, use
it in conjunction with the [Shift] key.TakingM5 as an
example, press the [Shift]key and the [Shift]
1

indicator will light up. Press the [M1]key below M5
once again and the [M1] indicator will light up to
display the group settings of M5.Use the voltage and
current adjustment knobsto adjust the settings that
need to be saved. Press the [Shift]key and the
[Shift] indicator will light up. Then long press the
[M1]key below M5 until the [M1] indicator lights up
and the settings will be saved in the M5 position.
4 Shift Key
Some keys provide texts above them.This indicates
that the key has a function that you can access by
pressing and releasing the [Shift] key before

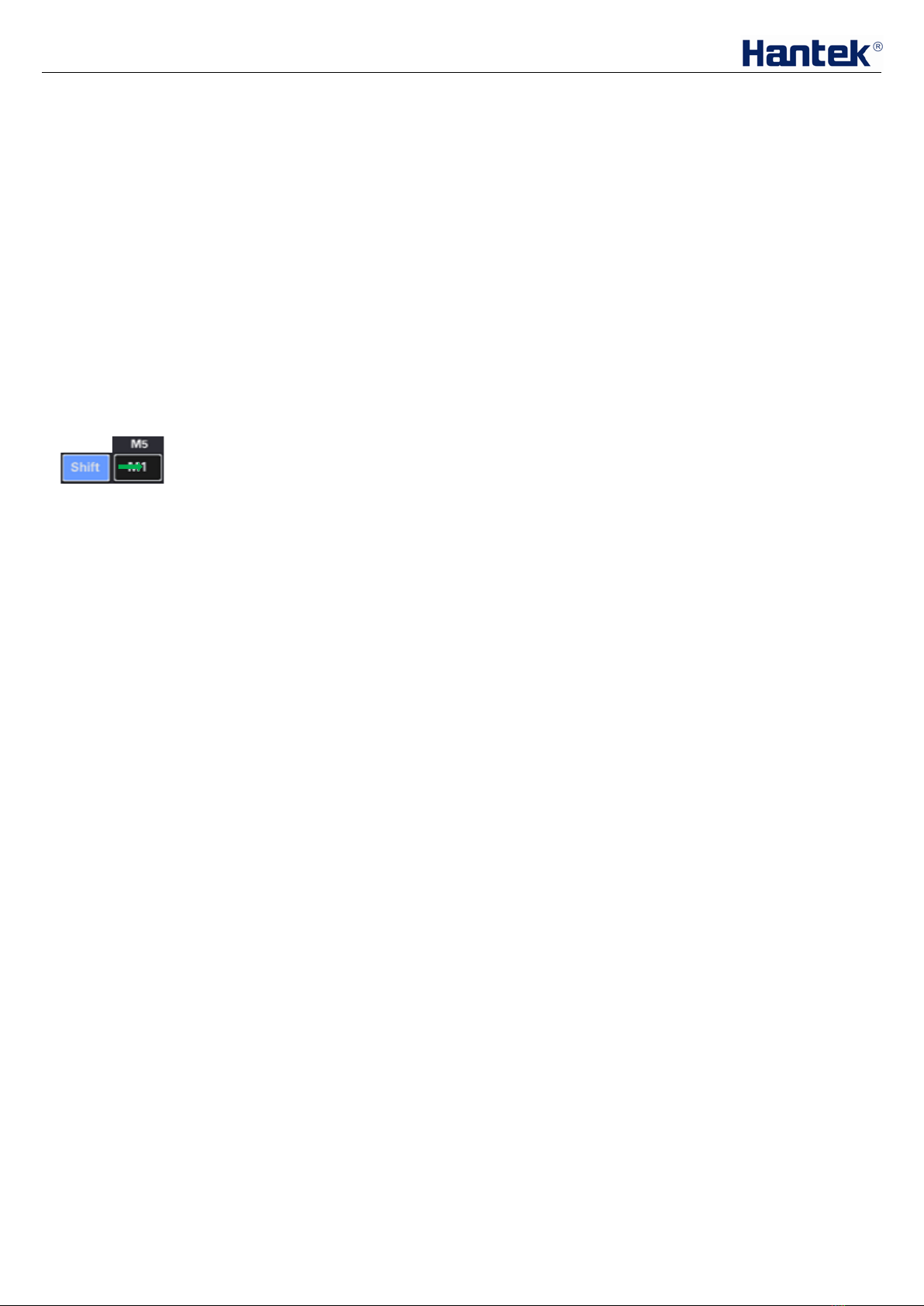

pressing this key.For example, if you press and
release [Shift] before pressing [M1], you will access
M5 function:
5 ON/OFF: Enables or disables output.
6 Output Terminal
Positive output terminal (red): Connect to the
positive terminal of the load.
Negative output terminal (black): Connect to the
negative terminal of the load.
Ground terminal (green): Connect to the chassis or
ground cable (ground terminal of power cable).
7 USB Quick Charge Port
The output voltage of USB quick charge ranges from
5V to 12V, providing a maximum output power of 18
W. The USB quick charge automatically adjusts the
output voltage and currentaccording to the identified
quick charge protocol. Typical output voltagesand
currents are 5V@3.4A, [email protected], and 12V@1.5A.
When charging an electronic device that does not
have quick charging function, charging will be
provided at standard 5V.
USB quick charge provides input overvoltage and
undervoltage protection, output overcurrent,
overvoltage, undervoltage, short circuit protection
and other functions.
The quick charge indicator lights up when the quick
charge request voltage is not 5V, that is, it lights up
when the request voltage is higher or lower than 5V.
8 Keyboard Lock: Press the key, the indicator will light
up, and except this key and [ON/OFF]key,all keys
and knobs are disabled. Press the key again and all
keys and knobs are restoredto use.
9 Current Adjustment Knob
Press down the knob to enter the setting mode with
the digit flashing.Press the knob several times in
succession to change the flashing digit.Turn the
knob clockwise to increase the value, and turn the
knob counterclockwise to decrease the value.
10 OCP (Over Current Protection)
Press the [OCP]keyto turn on the OCPfunction,and
the indicator will be on. Press the [OCP]key again to
turn off the OCP function, and the indicator will be
off.Long press the [OCP]key to enter the setting
mode and use the current adjustment knob to
change the OCP setting value.When the actual
output current is higher than the OCP setting value,
the protection function is triggered, the screen
displays "-Er OCP-", and the output is forcibly turned
off.However,the [ON/OFF] indicator is not turned off,
you can press the [ON/OFF]key to clear the error
and turn off the indicator.
11 Voltage Adjustment Knob: The same as the
current adjustment knob.
12 OVP (Over Voltage Protection)
Press the [OVP]key to turn on the OVPfunction, and
the indicator light will be on. Press the [OVP]key
again to turn off the OVP function, and the indicator
light will be off.Long press the [OVP]key to enter the
settingmode and use the voltage adjustment knob to
change the OVP setting value.When the actual
output voltage is higher than theOVP setting value,
the protection function is triggered, the screen
displays "-Er OVP-", and the output is forcibly turned
off, but the [ON/OFF] indicator is not turned off.
Press the [ON/OFF]key to clearthe error and turn off
the indicator.
13 CC (Constant Current Output): In the constant
current output state, the CC indicator light is on.
14 Keyboard Lock Sign: Press theKeyboard Lock
key, the light will be on.In keyboardlock mode,
except Keyboard Lock key and [ON/OFF] key, all
keys and knobs are disabled. PressKeyboard Lock
key again and all keys and knobs are restored to
use.
15 CV (Constant Voltage Output): In the constant
voltage output state, the CV indicator light is on.
V. Rear Panel
2

VI. Safety Instructions
1 Check the AC Voltage Gear
The HDP135V6 power supply supports two
specifications of AC powerinputs(115VAC or
230VAC).Before use, the user should check the gear
of the AC voltage selector on the rear panel of the
power supply, and the input voltage should be within
the range allowed by the gear (±10%).
2 Check the Fuse
The instrument has been installed with fuse of
specified specification at delivery.Before use, please
check whether the fuse model matches the AC
voltage gear.If the fuse does not match or is blown,
replace the fuse according to the specification.
Procedure for replacing a fuse:
1. Turn off the power supply and remove the power
cable.
2. Take out the fuse holder.
3. Remove the fuse and install a new one.
4. Take the fuse holder back into the slot.
3 Connect the AC Power Supply
Use the power cable provided in the accessories to
connect the instrument to the properly grounded AC
power supply.
To avoid electric shock, please make sure that the
instrument is properly grounded.
4 Startup
Press the power switch to start the instrument. The
display screen will be lightened up.
VII. RS232 Remote Control
Only HDP135V6S supports RS232 communication.
To use RS232 for remote control, please log in to the
following website to download:
http://hantek.com.cn/products/detail/12272
Or scan the QR code below to enter the website:
VIII. Troubleshooting
1 If the AC power supply voltage is normal and the
display screen does notlight after the startup,it may be
a fuse blown or other faults.Turn off the instrument,
disconnect the power cable, replace the fuse, or ask a
professional for inspection and repair.
2 For constant voltage output, if the output voltage is
less than the setting value and the CC light is on, which
indicates that the instrument is in current protection.
Itwill automatically switch to constant current output
state. At this time, check the load or increase the
maximum current according to the use situation.
3 For constant current output, if the output current is
less than the setting value and the CV light is on, which
indicates that the instrument is in open circuit voltage
protection. It will automatically switch to constant
voltage output state. At this time, check the load or
increase the maximum voltage according to the use
situation.
4 If the fault persists, please contact Hantek.
IX.Packing List
1 One Power Supply
2 One Power Cable
3 One AlligatorClip Test Line
4 Certificate of Conformity
