Hanwei Alc Smart AT8100 User manual

AT8100
HENAN HANWEI ELECTRONICS CO.,LTD
Address: No.169, Xuesong Rd, National High-tech Zone, Zhengzhou, 450001, China
Service Tel：[phone]/80
Fax: [phone]
Service E-mail: [e-mail]
Website: http://www.hwsensor.com
AT8100
HENAN HANWEI ELECTRONICS CO.,LTD
Address: No.169, Xuesong Rd, National High-tech Zone, Zhengzhou, 450001, China
Service Tel：[phone]/80
Fax: [phone]
Service E-mail: [email protected]
Website: http://www.hwsensor.com HW120401146

Content
1. SUMMARY.............................................................................................................. 1
2. INDICATION OF CONFIGURATION AND FUNCTION ............................................1
2.1. CONFIGURATION................................................................................................. 1
2.2. DISPLAY ............................................................................................................2
3. MAIN TECHNIQUE PARAMETER........................................................................... 2
4. OPERATION INSTRUCTION.................................................................................. 2
4.1. POWER ON ........................................................................................................2
4.2. POWER OFF.......................................................................................................3
4.2.1 manual power off.......................................................................................3
4.2.2 power saving off........................................................................................3
4.2.3 low battery power off................................................................................. 3
4.3. TEST.................................................................................................................3
4.4. PRINT ...............................................................................................................3
5. TEST RECORD....................................................................................................... 4
6. SETUP....................................................................................................................4
6.1.TIME..................................................................................................................4
6.2. UNIT .................................................................................................................4
6.3. PRINT ...............................................................................................................4
6.4. PASS ................................................................................................................5
6.5. FAIL..................................................................................................................5
6.6. OPERATOR........................................................................................................5
6.7. PASSWORD .......................................................................................................5
6.8. DELETE............................................................................................................. 5
6.9. TEM.SCALE .......................................................................................................5
6.10. NEXT CAL .......................................................................................................5
7. RECORD UPLOAD................................................................................................. 5
8.BATTERY CHANGE.................................................................................................6
9. ORDINARY FAULTAND SOLUTION.......................................................................6
10. PRECAUTION....................................................................................................... 6
11. ACCESSORIES.....................................................................................................6

AT8100 Alcohol Tester operation manual
1
1. Summary
AT8100 is an advanced portable Breath Alcohol Tester. Its core component adopts new
Electrochemical Sensor which can measure accurately concentration of the breath alcohol,
with strong anti-interface ability. AT8100 has compact keyboard and menu operation. The
admirable human-device interface makes operation more concise and convenient, the color
LCD makes interface more clear and beautiful. It also has bluetooth printing function, one-off
anti-return mouthpiece ensures the health and safety of users
Main functions and futures:
Adopt advanced 16 bit low power consumption MCU
Electrochemical sensor, good reliability and accuracy
Color LCD indication
Passive test function
Wireless printing function
Real time and temperature indication
Two level audible and visible alarm indication
Low battery automatic power off function
Blowing interruption and testing rejection function
Unit and alarming level adjustable
History record checking
2000 memory records, including test time, result and types of result
Testing data upload to PC function
Password management, important operation requires verification of password
Short warm-up time, fast response and resume
Adopt anti-return mouthpiece for health and safe
2. Indication of configuration and function

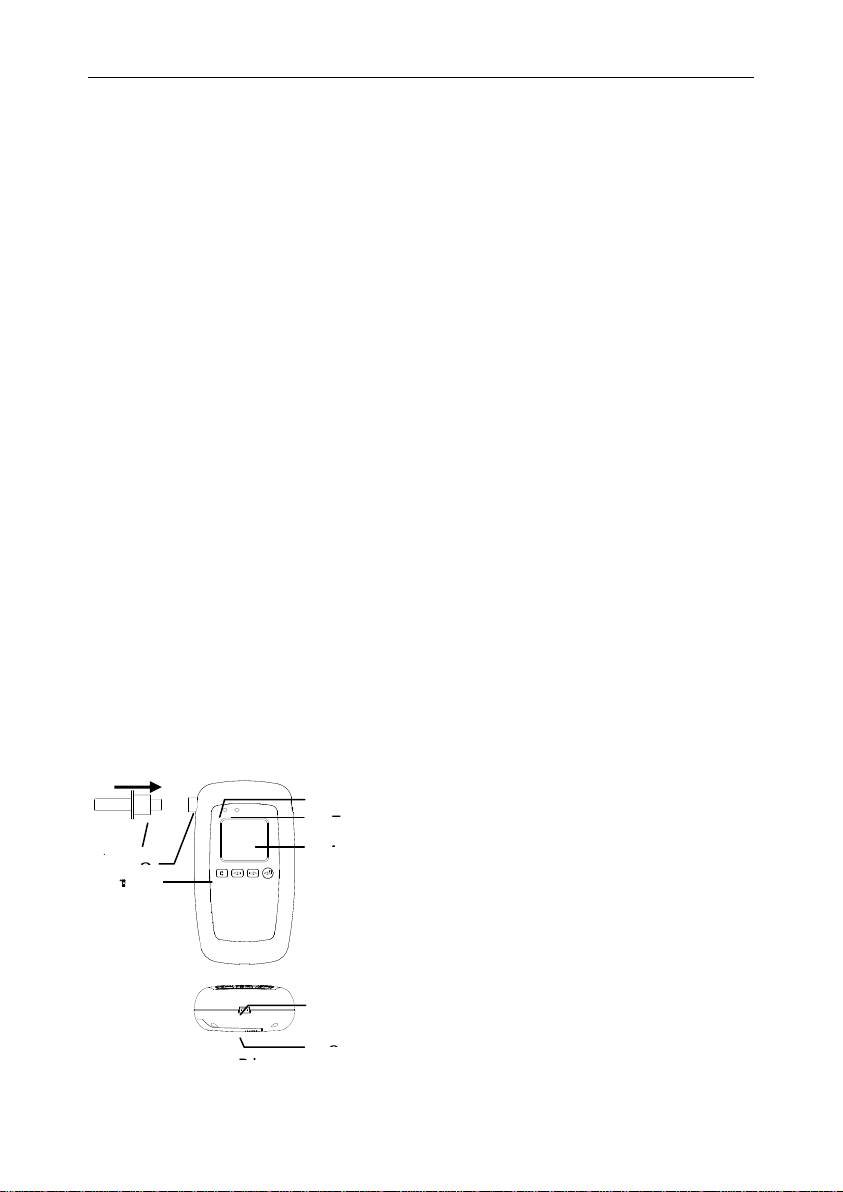

2.1 Configuration
1
2
3
4
5
6
7
8
Pi
c
1
2
5
1
1
2
3
4
5
6
7
8
Pi
3
4
6
7
8
Pic1

AT8100 Alcohol Tester operation manual
2
2.2 Display
1. Time, temperature and indication of battery
2. Information indication
3. key-press indication, indicate currently function of 【C】button, button
3 Technical specifications:
Sensor type: Electrochemical sensor
Test Range: 0.000～2.000mg/l (0.40%B.A.C, 4.0‰B.A.C, 4.0g/l)
Pass level: 0.090mg/L (could be modified)
Fail level: 0.250 mg/L (could be modified)
Work temperature: 0℃～50℃
Work humidity: ＜95%RH （No Dews）
Battery: 2×AA NiMH batteries, rating capacity: 2.1AH
Dimension l×b×h: 122×67×31mm
Weight：about 120g（excluding battery）
Table 1 Allowable error
Alcohol gas concentration range C（mg/L）
Error
C＜0.400
±0.032 mg/L
0.400≤C＜1.000
±8%
C≥1.000
±30%
Table 1 the allowable error in the process of detecting
4. Operation instruction
4.1 Power on
Press the button, the tester is powered on, and it will make the self-check
automatically, with a buzzer ringing, the red and green indicator light will on and off in turn,
the screen shows product type and version number. After self checking, tester enters into the
main interface. (Table 2)
1
Mouthpiece
4
Display
7
Communication port
2
Mouthpiece hole
5
Alarm indicator
8
Battery cover
3
Keyboard
6
Operation indicator
1
2
3
Pic 2

AT8100 Alcohol Tester operation manual
3
4.2 Power off
4.2.1 Manual power off
In the power on mode, press button at least 1s, the tester will be powered off.
Choose
E
E
Ex
x
xi
iit tt
with
M
M
Me
e
en
n
nu
u
u
interface, then press “” button to confirm power off.
4.2.2 Power saving off
The tester will be powered off if without any operation for more than 3 minutes at main
interface.
4.2.3 Low battery power off
The tester will be powered off if the battery is too low, please take out the battery and
recharge or store them.
Indication of battery icon
Full battery capacity
Low battery capacity
Partial battery capacity
Short of battery capacity, recharge it timely
4.3 Test
As indicated in picture 1, put on a clean one-off mouthpiece. As picture 2, press button
in the main interface, the screen will show Waiting, take a deep breath till the screen
indicates “Blow Now”, blow equaly to the mouthpiece in the uniform continuity way till when
hearing a ring.
The screen will display “Processing” when blowing finished, remind that the tester is
analyzing the breath gas sample. Do not blow at that moment, otherwise the result will be
influenced.After the analysis, the screen displays concentration value and the follow several
test types:
（1）Normal: After testing finished, if the testing result is under the pass level,
concentration value will indicate “Clean”.
（2）Pass: After testing finished, if the testing result reaches the pass level,
concentration value will indicate “Pass”, and buzzing at the same time.
（3）Fail: After testing finished, if the testing result reaches the fail level, concentration
value will indicate “Fail”, and buzzing at the same time.
（4）Passive test: If tester didn’t fit test or have ability to test, being taken a passive test.
When the screen indicates “Blow Now”, take the mouthpiece off and the hole of
blowing aim to the tester’s nostril. After 2s, press button to enter into
passive test status. The screen indicates “Passive” and the result after analysis.
（5）Test rejection: the tester will buzz and indicate “Rejected？” without blowing after
indicating “Blow Now” for 30s, meanwhile, press 【C】button to return to “Blow
Now” mode, press button enter into display for result, and indicate
“Rejected”.
In the display of result mode, Press button to save result and enter into printing
interface, press 【C】button to cancel saving and return to the main interface.
4.4 Print
Press button to enter into the printing interface in the display of result mode. The screen

AT8100 Alcohol Tester operation manual
4
indicates “Print?”, press button to print result when there is the workable wireless printer,
press 【C】button to cancel printing and return to the main interface.
5 Test Record
Press 【C】button to enter into Menu interface. Choose 【Record】by pressing and
button, and press button to enter into the records interface. Press or
button look over, and press button to print the present result record, press 【C】
button to return to the main interface.
6 Setup
Press【C】button to enter into menu interface, choose【Setup】by pressing or
button, and then press button to enter the submenu. The submenu involves Time、Unit、
Print、Pass、Fail、Operator、Password、Delete、Tem. Scale、Next Cal, choose the option
you want to setup by pressing or button, press button to enter into
relative option operation or password input interface. All the options should input password
to have operational authorization except “Time”、“Unit”、“Tem. Scale”、“Next Cal”
Input method of password: press button to regulate the size of value in the
password input mode, change the numbers by press it every time till indicating the number
you need, press button to start the next number input. During the process,
press button to cancel the number you choose, press button to enter into option
operational interface. The original password of the tester is 000000.
6.1 Time
Press button to shift and choose the input location in the time setup mode. The
chosen input location indicates in the opposite color.Adjust the chosen value by button,
after adjustment, press button to save it, the system will accept the new time.
6.2 Unit
Press or button to choose the appropriate unit in the unit option mode, and
press to save it. The Pass value and Fail value will update in the new and past unit
conversion relation after modification of unit.
6.3 Print
Input correct password in the password input mode, and press button to enter into the
printing page setup interface, adjust the page numbers by pressing or button,
and then press button to save it. The printing page range is 1~3 pages.

AT8100 Alcohol Tester operation manual
5
6.4 Pass
Input correct password in the password input mode, then press button to enter into the
“Pass Value” setup interface. Press or button to adjust the pass value, and
press button to save it.
6.5 Fail
The setup method is the same as “6.4 Pass”.
6.6 Operator
Input correct password in the password input mode, then press button to enter into the
interface of register personnel number, the specific input method is the same as the above
“password input method”. After the input is over, press button to save it.
6.7 Password
Input accurately the former password in the password input mode, then press button to
enter into New Password input interface. After input the new password as the above
“Password input method”, press button to save it. Please clearly remember the new
password after modification.
6.8 Delete
Input correct password in the password input mode, press button and the screen
indicates “Delete all？”, meanwhile, press button to delete all the history records, press
【C】button to give up the deleting. The screen will indicate “No records” and return to the
main interface without history record.
6.9 Tem. Scale
This tester possesses “℃”and“℉”, the function of two temperature unit switch. Press
or button to switch the temperature unit after entering the “Tem. Scale” interface.
When switching the appropriate unit, press button to save it, and the temperature
value in the main interface will transfer to the new unit at this moment.
6.10 Next Cal.
Enter into this option to look over the date of calibration last time and the days for the next
calibration.
7. Record upload
This function is able to upload the test data to the computer for preparation management
with software. The upload step as follows:
Notice: As “Delete” operation will delete all the history records entirely and can not
revert, please be cautious to operate.

AT8100 Alcohol Tester operation manual
6
Connect the port of tester communication data with computer by the USB data cable, open
the computer and operate the coordinate data management software.
（1）Turn on the tester, operate the data management software in the stand-by mode.
Notice: data upload must operate in the stand-by mode, do not operate the tester
during the process in case of mistakes of uploading.
（2）Confirm the data backup to the computer, then turn off the tester.
8. Battery change
When the tester reminds low battery, or it can not work properly because of low power,
please change batteries in time.
9．Faults and solutions
Fault Description
Possible Reason
Solutions
Unable to turn on the tester
Low battery
Change batteries in time
Circuit fault
Contact with dealers or
manufacturer
Wrong Display
Expired sensor
Contact with manufacturer to
replace the battery
Over the specified
working conditions
Please be used in specified
conditions
Long time no calibration
Calibrate the tester
Wrong Time Display
Wrong time setup
Reset the time
Electromagnet
misoperation
No calibration for
pressure sensors
Calibrate pressure sensors again
10 Precaution
Please read the manual carefully and follow the instruction before your testing.
To ensure the real testing result, please wait 15 min to take the testing after drinking.
The calibration of the tester should not be longer than 6 months for ensuring the
accuracy of tester.
Please do not blow smoke to the tester directly, otherwise the tester will be damaged.
After storing for long time, the first test of tester may have errors.
Avoid using the tester when environmental temperature exceeds its specified range.
Avoid any high crash or strenuous vibration.
Any application or fault beyond this manual, please contact with manufacturer or
dealer for solutions.
11 Product accessories
Tester accessories include following:
1pc tester, 1pc printer（optional）, 1pc charger of printer（optional）,
1pc manual, 1pc inspection report, 1pc communication CD,
1pc data communication cable, 10pcs mouthpieces.
