Happy Industrial Corporation C User manual

BDL901-8
INSTRUCTION BOOK
HCS c
Computerized Compact Single Head Embroidery Mac ine
Original instructions

-BD -3
INDEX
IMPORTANT SAFETY INSTRUCTIONS.. 1-1
WARNING LABELS & THEIR LOCATIONS ..... 1-2
SETTING UP THE MACHINE
Remove the machine from box............... 2-1

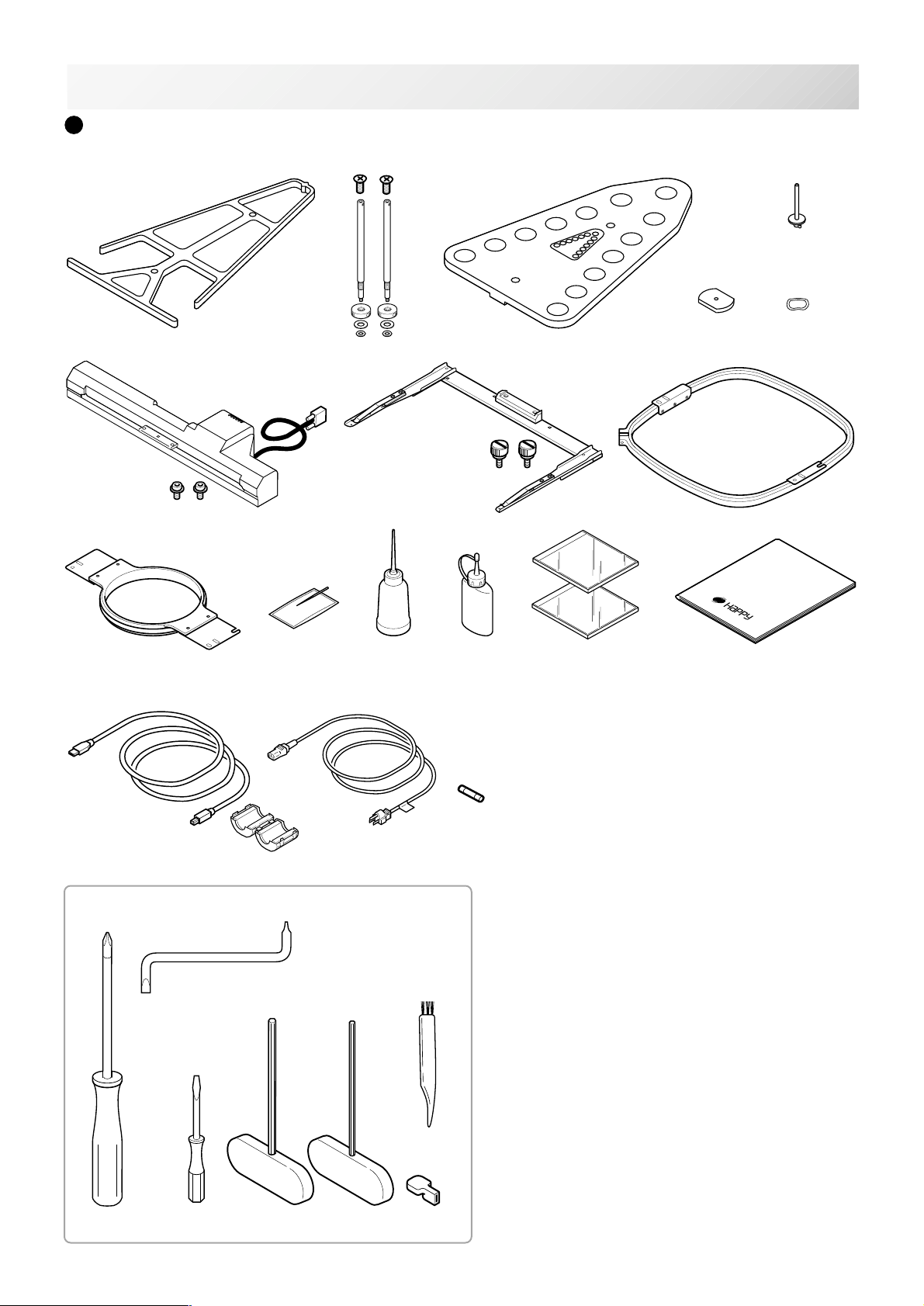

Accessories ............................................ 2-2

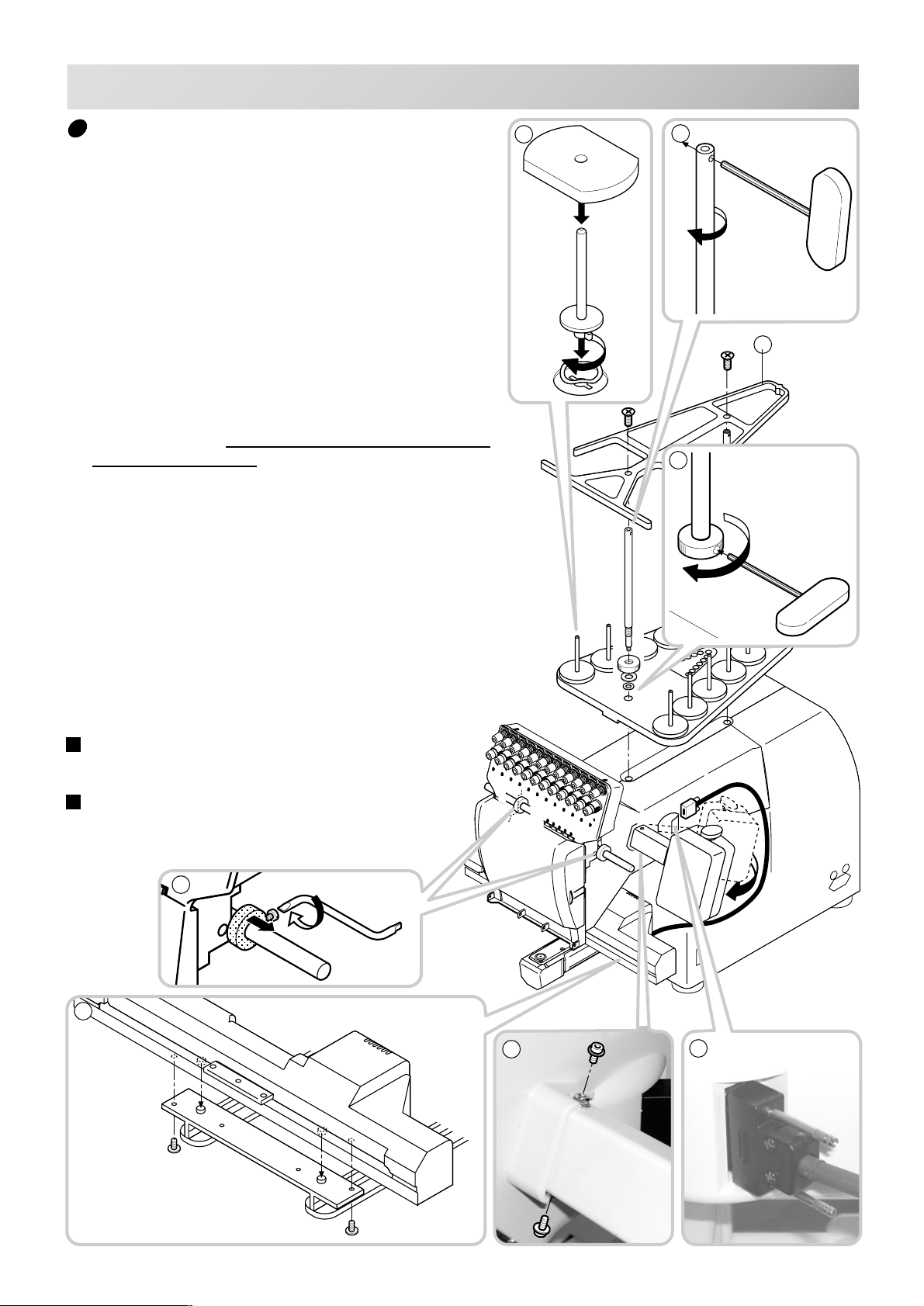

Assemble machine unit .......................... 2-3
Machine installation ................................ 2-4
Grounding instruction ............................. 2-6
Disposal of a battery............................... 2-6
MAIN PARTS ............................................ 3-1
HOW TO READ THESE INSTRUCTIONS ............. 3-3
MESSAGE ................................................ 3-4
TURNING THE MACHINE ON
How to turn on the machine.................... 3-5
Display contrast ...................................... 3-6
Calendar and clock setting ..................... 3-7
THE CONTROL BOX................................ 3-8
DRIVE MODE ........................................... 3-A
DRIVE MENU............................................ 3-B
MENU........................................................3-C
GUIDE.......................................................3-D
INSERTING A NEEDLE............................ 4-1
SELECT NEEDLES AND THREADS....... 4-2
BACKING MATERIALS............................. 4-3
BOBBIN WINDING
Winding the bobbin................................. 4-4
Removing the bobbin.............................. 4-5
Inserting the bobbin ................................ 4-5
Adjusting bobbin thread tension ............. 4-5
Inserting the bobbin case ....................... 4-5
THREADING THE MACHINE
How to thread upper thread.................... 4-6
BASIC MODE............................................ 4-8
MACHINE SETTINGS............................... 5-1
PREPARATION OF PATTERN DATA
Connecting to a PC by Serial or USB connection... 5-4
Reading embroidery pattern data from
the PC .......................................................... 5-4b
Reading embroidery pattern data from
Memory media reading........................... 5-6
Read pattern data in PC ........................5-7b
How to select patterns from memory...... 5-A
Erasing patterns from memory ............... 5-B
Erasing all designs .................................5-D
NEEDLE BAR SELECTION ...................... 5-E
SEWING WITH TUBULAR FRAMES
Installing and removing the frame base.. 6-1
How to hoop ........................................... 6-2
Putting the hoop on the machine............ 6-3
Starting to embroider .............................. 6-4
CAP FRAME (OPTION)
Changing the needle plate...................... 7-1
Installing and removing the cap drive frame... 7-2
Normal cap frame ................................... 7-5
Wide cap frame ...................................... 7-8
Starting to embroider .............................. 7-B
ADJUSTING THE THREAD TENSIONS .. 8-1
ADJUSTING THE LASER POINTER (OPTION)... 8-2
SEWING
What to do if the thread breaks while sewing. 9-1
Stopping and resuming sewing .............. 9-1
Loss of power while embroidering .......... 9-2
Moving the hoop while embroidering and then returning to
the correct location (Position) .......................................
9-3
Moving back to the starting point (Origin)9-3
Going back to the beginning of the design (Top) .... 9-4
Placing the design in the center of the selected
embroidery frame
(Center) .................................. 9-4
Rotating and mirroring designs (Convert) .. 9-5
Starting in the middle of a design (Position)... 9-6
DISPLAYING THE PATTERN IN SETTING MODE. 10-1
HOW TO SEE THE EXPLANATION OF MENU ...... 10-2
0_1 L901
0-1

-BD -4
INDEX
0_2 K101
0-2
PATTERNS IN MEMORY
Locking pattern data ............................. 11-1
Trace type............................................. 11-2
Export ................................................... 11-3
Renaming patterns ............................... 11-5
Copying pattern data ............................ 11-6
PATTERN SETTINGS ............................ 12-1
Scaling.................................................. 12-2
Width adjustment.................................. 12-3
Angle .................................................... 12-4
Repeat sewing...................................... 12-5
Auto origin ............................................ 12-7
Offset.................................................... 12-8
Frame out ............................................. 12-D
NEEDLE BAR SELECTION .................... 13-1
Auto setting........................................... 13-2
Thread color ......................................... 13-3
Color change data registration ............. 13-5
Color change data read ........................ 13-6
Repetition of color group setting........... 13-7
READING
Join....................................................... 14-1
Pattern read settings ............................ 14-4
Restoring settings................................. 14-7
MACHINE SETTINGS
Initialization of setting ........................... 15-1
POSITION ............................................... 16-1
Piece number ....................................... 16-2
LOCATE.................................................. 17-1
Entry ..................................................... 17-2
Return................................................... 17-3
LETTER .................................................. 18-1
DATA EDIT
Stitch selection ..................................... 19-1
Zoom in for the display ......................... 19-4
Zooming rate ........................................ 19-5
Function code ....................................... 19-6
Insert stitch•Erase stitch ....................... 19-8
Finish editing .........................................19-A
FRAME CONFIRMATION....................... 20-1
Tubular round frame, Tubular square frame 20-2
Cap frame............................................. 20-4
User-defined frames (No.130 ~ 135).... 20-7
User-defined frames (No.136 ~ 150).....20-A
How to change center point of frame
(No.131 ~ 135, No.136 ~ 150)............... 20-J
Non registered ....................................... 20-L
OTHER SETTINGS
Create network ..................................... 22-1
Version information............................... 22-3
Report................................................... 22-4
SPECIFICATIONS • MAINTENANCE
Specifications ....................................... 23-1
Oiling .................................................... 23-1
Cleaning of rotary hook
Cleaning of thread cutting knife ............ 23-2
ERRORS AND WHAT TO DO ................ 24-1
INITIALIZING OF MACHINE SETTINGS
Re-Initialization of machine system ...... 25-1
Initializing of machine speed ................ 25-2
HELPFUL HINTS .................................... 26-1
EMBROIDERY TERMS .......................... 26-2
BUILT-IN FONT LIST.............................. 26-3

-CS -3
IMPORTANT SAFETY INSTRUCTIONS
1_1 F201
1-1
When using an electrical appliance, basic safety precautions should always be followed, includ-
ing the following.
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
1. An appliance should never be left unattended when plugged in. Always unplug this appliance
from the electric outlet immediately after using and before cleaning.
WARNING -To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Do not allow to be used as a toy. Close attention is necessary when this appliance is used
by or near children.
2. Use this appliance only for its intended use as described in this manual. Use only attach-
ments recommended by the manufacturer as contained in this manual.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water. Return the appliance to the nearest
authorized dealer or service center for examination, repair, electrical or mechanical adjust-
ment.
4. Never operate the appliance with any air openings blocked. Keep ventilation openings of the
sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
8. To disconnect, turn all controls to the off (“0”) position, then remove plug from outlet.
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
10.Keep fingers away from all moving parts. Special care is required around the sewing ma-
chine needle.
11.Always use the proper needle plate. The wrong plate can cause the needle to break.
12.Do not use bent needles.
13.Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
14.Switch the sewing machine off (“0”) when making any adjustments in the needle area, such
as threading needle, changing needle, threading bobbin, or changing presser foot, etc.
15.Always unplug sewing machine from the electrical outlet when removing covers, lubricating,
or when making any other user servicing adjustments mentioned in the instruction manual.
SAVETHESE INSTRUCTIONS

-CS -6
WARNING LABELS &THEIR LOCATIONS
1_2 K101
1-2
Trapping hazard
Shut the cover when starting the machine.
Do not put hands in while the machine is running.
Trapping, Puncture, Cut hazard wherever this
label is found
Power Supply Voltage sticker
Risk of electrical shock and fire if the power
recommendations on this label are ignored!
Make sure that the power supply meets the exact
specifications as provided by the manufacturer.
Shock hazard on all electrical components
Injury risk on moving head(s)
Keep hands away from the moving heads while the
machine is running.
Laser beam (Class 1)
Do not stare into the beam.
ES-HMF-5113-0
WARNING
Shut the cover when starting the
machine. Do not put hands in
while the machine is running.
Fearof serious injury.
ES-HMF-5117-0
CAUTION
Keep hands away from the
moving heads while the
machine is running.
Possibility of injury.
POWER CONSUMPTION 220W
50/60Hz
FREQUENCY
PHASE SINGLE
VOLTAGE 200-230V
AMPERE 1.1A
****
CAUTION: Injury risk on frame and carriage
Keep hands away from the drive
frame while the machine is
running.
Catch a finger in the X-carriage.
WARNING: Injury risk warning
for all needles
Keep fingers away from
the needles while
the machine is running.
Laser beam (Class 1)
CAUTION
Do not stare into the beam.

-BD -5
SETTING UPTHE MACHINE
2_1 K101
2-1
CAUTION: To prevent accidents.
The machine is quite heavy for one person to carry.
Please use two persons when unpacking or carrying.
CAUTION: To avoid problems.
Make sure to hold bottom of the machine body when
removing from the box.
Do not hold any other place. (bed, moving head,
control box etc.).
We recommend unpacking should be done where it has enough room.

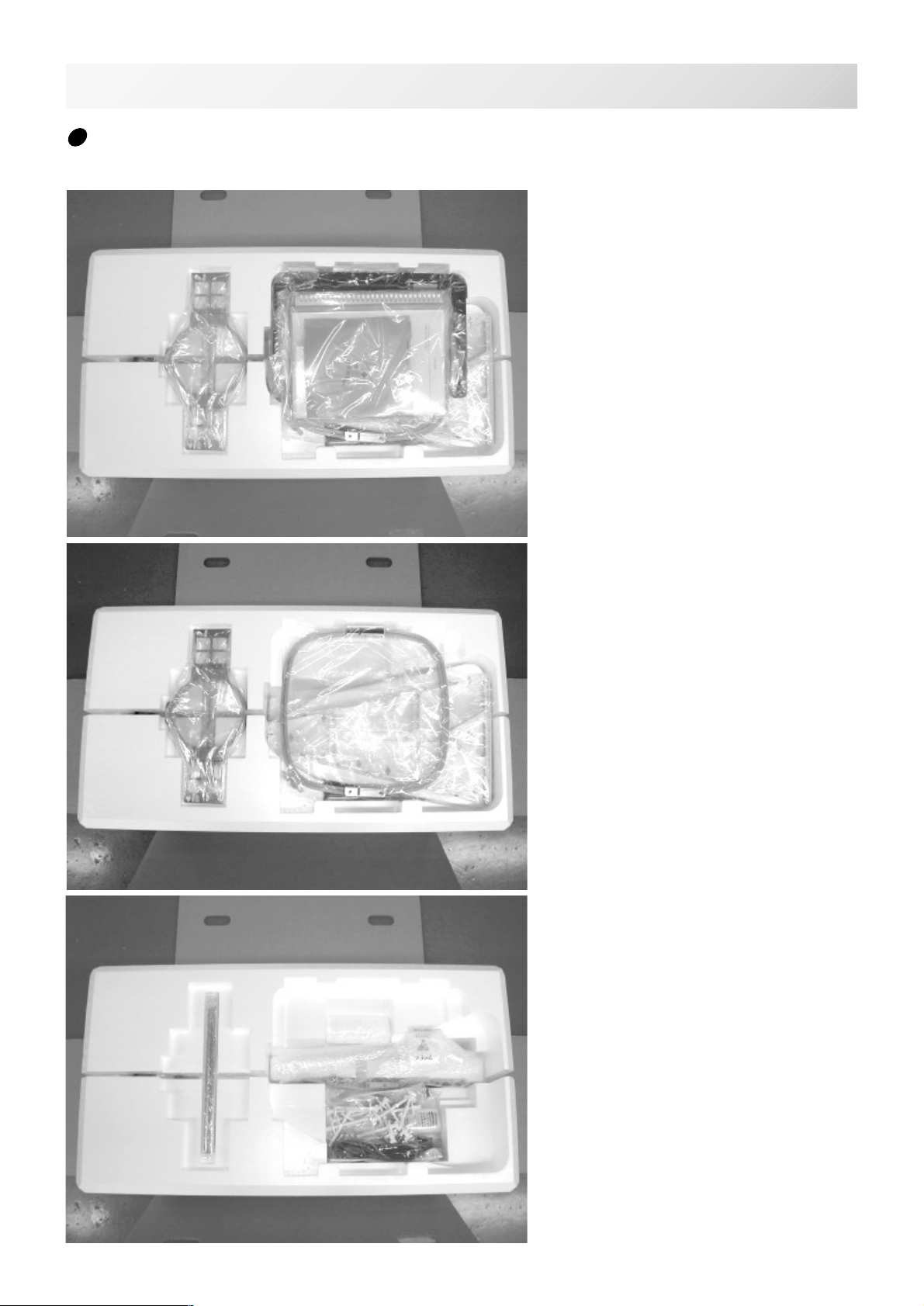

Remove the machine from box
1. Remove 2 straps from the carton.
2. Lift the box (upper) to remove.
3. Take out the accessories.
Refer to the next page.
4. Take out the styrene foam (right) and (left).
5. Take out the styrene foam (lower front),
(lower right), and (lower left).
Be careful not fall down the machine, tilt the
machine slightly when taking out the styrene
form (lower right) and (lower left).
6. Carry the machine to installation location.
Please keep those packing materials in
case of necessary for repair or other rea-
sons.
Packing procedure is the reverse from
unpacking procedure.
Straps
Box (upper)
Styrene foam
(lower front)
Styrene foam
(lower right)
Styrene foam
(lower left)
How to carry machine
The unpacked machine should be carried by 2 person with the hand position at mark shown
in photos. Right side Left side
The person holding
the machine from
left side need to
hold the machine
arm by right hand.
Styrene
foam (lright)
Styrene
foam (left)

-BD -6
SETTING UPTHE MACHINE
2_1b K101
2-1b
Placement of Accessories
Confirm all the accessories are contained when unpacking.
Frame base
CD-ROM
(Instruction manual, Parts list)
CD-ROM (HAPPY Link Software)
Instruction manual
Embroidery sample
Embroidery frame (Round)
Embroidery frame (Square)
Thread stand
Thread guide bracket
Carriage
Thread stand felt (13 pcs)
USB cable
Power line cord ass'y
Tool set
Needle (10 pieces)
Fuse (6A)
Oiler
Sewing machine oil
Thread guide pillar (2 pcs)
Thread stand pin (13 pcs)
Wave washer (13 pcs)

-CS -7
17 18 19
27
SETTING UPTHE MACHINE
Accessories
Please confirm you have received the following.
2_2 L510
2-2
1. Thread guide bracket
2. Thread guide pillar (2 pcs)
3. Thread stand
4. Thread stand felt (13 pcs)
5. Thread stand pin (13 pcs)
6. Wave washer (13 pcs)
7. Carriage
8. Frame base
9. Embroidery frame (square) PTA-32320-360
10. Embroidery frame (Round) PTA-15-360
11. Needle (DB X K5) (10 pcs)
12. Oiler
13. Sewing machine oil
14. CD-ROM (Happy Link)
15. CD-ROM (Instruction manual, Parts list)
16. Instruction book (How to open the CD-ROM)
17. USB cable
18. Power line cord ass'y (A shape will be changed
depending on a destination)
19. Fuse (6A)
20. Off set screw driver
21. #2 (+) Screw driver
22. 2 mm (-) Screw driver
23. 3 mm hexagonal driver
24. 2.5 mm hexagonal driver
25. Brush
26. Manual lever
27. Clamp filter
Tools
12463
78 9
10 11 12 13 15 16
20
21 22 23 24
5
25
26
14

-CS -8
12
3
4
5
6
Assemble machine unit
1. Insert the thread stand pin with wave washer on the
thread stand by turning clockwise, Then insert thread
stand felt.
2. Put the thread stand on to the machine and insert the
thread guide pillar.
(set nut knob nut into the thread guide pillar and 2
washers)
Turn the thread guide pillar clockwise with a 3 mm
hexagonal driver until tight.
Turn the knob nut clockwise with a 3 mm hexagonal
driver until tight.
3. Install the thread guide bracket with supplied screws
(pan head screw M6 x 10 2 pcs).
4. Loosen the screw with a offset driver and remove the
red shipping collars that are equipped on the both side
of the guide bar. (Keep the shipping collars. It is nec-
essary when packing.)
5. Put the carriage and carriage arm together with screw
(M4 X 8 2 pcs).
2 pins in the upper carriage arm will fit into holes on
the lower carriage.
6. Raise slowly the control box to the front then fix it with
2 supplied screws (M4 2 pcs).
7. Connect the cable of carriage to the machine with
fixed screw.
8. Install the arm for tubular embroidery. Please refer to
(page 6-1) "Installing and removing the frame base".
Or, Install the cap frame for the cap embroidery.
Please refer to (page 7-1) "Installing and removing the
cap drive frame".
When taking the machine apart in case of packing,
the process is opposite of assembling the machine.
Please do exactly the opposite way of assembling.
When packing the machine up for transportation,
be sure to select the sixth needle and fix it with
shipping collars on the both side of the guide bar.
2_3 I201
2-3
SETTING UPTHE MACHINE
7
2

-CS -7
Machine installation
1. Please use a stout table to set the machine
on.
Please check for any shaking or excessive vibrat-
ing of the machine table when the machine is
running.
If you have a problem, Please use a stronger
table for the machine.
2_4 D607
2-4
SETTING UPTHE MACHINE
350 mm 350 mm 720 mm
2. Please sit the machine level on the table.
3. Please be sure you have this much room
around your machine for it to move.
It is possible for the embroidery frame to hit you
and cause injury.

-CS -82_5 D607
2-5
SETTING UPTHE MACHINE
0 ~ 10 mm
4. Please be sure you have this much room around
your cap drive for it to move.
Please machine on the table positioning like right side
drawing.
5. Please do not sit the machine near any
kind of other electric equipment
(Examples: Microwave or electric tool).
Has possible to wrong movement of the
machine.
6. Please keep away from dusty and high mois-
ture environments.
Has case of rusting or damaging.
7. Please do not sit the machine in direct
sunshine or windy locations.
Has case of rusting or damaging.

-CS -11
Grounding instruction (for type of 120V)
This product must be grounded. In the event of malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. The conductor with insulation having an outer surface that is green with or
without yellow stripes is the equipment-grounding conductor. If repair or replacement of the cord
or plug is necessary, do not connect the equipment-grounding conductor to a live terminal.
Check with a qualified electrician or serviceman if the grounding instructions are not completely
understood, or if in doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product – if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
This product is for use on a nominal 120 V circuit, and has a grounding plug that looks like the
plug illustrated in sketch A in Figure. A temporary adaptor, which looks like the adaptor illus-
trated in sketches B and C, may be used to connect this plug to a 2-pole receptacle as shown in
sketch B if a properly grounded outlet is not available. The temporary adaptor should be used
only until a properly grounded outlet can be installed by a qualified electrician. The green col-
ored rigid ear, lug, and the like, extending from the adaptor must be connected to a permanent
ground such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be
held in place by the metal screw.
2_6 I916
2-6
SETTING UP THE MACHINE
Disposal of a battery
A battery is had built-in to this embroidery machine.
When you dispose of a battery, according to each country or a method determined in each area,
please dispose appropriately.
Metal screw
Cover of grounded
outlet box
Grounding pin
Grounding means
Grounding methods
Adapter
AB
C

-BD -5
MAIN PARTS
3_1 I201
3-1
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
20
23
24
25
26
27
21
14
22
1. Hook cover
2. Bobbin case
3. Hook
4. Needle plate
5. Thread check spring
6. Take-up lever cover
7. Take-up lever
8. Lower rectifier
9. Thread tension
10. Detecting roller
11. Minor thread tension
12. Thread guide support
13. Thread guide
14. Upper rectifier
15. Thread stand pin
16. Thread stand felt
17. Thread stand
18. Needle bar selection knob
19. Control box
20. Serial port
21. USB port (based on the USB)
22. LAN port
23. Frame base
24. Carriage
25. Fuse (6A)
26. Terminal box
27. Power switch

-BD -53_2 H711
3-2
MAIN PARTS

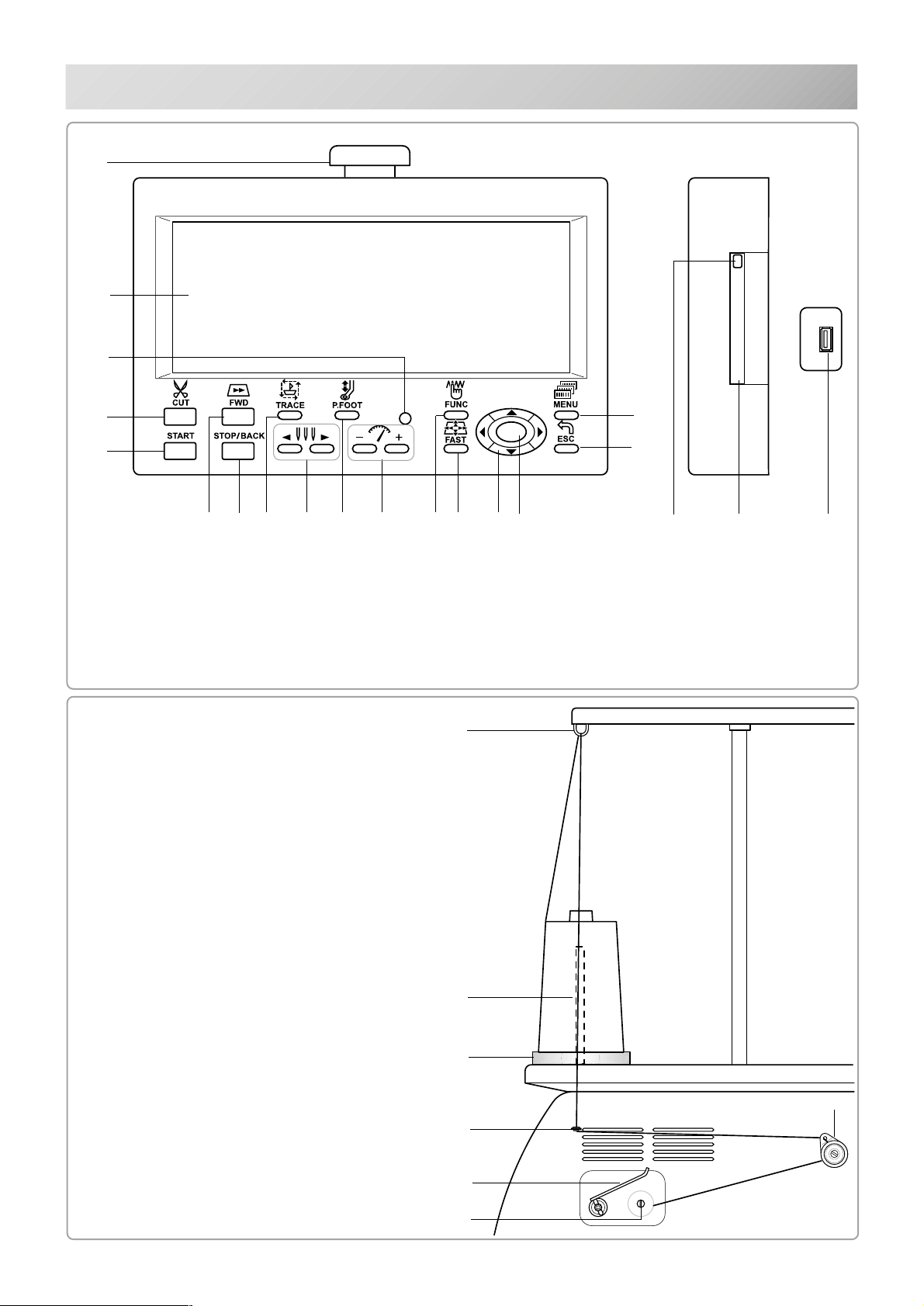

CONTROL BOX
28. Emergency stop
button
29. Display (L.C.D.)
30. Drive lamp
31. Forward button
32. Thread cut button
33. Start button
41. Arrow button (Up, Down, Left, Right)
42. Set button
43. Menu button
44. Escape button
45. Memory card eject button
46. Memory card slot
47. USB Memory port
34. Stop button
35. Trace button
36. Pressure foot button
37. Needle change button
38. Speed control button
39. Function button
40. Fast button
BOBBIN WINDING
(Option)
54
52
53
48
51
49
50
48. Upper Thread guide
49. Thread stand pin
50. Thread stand felt
51. Thread guide
52. Thread tension
53. Spindle
54. Lever
28
32
33
34 35 37
29
30
31
36 38 3940 41 42
43
SET 44
45 46 47

-CD -21
HOWTO READTHESE INSTRUCTIONS 3-3
3_3 K101
The instructions in this manual have been formatted as follows:
Written instructions will be provided on the left side of the page while graphics depicting the
necessary steps are provided on the right.
Graphics on the far right will show the display after performing the steps indicated.
1. When the machine is stopped, Press the
MENU
.
2. Select desired *menu with .
3. Press SET to show the selected menu.
Press
ESC
to return to the previous display. 3-3
Selected item
Order of operation
Indicates supplementary
explanation regarding a
given operation or action.
This indicates an
additional explana-
tion on an operation
elsewhere in the
manual for more
detail.
In the order of operation, this denotes
that the indicated keypress will cause
the display to change.
Operation key
AWords marked with a "*" are
explained in "EMBROIDERY
TERMS" at the end of this instruc-
tion manual.
CAUTION: To prevent accidents.
This will appear for items related to your safety.
CAUTION: To avoid problems.
This will appear for items related to potential problems.

-BD -6

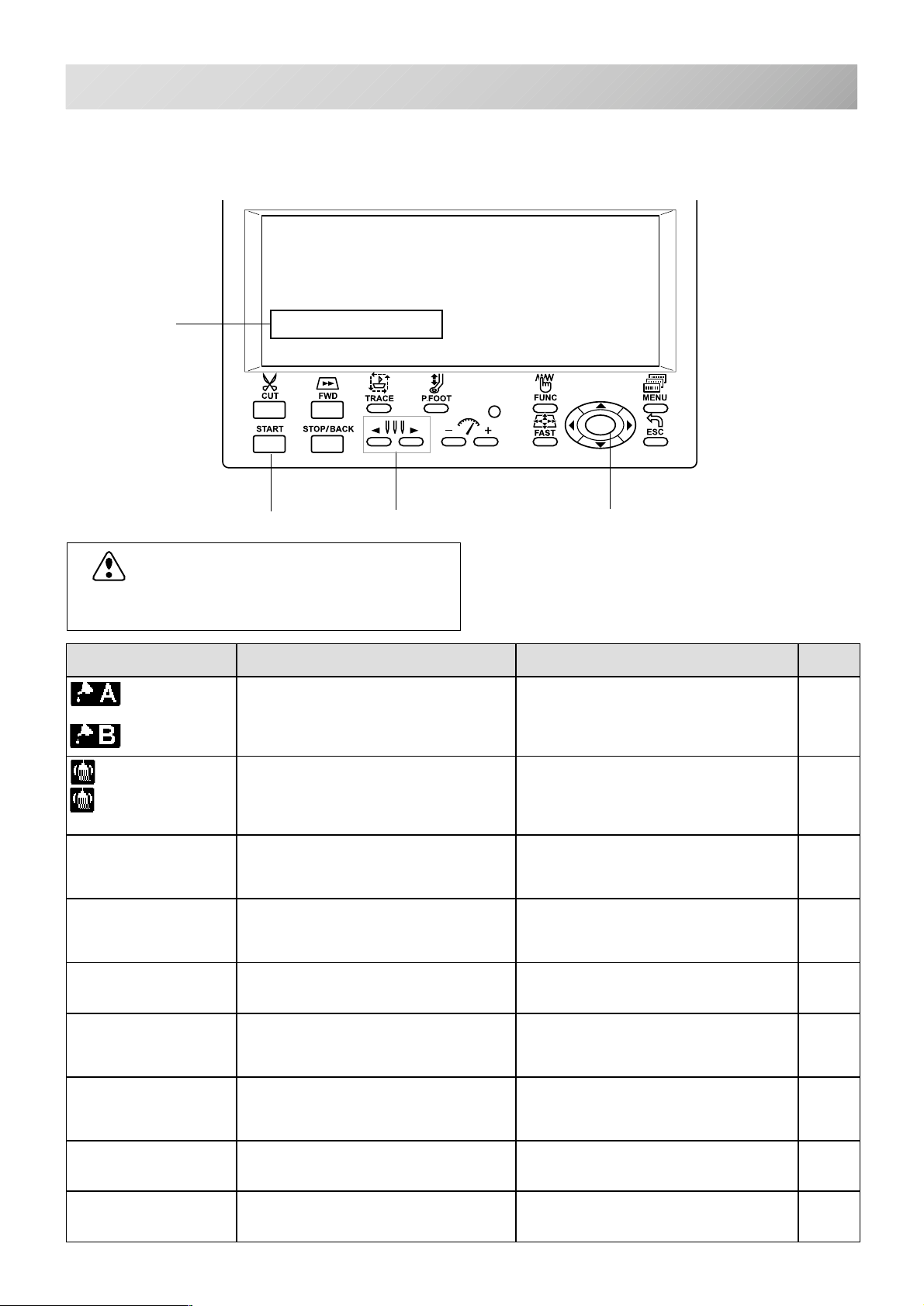

MESSAGE 3-4
3_4 H711
Below is a list of possible messages that may appear while operating the machine, along with
an brief explanation and suggested actions to take as a result.
EGASSEM NOITANALPXE NOITAREPO EGAP
liootecalP
yalpsidehtnoretteldetangiseD .detacirbuleboteudsi detacidninoitacolehtetacirbuL .BroAyb niegapdetacidniehtotrefeR tesehtsserpnehtlaunamsiht .nottub 1-32
fogninaelC koofyrator fogninaelC tucdaerht efink
ehtdnakoohyratorehtnaelC .efinkgnittucdaerht ehtninoitcurtsnihtiwnaelC ehtsserpnehtegapecnerefer .nottubtes 2-32
!evomemarF ezingocerotevomlliwemarF .noitisopemarflautcaeht ,nottubtesehtsserpuoynehW evomlliwemarfyrediorbmeeht suoiverpehtotnruterdna .noitisop
5-3
hctiwSpotS>> deppotssienihcamehT sawnottubpotsehtesuaceb ehtgnirediorbmeelihwdesserp .ngised
emuserotnottubtratsehtsserP .gniwes
dnE>> deppotssienihcamehT ehtdehsinifsahtiesuaceb .ngised
,niagangisedwesothsiwuoyfI nometidepoohylwenesaelp .nottubtratssserp&enihcam
potSegnahC>> uoyesuaceb,deppotsenihcaM egnahcroloctapotS"desu .noitcnuf"tniop
,nottubtratsehtsserpuoynehW txenehttceleslliwenihcameht gnirediorbmeemuserdnaroloc .yllacitamotua
?roloC>> ehtesuacebdeppotsenihcaM neebtonsahroloctxen .detceles
eldeentxentcelesesaelP noitceleseldeenybrebmun tratsehtsserpnehtnottub .nottub
kaerBdaerhT>> esuaceb,deppotsenihcaM .nekorbdaerhtnibbobroreppu rodaerhtreppudaerhtesaelP sserpnehtdaerhtnibbobkcehc .gniwesemuserotnottubtrats
dneecarT>> deppotssienihcamehT ehthtiwdehsinifsahtiesuaceb .ecartngised
.KOfinottubtratsehtsserP4-6 C-7
Start button Needle selection button
Message
Set button
SET
>>Stop Switch
CAUTION: To prevent accidents.
The embroidery frame may move. Please
keep hands clear for your safety.

-BD -10
TURNINGTHE MACHINE ON
How to turn on the machine
1. Connect the power cord to the inlet on the
right side of the machine.
2. Connect the power plug to an electrical
outlet.
3. Turn on the power switch.
Please confirm the emergency stop button has
been released.
Push the power switch firmly so it will remain on.
4. In case you do not need to change frame
type, press the SET button, go to step 7.
After the carriage and frame move slightly, the
embroidery frame will return to the previous
position automatically.
Opening Guide is displayed. 3-D
In case the setting of Opening Guide is "OFF",
display jumps to step 7. 3-E
In case you want to change frame type,
press the
FUNC
button.
3_5 K319
3-5
ON
OFF
Power switch
CAUTION: To prevent accidents.
The embroidery frame and carriage will move.
Please keep hands clear for your safety.
Do Not Show This Screen At Start.
MACHINE REFERENCE GUIDE : Choose a topic screen and press SET
: Exit
Basic mode is default setting of machine.
In case you want to use machine with Advanced mode, please enter machine setting and make
Operation mode "Advanced". 5-2
KEEP CLEAR:CARRIAGE WILL MOVE!
PRESS TO CONTINUE
:Change
Selected frame
PTA-*****
Y=***mm
X=***mm

-BD -11
TURNINGTHE MACHINE ON
3_5b K319
3-5b
DANGER: To reduce the risk of electric shock.
Never leave the machine unattended when plugged in.
Always unplug this machine from the electrical outlet immediately after use and before per-
forming any maintenance on it.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
To disconnect, switch the power switch to the off position, then remove plug from outlet.
If this menu appears on the screen
"Advanced mode" is selected.
To change to "Basic mode", please enter to
"MACHINE SETTING" and change mode to
"Basic mode". 5-2
5. Select the desired frame with and
press the SET button.
: Tubular round frame
: Tubular square frame
: Sock frame
: User-defined frame
: Non registered
6. Press up/down of to select desired
type of frame and press the SET button.
The display returns to the view of Step 3.
7. Press the ESC button.
Please proceed steps according to the instruc-
tion of "Basic mode" 4-8
In case you need to see explanation of item,
select desired item with and press SET .
3-D
In case previous design is not finished
completely and power machine off.
MAIN MENU : Chose a topic screen and press SET
Sewing is stopped.
Do you wish to continue with this pattern?
Pattern Name :[ 12:BIRD ]
Yes No
The READ screen is for importing designs from a flash card
Please ensure flash card is inserted first befor choosing this option.
:Frame Type :Frame Size :Set Frame
No Name Size(YxX)
61 PTA-12 110mm
62 PTA-15 140mm
63 PTA-18 170mm
64 PTA-21 200mm

-BD -12
TURNINGTHE MACHINE ON
3_6 K101
3-6
1. When the machine stopped, press
MENU
and Select "CONTRAST" with .
2. Press the SET button.
3. Adjust the contrast as desired by pressing
.
4. Press the SET .
The setting is fixed.
Display contrast
The contrast can be adjusted by following the procedure below.
If you Press the ESC you will return to drive
mode.
