Happy Industrial Corporation HCD2 User manual

D2N401-11
Computerized Single Head Embroidery Machine
INSTRUCTION BOOK
HCD2

-D2 -2
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.. 1-1
WARNING LABELS & THEIR LOCATIONS ..... 1-2
SETTING UP THE MACHINE
Assemble machine unit .......................... 2-1
How to carry machine............................. 2-2
Machine installation ................................ 2-2
Assemble safety sensor (Option) ........... 2-4
Assemble Wide X-carriage (Option) ......2-4b
Assemble table (Option) ......................... 2-5
Assemble border frame (Option) ...........2-5b
Assemble Expand side table (Option).............. 2-5c
Assemble bobbin thread guide (Option) . 2-6
Grounding instruction ............................. 2-7
Disposal of a battery............................... 2-7
MAIN PARTS ............................................ 3-1
HOW TO READ THESE INSTRUCTIONS ............. 3-3
MESSAGES .............................................. 3-4
TURNING THE MACHINE ON
How to turn on the machine.................... 3-5
Calendar and clock setting ..................... 3-7
THE CONTROL BOX................................ 3-8
DRIVE MODE ........................................... 3-9
GUIDE.......................................................3-D
INSERTING A NEEDLE............................ 4-1
SELECT NEEDLES AND THREADS....... 4-2
BACKING MATERIALS............................. 4-3
BOBBIN WINDING
Winding the bobbin (Option)................... 4-4
Removing the bobbin.............................. 4-5
Inserting the bobbin ................................ 4-5
Adjusting bobbin thread tension ............. 4-5
Inserting the bobbin case ....................... 4-5
THREADING THE MACHINE
How to thread upper thread.................... 4-6
MACHINE SETTINGS............................... 5-1
LOCK STITCHES.....................................5-3b
SEQUIN SETTINGS (Option) ..................5-3c
PREPARATION OF PATTERN DATA
Connecting to a PC ................................ 5-4
Reading embroidery pattern data from the PC 5-4b
Reading embroidery pattern data ........... 5-5
Selection of folders .................................................. 5-9
How to select patterns from memory...... 5-A
Erasing patterns from memory ............... 5-B
NEEDLE BAR SELECTION ......................5-E
SEWING WITH TUBULAR FRAMES
Installing and removing the frame holder arm.... 6-1
How to hoop ........................................... 6-2
Mounting the hoop on the machine ........ 6-3
Starting to embroider .............................. 6-4
CAP FRAME (option)
Cap frame settings in the control box ..... 7-1
Installing and removing the cap frame driver . 7-2
Normal cap frames ................................. 7-5
Wide cap frames..................................... 7-8
Starting to embroider .............................. 7-B
ADJUSTING THE THREAD TENSION..... 8-1
ADJUSTING THE LASER POINTER (OPTION)... 8-2
SEWING
What to do if the thread breaks while sewing. 9-1
Stopping and resuming sewing .............. 9-1
Loss of power while embroidering .......... 9-2
Moving the hoop while embroidering and then returning to
the correct location (Position) ....................................... 9-3
Moving back to the starting point
(Origin). 9-3
Going back to the beginning of the design (Top) .... 9-4
Placing the design in the center of the selected
embroidery frame
(Center) .................................. 9-4
Rotating and mirroring designs (Convert) ...... 9-5
Starting in the middle of a design (Position)... 9-6
DISPLAYING THE PATTERN IN SETTING MODE. 10-1
PATTERN
Locking pattern data ............................. 11-1
Trace type............................................. 11-2
Export ................................................... 11-3
Renaming patterns ............................... 11-5
Copying pattern data ............................ 11-6
Moving pattern data.............................. 11-7
Renaming folders ................................. 11-9
Sort ....................................................... 11-A
Thread break report.............................. 11-B
Retrieve built-in data from machine......11-C
PATTERN SETTINGS ............................ 12-1
Scaling.................................................. 12-2
Width adjustment .................................. 12-3
0_1 N401
0-1

-D2 -3
CONTENTS
0_2 N401
0-2
Angle .................................................... 12-4
Repeat sewing...................................... 12-5
Auto origin ............................................ 12-7
Offset.................................................... 12-8
Frame out ............................................. 12-D
NEEDLE BAR SELECTION .................... 13-1
Auto setting........................................... 13-2
Thread color ......................................... 13-3
Color change data registration ............. 13-5
Color change data read ........................ 13-6
Repetition of color group setting........... 13-7
READING
Join....................................................... 14-1
Pattern Read Settings .......................... 14-4
POSITION ALIGNMENT BY DEFINING 2 POINTS. 15-1
BORER (Option) ..................................... 15-4
POSITION ............................................... 16-1
Piece number ....................................... 16-2
LOCATE.................................................. 17-1
Entry ..................................................... 17-2
Return................................................... 17-3
LETTER .................................................. 18-1
QUEUE ................................................... 19-1
Alter and Execution .............................. 19-2
Needle bar selection and Pattern settings... 19-4
Registration of QUEUE setting............. 19-5
Read QUEUE setting............................ 19-6
FRAME CONFIRMATION....................... 20-1
Frame selection........................................... 20-2
Adjusted for embroidery area ............... 20-4
User-defined frames (1 ~ 5).................. 20-7
User-defined frames (6 ~ 20).................20-A
How to change center point of frame (1 ~ 5, 6 ~ 20) .. 20-J
Non registered .......................................20-L
i-CUSTOM............................................... 21-1
OTHER SETTINGS
Create network ..................................... 22-1
Version information and software update.... 22-3
Language.............................................22-3b
Calibrate .............................................. 22-3c
Report................................................... 22-4
User maintenance mode ...................... 22-5
SCREEN SAVER .................................... 22-7
SPECIFICATIONS • MAINTENANCE
Specifications ....................................... 23-1
Oiling .................................................... 23-1
Cleaning the rotary hook
Cleaning the thread cutting knife .......... 23-2
ERRORS AND WHAT TO DO ................ 24-1
INITIALIZING OF MACHINE SETTINGS
Re-Initialization of machine system ...... 25-1
Initializing of machine speed ................ 25-2
HELPFUL HINTS .................................... 26-1
EMBROIDERY TERMS .......................... 26-2
BUILT-IN FONT LIST.............................. 26-3

-CD -4
IMPORTANT SAFETY INSTRUCTIONS
1_1 F701
1-1
When using an electrical appliance, basic safety precautions should always be followed, includ-
ing the following.
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
1. An appliance should never be left unattended when plugged in. Always unplug this appliance
from the electric outlet immediately after using and before cleaning.
WARNING -To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Do not allow to be used as a toy. Close attention is necessary when this appliance is used
by or near children.
2. Use this appliance only for its intended use as described in this manual. Use only attach-
ments recommended by the manufacturer as contained in this manual.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water. Return the appliance to the nearest
authorized dealer or service center for examination, repair, electrical or mechanical adjust-
ment.
4. Never operate the appliance with any air openings blocked. Keep ventilation openings of the
sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
8. To disconnect, turn all controls to the off (“0”) position, then remove plug from outlet.
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
10.Keep fingers away from all moving parts. Special care is required around the sewing ma-
chine needle.
11.Always use the proper needle plate. The wrong plate can cause the needle to break.
12.Do not use bent needles.
13.Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
14.Switch the sewing machine off (“0”) when making any adjustments in the needle area, such
as threading needle, changing needle, threading bobbin, or changing presser foot, etc.
15.Always unplug sewing machine from the electrical outlet when removing covers, lubricating,
or when making any other user servicing adjustments mentioned in the instruction manual.
SAVETHESE INSTRUCTIONS

-D2 -5
WARNING LABELS &THEIR LOCATIONS
1_2 M101
1-2
Safety Instruction Sticker for servicing, operating and
maintaining
Caution Sticker for hot surface
( on all pulse motors, the motors may reach a certain temperature after
long time running, which can reach up to 60°(C )
Trapping hazard
( please see sketch for location )
Trapping hazard wherever this label is found
Injury risk warning for all needles
Shock hazard on all electrical components
Injury risk on moving head(s)
Injury risk on frame and carriage
Laser beam (Class 1)
Do not stare into the beam.
ES-HMF-5113-0
WARNING
Shut the cover when starting the
machine. Do not put hands in
while the machine is running.
Fearofserious injury.
ES-HMF-5127-0
SAFETY INSTRUCTIONS
1. Machine must be operated by well trained
person only.
2. Machine must be used for original purpose
only, do not use for other purpose.
3. Shut machine off to oil, adjust or service.
4. Do not operate machine fill close and fix
cover.
5. Do not leave running when unattende.
ES-HMF-5128-0
Donottouch
hotsurfaces.
CAUTION
ES-HMF-5112-1
Fearofserious injury.
Keep fingers away from
the needles while
the machine is running.
WARNING
ES-HMF-5117-0
CAUTION
Keep hands away from the
moving heads while the
machine is running.
Possibility of injury.
ES-HMF-5114-0
CAUTION
Possibility
of injury.
Keep hands away
from the drive
frame while
the machine
is running.
ES-HMF-5115-0
CAUTION
Possibility
of injury.
Do not put fingers
in holes or grooves
of the table.
Laser beam (Class 1)
CAUTION
Do not stare into the beam.

-D2 -8
SETTING UPTHE MACHINE
2_1 N401
2-1
Assemble machine unit

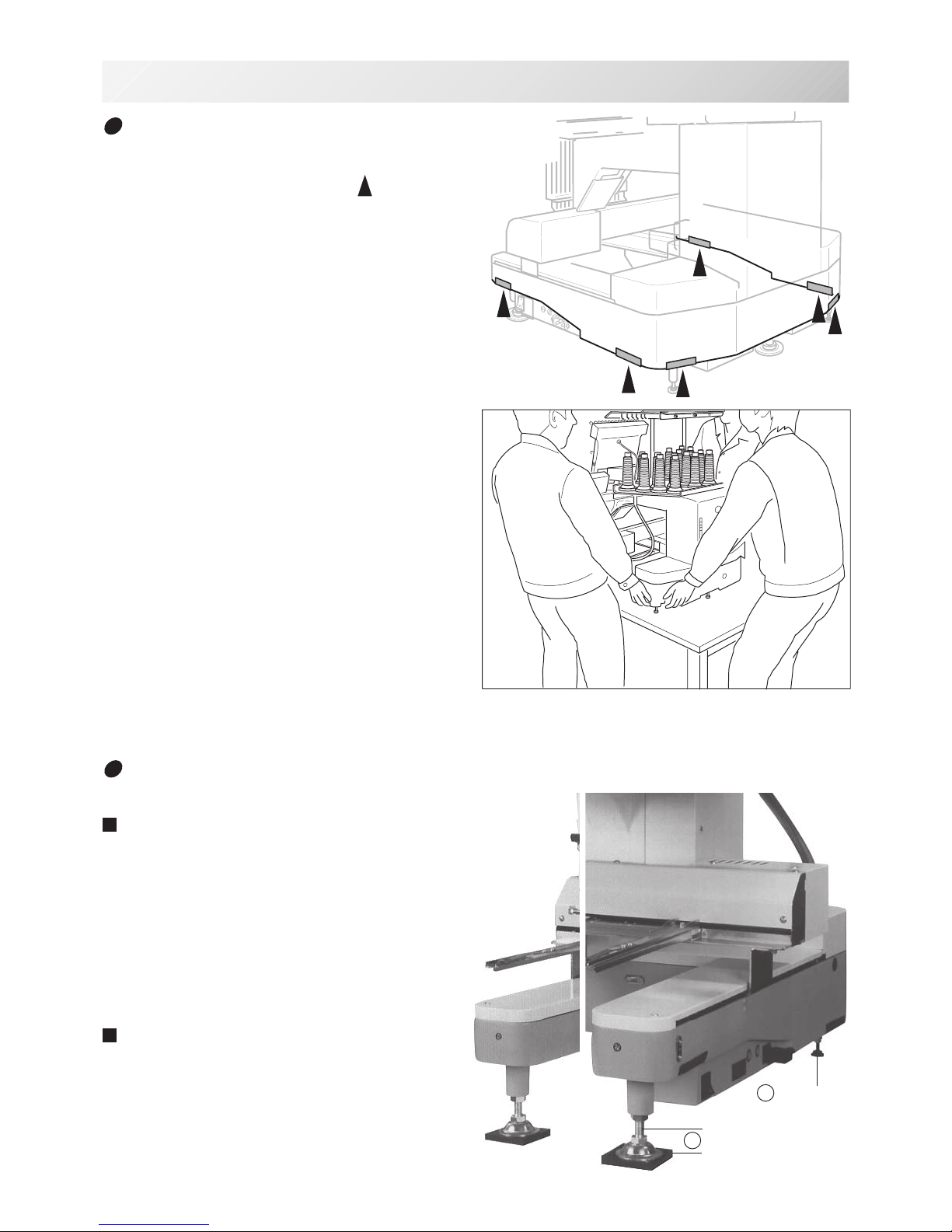

1. Insert thread stand felt on the thread stand.
2. Turn the thread guide pillar clockwise with a
3 mm hexagonal driver until tight.
3. Install the thread guide bracket with
supplied screws (pan head screw M4 X 8 2
pcs).
4. Loosen the screw with a offset driver and
remove the red shipping collars that are
equipped on the both side of the guide bar.
(Keep the shipping collars. It is necessary
when packing.)
5. Raise slowly the control box to the front
then fix it with 2 screws (upper and lower).
6. Install the tubular frame arm for embroidery.
Please refer to (page 6-1) "Installing and
removing the tubular frame arm".
Or, Install the cap frame for the cap
embroidery. Please refer to (page 7-1)
"Installing and removing the cap drive
frame".
7. Insert built-in stylus into the holder (slot) of
control box.
When taking the machine apart in case of
packing, the process is opposite of
assembling the machine. Please do exactly
the opposite way of assembling.
When packing the machine up for
transportation, be sure to select the eighth
needle and fix it with shipping collars on the
both side of the guide bar.
1
2
3
Thread stand
felt
Thread guide pillar
Thread guide
5
Screw
4
Screw
Screws
Stylus
7

-D2M4 -92-2 LC01
2-2
SETTING UPTHE MACHINE for qualified personnel only
How to carry machine
The unpacked machine should be carried by 3
person with the hand position at mark
shown in photos.
2Ocasional
adjusters
Adjusters
Rubber mount
1
Right side
Left side
Rear side
Machine installation
Do not run the machine before setting it
properly.
Make sure of taking the following steps to
set the machine.
1. Pick up rubber mount (3 places) on the
stand then mount machine on the stand.
Then adjust machine level by adjuster on
foot and lock the each nut.
Be sure to use rubber mounts. Also be sure
to use robust stand that enables to adjust
level of the machine and endure machine
weight and vibration.
2. Please two occasional adjuster light touch
to stand and lock.

-D22-3 M201
2-3
SETTING UPTHE MACHINE for qualified personnel only
3. Remove needle plates and bobbin cases
from all the heads.
4. Lower the needle holder by pressing down
with fingers on Fig. 4.
5. Turn main shaft by using the hexagonal
driver in direction shown with arrow mark on
Fig. 5 and set the angle of the adjustment
disk as shown in fig. 6.
6. Check the needle depth on all needles.
Pull white plastic ø17 measuring gauge in
and out of rotary hook in fig. 7. If height
gauge brushes lightly against tip of needle,
needle height is correct. If not, loosen
needle bar block screw to adjust, then re-
tighten after adjustment.
(Remove the gauge when finished).
Note: Height gauge is contained in tool box.
7. Turn main shaft slightly in direction shown
by the arrow mark.
Then set the angle of adjustment disc as
shown in Fig. 8.
Note the space or timing between needle
and tip of rotary hook as shown Fig. 9, 10.
If the space is too open or too close, loosen
3 screws of shuttle to adjust. Make sure to
tighten 3 screws after adjusted the space.
(The timing is set exactly at the factory.
However, in some cases timing is inadvert-
ently thrown off from handling during ship-
ment.)
8. Turn main shaft in direction and set to C
point.
Place the bobbin and bobbin case in the
hook and replace the needle plate and
tighten.
9. Machine is now ready for sewing.
Needle holder
Tip of rotary hook
Needle
L+5°
Cord Rotary hook
Needle
ø17 Measuring gauge
L+23°
Screws Needle
Tip of rotary hook
0.1~0.15mm
Head bed
C
Fig. 10
Fig. 9
Fig. 8
Fig. 7
Fig. 6
Fig. 5
Fig. 4

-D2 -102-4 M101
2-4
SETTING UPTHE MACHINE

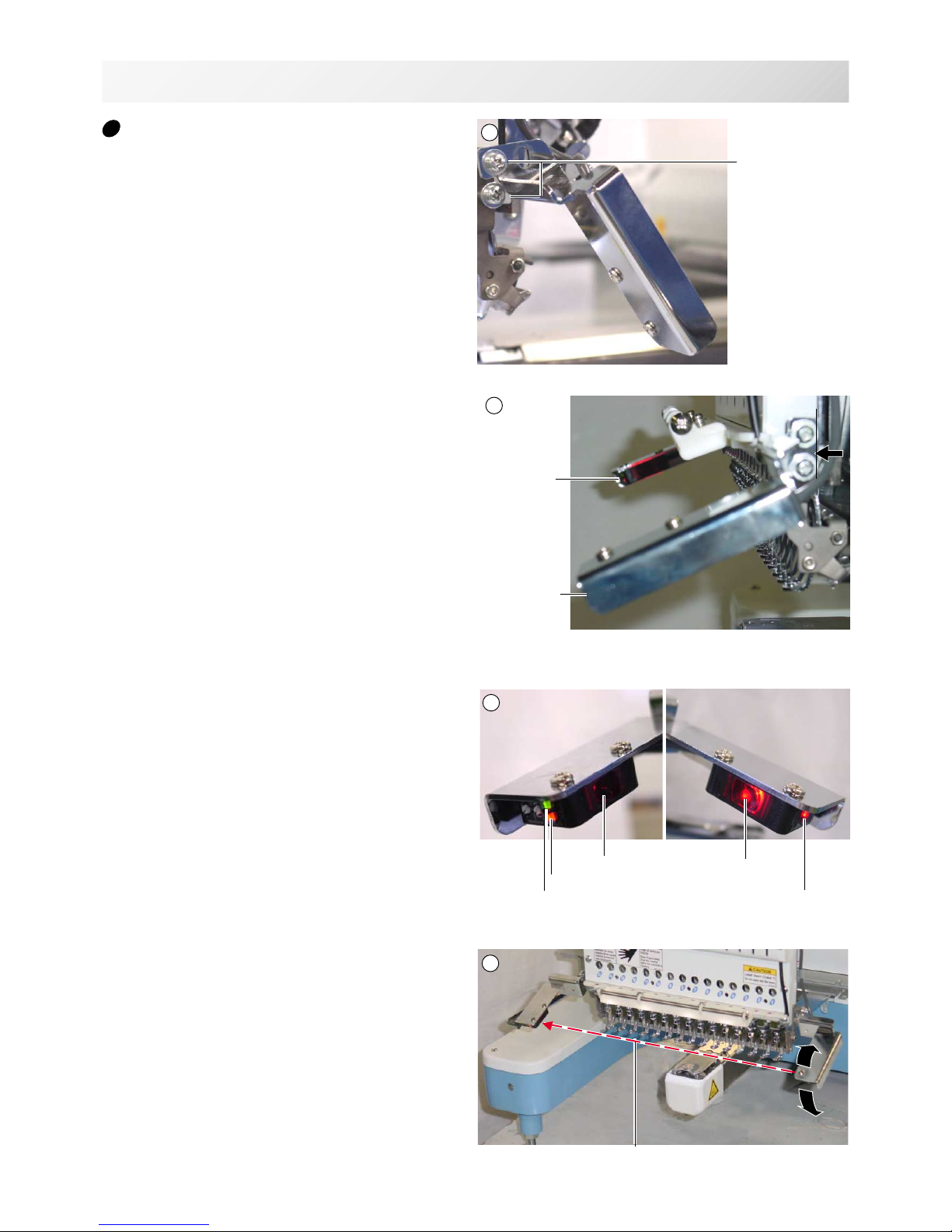

Assemble safety sensor (Option)
Safety sensors are set at a provisional position
for transportation. Please reset the safety sen-
sors at normal positions for adjustment.
1. Unscrew set screws at lower points on the
safety sensors on right and left sides.
Loosen set screws slightly at upper points
on the safety sensors.
2. Set the right and left safety sensors at the
positions as shown in a photo by turning
them to the front side.
At this time, make sure the part on the
sensors indicated by an arrow shall be set
vertically, and set safety sensors both right
and left at parallel positions each other with
viewing them from the side.
The set screw on the right safety sensor
shall be tightened to the level that the
positions of the safety sensors can be
adjusted vertically.
3. Turn on the machine and confirm a lamp for
receiving ray (orange) is on when the way of
sensor ray is not blocked.
4. Confirm if the lamp for receiving ray
(orange) is turned off by blocking the way of
sensor ray by a hand or other.
Tighten the set screw firmly.
1
2
3
Set screw
Sensor left
Sensor right
Sensor right
Sensor left
Ray receiver
Ray projector
Power indicator
Lamp for receiving ray
Power indicator
Way of sensor ray
4

-D22-4b M201-9
2-4b
SETTING UPTHE MACHINE
Assemble Wide X-carriage
(Option)
Wide X-carriage is packed separately from
machine.
When you set machine up, please install Wide
X-carriage on machine.
1. Move Stay at middle of Y-carriage.
2. Put Wide X-Carriage on Stay and adjust
screw hole position.
3. Fix Carriage by Flat head screw (M4x8) at
hole position [1] and [2](for the purpose of
positioning).
4. [3][4] Fix Carriage by Fixing screw (Cap
M4x8, Spring washer, Plain washer) at hole
position [3] and [4].
5. Unscrew Flat head screw from [1] and [2]
and fix by Fixing screw (Cap M4x8, Spring
washer, Plain washer).
6. Loosen screws on BOX terminal and take
cover out.
7. Insert X-Motor cable into BOX terminal and
connect with X-Motor relay cable.
Fix terminal for earth connection for X-Motor
cable and X-Motor relay cable together.
8. Fix X-Motor cable by Cable clamp.
9. Close cover of BOX terminal.
Please be sure cables do not get caught by
cover.
Please reverse procedure when remove the
X-Carriage.
Wide X-carriage
X-Motor cable
1
2
Cable clamp
Terminal for earth connection
Stay (left) Stay (right)
Stay (left) Stay (right)
14
32
1
4
3
2
X-Motor relay cable
BOX terminal
Cover of
BOX
terminal
8
9
3 4 5
6
7
Front

-D2 -122-5 M419
2-5
SETTING UPTHE MACHINE
1. Insert Knob screw to right and left side of
machine.
And set table like right side picture.
Please insert table bracket trench to the
knob screw.
2. Tight 2 knob screw on under the table for fix
table.
3. Tight 2 knob screw on side of the table.
Please reverse procedure when remove the
table.
Knob screw
Knob screw
1
Assemble table (Option)
Installing theTable or the Table (border).
2

-D2 -13
2-5b M419
2-5b
SETTING UPTHE MACHINE

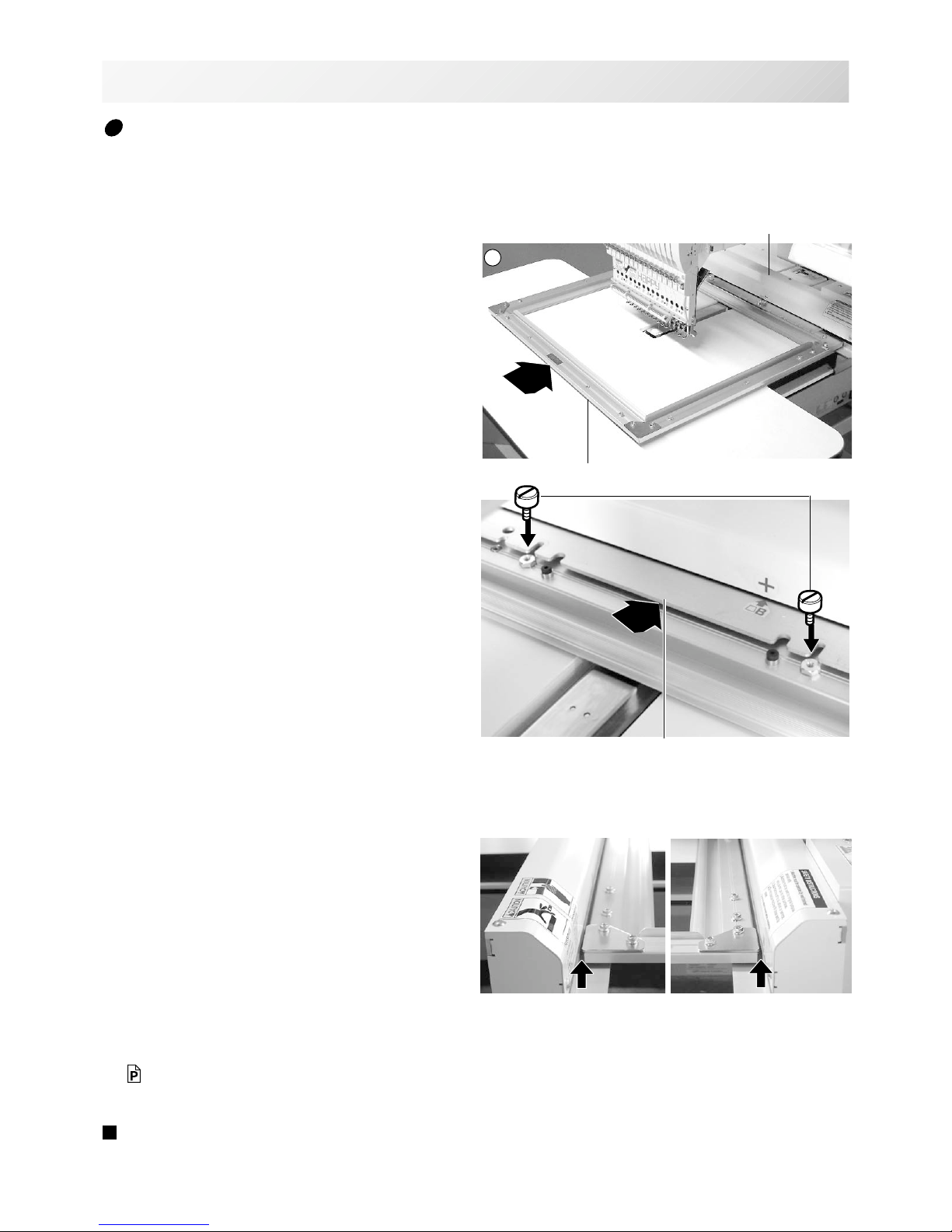

1. Fix the border frame under the bracket of
the X carriage and tighten the knob screw
completely.
Clearance between X-carriage and Border
Frame at right edge and left edge should be
equal.
2. Select Frame Type “Border”.
Please refer in this manual page “FRAME
CONFIRMATION” for “Frame selection”.
20-2
Please reverse procedure when remove the
border frame.
1
X carriage
Border frame
Assemble border frame (Option)
Bracket
Knob screw

-CD -152-5c J520
2-5c
SETTING UP THE MACHINE
Assemble Expand side table (Option)
1. Set Stay on Expand Side table.
Put Expand Side Table under Border table
and set Stay by Wing Bolt.
Adjust height of Adjuster by Wing bolt to the
same height as surface of border table.
Stay A
Border table
1
2
Wing bolt
Stay B
Adjuster
Wing bolt
Expand side table
In case you need to set Expand Side Table
on same level of machine stand (or table), set
Adjuster to Stay A directly.
Adjuster
2. Turn Expand Side Table and join tables with
inserting Prop B into Prop A.
Border table
Expand side table (Left)
Expand side table
(Right)
CAUTION: To prevent accidents.
Table may be slanted.
Tighten Wing bolt to fix height of stay.
Border table
Expand side table
Prop A
Prop B

-CD -16
3. Confirm that Middle support plate enters to
the space between table and Prop plate and
there is no opening between tables.
Tighten Knob bolt of Prop A at Border table
and fix Lock nut.
Then set Clamp.
4. Adjust height of Expand Side Table by
Adjuster and fix by Lock nut.
Please reverse procedure when remove the
Expand Side Table.
2-5d J520
2-5d
SETTING UPTHE MACHINE
Lock nutKnob bolt
Clamp
Prop plate
Middle table support
plate
Border table Expand side
table (R)
3
Lock nut Fix by Lock nut
Higher Lower
4
CAUTION: To prevent accidents.
Table may be slanted.
Please do not load any objects on Expand
side table.

-CD -122-6 FB01
2-6
SETTING UPTHE MACHINE
Assemble bobbin thread guide
(Option)
1. Install the bobbin thread guide with supplied
screws (pan head screw M4 X 6 2 pcs).
( Showing following pictures, Please square
left end of sticker with right end of thread
stand)
Bobbin thread guideScrewsSticker
1

-CS -11
Grounding instruction (for type of 120V)
This product must be grounded. In the event of malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. The conductor with insulation having an outer surface that is green with or
without yellow stripes is the equipment-grounding conductor. If repair or replacement of the cord
or plug is necessary, do not connect the equipment-grounding conductor to a live terminal.
Check with a qualified electrician or serviceman if the grounding instructions are not completely
understood, or if in doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product – if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
This product is for use on a nominal 120 V circuit, and has a grounding plug that looks like the
plug illustrated in sketch A in Figure. A temporary adaptor, which looks like the adaptor illus-
trated in sketches B and C, may be used to connect this plug to a 2-pole receptacle as shown in
sketch B if a properly grounded outlet is not available. The temporary adaptor should be used
only until a properly grounded outlet can be installed by a qualified electrician. The green col-
ored rigid ear, lug, and the like, extending from the adaptor must be connected to a permanent
ground such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be
held in place by the metal screw.
2_6 I916
2-7
SETTING UP THE MACHINE
Disposal of a battery
A battery is had built-in to this embroidery machine.
When you dispose of a battery, according to each country or a method determined in each area,
please dispose appropriately.
Metal screw
Cover of grounded
outlet box
Grounding pin
Grounding means
Grounding methods
Adapter
AB
C

-D2 -14
MAIN PARTS
1. Hook cover
2. Hook
3. Bobbin case
4. Needle plate
5. Take-up lever
6. Lower rectifier
7. Thread tension
8. Upper rectifier
9. Guide tube
10. Thread guide support
11. Thread guide
12. Thread check spring
13. Thread stand pin
14. Thread stand felt
15. Needle bar selection knob
16. Control box
17. LAN port
18. USB port
(Standard-A receptacle)
19. Frame hold arm
20. Carriage
21. Fuse (6A)
22. Terminal box
23. Power switch
24. USB port
(Standard-B receptacle)
1
2
3
4
5
7
8
9
10
11
12
13
14
15
16
19
3_1 M620
3-1
20
21
22
23
18
6
17
24

-D2 -153_2 M717
3-2
MAIN PARTS
CONTROL BOX
45
1. Emergency stop button
2. Display (L.C.D.)
3. LAN port
4. Thread cut button
5. Start/Stop button
6
5
7
6
1
4
2
3
1. Thread guide
2. Thread tension
3. Spindle
4. Lever
5. Thread stand pin
6. Plastic spring
7. Thread stand felt
BOBBIN WINDING (Option)
37
1
2
16
8
6. USB port (Standard-A receptacle)
7. USB port (Standard-B receptacle)
8. Stylus

-S2 -12
HOWTO READTHESE INSTRUCTIONS 3-3
3_3 MB15
The instructions in this manual have been formatted as follows:
Written instructions will be provided on the left side of the page while graphics depicting the
necessary steps are provided on the right.
Graphics on the far right will show the display after performing the steps indicated.
This indicates an additional
explanation on an operation
elsewhere in the manual for
more detail.
AWords marked with a "*" are explained in
"EMBROIDERY TERMS" at the end of this
instruction manual.
CAUTION: To prevent accidents.
This will appear for items related to your safety.
CAUTION: To avoid problems.
This will appear for items related to potential problems.
Order of operation
Indicates supplementary
explanation regarding a
given operation or action.
1. When the machine is stopped, press .
2. Select "PATTERN".
The display indicates the current pattern.
The left side of display shows the number, name
and details for the current pattern.
Number of stitches
Number of Color change number
Height
Width
3. Select *pattern data.
This pattern will be selected. 3-3
Selected pattern data
Press to return to Menu mode.
Operation key
