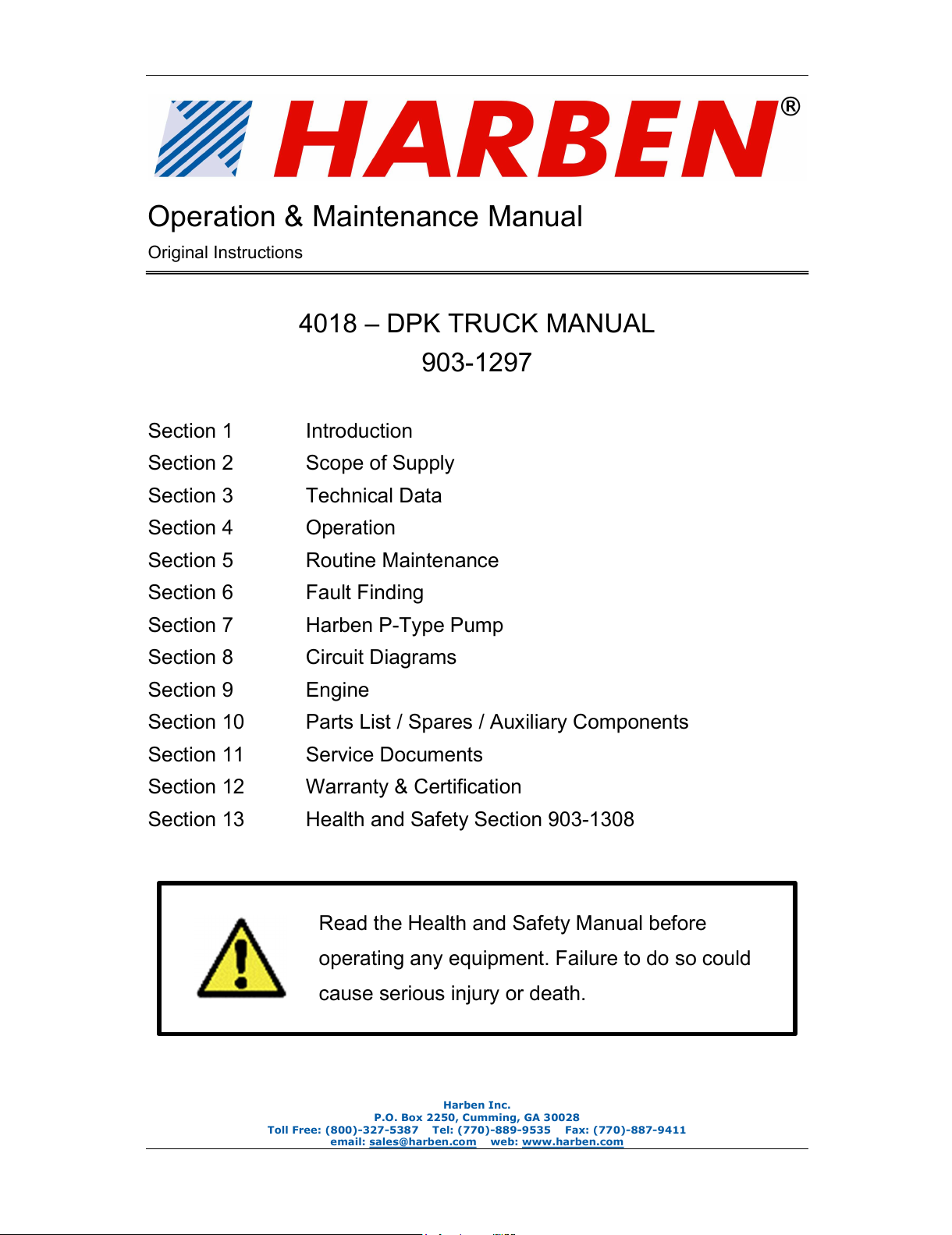

HARBEN 4018 Manual

Harben Inc.
P.O. Box 2250, Cumming, GA 30028
Toll Free: (800)-327-5387 Tel: [phone] Fax: [phone]
email: [e-mail] web: www.harben.com
Operation & Maintenance Manual
Original Instructions
4018 – DPK TRUCK MANUAL
903-1297
Section 1 Introduction
Section 2 Scope of Supply
Section 3 Technical Data
Section 4 Operation
Section 5 Routine Maintenance
Section 6 Fault Finding
Section 7 Harben P-Type Pump
Section 8 Circuit Diagrams
Section 9 Engine
Section 10 Parts List / Spares / Auxiliary Components
Section 11 Service Documents
Section 12 Warranty & Certification
Section 13 Health and Safety Section 903-1308
Read the Health and Safety Manual before
operating any equipment. Failure to do so could
cause serious injury or death.
All manuals and user guides at all-guides.com

1
Operation & Maintenance Manual for:
UNIT: DPK Truck units – Various - 9031297
ISSUE DATE: 6/20
ISSUE No: 4
AMENDMENTS
Change Changes Date Signature
1 NEW ADDITION 3/20 JJ
2 REMOVE E-STOP IN MANUAL. MINOR EDITS 5/20 GT
3 Add Bypass Valve section. Minor Edits 6/20 GT
4 Updated manual to code 6/20 GT
All manuals and user guides at all-guides.com

1
1. Introduction & Contents
1.1.
Contents

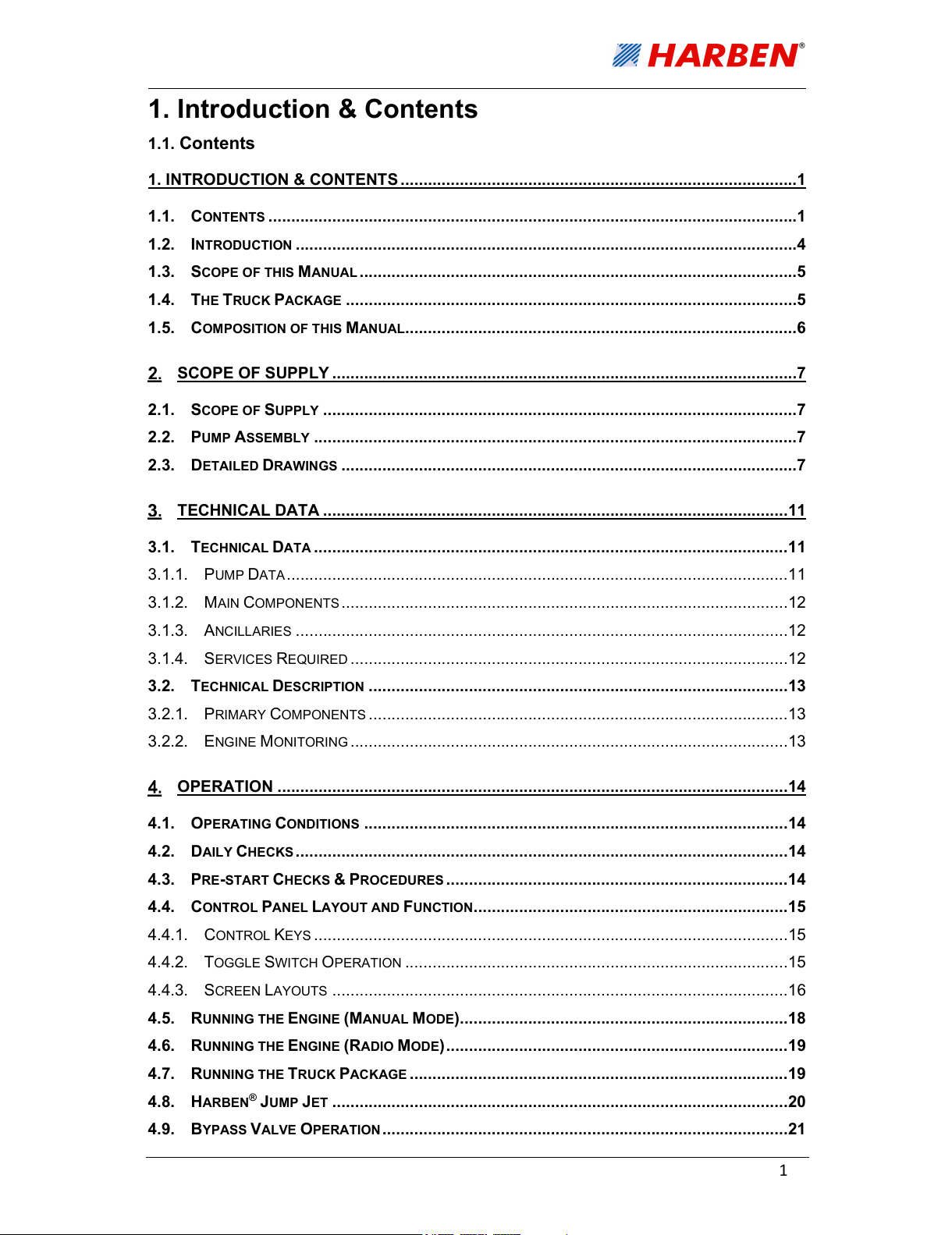

1. INTRODUCTION & CONTENTS .......................................................................................1
1.1. C
ONTENTS ....................................................................................................................1
1.2. INTRODUCTION ..............................................................................................................4
1.3. SCOPE OF THIS MANUAL ................................................................................................5
1.4. THE TRUCK PACKAGE ...................................................................................................5
1.5. COMPOSITION OF THIS MANUAL......................................................................................6
SCOPE OF SUPPLY ......................................................................................................7
2.1. SCOPE OF SUPPLY ........................................................................................................7
2.2. PUMP ASSEMBLY ..........................................................................................................7
2.3. DETAILED DRAWINGS ....................................................................................................7
TECHNICAL DATA ...................................................................................................... 11
3.1. TECHNICAL DATA ........................................................................................................ 11
3.1.1. PUMP DATA .............................................................................................................. 11
3.1.2. MAIN COMPONENTS .................................................................................................. 12
3.1.3. ANCILLARIES ............................................................................................................ 12
3.1.4. SERVICES REQUIRED ................................................................................................ 12
3.2. TECHNICAL DESCRIPTION ............................................................................................ 13
3.2.1. PRIMARY COMPONENTS ............................................................................................ 13
3.2.2. ENGINE MONITORING ................................................................................................ 13
OPERATION ................................................................................................................ 14
4.1. OPERATING CONDITIONS ............................................................................................. 14
4.2. DAILY CHECKS ............................................................................................................ 14
4.3. PRE-START CHECKS & PROCEDURES ........................................................................... 14
4.4. CONTROL PANEL LAYOUT AND FUNCTION ..................................................................... 15
4.4.1. CONTROL KEYS ........................................................................................................ 15
4.4.2. TOGGLE SWITCH OPERATION .................................................................................... 15
4.4.3. SCREEN LAYOUTS .................................................................................................... 16
4.5. RUNNING THE ENGINE (MANUAL MODE)........................................................................ 18
4.6. RUNNING THE ENGINE (RADIO MODE) ........................................................................... 19
4.7. RUNNING THE TRUCK PACKAGE ................................................................................... 19
4.8. HARBEN
®
JUMP JET .................................................................................................... 20
4.9. BYPASS VALVE OPERATION ......................................................................................... 21
All manuals and user guides at all-guides.com

2

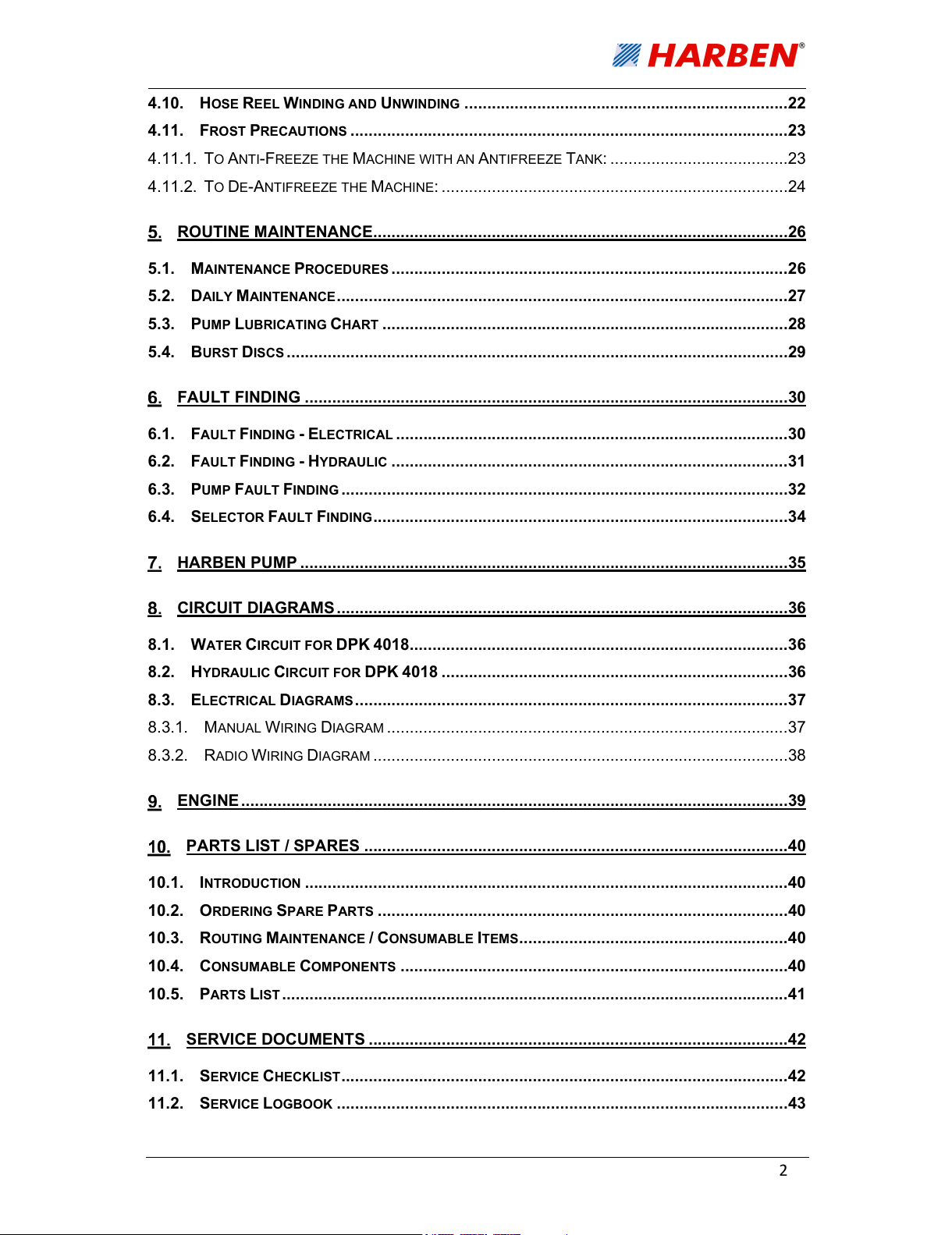

4.10. H
OSE REEL WINDING AND UNWINDING ....................................................................... 22
4.11. FROST PRECAUTIONS ................................................................................................ 23
4.11.1. TO ANTI-FREEZE THE MACHINE WITH AN ANTIFREEZE TANK: ....................................... 23
4.11.2. TO DE-ANTIFREEZE THE MACHINE: ............................................................................ 24
ROUTINE MAINTENANCE ........................................................................................... 26
5.1. MAINTENANCE PROCEDURES ....................................................................................... 26
5.2. DAILY MAINTENANCE ................................................................................................... 27
5.3. PUMP LUBRICATING CHART ......................................................................................... 28
5.4. BURST DISCS .............................................................................................................. 29
FAULT FINDING .......................................................................................................... 30
6.1. FAULT FINDING - ELECTRICAL ...................................................................................... 30
6.2. FAULT FINDING - HYDRAULIC ....................................................................................... 31
6.3. PUMP FAULT FINDING .................................................................................................. 32
6.4. SELECTOR FAULT FINDING ........................................................................................... 34
HARBEN PUMP ........................................................................................................... 35
CIRCUIT DIAGRAMS ................................................................................................... 36
8.1. WATER CIRCUIT FOR DPK 4018 ................................................................................... 36
8.2. HYDRAULIC CIRCUIT FOR DPK 4018 ............................................................................ 36
8.3. ELECTRICAL DIAGRAMS ............................................................................................... 37
8.3.1. MANUAL WIRING DIAGRAM ........................................................................................ 37
8.3.2. RADIO WIRING DIAGRAM ........................................................................................... 38
ENGINE ........................................................................................................................ 39
PARTS LIST / SPARES ............................................................................................. 40
10.1. INTRODUCTION .......................................................................................................... 40
10.2. ORDERING SPARE PARTS .......................................................................................... 40
10.3. ROUTING MAINTENANCE / CONSUMABLE ITEMS ........................................................... 40
10.4. CONSUMABLE COMPONENTS ..................................................................................... 40
10.5. PARTS LIST ............................................................................................................... 41
SERVICE DOCUMENTS ............................................................................................ 42
11.1. SERVICE CHECKLIST .................................................................................................. 42
11.2. SERVICE LOGBOOK ................................................................................................... 43
All manuals and user guides at all-guides.com

3

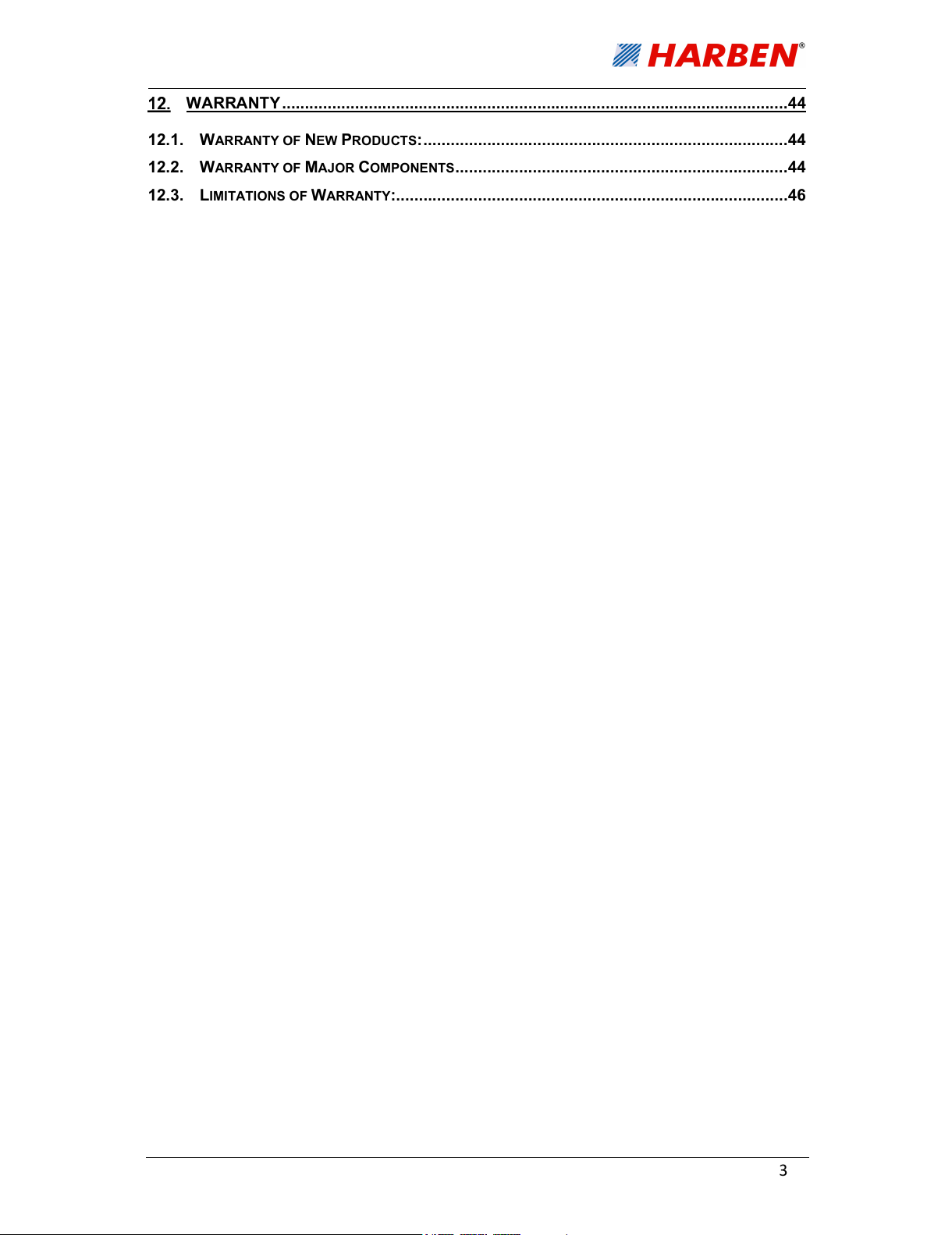

WARRANTY ............................................................................................................... 44
12.1. W
ARRANTY OF NEW PRODUCTS: ................................................................................ 44
12.2. WARRANTY OF MAJOR COMPONENTS ......................................................................... 44
12.3. LIMITATIONS OF WARRANTY:...................................................................................... 46
All manuals and user guides at all-guides.com

4

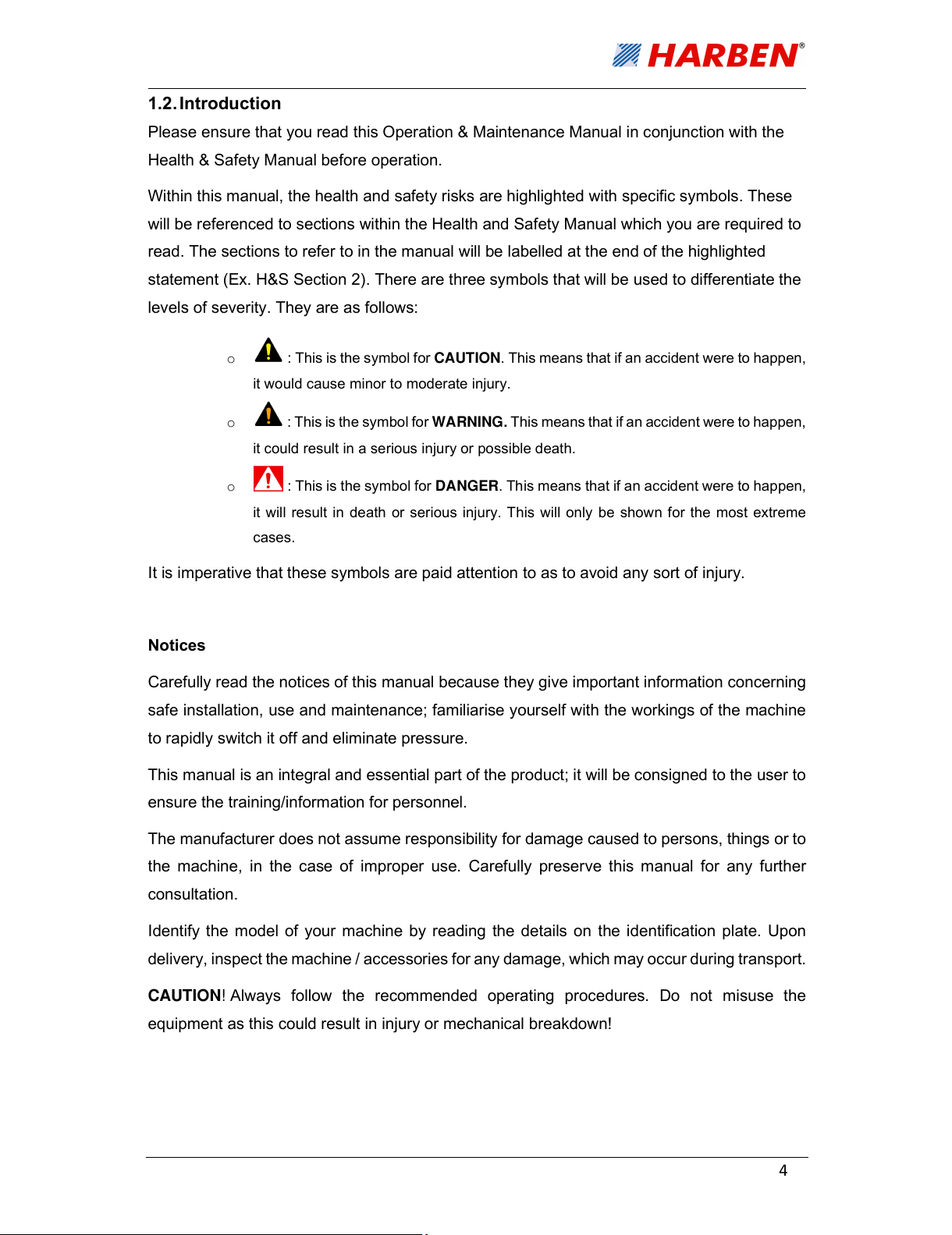

1.2. Introduction
Please ensure that you read this Operation & Maintenance Manual in conjunction with the
Health & Safety Manual before operation.
Within this manual, the health and safety risks are highlighted with specific symbols. These
will be referenced to sections within the Health and Safety Manual which you are required to
read. The sections to refer to in the manual will be labelled at the end of the highlighted
statement (Ex. H&S Section 2). There are three symbols that will be used to differentiate the
levels of severity. They are as follows:
o : This is the symbol for . This means that if an accident were to happen,
it would cause minor to moderate injury.
o : This is the symbol for . This means that if an accident were to happen,
it could result in a serious injury or possible death.
o : This is the symbol for . This means that if an accident were to happen,
it will result in death or serious injury. This will only be shown for the most extreme
cases.
It is imperative that these symbols are paid attention to as to avoid any sort of injury.
Notices
Carefully read the notices of this manual because they give important information concerning
safe installation, use and maintenance; familiarise yourself with the workings of the machine
to rapidly switch it off and eliminate pressure.
This manual is an integral and essential part of the product; it will be consigned to the user to
ensure the training/information for personnel.
The manufacturer does not assume responsibility for damage caused to persons, things or to
the machine, in the case of improper use. Carefully preserve this manual for any further
consultation.
Identify the model of your machine by reading the details on the identification plate. Upon
delivery, inspect the machine / accessories for any damage, which may occur during transport.
Always follow the recommended operating procedures. Do not misuse the
equipment as this could result in injury or mechanical breakdown!
All manuals and user guides at all-guides.com

5
1.3. Scope of this Manual
This manual provides operation, maintenance, and safety instructions for the truck package.
Where the truck package has been fitted with proprietary components, details of these are
also included in this manual.
This manual is compiled to match the Scope of Supply detailed in Section 2. All specifications,
descriptions and parts lists refer only to the components in the version of the unit detailed in
this scope of supply.
Maintenance instructions included in this manual include:
 Routine maintenance to be carried out at specific times.
 Maintenance of the high-pressure pump.
Repairs to the pump crankcase are not considered maintenance operations as these should
be undertaken only by HARBEN INC, their approved agents, or at least competent automotive
engineers.
1.4. The Truck Package
Harben® truck packages have been designed to the highest standards. It is important that
you take time to read the information provided here so that you understand how to make the
most of the truck package and use it in accordance with the instructions. Harben® truck
packages are powerful pieces of industrial equipment and should only be operated by
competent users who understand that serious injury or death can occur through misuse.
The truck package described in this operation and maintenance manual are intended to be
used for high-pressure water jetting pumping applications.
They will remove soft blockages, tree roots and hard scale, liquefying fats and restoring drain
flow by blasting high-pressure water through a drain nozzle connected to the end of a high-
pressure hose. Some models can be fitted with jump jets kits to increase the effective cleaning
distance.
Harben truck packages use diesel engines to power a high-pressure water pump up to 4,000
psi and 18 GPM.
Additional accessories can be purchased from Harben®, such as: floor cleaners, jetting guns
and jet pumps which extend the range of work that can be carried out with the jetter. Safety
information relating to individual accessories is provided later in this section.
All manuals and user guides at all-guides.com

6

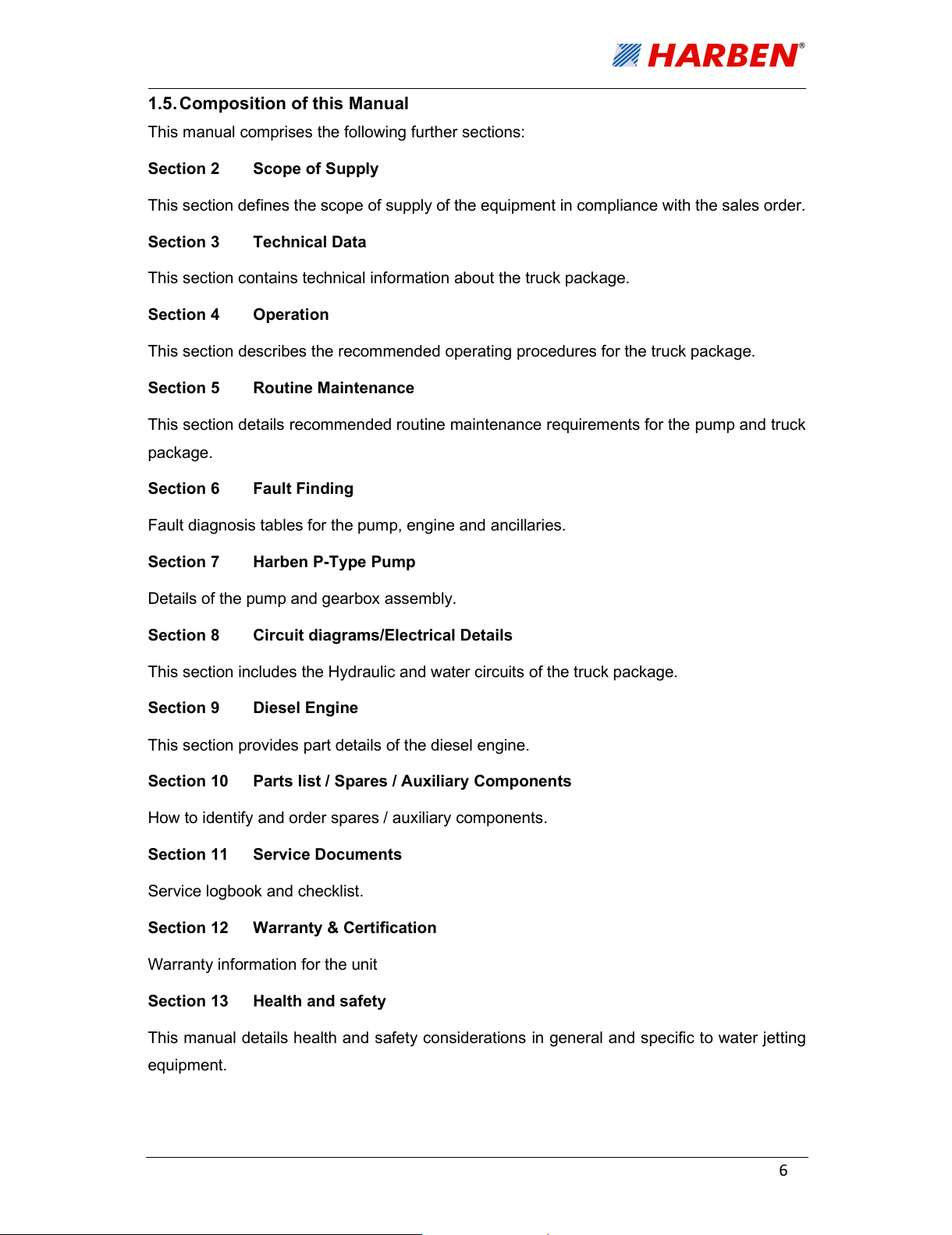

1.5. Composition of this Manual
This manual comprises the following further sections:
Section 2 Scope of Supply
This section defines the scope of supply of the equipment in compliance with the sales order.
Section 3 Technical Data
This section contains technical information about the truck package.
Section 4 Operation
This section describes the recommended operating procedures for the truck package.
Section 5 Routine Maintenance
This section details recommended routine maintenance requirements for the pump and truck
package.
Section 6 Fault Finding
Fault diagnosis tables for the pump, engine and ancillaries.
Section 7 Harben P-Type Pump
Details of the pump and gearbox assembly.
Section 8 Circuit diagrams/Electrical Details
This section includes the Hydraulic and water circuits of the truck package.
Section 9 Diesel Engine
This section provides part details of the diesel engine.
Section 10 Parts list / Spares / Auxiliary Components
How to identify and order spares / auxiliary components.
Section 11 Service Documents
Service logbook and checklist.
Section 12 Warranty & Certification
Warranty information for the unit
Section 13 Health and safety
This manual details health and safety considerations in general and specific to water jetting
equipment.
All manuals and user guides at all-guides.com

7

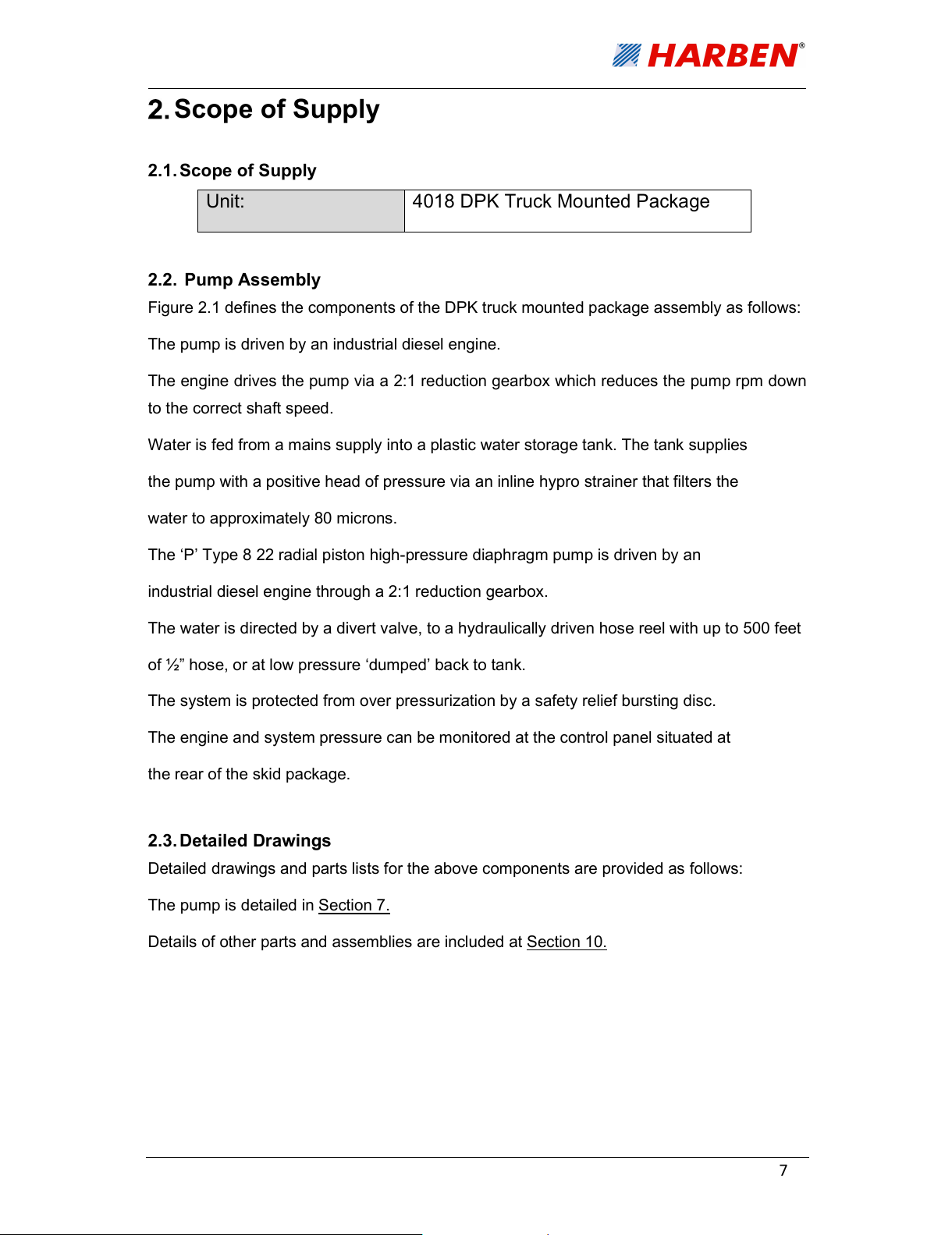

Scope of Supply
2.1. Scope of Supply
Unit: 4018 DPK Truck Mounted Package
2.2. Pump Assembly

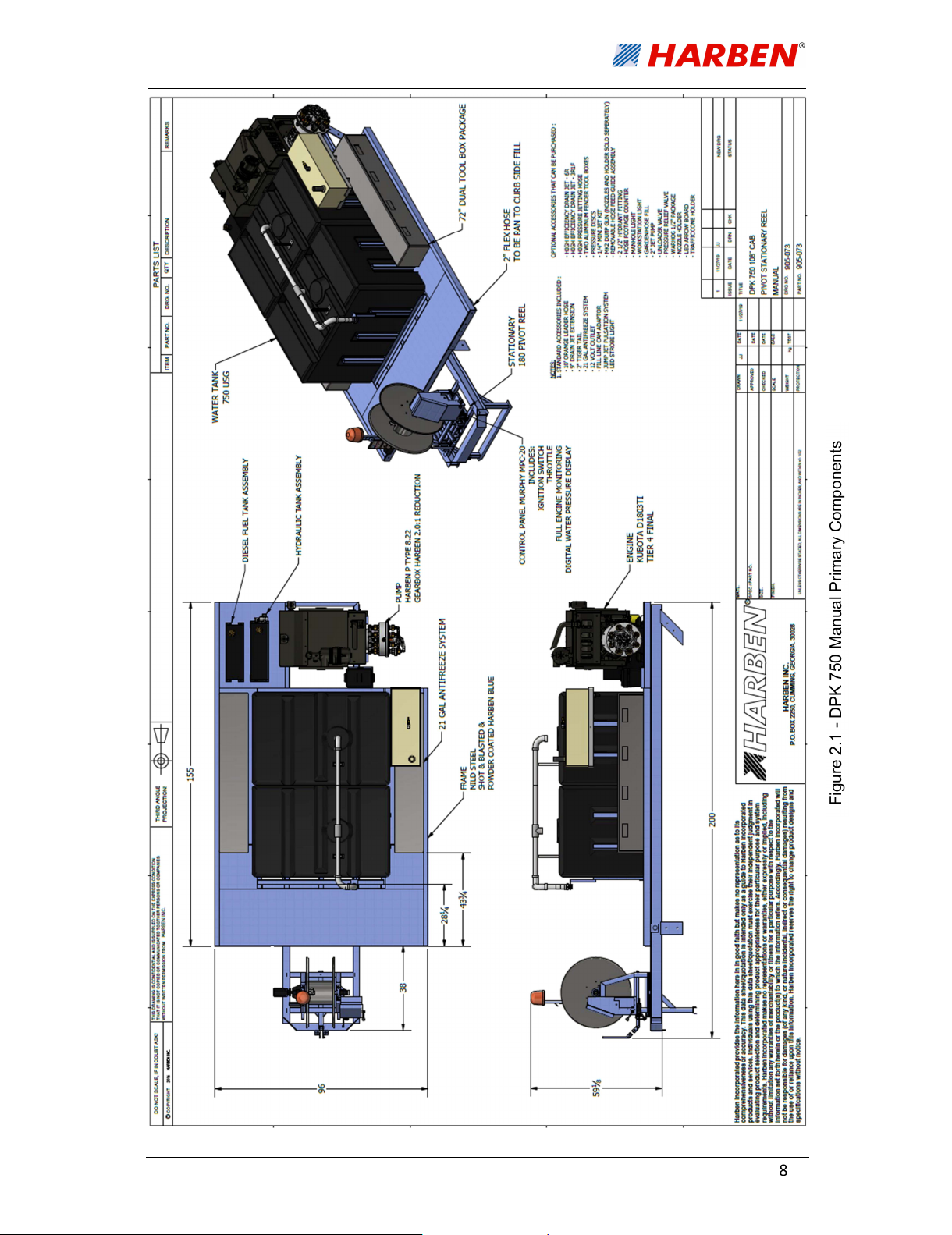

Figure 2.1 defines the components of the DPK truck mounted package assembly as follows:
The pump is driven by an industrial diesel engine.
The engine drives the pump via a 2:1 reduction gearbox which reduces the pump rpm down
to the correct shaft speed.
Water is fed from a mains supply into a plastic water storage tank. The tank supplies
the pump with a positive head of pressure via an inline hypro strainer that filters the
water to approximately 80 microns.
The ‘P’ Type 8 22 radial piston high-pressure diaphragm pump is driven by an
industrial diesel engine through a 2:1 reduction gearbox.
The water is directed by a divert valve, to a hydraulically driven hose reel with up to 500 feet
of ½” hose, or at low pressure ‘dumped’ back to tank.
The system is protected from over pressurization by a safety relief bursting disc.
The engine and system pressure can be monitored at the control panel situated at
the rear of the skid package.
2.3. Detailed Drawings
Detailed drawings and parts lists for the above components are provided as follows:
The pump is detailed in Section 7.
Details of other parts and assemblies are included at Section 10.
All manuals and user guides at all-guides.com

8
Figure 2.1
-
DPK 750 Manual Primary
Components
All manuals and user guides at all-guides.com

9
Figure 2.2
-
DPK 375 Manual Primary Components
All manuals and user guides at all-guides.com

10
Figure 2.3
-
DPK 750 Remote Primary Components
All manuals and user guides at all-guides.com

11

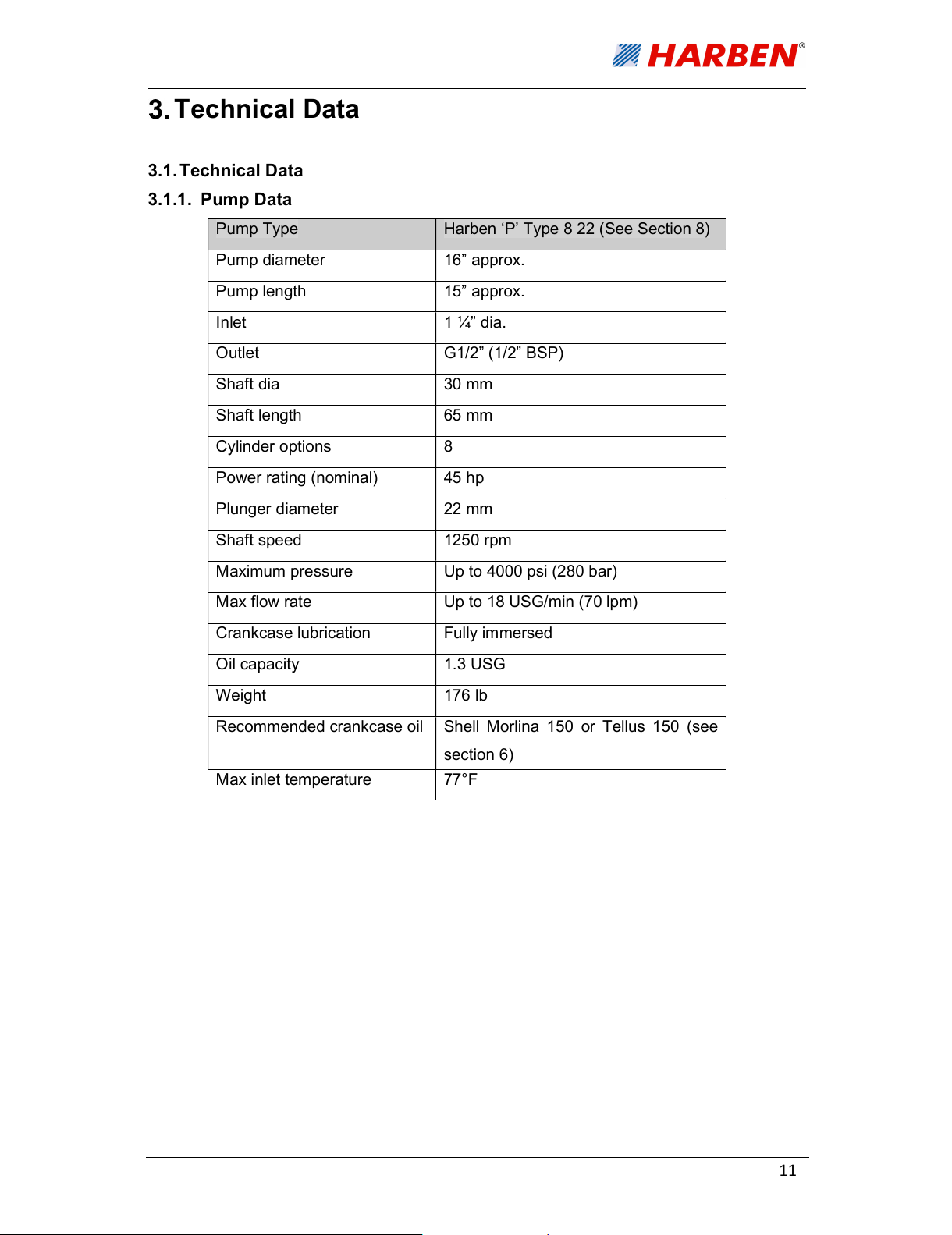

Technical Data
3.1. Technical Data
3.1.1. Pump Data
Pump Type Harben ‘P’ Type 8 22 (See Section 8)
Pump diameter 16” approx.
Pump length 15” approx.
Inlet 1 ¼” dia.
Outlet G1/2” (1/2” BSP)
Shaft dia 30 mm
Shaft length 65 mm
Cylinder options 8
Power rating (nominal) 45 hp
Plunger diameter 22 mm
Shaft speed 1250 rpm
Maximum pressure Up to 4000 psi (280 bar)
Max flow rate Up to 18 USG/min (70 lpm)
Crankcase lubrication Fully immersed
Oil capacity 1.3 USG
Weight 176 lb
Recommended crankcase oil Shell Morlina 150 or Tellus 150 (see
section 6)
Max inlet temperature 77°F
All manuals and user guides at all-guides.com

12
3.1.2. Main Components
Engine ENGINE KUBOTA D1803TI TIER 4 FINAL
Pump 020041AAB Harben P Type 8 22
Gearbox 020143 Harben P Type 2:1
Max Pressure 4000 PSI (for standard units)
Max Flow 18 GPM (for standard units)
_________________________________________________________________________
3.1.3. Ancillaries
Water tank 375 gal capacity each. 750 gal capacity for 2 tank set.
Supply filter 042134 Hypro line strainer / 170 micron mesh
Monitoring & control Standard engine controller and throttle
Pressure control and safety 011046 Pressure disc white 4000 psi
011047 Pressure disc black 5000 psi
(Hot ambient temperature)
________________________________________________________________________
3.1.4. Services Required
Mains water supply Positive head capable of delivering greater than 16
USG/min
Note: Water pH value of 5 to 9 is recommended.
All manuals and user guides at all-guides.com

13

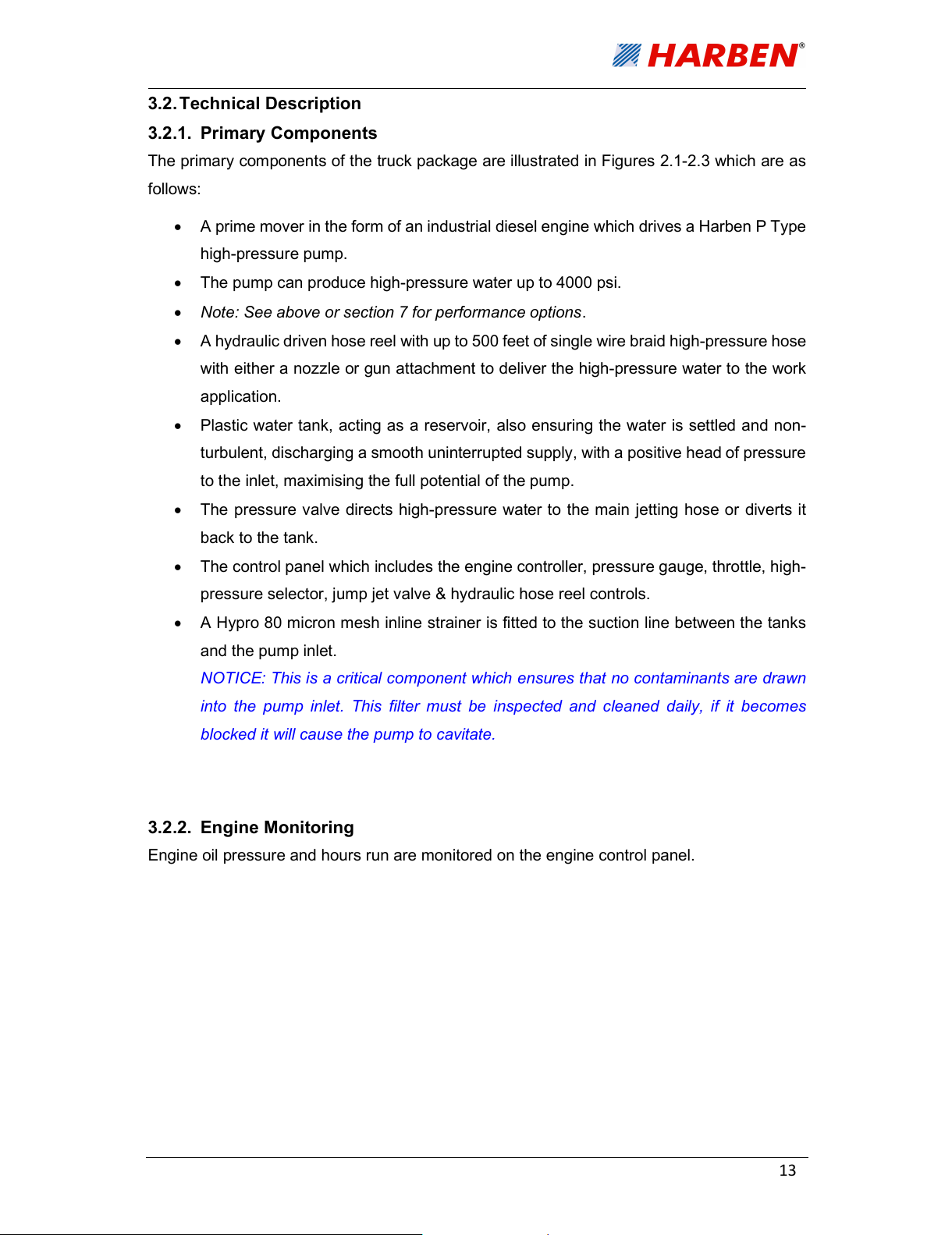

3.2. Technical Description
3.2.1. Primary Components
The primary components of the truck package are illustrated in Figures 2.1-2.3 which are as
follows:
 A prime mover in the form of an industrial diesel engine which drives a Harben P Type
high-pressure pump.
 The pump can produce high-pressure water up to 4000 psi.
 Note: See above or section 7 for performance options.
 A hydraulic driven hose reel with up to 500 feet of single wire braid high-pressure hose
with either a nozzle or gun attachment to deliver the high-pressure water to the work
application.
 Plastic water tank, acting as a reservoir, also ensuring the water is settled and non-
turbulent, discharging a smooth uninterrupted supply, with a positive head of pressure
to the inlet, maximising the full potential of the pump.
 The pressure valve directs high-pressure water to the main jetting hose or diverts it
back to the tank.
 The control panel which includes the engine controller, pressure gauge, throttle, high-
pressure selector, jump jet valve & hydraulic hose reel controls.
 A Hypro 80 micron mesh inline strainer is fitted to the suction line between the tanks
and the pump inlet.
NOTICE: This is a critical component which ensures that no contaminants are drawn
into the pump inlet. This filter must be inspected and cleaned daily, if it becomes
blocked it will cause the pump to cavitate.
3.2.2. Engine Monitoring
Engine oil pressure and hours run are monitored on the engine control panel.
All manuals and user guides at all-guides.com

14

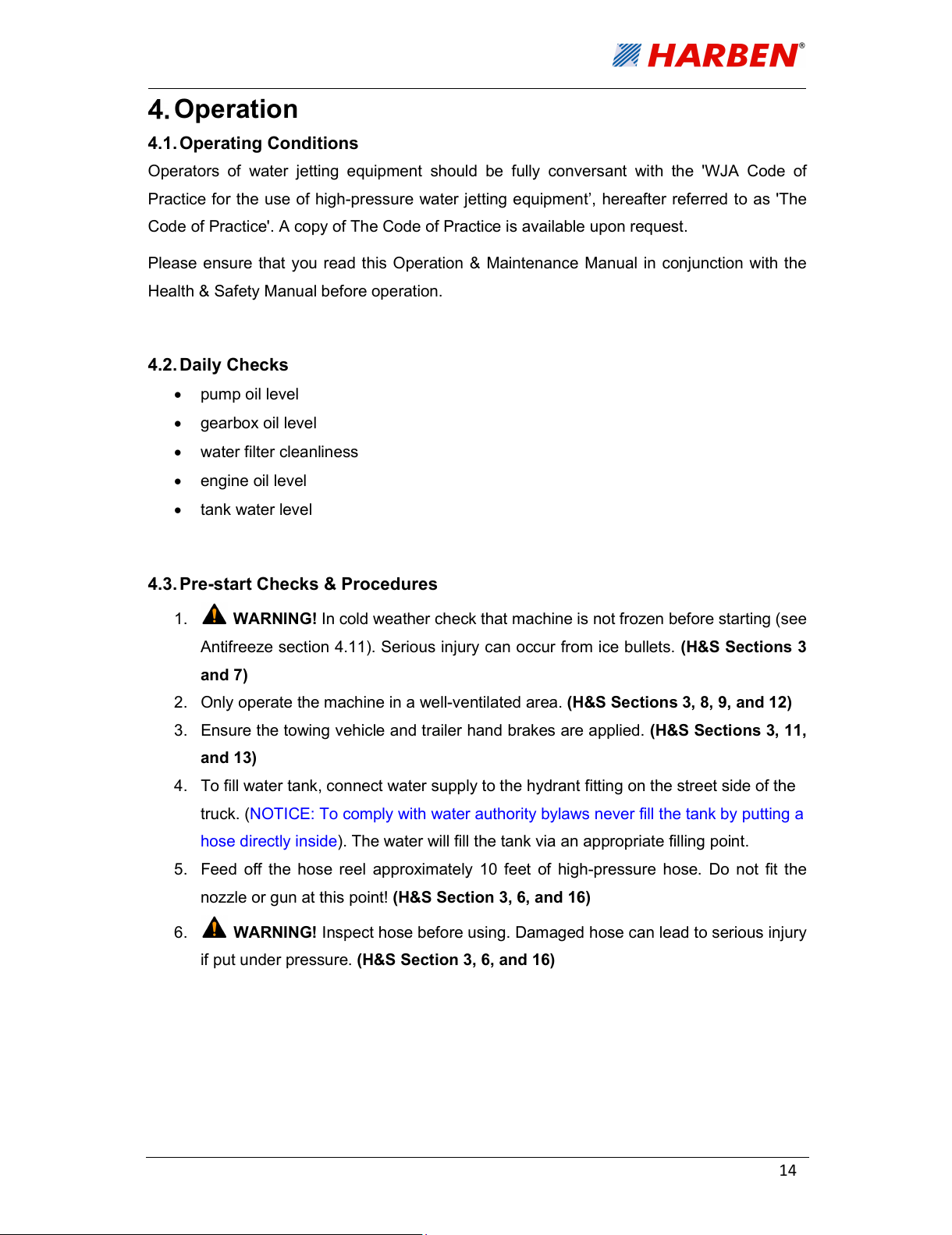

Operation
4.1. Operating Conditions
Operators of water jetting equipment should be fully conversant with the 'WJA Code of
Practice for the use of high-pressure water jetting equipment’, hereafter referred to as 'The
Code of Practice'. A copy of The Code of Practice is available upon request.
Please ensure that you read this Operation & Maintenance Manual in conjunction with the
Health & Safety Manual before operation.
4.2. Daily Checks
 pump oil level
 gearbox oil level
 water filter cleanliness
 engine oil level
 tank water level
4.3. Pre-start Checks & Procedures
1. WARNING! In cold weather check that machine is not frozen before starting (see
Antifreeze section 4.11). Serious injury can occur from ice bullets. (H&S Sections 3
and 7)
2. Only operate the machine in a well-ventilated area. (H&S Sections 3, 8, 9, and 12)
3. Ensure the towing vehicle and trailer hand brakes are applied. (H&S Sections 3, 11,
and 13)
4. To fill water tank, connect water supply to the hydrant fitting on the street side of the
truck. (NOTICE: To comply with water authority bylaws never fill the tank by putting a
hose directly inside). The water will fill the tank via an appropriate filling point.
5. Feed off the hose reel approximately 10 feet of high-pressure hose. Do not fit the
nozzle or gun at this point! (H&S Section 3, 6, and 16)
6. WARNING! Inspect hose before using. Damaged hose can lead to serious injury
if put under pressure. (H&S Section 3, 6, and 16)
All manuals and user guides at all-guides.com

15
Speed up
4.4. Control Panel Layout and Function
4.4.1. Control Keys
4.4.2. Toggle Switch Operation
Engine stop
Water on Speed down Menu exit
Menu password
access
Menu down key
Radio on/off
screen
Engine start
Menu up key
Operating screen
Enter button
Light switch
Light fuse
12V charge point
Control panel fuse
Power on switch
All manuals and user guides at all-guides.com

16
4.4.3. Screen Layouts
Starting splash screen
Password screen
Manual Confirmation Screen
Software version
Password screen – Use
enter, up and down
buttons to enter
password
Run screen entry – 2010
Minor programme
updates - 1111
All manuals and user guides at all-guides.com

17
Unit pressure
Engine speed
Harben contact number
Water on
indication
Main run screen (access by pressing menu exit key)
Remote enable/control screen (Enter button will toggle between function)
Run detail screen (access via the up and down keys)
All manuals and user guides at all-guides.com

18
Button 6 – menu scroll
Speed/pressure down
c
Engine start/stop
Radio control layout
4.5. Running the Engine (Manual Mode)
With two people, one at the pump set and one in charge of the nozzle or gun. (H&S Sections
3, 4, 8, 9, 11, 15, and 16)
Tank water level
Ensure you have an adequate water supply and that the water tank is filled to the ball valve
shut off level.
If your machine is fitted with a radio remote control go to section 4.6.
1. Switch on unit using toggle switch
2. The control system will now go through a pre-start (glow plugs)
3. Enter password ‘2010’ to enter
4. You will now enter the run screen
5. Ensure the open ended, high-pressure hose is in a safe position, preferable within
sight of the operator at the control panel. (H&S Sections 3 and 6)
6. Press the engine start button
7. The engine will now start and run in idle
8. The user can now increase and decrease the speed of the engine using the engine up
and down speed
Radio control screen
cc
Water on/off
cc
Speed/pressure up
Button 5 – menu scroll
cc
NOTICE: Do NOT allow unfiltered water into the pump.
All manuals and user guides at all-guides.com
