Harbinger L1402FX-USB User manual

L1402FX-USB
14-Channel Mixer

2L1402FX -USB Owner's Manual
IMPORTANT SAFETY INSTRUCTIONS
Please keep this instruction manual for future reference and for the duration of owning
the LvL mixer. Please carefully read and understand the instructions inside this owner’s
manual before attempting to operate your new mixer.
This instruction manual includes essential safety information regarding the use and
maintenance of the mixer. Take special care to heed all warning symbols and signs
inside this manual and those printed on the mixer.
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE PRODUCT TO
WATER/MOISTURE, NOR SHOULD YOU OPERATE THE PRODUCT NEAR ANY
WATER SOURCE.
The exclamation point triangular symbol is intended to alert the user to the presence
of important operating and maintenance(servicing) instructions in the user manual
accompanying the product.
The lightning flash with an arrow triangular symbol is intended to alert the user to the
presence of non-insulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock.
WARNING
Handle the power supply cord with care.
Do not damage or deform it as it may cause electric shock or malfunction when
used. Hold the plug attachment when removing from wall outlet. Do not pull on the
power cord.
IMPORTANT SAFETY PRECAUTIONS
1. READ INSTRUCTIONS – All the safety and operating instructions should be
read before this product is operated.
2. RETAIN INSTRUCTIONS – The safety and operating instructions should be
retained for future reference.
3. HEED WARNINGS – All warnings on the product and in the operating
instructions should be adhered to.
4. FOLLOW INSTRUCTIONS – All operating and use instructions should be followed.
5. DO NOT turn on the product module before connecting all other external devices.
6. WATER AND MOISTURE – Moisture can damage the product and can cause
corrosion of electrical contacts. The system should not be used near water - for
example, a bathtub, washbowl, kitchen sink, laundry tub, wet basement, or near
a swimming pool, and the like.
7. HEAT – The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other sources (including amplifiers) that
produce heat.
8. POWER SOURCES – This product should be operated only from the type of
power source indicated on the rating label. If you are not sure of the type of
power supply to your home, consult your product dealer or local power company.
9. GROUNDING OR POLARIZATION – Do not defeat the safety purpose of
the polarization or grounding-type plug. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit your outlet, consult
an electrician for replacement of the obsolete outlet. Do not defeat the safety
purpose of the 3rd pin grounding prong.
10. POWER-CORD PROTECTION – Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or against
them, paying particular attention to the cord in correspondence of plugs,
convenience receptacles, and the point where they exit from the product.
11. CLEANING – The product should be cleaned only as recommended by
the manufacturer. Clean by wiping with a dry cloth. Avoid getting water inside
the product.
12. NON-USE PERIODS – The power cord of the product should be unplugged
from the outlet when left unused for a long period of time.
13. OBJECT AND LIQUID ENTRY – Care should be taken so that objects do not fall
and liquids are not spilled into the enclosure through openings.
14. DAMAGE REQUIRING SERVICE – The product should be serviced by qualified
service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the product; or
C. The product has been exposed to rain; or
D. The product does not appear to operate normally or exhibits a marked change
in performance; or
E. The product has been dropped, or the enclosure damaged.
15. Keep the product out of extended or intense direct sun light.
16. No containers filled with any type of liquid should be placed on or near the
product.
17. SERVICING – The user should not attempt any service to the product beyond
that described in the operating instructions. All other servicing should be referred
to qualified service personnel.
18. VENTILATION – Slots and openings in the product are provided for ventilation
and to ensure reliable operation of the product and to protect it from
overheating. These openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed, sofa, rug, or other
similar surface. This product should not be placed in a built-in installation such as
a bookcase or rack.
19. ATTACHMENTS – Do not use attachments not recommended by the product
manufacturer, as they may cause hazards.
20. ACCESSORIES – Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury to a child or adult,
and serious damage to the product. Use only with a cart, stand, tripod, bracket,
or table recommended by the manufacturer, or sold with the product.
21. LIGHTNING – For added protection during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet.
This will prevent damage to the product due to lightning and power-line surges.
22. REPLACEMENT PARTS – When replacement parts are required, be sure the
service technician has used replacement parts specified by the manufacturer or
have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or
other hazards.
23. SAFETY CHECK – Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to determine that the product
is in proper operating condition.
To prevent electric shock, do not use a polarized plug with an extension cord, receptacle
or other outlet unless the blades can be fully inserted to prevent blade exposure.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE
OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING)
INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE UNIT.
APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING
AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.

3
L1402FX-USB
14-CHANNEL MIXER
L1402FX -USB Owner's Manual
TABLE OF CONTENTS
Quick Start 4
What's on the Front and Back Panels 6
Input Types 8
Output Types 10
Effects Section 11
USB 12
Troubleshooting 12
Glossary of Terms 13
Cable Diagrams 14
Block Diagram 15
Mixer Specifications 16
Warranty/FCC Statements 17
WELCOME
Congratulations on your recent purchase of a new Harbinger LvL Series mixer. They are the perfect choice for bands
or individual musicians who are looking for great-sounding mixes, live performance durability and audio specs that
studio users demand.
To get the most out of your new mixer, we suggest that you read through this entire manual at least once, then refer
back to it as needed.

4L1402FX -USB Owner's Manual
QUICK START
STUDIO QUICK START – PLUG IN A MICROPHONE AND HEAR IT THROUGH YOUR POWERED STUDIO MONITORS
Before we go through each feature on the mixer, we'll show a few
common setups so that you can begin using your mixer right away.
In the first example, we’re going to connect a microphone and listen
to it through powered studio monitors. Be sure to follow the direc-
tions so that you don’t hear loud feedback through your speakers!
1. Turn the CNTL RM|PH knob (under the effects) all the
way down, and the GAIN control on channel 1 (top left) all the
way down.
2. Plug your powered studio monitors into the CNTL RM OUT left
and right. Switch them on if you need to. (You can also follow
this example using headphones.)
3. Turn the LEVEL control on channel 1 up about half way.
4. Plug your microphone into the MIC input on channel 1.
5. If you’re using a condenser microphone, switch on the
PHANTOM POWER function (top right). If you’re using a
dynamic mic, or don’t know which type you’re using, leave
phantom power off.
6. Turn the MAIN MIX fader up to 0 (¾ of the way up).
7. Turn the GAIN control on channel 1 up about ½ way. If the
PEAK light flashes red, turn the gain back down a bit.
8. Slowly turn up the control room level (CNTL RM|PH) while
speaking into the microphone.
You should hear your voice through the speakers. Don’t hear
anything? Here are a few things to check:
• Are your speakers on? Are their level controls turned up?
• Do you need to switch phantom power on? Look at the mark-
ings on your microphone. If it says “condenser” then Phantom
Power should be switched on. If it says “dynamic” then leave
it off, although phantom power won't damage a dynamic mic.
• Are the level and gain knobs turned up on channel 1? Are the
Main Mix and Control Room levels turned up?
• If you only plugged in one speaker, make sure that the PAN
control is in the center.
• If the meters above Main Mix are moving, then your problem is
with the speakers. If the meters aren’t moving, something isn’t set
correctly on the mixer.
ADD REVERB
Now that we have signal running through the mixer, let’s try out the
effects. Picking up where we left off above:
1. Turn the PRESET knob to #5, “RV Plate.”
2. Turn up the FX RETURN knob about ½ way up.
3. Turn up the FX knob on the input channel and speak through the
microphone. You should see the green light next to the preset
knob light up and hear reverb on your voice.
4. Turn the Preset knob to hear the other presets.
PLAY BACK FROM YOUR COMPUTER OR
PORTABLE DEVICE
Next, we're going to play back from a line level device like a
computer, smartphone, keyboard, or mobile device.
1. If still set up as above, turn down the LEVEL control on channel
1. Keep the Main Mix and Control Room levels up.
2. Turn down the Level control for stereo channel 9-10.
3. Plug your computer, smartphone, keyboard, or mobile device
into the LINE INPUT for channels 9 and 10. You'll need ¼"
cables, either balanced or unbalanced will work.
4. Turn up the Level for channels 9-10 .

5
L1402FX-USB
14-CHANNEL MIXER
L1402FX -USB Owner's Manual
LIVE SOUND QUICK START – PLUG IN A MICROPHONE AND HEAR IT THROUGH YOUR PA SPEAKERS
Here is a typical live sound setup using two microphones, a stereo
PA, and an on-stage floor monitor.
1. Turn the MAIN MIX fader (bottom right) all the way down,
and the GAIN control on channels 1 and 2 (top left) all the
way down.
2. Plug your speakers into the MAIN OUT left and right. Switch
on the power amp or your powered speakers.
3. Turn the LEVEL control on channel 1 up about half way.
4. Plug a microphone into the MIC inputs on channels 1 and 2.
5. If you’re using a condenser microphone, switch on the
PHANTOM POWER function (top right). If you’re using a
dynamic mic, or don’t know which type you’re using, leave
phantom power off.
6. Turn the MAIN MIX fader up to 0 (¾ of the way up).
7. Slowly turn the GAIN control on channel 1 up to about ½
way. Watch the meters above the main fader. If they go up
to 0, or if the PEAK light flashes red on your channel, turn the
gain back down a bit.
8. Slowly turn up the GAIN on channel 2.
9. Switch on the power amp for your stage monitor or your
powered stage monitor. Turn up the AUX knob on any channel
you want to hear on stage.
Remember that the more microphones and speakers you use, the
more possibilities there are for feedback.

6L1402FX -USB Owner's Manual
WHAT'S ON THE FRONT PANEL
INPUT/OUTPUT JACKS:
1Mic Input: XLR connector for a microphone-level signal. This
input also sends +48V phantom power to a microphone when
Phantom Power is switched on.
2Line Input: A ¼" input that accepts a line-level signal.
Either a balanced (TRS) or unbalanced (TS) cable can be
plugged in here.
3Gain Control: Controls the input gain for the selected channel,
from either the mic or line input.
4Left/Mono Line Input: When this input is used and not the
input below, it is sent to both the left and right outputs of the
stereo channel. If L and R are both used, a stereo signal is sent
to the Main Out.
5Main Out: Outputs controlled by the Main Mix fader.
6Control Room Out: Outputs controlled by the Control Room/
Phones knob.
7CTRM|Main: This is the USB routing switch. The 2-channel
USB input automatically routes to the MAIN output. If
the switch is pressed the USB input will be routed to the
CTRL RM Out instead.
Aux Send 1: Output can be connected to a stage monitor or
effects processor
Phones Out: Stereo output for driving a pair of headphones.
The output level is controlled by the Control Room/
Phones knob.
2TK Input and Output: An unbalanced RCA input for
connecting other external audio sources such as tape and CD
players or mobiles devices.
To Mix: Sends the 2TK Input to the Main outputs for live
sound applications.
To Phones (Control Room): Sends the 2TK Input to the
headphones and control room outs
9
1
2
3
4
78 5 6
10
11
10
11
12
8
12
9
WHAT'S ON THE BACK PANEL
1
2
1
2
Power Jack.
USB Jack.

7
L1402FX-USB
14-CHANNEL MIXER
L1402FX -USB Owner's Manual
CONTROL SECTION:
1High EQ: Controls a high shelving EQ, boosting or cutting
frequencies from 12kHz and above
2Mid EQ: A peaking EQ control, boosting or cutting frequen-
cies centered around 2.5kHz
3Low EQ: Controls a low shelving EQ, boosting or cutting
frequencies 80Hz and below
4HPF: Cuts all frequencies 75Hz and below
5AUX: A prefader Auxiliary Send. It sends the signal to the Aux
Send 1 Output regardless of the position of the Level Control.
FX: A post-fader auxiliary send. It sends the channel to the
built-in effects processor.
Pan: Sends the channel to the left output, right output, or some-
where between.
Level: Controls the level of the channel going to the
Main outputs.
+4/–10 Switch: Changes the input sensitivity. Usually
balanced signals are set to +4dB and unbalanced signals are
set to –10dB.
Bal: Works in a similar way to a pan control, except that it
turns down one side or the other of the stereo input.
11 Control Room/Phones level: Controls the level going to the
Control Room outputs and the Phones outputs.
12 Aux Send to Phones: When pressed, the Aux Send is sent to the
Headphone and Control Room outputs. When up, the Phones
and Control Room outputs are the same as the Main Outputs.
13 Effects Parameter Variable: Changes the characteristics of the
selected effects preset parameters.
14 Effects Level/Clip: Displays the level going to the effects
processor. When the clip turns on, the effects are
being distorted.
15 Effects Preset: Changes the effects processor preset, as listed
on the top of the mixer.
16 FX Return: The overall level from the effects processor that is
being sent to the Main outputs
17 Phantom Power: Sends 48V phantom power to the XLR inputs.
18 Meter: Shows the signal level being sent to the Main Outs. If
the red 0 or +5 lights are on, the output is being distorted.
19 Power LED: Shows that the mixer is switched on.
20 Main Mix: Sets the level to the Main Outs.
10
1
2
3
6
151412 1310 11 16
4
7
9
18
19
5
6
7
8
8
9
10
17
20

8L1402FX -USB Owner's Manual
INPUT TYPES
This chapter will review the types of inputs on the L1402FX-USB mixer and explain each of their features.
CHANNELS 1-8: MIC/LINE INPUTS
MICROPHONE INPUT (MIC)
This XLR connector will accept virtually any professional microphone.
It is designed for microphone level signals. If you have a device that
plugs into the wall and has an XLR output (like a mic pre/channel
strip, guitar multi effects processor, computer interface), you should
get an XLR-to-¼" TRS cable and plug it into the line input (below).
Some microphones, mostly condenser mics, need phantom power to
operate. Switch on phantom power on the right side of the mixer. If
you're unsure if your mic needs phantom power, check the instruc-
tions or the manufacturer's website for information. Phantom power
should not hurt most microphones, except for very old or damaged
ribbon microphones.
Use the microphone preamp's gain control (explained below) to
bring the microphone up to a high enough level to use with the mixer.
LINE INPUT (LINE)
This ¼" input is designed for line-level signals. It accepts either
balanced (TRS) or unbalanced (TS) cables. The level of this input is
also controlled by the gain control, explained below.
Do not use both the microphone and line inputs on the same channel.
The mixer will distort and the noise level will go up.
The line input is not designed to accept an instrument-level signal,
such as the output from an electric or acoustic guitar or bass. If you
want to plug your instrument into the mixer, we suggest a direct
box (also called a DI box). Plug your instrument into the direct box,
then plug the output of the direct box into the microphone input of
the mixer.
GAIN
Gain controls the level of the microphone or line level signal plugged
into the mixer. If the gain is set too low, the output signal will be noisy
when you turn it up at the level control. If gain is set too high, it
will distort.
For best performance, set the gain while looking at the meters. Turn
the Level control so that it's facing straight up. Then turn the gain up
until you see the first or second lights on the meter. Don't set it too
high – although you might not hear distortion when playing by itself,
when all of the channels are playing at that level they may add
together and distort the mixer.
Sidebar: "Why are there two volume controls?"
The Gain and Level controls work together to get the best
performance out of the mixer. A quiet signal may need
more gain than a loud guitar amp going into a sensitive
microphone. Set the gain so that the level on each channel
is roughly the same, then use the Level controls to set the
balance that you want in your mix.
EQ HI
The high EQ control is a shelving EQ. What this means is that it
boosts or cuts from 12kHz and everything above that. Turn it up to
bring out the breath of a vocal or the high overtones of the cymbals.
Turn it down to reduce finger squeaks on a guitar or bass.
EQ MID
The mid EQ is a peaking EQ, centered at 2.5kHz. This boosts or cuts
the high midrange of your signal. You might turn it up if your vocal
isn't cutting through the mix, or turn it down if a percussion part is
too harsh.
FREQUENCY IN HZ
FREQUENCY RESPONSE
RELATIVE RESPONSE IN dB
FREQUENCY IN HZ
FREQUENCY RESPONSE
RELATIVE RESPONSE IN dB

9
L1402FX-USB
14-CHANNEL MIXER
L1402FX -USB Owner's Manual

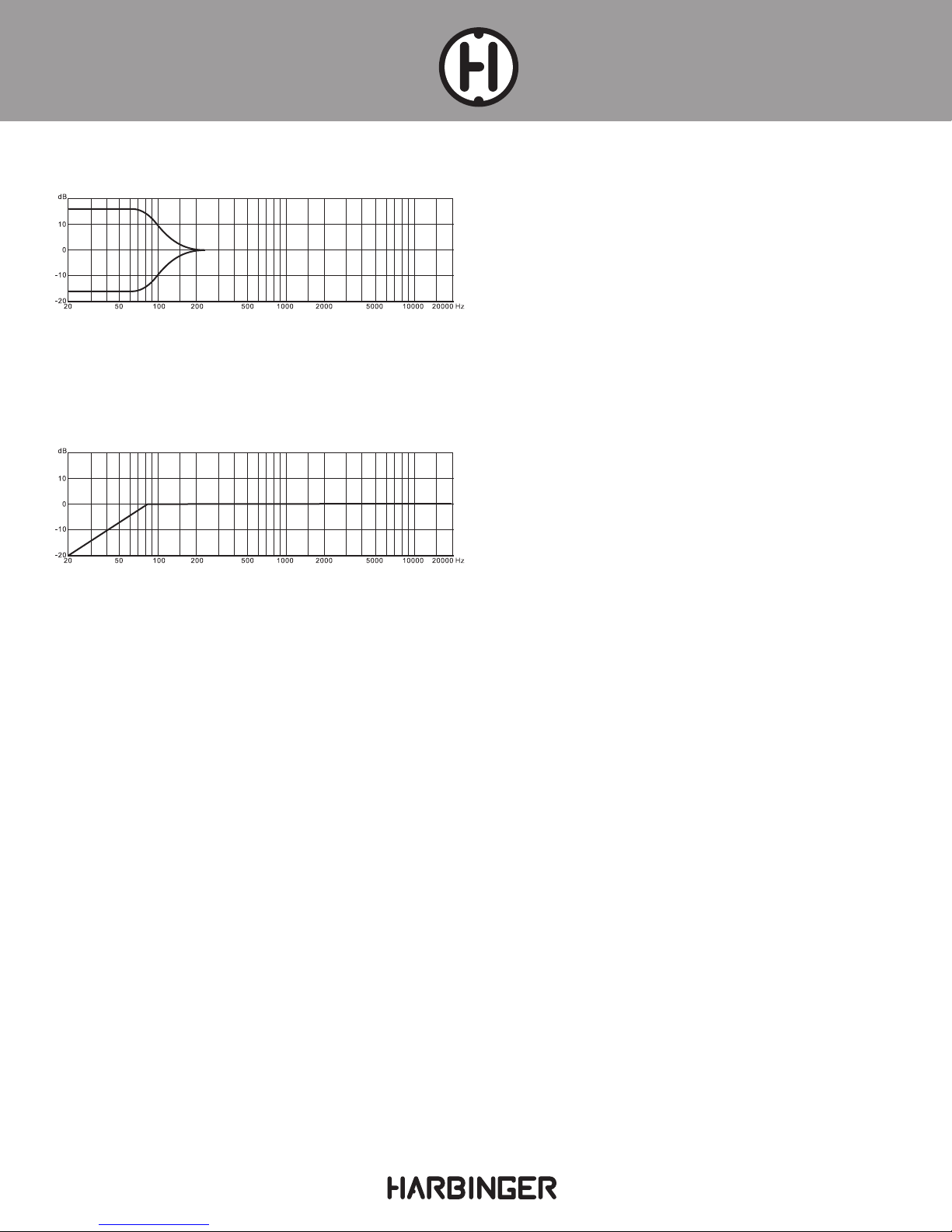

EQ LOW
This low EQ boosts or cuts everything from 80Hz or below. You
might bring it up for more bottom out of your kick or bass guitar, and
turn it down to reduce rumble from a vocal or wind instrument.
HPF
The HPF is a High Pass Filter, centered at 75Hz. This means that it
cuts virtually everything below 75Hz. It can be useful for reducing
rumble or muddy low tones from an instrument, or as a way to
reduce hum in a channel. Try switching on the HPF and boosting the
Low EQ for some interesting sounds.
AUX SENDS
The Aux send is separate bus on the L1402FX-USB mixer. This means
that you can have a different mix on the aux bus than you do on the
main outputs. This comes in handy in a few scenarios:
• Sending different amounts to the effects section, so that some
instruments have more reverb than others
• Setting up a headphone mix, so that a recording musician can
hear exactly what they want while you listen to your own mix
• Creating a monitor mix on stage, so that band members can hear
what they need to perform while you mix for the rest of the club
L1402FX-USB features one pre and one post fader aux bus. The pre-
fader aux bus will send signal to the aux send output regardless of
where the level control is set.
The aux send can be sent to different parts of the mixer, depending
on the application. It always shows up at the Aux Send output of the
mixer, and you might plug that into the input of a stage monitor or
external effects processor.
Finally, you can send it to the Control Room and headphone outputs
by pressing the "Aux Send To Phones" button, next to the Control
Room/Phones level control. This allows a musician to hear their own
mix while recording with headphones.
If you would like to listen to a different mix through the Control Room
than your artist on headphones, you will need to plug the Aux out into
a headphone amplifier for the artist while you monitor the main mix.
There are two Aux sends on the L1402FX-USB Mixer. The first aux
send is routed for external effects or monitor setups. The second aux
send is routed from an input channel to the internal effects of the mixer.
This gives you the flexibility of having both two aux sends for an input
channel (monitoring and effects routing). The first aux send is pre-fader
which means the channel input fader will not affect the signal going
into the first aux bus. The second aux send is post fader, which means
the input channel fader setting will affect the signal going into the
internal effects.
PAN
The Pan control moves the signal between the left and right outputs.
When turned fully to the left, that channel will only show up on the
left main output. When turned to the center, it will be sent in equal
volume to the left and right outputs. Turned fully to the right, you will
only hear it through the right output.
Tip: You can use the pan control to create two mono mixes
from the L1402FX-USB. This might be more useful than a
stereo mix in a large club, house of worship, conference
room, or other special application.
PEAK
The Peak LED lights up when the level coming into that channel is too
loud. If you see this light flash, turn that channel's Gain control down
and the Level control up.
CHANNELS 9-12: STEREO LINE INPUTS
LEFT/MONO INPUT
This ¼" input expects a line level signal. It accepts either balanced
(TRS) or unbalanced (TS) ¼" cables. If only the Left/Mono input
is used on a channel, that signal will be sent to the left and right
outputs. (If the Right input is also used, this input will be sent to the
left output.)
RIGHT INPUT
As above, this is a line level input, either balanced or unbalanced. It
is sent to the right output.
+4/–10 SWITCH
This switch sets the sensitivity for the channel. It's similar to the gain
control, but only has two settings. Generally speaking, if your device
has balanced outputs you should use the +4 setting. If your device
has unbalanced outputs, use the –10 setting.
FREQUENCY IN HZ
FREQUENCY RESPONSE
RELATIVE RESPONSE IN dB
FREQUENCY IN HZ
FREQUENCY RESPONSE
RELATIVE RESPONSE IN dB

10 L1402FX -USB Owner's Manual
AUX SEND
This sends the channel to the aux bus. See the previous section for
more information.
BALANCE (BAL)
The Balance knob has a similar effect to the pan control explained
in the previous section. But the Balance control just turns down one
input or the other. As you turn Balance to the right, the signal coming
into the Left/Mono input gets softer. This allows you to control the
panning in your mix without collapsing the stereo width of the input.
LEVEL
This controls the level of the channel going to the Main Outs. See the
previous section for more information.
2TK INPUT
The 2TK Inputs are a pair of unbalanced RCA phono line inputs.
They can be used for a variety of applications:
• Monitoring a mixdown recorder. Since these inputs aren't sent
to the Main Outputs, there is no chance of a feedback loop.
• Playing an MP3 player through the PA between band sets,
muting all microphones
• Sending a signal to the headphone outputs but not to the main
outputs. You might plug a set of outputs from a computer inter-
face into these inputs, so that the metronome click can be sent
to the headphones but not the main out.
There are two buttons that control where these inputs are heard. One
is To Mix and the other is To Phones (Ctrl Room.)
When TO MIX is switched on, all of the inputs are muted except for
the 2TK input. All that you will hear from the L/R outputs is what is
playing into the 2TK input. You might use this in the example above
to play audio from a mobile device to the PA between sets.
Pressing TO PHONES/CONTROL ROOM means that only the 2TK
input is heard through the Control Room and Phones outputs. This
is useful if you are recording the mix and only want to hear what
is coming back from the recorder. This ensures that the recorder is
getting the mix that you expect to hear. It also allows you to monitor
the recorder output without creating a feedback loop in the speakers.
OUTPUT TYPES
This chapter explains each of the outputs on the Harbinger L1402FX-USB mixer and their level controls.
MAIN OUTS
The Main Outs are line outputs. They will work with either balanced
or unbalanced cables. The Main Mix fader controls the level of the
Main Outputs. You might plug the main outs into a PA amplifier or a
mixdown recorder.
All of the channels should show up at the Main outputs. If they don't,
make sure that the "2TK to Mix" button isn't pushed.
CONTROL ROOM OUTPUTS (CTRL RM OUT)
The Control Room Outputs are a separate set of outputs for the
mixer. In a home studio, you might plug these into a set of powered
studio monitors. The Ctrl Rm|Ph knob controls the level going to the
control room outputs (and the headphones.)
There are three sources that can be sent to the Control Room
Outputs. Usually, you listen to the same mix that's coming out of the
Main Outs. If the 2TK to Phones (Ctrl Room) button is pressed, only
the 2TK input will be heard through the Control Room outputs.
If the Aux to Phones (Ctrl Rm) is pressed down, the aux send will be
heard through the Control Room outputs. This can be useful when
preparing a headphone mix for an artist.
PHONES
This is a headphone-level output. It is designed to drive a pair of
headphones with a balanced ¼" connector. If your headphones
have a 1/8" stereo jack, you will need an adapter to plug them into
the mixer (included with most professional headphones.)
Note that the headphones and the control room outputs are linked
– both the mix and level. If you press 2TK to Phones (Ctrl Room), the
2TK input will be sent to both the control room outs and the head-
phones. If you turn the control room level all the way down, there will
be no signal in the headphones.
AUX SEND
This jack sends the aux bus out of the mixer. Turn up the Aux knob on
any channel to send it to the Aux Send output. See page 9 for more
information about the Aux Send.
2TK OUTPUT
This is a pair of unbalanced line level outputs. They are just a copy
of the Main Outputs. If you turn the Main Mix fader down, the level
is also reduced here.

11
L1402FX-USB
14-CHANNEL MIXER
L1402FX -USB Owner's Manual
EFFECTS SECTION
The Harbinger L1402FX-USB includes a great-sounding digital effects processor. This chapter explains how to use it.
PRESET
The L1402FX-USB Effects Processor has 16 presets. Each of these is
a different effect type. The preset names are listed on the top of the
mixer. They are explained in further detail below.
VARIABLE PARAMETER
This knob changes the character of the effect depending on the
effect type. It either changes the length of a reverb, the feedback/
repeat amount of a delay, or the depth of a modulation effect. See
the preset descriptions below for more information on how this
control works.
TAP
On effects presets with delay, press this button twice to set the
delay time. This is useful for setting the delay time in tempo with the
music. If you want a quarter note delay, press the Tap button on
two successive beats of the music and the delay time will jump to
that tempo.
SIGNAL/CLIP LEDS
These show the level going to the input of the effects processor.
When you send a channel to the effects processor, using the FX
knob, you should see the green Sgn light turn on. If the level gets
too high, you'll see the red Clip LED turn on. If this happens, turn
down the Aux 2 Send knobs on each channel to avoid distorting
the effects.
EFFECT PRESET CHART
The chart below describes the presets and what the Variable and Tap controls do for each one.
Preset Name Variable Paramenter Tap Control Description
1 Flanger Depth, from low to deep – Classic stereo flanger with a slow sweep
2 Chorus Depth, from low to deep – Chorus/ensemble effect with short delays
3 Delay-M Feedback, from single repeat to long
repeating echoes Delay Time Simple mono delay, great for vocals and guitars
4 Delay-PP Feedback, from single repeat to long echo Delay Time Stereo "Ping Pong" delay that jumps from left to right
output for complex effects
5 RV Plate Decay & Brightness - from Short/Bright to
Long/Warm –Emulation of a '70s plate reverb – a smooth decay
for instruments
6 RV PPlate Decay & Brightness - from Short/Bright to
Long/Warm –
Plate reverb with a short (20ms) pre-delay, perfect
for adding space to vocals while keeping them clear
and intelligible
7 RV Room Decay & Brightness - from Short/Bright to
Long/Warm –Emulates a small studio room, great for adding
ambience to drums and instruments
8 RV Hall Decay & Brightness - from Short/Bright to
Long/Warm –Gives the sound of a concert hall, ideal for
keyboards, string, and wind instruments
9 RV Spring Decay & Brightness - from Short/Bright to
Long/Warm -The sound of a spring reverb, adds a funky vintage
sound to guitars
10 VocD Detune amount, light to deep – Vocal doubler effect – a Pitch shifter with a slight
echo to fatten vocals or guitars
11 Rev+DelM Reverb decay, short to long Delay Time Reverb with a short mono delay
12 Rev+DelPP Reverb decay, short to long Delay Time Reverb with a short stereo ping-pong delay
13 RV+Chorus Reverb decay, short to long – Reverb and chorus multi effect, nice on keyboards
14 RV+Flange Reverb decay, short to long – Reverb and flanger multi effect, interesting with guitar
15 RV+VocD Reverb decay, short to long – Reverb with vocal doubler multi effect, great for
pop vocals
16 Rotary Depth light to deep – Emulation of the rotary speaker from an organ, fun
for guitars or keyboards

12 L1402FX -USB Owner's Manual
USB
Recording and playing back audio through USB
TO PLAYBACK AUDIO
1. Connect your computer to the mixer with a USB cable. Your
computer should see the mixer as a device labeled "Samsung
UC Audio".
2. Select the mixer to playback audio from your system
control panel.
3. Playback audio from your application.
4. Make sure the CTRM/MAIN button is down near the Jacks that
say CTRL RM OUT.
5. The audio is routing to the main outputs through Aux inputs,
which means the volume control is controlled by the main fader
if the "To Mix" button is depressed (next to the RCA jacks for
AUX). The same case for Control Room.
• Are the Gain and Level knobs turned up?
• Is the Main Mix fader turned up?
• Is the 2TK to Mix, 2TK to Phones, or Aux to Phones button
pressed in?
• If the mic needs phantom power, is the PHANTOM POWER
turned on? (Try it if you aren't sure.)
• Try a different microphone cable and/or microphone.
• Check the power connections, your power strip, extension
cords, etc.
You can hear everything, but it's very noisy.
• Are all of the level controls turned up very high? Try turning
those down and the gain controls up.
• Turn down the FX return. If that was the problem, try sending
more signal to the effects by turning all of the Aux knobs up.
• Try turning down channels one at a time. If there is one channel
that is contributing most of the noise, try fixing that at the
source.
You can see level on the meters, but can't hear anything through
the control room speakers.
• Is the Aux to Phones/Control Room or 2TK to Phones/Control
Room button pressed in?
• Are the monitors switched on?
• If only one output is working, try switching the left and right
outputs. If the same channel isn't working, the problem is with
the speaker.
You turned up the FX Return knob, but can't hear the effects.
• Are you sending enough level to light the Signal LED next to the
preset knob? If not then turn up the Aux knob(s).
•Are you listening to the Aux to Phones/Control Room by mistake?
•Try a different Preset or turn the Variable knob.
TO RECORD AUDIO
1. Connect your computer to the mixer with a USB cable. Your
computer should see the mixer as a device labeled "Samsung
UC Audio".
2. Select the mixer playback and record audio from your system
control panel.
3. Setup your mixer to have audio coming in as you normally would.
4. Start up your DAW application on your computer.
5. Make sure your DAW application is setup to receive audio from
the "Samsung UC Audio" (L1402FX-USB mixer)
6. Create an audio track on your mixer and enable it to record. To
avoid a feedback you can either switch the "To Mix" button to
be in the up position or disable the monitoring function in your
DAW program on the track you are recording to.
7. Perform your audio on the mixer and record the track on your
DAW application.
8. After recording you can play back the track from your computer
to the mixer to hear the playback. Be sure to turn on the
"To Mix" or "To Phones (CTRL ROOM)" button to hear the
audio playback.
TROUBLESHOOTING
In this chapter, we'll discuss common problems and their solutions, as well as who to contact if things go wrong with your mixer.
TROUBLESHOOTING MATRIX
A microphone is plugged in, but you don't see any level on the main meters.

13
L1402FX-USB
14-CHANNEL MIXER
L1402FX -USB Owner's Manual
GLOSSARY OF TERMS
BALANCED
A 3-conductor (including shield), low-impedance connection.
Balanced cables are the preferred method for hum-free intercon-
nection of a sound system for their noise-rejection characteristics.
(Also see Unbalanced.)
BUS
An output destination in a mixer. For example, the left and right
main outputs are called buses, because you can send a channel to
one or both of them.
CHANNEL
One of any number of signal paths in an audio circuit, such as
input channel, output channel, recording channel, left channel, right
channel, etc.
DECIBEL (
d B )
A term representing the ratio between different audio levels. It can
either refer to the electrical signal running through a channel or the
acoustic sound level coming from a sound source.
DELAY
Like an echo, this effect duplicates the original signal, then plays it
back at a rate you control. The rate at which these repeats occur is
the “delay time.”
EQUALIZATION
Electronic filters that adjust the level of certain frequencies. Used for
tone enhancement or to reduce extraneous sounds. Two types of
EQ shapes are Peak and Shelving, described below.
IMPEDANCE
Resistance in an electrical circuit measured in Ohms (Ω). Main-
taining proper impedance (between amplifier and speakers for
example) is important to prevent damage to the amp.
PEAK EQUALIZER CONTROL
Increase or decrease of a frequency range centered at a specific
point, resulting in an EQ curve that looks like a hill (increase) or a
valley (decrease). (Compare to Shelving Equalizer Control; see
pages 8-9 for more information.)
PHANTOM POWER
A voltage signal that runs through a microphone cable to power
condenser microphones. Harmless to microphones that don't need
it, except for very old and/or damaged ribbon microphones.
REVERB
An audio effect that emulates the echo reflections and decay time
of a large space.
SHELVING EQUALIZER CONTROL
Increase or decrease of all frequencies above or below a specific
point. (Compare to Peak Equalizer Control; see pages 8-9 for
more information.)
TRS
Acronym for Tip-Ring-Sleeve — the three parts of a three-conductor
(including shield) audio plug. TRS phone plugs are often used for
“balanced” mono connections, or stereo "unbalanced" (head-
phone) connections.
TS
Acronym for Tip-Sleeve, the two parts of an unbalanced, two-
conductor (including shield) phone plug. TS connectors are some-
times called mono or unbalanced plugs.
UNBALANCED
A two-conductor (including shield), high-impedance connection.
These are most commonly used for instrument connections and
cable runs of less than 20 feet.
XLR
The three-pin connector universally used for balanced audio
connections. A balanced connection reduces outside noise and
interference. (See Balanced above.)

14 L1402FX -USB Owner's Manual
BALANCED CABLE
XLR-M
+ Positive
+ Positive
1. Shield
1. Center
T Positive Left S
S
R
R
T
TT Positive
+ Positive
+ Positive
– Negative
2. Positive
2. Shield
R Negative Right
2
2
11
1
2
3 3 R Negative
– Negative
S Shield
S Shield
3. Negative
S Shield
S Shield
S Shield
S Shield
XLR-F
RCA
TRS
TS
UNBALANCED CABLE
UNBALANCED STEREO
CABLE DIAGRAMS
S T

15
L1402FX-USB
14-CHANNEL MIXER
L1402FX -USB Owner's Manual
BLOCK DIAGRAM

16 L1402FX -USB Owner's Manual
MIXER SPECIFICATIONS
Parameter Condition L1402FX-USB
Frequency response Mic In to Main Out
(Trim at 0dB):
10Hz - 22kHz ±1dB
THD Mic In to Main Out,
20Hz to 20kHz
0.007%
Preamp Noise (EIN) 20 Hz to 20 kHz,
(150Ω source)
–114dB
Residual Output Noise All level controls @ minimum –95dB
Common Mode Rejection Ratio (CMRR) Gain at 0dB >50dB @ 1kHz
Crosstalk Adjacent channels –70dB
Same channel
(stereo separation)
–36dB
Input Gain Control Range 0dB to +50dB
Phantom Power DC +48V
Equalization Mono Channel, High ±15dB @ 12kHz
Mono Channel, Mid ±15dB @ 2.5kHz
Mono Channel, Low ±15dB @ 80Hz
Stereo Channel, High N/A
Stereo Channel, Mid N/A
Stereo Channel, Low N/A
Output Level Maximum +20dBu
Maximum Input Levels Mic +12dBu, Gain @ +10dB
Line Input +20dBu, Gain @ +10dB
2TK Input +20dBu
Input Impedance Mic Input 2.6kΩ, balanced
Line Input 20kΩ, balanced
2TK In 24kΩ, balanced
Output Impedance Main 240Ω, balanced / 120Ω, unbalanced
Ctrl Room, Aux Send 1 120Ω
2TK Output 1kΩ
Phones Output 25Ω
VU Meters 5 Segments +3, 0, –3, –7, –10dB
AC Power Requirements 3-pin AC Mini XLR connector 22 VAC × 2 @ 350mA
USB I/O Jack 1.1 connection Stereo 44.1k/16 Bit
Dimensions WxDxH (mm) 37mm x 255mm x 60mm
Weight (net) without PSU 2.60 kg
Weight (net) PSU .55 kg
Package Weight .82 kg

WARRANTY
Have a question about service, warranty or parts?
Call 888-286-1809 (Toll Free)
2 YEAR HARBINGER LIMITED WARRANTY
Harbinger provides, to the original purchaser, a two (2) year limited
warranty on materials and workmanship on all Harbinger mixers from the
date of purchase.
For warranty support, please visit our website at www.Harbinger
ProAudio.com, or contact our Support Team at 888-286-1809
for assistance. Harbinger will repair or replace the unit at
Harbinger’s discretion.
This warranty does not cover service or parts to repair damage caused
by neglect, abuse, normal wear and tear and cosmetic appearance to the
chassis not directly attributed to defects in materials or workmanship. Also
excluded from coverage are damages caused directly or indirectly due to
any service, repair(s), or modifications of the chassis, which has not been
authorized or approved by Harbinger. This two (2) year warranty does
not cover service or parts to repair damage caused by accident, disaster,
misuse, abuse, negligence, inadequate packing or inadequate shipping
procedures.
The sole and exclusive remedy of the foregoing limited warranty shall be
limited to the repair or replacement of any defective or non-conforming
component. All warranties including, but not limited to, the express
warranty and the implied warranties of merchantability and fitness for a
particular purpose are limited to the two (2) year warranty period. Some
states do not allow limitation on how long an implied warranty lasts, so the
above limitation may not apply to you. There are no express warranties
beyond those stated here. In the event that applicable law does not allow
the limitation of the duration of the implied warranties to the warranty
period, then the duration of the implied warranties shall be limited to as
long as is provided by applicable law. No warranties apply after
that period.
Retailer and manufacturer shall not be liable for damages based upon
inconvenience, loss of use of product, loss of time, interrupted operation
or commercial loss or any other incidental or consequential damages
including but not limited to lost profits, downtime, goodwill, damage to
or replacement of equipment and property, and any costs of recovering,
reprogramming, or reproducing any program or data stored in
equipment that is used with Harbinger products. This guarantee gives you
specific legal rights; you may have other legal rights, which vary from
state to state.
Harbinger P.O. Box 5111, Thousand Oaks, CA 91359-5111
All trademarks and registered trademarks mentioned herein are
recognized as the property of their respective holders.
So we may serve you better, please register on-line at www.HarbingerProAudio.com
FCC STATEMENTS
1. Caution: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
2. Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generate, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
