P30 Machine Control Cable Replacement
Applies to
Products: P30 consoles
Limitations: Only perform this repair on P30 consoles that exhibit the machine control issues described in the
Issue/Symptoms section.
Issue/Symptoms
Multiple occurrences of logged incline or speed related error codes 80 thru 83.
Resolution
Replace the P30 machine control interface cable with an updated cable that has improved electrical connector pin
contacts.
Tools required
#2 Phillips Screwdriver
Dielectric Grease (NAPA Auto Parts 765-1190 or equivalent)
Parts required
QTY
Part Number
Description
1
PPP000000305859015
P30 Machine Control Cable (8-pin conn)
Procedure
Review entire procedure before starting.
1Remove the P30 from the machine.
2Remove the P30 back cover. Make sure to disconnect the HR cable connectors.
3Remove the P30 machine control cable.
aBefore removing the cable note that pin 1 is on opposite sides
for the UPCA and Machine Controller connectors. Pin 1 is on the
left side of the UPCA - J4 connector and on the right side of the
machine controller PCA board J1 connector. On the original

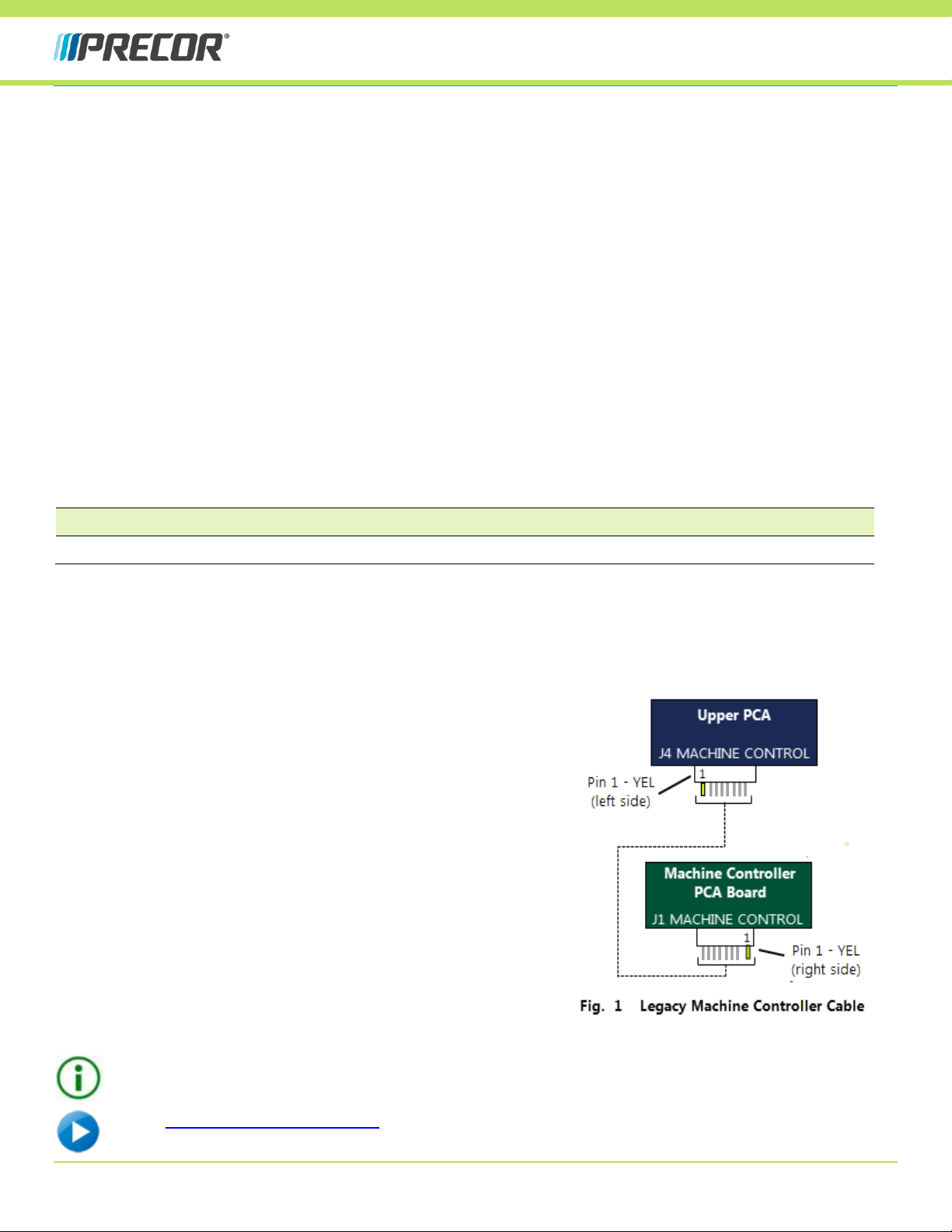

cable, the yellow wire identifies pin 1 (Fig. 1, Fig. 2).
bDisconnect the UPCA J4 MACHINE CONTROL connector. Note
that the yellow wire (pin 1) is located on the left side of the
connector (Fig. 1 & Fig. 2).
cDisconnect the Machine Controller J1 MACHINE CONTROL
connector. Note that the yellow wire (pin 1) is located on the
right side of the connector (Fig. 1 & Fig. 2).
dRemove the cable from the machine controller cable clips (Fig.2).
Discard the cable.
4Before installing the new cable, apply dielectric grease into each of
the eight connector pin sockets for both of the new machine control
cable connectors. Clean and wipe any excess grease from the
connector housing.
Note:
Use your fingertip to completely fill each pin socket with grease.
Video: How to apply dielectric grease.

TECH-TIP
TT.CON.20191023
Contact Precor Customer Support at supp[email protected] or 800.786.8404 with any questions. Page 2 of 2
©2019 Precor Incorporated, Unauthorized reproduction and distribution prohibited by law.
5Connect the new machine controller cable to the UPCA - J4 MACHINE CONTROL connector making sure that the
black wire (pin 1) is located on the left side of the connector (Fig. 2).
aPosition the cable connector so that the connector key ribs are on the bottom facing downward away from the
UPCA board. Also make sure that the black wire is on the left side aligned with pin 1 of the UPCA - J4 MACHINE
CONTROL connector.
bAlign the 8 connector pin sockets and plug in the cable connector (Fig. 2).
6Connect the new machine controller cable to the machine controller PCA board - J1 MACHINE CONTROL connector
making sure that the black wire (pin 1) is located on the right side of the connector (Fig. 2).
aPosition the cable ribbon connector so that the connector key ribs are on the top facing upward away from the
PCA board. Also make sure that the black wire is on the right side aligned with pin 1 of the machine controller -
J1 MACHINE CONTROL connector.
bAlign the 8 connector pin sockets and plug in the cable connector (Fig. 2).
7Reinstall the console back covers. Make sure to reconnect the HR cable connector.
8Reinstall the console onto the base unit.
9Connect power and verify operation of the machine INCLINE and SPEED/RESISTANCE controls.
aGo to Diagnostics Hardware Validation mode and select Keyboard Test.
bSlowly move the INCLINE control approximately half way until the first INCLINE LED switches OFF, pause, and
continue movement to maximum and verify the second LED switches OFF. If the LEDs do not switch OFF there is
a problem with the machine control. Perform this test for both raise and lower incline directions.
cRepeat the Keyboard Test for the SPEED/RESISTANCE control.
dPress and hold the PAUSE key to exit Diagnostic Hardware Validation mode.
eOperate the INCLINE control through the entire range from min to max levels.
fOperate the SPEED/RESISTANCE control through the entire range from min to max value.
gVerify the HR function.
10 Verify machine operation (see service manual) and return to service.
