Harbor Freight Tools 96933 Installation manual

12V MAGNETIC
TOWING LIGHT KIT
Model 96933
SET UP AND OPERATING INSTRUCTIONS
Diagrams within this manual may not be drawn proportionally.
Due to continuing improvements, actual product may differ slightly from the product described herein.
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2009 by Harbor Freight Tools®. All rights reserved. No portion of
this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.

Page 2SKU 96933 For technical questions, please call 1-800-444-3353.
SAVE THIS MANUAL
Keep this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures. Write the product’s serial number
in the back of the manual near the assembly diagram (or month and year of purchase if
product has no number). Keep this manual and the receipt in a safe and dry place for
future reference.
IMPORTANT SAFETY INFORMATION
In this manual, on the labeling, and all other information provided with this product:
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING indicates a hazardous situation
which, if not avoided, could result in death
or serious injury.
CAUTION, used with the safety alert
symbol, indicates a hazardous situation
which, if not avoided, could result in minor
or moderate injury.
NOTICE is used to address practices not
related to personal injury.
CAUTION, without the safety alert symbol,
is used to address practices not related to
personal injury.
SAFETY RULES
WARNING! Read all instructions
Failure to follow all instructions listed below may result in electric shock,
re, and/or serious injury.
SAVE THESE INSTRUCTIONS
Obey D.O.T.(Department of Transportation) and all other applicable1.
regulations regarding installation and use. Observe posted speed limits to
prevent lights from blowing off.
DANGER
WARNING
CAUTION
Notice
CAUTION

Page 3SKU 96933 For technical questions, please call 1-800-444-3353.
Securely attach lights to vehicle before moving. Loose lights are a trafc 2.
hazard.
Thoroughly test vehicle lights and tow lights before use.3.
Mount lights in proper orientation. Amber lights must face forward and red4.
lights must face backward. Improper orientation can confuse or distract drivers,
causing a trafc hazard.
Install on a 12 V negative ground circuit only. Installing on different circuit can5.
result in electric shock, re, or property damage.
Turn off vehicle and set the parking brake before installation or testing.6.
Do not use on marine trailers (such as boat trailers). Not waterproof.7.
Wear ANSI-approved impact safety goggles and heavy-duty work gloves during8.
installation and use.
Do not modify the Towing Light Kit and do not use the Towing Light Kit for a9.
purpose for which it was not intended.
Inspect before use; do not use if parts are loose or damaged. Inspect wires and10.
connections for insulation damage or loose wires and repair before use.
People with pacemakers should consult their physician(s) before use.11.
Electromagnetic elds in close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
WARNING: Handling the cord on this product will expose you to lead, a12.
chemical known to the State of California to cause cancer, and birth defects
or other reproductive harm. Wash hands after handling. (California Health &
Safety Code § 25249.5, et seq.)
This product is not a toy. Keep it out of reach of children.13.
Check light position and function regularly when towing, especially on rough or14.
uneven surfaces, or in windy conditions. The magnets may loose their grip on
the vehicle under extreme circumstances.
Remove conductive articles (such as metal jewelry, watches, and other items)15.
before installing light kit. Conductive objects can cause an electrical short
resulting in re, property damage, or personal injury.
The warnings, precautions, and instructions discussed in this instruction manual16.
cannot cover all possible conditions and situations that may occur. It must be
understood by the operator that common sense and caution are factors which
cannot be built into this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS.

Page 4SKU 96933 For technical questions, please call 1-800-444-3353.
WIRING
Note: Some towing vehicles may already have a 4-way Flat Connector, “Trunk” plug
wired in. For those vehicles, skip the following wiring instructions.
If you do not have experience
doing this type of automotive
electrical wiring or if the
wiring in your vehicle differs
from that explained below,
have an automotive service
technician connect the wiring.
Identify the towing vehicle’s wires1.
in the trunk that correspond to
the circuits indicated in the Wiring
Color Code diagram to the right.
The white ground wire from the
Pigtail (22) may be connected to a
bolt or appropriate component on
the vehicle to establish a ground
instead of a ground wire.
2. Connect the wires from the Wiring Pigtail (22) to the proper vehicle circuit wires
using Wire Splices (21). When the supplied splices are used, generally no wire
stripping or cutting would be
required. Follow these three steps
and refer to the illustration to the
right:
Insert the end of the Pigtail (22)a.
wire into the ‘dead-end’ channel
of the Splice. Insert the wire
all the way to the end of the
channel as shown.
Place the Splice around theb.
correct vehicle circuit wire.
Make sure both wires stayc.
properly in place while the
cover is closed until it snaps
together.
Wiring Color Code
Note: This is the wiring conguration of the
“Trunk” 4-way Flat Connector (23). The
towing vehicle may have a different wir-
ing color code.
WHITE
Ground
BROWN
Running Lights
YELLOW
Left Stop and
Turn Lights
GREEN
Right Stop and
Turn Lights
“Trunk” 4-way Flat
Connector (23)
Wiring
Pigtail (22)
Wire Splice (21) Usage
B) Place splice around
vehicle wire
C) Close Splice
cover securely
A) Insert Pigtail (22) wire
into ‘dead-end’ channel
UNPACKING
When unpacking, check to make
sure that the item is intact and undam-
aged. If any parts are missing or bro-
ken, please call Harbor Freight Tools at
the number shown on the cover of this
manual as soon as possible.
SPECIFICATIONS
Electrical
Requirements 12 VDC 4.3 A
Bulb Type 12 VDC 21/5 W
(#1157 Type)
Connector 4-way Flat

Page 5SKU 96933 For technical questions, please call 1-800-444-3353.
Verify that all wires are held securely.3.
Plug the “Trunk” Connector (23) into the “Trailer” Connector (18).4.
5. WARNING! If the Wire Splices (21) are used improperly and damage
the vehicle’s wiring, the vehicles rear lights may fail, resulting in a trafc
hazard. Have an assistant operate the vehicle’s lights while you carefully
check that the vehicle lights and the towing lights all work properly after
installation. If any function of the vehicle or towing lights does not work, do
not drive the vehicle. Carefully inspect the splice connection and the circuit that
failed and repair the problem and retest before use.
Disconnect the “Trailer” Connector (18) if the light kit is not going to be used yet.6.
SET UP
To help avoid scratches, clean the mounting locations and clean the protective1.
labels under the lights.
Set the lights on the back of the vehicle being towed so that the2. RED side of
each light faces backwards. Set the light that has a green wire on the right side
and the light that does not have a green wire on the left side.
Make sure all wires are secured with enough slack to prevent binding when3.
turning, but controlled enough to prevent roadway or moving part contact.
When routing the wires along the trailer, avoid sharp objects, tight corners and
exposure to the elements. Keep away from moving parts. Secure with cable
ties where necessary and use rubber grommets when passing through cut-outs.
Plug the “Trunk” Connector into the “Trailer” Connector.4.
5. WARNING! Have an assistant operate the vehicle’s lights while you
carefully check that the vehicle lights and the towing lights all work
properly.
Both tow lights should illuminate when the towing vehicle’s running lights are•
switched on.
The tow lights should both light brightly as you apply the brake.•
The tow light with a green wire should blink brightly with the right turn signal.•
The tow light without a green wire should blink brightly with the left turn signal.•
If ANY function of the vehicle lights or towing lights does not work, do
not drive the towing vehicle until all lights are repaired and retested
successfully.
The tow light kit is now ready for use. It will automatically illuminate when turn6.
and brake pedal or turn signals in the towing vehicle are used.
7. WARNING! Check light position and function regularly when towing,
especially on rough or uneven surfaces. The magnets cannot hold the lights
to the vehicle in extreme circumstances.

Page 6SKU 96933 For technical questions, please call 1-800-444-3353.
BULB REPLACEMENT
Wear ANSI-approved safety goggles and heavy-duty work
gloves when replacing the bulb.
Make sure the burned-out bulb has cooled completely.1.
Gently pry off a lens covering the burned out bulb using plastic pry tools (not2.
included) to prevent damage.
Press the burned-out bulb into the socket slightly and rotate it counterclockwise3.
to release it. Make a note of the orientation of the pin’s as one is located lower
than the others. Remove the burned-out bulb.
Insert a new 12V/21/5W bulb into the socket (note pin orientations) and while4.
pushing it down turn it clockwise to secure.
Gently snap the lens back in place, and test the lights to ensure proper opera-5.
tion before use.
CAUTION
PARTS LIST
Part Description Qty
1 Amber Front Lens 2
2 Red Rear Lens 2
3 Bracket 2
4 Bulb 2
5 Socket 2
6 Threaded Shaft 2
7 Shell 2
8 Spring Washer 2
9 Flat Washer 2
10 Ground Terminal 2
11 Nut 2
12 Screw 2
Part Description Qty
13 Cover 2
14 Magnet 2
15 Nut 2
16 Screw 8
17 Power Cord 1
18 “Trailer” 4-way Flat Connector 1
19 Left-Right Cord 1
20 Bulb Wire 4
21 Wire Splices 4
22 Wiring Pigtail 1
23 “Trunk” 4-way Flat Connector 1
24 Protective Label 2
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.
After towing, disconnect “Trailer” Connector, remove tow lights from towed8.
vehicle, clean with a moist cloth, and store in dry location out of reach of
children. Do not drag the magnetic bases to disconnect, as they may scratch
the body paint. Push to tilt then remove.

Page 7SKU 96933 For technical questions, please call 1-800-444-3353.

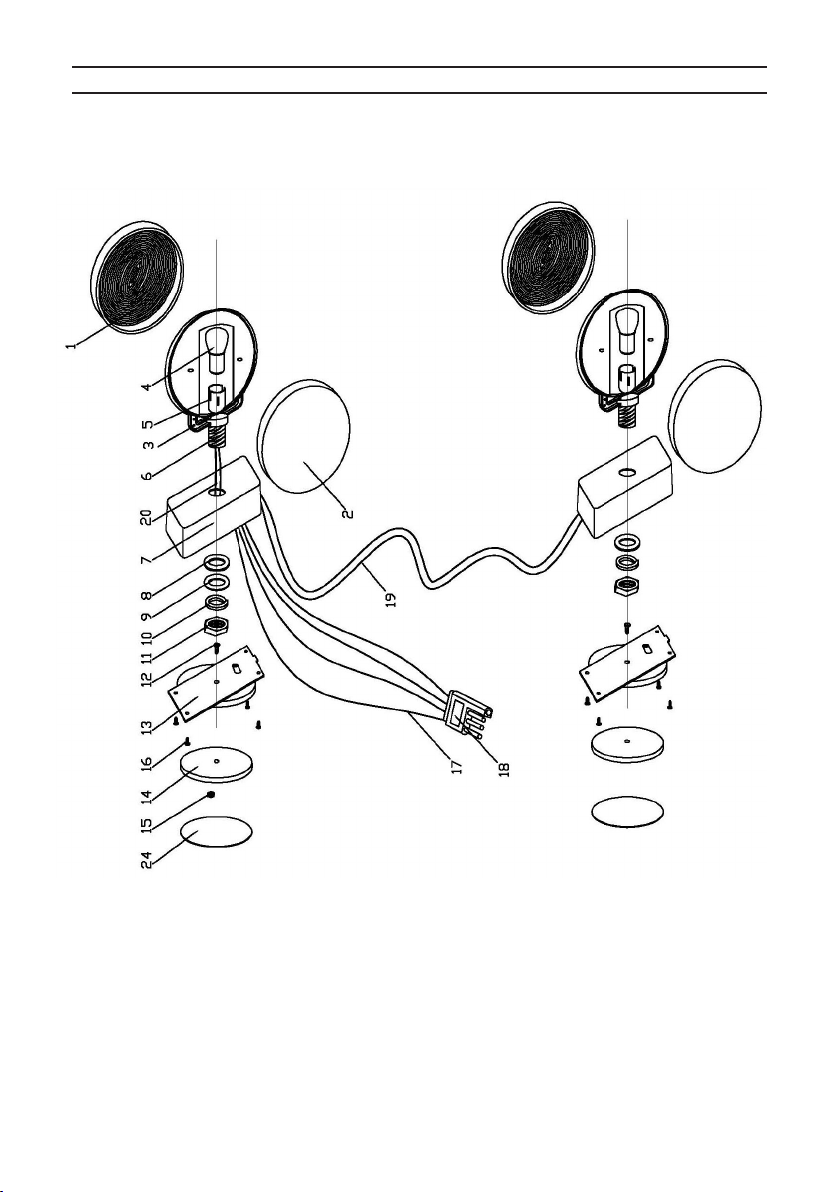

ASSEMBLY DIAGRAM
Part Numbers 21, 22, 23 - see photo’s on page 4.

Page 8SKU 96933 For technical questions, please call 1-800-444-3353.
LIMITED 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that this product
is free from defects in materials and workmanship for the period of 90 days from the date
of purchase. This warranty does not apply to damage due directly or indirectly, to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity,
improper installation, normal wear and tear, or to lack of maintenance. We shall in no event
be liable for death, injuries to persons or property, or for incidental, contingent, special
or consequential damages arising from the use of our product. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation
of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us
with transportation charges prepaid. Proof of purchase date and an explanation of the
complaint must accompany the merchandise. If our inspection veries the defect, we
will either repair or replace the product at our election or we may elect to refund the
purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that
the defect resulted from causes not within the scope of our warranty, then you must bear
the cost of returning the product.
This warranty gives you specic legal rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND
ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE
MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF
ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO
THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE
PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES
THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED
AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK
AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF
REPLACEMENT PARTS THERETO.
