Harbor Freight Tools 94740 Parts list manual

ALL PURPOSE
SOLAR LANTERN
94740
ASSEMBLY AND OPERATION INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND
ALL WARNINGS AND INSTRUCTIONS BEFORE USE.
Copyright©2006 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.

SKU 94740 For technical questions, please call 1-800-444-3353. Page 2
SPECIFICATIONS
Materials Thermoplastic Housing & Polystyrene; Color Black
Overall Dimensions 9-1/4”H x 6-1/2” Dia., Base Size 3.5”H X 5.2” Dia.
LED’s LED Illumination: White, with 1200 MCD’s per LED.
Qty. 12, 100,000 Hour Lifetime
Solar Charge 8 Hours
Battery Requirements NiCd Rechargeable AA Batteries X 3
AC/DC Adapter Input 120 V~, 60 Hz, 9 W
Adapter Output DC 9V, 250 mA
Cord Length 40” Long
Net Weight 1.6 Lb.
Save This Manual
You will need this manual for the safety warnings and precautions, assembly, oper-
ating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Write the product’s serial number in the back of the manual near the assembly dia-
gram, or write month and year of purchase if product has no number. Keep this manual
and invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
Do not operate in explosive atmospheres, such as in the presence of flam-
mable liquids, gases, or dust. Electrical products create sparks which may ignite
the dust or fumes.
Double insulated products are equipped with a polarized plug (one blade is
wider than the other). This plug will fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician to install a polarized outlet. Do not change
the plug in any way. Double insulation eliminates the need for the three wire
grounded power cord and grounded power supply system.
Do not expose adapters to rain or wet conditions. Water entering an adapter
will increase the risk of electric shock.
1.
2.
3.

SKU 94740 For technical questions, please call 1-800-444-3353. Page 3
Do not abuse the Power Cord. Never use the Power Cord to carry the adapter
or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,
sharp edges, or moving parts. Replace damaged Power Cords immediately.
Damaged Power Cords increase the risk of electric shock.
Always wear eye protection. Always wear ANSI-approved safety goggles when
performing maintenance on this product.
Do not use the product for a purpose for which it is not intended.
Do not use the product if the Power Switch does not turn it on or off. Any
product that cannot be controlled with the Power Switch is dangerous and must be
replaced.
Disconnect the Power Cord Plug from the power source before making any
adjustments, changing accessories, or storing the product. Such preventive
safety measures reduce the risk of starting the product accidentally. Always un-
plug the product from its electrical outlet before performing any inspection,
maintenance, or cleaning procedures.
Store lantern out of reach of small children.
Check for breakage of parts and any other condition that may affect the
product’s operation. If damaged, have the product serviced before using.
Many accidents are caused by poorly maintained products.
Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one product may become hazardous
when used on another product.
Product service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
When servicing a product, use only identical replacement parts. Follow
instructions in the “Inspection, Maintenance, And Cleaning” section of this
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
Maintain labels and nameplates on the product. These carry important informa-
tion. If unreadable or missing, contact Harbor Freight Products for a replacement.
Never leave the product unattended when its adapter is plugged into an elec-
trical outlet. Turn off the product, and unplug the adapter from its electrical outlet
before leaving.
Use only rechargeable batteries when replacing the batteries. Do not substitute
with any other size or type of battery.
Never mix new and old batteries or batteries of different types together. Mix-
ing batteries may result in fire, leakage, or explosion.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.

SKU 94740 For technical questions, please call 1-800-444-3353. Page 4
NiCd batteries must be disposed of or recycled properly. Do not incinerate.
Batteries may burst, causing personal injury and/or property damage. Contact your
local hazardous waste disposal authority for disposal or recycling.
UNPACKING
When unpacking, check to make sure that the product is intact and undamaged.
If any parts are missing or broken, please call Harbor Freight Tools at the number shown
on the cover of this manual as soon as possible.
Note: The AC Adapter is located inside of the Bottom Cover. See instructions for
removing the AC Adapter on page 6.
18.
OPERATING INSTRUCTIONS
Note: For additional information regarding the parts listed in the following pages, refer to
the Assembly Diagram at the end of the manual.
Turn the switch to the “OFF” position – the unit will charge much faster if it is switched
off while charging. Charge the batteries by using the wall adapter, car adapter,
or sitting the Solar Lantern in the sunlight for an extended period. If using the
automobile outlet, be aware that it will use up power and can drain the car
battery.
Once the lantern is charged, turn the switch to the “ON” position to illuminate the
lantern. Turn the switch to off to conserve power when done.
If the Solar Lantern stops working or is not holding a charge, replace the batteries
- see next page.
1.
2.
3.

SKU 94740 For technical questions, please call 1-800-444-3353. Page 5

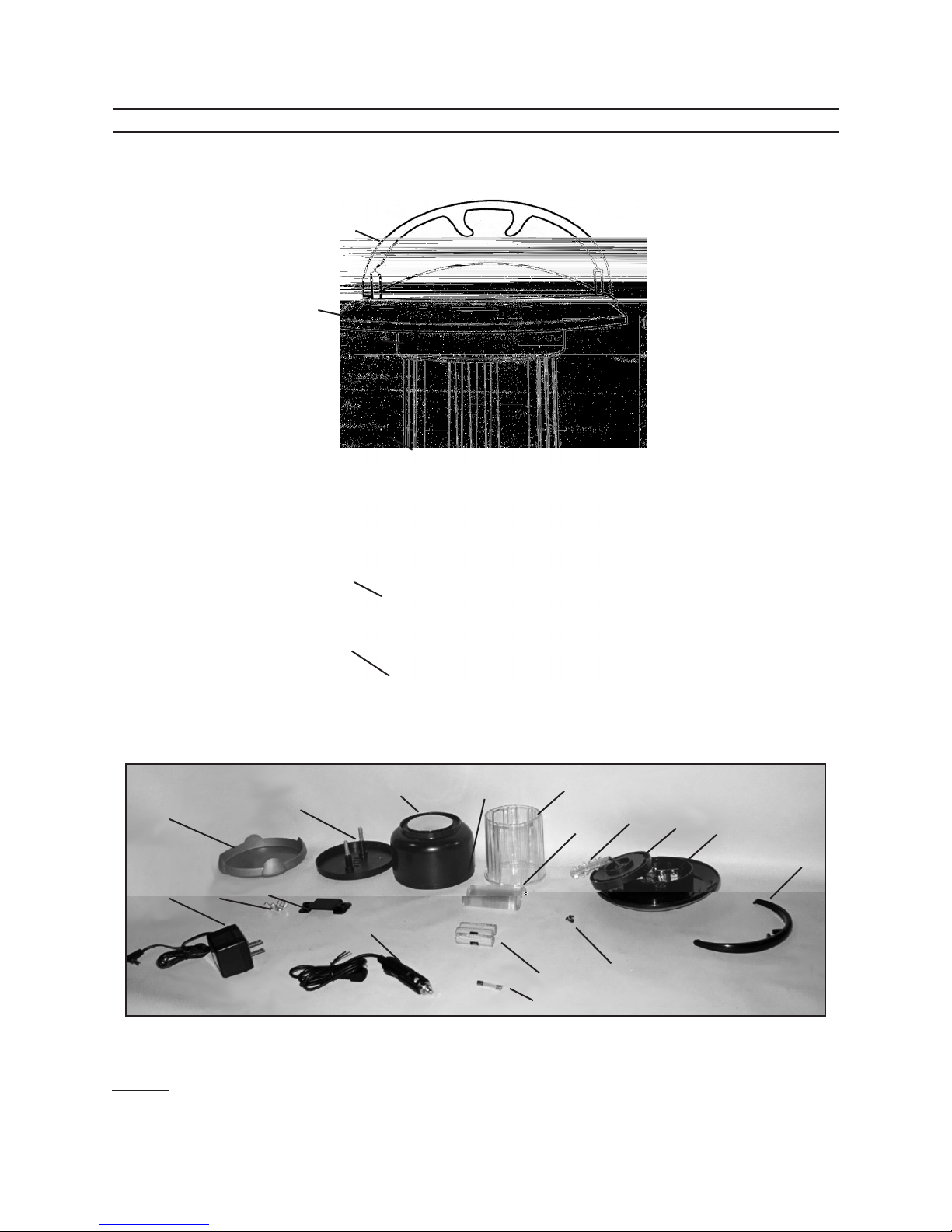

BATTERY REPLACEMENT
Turn the Solar Housing Lid (7) slightly counterclockwise. Remove the Solar Housing
Lid (7) from the top of the Solar Lantern. See Figure 1.
Remove the three Screws from the Battery Cover (6). See Figure 2.
Figure 1
Solar Housing (7)
Led
Cover
(4)
Figure 2
Batteries (9)
Battery
Cover (6)
With the Solar Housing Lid (7) off, gently twist off the Battery Cover (9) with the LED
Strip of 12 Bulbs (5) and LED Cover (4) assembly. Move the Battery Cover aside,
being careful not to disturb the wires and the internal components. See Figure 2.
Removed the dead batteries and dispose of them or recycle them properly according
to the Solid Waste Disposal regulations. Replace with new Rechargeable Batteries.
The polarity of the batteries is marked. Be careful of the internal components and
do not disturb the wires. See Figure 2.
Once the batteries are in place, return the Solar Housing Lid (7) and twist clockwise
onto the Light Cover (3). Tighten.
1.
2.
3.
4.
5.
