SUBMERSIBLE
POND PUMP
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2016 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assem bly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
REV 16k

Page 2 For technical questions, please call 1-888-866-5797. Item 63313
Before start-up, note the following:
The pump must be connected to a GFCI protected plug which has been installed according
to regulations. The plug must have a supply voltage of 120 VAC at 60 Hz.
CAUTION
This pump has been evaluated for use with water only.
WARNING
IMPORTANT! For your own safety –
before starting to run the pump, please have
the following items checked by an expert:
1. Risk of electric shock – This pump is supplied
with a grounding conductor and grounding-type
attachment plug. To reduce the risk of electric shock,
be certain that it is connected only to a properly
grounded, grounding-type receptacle.
2. Risk of electric shock – This pump has not been
investigated for use in swimming pool areas.
3. The electrical connections must be
protected from moisture.
4. If there is danger of flooding, the electrical
connections must be taken to higher ground.
5. Circulation of caustic fluids, as well as the circulation
of abrasive materials, must be avoided at all costs.
6. The pump must be protected from frost.
7. The pump must be protected from running dry.
8. Access by children should also be
prevented with appropriate measures.
9. To reduce the risk of electric shock, use only
on portable self-contained fountains.
10. POSITION OF PUMP:
To avoid the possibility of the pump plug or
receptacle getting wet, position pump to one
side of a wall mounted receptacle to prevent
water from dripping onto the receptacle or plug.

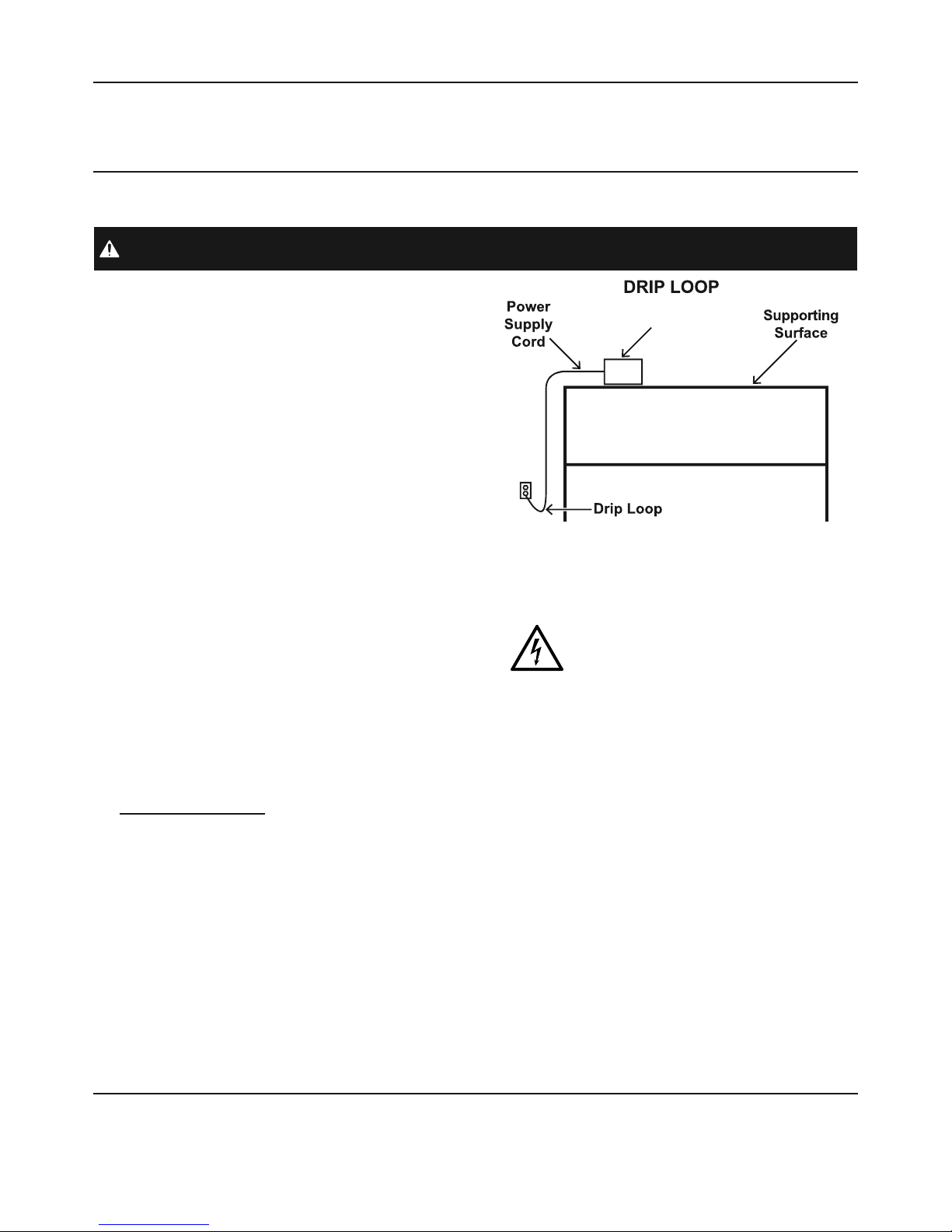

The user should arrange a “drip loop” in the
cord connecting the pump to a receptacle.
Pump
The “drip loop” is that part of the cord below the level
of the receptacle, or the connector if an extension
cord is used, to prevent water traveling along the
cord and coming in contact with the receptacle.
11. To prevent death from electric shock,
pump must be connected only to a GFCI
protected outlet.
12. Do not use an extension cord with this item.
13. WARNING: The cord of this product contains
lead and/or di (2-ethylhexyl) phthalate (DEHP),
chemicals known to the State of California
to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.
(California Health & Safety Code § 25249.5, et seq.)
14. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
15. The warnings, precautions, and instructions
discussed in this instruction manual cannot cover all
possible conditions and situations that may occur.
It must be understood by the operator that
common sense and caution are factors
which cannot be built into this product, but
must be supplied by the operator.
Fluid Type
The Pump is designed for use with water with a maximum temperature of 77° F (25°C). Do not use the pump
for other fluids, especially not fuels, cleaning fluids, or other chemical products.

Page 3For technical questions, please call 1-888-866-5797.Item 63313
Specifications
Electrical Rating 120VAC / 60Hz / 0.2A
Power Cord Length 12’
Maximum Flow @ 0’ 264 GPH
Maximum Head lift @ 0 Flow 5.5′
Discharge Port 1/2″
Installation
The submersible motor pump must be installed in a stationary position with either:
a. A fixed pipeline or
b. A flexible hose pipe.
Please note!
1. Do not install the pump by suspending it
unsupported from its delivery pipe or power cord.
The pump must be suspended from the handle
or be placed on the bottom of the basin.
To ensure that the pump works properly,
keep the bottom of the fountain/water feature
free from sludge and dirt of all kinds.
2. If the water level sinks too low, any sludge in the
basin will dry out and stop the pump from starting.
Pump will not function unless fully submerged.
Power Supply
1. The pump is equipped with a shock-proof plug
according to regulations. The pump is designed to be
connected to 120 VAC, 60 Hz GFCI protected socket.
2. Make sure that the socket is sufficiently
secured and is in excellent condition.
3. WARNING: To prevent death from electric
shock, pump must be connected only to
a GFCI protected outlet.
WARNING! If the power cord or plug is damaged,
do not use the pump. The power cord or plug
may only be repaired by a certified electrician.
Areas of use
1. This pump is designed to pump water only.
2. This pump is designed to be used for:
Fresh-water aquariums and water features
3. This pump should NOT be used for:
Salt-water or brackish water
aquariums or water features.
Installation Instructions
1. Place the pump on the bottom of the aquarium/
water feature. Suction cups must be in contact with
the aquarium/fountain floor or a smooth platform.
2. Shift regulator to adjust flow rate.

Page 4 For technical questions, please call 1-888-866-5797. Item 63313
Operation
After reading these instructions, consider the following points before starting the pump:
1. Verify that the pump rests on the floor of the basin,
if it is not suspended by the handle.
2. Verify that the discharge pipe is properly connected.
3. Verify that the electrical connection
is 120 VAC, 60 Hz.
4. Verify that the electrical socket is GFCI
protected and in good condition. Test
GFCI protected outlet before use.
5. Verify that water and moisture cannot
get near the power supply socket.
6. Verify that the pump is installed so
as to prevent running dry.

Page 5For technical questions, please call 1-888-866-5797.Item 63313
Maintenance
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Unplug the Pump from its electrical outlet before performing any
inspection, maintenance, or cleaning procedures.
If the pump is moved during operation, flush it out with clean water after every use.
Quarterly Maintenance
The below maintenance must be performed at least once every 3 months under optimal conditions.
For frequent use, or dirty areas, more frequent maintenance is required.
1. Unplug pump from its electrical outlet
before reaching into the water. Clean sludge
and debris from the bottom of the basin.
2. Clean sludge/debris from inlet screen.
3. Make sure discharge pipe is free from leaks.
4. Make sure check valve is functioning properly.
5. Manually operate flow switch to determine
that pump turns on/off as intended.
Troubleshooting
Problem Possible Causes Possible Solutions
Pump runs, but
will not deliver
any water.
1. Inlet Screen and/or impeller clogged.
2. When starting, the water height falls
below the minimum water level (0″).
3. Low line voltage.
4. Check valve (sold separately)
stuck or installed backwards.
1. Remove Inlet Screen. Clean out dirt and debris from
Inlet Screen and impeller. Then replace Inlet Screen.
2. There must be at least 0″ deep water
for the Pump to operate properly.
3. Consult an electrician.
4. Remove and examine check valve.
Pump won’t
start or run.
1. Check power connections
and circuits/fuses.
2. Water level too low.
3. Inlet Screen and/or impeller clogged.
4. Defective motor.
1. Consult an electrician.
2. Allow water level to rise above 0″,
or move Pump to a lower location.
3. Remove Inlet Screen. Clean out Inlet Screen
and impeller. Reinstall Inlet Screen.
4. Have a qualified service technician repair or replace.
Excessive noise
or vibration.
1. Debris in impeller.
2. Discharge hose restricted.
1. Remove Inlet Screen. Clean impeller.
Reinstall Inlet Screen.
2. Clean Pump and discharge hose.
Pump starts
and stops too
frequently.
1. Water temperature too high.
2. Check valve (sold separately)
stuck or installed backwards.
3. Back flow of water from
discharge hose.
1. Do not exceed 77° F (25°C) water temperature.
2. Remove and examine check valve.
3. Install or inspect check valve (sold separately).
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply before service.

Page 6 For technical questions, please call 1-888-866-5797. Item 63313
Parts List and Diagram
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List
Part Description Qty.
1 Front Cover 1
2 Filter 1
3 Water Seating 1
4 Impeller Head 1
5 Impeller 1
6 Impeller Shaft 1
7 Sealing Ring 2
8 Shaft Cover 2
9 Suction Cup 4
10 Frame 1
11 Water Outlet 1
12 Pump Body 1
13 Motor 2
14 Grounded Terminal 1
Part Description Qty.
15 Magnet Wire 2
16 Iron Core 1
17 Grommet 1
18 Power Cord 1
19 Back Cover 1
20 Plug 1
1A Extension 1
2A Bell Outlet 1
3A Star Outlet 1
4A Left Adjustment Lever 1
5A Right Adjustment Lever 1
6A Extension Valve 1
7A Main Outlet 1
8A Lower Connector 1
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.

Page 7For technical questions, please call 1-888-866-5797.Item 63313
Assembly Diagram
20
2
1
9
14
6
5
3
12
18
4
13
7
8
11
15
19
16
17
10
7
7A
4A
3A
2A
1A
6A
5A
8A

Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797
