Harbor Freight Tools Drummond 63320 Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Do not return
pump to the store.
Call 1-844-416-9141
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 21c
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2020 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly an d se rv ic e may n ot b e in cl uded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 63320
Before start-up, note the following:
The Pump must be connected to a GFCI-protected plug which has been installed according

CAUTION
This Pump has been evaluated for use with water only.
WARNING
IMPORTANT! For your own safety –
before starting to run the Pump, please have
the following items checked by an expert:
1. Risk of electric shock – This Pump is supplied
with a grounding conductor and grounding-type
attachment plug. To reduce the risk of electric shock,
be certain that it is connected only to a properly
grounded, grounding-type receptacle.
2. Risk of electric shock – This Pump has not been
investigated for use in swimming pool areas.
3. The electrical connections must be
protected from moisture.
4. If there is danger of flooding, the electrical
connections must be taken to higher ground.
5. Circulation of caustic fluids, as well as the circulation
of abrasive materials, must be avoided at all costs.
6. The Pump must be protected from frost.
7. The Pump must be protected from running dry.
8. Access by children should also be
prevented with appropriate measures.
9. To prevent death from electric shock,
Pump must be connected only to a
GFCI-protected outlet.
10. Do not use an extension cord with this item.
11. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
12. The warnings, precautions, and instructions
discussed in this instruction manual cannot cover all
possible conditions and situations that may occur.
It must be understood by the operator that
common sense and caution are factors
which cannot be built into this product, but
must be supplied by the operator.
Fluid Type
The Pump is designed for use with water with a maximum temperature of 77° F (25°C).
Do not use the Pump for other fluids, especially not fuels, cleaning fluids, or other chemical products.

Page 3For technical questions, please call 1-888-866-5797.Item 63320
Specifications
Electrical Rating 
Power Cord Length 6'
Maximum Flow @ 0' 1075 GPH
Maximum Head Lift @ 0 Flow 160'
Inlet Port 1" NPT Thread
Discharge Port 1" NPT Thread

Page 4 For technical questions, please call 1-888-866-5797. Item 63320
Installation
The Pump must be installed in a stationary position with either:
a. A fixed pipeline or
b. A flexible hose pipe.
Please note!
1. Do not install the Pump by suspending it
unsupported from its delivery pipe or power cord.
The Pump must be installed on a solid surface.
2. If the source water level sinks too low, unit will
begin pumping air and overheat. Operating
the Pump without an adequate water supply
will damage the Pump and voids warranty.
Power Supply
1. The Pump is equipped with a shock-
proof plug according to regulations. The
Pump is designed to be connected to a

2. Make sure that the socket is sufficiently
secured and is in excellent condition.
3. When the plug is inserted into the socket,
the Pump will be on standby.
4. WARNING: To prevent death from electric
shock, Pump must be connected only to
a GFCI-protected outlet.
WARNING! TO PREVENT SERIOUS INJURY:
If the power cord or plug is damaged, do not
use the Pump. The power cord or plug may
only be repaired by a certified electrician.
Areas of use
1. This Pump is designed to pump water only.
2. This Pump is designed to be used for:
Irrigation systems, lawn sprinkling,
and clear water transfer.
3. This Pump should NOT be used for:

Water with dirt and debris. Removing water from
swimming pools or spas. Septic or sewage systems.
4. This Pump can also be used to transfer water
(e.g. household, farming, plumbing).

Page 5For technical questions, please call 1-888-866-5797.Item 63320
Installation Instructions
1. Position Pump on solid surface.
WARNING! TO PREVENT SERIOUS INJURY: This is
NOT a submersible pump. Do not immerse in water.
2. The Pump uses 1" NPT piping (sold separately).
Purchase the necessary length of pipe, including
any needed fittings and bends. Mount the Pump
as close to the source of water as possible
and within the range of the rated Suction Lift.
The connections must be airtight. Wrap all threaded
connections with PTFE tape (sold separately).
Inlet Priming
Plug
Outlet
Pump
Body
Power
Switch
Power
Cord

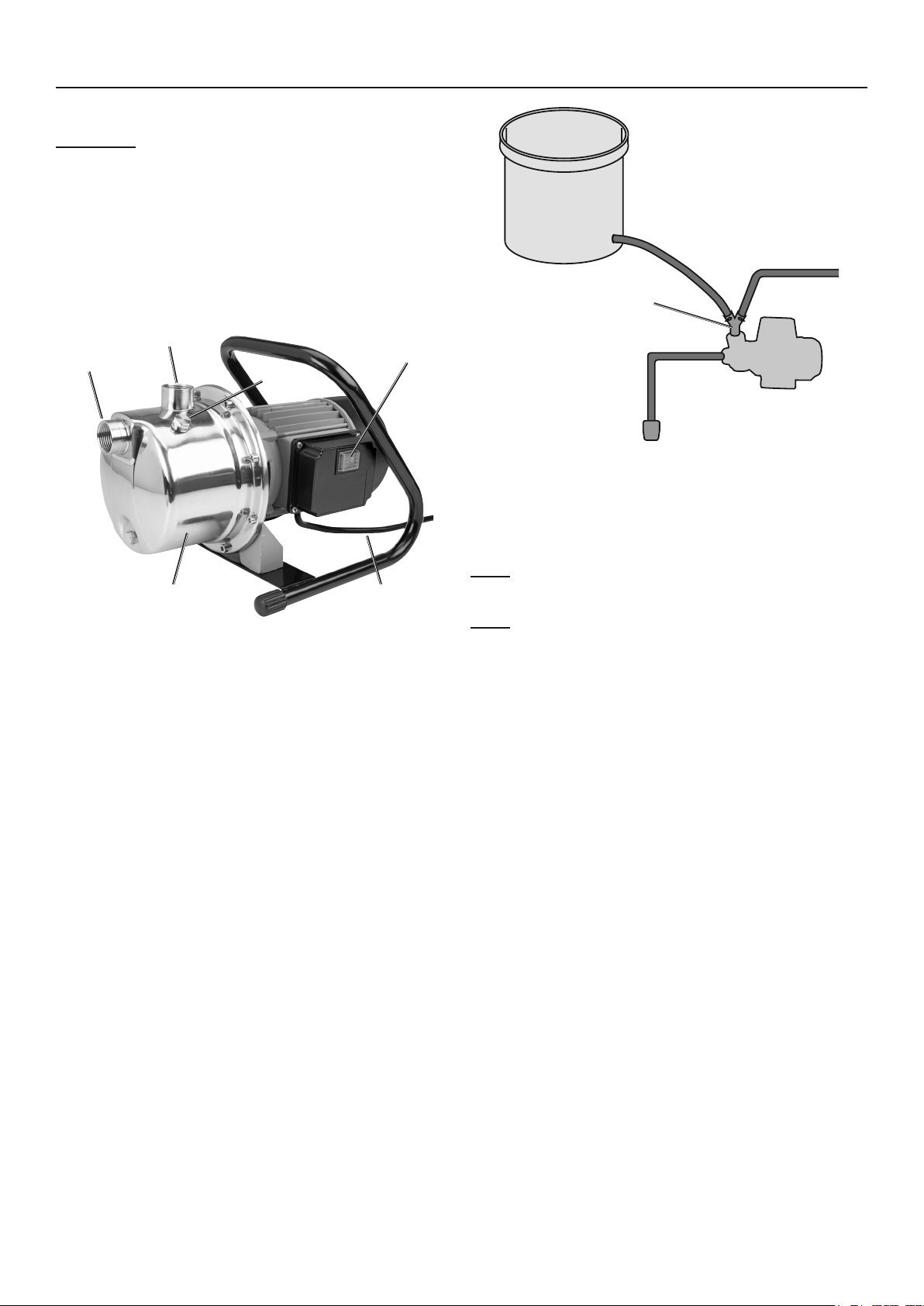

Figure A: Pump Components
3. Remove the Inlet and Outlet Covers from the Pump.
4. Attach the water source to the Inlet, using appropriate
methods. The Inlet hose or pipe must be collapse-
proof to properly withstand the suction force.
5. Install a foot valve and filter (sold separately)
at the bottom of the inlet.
Pump
Bucket
full of
clean
water
Priming HosePriming Hose
Outlet PipeOutlet Pipe
Inlet PipeInlet Pipe
Foot Foot
ValveValve
Y-fitting Y-fitting
(with one valve (with one valve
for each outlet)for each outlet)
Figure B: Pump Connections
6. Attach the outlet connection to the Outlet.
A Y-fitting with dual valves (sold separately) is
helpful for priming the Pump. Refer to Figure B.
Note: A foot valve on the inlet connection is critical
to help prevent the Pump from losing prime.
Note: Check that the water source and piping
are clear of sand, dirt and debris.
7. Connect a bucket full of at least 3 gallons of water
to one side of the Y-fitting using a hose, as shown in
Figure B. (If available, a continuous water supply,
such as a spigot, may be used instead.) The bucket
must be positioned higher than the Pump’s outlet.
8. Close the valve on the outlet side of the Y-fitting, and
open the valve on the priming side of the Y-fitting.
9. Remove the Priming Plug and wait until water
starts coming out of the Priming Plug. Replace
the Priming Plug and tighten securely.

Page 6 For technical questions, please call 1-888-866-5797. Item 63320
Operation
After reading these instructions, consider the following points before starting the Pump:
1. Verify that the discharge pipe is properly connected.
2. Verify that the electrical connection

3. Verify that the electrical socket is GFCI
protected and in good condition. Test
GFCI-protected outlet before use.
4. Verify that water and moisture cannot
get near the power supply socket.
5. Verify that the Pump is installed so
as to prevent running dry.
6. To start the Pump:
a. Open the valve on outlet side of the Y-fitting.
b. Make sure your hands are dry.
c. Plug Power Cord into GFCI-protected outlet.
d. Turn on the Power Switch (I).
e. Close the valve on the priming side of the Y-fitting.

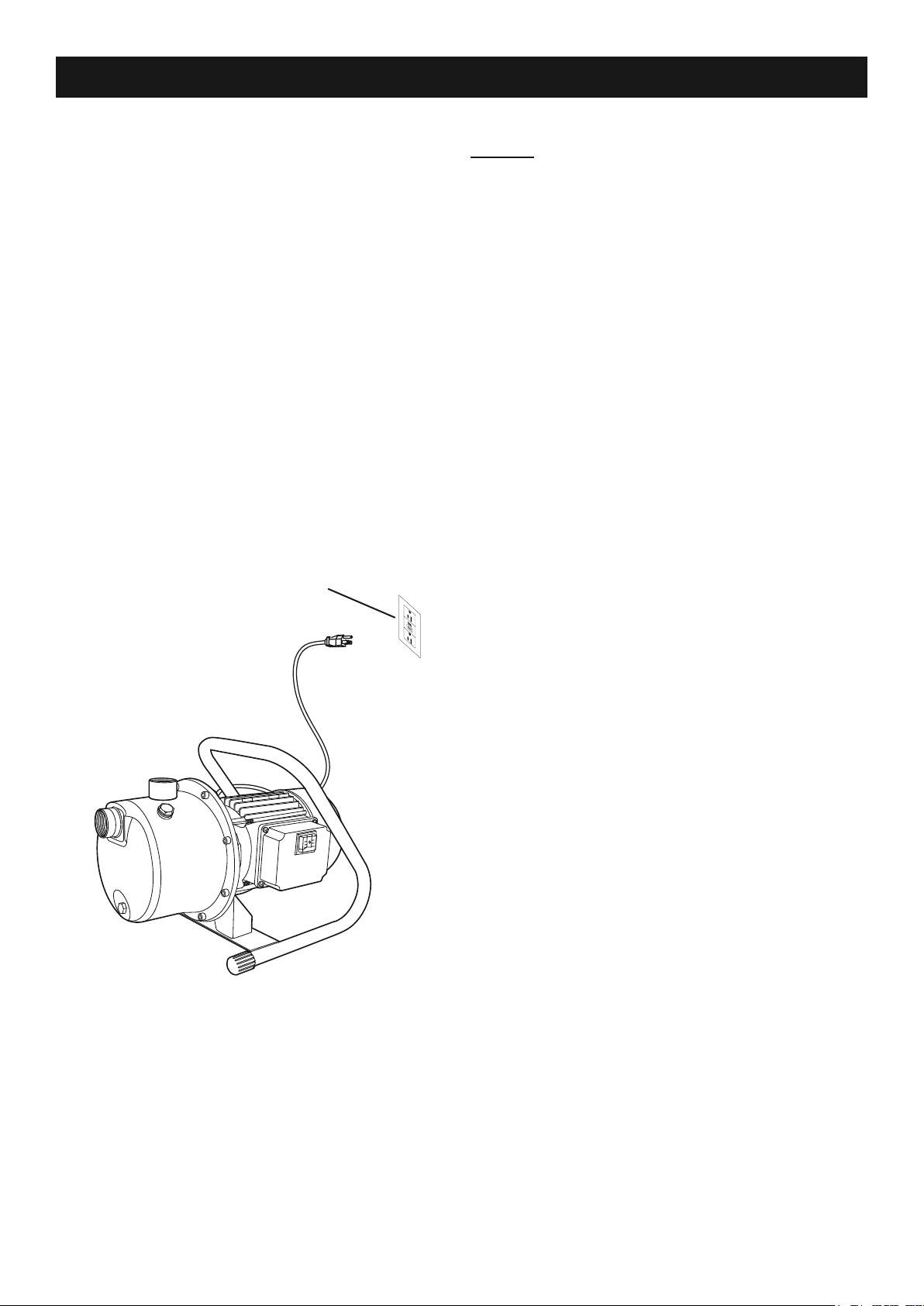

GFCI-Protected
Receptacle
GFCI Plug
NOTICE: Do not run the Pump Dry!
Turn off the Pump IMMEDIATELY if water
stops coming out of the Outlet.
7. If you operate the Pump and no water comes
out, shut the Pump off IMMEDIATELY. Check the
pipes for air-tightness. Check also that the bottom
of the Inlet pipe is underneath the surface of the
water and a foot valve is properly installed.
8. After the Pump is running properly, the priming
hose and bucket can be disconnected.
9. When finished using the Pump, turn the
Power Switch off (O), dry your hands, then
unplug the Power Cord. Follow procedures
for storage explained on the next page.

Page 7For technical questions, please call 1-888-866-5797.Item 63320
Maintenance
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Unplug the Pump from its electrical outlet before performing any
inspection, maintenance, or cleaning procedures.
1. BEFORE EACH USE, inspect the
general condition of the Pump. Check for:
• loose hardware
• misalignment or binding of moving parts
• cracked or broken parts
• damaged electrical wiring
• 
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe the Pump clean with a soft,
damp cloth with soapy water. Do not use solvents.
Do not get the electrical components wet.
3. If the Pump sits idle for a period of 5 days or more, it
should be unplugged and rotated several revolutions
using a screwdriver through the middle hole of the
Fan Cover to prevent it from taking a permanent set.
4. If the Pump is used only occasionally, when
pumping is complete disconnect both suction
and outlet lines, tip Pump to drain water
from Pump cavity, and replace the Inlet
and Outlet Covers to protect the unit.
Quarterly Maintenance
The below maintenance must be performed at least once every 3 months under optimal conditions.
For frequent use, or dirty areas, more frequent maintenance is required.
1. 
2. Make sure discharge pipe is free from leaks.
3. Make sure foot valve is functioning properly.
4. Check that the water source and piping
are clear of sand, dirt and debris.
Long Term Storage
1. Drain Pump body. Disconnect both suction and
outlet lines, then tip Pump so that all water is
drained from Pump cavity. Replace the Inlet
and Outlet Covers and apply light machine
oil to metal parts to prevent corrosion.
2. Store the Pump in a dry, indoor area
out of reach of children.
3. After storage, check the Impeller to make


Page 8 For technical questions, please call 1-888-866-5797. Item 63320
Troubleshooting
Problem Possible Causes Possible Solutions
Pump runs, but
will not deliver
any water.
1. Inlet pipe not submerged.
2. Low line voltage.
3. Improper priming.
4. Clogged filter at end of
intake connections.
5. Discharge valve closed.
6. 
7. Impeller plugged.
8. 
1. Make sure bottom of inlet pipe is
underneath surface of water source.
2. Consult an electrician.
3. Re-prime according to directions.
4. Clean filter.
5. Open discharge valve.
6. 
the Pump inlet and outlet ports.
7. Have Impeller cleaned by qualified service technician.
8. Thaw pipes. Check for damage before using Pump.
Pump won’t
start or run.
1. Check power connections

2. Defective motor.
3. Cord not connected.
4. No power at outlet.
5. Fuse is blown or breaker tripped.
6. Internal damage or wear. (Carbon
brushes or switch, for example.)
1. Consult an electrician.
2. Have a qualified service technician repair or replace.
3. Check that cord is plugged in.
4. Check power at outlet. If outlet is unpowered,
turn off tool and check circuit breaker. If breaker
is tripped, make sure circuit is right capacity
for tool and circuit has no other loads.
5. Have fuse replaced by a qualified service technician.
6. Have Pump serviced by a qualified service technician.
Pump does not
deliver water at
full capacity.
1. Corroded pipes.
2. 
3. Not enough water supplied to Pump.
4. Low voltage.
1. Replace pipes.
2. 
the Pump inlet and outlet ports.
3. Enlarge inlet pipe. Check well pump system.
4. 
Excessive noise
or vibration.
Internal damage or wear. (Carbon
brushes or bearings, for example.)
Have technician service tool.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply before service.

Page 9For technical questions, please call 1-888-866-5797.Item 63320
PLEASE READ THE FOLLOWING CAREFULLY

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE

STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175314802 when ordering parts.

Page 10 For technical questions, please call 1-888-866-5797. Item 63320
Parts List and Diagram
Parts List
Part Description Qty.
1 Bolt 8
2 2
3 Pump Body 1
4 Guide Disk 1
5 O-Ring 1
6 Venturi Tube 1
7 Nut 1
8 O-Ring 1
9 Pump Support Cover 1
10 Water Proof Ring 1
11 Pump Support 1
12 Handle 1
13 Motor Housing 1
14 Stator 1
15 Ball Bearing 1
16 Rotor 1
17 Ball Bearing 1
18 Gasket 1
19 End Plate 1
20 Bolt 4
21 Fan 1
22 Circlip 1
23 Fan Cover 1
Part Description Qty.
24 Bolt 4
25 Drain Plug 1
26 O-Ring 2
27 Pad 1
28 Impeller 1
29 Mechanical Seal 1
30 End Cap 2
31 Screw 2
32 Seal 1
33 Terminal Box 1
34 Capacitor 1
35 Seal 1
36 Bolt 2
37 Terminal Box Cover 1
38 Seal 1
39 Power Switch 1
40 Bolt 4
41 Power Cord Sheath 1
42 Power Cord 1
43 Cord Clip 1
44 Bolt 4
45 Pin 1
46 Priming Plug 1

Page 11For technical questions, please call 1-888-866-5797.Item 63320
Assembly Diagram
43
35
1 2
8
7
20
10
11
12
13
16 17
18 19
14 15
39
9
6
26
26
36
33
31
3
32
34
30
37
44
25
21
2827 29
22
23 24
38
42
40
41
4
45
46
5

Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you.

To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
26541 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
