Shallow Well Pump
68387 1 HP Stainless Steel Shallow Well Pump
68388 3/4 HP Cast Iron Shallow Well Pump
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and undamaged.
If any parts are missing or broken, please call 1-800-444-3353 as soon as possible.
Visit our website at: http://www.harborfreight.com
Copyright©2011 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.
Brought to You by www.snapwhole.com

Page 2 For technical questions, please call 1-800-444-3353. SKU 68387 & 68388
Before start-up, note the following:
The pump can be connected to any shock-proof plug
which has been installed according to regulations.
The plug must have a supply voltage of 120V~, 60Hz.
CAUTION
This pump has been evaluated for use with water only.
WARNING
IMPORTANT! For your own safety –
before starting to run the pump, please have
the following items checked by an expert:
1. Risk of electric shock – This pump is supplied
with a grounding conductor and grounding-type
attachment plug. To reduce the risk of
electric shock, connect only to a properly
grounded, grounding-type receptacle.
2. Risk of electric shock – This pump has not been
investigated for use in swimming pool areas.
3. The electrical connections must be
protected from moisture.
4. If there is danger of ooding, the electrical
connections must be taken to higher ground.
5. Circulation of caustic uids, as well as the circulation
of abrasive materials, must be avoided at all costs.
6. The pump must be protected from frost.
7. The pump must be protected from running dry.
8. Access by children should also be
prevented with appropriate measures.
9. WARNING: Handling the Power Cord
on this product will expose you to lead,
a chemical known to the State of California
to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.
(California Health & Safety Code § 25249.5, et seq.)
10. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by
the operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Fluid Type
The Pump is designed for use with water with
a maximum temperature of 77° F (25° C).
Do not use the pump for other uids, especially not fuels,
cleaning uids, or other chemical products.
Specications
Model 68387
(JTP-331)
68388
(JTI-281)
Power Requirements 120V~ 60Hz
7.82A 1HP
120V~ 60Hz
5.05A 3/4HP
Discharge/Intake 1 IN. NPT
Maximum Flow 950 GPH 740 GPH
Maximum Well Depth 26 FT.
Maximum Lift 115 FT.
Pump Body Material Stainless Steel Cast Iron
Air Bladder Pressure 28 PSI
Start Pressure 30 PSI
Stop Pressure 50 PSI
Maximum Water
Temperature 77° F (25° C)
236418
NOT FOR POTABLE WATER.
Note: Performance of this pump
(if powered by line voltage) may vary
depending on variations in local line voltage.
Extension cord usage may also affect pump performance.
Unpacking
When unpacking, make sure that the item is
intact and undamaged. If any parts are missing
or broken, please call Harbor Freight Tools at
1-800-444-3353 as soon as possible.
Brought to You by www.snapwhole.com

Page 3For technical questions, please call 1-800-444-3353.SKU 68387 & 68388
Installation
The well motor pump must be installed in a stationary
position with a xed pipeline and a steady water supply.
Please note!
1. Do not install the pump by suspending
it unsupported from its delivery pipe.
The pump must be placed on the bottom of the shaft.
2. The pump must be installed with an automatic
oat switch (not included) to prevent running dry.
Power Supply
1. The pump is equipped with a shock-proof plug
according to regulations. The pump is designed
to be connected to 120V~, 60Hz safety socket.
2. Make sure that the socket is sufciently
secured and is in excellent condition.
3. When the plug is inserted into the socket
the pump will be on standby.
WARNING! If the power cord or plug is damaged,
do not use the pump. The power cord or plug
may only be repaired by a certied electrician.
Areas of use
This pump is designed for use as a well pump.
Discharge
(hidden)
Intake
Pressure
Gauge
Priming
Inlet
Air Valve
(hidden)
Figure A: 68387 Components
Discharge
Intake
Pressure
Gauge
Priming
Inlet
Air Valve
(hidden)
Figure B: 68388 Components
WARNING! TO PREVENT SERIOUS INJURY
FROM ELECTRIC SHOCK:
Install indoors or in weather-proof well house only.
This Pump is non-submersible.
Do not plug in the power cord when wet
or standing on damp or wet ground.
Do not plug in the power cord until instructed to do so.
NOTE:
a. ONLY pump clean water.
b. Additional components (such as valves and pipes)
may be required for installation, but not included.
c. Installation requires skilled workmanship
and compliance with local building codes.
Ifyouarenotcondentinyourabilityto
properly and safely install this pump, have a
qualiedtechnicianperformtheinstallation.
d. The water to be pumped must be clean and
must be free of sand and grit, which would
damage the pump and void the warranty.
Brought to You by www.snapwhole.com

Page 4 For technical questions, please call 1-800-444-3353. SKU 68387 & 68388
1. The illustration below shows an example of a proper
shallow well pump installation. The total suction lift
(vertical well lift + length of off-set line) must
not exceed Maximum Well Depth.
Foot
Valve
Check
Valve
Well
Seal
Shallow
Well Pump
To
Household
Water
System
Standing Water Level
(With Well Pump Off)
Pumping Water Level (with Well Pump Operating)
Outlet Water
Level
Vertical Well Lift
Head
SLOPE SLIGHTLY DOWNWARD TO WELL
Length of off-set line
(Add when calculating total
suction lift due to friction.)
Figure C: Pump Setup Example
Note: This pump is intended for shallow well application
only and is not intended to be used as a booster pump.
Note: For optimal performance, install the pump
as close to the well head as possible.
2. Install a Foot Valve at the bottom of
the suction pipe. The Foot Valve must be
under the Pumping Water Level, the level that
the water falls to when the pump operates.
3. Install a sterile Well Seal at the top of the suction
pipe to keep the well clean. Protect from
rust inside a frost-proof enclosure.
4. Intake and discharge pipes must
be at least 1 IN. in diameter.
5. Lay an off-set line from the well to the structure
the pump will be installed in. The off-set line should
slope slightly towards the well (see Figure C).
Systems with longer off-set lines should use
larger diameter pipe to improve efciency.
6. Install the pump on a rigid, level, dry platform.
This platform must provide a solid, level surface
that is capable of supporting the weight of
the pump and attached piping lled with water.
Do not allow water to contact the pump’s housing.
CAUTION: DO NOT INSERT ttings into the Intake
Hole farther than 1/2 IN.; this can DAMAGE the Pump,
diminish Pump functions, and/or STOP water ow.
7. Keep the Head, the height that the pump discharge
must push water before discharge, to a minimum.
The Vertical Well Lift, Off-set Line Length, and Head
added together must be less than Maximum Lift to
have ow at output. Effective ow decreases to
0 GPH as Maximum Lift reaches its maximum.
8. For your protection, the power outlet used should
have a Ground Fault Circuit Interrupter (GFCI).
Have it installed by a qualied electrician.
Keep power line away from water.
9. The inlet and discharge lines should not be
wedged or stressed in a way that puts strain
on the pump. Do not support the pump
with the inlet or discharge lines.
Brought to You by www.snapwhole.com

Page 5For technical questions, please call 1-800-444-3353.SKU 68387 & 68388
Operation
1. Compression Tank has a rubber bladder inside.
This bladder must be pumped up to 28 PSI of air at
all times. Use a bicycle pump (not included) to inate
the bladder. On the end of the Compression Tank
opposite the side with the Pressure Meter, is an air
valve located under a cover. Remove the cover over
the air valve and periodically monitor this air valve
with an air pressure gauge to insure that the rubber
bladder maintains the required air pressure.
2. Make sure the intake pipe is fully
submerged before continuing.
3. Beforestartingthepumpforthersttime,
primeitbyllingitwithcleanwater
through the Priming Inlet.
4. This is a self-starting pump that uses
a pressure switch. Once the power cord is
connected, the pump can start at any time.
Do not handle or perform maintenance on
the pump if the power cord is plugged in.
5. After reading these instructions,
consider the following points
before starting the pump:
a. Verify that the delivery pipe is properly connected.
b. Verify that the electrical connection
is 120V~, 60Hz.
c. Verify that the electrical socket
is in good condition.
d. Verify that water and moisture cannot
get near the power supply socket.
e. Verify that the pump is installed so
as to prevent running dry.
6. To begin pumping, plug in the power cord.
When the line is pressurized, the pump
will go to standby mode until the pressure
falls below its starting pressure.
Brought to You by www.snapwhole.com

Page 6 For technical questions, please call 1-800-444-3353. SKU 68387 & 68388
Maintenance
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Unplug the Pump from its electrical outlet
before performing any inspection,
maintenance, or cleaning procedures.
1. Clean the inlet screen on the intake port
regularly to remove accumulated debris.
2. Wipe the pump clean with a soft, damp cloth
with soapy water. Do not use solvents.
Do not get the electrical components wet.
3. Drain water from pump before storage by
disconnecting the water lines and turning the Pump
upside down. If storing the pump for a long time,
store it in a dry location, and apply a light layer of
oil to the metal parts prior to storage, to inhibit rust.
Do not expose to freezing temperatures.
4. After storage, check the Impeller to make
sure it turns easily and is not oxidized.
Troubleshooting
Problem Cause Solution
The pump won’t start 1. No power.
2. Pressure switch disconnected.
3. Thermal Protection cut out.
4. Blocked impeller.
1. Check connections, and breaker/fuse.
2. Check gauge.
3. Allow pump to cool.
4. Free the impeller.
The pump operates
but it won’t
discharge water
1. Pump not primed.
2. Lift height exceeded.
3. Inlet tube not submerged.
4. Air in suction pipe.
5. Inlet screen clogged.
1. Prime pump.
2. Reduce lift height.
3. Submerge the inlet.
4. Check pipe and seals.
5. Clean screen.
Only a low volume
of water ows
1. Inlet pipe is too small.
2. Liquid is too dirty.
3. Lifting height exceeded.
4. Tank’s rubber bladder under-inated.
5. Piping corroded, causing friction.
1. Increase pipe diameter.
2. Clean screen frequently.
3. Reduce lifting height.
4. Inate to 28 PSI.
5. Replace piping, with plastic where possible.
Motor overheats often 1. Extension cord too long or
wire size too small.
2. Pump cycling too often.
1. Eliminate use of extension cord or
use shorter/heavier gauge cord.
2. Cut-in and cut-out pressure may be set
too close together. Have the pressure
switch adjusted by a qualied technician.
Pump/motor
cycles rapidly
Cut-in and cut-out pressure
may be set too closely.
Have the pressure switch adjusted
by a qualied technician.
Tank bladder will
not hold pressure
1. Air inlet valve is leaking.
2. Bladder is broken.
1. Check air tank for leaks using soapy
water and replace bladder if needed.
2. Replace bladder.
Water pumps
intermittently
Water level is being drawn below foot valve. Lower foot valve.
Pump will not
hold prime
1. Foot/check valve not installed
in suction line.
2. Foot/check valve leaks water back to well.
1. Install foot and check valve in suction line.
2. Replace foot/check valve.
Follow all safety precautions whenever diagnosing or servicing the pump.
Disconnect power supply before service.
Do not disassemble the pump or motor as this will damage the water seals.
Allrepairsshouldbeperformedbyaqualiedtechnician.
Brought to You by www.snapwhole.com

Page 7For technical questions, please call 1-800-444-3353.SKU 68387 & 68388
Problem Cause Solution
Water is full of
bubbles at outlet
1. Pumping bubbles temporarily as
air is purged after initial setup.
2. Leak in suction side of pump system.
3. Well is gaseous.
4. Water level below suction
inlet of foot valve.
1. Temporary self-remedying issue.
2. Check for and x leaks.
3. Install a sleeve in the well.
4. Lower suction line into water
and re-prime. If water is deeper
than Maximum Well Depth, then a
deep well pump may be needed.
Motor runs, but water
is not pumping
1. Improper priming.
2. Air leakage.
3. Vertical lift too high.
4. Water level below suction inlet
of foot valve.
5. Frozen pipes.
6. Foot valve in dirt or sand.
7. Foot/check valve clogged.
8. Pressure switch is set too low.
1. Prime the pump by pouring clean
water into the Priming Inlet.
2. Check all pipes and joints in the suction
line for air leakage using soapy water.
3. Reduce vertical lift to within specications.
See Installation on page 3.
4. Lower suction line into water
and re-prime. If water is deeper
than Maximum Well Depth, then a
deep well pump may be needed.
5. Thaw the pipes. Bury pipes below
freeze line/insulate pipes.
6. Raise foot valve to clean water level.
7. Clean or replace foot/check valve.
8. Have the pressure switch
adjusted by qualied technician
(30 PSI Start, 50 PSI Stop).
Pump does
not shut-off
1. Pressure switch contacts welded together.
2. Fixture (toilet, faucet, etc.) open or leaking.
3. Impeller is clogged.
4. Tank bladder pressure is too low.
5. Pipeline leakage.
6. Foot/check valve leaks water back to well.
1. Have the pressure switch replaced
by a qualied technician.
2. Close or repair xture.
3. Clean impeller.
4. Inate to 28 PSI.
5. Repair pipeline.
6. Replace foot/check valve.
Follow all safety precautions whenever diagnosing or servicing the pump.
Disconnect power supply before service.
Do not disassemble the pump or motor as this will damage the water seals.
Allrepairsshouldbeperformedbyaqualiedtechnician.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only
and are not available individually as replacement parts.
Brought to You by www.snapwhole.com

Page 8 For technical questions, please call 1-800-444-3353. SKU 68387 & 68388
Part Description Qty.
1 Flexible Hose 1
2 Power Cable 1
3 Pressure Switch 1
4 5-way Connector 1
5 Shipping Plug 2
6 Pressure Gauge 1
7 Pump Wire 1
8 Priming/Drain Plug 2
9 Seal Pad 2
10 Pump Housing 1
11 Bolt 6
12 O-ring 1
13 Diffuser 1
14 Impeller 1
15 301-12 Mechanical Seal 1
16 O-ring 1
17 Fluid Housing 1
18 Washer 1
19 Front Cover 1
20 Bearing 1
21 Rotor 1
22 Stator 1
23 Pump Case 1
24 Rear Cover 1
25 Bolt 4
26 Fan Cover 1
27 Fan 1
28 Wire Nut 1
29 Wire Gasket 1
Part Description Qty.
30 Connection Box Base 1
31 Fixture 1
32 Screw 2
33 Screw 4
34 Connection Box Top 1
35 Screw 2
36 O-ring 2
37 Seal Ring 1
38 Capacitor 1
39 Screw 2
40 Hex Nut 3
41 Spring Washer 3
42 Flat Washer 9
43 Terminal 1
44 Lock Washer 1
45 Waterproof Seal 1
46 Bolt 2
47 Flat Washer 2
48 Spring Washer 2
49 Hex Bolt 2
50 Flat Washer 2
51 Valve Cap 1
52 Valve Core 1
53 Tank 1
54 Bladder 1
55 Pressure Cover 1
56 Flat Washer 6
57 Hex Bolt 6
68387 Wiring Diagram
M
Pressure
Switch
CapacitorMotor
LINEGROUND
68387 Parts List
Brought to You by www.snapwhole.com

Page 9For technical questions, please call 1-800-444-3353.SKU 68387 & 68388
68387 Assembly Diagram
Brought to You by www.snapwhole.com

Page 10 For technical questions, please call 1-800-444-3353. SKU 68387 & 68388
Part Description Qty.
1 Pump Housing 1
2 Screw 4
3 Flat Washer 4
4 Spring Washer 4
5 Priming Plug 1
6 Shipping Plug 2
7 O-ring 1
8Diffuser Assembly 1
9Impeller Assembly 1
10 301-12 Mechanical Seal 1
11 O-ring 1
12 Fluid Housing 1
13 Washer 1
14 Motor Front Flange 1
15 Bearing 2
16 Rotor 1
17 Stator 1
18 Motor Housing 1
19 Round Spring 1
20 Motor Rear Flange 1
21 Hex Bolt 4
22 Flat Washer 4
23 Spring Washer 4
24 Fan 1
25 Fan Cover 1
26 Nut 1
27 Cable Jacket 1
28 Connection Box Base 1
29 Fixture 1
30 Screw 2
Part Description Qty.
31 Screw 6
32 Spring Washer 9
33 Flat Washer 13
34 Connection Box Cover 1
35 Screw 2
36 O-ring 1
37 Seal Ring 1
38 Capacitor 1
39 Hex Nut 3
40 Terminal 1
41 Lock Washer 1
42 Pad 1
43 Hex Nut 2
44 Spring Washer 2
45 Flat Washer 2
46 Flat Washer 2
47 Hex Bolt 2
48 Valve Cab 1
49 Flat Washer 1
50 Valve Core 1
51 Tank 1
52 Bladder 1
53 Pressure Lid 1
54 Flat Washer 6
55 Bolt 6
56 Flexible Hose 1
57 Pressure Switch 1
58 Pressure Gauge 1
59 Power Cable 1
60 Pump Wire 1

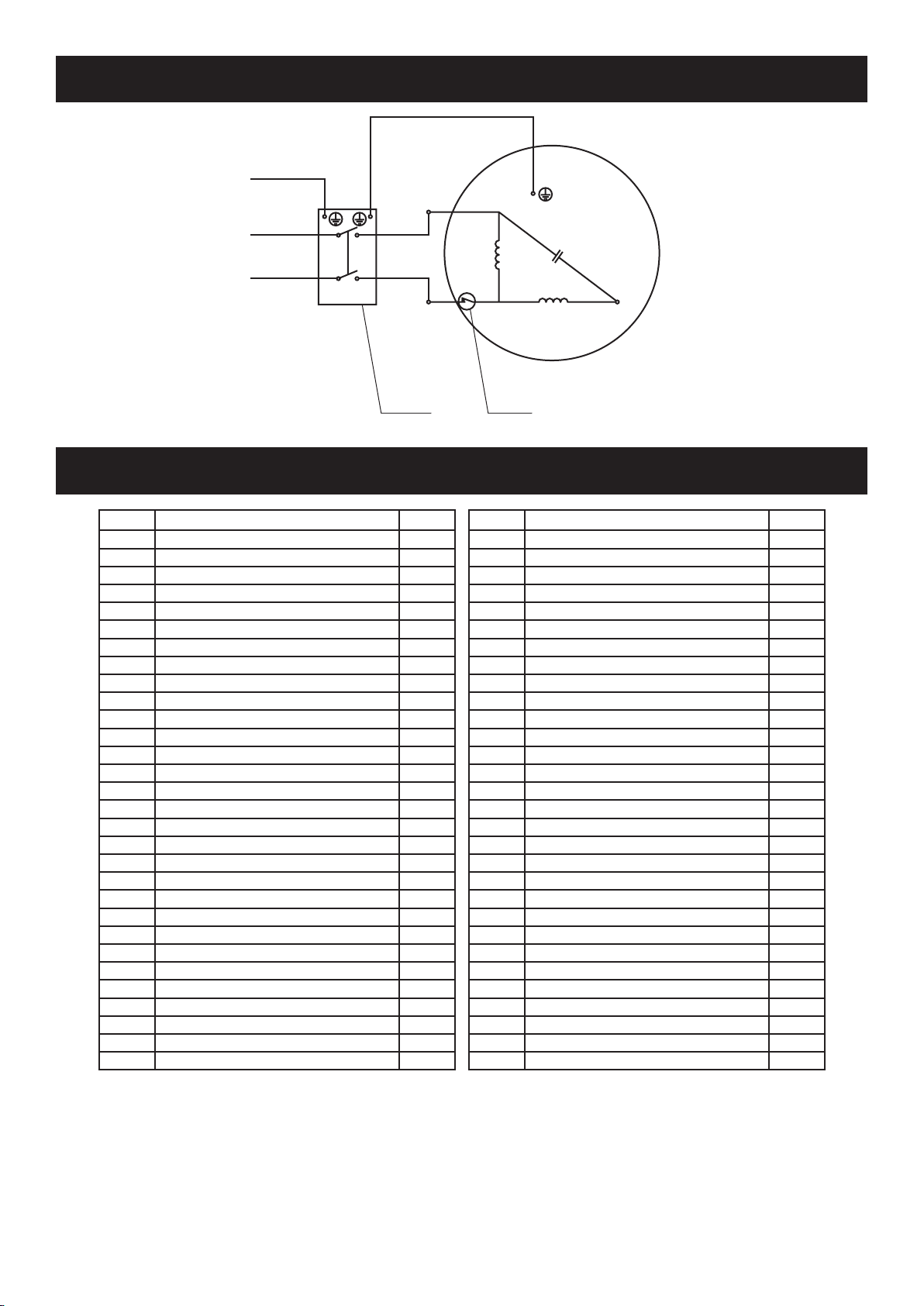

68388 Wiring Diagram
Pressure
Switch Motor
Capacitor
LINE
GROUND
68388 Parts List
Brought to You by www.snapwhole.com
