Quick Start Guide
This quick start guide contains important information on the safe operation of the
product. Read and follow the safety advices and instructions given. Retain the quick
start guide for future reference. If you pass the product on to others please include
this quick start guide.
Features
• Lightweight, compact pedalboard
• Battery or mains powered
• Powder-coated aluminium frame
• 11 insulated, ltered and short-circuit proof outputs eliminate noise and hum
• 4 uninsulated outputs for multi-eect devices or for charging smartphones or
tablets
• Incl. power adapter for power supply and charging
• With volt/current meter
• High current output for modern digital eects
• LED indicator on each output
EN
Spaceship Power 80-B
Scope of delivery
• 4×DC cable with a length of 30 cm
• 5×DC cable with a length of 60 cm
• 4×DC cable with a length of 90 cm
• 1×reverse polarity cable with red plug
• 1×battery clip
• 1×connector cable with a length of 45 cm with 5.5 × 2.5 mm green coaxial plug
to 5.5 × 2.1 mm coaxial plug
• 1×connector cable with a length of 45 cm with 3.5 mm jack plug to
5.5 × 2.1 mm coaxial plug
• 1×voltage boost cable, 20 cm
• 1×current boost cable, 60 cm
• 1×EIAJ-05 cable
• 1×power adapter with EU plug, 120 cm
• 1×cable fastening set
• 1×velcro tape, self-adhesive, 400 cm ×4.5 cm
• 2×Allen key (5 mm and 6 mm)
• 1×transport bag with storage pocket and shoulder strap
8
O#
8
O#
8
O#
8
.+0-
 
8
O#
8
O#
 
8
O#
8
O#
8
O#
8
O#
8
O#
8
O#
8
O#
& ' ( ) *
+
ö#$%

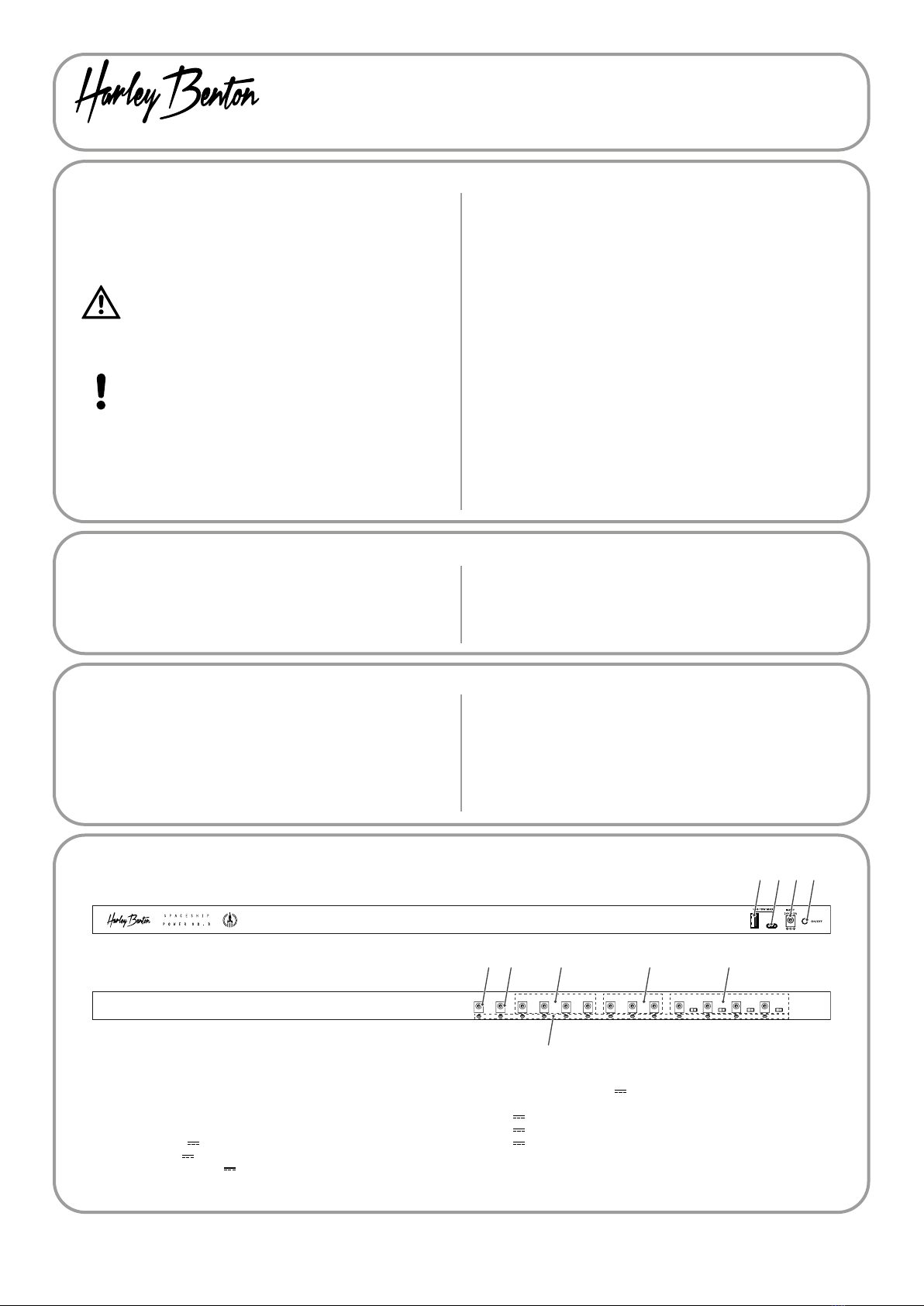

Operating elements
Safety instructions
Intended use
This product is meant to be used as a multiple power supply for eects pedals. Any
other use or use under other operating conditions is considered to be improper and
may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are
not within reach of babies and young children. Choking hazard! Ensure
that children do not detach any small parts from the product. They could
swallow the pieces and choke! Never let children unattended use electri-
cal devices.
Possible staining
The plasticiser contained in the rubber feet of this product may possibly
react with the coating of your surface and after some time cause perma-
nent dark stains. In case of doubt, do not put the rubber feet directly on
the surface and use a suitable underlay if necessary, i.e. felt-pad oor pro-
tectors or similar.
Where to use the product
Never use the product
• in conditions of extreme temperature or humidity
• in extremely dusty or dirty areas
• at locations where the unit can become wet
General handling
• To prevent damage, never use force when handling the product.
• Never immerse the product in water. Just wipe it with a clean dry cloth. Do not use
liquid cleaners such as benzene, thinners or ammable cleaning agents.
Incorrect handling of lithium batteries can result in injury
• In the event of a short circuit, overheating or mechanical damage, lithium batteries
can cause severe injuries.
• When handled correctly and appropriately lithium batteries pose no risk.
• Store lithium batteries in a cool, dry place, ideally in the original packaging.
• Store lithium batteries away from heat sources (e.g. radiators or sunlight). Lithium
batteries are hermetically sealed. Never attempt to open a lithium battery.
• If the battery housing is damaged small amounts of the electrolyte may leak out. If
this should happen, seal the lithium battery in airtight packaging and wipe up the
traces of electrolyte using absorbent paper towels. You must wear protective rub-
ber gloves when doing so. Clean your hands and the aected surface thoroughly
with cold water.
• Never attempt to recharge non-rechargeable lithium batteries. When charging lith-
ium batteries you must use a suitable charging device intended for the purpose.
• Before disposing of the device remove the lithium batteries. Protect used lithium
batteries against potential short circuits, e.g. by covering the poles with adhesive
tape.
• Only use powder extinguishers or other suitable extinguishing agents to extinguish
a burning lithium battery.
1 USB-A output, uninsulated
2 USB-C output, uninsulated
3 Socket for the supplied power adapter for power supply and charging
4 Mains switch
5 Output 1 with 24 V @2000 mA, uninsulated
6 Output 2 with 9 V @3000 mA, uninsulated
7 Outputs 36 with each 9V @250mA, insulated
8 Outputs 7-9 with each 9V @500mA, insulated
9 Outputs 10-13 with voltage switches, insulated, switchable between
9V @ 500mA /
12V @ 375mA /
18V @ 250mA
10 Control LED for outputs1-13, lights up green when voltage is present,
turns o when output is deactivated due to overload

Thomann GmbH • Hans-Thomann-Straße 1 • 96138 Burgebrach • www.thomann.de • [email protected] DocID: 520988_19.09.2022
EN
Spaceship Power 80-B
Using the product
1. Use the supplied power adapter to connect the device to the power and press
the mains switch to switch on the device.
2. Use a suitable voltage supply cable to connect eects pedals or similar devices
which require 24V supply voltage at a maximum of 2000mA to the output1.
3. Use a suitable voltage supply cable to connect devices with high power
consumption (i.e. multi-eect devices) which require 9V supply voltage at
a maximum of 3000mA to the output2.
4. Use suitable voltage supply cables to connect eects pedals or similar devices
which require 9V supply voltage at a maximum of 250mA to the
outputs36.
5. Use suitable voltage supply cables to connect eects pedals or similar devices
which require 9V supply voltage at a maximum of 500mA to the
outputs79.
Danger of property damage by polarity reversal
Make sure that the polarity of the devices to be connected must be
the same as the polarity of the power supply outputs ( ). To
power a device with polarity-reversed voltage may damage it!
6. Use suitable voltage supply cables to connect eects pedals or similar devices
which require 9V ,12V or 18V supply voltage at a maximum of
500 mA, 375 mA or 250 mA to the outputs10-13. Set the associated switch
above the output to the position of the required voltage. The maximum output
power of 45 W must not be exceeded.
7. Use suitable voltage supply cables to connect devices as smartphones or
tablets to the USB outputs.
8. Each operational output 1-13 is indicated by a green LED. If an output is
switched o due to overload, the LED turns o. Then disconnect the respective
pedal from the device. After approx. 2 seconds, the normal voltage supply is
restored here.
9. Press the mains switch to switch o the device.
Danger of property damage by overvoltage
Make sure that connected devices are actually suitable for the set
voltage. To power a device with overvoltage may damage it!
Technical specications
• Connections ( )
- Output 1 24V @ max. 2000mA
- Output 2 9V @ max. 3000 mA
- Outputs 3-6 9V @ max. 250 mA (individually insulated)
- Outputs 7-9 9V @ max. 500 mA (individually insulated)
- Outputs 10-13 switchable 9/12/18V @ max. 500/375/250 mA
(individually insulated)
• USB output USB-C max. 18 W
USB-A max. 18 W
• Power output 45 W
• Current output 4050 mA
• Power supply External power adapter, 100-240 V ~ 50/60Hz
• Operating voltage 24V / 2 A, centre negative
• Battery Battery type Lithium-ion
Voltage 7.4V
Capacity 9000mAh
Operating time 1.1h (after 3.4 h charging time)
• Dimensions (W×H×D) 800 mm×89.5 mm×390mm
31.50"×3.52"×15.35"
• Weight 3230 g
• Ambient conditions Temperature range 0 °C...40°C
Relative humidity 20 %...80 %
(non-condensing)
For the transport and protective packaging, environmentally friendly materials
have been chosen that can be supplied to normal recycling. Ensure that plastic
bags, packaging, etc. are properly disposed of. Do not just dispose of these ma-
terials with your normal household waste, but make sure that they are collected
for recycling. Please follow the notes and markings on the packaging.
Only dispose of lithium batteries when they are discharged. Remove replaceable
lithium batteries from the device before disposal. Protect used lithium batteries
against short circuits, for example by covering the poles with adhesive tape. Per-
manently built-in lithium batteries must be disposed of together with the device.
Please inquire about an appropriate collection point.
This product is subject to the European Waste Electrical and Electronic Equip-
ment Directive (WEEE) in its currently valid version. Do not dispose of your old
device with your normal household waste. Dispose of this product through an
approved waste disposal rm or through your local waste facility. Comply with
the rules and regulations that apply in your country. If in doubt, consult your lo-
cal waste disposal facility.
