harman kardon
Models DVD 25 DVD101DVD 25 DVD101
DVD/CD/CD-R/CD-RW/VCD MP3 Player
Service Manual
- Contents -
PRODUCT SAFETY SERVICE GUIDELINES…2
SERVICE PRECAUTIONS………………….……3
SPECIFICATIONS…………………………..…….4
FEATURES………………………………………...5
FRONT PANEL CONTROLS………….………….6
INFORMATION DISPLAY…………….…….…….7

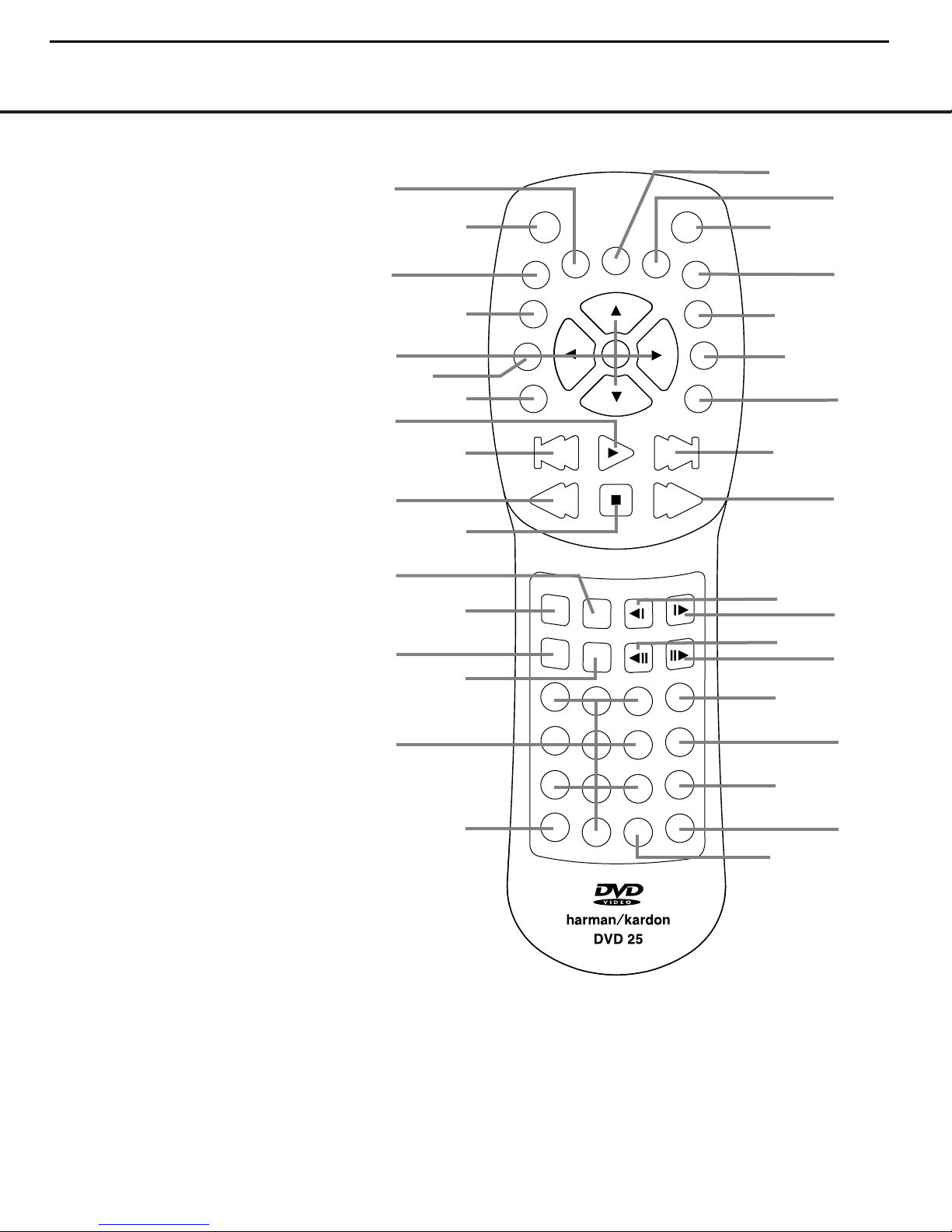

REMOTE CONTROL………………………..…….8

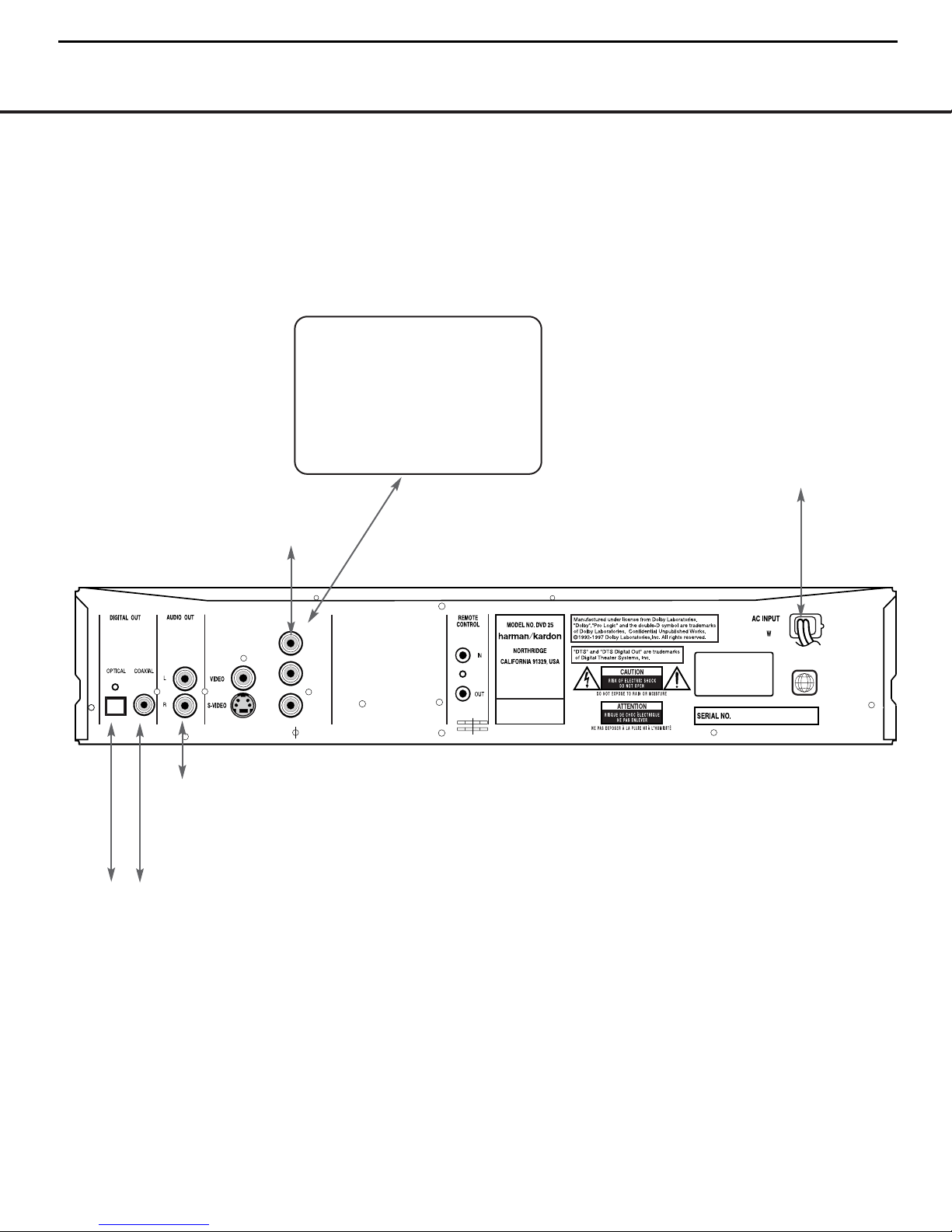

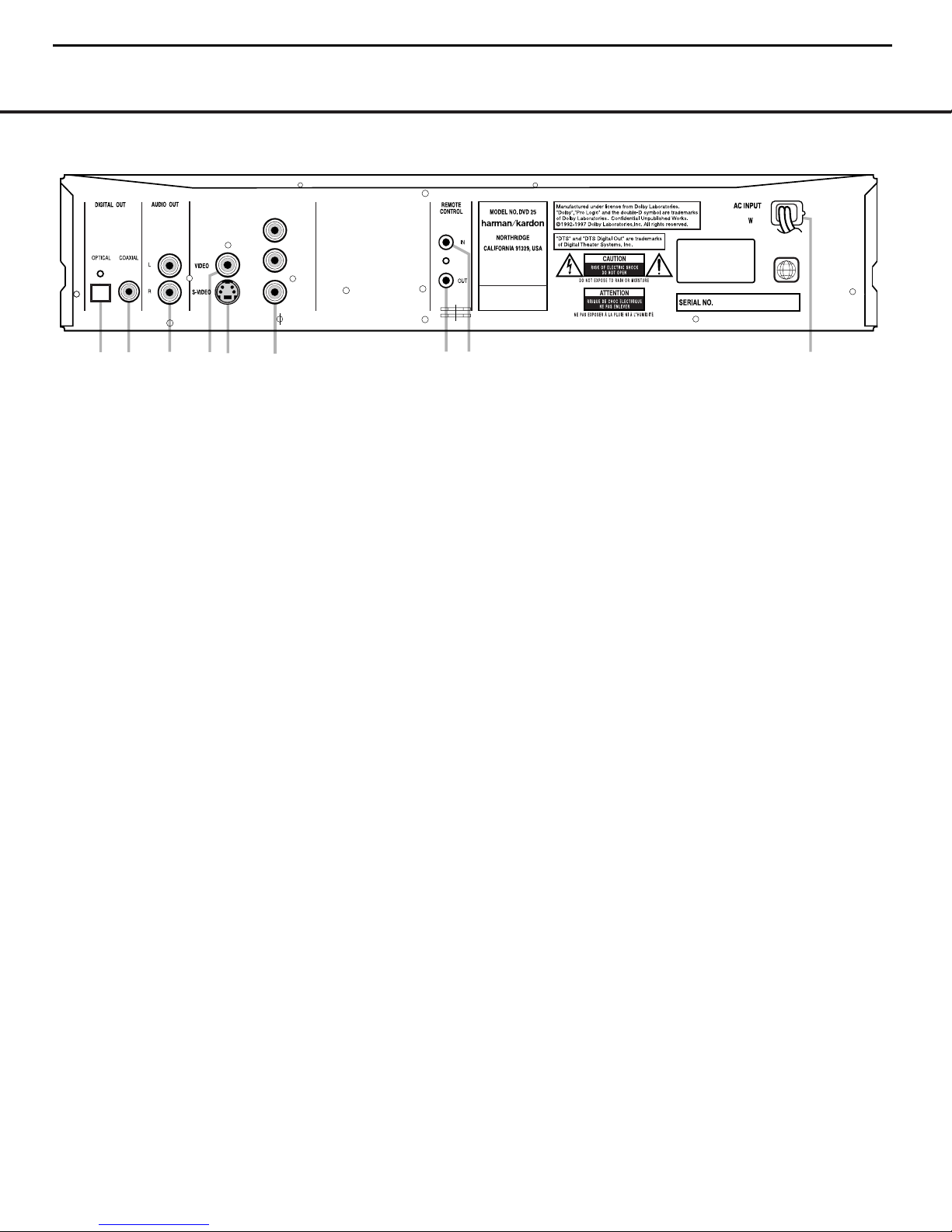

REAR PANEL CONNECTIONS……………..….10
INSTALLATION/CONNECTIONS……….……….11
TEST SCREEN……………………….……….….15
BASIC TROUBLESHOOTING GUIDE/RESET.……..….16

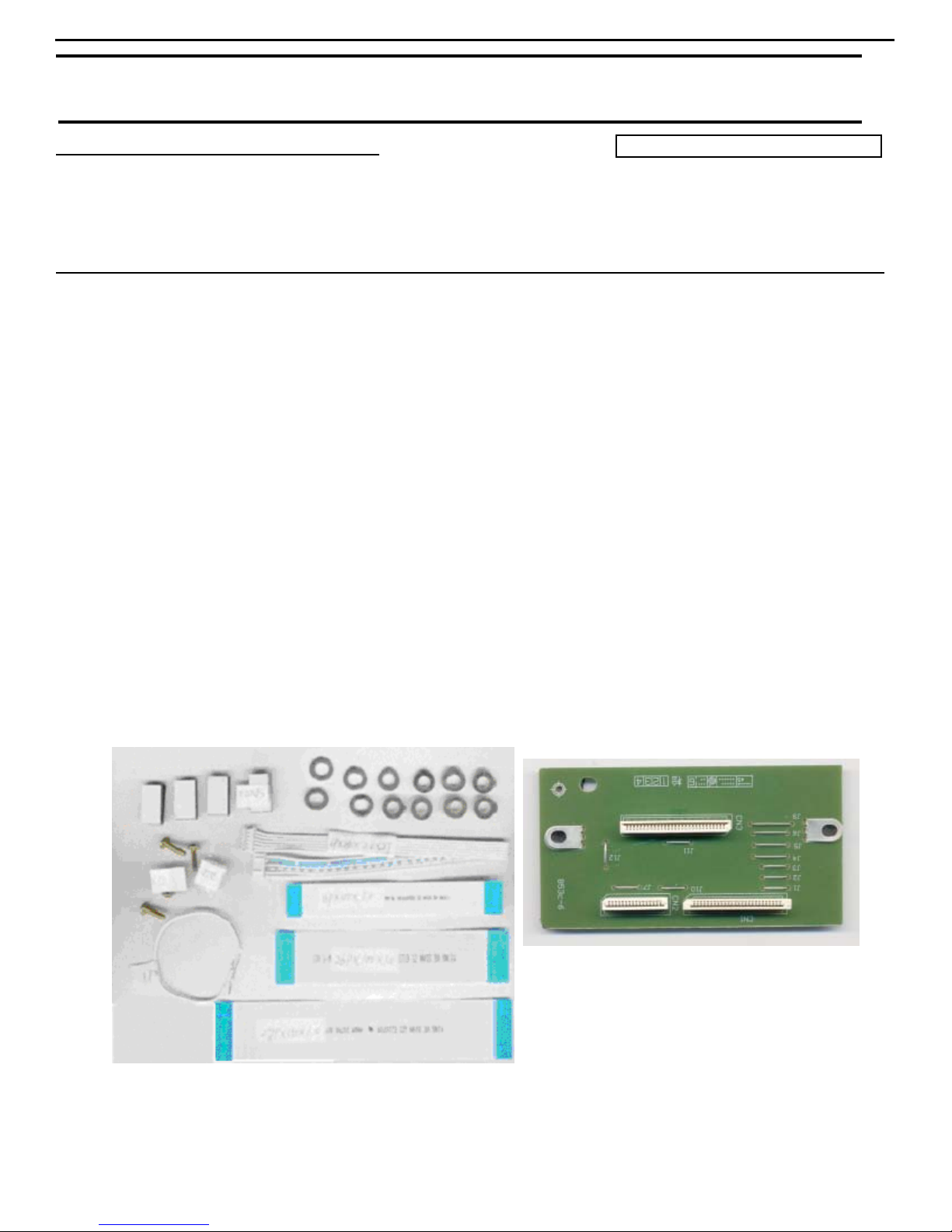

(DVD25) BULLETIN HK2003-06…………….…17

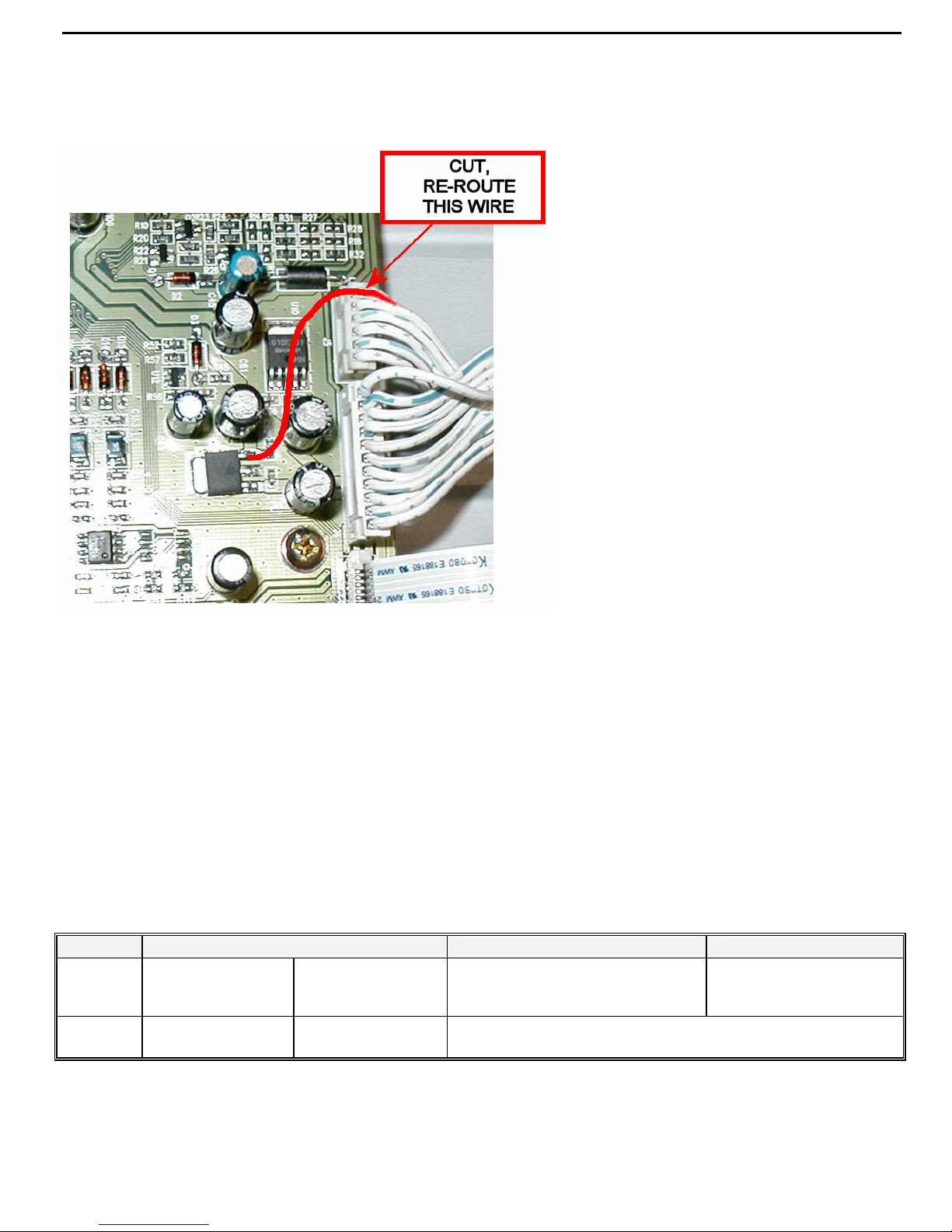

(DVD25) TECH TIP HKTT2004-02…………….20
OVERALL EXPLODED VIEW………………..…21
BLOCK DIAGRAM.……………..……………..…22
(DVD25)MECHANICAL PARTS LIST………….23
(DVD25) ELECTRICAL PARTS LIST……….….25
(DVD101) MECHANICAL PARTS LIST………..31
(DVD101) ELECTRICAL PARTS LIST…….…..33
PCB DRAWINGS…………………………………38
SCHEMATICS…………………………………….43
harman/kardon, Inc.
250 Crossways Park Dr.
Woodbury, New York 11797 Rev0 8/2004
www.electronicsrepair.net

CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY,
NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFAC-
TURER’S APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT ONLY
VOID THE WARRANTY, BUT MAY LEAD TO YOUR BEING LIABLE FOR ANY
RESULTING PROPERTY DAMAGE OR USER INJURY.
SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU ARE
THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING SAFETY
CHECKS AND SERVICING GUIDELINES. TO DO OTHERWISE,
INCREASES THE RISK OF POTENTIAL HAZARDS AND INJURY TO THE
USER.
WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR PROTEC-
TION FROM A.C. LINE SHOCK.
SAFETY CHECKS
AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN CORRECTED. A
CHECK SHOULD BE MADE OF THE FOLLOWING.
SUBJECT : FIRE & SHOCK HAZARD
1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN SUCH A WAY
AS TO AVOID POSSIBILITY OF ADJACENT COMPONENT SHORTS.
THIS IS ESPECIALLY IMPORTANT ON THOSE MODULES WHICH ARE
TRANSPORTED TO AND FROM THE REPAIR SHOP.
2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE DEVICES
SUCH AS INSULATORS, BARRIERS, COVERS, SHIELDS, STRAIN
RELIEFS, POWER SUPPLY CORDS, AND OTHER HARDWARE HAVE
BEEN REINSTALLED PER ORIGINAL DESIGN. BE SURE THAT THE
SAFETY PURPOSE OF THE POLARIZED LINE PLUG HAS NOT BEEN
DEFEATED.
3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE COLD
SOLDER JOINTS, SOLDER SPLASHES OR SHARP SOLDER POINTS.
BE CERTAIN TO REMOVE ALL LOOSE FOREIGN PARTICLES.
4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR DETERIORATION
TO PARTS AND COMPONENTS, FOR FRAYED LEADS, DAMAGED
INSULATION (INCLUDING A.C. CORD), AND REPLACE IF NECESSARY.
FOLLOW ORIGINAL LAYOUT, LEAD LENGTH AND DRESS.
5. NO LEAD OR COMPONENT SHOULD TOUCH A RECIVING TUBE OR
A RESISTOR RATED AT 1 WATT OR MORE. LEAD TENSION AROUND
PROTRUDING METAL SURFACES MUST BE AVOIDED.
6. ALL CRITICAL COMPONENTS SUCH AS FUSES, FLAMEPROOF
RESISTORS, CAPACITORS, ETC. MUST BE REPLACED WITH EXACT
FACTORY TYPES, DO NOT USE REPLACEMENT COMPONENTS
OTHER THAN THOSE SPECIFIED OR MAKE UNRECOMMENDED CIR-
CUIT MODIFICATIONS.
7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PERFORM AN A.C.
LEAKAGE TEST ON ALL EXPOSED METALLIC PARTS OF THE CABI-
NET, (THE CHANNEL SELECTOR KNOB, ANTENNA TERMINALS. HAN-
DLE AND SCREWS) TO BE SURE THE SET IS SAFE TO OPERATE
WITHOUT DANGER OF ELECTRICAL SHOCK. DO NOT USE A LINE
ISOLATION TRANSFORMER DURING THIS TEST USE AN A.C. VOLT-
METER, HAVING 5000 OHMS PER VOLT OR MORE SENSITIVITY, IN
THE FOLLOWING MANNER; CONNECT A 1500 OHM 10 WATT RESIS-
TOR, PARALLELED BY A .15 MFD. 150.V A.C TYPE CAPACITOR
BETWEEN A KNOWN GOOD EARTH GROUND (WATER PIPE, CON-
DUIT, ETC.) AND THE EXPOSED METALLIC PARTS, ONE AT A TIME.
MEASURE THE A.C. VOLTAGE ACROSS THE COMBINATION OF 1500
OHM RESISTOR AND .15 MFD CAPACITOR. REVERSE THE A.C. PLUG
AND REPEAT A.C. VOLTAGE MEASUREMENTS FOR EACH EXPOSED
METALLIC PART. VOLTAGE MEASURED MUST NOT EXCEED 75
VOLTS R.M.S. THIS CORRESPONDS TO 0.5 MILLIAMP A.C ANY
VALUE EXCEEDING THIS LIMIT CONSTITUTES A POTENTIAL SHOCK
HAZARD AND MUST BE CORRECTED IMMEDIATELY.
SUBJECT: GRAPHIC SYMBOLS
THE LIGHTNING FLASH WITH APROWHEAD SYMBOL. WITHIN
AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE
SERVICE PERSONNEL TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE”THAT MAY BE OF SUFFICIENT MAG-
NITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIAN-
GLE IS INTENDED TO ALERT THE SERVICE PERSONNEL TO
THE PRESENCE OF IMPORTANT SAFETY INFORMATION IN
SERVICE LITERATURE.
SUBJECT : X-RADIATION
1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PER-
SONNEL COVER THE SUBJECT OF X-RADIATION. THE ONLY POTEN-
TIAL SOURCE OF X-RAYS IN CURRENT T.V. RECEIVERS IS THE PIC-
TURE TUBE. HOWEVER, THIS TUBE DOES NOT EMIT X-RAYS WHEN
THE HIGH VOLTAGE IS AT THE FACTORY SPECIFIED LEVEL. THE
PROPER VALUE IS GIVEN IN THE APPLICABLE SCHEMATIC. OPERA-
TION AT HIGHER VOLTAGES MAY CAUSE A FAILURE OF THE PIC-
TURE TUBE OR HIGH VOLTAGE SUPPLY AND, UNDER CERTAIN CIR-
CUMSTANCES, MAY PRODUCE RADIATION IN EXCESS OF DESIR-
ABLE LEVELS.
2. ONLY FACTORY SPECIFIED C.R.T. ANODE CONNECTORS MUST BE
USED. DEGAUSSING SHIELDS ALSO SERVE AS AN X-RAY SHIELD IN
COLOR SETS, ALWAYS RE-INSTALL THEM.
3. IT IS ESSNTIAL THAT SERVICE PERSONNEL HAVE AVAILABLE AN
ACCURATE AND RELIABLE HIGH VOLTAGE METER. THE CALIBRA-
TION OF THE METER SHOULD BE CHECKED PERIODICALLY
AGAINST A REFERENCE STANDARD, SUCH AS THE ONE AVAILABLE
AT YOUR DISTRIBUTOR.
4. WHEN THE HIGH VOLTAGE CIRCUITRY IS OPERATING PROPERLY
THERE IS NO POSSIBILITY OF AN X-RADIATION PROBLEM. EVERY
TIME A COLOR CHASSIS IS SERVICED. THE BRIGHTNESS SHOULD
BE RUN UP AND DOWN WHILE MONITORING THE HIGH VOLTAGE
WITH A METER TO BE CERTAIN THAT THE HIGH VOLTAGE DOES
NOT EXCEED THE SPECIFIED VALUE AND THAT IT IS REGULATING
CORRECTLY. WE SUGGEST THAT YOU AND YOUR SERVICE ORGA-
NIZATION REVIEW TEST PROCEDURES SO THAT VOLTAGE REGU-
LATION IS ALWAYS CHECKED AS A STANDARD SERVICING PROCE-
DURE AND THAT THE HIGH VOLTAGE READING BE RECORDED ON
EACH CUSTOMER’S INVOICE.
5. WHEN TROUBLESHOOTING AND MAKING TEST MEASUREMENTS IN
A PRODUCT WITH A PROBLEM OF EXCESSIVE HIGH VOLTAGE,
AVOID BEING UNNECESSARILY CLOSE TO THE PICTURE TUBE AND
THE HIGH VOLTAGE SUPPLY. DO NOT OPERATE THE PRODUCT
LONGER THAN IT IS NECESSARY TO LOCATE THE CAUSE OF EXCES-
SIVE VOLTAGE.
6. REFER TO HV. B+ AND SHUTDOWN ADJUSTMENT PROCEDURES
DESCRIBED IN THE APPROPRIATE SCHEMATIC AND DIAGRAMS
(WHERE USED).
SUBJECT: IMPLOSION
1. ALL DIRECT VIEWED PICTURE TUBES ARE EQUIPPED WITH AN INTE-
GRAL IMPLOSION PROTECTION SYSTEM, BUT CARE SHOULD BE
TAKEN TO AVOID DAMAGE DURING INSTALLATION, AVOID
SCRATCHING THE TUBE. IF SCRATCHED REPLACE IT.
2. USE ONLY RECOMMENDED FACTORY REPLACEMENT TUBES.
SUBJECT : TIPS ON PROPER INSTALLATION
1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS, CUBBY-
HOLE OR CLOSELY FITTING SHELF SPACE, OVER OR CLOSE TO
HEAT DUCT, OR IN THE PATH OF HEATED AIR FLOW.
2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS: OUTDOOR PATIO
INSTALLATIONS WHERE DEW IS A FACTOR, NEAR STEAM RADIA-
TORS WHERE STEAM LEAKAGE IS A FACTOR, ETC.
3. AVOID PLACEMENT WHERE DRAPERIES MAY OBSTRUCT REAR
VENTING. THE CUSTOMER SHOULD ALSO AVOID THE USE OF DEC-
ORATIVE SCARVES OR OTHER COVERINGS WHICH MIGHT
OBSTRUCT VENTILATION.
4. WALL AND SHELF MOUNTED INSTALLATIONS USING A COMMER-
CIAL MOUNTING KIT, MUST FOLLOW THE FACTORY APPROVED
MOUNTING INSTRUCTIONS. A PRODUCT MOUNTED TO A SHELF OR
PLATFORM MUST RETAIN ITS ORIGINAL FEET (OR THE EQUIVALENT
THICKNESS IN SPACERS) TO PROVIDE ADEQUATE AIR FLOW
ACROSS THE BOTTOM. BOLTS OR SCREWS USED FOR FASTENERS
MUST NOT TOUCH ANY PARTS OR WIRING. PERFORM LEAKAGE
TEST ON CUSTOMIZED INSTALLATIONS.
5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A PRODUCT ON
SLOPING SHELF OR A TILTED POSITION, UNLESS THE PRODUCT IS
PROPERLY SECURED.
6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE ON ITS
MOUNTING TO THE CART. CAUTION THE CUSTOMER ON THE HAZ-
ARDS OF TRYING TO ROLL A CART WITH SMALL CASTERS ACROSS
THRESHOLDS OR DEEP PILE CARPETS.
7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR STAND
WHICH HAS NOT BEEN LISTED BY UNDERWRITERS LABORATORIES,
INC. FOR USE WITH THEIR SPECIFIC MODEL OF TELEVISION
RECEIVER OR GENERICALLY APPROVED FOR USE WITH T.V.’S OF
THE SAME OR LARGER SCREEN SIZE.
8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION CORDS.
EXPLAIN THAT A FOREST OF EXTENSIONS SPROUTING FROM A SIN-
GLE OUTLET CAN LEAD TO DISASTROUS CONSEQUENCES TO
HOME AND FAMILY.
PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS
A.C. VOLTMETER
GOOD EARTH GROUND
SUCH AS THE WATER
PIPE. CONDUIT. ETC
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
2
DVD25/DVD101 harman/kardon

3
SERVICING PRECAUTIONS
CAUTION : Before servicing the DVD covered by this service
data and its supplements and ADDENDUMS, read and fol-
low the SAFETY PRECAUTIONS. NOTE : if unforeseen cir-
cumstances create conflict between the following servicing
precautions and any of the safety precautions in this publi-
cations, always follow the safety precautions.
Remember Safety First:
General Servicing Precautions
1. Always unplug the DVD AC power cord from the AC
power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnection or reconnecting any internal electrical
plug or other electrical connection.
(3) Connecting a test substitute in parallel with an elec-
trolytic capacitor.
Caution : A wrong part substitution or incorrect
polarity installation of electrolytic capacitors may result
in an explosion hazard.
2. Do not spray chemicals on or near this DVD or any of
its assemblies.
3. Unless specified otherwise in this service data, clean
electrical contacts by applying an appropriate contact
cleaning solution to the contacts with a pipe cleaner,
cotton-tipped swab, or comparable soft applicator.
Unless specified otherwise in this service data, lubrication
of contacts is not required.
4. Do not defeat any plug/socket B+ voltage interlocks with
whitch instruments covered by this service manual might
be equipped.
5. Do not apply AC power to this DVD and/or any of its
electrical assemblies unless all solid-state device heat
sinks are cerrectly installed.
6. Always connect test instrument ground lead to the
appropriate ground before connection the test instrument
positive lead. Always remove the test instrument ground
lead last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn
the power on. Connect an insulation resistance meter(500V)
to the blades of the attachment plug. The insulation resis-
tance between each blade of the attachment plug and acces-
sible conductive parts (Note 1) should be more than 1M-
ohm.
Note 1 : Accessible Conductive Parts including Metal pan-
els, Input terminals, Earphone jacks, etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some field
effect transistors and semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor compo-
nent or semiconductor-equipped assembly, drain off any
electrostatic charge on your body by touching a known
earth ground. Alternatively, obtain and wear a commer-
cially available discharging wrist strap device, which
should be removed for potential shock reasons prior to
applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such
as aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a GROUNDED-tip soldering iron to solder or
unsolder ES devices.
4. Use only an anti-static solder removal device. Some
solder removal devices not classified a “anti-static”can
generate electrical charges sufficient to damage ES
devices.
5. Do not use freon-propelled chemicals. These can
generate electrical charge sufficient to damage ES
devices.
6. Do not remove a replacement ES device from its protec
tive package until immediately before you are ready to
install it. (Most replacement ES devices are packaged with
leads electrically shorted together by conductive foam,
aluminum foil, or comparable conductive material).
7. Immediately before removing the protective material from
the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
Caution : Be sure no power is applied to the chassis or
circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Normally harmless motion such
as the brushing together of your clothes fabric or the lifting
of your foot from a carpeted floor can generate static elec-
tricity sufficient to damage an ES device.)
SHIPPING PRECAUTION:
If power is removed from the unit before the “NO DISC” message, then the carousel has not reached the
home position, and movement of the laser assembly during shipping can cause the mechanism to jam.
Before the unit is shipped, the mechanism should be set to its home position performing following steps:
Power on unit. Wait until unit dis
p
la
y
s “NO DISC”. Power unit off.
DVD25/DVD101 harman/kardon

TECHNICAL SPECIFICATIONS
Technical Specifications
Applicable Disc: Disc formats: 5 inch (12 cm) or 3 inch (8 cm) DVD-Movie, Standard conforming DVD-R and DVD-RW,
VCD, CD-i, CD, CD-R, MP3 or CD-RW discs,
Regio code: DVD Movie disc with Code 2 or 0 only.
DVD-Layers: Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Dual Layer,
Audio formats: Linear PCM, MPEG, Dolby Digital or DTS Audio Discs
Video Signal System: PAL /NTSC
Composite Video Output: 1 V p-p/75 Ohms, sync negative polarity
S Video Output: Y/Luminance: 1 V p-p/75 Ohms, sync negative polarity
C/Chrominance: 0.286 V p-p
Component Video Output: Y: 1Vp-p/75 Ohms, sync negative polarity
Cr: 0.7Vp-p/75 Ohms
Cb: 0.7Vp-p/75 Ohms
Analog Audio Output: 2 Vrms max
Frequency Response: DVD (Linear PCM): 2 Hz - 22 kHz +0/-0.5 dB (48 kHz sampling)
2 Hz - 44 kHz +0/-0.5 dB (96 kHz sampling)
CD: 2 Hz - 20 kHz +0/-0.5 dB
Signal/Noise Ratio (SNR): 113 dB (A-weighted)
Dynamic Range: DVD: 100 dB (18 Bit) / 105 dB (20 Bit)
CD/DVD: 96 dB (16 Bit)
THD/1kHz: DVD/CD: 0.0025 %
Wow & Flutter: Below Measurable Limits
AC Power: 110 - 240 V/ 50 - 60 Hz
Power Consumption: 12 Watts (On)/20 Watts (Max)
Dimensions (WxHxD): 440 x 87 x 305 mm
Weight: 7 Kg
Depth measurement includes knobs and connectors.
Height measurement includes feet and chassis.
All specifications subject to change without notice.
Harman Kardon and Power for the digital revolution are trademarks of Harman Kardon, Inc.
Manufactured under license from Dolby Laboratories. Dolby, AC-3, ProLogic and the double-D symbol are trademarks of Dolby Laboratories. Confidential.
Unpublished Work. © 1992-1997 Dolby Laboratories, Inc. All rights reserved.
DTS is a trade mark of Digital Theater Systems, Inc.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or diassembly is
prohibited.
4
DVD25/DVD101 harman/kardon

FEATURES
Features
High quality video
• Advanced sophisticated 10-bit MPEG-2 video
decoding circuits.
• Direct RGB output via SCART (selectable) for
optimum video performance. SCART connector
also configurable for Composite Video output.
• Test screen videos available for testing video
performance and setup.
• Pure PAL with NTSC disc due to true
NTSC/PAL conversion.
• Dual-layer compatibility for extended play
DVD.
• Progressive Scan component video ouputs
(NTSC only)
High quality digital audio
• By connecting a DTS (Digital Theater Systems)
or a Dolby Digital decoder, you can enjoy high
quality 5.1 digital surround sound from DTS or
Dolby Digital discs.
• With linear PCM audio at 16-24 bits and 44-
96 kHz (also on digital output, see table page
14), audio quality exceeding that of CD
becomes possible.
• Optical and coaxial digital audio output.
Many convenient features
• On-Screen Menu lcons for disc information or
player information and access to many major
functions of this unit.
• Subtitles may be displayed in one of numerous
languages*.
• The multi-angle function allows you to choose
the viewing angle of scenes which were shot
from a number of different angles (Limited to
DVD’s recorded with multiple camera angles.)
• Multiple options for dialog language and
soundtrack selection (limited to DVD’s record-
ed with multiple dialog languages or sound-
tracks).
• Programming of up to 9 scenes in memory
(markers).
• Parental lock settings to prevent play of discs
unsuitable for some audiences [DVD only].
• Intuitive menu operating system.
• 2x/4x Zoom during play and pause.
• Backlit, ergonomically designed remote
control.
• Future software upgrades accessible via
Internet.
* The number of languages recorded depends
on the software.
Compatible with CD
as well as DVD
• The DVD 25/101 will play any conventional Audio
CD or recordable (CD-R) or erasable CD
(CD-RW), bearing the logos shown here, MP3
or any VCD or DVD with the region code 0 or 2.
Disc formats supported
by this player
The unit can play discs bearing any of the
following logos:
DVD CD
3"(8 cm) disc 3"(8 cm) disc
5"(12 cm) disc 5"(12 cm) disc
CD-RW CD-R VCD
5"(12 cm) disc 3"(8 cm) disc 5"(12 cm) disc
5"(12 cm) disc 5"(12 cm) disc
NOTE: Due to differences in the format of
certain discs, it is possible that some discs may
include a mix of features that are not compatible
with the DVD 25/101. Similarly, although it's
is capable of a wide range of features, not all
discs include every capability of the DVD system.
For example, although the DVD 25/101 is compatible
with multi-angle discs, that feature is only possi-
ble when the disc is specially encoded for multi-
ple-angle play. In addition, the DVD 25/101 is capa-
ble of playing back both Dolby Digital and DTS
soundtracks, but the number and types of tracks
available will vary from disc to disc. To make cer-
tain that a specific feature or soundtrack option
is available, please check the options noted on
the disc jacket.
■ Playback capability for CD-R and CD-RW
discs may vary due to variations in the quality
of the disc and the recorder used to create
the disc.
Upgradeability via Internet
The ”firmware” controlling the functionality of
the h/k DVD25/101 is fully upgradeable.
In the event of future improvements to its
operations and features, it will be possible to
download firmware upgrades from
www.harmankardon.com. All you have to do is
create a CD-R with the data and insert it in the
DVD for an automatic upgrade.
Packing List
1 h/k DVD25 or DVD101 DVD Player
1 Remote control
2 AA batteries
1 A/V cable for stereo analog audio and
composite video
1 S-Video cable
1 remote extension cable
1 owner's manual
ReWritable
5
DVD25/DVD101 harman/kardon

FRONT-PANEL CONTROLS 6
FRONT-PANEL CONTROLS
 Main Power On/Off: Press this switch to apply
power to the DVD 25/101. Once the unit has been turned
on with this switch, it may be operated from either the
front panel or remote control. Press the switch again to
turn the unit completely off.
1 Power On/Off (Standby): Press the Button once
to turn on DVD 25/101. Press it again to put the unit in
the Standby mode. Note that in order for this switch to
operate, the Main Power Switch
 must be
pressed in so that it is in the ON position.
2 Eject: Press this Button to open or close the
Disc Tray.
3 Play: Press to initiate playback or to resume
playback after the Pause Button
4 C has been
pressed.
4 Pause: Press this Button to momentarily pause
playback.To resume playback, press the button again.
If a DVD is playing, action will freeze and a still picture
will be displayed when the button is pressed.
5 Stop: Press this button once to place the disc in
the Resume mode, which means that playback will
stop, but as long as the tray is not opened or the disc
changed, DVD playback will continue from the same
point on the disc when the Play Button
3 G is
pressed again. Resume will also work if the unit was
turned off.To stop a disc and have play start from the
beginning, press the button twice.
6 Skip (Previous): Press this button to move back-
ward through the music tracks on a CD disc or the
chapters on a DVD disc.
7 Skip (Next): Press to move forward through the
music tracks on a CD or the chapters on a DVD disc.
8 Dimmer: Press this button to reduce the bright-
ness of the Information Display by 50% or to turn the
display off completely in the following order: FULL
BRIGHTNESS ➔HALF BRIGHTNESS ➔OFF ➔
FULL BRIGHTNESS.
9 Test: Press this button to bring a test picture to
the screen, which enables you to optimally adjust all
important parameters of color videos, such as bright-
ness, contrast,color intensity and tint.
 Main Power On/Off
1 Power On/Off (Standby)
2 Eject
3 Play
4 Pause
5 Stop
6 Skip (Previous)
7 Skip (Next)
8 Dimmer
9 Test
2
3
1
56 8947
6
DVD25/DVD101 harman/kardon

7
FRONT-PANEL INFORMATION DISPLAY
VCD PROGRESSIVE SCAN
DVD
CD 96kHz/24bit
MP3
TEST V OFF
TITLE REPEAT
TRACK 1 ALL
CHAPTER PBC RANDOM
HOUR A-B MIN PROG SEC
D
EGHIJKLM
BNP
CO
A
F
ADisc-Type Indicators
BPlayback-Mode Indicators
C96kHz/24-Bit Indicator
DParental Lock Indicator
EProgressive Scan Indicator
FTest Indicator
GV-OFF Indicator
HRepeat Indicator
IVCD Playback Control Indicator
JRandom Indicator
KA-B Repeat Indicator
LProgram Indicator
MAngle Indicator
NTitle Indicators
OChapter/Track Number Indicators
PTime Indicators
ADisc-Type Indicators: The DVD,VCD, CD or
MP3 indicator will light to show the type of disc
currently being played.
BPlayback-Mode Indicators: These indicators
light to show the current playback mode:
›Lights when a disc is playing in the normal mode.
H Lights when the disc is in the Fast Search
Forward mode.The on-screen banner display indicates
the selected speed, which may be selected by pressing
the Search Forward or Reverse Buttons
HJ .
N1 Lights when the disc is paused.
G Lights when the disc is in the Fast Search Reverse
mode.The on-screen banner display indicates the
selected speed, which may be selected by pressing
the Search Forward or Reverse Buttons
HJ .
C96kHz/24-Bit Indicator: The 96kHz indicator will
light when a disc recorded with 96kHz content is
playing; the 24-Bit indicator will light when a disc
recorded with 24-bit content is playing.
DParental Lock Indicator: This indicator lights
when the parental lock system is engaged in order to
prevent anyone from changing the rating level without
a code.
EProgressive Scan Indicator: Lights when
Progressive Scan component video output is selected
in the setup menu.
FTest Indicator: This indicator lights when the TV
test screen is activated.
GV-OFF Indicator: This indicator lights when the
unit's video output has been turned off by pressing the
Video Off Button Q on the remote control.
HRepeat Indicators: These indicators light when
any of the Repeat functions are in use.
IVCD Playback Control Indicator: This indicator
lights when the playback control function is turned on
with VCDs.
JRandom Indicator: This indicator lights when the
unit is in the Random Play mode.
KA-B Repeat Indicator: This indicator lights when
a specific passage for repeat playback has been
selected.
LProgram Indicator: This indicator lights when the
programming functions are in use.
MAngle Indicator: This indicator blinks when alter-
native viewing angles are available on the DVD cur-
rently playing.
NTitle Indicators: These two positions in the dis-
play will show the current title number when a DVD
disc is playing.
OChapter/Track Number Indicators: When a
DVD disc is playing, these two positions in the display
will show the current chapter. When a CD disc is play-
ing they will show the current track number.
PTime Indicators: These positions in the indicator
will show the running time of a DVD in play.When a
CD is playing, these indicators will show the current
track time, time remaining in the current track or the
total remaining time on the disc.
NOTE: The indicators NOP will also display
text messages about the DVD 25/101’s status, including
Reading when a disc is loading, and Disc
Error when a disc not compatible with the
DVD 25/101 is put into the Play position.
7
DVD25/DVD101 harman/kardon

REMOTE CONTROL FUNCTIONS 8
REMOTE CONTROL FUNCTIONS
0 Power On
1 Power Off
2 Subtitle
3 Title
4 Angle
5 Audio
6 Test
7 Eject
8 Setup
9 Navigation Buttons
A Info
B Menu
C Pause
D EzMenu
E Skip (Previous)
F Skip (Next)
G Play
H Search Reverse
I Stop
J Search Forward
K Dimmer
L Slow Forward
M Zoom
N Slow Reverse
O Random
P Step Forward
Q Video Off
 Step Reverse
 Numeric Keys
 Program
 Check
 Clear
 Repeat
 Light
 A-B Repeat
ONOFF
PREV NEXT
STOP
POWER
EJECT
TEST
EZMENU
PAUSE
AUDIO
SET-UP
RANDOM ZOOM STEP
PROG.
CHECK
CLEAR
LIGHT A - B REPEAT
DIMMER SLOW
SUBTITLE
5
2
9
PLAY
E
V.OFF
K
O

12
7
56
89
0
4






N
J
F
D
8
4
TITLE ANGLE
3
L
P
MENU
B
SEARCH
ENTER
INFO
A
SEARCH
H
Q

0
7
C
G
I
M
3
1
6
8
DVD25/DVD101 harman/kardon

9 REMOTE CONTROL FUNCTIONS
REMOTE CONTROL FUNCTIONS
0 Power On: Turns on the player when it is in
Standby mode (the Harman Kardon logo appears
on-screen).
1 Power Off: Turns off the player to Standby
mode.
2 Subtitle: When a DVD is playing, press to select
a subtitle language or to turn subtitles off.
3 Title: When a disc is playing, press to jump to the
subsequent title (with the next title number) on the disc.
4 Angle: Press to access various camera angles
on a DVD (if the DVD contains multiple camera angles).
5 Audio: Press to access various audio languages
on a DVD (if the DVD contains multiple audio streams).
6 Test: Press for the on-screen test pattern which
enables you to optimally adjust brightness, contrast,
color intensity, etc., of your display device.
7 Eject: Press to open or close the disc tray.
8 Setup: Press to access player setup menu.
9 Navigation Buttons ( M/NK/L /Enter): Use to
select and execute items or settings.
A Info: Press once for detailed information on the
disc playing (Video/Audio bit rate, Movie aspect ratio
and others). Press again for current player settings.
Note that the unit will not react to any transport button
as long as the info menu is displayed. Press again
to remove information from screen.
B Menu: Displays the DVD disc menu on the
TV screen in Play mode.
C Pause: Freezes a picture (with DVD/VCD) and
pauses the playback signal (CD) when a disc is play-
ing. Press again for normal playback.
D EzMenu: Press while a disc is playing to view
the on-screen status banner display. Use the ‹/›
Navigation Buttons 9 to move through the
different features in the Banner Display.When a
symbol is highlighted, press the Enter Button
9
on the remote to select it.
E Skip (Previous): Press to go to beginning of
current track. Press again quickly to go to beginning
of previous track.
F Skip (Next): Press to go to beginning of next
track.
G Play: Begins to play disc (closes disc tray first, if
it is open).
H Search (Rev): Allows you to search in reverse
through a disc while it is in Play mode. Each time you
press this button while a DVD is playing, the search
speed changes as below:
R.SEARCH 2x ➜R. SEARCH 4x ➜R.SEARCH 8x ➜
R. SEARCH 16x ➜R. SEARCH 2x
When a CD is playing, there are two fast-play speeds:
R. SEARCH 5x ➜R. SEARCH 15x
I Stop: Stops playing a disc.When a disc is playing,
if you press the Stop Button
5 I and the Play
Button
3 G ,the disc will resume play; i.e.,it will
start from the same point on the disc where the unit
was stopped. If you press the Stop Button
5 I
twice and the Play Button 3 G ,the disc will start
play from the beginning.
J Search (Fwd): Allows you to search forward
through a disc while it is in Play mode. Each time you
press this button while a DVD is playing, the search
speed changes as below:
F. SEARCH 2x ➜F. SEARCH 4x ➜F. SEARCH 8x ➜
F. SEARCH 16x ➜F. SEARCH 2x
When a CD is playing, there are two fast-play speeds:
F. SEARCH 5x ➜F. SEARCH 15x
K Dimmer: Press to change the brightness of the
front-panel display or to turn the display off completely
in the following order: FULL BRIGHTNESS ➜HALF
BRIGHTNESS ➜OFF ➜FULL BRIGHTNESS
LN Slow: Allows you to play movies in Slow
mode. Each time you press this button while a DVD is
playing, the slow speed will be changed as below:
F. SLOW 1/2x ➜F. SLOW 1/4x ➜F. SLOW 1/8x ➜
F. SLOW 1/16x ➜F. SLOW 1/2x
R.SLOW 1/2x ➜R. SLOW 1/4x ➜R.SLOW 1/8x ➜
R. SLOW 1/16x ➜R. SLOW 1/2x
Slow-speed playback is not available for CDs.
M Zoom: When a DVD or VCD is playing, press this
button to zoom the picture so that it is enlarged.There
are four steps to the zoom function, each progressively
larger. Press through each of the zoom stages to
return to a normal picture.
O Random: Press for Random playback in random
order.
P Step (Rev/Fwd): Freeze a picture when a
disc is playing.Also, the picture advances frame by
frame each time this button is pressed.
Q Video Off: Press to turn off video output for
improved audio performance from CDs.Press again
to restore video output (see page 29).
 Numeric Keys: Select numbers by pressing
these buttons.
 Prog: When programming playlists and the unit
is in the Stop mode, press this button to view the
Program Edit display.
 Check: Press during program play (in Resume
mode) to check the program status on the front-panel
display. Escape from this display by pressing the
Play Button 3 G .
 Clear: Press to remove the On-Screen Banner
Display from the screen.
 Repeat: Press to go to the Repeat menu.You
can repeat a chapter, track or the entire disc.
 Light: Press to illuminate the remote controller.
 A-B: Press to select section A-B and to play
repeatedly.
9
DVD25/DVD101 harman/kardon

REAR-PANEL CONNECTIONS
VIDEO OUT/COMPONENT
¡™ £¢∞ § • ª
¶
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
20
Y / Y
Pb/ Cb
Pr/ Cr
120V/ 60Hz
1
¡ Optical Digital Output
™ Coaxial Digital Output
£ Analog Audio Outputs
¢ Composite Video Output
∞ S-Video Output
§ Component Video Outputs
¶ Remote Control Output
• Remote Control Input
ª AC Power Cord
¡ Optical Digital Output: Connect this jack to the
optical digital input of an A/V receiver or surround
processor for Dolby Digital, DTS or PCM audio play-
back.
™ Coaxial Digital Output: Connect this jack to the
coaxial digital input of an A/V receiver or surround
processor for Dolby Digital, DTS or PCM audio
playback.
NOTE: The coaxial digital output should only be con-
nected to a digital input. Even though it is the same
RCA-type connector as standard analog audio con-
nections, DO NOT connect it to a conventional analog
input jack.
£ Analog Audio Outputs: Connect these jacks to
an audio input on an A/V receiver or surround proces-
sor for analog audio playback.
¢ Composite Video Output: Connect this jack to
the video input on a television or video projector, or to
a video input on an A/V receiver or processor if you
are using that type of device for video input switching.
∞ S-Video Output: Connect this jack to the S-Video
input on a television or video projector, or to an S-
Video input on an A/V receiver or processor if you are
using that type of device for S-Video input switching.
§ Component Video Outputs: These outputs carry
the component video signals for connection to display
monitors with component video inputs. For standard
analog TVs or projectors with inputs marked Y/Pr/Pb
or Y/Cr/Cb,connect these outputs to the correspon-
ding inputs. If you have a high-definition television
or projector that is compatible with high-scan-rate
progressive video, connect these jacks to the HD
component inputs. If you are using a progressive scan
display device, PROGRESSIVE must be selected in
the Video menu in order to take advantage of the
progressive scan circuitry. See“Scan Type” section on
page 17 for more information on progressive scan video.
IMPORTANT: These jacks should NOT be connected
to standard composite video inputs.
¶ Remote Control Output: Connect this jack to
the infrared (IR) input jack of another compatible
Harman Kardon remote controlled product to have
the built-in Remote Sensor on the DVD 25/101 provide
IR signals to other compatible products.
• Remote Control Input: Connect the output of a
remote infrared sensor, or the remote control output of
another compatible Harman Kardon product, to this
jack.This will enable the remote control to operate
even when the front-panel Remote Sensor on the
DVD 25/101 is blocked.This jack may also be used with
compatible IR remote control-based automation systems.
ª AC Power Cord: Connect this plug to an AC out-
let. If the outlet is controlled by a switch, make certain
that it is in the ON position.
NOTE: You’ll find more details about all audio/video
connections under Setup and Connections on the
following pages.
REAR-PANEL CONNECTIONS 10
10
DVD25/DVD101 harman/kardon

11 SETUP AND CONNECTIONS
SETUP AND CONNECTIONS
•Ensure that the power switch of this unit (and of
other equipment to be connected) is set to “Off”
before commencing connection.
•Do not block the ventilation holes of any of the
equipment and arrange them so that air can
circulate freely.
•Read through the instructions before connecting
other equipment.
•Ensure that you observe the color-coding when con-
necting audio and video cables.
NOTES:
•The video output (yellow) combines the complete
video signal (composite) and sends it to the TV
(or to the A/V receiver) by one cable only. Use the
video output when your TV set is equipped with
a video input jack only.
•The S (separate) video output connector separates
the color (C) and luminance (Y) signals before trans-
mitting them to the TV set in order to achieve a
sharper picture. Use the S-Video cable when con-
necting the player to a TV equipped with an S-Video
input for improved picture clarity. Never connect
both outputs, video and S-Video, to your TV orA/V
receiver; use only one of them.
•When the audio signal is to be fed to an analog
receiver rather than to the TV, connect the audio out
jacks to any normal audio input on your amplifier/
decoder/receiver. The DVD 25/101 will “downmix”
Dolby Digital recordings to Pro Logic®*, available on
these connectors; all analog surround or stereo
signals will be fed to them directly.You can also
select the audio and video signals of all your video
devices with your A/V receiver/amplifier. For more
information see the “NOTE”on next page.
Connecting to a TV and Analog Receiver
VIDEO OUT/COMPONENT
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
20
Y / Y
Pb/ Cb
Pr/ Cr
120V/60Hz
1
TV
To power outlet
(AC 120V/60Hz)
To S-Video input connector
To analog audio input connectors (red/white) on the
TV or analog receiver
To video input
connector (yellow)
DVD 25/101
NOTE: While we suggest the use of S-Video
for higher quality pictures, you may also use
the standard composite video connection if
your TV does not have an S-Video input. Only
one video connection is needed, not both.
11
DVD25/DVD101 harman/kardon

SETUP AND CONNECTIONS 12
SETUP AND CONNECTIONS
When DVDs encoded in Dolby Digital or DTS are
played, the Dolby Digital or DTS bitstream is outputted
from the player’s optical or coaxial digital audio output.
When the player is connected to a Dolby Digital or
DTS decoder, you can enjoy theater-quality audio in
your home.An optical digital audio cable or coaxial
audio cable (both optional) is required for these con-
nections, as shown below. Only one connection is
needed, not both at the same time.
•NOTE: With multiple video sources, your audio/video
device can be used for selecting the video signal and
routing it to the TV. Connect the video or S-Video
output of the DVD 25/101 (whatever is provided with your
device) to the video or S-Video input on your device,
and the video/S-Video output of this device to your
TV. For more details, see the manual of your audio/
video amplifier/receiver.
•NOTE FOR ANALOG AUDIO: The connection from
Audio Out to the TV is optional. If you plan on using
your DVD 25/101 alone, without turning on your
complete system, this connection must be made;
then you can turn up the TV´s volume as needed.
The analog audio jacks may also be connected to
the standard analog left/right DVD or CD inputs on
your receiver to processor if you wish to use the
DVD 25/101 as the input for a multiroom system.
Connecting to a Receiver/Amplifier With Dolby Digital or DTS Decoder
VIDEO OUT/COMPONENT
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
20
Y / Y
Pb/ Cb
Pr/ Cr
120V/60Hz
1
TV
To power outlet
(AC 120V/60Hz)
To S-Video input connector
To analog audio input connectors
on TV or receiver
(red/white, optional only, see NOTE above)
Front Speaker (Left/Right) Center Speaker Surround Speaker (Left/Right) Subwoofer
To video input connector
(yellow)
Dolby Digital or DTS Receiver or Processor
DVD 25/101
To coaxial digital audio input connector
To optical digital audio input connector
NOTE: While we suggest the use of S-Video
for higher quality pictures, you may also use
the standard composite video connection if
your TV does not have an S-Video input. Only
one video connection is needed, not both.
NOTE: Only one digital connection is required.
You may use either optical or coaxial according
to the requirements of your system.
12
DVD25/DVD101 harman/kardon

13 SETUP AND CONNECTIONS
SETUP AND CONNECTIONS
If the video display has component video inputs, con-
nect the component video outputs on the DVD 25/101 to
the corresponding input jacks on your television. If you
are using a Progressive Scan television or projector,
you must also change the scan type in the DVD
player’s Video Setup menu from “Interlaced” to
“Progressive.”See page 17.
VIDEO OUT/COMPONENT
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
20
Y / Y
Pb/ Cb
Pr/ Cr
120V/60Hz
1
TV or Monitor
To power outlet
(AC 120V/60Hz)
To component
connectors
To analog audio input connectors on TV or receiver
(red/white, optional only, see NOTE on page 13).
To optical or coaxial
digital input of receiver or
processor. Only one digital
connection is required,
and either may be used.
DVD 25/101
Connecting to a TV or Monitor With Component Connectors – ComponentVideo Connection
13
DVD25/DVD101 harman/kardon

DIGITAL AUDIO CONNECTIONS
Digital Audio Connections
Notes when connecting the opti-
cal digital audio cable (optional)
■Remove the dust protection cap from the
optical digital audio output and connect the
cable firmly so that the configurations of both
the cable and the connector match.
■Keep the dust protection cap and always
reattach the cap when not using the connec-
tor.
Audio output from the unit’s
optical/coaxial digital audio out-
put connector
* Digital Format must be selected as “ORIGI-
NAL“ or ”PCM” in Audio Set-Up Menu
(see page 18).
For your reference:
■Dolby Digital (AC-3) is a digital sound com-
pression technique developed by the Dolby
Laboratories Licensing Corporation,
supporting 5.1-channel surround sound, as
well as stereo (2-channel) sound, this tech-
nique enables a large quantity of sound data
to be efficiently recorded on a disc.
■Linear PCM is a signal recording format used
in CDs. While CDs are recorded in
44.1 kHz/16 bit, DVDs are recorded in
48 kHz/16 bit up to 96 kHz /24 bit.
■If you have a Dolby Pro Logic Surround
decoder connected to the DVD’s analog
AUDIO OUT connectors, thanks to the
”Downmix” function of the DVD you will
obtain the full benefit of Pro Logic from the
same DVD movies that provide full 5.1-chan-
nel Dolby Digital soundtracks, as well as from
titles encoded with Dolby Surround.
■The DVD 25/101 is designed to digitally output
96kHz-PCM audio with a 96 kHz sampling
rate. The 96 kHz indicator will light in the dis-
play. However, some 96 kHz DVD's may
include copy protection codes that do not
permit digital output. For full 96 kHz fidelity
from these discs, use the analog outputs of
the DVD 25/101.
IMPORTANT: If your surround processor/D/A
converter does not support 96 kHz PCM audio,
you must use the DVD analog outputs for full
96 kHz fidelity with these discs.
Caution for the optical/coaxial
digital audio outputs:
■When connecting an amplifier (with an opti-
cal/coaxial digital input ) which does not con-
tain a Dolby Digital (AC-3) or DTS decoder, be
sure to select ”PCM” as initial setting in the
”Digital Format” menu (see also page 18).
Otherwise, any attempt to play DVD may
cause such a high level of noise that it may
be harmful to your ears and damage your
speakers.
■CD´s can be played as they would normally be
played.
Note:
■Some first generation DTS decoders which do
not support DVD-DTS interface may not work
properly with the DVD/CD player.
Dolby Digital and DTS
Both Dolby Digital and DTS are audio formats
used to record 5.1-channel audio signals onto
the digital track of film. Both of these formats
provide six separate channels: left, right, center,
left rear, right rear, and common subwoofer.
Remember, that Dolby Digital or DTS will only
play 5.1-channel sound if you’ve connected the
optical or coaxial output of the DVD 25/101 to a DTS
or Dolby Digital receiver or decoder (see page
11) and if the disc was recorded in the Dolby
Digital or DTS format.
Dolby Digital is a trademark of Dolby Laboratories
Licensing Corporation.
Manufactured under license from Dolby
Laboratories. ”Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
Confidential Unpublished Works.1992-1997
Dolby Laboratories, Inc. All rights reserved.
DTS is a registered trademark of Digital Theater
Systems.
Disc:
DVD
CD
Sound recording
format:
Dolby Digital
(AC-3)
Linear PCM
(48/96 kHz
16/20/24bit)
DTS
Linear PCM
Optical/Coaxial digital
audio output
Dolby Digital bitstream
(2-5.1 ch) or PCM
(2 ch, 48 KHz/16bit)*
Linear PCM (2 ch)
(48/96 kHz
16/20/24bit)
Bitstream or no
output *
Linear PCM (44.1 kHz
sampling)
14
DVD25/DVD101 harman/kardon

TEST SCREEN
Test Screen
Test Screen
When you press the TEST button on the front
panel or on the remote you can activate a still
image to test all settings and the video perform-
ance of your TV. With the vertical color bars you
can test the following:
■proper color intensity setting on your TV,
■the proper color of each bar, showing if the
proper video standard is turned on: the colors
should be (left to right): black, white, yellow,
cyan (turquoise), green, magenta (purple), red,
blue, black.
■proper color transition, seen as sharp separa-
tion of the bars, S-Video will be better than
Video, RGB best of all.
■the performance of the color filter in your TV
(with ”Video” signals), bar edges should show
no vertical crawling dots. Here S-Video and
RGB formats usually give no problems.
With the grey scale and the black/white fields
below the color bars the brightness and contrast
of your screen can be adjusted optimally, see
chapter ”TV Picture Adjustment” below.
TV Picture Adjustment with
Test Screen
These adjustments may be done now, but you
can also make them after setup has been final-
ized. They can also be made at any time when
the player is in Stop or Resume mode, simply by
pressing TEST on the remote control or on the
front panel.
Brightness adjustment:
1. Turn down the color control on your TV until
the color bars are visible in black and white.
2. Adjust the contrast to the lowest level where
you still can see all bars within the grey scale
in the test picture separately and clearly.
3. Adjust the Brightness so that the bars in the
grey scale are all visible. The bar furtherst to
the left has to be as black as possible rather
than grey but the next aside must clearly be
differable. All the bars in the grey scale have to
be gradually and evenly changing from black
to whiter, going from left to right.
Contrast adjustment:
1. Adjust the contrast on your TV until you see a
bright white bar in the right low corner of the
screen and a deep dark black bar at the left.
The optimal contrast setting will depend from
your preference and the surrounding light in
the TV room.
2. If the brightness of the white bar will no more
increase while turning up the contrast or when
the borders of the white ”harman/kardon” text
letters on top will bloom (overlight) into the
black areas, what drasticly will decrease the
sharpness of the script, then the Contrast has
been turned up too much. Reduce the contrast
until these effects will disappear and the video
still looks realistic.
3. If you are watching TV with a usual surround-
ing daylight, adjust the Contrast so that a nor-
mal video picture has about the same looking
as the surroundings in your room. By that way
the eye is relazed when watching the TV pic-
ture. This contrast setting may be reduced
when the surrounding light is dimmed, usually
improving the sharpness of a video a lot there-
by.
4. The grey scale in the middle line needs to have
the same clear difference between each bar as
before the contrast adjustment. If not, go back
to the brightness adjustment and repeat step 3
and then the contrast adjustments, making
only minor adjustments each time for optimisa-
tion.
Color adjustment.
1. When the Brightness and the Contrast are set
optimally, turn up the color control to the level
of your perference. Adjust to the level where
the colors look strong but still natural, not
overdone. If the color level is too high, depend-
ing from the TV used some of the bars will
seem wider or the color intensity will not
increase while the control is turned up. Then
the color control must be reduced again. At the
end you should test the color intensity also
with a video, e.g. pictures of natural faces,
flowers, fruit and vegetables and other well
known natural articles of our life most usefull
for an optimal setting of the color intensity.
2. If your TV has a Tint option (with most
European TVs this is available or effective only
with NTSC signals, not with PAL), use the large
white bar below the Greyscale to tweak the
warmth of the picture. Every viewer has a dif-
ference in preference as how the glow of the
picture should be. Some prefer a little colder
picture, some a warmer glow. The Tint function
on your TV and the white bar can be used to
control this. Adjust the Tint to the level where
you feel the white color has the tone you
prefer.
Color Bars
Grey Scale
100%
Black/White
fields
15
DVD25/DVD101 harman/kardon

TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
SYMPTOM POSSIBLE CAUSE SOLUTION
Unit does not turn on • Main Power Switch  turned off • Press in Main Power Switch  .
• No AC power • Check AC power plug and make certain any switched
outlet is turned on.
Disc does not play • Disc loaded improperly • Load disc label-side up; align the disc with the guides and
place it in its proper position.
• Incorrect disc type • Check to see that disc is CD, CD-R, CD-RW,VCD, MP3-CD, DVD-R and
DVD-RW (standard conforming) or DVD-Movie; other types will not play.
• Invalid Region Code • Use Region 1 disc only.
• Rating is above parental preset • Enter password to override or change rating settings (see page 19).
No picture • Intermittent connections • Check all video connections.
• Wrong input • Check input selection of TV or receiver.
• Progressive Scan output selected • Use Progressive Scan mode only with compatible TV.
• Video Off feature active • Press Video Off Button
Q to reactivate video circuitry
(see page 29).
No sound • Intermittent connections • Check all audio connections.
• Incorrect digital audio selection • Check digital audio settings.
• DVD disc is in fast or slow mode •There is no audio playback on DVD discs during fast or slow modes.
• Surround receiver not compatible • Use analog audio outputs.
with 96kHz PCM audio
Picture is distorted or jumps during • MPEG-2 decoding • It is a normal artifact of DVD playback for pictures to jump
fast forward or reverse play or show some distortion during rapid play.
Some remote buttons do not operate • Function not permitted at this time • With most DVDs,some functions are not permitted at certain
during DVD play; prohibited symbol times (e.g.,Track Skip) or at all (e.g., direct audio track selection).
appears (see below)
The OSD menu is in a foreign language • Incorrect OSD language • Change OSD language selection (see pages 19).
The symbol appears • Requested function not available at • Certain functions may be disabled by the DVD itself during
this time passages of a disc.
Picture is displayed in the • Incorrect match of aspect ratio settings • Change aspect ratio settings (see page 17).
wrong aspect ratio to disc
Remote control inoperative • Weak batteries • Change both batteries.
• Sensor is blocked • Clear path to sensor or use optional outboard remote sensor.
Disc will not copy to VCR • Macrovision protection • Many DVDs are encoded with Macrovision to prevent
copying to VCR.
16 TROUBLESHOOTING GUIDE
If you forget your password, you can reset DVD 25/DVD101 to the
factory default password (8888) when the player is in Standby by
pressing and holding the Clear Button for six seconds. NOTE: This
will restore all menu settings to the factory default settings. Any
changes you have made will be lost.
16
DVD25/DVD101 harman/kardon

harman/kardon Service Bulletin
Service bulletin # H/K2003-06 Sept. 2003 Warranty labor rate: MINOR repair
To: All harman/kardon Service Centers
Model: DVD25
Subject: Replacement Of Laser Pick-Up Assembly
In the event you receive a DVD25 where a Laser Pick-up Assembly replacement is warranted:
The original DVD25 mechanism (KIT500) used in earlier units is no longer available. Follow the
instructions below to add a new replacement mechanism (KIT710). For later units already containing
KIT710, ordering h/k part# WLD5.018.011XX is all that’s needed.
For serial numbers WA-0002-10677 and below:
Instructions for replacing mechanism KIT500 with KIT710
Synopsis:
The new KIT710 mechanism will need to be mechanically and electrically modified. All cables to the
mechanism will be changed.
It will need to be elevated, and a new PC board will need to be added to adapt a new 29 pin flat cable.
The 5 volt line on the power cable will need to be re-routed for a change to 3.3 volts.
I) Order the following parts:
h/k part# WLD5.018.011XX (KIT710 Assembly)
h/k part# WLD6.672.710R500 (“kit” of ribbon cables, wires, screws, washers, cushions)
h/k part# WLD6.672.853C-6 (new connector PCB)
Contents of WLD6.672.710R500 “Kit” WLD6.672.853C-6 (new connector PCB)
17
DVD25/DVD101 harman/kardon

II) Open DVD25 and remove the original KIT500 Mechanism
Remove the top cover (9 Phillips screws).
Remove the original KIT500 Mechanism (4 Phillips screws holding the mechanism to the chassis, and unplug
the two flat cables and power supply cable from the Main PCB.)
Remove the colored front faceplate from the mechanism by lifting it up and off front of the tray; save the
faceplate and discard the mechanism and cables.
III) Attach single 29 pin flat cable and Power Supply cable to new Mechanism KIT 710.
(Caution – assure the conector-side of the flat cable matches the connector-side of the female receptacle)
Re-attach the front faceplate to the new mechanism.
IV) Elevate and mount the new KIT 710 mechanism by using 3 new washers under each foot; then fasten
the mechanism with 4 new m3x12 screws. Align KIT710 with the opening in the front panel before tightening
screws completely.
V) Place (4) cushions adhesive-side on the bottom corners of the new PC board, and place it in the
recommended position in the chassis. Its position should match the illustration(s).
Plug all three new flat cables into the new PC board (including 29 pin cable from the mechanism).
(Caution – assure the conector-side of the flat cables match the connector-side of the female receptacles)
Plug the Power Supply cable into connector J5 on Main PCB.
Initial Final
(Note: Main PCB normally present has been removed for clarity)
18
DVD25/DVD101 harman/kardon

VI) On the Power Supply cable, cut the pin 1 harness wire close to the connector on J5.
Solder a new jumper wire to extend the connection from harness wire 1 to U11 pin 3 of the 3.3 volt
regulator (BA033T). See illustration.
VII) Re-check the mechanism alignment with the front panel by plugging the unit in, turning ON, and
opening and closing the tray with the eject button.
Replace top cover.
Test unit for DVD/CD function.
Model Serial Number (120v) Status Action
DVD25
WA-0002-01000
To
WA-0002-10677
Label on ass’y reads:
DVD-KIT500SE
If Replacement Of Laser Pick-Up
Assembly is Needed,
Original KIT500 is no longer stocked
Follow full instructions
above for replacement
DVD25 WA-0002-10678
And above Label on ass’y reads: DVD-KIT710SE If Replacement Of Laser Pick-Up Assembly is Needed,
Order Assembly WLD5.018.011XX Only
19
DVD25/DVD101 harman/kardon

harman/kardon TECH TIPS
Troubleshooting tips and solutions to common service problems
For models: DVD25 TIP# HKTT2004-02
In these two unusual circumstances:
1) JBL SDP-3 or Lexicon MC-1 remote control affects the DVD25
The remote control for product JBL Synthesis SDP-3 (a processor) and the Lexicon MC-1 may
unexpectedly control some of the functions on early DVD25 units when the products are both side-by-
side in the same equipment rack. There was a software revision in the DVD25, and this was addressed
and corrected.
In the event of this rare occurrence, please arrange to exchange your DVD25 with harman/kardon for a
later unit that has the modern softrware. Procedure:
Call harman/kardon @ [phone]
Press 1 for h/k home
Press 3 for parts/tech support
Press 4 for tech support
When you reach a technician tell them of your problem and the exchange program, and remind them to
"Please pick a unit with a serial # of WA0002-05001 or higher"
2) Certain VCD discs play Black & White only
In the event of a customer complaint of certain VCD titles that play normal color programs in Black &
White only, there is a software upgrade to correct this issue. The procedure is to send the unit, with a
short note of explanation, to:
HARMAN CONSUMER GROUP
250 CROSSWAYS PARK DRIVE
WOODBURY, NEW YORK 11797
Attention: Andy Andersen
Mr. Andersen will perform the upgrade and send the unit back to the customer.
20
DVD25/DVD101 harman/kardon
