Harman P35I User manual

S a ve T h e se I n st r u ct i o n s 3-90-775R16_08/13 w w w . h a r m a n st o ve s. co m
Owner' s Manual
Installation and Operation
Model:
P3 5 i
Pellet/ Biomass F ireplace Insert
#1-70-774195
#1-70-774235
SAV E THESE INSTR UCTIONS.
Please read this entire manual
before installation and use of this
repace nert rm eater
F ailure to follow these instructions
could result in property damage,
bodily inj ury or even death.
• o not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
• o not overre - If any external part starts to
glow, you are overring. Reduce feed rate.
Overring will void your warranty.
• Comply with all minimum clearances to
combustibles as specied. ailure to comply
may cause a house re.
Hot, will cause burns.
• o not touch glass until it is cooled
• NEER allow children to touch glass
• eep children away
• CAREULLY SUPERISE children in same room as
replace.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
ammae matera
• eep clothing, furniture, draperies and other
ammable materials away.
HOT SUR F ACES!
Glass and other surfaces are hot
during operation AN cool down.
NOTICE
• Important operating and
maintenance instructions
included.
• Read, understand and
follow these instructions
for safe installation and
operation.
DO NOT DISCAR D THIS MANUAL
• Leave this manual with
party responsible for use
and operation.
Do Not
Discard
CAUTION
Tested and approved for use with wood pellets and
a mixture of shelled eld corn and wood pellets
only. Burning any other type of fuel will void your
warranty.
CAUTION
Check building codes prior to installation.
• Installation UST comply with local, regional, state and
national codes and regulations.
• Consult local building, re ofcials or authorities having
urisdiction about restrictions, installation inspection, and
permits.
W AR NING W AR NING
Contact your local dealer with questions on
installation, operation or service.


2
P3 5 i F ireplace Insert
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y S a ve T h e se I n st r u ct i o n s-0-775R1081
Hearth  Home Technologies welcomes you to our tradition of excellence By choosing a Harman® appliance, you have
become part of a long standing family committed to meeting the heating needs of consumers with the most distinctive,
powerful and responsible home heating products available.
The P5i insert has brilliant features in an elegant package, giving you 0 to 5,000 BTU when you need it, automatically.
Aside from the regular, simple cleaning process, you need only set your desired room temperature, keep the hopper full,
and the ash pan empty. With the P5i, you will notice even heat throughout your zone and a level of convenience you never
thought possible. The P5i takes advantage of Harman® 0 years of stove design, technology and manufacturing. Output
is managed by a microprocessor that senses the room temperature and the re temperature with two thermistor probes and
then determines the best feed rate for your heating demand. The platinum combination is Harman® Patented Pellet ProT
eeder system, and ESP Control which have been developed to their highest state. These features work together to allow
amazing heat output with little regard for fuel quality.
We wish you and your family many years of enoyment in the warmth and comfort of your hearth appliance.
Thank you for choosing Harman®.
Harman®, A division of
Hearth  Home Technologies
52 ountain House Road
Halifax, PA 1702
www.harmanstoves.com
W hen This R oom Heater Is Not Properly Installed,
a House F ire May R esult. To R educe The R isk Of
F ire, F ollow The Installation Instructions. Contact
ca Bun r re ca ut etrctn
And Installation Inspection R eq uirements In Y our
Area.
This label is located on the inside of the hopper lid.
Please record your serial number for future reference.
SAPLE

3
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y
P3 5 i F ireplace Insert
S a ve T h e se I n st r u ct i o n s 3-90-775R16_08/13
TABLE OF CONTENTS
Section 1 : Listing and Code Approvals
A. Appliance Certications 
B. obile Home Approval 
C. Glass Specications 
. Electrical Rating 
E. BTU  Efciency Specications 
Section 2 : Special W arnings and Notes
A. Carbon onoxide Warnings 
Considerations 5
B. Other Safety Considerations 5
Section 3 : G etting Started
A. esign, Installation  Location 
B. ire Safety 
C. Component Locator 7
. Pre-Use Checklist 8
Section 4 : Dimensions & Clearances
A. Appliance imensions 
B. Clearances to Combustibles 10
C. loor Protection 10
. inimum ireplace Opening
Requirements 10
E. antel Proections 10
. actory Built ireplaces 11
Section 5 : V ent Information
A. ent Termination Requirements 12
B. Avoiding Smoke and Odors 1
C. enting Requirements  Restrictions 1
. Existing ireplace Installation 15
E. Rear enting 1
. ero Clearance Cabinet 1
Section 6 : Mobile Home - (US only)
A. obile Home Installation 17
Section 7 : Appliance Set-Up
A. Outside Air Attachment 18
B. Installing the Surround 1
C. Routing the Power Cord 1
. Securing the ounting rame 20
E. Attaching the enting 20
. Installing the Body Into The rame 21
G. Control Board Installation 21
H. Room Sensor Installation 21
I. Optional Log it 22
. Optional Trim it 22
. Service Rail it 22
Section 8 : Operating Instructions
A. ire Safety 2
B. uel  uel Storage 2
C. General Operating Information 2
. Before Your irst ire 2
E. raft Test Procedure 2
. Starting a ire anual 2
G. Starting a ire Automatic 27
H. aintaining The ire 27
I. Relaxation ode 27
. Shut-own Procedure 27
Section 9 : Troubleshooting
A. Troubleshooting Chart 28
Section 1 0 : Service & Maintenance
A. Shut-own Procedure 2
B. uick Reference aintenance 2
C. General aintenance Procedures 0
. otors and Components 
Section 1 1 : R eference Materials
A. Wiring iagram 8
B. Power ailure  Back-up 
C. Service Parts Listing 0
. Custom Surround Sizes 
E. Warranty Policy 5
Safety Alert K ey:
 DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious inury.
 WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious inury.
 CAUTION! Indicates a hazardous situation which, if not avoided could result in minor or moderate inury.
 NOTICE: Indicates practices which may cause damage to the appliance or to property.
= Contains updated information





P3 5 i F ireplace Insert
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y S a ve T h e se I n st r u ct i o n s-0-775R1081
1Listing and Code Approvals
 ppance ertcatn
odel: P5i Insert
Laboratory: ONI-Test Laboratories, Inc.
Report No. 15-S-25-.2
Type: Solid uel Room Heater  ireplace
Insert.
Standard(s): AST E 150-0, ULCOR-C
182-10, ULC-S28-
This appliance is also approved for installation in a
shop.
B. Mobile Home Approved
This appliance is approved for Installation in mobile
manufactured homes. The structural integrity of the
mobile home oor, ceiling and walls must be maintained.
The appliance must be properly grounded to the frame of
the mobile home, and must never be installed in a room
designated for sleeping. The unit must have provisions for
an outside air source when installed in a mobile home.
 a Speccatn
This appliance is equipped with 5mm ceramic glass. Replace
glass only with 5mm ceramic glass. Please contact your
dealer for replacement glass if needed
D. Electrical R ating
115 AC, 0 Hz,
. Amps (Start-up) avg. 1.5 Amps (Normal Run)
 B  cency Speccatn
 BTU input will vary, depending on the type of fuel you
use in your stove. oisture and ash content can affect
performance.
 Corn is approved for burning only when mixed with wood
pellets.
Hopper Capacity-
#1-70-7725 (2 )
Particulate Emissions
Rating:
BTU Input:
Heating Capacity:
Hopper Capacity-
#1-70-7715 (1 )
uel:
Shipping Weight:
1 lbs.
Wood pellets  Corn
28 lbs.
1,500 sq. ft.
0 or ,000 - 5,000  hr
Exempt from EPA per
0 CR, ethod 28A
2 lbs.

5
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y
P3 5 i F ireplace Insert
S a ve T h e se I n st r u ct i o n s 3-90-775R16_08/13
NEV ER CONNECT THIS UNIT TO A CHIMNEY
F LUE SER V ING ANOTHER APPLIANCE.
Installation and repair of this stove should be done by a
cmpetent an uae prena e recmmen
that the stove be inspected before use and at least
annuay y a uae erce pern erc ceann
is req uired throughout the heating season and at the end
 eac nter r te te t rk ecenty
SPECIAL NOTE:
DUE TO ASH BUILDUP, IT IS STR ONG LY
R ECOMMENDED TO HAV E Y OUR STOV E
PR OF ESSIONALLY CLEANED AND SER V ICED
ANNUALLY . THIS INCLUDES ALL PAR TS OF
THE STOV E, AND THE V ENTING SY STEM.
Carbon monoxide, referred to as CO, is a colorless,
odorless gas that is produced during combustion of solid
fuels. CO is tox ic and can be fatal.
Even though this stove is designed to be as safe as
possible, it is recommended that you install a CO detector.
This is true for oil, gas, or wood burning products as well.
CO is not specically heavier or lighter than air. Therefore,
it is best to install the detector at table top level rather than
on the ceiling like a smoke detector.
CO detectors are very sensitive and may sound an alarm
for fumes other than CO or CO from sources other than
the stove such as a car or lawn mower exhaust.
If the alarm sounds
1. Increase house ventilation by opening windows or
doors.
2. ake sure the stove doors and hopper lid are closed
and latched.
. Check stove for electrical power and normal operation.
. Check vent for possible blockage or down-draft.
5. Check for false alarm.
Never use gasoline, lantern fuel, kerosene, charcoal lighter
uid, or similar liquids to start or freshen up a re in this
heater. eep all such liquids well away from the heater while
it is in use.
2Special W arnings and Notes
DO NOT CONNECT TOANY AIR DISTR IBUTION
DUCT OR SY STEM.


P3 5 i F ireplace Insert
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y S a ve T h e se I n st r u ct i o n s-0-775R1081
3G etting Started
A. Design, Installation & Location
Considerations
1 . Appliance Location
Consideration must be given to safety, convenience, trafc
ow, and the fact that the appliance will need to be vented
to the outside. This appliance may only be installed into
an ex isting masonry or manufactured wood-burning
repace r un te ptna er-cearance canet t
build into a newly constructed chase. It is a good idea to
plan your installation on paper. Use exact measurements for
clearances and oor protection, before actually beginning
the installation.
aintain specied vent clearance to combustible
requirements listed by the vent manufacturers instructions
and all appliance clearances as listed in this manual.
Check with your local building code agency before you
begin your installation. Local codes may supersede the
test laboratories specications. Always obtain any required
permit(s) so that insurance protection benets cannot be
unexpectedly cancelled. If any assistance is required during
installation, please contact your dealer.
We recommend that a qualied building inspector and your
insurance company representative review your plans before
and after the installation.
2 . R oom Sensor Location
The room sensors location will have some effect on the
appliances operation. When the sensor is located close to
the appliance, it may require a higher setting to keep the
rest of the house comfortable. If the sensor is located in
an adacent room, or farther away from the stove, you will
notice higher temperatures near the appliance.
• o NOT connect this unit to a chimney flue
servicing another appliance.
• o NOT connect to any forced air distribution duct
or system.
B. F ire Safety
aintain the designated clearances to combustibles.
Insulation must not touch the chimney. You must maintain
the designated air space around the chimney. This space
around a chimney is necessary to allow natural heat
removal from the area. Insulation in this space will cause
a heat buildup, which may ignite wood framing. NOTE:
Clearances may only be reduced by means approved
by the regulatory authority having j urisdiction.
To provide reasonable re safety, the following should be
given serious consideration:
1. Install at least one smoke detector on each oor of
your home. etectors should be located away from
the heating appliance and close to sleeping areas.
ollow the smoke detector manufacturers placement
and installation instructions, and be sure to maintain
regularly.
2. A conveniently located Class A re extinguisher to
contend with small res resulting from burning embers.
. A practiced evacuation plan, consisting of at least two
escape routes.
. A plan to deal with a hopper re as follows:
In the event of a hopper re:
a. Turn appliance to O.
b. Be sure hopper lid is closed and latched.
c. Notify ire epartment.
d. o NOT pour water in the hopper.
e. Never pull the plug or otherwise disconnect the
power supply to kill a re.
ire Hazard
• o not operate appliance before
reading and understanding the
operating instructions.
• ailure to operate properly may
cause a house re.
CAUTION W AR NING

7
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y
P3 5 i F ireplace Insert
S a ve T h e se I n st r u ct i o n s 3-90-775R16_08/13
C. Component Locations
Door Latch
F eed Motor
Distribution Blower
V iewing
G lass
Pellet Pro F eeder
Control Panel
Combustion
Blower
Ex haust
Sensing
Probe (ESP)
Hopper Lid Latch
R eturn Air Slots
F rame Latch Ash Pan Latch
Ash Pan Cover
 t a n matera t ck
te ar  tru te return ar
slots.

8
P3 5 i F ireplace Insert
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y S a ve T h e se I n st r u ct i o n s-0-775R1081
D. Pre- Use Check List
1. Place the appliance in a location near the
nal installation and follow the procedures
below:
2. Open the appliance and remove all articles
packed inside. Inspect all items for shipping
damage. Notify dealer of any missing or
damaged goods.
. All safety warnings have been read and
followed precisely.
. This Owners anual has been read in its
entirety.
5. loor protection requirements have been
read and followed.
. The ue connector has been installed in
accordance with the instructions herein.
7. The proper clearances from the appliance
and chimney connector to combustibles
have been met.
8. The masonry chimney has been cleaned
and inspected by a professional, or the
factory built metal chimney is installed
according to the manufacturers instructions.
. The chimney meets the minimum height
requirements.
10. All labels and hang tags have been removed
from the glass.
11. All plated surfaces have been wiped clean,
if applicable.
12. The room sensor and any additional cable
has been installed properly.
1. A properly grounded electrical receptacle is
available within reach of the units power
cord.
1. A good quality surge protector is highly
recommended to protect the electronics.
F ire R isk.
Hearth  Home Technologies
disclaims any responsibility for, and
the warranty will be voided by, the
following actions:
• Installation and use of any damaged appliance.
• odication of the appliance.
• Installation other than as instructed by Hearth 
Home Technologies.
• Installation of substitute materials or replacement
parts not approved by Hearth  Home Technologies
• Operating appliance without fully assembling all
components.
• o NOT Overre.
r any uc actn tat may caue a re aar
Inspect appliance and components for
damage. amaged parts may impair safe
operation.
• o NOT install damaged components.
• o NOT install incomplete components.
• o NOT install substitute components.
Report damaged parts to dealer.
W AR NING
W AR NING


P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y
P3 5 i F ireplace Insert
S a ve T h e se I n st r u ct i o n s 3-90-775R16_08/13
4Dimensions & Clearances
A. Appliance Dimensions
14”
35.56 cm
22”
55.88 cm
8”
20.32 cm 10”
25.4 cm
2”
5.08 cm
24”
60.96 cm
A
B
19 1/2
49.53 cm
Hopper
23 1/2
59.69 cm
Hopper
23 3/4
60.32 cm
A: 4 0 " (1 0 1 .6 cm) 4 6 " (1 1 6 .8 cm)
B: 3 1 " (7 8 .7 4 cm) 3 4 " (8 6 .3 6 cm)
Standard Surround
# 1-00-774221
ere Surrun
# 1-00-774250

10
P3 5 i F ireplace Insert
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y S a ve T h e se I n st r u ct i o n s-0-775R1081
C. F loor Protection R eq uirements
Hearth extension must be of a non-combustible material.
It must extend beyond the appliance according to the
measurements listed.
inimum Size Hearth Extension is 1 eep By 2 Wide.
C
D
B
A
Location Inches illimeters
Insert to combustible sidewall
Surround top to face trim
1 0
1 25.
0 0
12 05
Surround side to face trim
Insert top to (max) 12 mantel
F
E
Location Inches illimeters
Window opening to front  152
 152
Window opening to side
D. Minimum Opening for Masonry
and Manufactured F ireplaces
I
I
H
G
Location Inches illimeters
inimum Width 2 0
2 57
1.5 8
1 5
inimum epth
inimum Height #1-70-7725
inimum Height #1-70-7715
H
I
G
The aximum mantel depth () is 12 inches (05 mm) with
a minimum vertical height () of 12 inches (05 mm).
K
J
E. Mantel Proj ections
B. Clearances To Combustibles -
Masonry or Manufactured F ireplace
     
    
     

Mantel
Side Wall
Face Trim
A
B
C
E
D
F

11
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y
P3 5 i F ireplace Insert
S a ve T h e se I n st r u ct i o n s 3-90-775R16_08/13

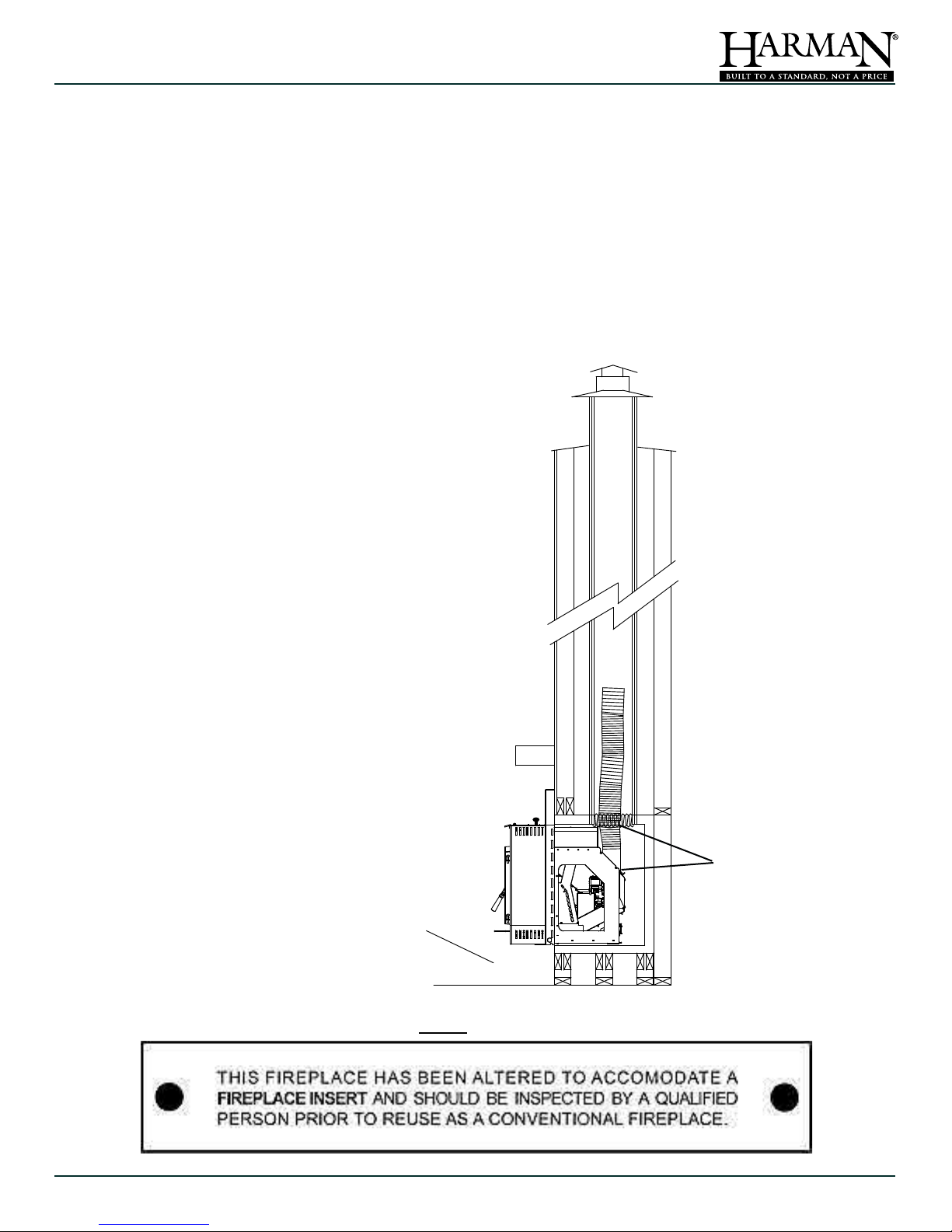

F . F actory-Built F ireplace
Installation
When installing the P5i Insert into a factory built wood
burning replace, several things need to be taken into
consideration.
The size of the replace opening. Will the unit t into
the opening Some of the factory built replaces have
metal smoke shields inside the top that can be removed
to gain height. eep in mind that anything removed
from the factory built replace must be attached to the
replace with a metal wire. loor protection guidelines,
as listed previously, must also be followed.
The manufactured replace may not be altered beyond
the exceptions listed below. Never remove masonry
bricks or mortar from an existing replace.
The following modications are permissible:
• Removal of the damper or lock in open position
• Removal of smoke shelf or bafe
• Removal of andirons or ember catchers
• Removal of log grate
• Removal of view screen or curtain
• Removal of doors
• External trim pieces, that do not affect the operation
of the replace, may be removed providing they can
be stored on or within the replace for reassembly
if the insert is removed.
• If the hearth extension is lower than the replace
opening, the portion of the insert extending onto the
hearth must be supported.
• inal approval of this type of installation is contingent
upon the authority having urisdiction.
Note: If the Harman® P5i Insert is installed into a factory built wood burning replace, this
label (Harman® part # -0-0075) UST be attached to the altered replace.
The factory built chimney must be listed per UL 127 (US)
and meet type HT requirements of UL 10 (US). actory
Built replace chimneys tested to UL 127-8 may be, at the
replace manufacturers option, tested to the same criteria
as UL 10HT requirements. If the chimney is not listed as
meeting HT requirements, or if the factory built replace was
tested prior to 18, a full height listed chimney liner must be
installed from the appliance ue collar to the chimney top.
Liner must meet high temperature (2100 ) per UL1777 (US).
The liner must be securely attached to both the ue collar
and the chimney cap. To prevent room air passage to the
chimney cavity of the replace, seal the damper area around
the chimney liner with berglass batting.
Hearth must be constructed to
the proper height and finished
with a non-combustible
material.
   repace nert
must be installed with a continuous
chimney liner of a minimum 3 "
diameter ex tending from the insert to
the top of the chimney. The chimney
liner must conform to the Class 3
req uirements of CAN/ ULC-S6 3 5 ,
Standard for Lining Systems for
Ex isting Masonry or F actory Built
Chimneys and V ents, or CAN/ ULC-
S6 4 0 , Standard for Lining Systems
for New Masonry Chimneys.
W hen using single-wall
entn r et ectn
of venting must be wrapped
with a non-combustible
insulation to prevent ex cess
temperatures within the
repace an n te ue
hopper.

12
P3 5 i F ireplace Insert
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y S a ve T h e se I n st r u ct i o n s-0-775R1081
5V ent Information

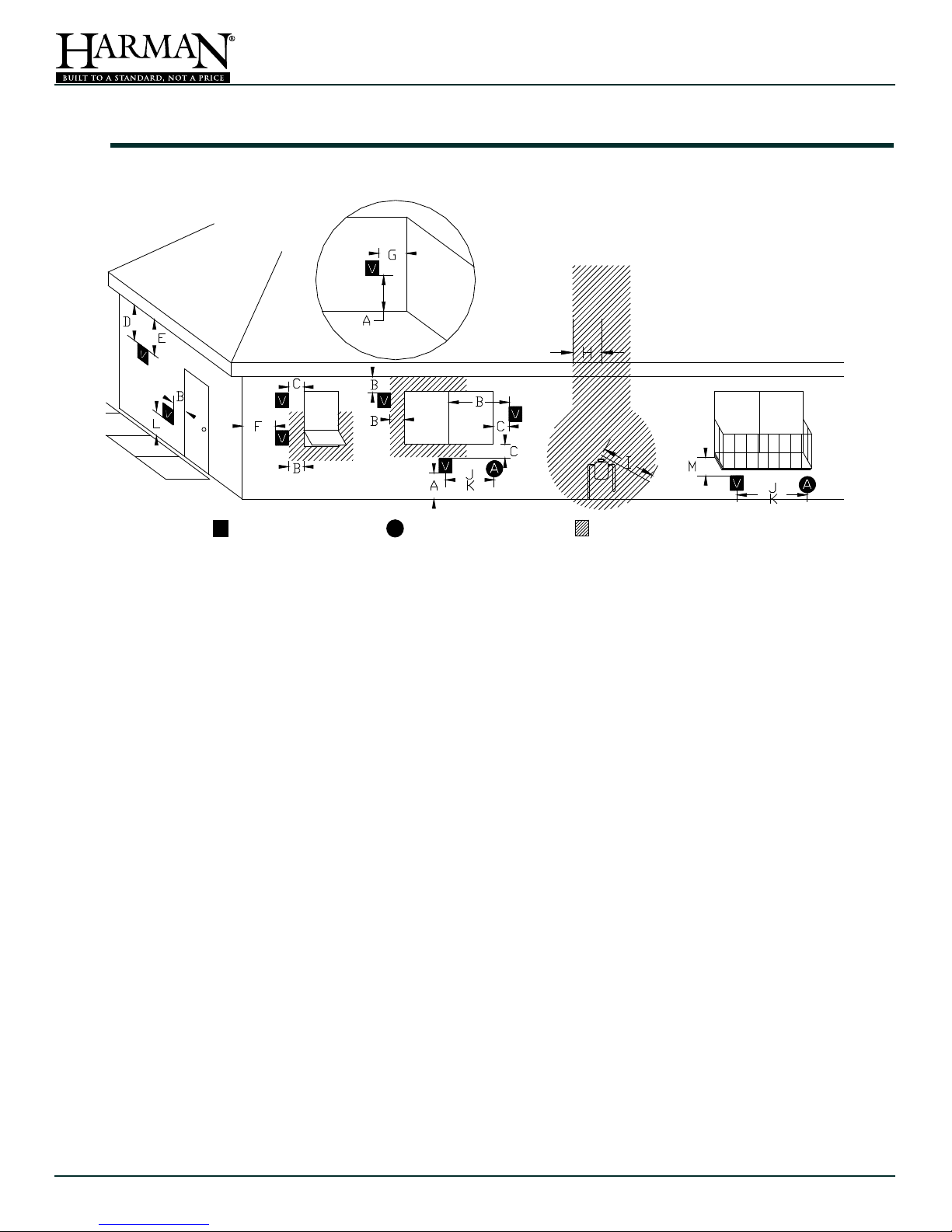

A. V ent Termination R eq uirements
V=Vent Terminal A=Air Supply Inlet =Area where termination is mot permitted
Door
Sidewalk
Fixed
Closed
Openable
Openable Fixed
Closed
Inside Corner
Detail
Porch or
Openable
Deck
or Fixed
WARNING: enting terminals must not be recessed into a
wall or siding.
NOTE: Only PL or L vent pipe wall pass-throughs and re
stops should be used when venting through combustible
materials.
NOTE: Always take into consideration the affect the
prevailing wind direction or other wind currents will cause with
yash and or smoke when placing the termination.
In addition, the following must be observed:
A. The clearance above grade must be a minimum of 12.1
B. The clearance to a window or door that may be opened
must be a minimum of 8 to the side and 8 below the
windowdoor, and 12 above the windowdoor.1
(with outside air installed, 1 8 ” to side and below)
C. A 12 clearance to a permanently closed window is
recommended to prevent condensation on the window.
. The vertical clearance to a ventilated soft located above
the terminal within a horizontal distance of 2 feet (0 cm)
from the center-line of the terminal must be a minimum
of 18.
E. The clearance to an unventilated soft must be a minimum
of 12.
. The clearance to an outside corner is 11 from center of
pipe.
G. The clearance to an inside corner is 12.
H. A vent must not be installed within  feet (0 cm) above
a gas meterregulator assembly when measured from the
horizontal center-line of the regulator.1
I. The clearance to service regulator vent outlet must be
a minimum of  feet.1
. The clearance to a non-mechanical air supply inlet to
the building or the combustion air inlet to any other
appliance must be a minimum of 8.1
. The clearance to a mechanical air supply inlet must be
a minimum of 10 feet.1
(with outside air installed, 6 feet )
L. The clearance above a paved sidewalk or a paved
driveway located on public property must be a minimum
of 7 feet.1 ,2
. The clearance under a veranda, porch, deck or balcony
must be a minimum of 12 inches.1 ,3 (B. also)
NOTE: The clearance to vegetation and other exterior
combustibles such as mulch is  as measured from the
center of the outlet or cap. This  radius continues to
grade or a minimum of 7 feet below the outlet.
1Certain Canadian and or Local codes or regulations may
require different clearances.
2A vent shall not terminate directly above a side-walk or
paved driveway which is located between two single family
dwellings and serves both dwellings.
3Only permitted if veranda, porch, deck, or balcony is fully
open on a minimum of 2 sides beneath the oor.
NOTE: In Canada, where passage through a wall or
partition of combustible construction is desired, the
installation shall conform to CAN/ CSA-B3 6 5 .
Chimney connector shall not pass through an attic or roof
pace cet r mar cnceae pace r a r r cen


1
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y
P3 5 i F ireplace Insert
S a ve T h e se I n st r u ct i o n s 3-90-775R16_08/13
NOTE: The restriction of not venting more than
one appliance to the same ue applies to the U.S.
specically. While it is not recommended that you use
the same chimney for more than one appliance, in
Canada certain exceptions may be made. Be sure to
contact your building code inspection ofcial to see if
this option is allowed in your area, and to nd out the
specic requirements for such an installation.
 nt cnnect t unt t a cmney ue
servicing another appliance.
B. Avoiding Smoke and Odors
Negative Pressure, Shut-down, and Power
F ailure:
To reduce the probability of back-drafting or burn-
back in the pellet burning appliance during power
failure or shut-down conditions, the stove must
be able to draft naturally without exhaust blower
operation. Negative pressure in the house will resist this
natural draft if not accounted for in the pellet appliance
installation.
Heat rises in the house and leaks out at upper levels.
This air must be replaced with cold air from outdoors,
which ows into lower levels of the house. ents and
chimneys into basements and lower levels of the house
can become the conduit for air supply, and reverse
under these conditions.
Outside Air:
Hearth & Home Technologies recommend attaching
outside air in all installations, especially lower level
an man r catn
Per national building codes, consideration must be given
to combustion air supply to all combustion appliances.
ailure to supply adequate combustion air for all
appliance demands, may lead to back-drafting of those
and other appliances.
When the appliance is side-wall vented: The air intake
is best located on the same exterior wall as the exhaust
vent outlet and located lower on the wall than the
exhaust vent outlet.
When the appliance is roof vented: The air intake is
best located on the exterior wall oriented towards the
prevailing wind direction during the heating season.
The outside air connection will supply the demands of
the pellet appliance, but consideration must be given to
the total house demand. House demand may consume
some air needed for the stove, especially during a power
failure. It may be necessary to add additional ventilation
to the space in which the pellet appliance is located.
Consult with your local HAC professional to determine
the ventilation demands for your house.
The outside air kit consists of a ue stub pipe, berglass
gasket, silicone gasket, intake box and a section of ex
pipe.
An adustable chimney intake extension, part # 1-00-
710 is available to be used on masonry chimneys
only.
To install outside air, use kit part number 1-00-77280.
ollow the installation instructions provided with the kit.
ent nuratn
To reduce probability of reverse drafting during shut-
down conditions, Hearth  Home Technologies strongly
recommends:
• Installing the pellet vent with a minimum vertical run
of ve feet, preferably terminating above the roof line.
• Installing the outside air intake at least four feet below
the vent termination.
To prevent soot damage to exterior walls of the house
and to prevent re-entry of soot or ash into the house:
• aintain specied clearances to windows, doors,
and air inlets, including air conditioners.
• ents should not be placed below ventilated softs.
Run the vent above the roof.
• Avoid venting into alcove locations.
• ents should not terminate under overhangs, decks
or onto covered porches.
• aintain minimum clearance of 12 inches from
the vent termination to the exterior wall. If you see
deposits developing on the wall, you may need
to extend this distance to accommodate your
installation conditions.
Hearth & Home Technologies assumes no
responsibility for, nor does the warranty ex tend
to, smoke damage caused by reverse drafting of
pellet appliances under shut-down or power failure
conditions.
Do not connect this unit to any air distribution
duct or system.

1
P3 5 i F ireplace Insert
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y S a ve T h e se I n st r u ct i o n s-0-775R1081
C. V enting R eq uirements and
R estrictions
A combustion blower is used to extract the combustion
gases from the rebox. This causes a negative pressure
in the rebox and a positive pressure in the venting
system. The longer the vent pipe and more elbows used
in the system, the greater the ow resistance.
e recmmene mamum ue ent r te
P3 5 i Insert are as follows:
3 " or 4 " Stainless Steel F lex : 0 Lineal ft. ertical
4 " PL V ent Pipe:
 Pl ent Pipe: 0 Lineal ft. ertical
 Pl ent Pipe: 1 ft. ertical w1-0o and 12 lineal ft.
horizontal
 atna   ent ttn are reure te
overall length must be reduced by:
ertical 0o or T: 2.5
ertical 5o: 1.5
Horizontal 0o or T: 5.0
Horizontal 5o: 2.5
3 " PL V ent Pipe:
20 Lineal ft. vertical
8 Lineal ft. vertical w1-0o  8 lineal ft. horizontal
 atna   ent ttn are reure te
overall length must be reduced by:
ertical 0o or T: 2.0
ertical 5o: 1.0
Horizontal 0o or T: .0
Horizontal 5o: 2.0
*Long runs of ex or PL vent pipe installed directly
vertical from the ue stub may require more frequent
cleaning due to y ash falling off inside and collecting
directly above the combustion blower outlet.
Any use of horizontal venting will require more frequent
cleaning. It is the responsibility of the installer to make
sure the entire flue configuration is accessible for
cleaning.
Stainless steel ex vent is only allowed for use in
masonry replaces and chimneys or in factory built
wood burning replace installations when used as a
liner for a class A metal chimney. All pellet vent pipe
must be secured together by means provided by pipe
manufacturer. The vent pipe must be secured to the
appliance ue collar with a minimum of three screws.
It is also recommended that you seal all vent pipe oints
with high temperature silicone.
e ny te pece entn cmpnent e
of any other components will void the product
arranty an may pe a aar
Do Not Install A F lue Damper In The Ex haust
V enting System Of This Appliance.
DO NOT CONNECT THIS UNIT TO A CHIMNEY F LUE
SER V ING ANOTHER APPLIANCE.
NOTE: If burning a shelled corn and pellet mix ture,
you must use approved venting components that
are peccay ene r crn urnn

• Only LISTE type L or PL Pellet venting
components may be used.
• NO OTHER type of venting materials or
components may be used.
• Substitute or damaged vent components may
impair safe operation.


• Improper installation, adustment, alteration,
service, or maintenance can cause inury or
property damage.
• Read and Refer to your owners manual.
• or assistance or additional information, consult a
qualied installer, service agency or your dealer.
   repace nert mut e ntae
with a continuous chimney liner of a minimum 3 "
diameter ex tending from the insert to the top of
the chimney. The chimney liner must conform
to the Class 3 req uirements of CAN/ ULC-S6 3 5 ,
Standard for Lining Systems for Ex isting Masonry
or F actory Built Chimneys and V ents, or CAN/
ULC-S6 4 0 , Standard for Lining Systems for New
Masonry Chimneys.

15
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y
P3 5 i F ireplace Insert
S a ve T h e se I n st r u ct i o n s 3-90-775R16_08/13
--
--
Tile Flue Liner
Non-combustible
Insulation
Sealing Plate
When using single wall flex, this
section of venting must be wrapped
with non-combustible insulation to
prevent excessive heat build-up in
the cavity.
When venting in this configuration, a rain cap and proper
flashing must be installed on the top of the chimney to
prevent flooding and damage.
D. Ex isting F ireplace Installation:
If using a short run of venting, whether ex or rigid,
through the damper and into the chimney ue The
amper must be removed or locked in the open
position and sealed with a plate constructed of steel or
other non-combustible material.
aowool, mineral wool or other non-combustible
insulation is recommended above the plate to reduce
the possibility of condensation. You will also need to
wrap the venting section between the insert frame and
the damper sealing plate. This is to prevent overheating
of the replace cavity, which may cause damage to the
inserts motors and other electrical components.
The connector pipe should extend through the sealing
plate and smoke chamber and into, or beyond the rst
ue tile.
Be sure to design the venting so that it can be easily
cleaned.
Check with your local authority having urisdiction to
determine if this venting method is acceptable. Some
Provincial, State, or Local codes may require a full
liner run to the top of the chimney. Be sure and check
your local regulations before planning the installation.
In this method, the proper ashing and rain cap are
also required.
   repace nert mut e
installed with a continuous chimney liner
of a minimum 3 " diameter ex tending from
the insert to the top of the chimney. The
chimney liner must conform to the Class 3
req uirements of CAN/ ULC-S6 3 5 , Standard
for Lining Systems for Ex isting Masonry or
F actory Built Chimneys and V ents, or CAN/
ULC-S6 4 0 , Standard for Lining Systems for
New Masonry Chimneys.
F ire R isk.
Inspect Chimney
• asonry chimney must be in good
condition
• eets minimum of NPA 211 standard
• actory-built chimney must meet
requirements of UL10 HT
W AR NING

1
P3 5 i F ireplace Insert
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y S a ve T h e se I n st r u ct i o n s-0-775R1081
F . Optional Z ero Clearance
Cabinet Installation:
If installing using the optional zero clearance cabinet,
Item #1-00-77257, the venting will need to exit
through the top of the cabinet. The vent can be vertical
or horizontal after leaving the cabinet. Once clear of
the cabinet, a 0 degree elbow can be installed for
rear termination as shown. o not allow vent pipe
seams to fall within the cabinet wall. Use proper wall
thimble as supplied by the venting manufacturer.
If nishing the interior with stone or masonry, the
venting can be installed without the appliance. Install
the cabinet and secure the venting using the lue
Rough-in Support #1-00-7728.
The top of the chimney must also be sealed.
Otherwise, it can become a nesting area or a
water trap.
If passing through combustible
material, the proper thimble from the
vent manufacturer must be used.
Masonry wall
3" Clearance
Zero Clearance Cabinet
shown with Flue Rough-in
Support
Vent pipe seams must be
accessible.
Vertical Venting may be used in a constructed chase providing all clearances to combustibles are met.
Proper wall pass-thru device
as recommended by the
venting manufacturer.
E. Ex isting F ireplace, R ear V ent:
Notice the side edges of the surround contain slotted
openings. These openings allow room air to be drawn into the
rear of the cabinet and circulated through the heat ex change
and back into the room. These openings can not be blocked.
 nn t tne r manry keep
the masonry a minimum of one inch from
the sides of the surround. Mortar can be
ue t e a mre ne k
NOTE: When installed in a rear vent
conguration, the maximum BTU
may be reduced due to elevated ESP
temperatures associated with the
horizontal exhaust stream.

17
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y
P3 5 i F ireplace Insert
S a ve T h e se I n st r u ct i o n s 3-90-775R16_08/13
6Mobile Home
A. Mobile Home Installation
Outside Air K it #1-00-774280 Must be used
for installation in a mobile home.
1. An outside air inlet must be provided for
combustion air, and must remain clear of leaves,
debris, ice, andor snow. The outside air path must
be unrestricted while the appliance is in operation.
2. The combustion air intake system must be of
metal construction. It must permit zero-clearance
to combustible materials, and contain a rodent
screen.
. The appliance must be secured to the mobile
home structure by bolting it to the oor. Use the
correct length lag-bolts through the same holes
that secured the appliance to the shipping pallet.
. The appliance must be grounded to the metal
framing of the mobile home.
5. All clearances to combustibles and oor protection
requirements must be followed.
. ollow the vent manufacturers instructions
when installing in a mobile home. Use silicone
or equivalent to create an effective vapor barrier
where the chimney or other component penetrates
to the exterior of the mobile home.
7. Installation shall be in accordance with the
anufactured Home and Safety Standard (HU)
CR 280, Part 2
8. The appliance must never be installed in a room
designated for sleeping.
. The space heater must be connected to a factory
built chimney conforming to CANULC-S2.
aximum 8 inch diameter. Chimney must be
removable to allow transport of mobile home.
Installation must comply with anufactured Home and
Safety Standard (HU), CR 280, Part 2.
CAUTION
Maintain structural integrity of mobile home:
 F loor, wall, ceiling and/ or roof.
o NOT cut through:
• loor oist, wall studs, or ceiling trusses.
• Any supporting material that would affect the
structural integrity.
CAUTION
Never draw outside combustion air from:
• Wall, oor or ceiling cavity.
• Enclosed space such as an attic or garage
There are a few holes in the bottom of the insert
mounting frame which can be used for lag bolts. Use
at least two of these holes for securing the appliance
to the replace oor in a mobile home installation. The
installer will need to determine and obtain the properly
sized lag bolts and masonry anchors.
Four 5/16 -18 Leveling
bolts may be installed
in each corner
Numerous holes allow
for lag bolts (2 min.)in
mobile home installation
Never install in a room intended for sleeping.
W AR NING
W AR NING

18
P3 5 i F ireplace Insert
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y S a ve T h e se I n st r u ct i o n s-0-775R1081
7Appliance Set-Up
A. Outside Air Attachment
Outside Air it #1-00-77280 (sold separately) must
be used for attaching outside air to the insert. This kit
contains a  stub and gasket to mount to the frame,
and the outside air adapter which secures to the insert
body. The outside air intake connection will seal to the
mounting frame, ust like the exhaust does. ollow
the instructions included in the kit to ensure proper
installation.
1. ake a determination of where you want to draw
the outside air from. Here are a few options.
a. Punch a hole through the rear of the replace
and exterior wall. Rigid pipe or ex pipe could be
used.
b. Use the chimney or chase as a conduit for
outside air. The exhaust liner must be run the full
length of the ue. When creating your steel plate
to seal the damper area ake another  inch hole
for the outside air pipe. Install a short run of pipe
from the mounting frame through the sealing plate.
Then install the chimney top extension kit, item #1-
00-710 at the top of the chimney. This is slotted
to allow fresh air into the chimney or chase.
2. Secure the outside air supply pipe to the stub on the
mounting frame using a minimum of two fasteners.
. If running the supply pipe direct, install the outside
air cover weldment #1-10-052 to keep birds or
rodents from entering the supply pipe.
. eep the intake a minimum of  feet (1.2 m) below
the exhaust termination.
CAUTION!
Never draw outside combustion air from:
• Wall, oor or ceiling cavity.
• Enclosed space such as an attic or garage
The image at left shows the use of the chimney
for outside air supply. Also shown is the
Chimney intake ex tension on the top of the
chimney. It is slotted to allow fresh air into
te ue Be ure t ue te prper an
and vent cap to prevent rain from entering the
cmney ue
The image below demonstrates bringing the
outside air in through a hole cut through the
rear  te repace an eterna a t t
method, a screen is necessary to prevent birds
or rodents from entering.
Outside Air Intake
W eldment
Intake Stub
Stub G asket
Stub Mounting
Bolts Self- drilling
screws (2 )
Contents of Outside Air K it
--
--

1
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y
P3 5 i F ireplace Insert
S a ve T h e se I n st r u ct i o n s 3-90-775R16_08/13
C. R outing the Power Cord
When choosing an electrical supply outlet, be sure
the polarity is correct, and that the supplied voltage is
within the range of 117 to 12 olts. Surge protection
is also recommended to protect the control board
software in the event of a surge or spike.
Once the outlet location is decided, youll need to
install and route the power cord.
At the bottom of each of the side surround panels is a
knockout for the cord retainer. Remove the appropriate
knockout and feed the loose wire end of the cord into
the hole. If your cord needs to
exit from the right side, route
the cord up the side and over
the top of the mounting frame
and back down the left side.
Attach the ground wire ring
terminal to the bottom stud
on the left, and use the two
hooks on the top corners of
the mounting frame to secure
the cord. Slip the cord clamp
onto the cord right in front of
the opening in the side panel.
Using a pliers, compress the
cord clamp and push it into the hole.
B. Installing the Surround
The surround consists of three panels, the top and two
sides. ollow these steps for installation:
1. Remove the insert body from the mounting frame
2. Start your leveling bolts into the oor of the frame
and adust to slightly raise the height.(see next
section) This will allow some clearance toassemble
the surround.
. Prepare the side panels by removing three nuts
each. The left side panel is the one with the control
board opening. If mounting the control door, the
hinge bracket will attach using the control panel
mounting screws.
W AR NING
ROUTE POW ER COR D AW AY F R OM THE APPLIANCE.
DO NOT R UN THE COR D UNDER OR IN F R ONT OF
THE APPLIANCE.
Surround Splice
Plate
Control
Mount
Brackets
Control door
and hinge
Three nuts to
secure to the
frame.
. Attach the side panels to the mounting frame by
guiding the threaded studs through the holes in
the mounting frame. Slip the power cord ground
wire terminal over the bottom stud on the left side.
Install the nuts onto the studs, nger tighten only.
5. Install the top panel, making sure to close the gap
with the side panels rst. Tighten the nuts on the
splice brackets securely.
. Set the mounting frame into position in the replace
opening. Be sure the surround panel is raised
slightly so that it is not supporting any of the weight
of the mounting frame.
7. When pleased with the alignment, tighten all of the
nuts securely.
8. There are two more holes in the splice brackets to
align the outer sides of the surround panel oints. If
desired, install the supplied black pop-rivets here.

20
P3 5 i F ireplace Insert
P e l l e t s o r C o r n /P e l l e t M i xt u r e O n l y S a ve T h e se I n st r u ct i o n s-0-775R1081
ost importantly, the frame must be level. Again, be
certain that the surround is not supporting the weight.
Turn the leveling screws in until there is a slight gap
beneath the surround panels.
Here are a few different ways to anchor the mounting
frame.
On the sides of the frame,
there are a few holes which
can be used to attach
metal straps. These straps
can be anchored into the
replace using masonry
anchors. You could also
use any of the unused
holes in the bottom of the
frame to install anchors
and lag bolts. Another
option involves using kit #
1-00-7727. Here, you will mount plates to the frame.
These plates have coupling nuts welded to them. The
kit also includes two pieces of 12 all thread, which
threads into the coupling nuts. These can be used to
tighten upward against the lintel until the unit is secure.
E. Attaching the V enting
The ue collar on the rear of the mounting frame is
designed to pivot. Loosen the four mounting bolts and
adust the angle of the collar as needed. Shown above
is the vertical position and the horizontal position. Be
sure the ber gasket remains in place between the
collar and the mounting frame, and secure the bolts.
Secure the rst section of venting to the collar with
a minimum of two fasteners. Self-drilling screws will
work well for this. Once the venting is secured and the
seams are sealed, it is recommended that you wrap
the vent pipe with a non-combustible insulation to
prevent overheating of the motors and other appliance
components. This is required (and supplied) when
using the optional ero Clearance Cabinet.
The mounting frame is the anchor for the appliance.
If the frame is not secured properly, shifting will
occur when sliding the insert in or out.
D. Securing the Mounting F rame
The mounting frame is the anchor for the appliance.
If the frame is not secured properly, shifting will
occur when sliding the insert in or out.
The stove is supplied with a Leg Leveler it that
contains () 51-18  1. These bolts should be
threaded down through the holes to raise the frame
corners as needed, to level.
NOTE: When installed in a rear vent conguration, the maximum BTU
may be reduced due to elevated ESP temperatures associated with the
horizontal exhaust stream.
Straps could
attach here
Leveler Bolts
