Harman The Serenity III HB 38 DV Installation instructions
“Ce manuel est disponible en Français sur demande”
R1
2
Cet appareil peut être installé dans une maison préfabriquée (mobile) déjà installée à demure si les règlements
locaux le permettent. Cet appareil doit être utilisé uniquement avec les types de gaz indiqués sur la plaque
signalétique. Une trousse de conversion est fournie avec cet appareil.
Table of Contents
Introduction 4
Safety Precautions 4
Operation 7
Specications 9
Installation 12
Face Installation 15
Venting 17
Damper Settings 28
Changing to LP 29
Log Placement 31
Option Installation
Thermostat 32
Remote Control 32
Remote Register Kit 33
Maintainence 39
Wiring Diagrams 41
Troubleshooting 45
Warranty 50
Manufactured by:
Harman Home Heating
352 Mountain House Rd.
Halifax PA 17032
4
Introduction
Due to high temperatures, the Serenity III
Direct Vent Gas Fireplace should be located out
of trafc and away from furniture and draperies.
Children and adults should be alerted to the
hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
Young children should be carefully supervised
when they are in the same room as the appliance.
Clothing or other ammable materials should not
be placed on or near the appliance.
Surveiller les enfants. Garder les vetements, les
meubles, lessence ou autres liquides a vapeur
inammables lin de lappareil.
This appliance may be installed in an aftermarket
permanently located (mobile) home, where not
prohibited by local codes.
This appliance is only for use with the type(s) of
gas indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certied kit is used.
Cet appareil peut etre installe dans un maison
prefabriquee (mobile) deja installee a demeure si les
reglements locaux le permettent.
Cet appareil doit etre utilise uniquement avec les
types de gas indiques sur la plaque signaletique.
Ne pas l utiliser avec d autres gas sauf si un kitde
conversion dertie est installe.
Any safety screen or guard removed for servicing
an appliance must be replaced prior to operating
the appliance.
When operating your Harman Serenity III Gas
Fireplace, respect basic safety standards. Read these
instructions carefully before you attempt to operate
the replace. Failure to do so may result in damage to
property or personal injury and may void the product
warranty.
Consult with your local building code agency and
insurance representative before you begin your
installation to ensure compliance with local codes,
including the need for permits and follow-up inspections.
Several issues must be addressed when selecting a
suitable location for your Serenity III Gas Fireplace.
Observing required clearances to combustible materials,
the proximity to a safe venting system location, and
the accessibility of the gas and electrical supply must
all be considered. In addition, selecting a location that
takes advantage of the building’s natural air ow is also
desirable to maximize the heating effectiveness of the
replace. In many cases, this is a central location within
the building.
The Harman Serenity III Direct Vent Gas Fireplace
is a listed gas-red direct vent room replace tested
by Intertek Testing Services/Warnock Hersey to ANSI
Z21.88-2002-CSA 2.33-2002. CAN-CGA-2.17-M91.
Also approved for installation into a shop.
The installation of the Serenity III Direct Vent Gas
Fireplace must conform with local codes, or in the
absence of local codes, with National Fuel Gas Code,
ANSI Z223.1 — latest edition and CAN 1 B1-149.1 and
.2 Installation Code.
Also for use in mobile (manufactured) homes after
home is sited.
Mobile (manufactured) home installations must adhere
to current editions of Title 24 CFR, part 3280, or CSA
Z240.4.
CAUTION: This appliance must be vented to the
outside.
Installation and repair of the Serenity III Direct Vent
Gas Fireplace should be done by a qualied service
person. The appliance should be inspected before use
and at least annually by a qualied service person. More
frequent cleaning may be required due to excessive lint
from carpeting, bedding material, etc. It is imperative
that control compartments, burners, and circulating air
passageways of the Serenity III be kept clean.
When the blower is off the air
gate is in the open position
which allows air to ow freely
through the air chamber and up
through the heat exchanger.
Air Gate Open
Air Gate Closed
When the blower is turned
on, the air pressure from the
blower forces the air gate to
seal the air chamber. This
forces all the air from the
blower to travel through the
heat exchanger producing
two to three times more air
than other brands of gas
replaces.
Blower Off
Blower On
Air Gate Blower System
Typically in gas replaces the blower (which is usually
an option) is placed to blow air up the back of the rebox
without any method to keep the air pressure from being
lost. This method allows air to ow freely around the
blower when the blower is off but gives up a large
percentage of the blowers efciency when it is on.
The Air Gate Blower System gives you the best of
both worlds.
200% To 300%
More Air
5
IMPORTANT FEATURE
6
OPERATION
7
OPERATION
Operation
HOW TO LIGHT THE FIRE
1. STOP! Read the safety information on the front cover.
2. If using the optional thermostat, set the thermostat to
it’s lowest setting.
3. Turn off all electrical power to the appliance.
4. Turn the ON-OFF/THERMOSTAT switch to the OFF
position.
5. Push in the gas control knob slightly and turn it
clockwise to “OFF.” NOTE: THE KNOB CANNOT
BE TURNED FROM “PILOT” TO “OFF” UNLESS
IT IS PUSHED IN SLIGHTLY. DO NOT FORCE IT.
6. Wait ve (5) minutes to clear out any gas. If you
then smell gas, STOP! Follow steps in the safety
information on page 2. If you don’t smell gas, go to
the next step.
7. Set the High-Low Regulator to High by turning it
fully counterclockwise.
8. Press in the gas control knob slightly and turn it
counter-clockwise to “PILOT.”
9. Locate the pilot near the center of the rebox as
shown below.
10. Push the control knob in fully and hold. Immediately
push the red piezo ignitor button to light the pilot.
It is normal to have to push the red button several
times before the pilot ignites. Continue to hold the
control knob in for about one(1) minute after the pilot
is lit. Release the knob and it will pop back up. The
pilot should remain lit. If it goes out, repeat steps 5
through 9.
•If the knob does not pop up when released, stop and
immediately call your service technician or gas supplier.
•If the pilot will not stay lit after several tries, turn the gas
control knob to “OFF” and call your service technician
or gas supplier.
11. Turn the gas control knob counterclockwise to “ON.”
12. Place the ON-OFF/THERMOSTAT switch in the
ON position or in the THERMOSTAT position if the
optional thermostat is used.
13. Restore electrical power to the heater.
14. Set the optional thermostat to the desired temperature.
Gas Control
High-Low
ON-OFF/
THERMOSTAT
Switch
Three Speed
Blower Switch
Piezo Ignitor
Button
Rear Burner
ON/OFF
Switch
PILOT
8
OPERATION
15. Set the High-Low Regulator to the desired setting:
Turn fully counterclockwise for High and fully
clockwise for Low.
16. Press the rear burner switch to the “ON” or “OFF”
position as desired. This switch will return to the
center position after it is pressed. This is normal as
well as a faint click when pressed. The main burner
must be lit before the rear burner will light. The rear
burner may be turned “ON” or “OFF” at any time.
NOTE: An odor, resulting from the initial heating of
new materials in your heater, is not unusual during the
rst re, and in most cases will disappear after an hour
or two.
HOW TO TURN OFF THE FIRE
1. If using the optional thermostat, set thermostat to the
lowest position.
2. Turn off the electric power to the appliance.
3. Turn the ON-OFF/THERMOSTAT switch to the
OFF position.
4. Push in the gas control knob slightly and turn it
clockwise to “OFF.”
NOTE: The knob cannot be turned from “PILOT” to
“OFF” unless it is pushed in slightly. Do not force it.
FLAME HEIGHT ADJUSTMENT
There are separate adjusters for the front and rear
burners. These adjusters can be accessed by reaching
to the left side of the control panel and toward the back
of the unit. Turn the adjusters counterclockwise (up) to
increase ame height and clockwise (down) to decrease.
See above left. Adjusting the ames too high will cause
them to have black tips and cause sooting. Sooting can
cause the glass to get dirty.
Warning: The unit and adjuster may be hot. Wear
gloves and arm protection if making adjustments
while in operation.
Pilot Flames
If pilot ames are less than shown at left, use pilot
adjuster to increase ames.
Rear Burner
Adjuster
Front Burner
Adjuster
Bottom rear view of burner module.
Normal Flame pattern. Note: Flames will vary in height
and position depending on the placement and the amount of
ember wool.
9
SPECIFICATIONS
Accordion Heat
Exchanger
Vent Collar
Brick
Blower
Battery
Pack Rear Burner
Switch Hi-Low Knob
On-Off-Pilot Knob
Ignitor
Blower Speed Switch
On-Off- Thermostat
Switch
Burner Module
Electrical Box
Glass Door
Top Standoffs
10
SPECIFICATIONS
2. Clearance from top of arch to bottom of wood facing. 10 inches with optional arch hood
and 15 inches without arch hood
1
2
1. Clearance from top of glass to 7” mantel. 26 inches
Optional Arch Hood
This replace may be placed on a wood oor.
Hearth is not required in
front of the replace
MINIMUM CLEARANCES FROM COMBUSTIBLE CONSTRUCTION
Unit to oor 0 in.
Face to side wall 7 in.
Unit to top stand-offs 0 in.
Unit to side stand-offs 0 in.
Unit to rear stand-offs 0 in.
Top of Glass to 7” Mantel 26in.
Venting to Combustibles 1 in.
Electrical Rating: 120 Volts, 60 Hs, < 2.75 AMP
Must be
Noncombustible
11
SPECIFICATIONS
42.095
47.595
42.376
43.085 1.000
1.000
32.662
21.135
22.135
10.865
6.865
10.270
10.270
10.894
7.917
Corner
Gas In
Electrical
Hook-up
63.679
12
INSTALLATION
Only For Qualied Installers
Wonder Board
Wood Mantel
Tile
Arch Face
Drywall
Typical Tile Facing Sectional View

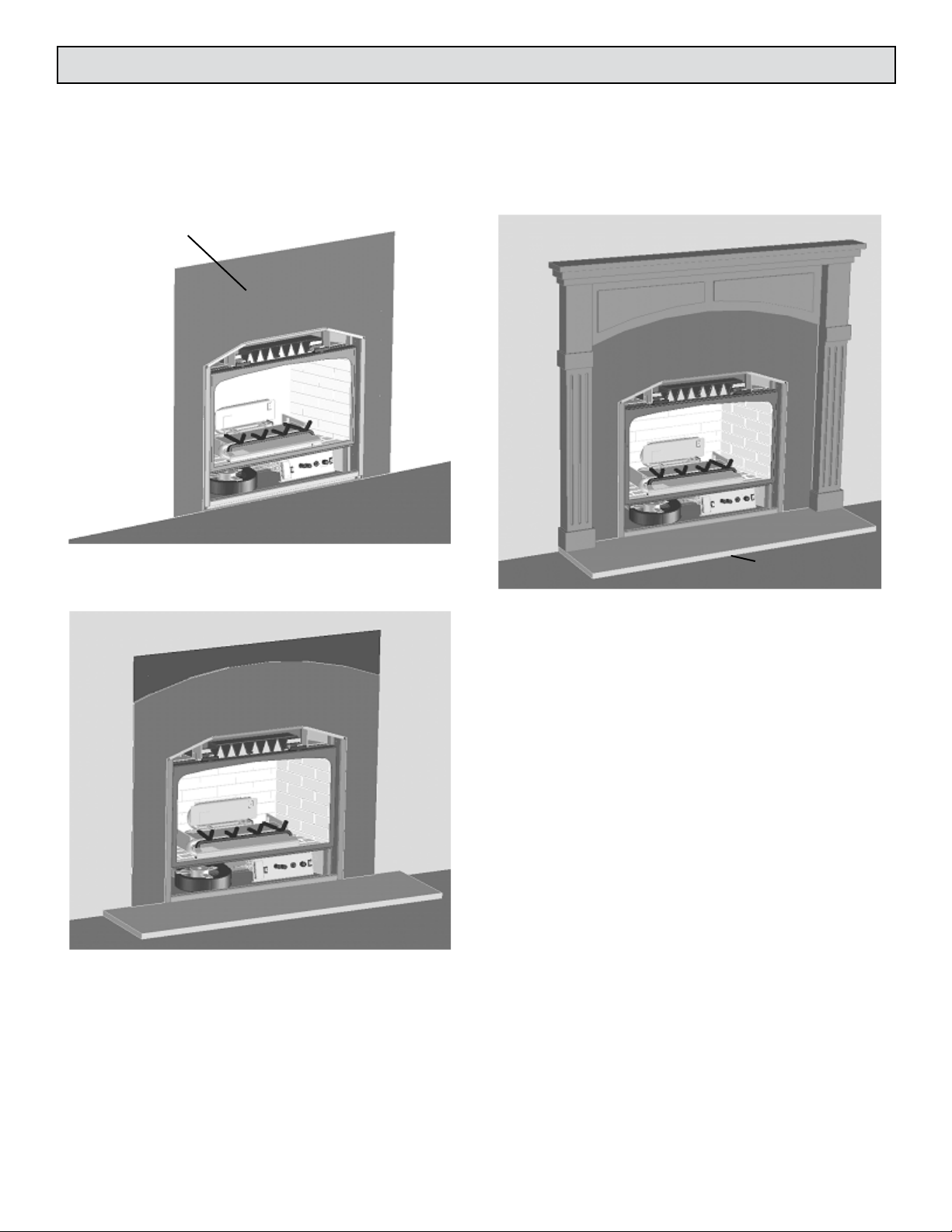

Installation Options
This section deals with basic installation with an Arch
face. It does not describe every possible way to install
this replace. This is why it is important to have a
qualied installer do the installation.
The Serenity III can be laid in stone, brick, or other
masonry products. For this purpose, a special arch face
template ( part # 1-00-4238231 ) is available.
The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 / NFPA 54, or the Natural Gas and
Propane Installation Code, CSA B149.1.
13
INSTALLATION
Only For Qualied Installers
Placement
Here are some of the things that will affect the exact
placement of the replace.
1. Venting conguration.
2. Must decide on mantel and front facing material.
3. Raised hearth, at hearth or raised with no hearth.
4. One, two or no remote duct kits.
5. Thermostat position.
6. Gas line hook-up is on the right side.
7. Electrical hook-up is on the left side.
This appliance must be electrically connected and
grounded in accordance with local codes or , in the
absense of local codes, with the current edition of
NFPA 70-National Electric Code or CSA C22.1-
Canadian Electrical Code.
This unit shall not be installed on carpet, vinyl tile,
or combustible material other than wood
14
INSTALLATION
Only For Qualied Installers
Noncombustible
Noncombustible material such as Dura-rock must be used as
facing on the front of the replace cabinet.
Ceramic tile, marble or other decorative noncombustible
material may be used in front of the Dura-rock. The total
thicknes for all layers of facing material may not exceed one
inch.
A one inch space under the front edge of the replace allows
room for hearth material. Hearth material that is thicker
must be compensated for by raising the replace the proper
amount.
1 inch thick
Installing replace in a wall with an arch face, ceramic tile facing,
and a wood mantel.
15
INSTALLATION
Only For Qualied Installers
Latch Handles
Face Hooks
Slots for face hooks
Slots for face latches
Installing The Face
To install the face, place the hooks on the bottom rear
of the face into the hook slots on the replace. Next with
the top latch handles in the horizontal position push the
face against the replace and swing the latches straight
down causing them to enter the top face slots.
Removing The Face
To remove the face, unlatch the top latches, tilt the top
of the face away from the replace and lift the face out
of the bottom slots.
16
INSTALLATION
Only For Qualied Installers
Burn Only the Fuel for which the Heater is
Equipped
The Serenity III Direct Vent will burn either natural gas
or propane, but requires a change over kit for propane.
The label on the burner system module indicates the fuel
for which it is equipped. A second label, (on the valve)
also indicates the fuel type.
Making The Gas Connection
The gas inlet is located on the bottom right side of the
replace. The inlet tting is a 3/8” female are exible
pipe.
A separate gas shut-off valve and a 1/8” N.P.T. plugged
tapping should be installed immediately upstream of the
connection to the appliance.
The Serenity III Direct Vent Gas Heater must be
disconnected from the gas supply piping during any
pressure testing of that system at pressures in excess of
1/2 psig (3.5 kPa).
The Serenity III gas control valve must be in the OFF
position during any pressure testing of the gas supply
system at pressures equal to or less than 1/2 psig (3.5
kPa).
WARNING: This product must be installed by a
licensed plumber or gas tter when installed within
the Commonwealth of Massachusetts.
WARNING: To avoid pipe compounds from entering
into the gas train, apply compounds only to male
pipe threads and do not apply compound to the rst
two threads.
CAUTION: TEST ALL JOINTS FOR LEAKS
BEFORE OPERATING.
Gas Pressure Requirements:
Correct gas pressure and the use of a properly sized
gas supply line are essential for the safe and efcient
performance of this appliance. Make sure that the
plumber or gas supplier checks the gas supply line and
gas pressure at installation.
NOTE: Improper gas pressure can affect heater
performance, ame color, or cause pilot outage.
DO NOT USE THIS HEATER IF ANY PART HAS
BEEN UNDER WATER OR EXPOSED TO MOISTURE
CORROSION. IMMEDIATELY CALL A QUALlFlED
SERVICE TECHNICIAN TO INSPECT THE HEATER
AND REPLACE ANY PART OF THE CONTROL SYSTEM
AND ANY GAS CONTROL WHICH HAS BEEN UNDER
WATER.
NE PAS SE SERVIR DE CET APPAREIL S’IL A ÉTRE
PLONGÉ DANS L’EAU, COMPLÉTEMENT OU EN
PARTIE. APPELER UN TECHNICIEN QUALIFIÉ POUR
INSPECTER L’APPAREIL ET REMPLACER TOUTE
PARTIE DU SYSTÈME DE CONTRÔLE ET TOUTE
COMMANDE QUI ONT ÉTÉ PLONGÉS DANS L’LAU.
NOTE: NEVER USE PLASTIC PIPE. CHECK TO
CONFIRM WHETHER YOUR LOCAL CODES ALLOW
COPPER TUBING OR GALVANIZED PIPE.
RECOMMENDED GAS PIPE DIAMETER
Pipe Length Schedule 40 Pipe Tubing, Type L
(Feet) Inside Diameter Outside Diameter
N.G. L.P. N.G. L.P.
0-10 1/2” 3/8” 1/2” 3/8”
1.3 cm 1.0 cm 1.3 cm 1.0 cm
10-40 1/2” 1/2” 5/8” 1/2”
1.3 cm 1.3 cm 1.6 cm 1.3 cm
40-100 1/2” 1/2” 3/4” 1/2”
1.3 cm 1.3 cm 1.6 cm 1.3 cm
100-150 3/4” 1/2” 7/8” 3/4”
2.0 cm 1.3 cm 2.3 cm 2.0 cm
Natural Gas:
Maximum inlet pressure 7.0” w.c. (1.74 kPa)
Minimum inlet pressure 5.0” w.c. (1.25 kPa)
Gas manifold pressure 3.5” w.c. (0.87 kPa)
LPG Gas:
Maximum inlet pressure 13” w.c. (3.24 kPa)
Minimum inlet pressure 11” w.c. (2.74 kPa)
Gas manifold pressure 10” w.c. (2.49 kPa)
The appliance area must be kept clear and free from
combustible materials, gasoline and other ammable
vapors and liquids.
VENTING
Only For Qualied Installers
17
6-5/8” x 4” 8” x 5” Description
908 1208 6” Pipe Length
908B 1208B 6” Pipe Length, Black
907 1207 9” Pipe Length
907B 1207B 9” Pipe Length, Black
906 1206 12” Pipe Length
906B 1206B 12” Pipe Length, Black
904 1204 24” Pipe Length
904B 1204B 24” Pipe Length, Black
903 1203 36” Pipe Length
903B 1203B 36” Pipe Length, Black
902 1202 48” Pipe Length
902B 1202B 48” Pipe Length, Black
911 1211 11” to 14-5/8” Pipe, Adjustable
911B 1211B 11” to 14-5/8” Pipe, Adjustable, Black
n/a 1217 17” to 24” Pipe, Adjustable
945 1245 45o Elbow
945B 1245B 34o Elbow, Black
990 1290 90o Elbow
990B 1290B 90o Elbow, Black
940 1240 Rnd Support Box/Wall Thimble Cover
941 1241 Cathedral Ceiling Support Box
943 1243 Flashing, 0/12 to 6/12 Roof Pitch
943S 1243S Flashing, 7/12 to 12/12 Roof Pitch
953 1253 Storm Collar
963 1263 Ceiling Firestop
988 1288 Wall Strap
981 1281 Snorkel Termination (36”)
982 1282 Snorkel Termination (14”)
984 1284 Horizontal Square Termination
980 1280 Vertical Termination
991 1291 Vertical Termination, High Wind
950 1250 Vinyl Siding Standoff
1222D (Only available from Harman) 8” x 5” to 6 5/8” x 4” Adaptor
Part Numbers for Simpson Dura-Vent Pipe and Fittings
Use Only Approved Venting
This appliance has been tested and is listed for installation with only the listed manufacturer’s venting components
contained on the next few pages. The vent manufacturer warranty will be voided, and serious re, health, or other
safety hazards may result from any of the following actions:
• Installation of any damaged component.
• Unauthorized modication of the venting system or its components.
• Installation of any component or part not manufactured or approved by that same venting manufacturer.
• Installation other than as instructed by the venting manufacturer and the appliance manufacturer.
Consult your local building codes before beginning the installation, and follow the manufacturer’s instructions
exactly. The Simpson Duravent GS venting components listed below are approved for use with the Serenity Direct
Vent Gas Fireplace.
VENTING
Only For Qualied Installers
18
VENTING
Only For Qualied Installers
19
VENTING
Only For Qualied Installers
20
Table of contents
Other Harman Indoor Fireplace manuals
Harman
Harman P35I User manual
Harman
Harman 300i User manual
Harman
Harman P35I Safety guide
Harman
Harman Accentra Pellet Insert Installation instructions
Harman
Harman P35I User manual
Harman
Harman Accentra Pellet Insert Installation instructions
Harman
Harman P35i-C User manual
Harman
Harman Accentra Installation instructions
Harman
Harman 300i Installation instructions
Harman
Harman Accentra 52i Pellet Insert User manual
Harman
Harman TL 2.6 User manual
Harman
Harman Accentra52i-TC User manual
Harman
Harman Accentra 52i User manual
Harman
Harman TL2.0 User manual
Harman
Harman Accentra52i-TC User manual
Harman
Harman Magnafire Elite Coal Installation instructions
Harman
Harman Accentra Pellet Insert Installation instructions
Harman
Harman Accentra 52i User manual
Harman
Harman Magnafire Series Coal StovesMark I User manual
Harman
Harman 300i Installation instructions
Popular Indoor Fireplace manuals by other brands
Ortech
Ortech LEDFP-52BIF instruction manual
Security Chimneys International
Security Chimneys International SB36 installation instructions
Majestic Appliances
Majestic Appliances Royal Designer Collection CL/R36 Specifications
Ecoflam
Ecoflam BLU 1500.1 PAB Operating instruction
C3
C3 C3P23C9-2067W operating instructions
Empire Comfort Systems
Empire Comfort Systems B3STHK18STN-1 Installation instructions and owner's manual
Firegear
Firegear OD42-N Owners & installation manual
Nordica
Nordica MONOBLOCCO 800 ANGOLO user manual
Spark
Spark SS-36-N Owner's operation and instruction manual
Yunca Gas
Yunca Gas Multifuel burner Operations, maintenance & warranty information
Planika
Planika HotBox user manual
Dimplex
Dimplex BLF50 owner's manual
