Harman P61 User manual

P61 Pellet Stove Owners Manual
SAFETY NOTICE
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW ROOM HEATER. FAILURE
TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.
FOR USE IN THE U.S. AND CANADA. SUITABLE FOR INSTALLATION IN MOBILE HOMES
IF THIS HARMAN STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY, FOLLOW
INSTALLATION DIRECTIONS.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION
REQUIREMENTS IN YOUR AREA.
CONTACT YOUR LOCAL AUTHORITY (SUCH AS MUNICIPAL BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE
PREVENTION BUREAU, ETC.) TO DETERMINE THE NEED FOR A PERMIT.
CETTE GUIDE D'UTILISATION EST DISPONIBLE EN FRANCAIS. CHEZ VOTRE CONCESSIONNAIRE DE HARMAN
HOME HEATING.
SAVE THESE INSTRUCTIONS.
Installation & Operating Manual
R10
“Ce manuel est disponible en Français sur demande”
Item# 3-90-05810

Fig. 1
NOTICE: This Label Copy Is For Reference Only. Consult The
Actual Unit Label For Clearances And Other Specic Information.

3
Please read this entire manual before you install and use your new
room heater. Failure to follow instructions may result in
property damage, bodily injury, or even death.
SUITABLE FOR MOBILE HOME INSTALLATIONS.
SAVE THESE INSTRUCTIONS
Harman Home Heating
352 Mountain House Road
Halifax, PA 17032
Testing Label 2
Assembly & Installation 4
Venting 7
Operation 12
ESP Control 14
Maintenance 15
Trouble Shooting 18
Feeder Parts 19
Specications 20
Wiring Diagram 21
Options 22
Parts List 24
Warranty 25
Table of Contents

4
Unpacking
The P61 is bolted to the skid to prevent movement
during shipping.
To free the stove from the skid you must remove the
hold-down bolts in the rear of the pedestal base.
Removing or Installing rear cover panels
To remove the rear cover panels, loosen the screws
slightly and slide the covers outward as shown in the
illustration. To reinstall, simply slide back into place and
retighten the screws.
Firebrick
Install the rebrick vertically on the angle above the
burnpot.
Flame Guide
Install the cast iron ame guide on top of the burnpot
and make sure it is fully seated against the auger
opening. The bottom of the ame guide is marked 38+.
Assembly and Installation
Rear Cover
Panels
Shipping Bolts: These
holes are also used for
Mobile Home Installation
Fig. 2
Draft Test Procedure
Before attaching any vent pipe to the stove, perform
a draft test, for later comparison.
Remove the plug bolt on the underside of the rebox
as shown. Using the hole from the bolt, attach a draft
meter that is capable of reading at least .5 inches of
water column (W.C.). You are going to want the meter
reading negative pressure.
Turn the feed adjuster to "Test". For the rst minute,
everything will run. Record the high draft reading
_______ . After the rst minute, the distribution blower
will go to a low speed. Then, after the second minute,
two minutes after turning to test, the distribution
blower will come back up to high, and the combustion
blower will drop to low. During this time, record the low
draft________. Perform the test again after the venting
is complete. Compare your readings. If there is more
than a .05 difference, you have too much restriction in
the venting. There is no adjustment for the draft other
than improving the venting conguration. Leaving the
stove in "test" will continue to cycle the blowers each
minute. Record your nal draft redings here. _________
High, and ________ Low.

5
Installing
Place the stove on a non-combustible oor or a oor
protector providing a minimum .84k value. Floor protection
must extend 6 inches to the front, 6 inches to the sides
and 1 inch to the rear of the stove.

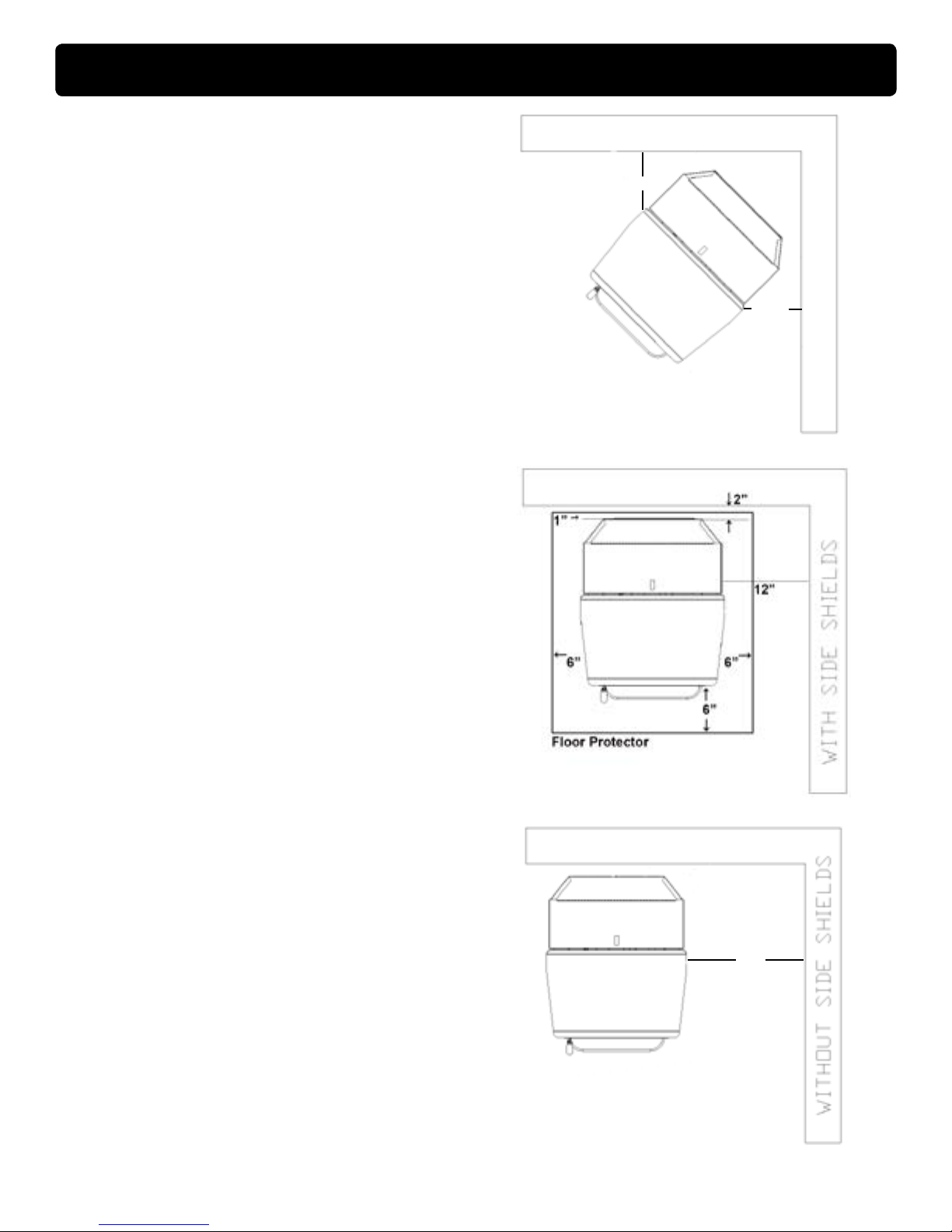

Place the stove away from combustible walls at least
as far as shown in gures 3,4 and 5. Please note the
difference in side wall clearance with and without side
shields.
Note that the clearances shown are minimum for safety
but do not leave much room for access when cleaning
or servicing. Please take this into account when placing
the stove.
Connect the power cord to a 120 V.A.C. 60Hz grounded
receptacle.
After connecting the ue system, perform the second draft
test. However, prior to taking the draft reading be sure all
doors and windows in the home are closed. Record the
draft reading_______. If this reading is more than .05"
lower than the unconnected reading, check for possible
restrictions or the need for outside air (see page 7).
Mobile Home Installation
When installing this unit in a mobile home, several
requirements must be followed:
1. The unit must be bolted to the oor. This can be done with
1/4" lag screws through the 2 holes in the base plate.
2. The unit must also be connected for the outside air.
See page 7.
3. Floor protection and clearances must be followed as
shown.
4. Unit must be grounded to the metal frame of the mobile
home.
5. The stove may not be installed in a room designated
for sleeping.
CAUTION: This appliance must be vented to the
outside.
Due to high temperatures, the stove should be placed out
of trafc and away from furniture and draperies.
Children and adults should be alerted to the hazards of
high surface temperatures and should stay away to avoid
burn to skin and/or clothing.
Young children should be carefully supervised when they
are in the same room as the stove.
Clothing and other ammable materials should not be
placed on or near this unit.
Installation and repair of this Harman Stove should be
done by a qualied service person. The appliance should
be inspected before use and at least annually by a qualied
service person. More frequent cleaning will be required.
It is imperative that control compartments, burners, and
circulating air passageways of the stove be kept clean.
18"
Fig. 5
Fig. 3
9"-13"
9"-13"
9" With Side Shields
13" Without Side Shields
Installation
Mobile home installation should be done in
accordance with the Manufactured Home and Safety
Standard (HUD), CFR 3280, Part 24.
Fig. 4

6
V
Venting
Requirements for Terminating the Venting
WARNING: Venting terminals must not be recessed
into a wall or siding.
NOTE: Only pellet vent pipe wall pass-throughs
and re stops should be used when venting through
combustible materials.
NOTE: Always take into consideration the effect the
prevailing wind direction or other wind currents will
cause with yash and /or smoke when placing the
termination.
In addition, the following must be observed:
A. The clearance above grade must be a minimum
of 18".1
B. The clearance to a window or door that may be
opened must be a minimum of 48".1
(with outside air installed, 18”)
C. A 12" clearance to a permanently closed window
is recommended to prevent condensation on the
window.
D. The vertical clearance to a ventilated soft located
above the terminal within a horizontal distance of
2 feet (60 cm) from the center-line of the terminal
must be a minimum of 18".
E. The clearance to an unventilated soft must be a
minimum of 12".
F. The clearance to an outside corner is 11" from center
of pipe.
G. The clearance to an inside corner is 12".
H. A vent must not be installed within 3 feet (90 cm)
above a meter/regulator assembly when measured
from the horizontal center-line of the regulator.1
I. The clearance to service regulator vent outlet must
be a minimum of 6 feet.1
J. The clearance to a non-mechanical air supply inlet to
the building or the combustion air inlet to any other
appliance must be a minimum of 48”.1
K. The clearance to a mechanical air supply inlet must
be a minimum of 10 feet.1
(with outside air installed, 6 feet )
L. The clearance above a paved sidewalk or a paved
driveway located on public property must be a
minimum of 7 feet.1,2
M. The clearance under a veranda, porch, deck or
balcony must be a minimum of 12 inches.1,3 (see B.)
NOTE: The clearance to vegetation and other exterior
combustibles such as mulch is 36” as measured from
the center of the outlet or cap. This 36” radius continues
to grade or a minimum of 7 feet below the outlet.
1Certain Canadian and or Local codes or regulations
may require different clearances.
2A vent shall not terminate directly above a side-walk
or paved driveway which is located between two
single family dwellings and serves both dwellings.
3Only permitted if veranda, porch, deck, or balcony is
fully open on a minimum of 2 sides beneath the oor.
NOTE: Where passage through a wall, or partition of
combustible construction is desired, the installation
shall conform to CAN/CSA-B365. (if in Canada)
= Vent terminal

7

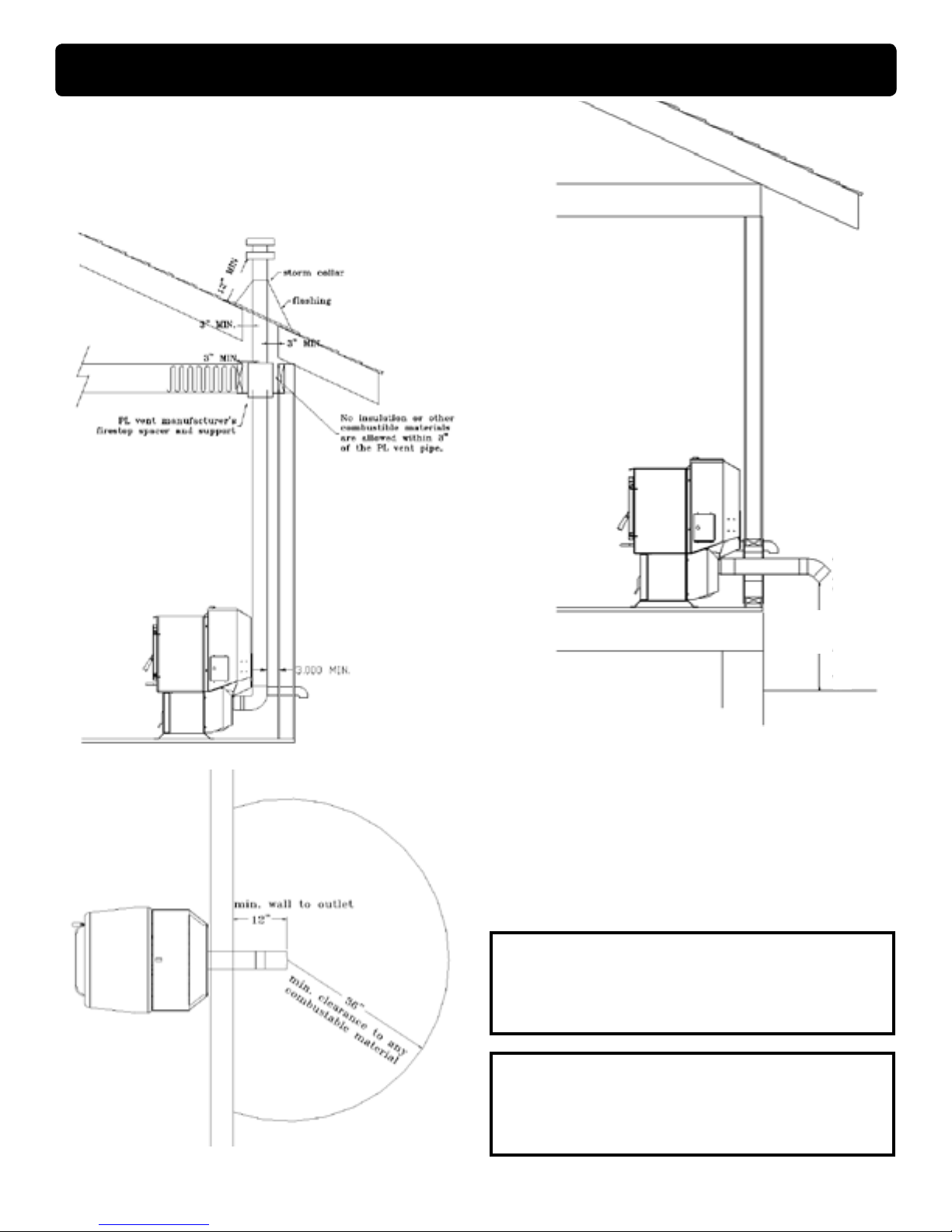

A combustion blower is used to extract the combustion
gases from the rebox. This causes a negative pressure
in the rebox and a positive pressure in the venting
system as shown in g. 6. The longer the vent pipe
and more elbows used in the system, the greater the
ow resistance. Because of these facts we recommend
using as few elbows as possible and 15 feet or less
of vent pipe. The maximum horizontal run should not
exceed 48". If more than 15 feet of pipe is needed, the
diameter should be increased from 3" to 4" because
a larger pipe causes less ow resistance. Be sure
to use approved pellet vent pipe wall and ceiling
pass through ttings to go through combustible
walls and ceilings. Be sure to use a starting collar to
attach the venting system to the stove. The starting
collar must be sealed to the stove with high temp
silicone caulking.
Vent Pipe
Pellet vent pipe (known as type "L" or "PL" vent) is
constructed of two layers with air space between the
layers. This air space acts as an insulator and reduces
the outside surface temperature to allow a clearance
to combustibles of only 3 inches. The sections of pipe
lock together to form an air tight seal in most cases;
however, in some cases a perfect seal is not achieved.
For this reason and the fact that the P61 operates with
a positive vent pressure we specify that the joints
also be sealed with high temp silicone.
Outside Air
Outside air is optional except in mobile homes and
where building codes require. The benet of outside air
is mainly noticed in small very tight houses.

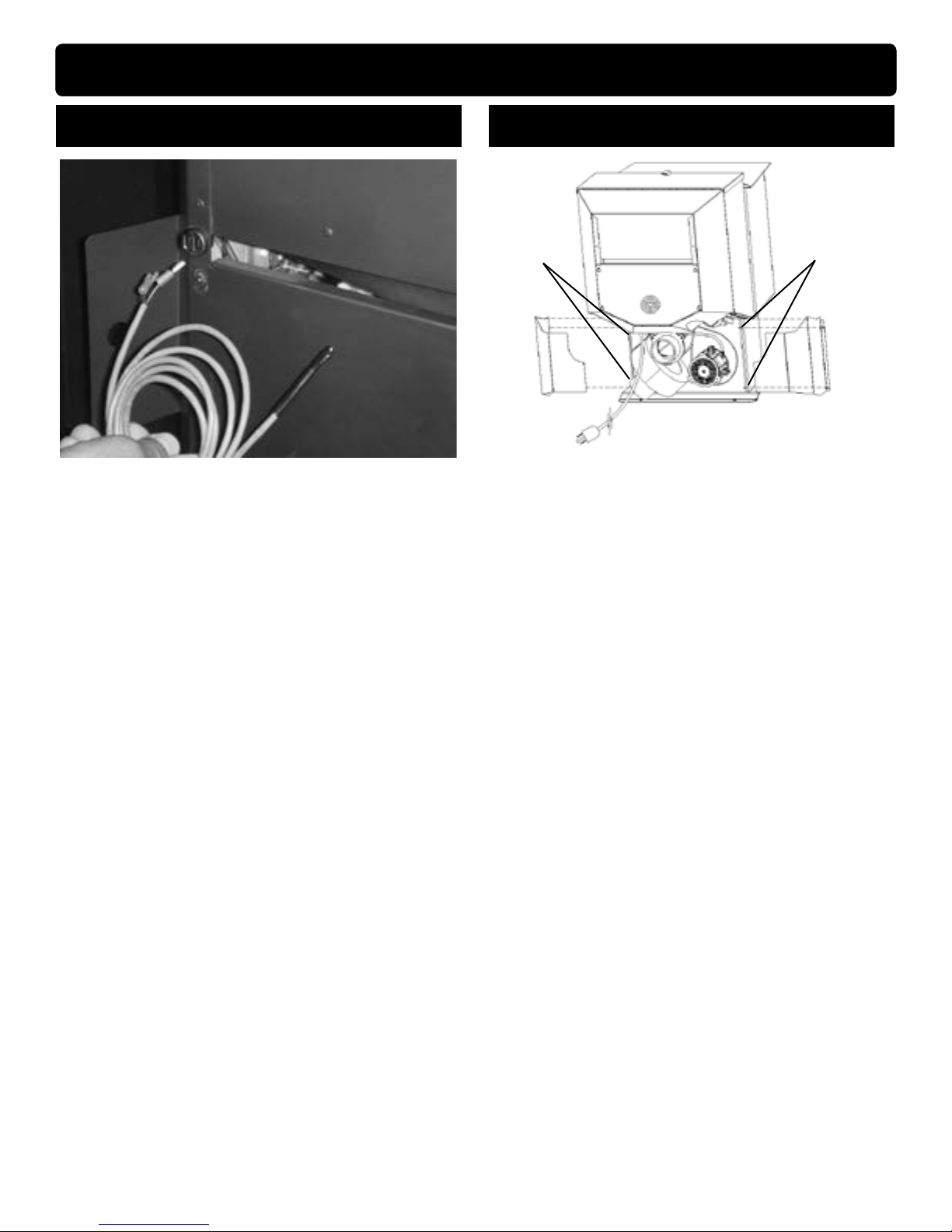

To install outside air use 2 3/8" I.D. ex pipe part
number 1-00-08543 (25 ft.). There is a break-away
hole on the rear panel which must be removed before
connecting the ex pipe. The pipe should be run outside
and terminate to the side or below the vent pipe outlet
so the ue outlet is more than 12" from the inlet cover.
The maximum length run of this pipe is 15 feet. If a
longer run is needed the size must be increased to 3".
Inlet cover part number 1-10-08542 should be used to
keep birds, rodents etc. out of the pipe.
HRV
When installing in a house with a Heat Reclaiming
Ventilation System (HRV) be sure the system is
balanced and is not creating a negative pressure in
the house.
Inlet Cover part#
1-10-08542
Flex pipe part #
1-00-08543 (25 ft.)
Venting
IMPORTANT NOTICE
Pellet Vent "L" or "PL" Vent Pipe Must be used.
Fig. 7
Outside air ex
pipe goes here
The Harman Direct Vent Wall
Passthrough allows the proper
protection of the wall and
brings outside air to the stove
with one component. Part #
1-00-677077 is all you need.
(ts only 3" pellet pipe)
Fig. 6
+
+
= Positive static pressure
= Negative static pressure
+
-

8
#2 Preferred method
This method also provides excellent venting for
normal operation but requires the stove to be
installed farther from the wall. The vertical portion
of the vent should be three to ve feet high and at
least three inches from a combustible wall. This
vertical section will provide natural draft in the event
of a power failure.
#1 Preferred method
This method provides excellent venting for normal
operation and allows the stove to be installed
closest to the wall. Two inches from the wall is
safe; however, four inches allows better access to
remove the rear panel. The vertical portion of the
vent should be three to ve feet high. This vertical
section will provide natural draft in the event of a
power failure.
Venting
Fig. 8
3 ft.
to combustibles
Fig. 9
3 ft.
to combustibles

9
#4 Installing into an existing chimney
This method provides excellent venting for normal
operation. This method also provides natural draft
in the event of a power failure. If the chimney
condition is questionable you may want to install a
liner as in method #7. Check with your local codes
to be sure a liner is not mandatory.
#5 Installing into an existing replace
chimney
This method provides excellent venting for normal
operation. This method also provides natural draft
in the event of a power failure.
The damper area must be sealed with a steel
plate or berglass. A cap should be installed on the
chimney to keep out rain. If the chimney condition
is questionable you may want to install a liner all
the way to the top as in method #6. Check with
your local codes to be sure a liner is not mandatory.
Fig. 10
Fig. 11
Venting

10
#6 Installing into an existing replace
chimney
This method provides excellent venting for normal
operation. This method also provides natural draft
in the event of a power failure.
Some places in the US and Canada it is required
that the vent pipe extend all the way to the top of
the chimney.
In this method a cap should also be installed
on the chimney to keep out rain. Be sure to use
approved pellet vent pipe ttings. Seal pipe joints
with silicone in addition to the sealing system used
by the manufacturer. Pipe size should be increased
to 4" using this method.

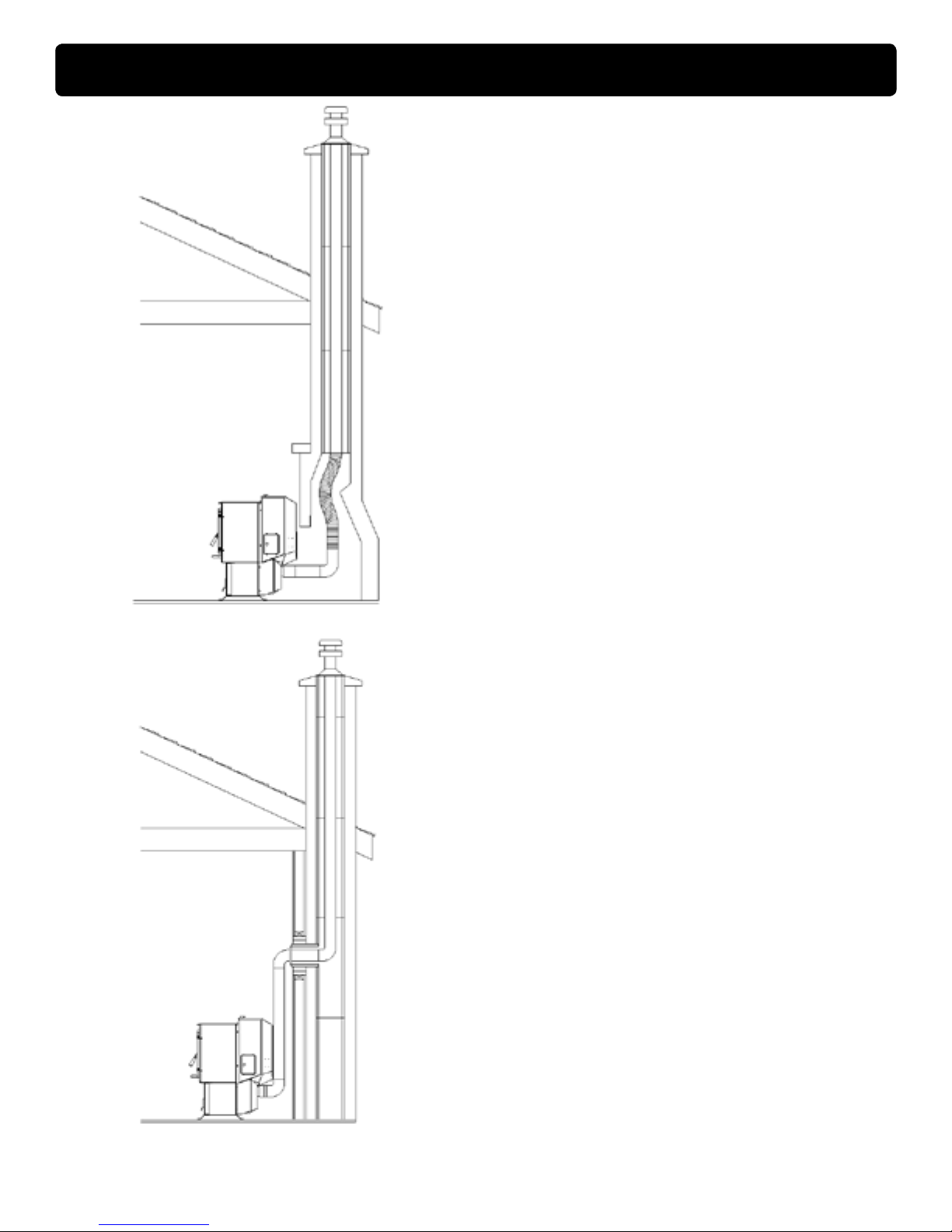

#7 Installing into an existing chimney
This method provides excellent venting for normal
operation. This method also provides natural draft
in the event of a power failure.
Some places in the US and Canada it is required
that the vent pipe extend all the way to the top of
the chimney. The pipe or liner inside the chimney
should be 4"diameter.
In this method a cap should also be installed on
the chimney to keep out rain.
Fig. 12
Fig. 13
Venting

11
#8 Installing through the ceiling vent
Through the ceiling vent, follow the vent manufacturers
recommendations when using wall and ceiling pass
throughs.
Fig. 14
(See Page 9 for
corner installation
clearances)
Minimum flue vent
conguration
It is recommended that outside
air be installed with this venting
conguration.
Min. above ground level
18"
Fig. 15
Fig. 16
Venting
DO NOT INSTALL A FLUE DAMPER IN THE
EXHAUST VENTING SYSTEM OF THIS UNIT.
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE
SERVING ANOTHER APPLIANCE.
INSTALL VENT AT CLEARANCES SPECIFIED BY
THE MANUFACTURER
CAUTION
THE STRUCTURAL INTEGRITY OF THE MOBILE
HOME FLOOR, WALL, AND CEILING/ROOF
MUST BE MAINTAINED.
CAUTION
THE STOVE IS HOT WHILE IN OPERATION.
KEEP CHILDREN, CLOTHING AND FURNITURE
AWAY. CONTACT MAY CAUSE SKIN BURNS.

12
Operation
Starting First Fire
Be sure the power cord is plugged into a 120 volt
receptacle. This can be veried by the red power light
on the control panel.
Be sure there is no fuel or other combustibles in
the ash pan prior to lighting.
Fill the hopper with pellets.
Fill the burn pot with pellets to a level just short of
overowing, g. 17.
Adjust feed rate. If this is your rst re or you are trying
different pellets, set the feed adjuster to "4", g. 18.
This is a conservative number and will probably need
to be increased. After you know a feed rate setting that
works well, use that setting. Remember, too high of a
feed rate will waste fuel.
Turn Mode selector to "OFF" and then to "Stove
Temp". This will turn the combustion blower to high.
When starting a re always turn the mode selector to
"OFF" before selecting the desired mode. This resets
the control for start-up.
Turn Temp Dial to 7. This will allow the stove to burn
at maximum for feed rate adjusting purposes.
Apply starting gel to pellets in burn pot and light
the gel. Close the door after lighting. At this point the
distribution and combustion lights will be on and the
feed motor light will be off. As the temperature of the re
increases, the feed motor light will come on and pellets
will feed into the burn pot. As the stove temperature
increases the distribution blower speed will increase.
After 30 to 45 minutes it may be necessary to readjust
the feed rate. The feed rate should be adjusted so
there is about one inch of ash in front of the re, g. 20.
This is a maximum burn position and the stove may not
achieve this position under normal burn rates.
Fig. 17
Fig. 19
Fig. 20
1"
"NEVER USE GASOLINE, GASOLINE-TYPE LANTERN
FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR
SIMILAR LIQUIDS TO START OR "FRESHEN UP " A FIRE
IN THIS HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY
FROM THE HEATER WHILE IN USE".
MANUAL START UP
Fig. 18

13

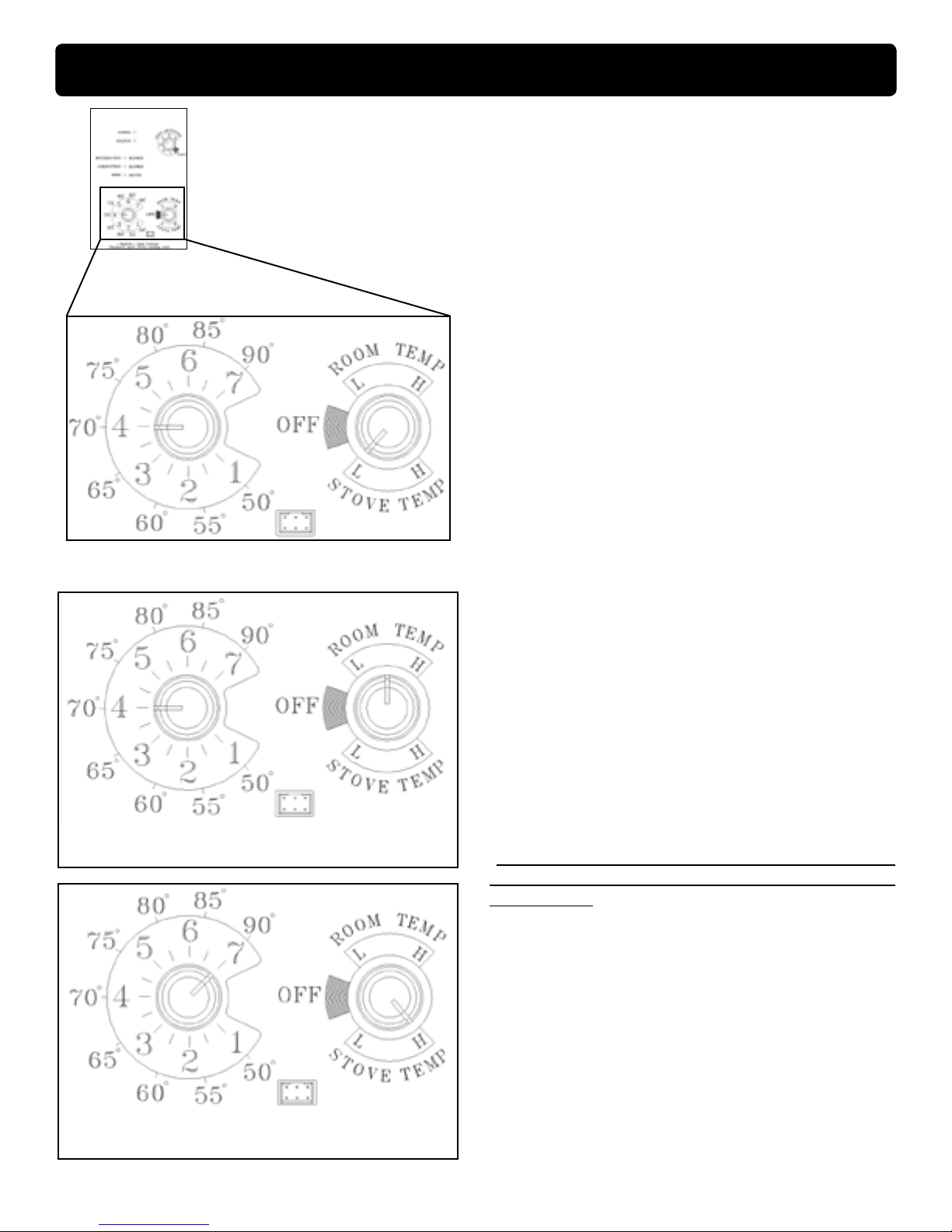

When to use "Stove Temp Mode"
In "Stove Temp Mode" the Stove Temp Dial determines
the temperature of the stove. Heat output and fuel
consumption will remain constant. This makes it
possible to tell how long a hopper full of pellets will last.
The distribution blower speed will vary according to the
position of the mode selector, g. 21.
When to use "Room Temp Mode"
In "Room Temp Mode" heat output is controlled
automatically by the Room Sensing Probe. When
the Room Sensing Probe calls for heat, the stove will
increase output. When the Room Sensing Probe is
getting close to the set temperature, the stove will begin
to level off output and keep the re burning at just the
right temperature to maintain that setting.
High output is determined by the feed rate. The
maximum feed rate should be set for 1" of ash in front
of re.
In "Room Temp Mode" fuel consumption is sacriced
for exact room temperature. Therefore, as it gets colder,
more pellets will be burned automatically.
The distribution blower speed will vary according to
the position of the mode selector, g. 21.
Shut-Down Procedure
To kill the re or stop burning the stove, turn the Mode
Selector to "OFF". This will cause the re to diminish
and burn out. When the re burns out and the stove
cools down everything will stop.
Never pull the plug to shut down the stove, all motors
will stop. This will cause incomplete combustion and
smoke in the rebox. If the load door is opened the
smoke will escape.
The best way to shut down the stove is to simply
let it run out of pellets, then the stove will shut down
automatically.
MANUAL IGNITION/OPERATION
This setting will produce medium heat with the distribution
blower on "low".
Fig. 21
This setting will produce a room temperature of 70
degrees with the distribution blower at medium speed.
This setting will produce continuous maximum heat output
with the distribution blower at full speed.

14
Feed adjuster
Sets the maximum feed
rate
Test
Runs all motors at full
speed for two minutes
to check operation. After
two minutes the stove
will go to minimum burn
and the blowers will
alternate from high to
low every two minutes
to remind you that you
are still in "Test Mode".
Distribution Blower
speed adjustment range.
STATUS LIGHT ERROR MESSAGES:
1 Blink: Indicates control board self diagnostic failure.
This requires a manual reset*.
3 Blinks: Indicates ESP (Exhaust Sensing Probe)
failure. This requires a manual reset*.
4 Blinks: Can occur only in Room Temp Mode and
indicates Room Sensing Probe failed or not installed.
If a Room Sensing Probe is then installed the status
light will automatically reset.
6 Blinks : Indicates that the control has calculated poor
or incomplete combustion occurring for more than 50
minutes. See Troubleshooting section for more details.
* Manual reset, disconnect power cord for a few
seconds and reconnect. If error still occurs call your
Dealer.
Temp dial
Allows you to adjust the Room temperature in Room Temp Mode
using the outer scale marked in degrees Fahrenheit. It also allows
you to adjust the stove temperature while in Stove Temp Mode
using the inner scale marked from 1 to 7.
Mode Selector
Allows you to choose between Room Temp Mode,
Stove Temp Mode, or OFF. Also allows you to vary
the distribution blower speed by turning the knob to
the high or low side of each mode.
Power Light
Indicates power to the
control.
Indicates Power to the
feed motor.
Indicates Power to
combustion blower
Status Light
Will be lit in either stove
or room temp mode when
pointer is not within off
position band except after
normal shut down. Blinks
to indicate errors listed
below.
Indicates power to
distribution blower.
ESP CONTROL

15
The room sensor is a small temperature sensor
on the end of a 60" wire. This sensor is installed
much like a standard wall thermostat. Because
it is so small, it can be hidden along the trim of a
doorway or even up the leg of a coffee table. There
is a remote room sensor port on the rear of the
unit for easy external connection. Use standard
18-2 thermostat wire to extend the distance to the
desired location (100' maximum). The room sensor
should be installed in the location where you want
to control the temperature.
NOTE: Distances of more than 25 feet from the
unit or in another room are not recommended. The
room sensor is essential for the P61's excellent
efciency.
NOTE: It is recommended that the room sensor
be installed, even if only installed on the rear of
the unit as a return air sensor.
Fig. 22
Room Sensor Installation
Room Sensor and Rear Shield Installation
Fig. 23
5/16" Hex Head
Screws (2 on
each side)
5/16" Hex
Head Screws
(2 on each
side)
The rear insulated shields are split in the middle
for easy removal. Each shield has two 5/16" hex
head screws that only need to be loosened (NOT
REMOVED) to allow the shield to slide away from
the unit.
NOTE: It is not recommended that the unit be
operated with the shields removed, due to the
hot and moving parts which they protect.
Rear Shields

16
Removing Ashes:
When approximately 1 ton of pellets has been burned,
it will be necessary to empty the ash pan.
Ashes should be placed in a metal container with
a tight tting lid. The closed container of ashes
should be placed on a noncombustible oor or
on the ground, well away from all combustible
materials, pending final disposal. If ashes are
disposed of by burial in soil or otherwise locally
dispersed, they should be retained in the closed
container until all cinders have thoroughly cooled.
It is recommended that the stove is cold and shut down
when removing the ash pan.
1. Pull on latch handle to open the ash door, and remove
ash pan.
2. Close the ash door while dumping ashes. Use ash
pan handle to carry and dispose of ashes.
3. Return the ash pan into the stove and latch the ash
door securely.
Cleaning:
Scrape the burn pot surface regularly. Whenever
adding fuel, it is a good time to scrape the burn pot.
Using the at end of the scraper tool, scrape under
the re to remove any carbon deposits which may be
forming. The more frequent the scraping, the better
performanc you'll have.
The stove will need to be cleaned for approximately
every 2 to 5 tons of pellets burned. The amount of
pellets burned before cleaning will vary depending on
the brand of pellets.
1. Shut down the stove and disconnect the power
cord to insure that all motors are stopped.
2. Remove ash pan as described earlier.
3. Remove combustion blower cover by turning the latch
vertical as shown in Fig.26 and sliding the cover out
of the slot on the left (Fig.27.) This will expose the
combustion blower wheel and ue outlet, (Fig.24.)
4. Clean the blower wheel with a brush and a vacuum
cleaner.
5. Use a brush (Fig.30) to clean the ue, being careful
not to damage the ESP probe. The ue goes straight
through into the vent pipe (Fig.29) therefore, the vent
pipe can also be cleaned, to some extent, through
the ue outlet.
6. Reinstall the blower cover and relatch.
Scraper
Blower Cover
Latch
Blower Wheel
Flue Outlet
Heat Exchanger Fins
Fig. 25
Combustion
Blower Cover
Fig. 24 Blower Cover
Latch
Maintenance
The draft pressure switch senses the pressure in
the hopper. Note the location of this tting, known
as the mufer. Depending on the amount of nes
in the fuel, this mufer may need to be cleaned
periodically.Usecautionwhencleaningoremptying
the hopper.

17
Fig. 31
Fig. 30
Brush not supplied. Can be found in
hardware stores.
Soot and Fly Ash
The products of combustion will contain small particles
of y ash. The y ash will collect in the exhaust venting
system and restrict the ow of the ue gases. Incomplete
combustion, such as occurs during startup, shutdown,
or incorrect operation of the room heater, will lead to
some soot formation which will collect in the exhaust
venting system. The exhaust venting system should
be inspected at least once every year to determine if
cleaning is necessary.
Maintenance
Exposed blower wheel
and ue opening, NOTE:
ESP probe is visible.
ESP probe
Fig. 28
Blower cover
removed.
ESP Probe
Fig. 29
Be careful not
to damage ESP
probe when
cleaning with
brush.
7. Open the burn pot slide as shown, clean with vacuum
and close.
8. Clean the heat exchanger with the scraper as shown
in Fig. 25.
9. Brush or scrape the inside of the stove to remove
y ash.
10. Scrape the burnpot with the at end of the provided
scraper. Fig.31.
11.Slide the ash pan into stove and re-latch the ash
pan door.
Latch "closed "with blower
cover in place. Burn pot
clean-out is closed.
Fig. 26
Latch "open "with blower
cover partly removed. Burn
pot clean-out is open.
Fig. 27

18
FEEDER DOES NOT FEED
1. No pellets in hopper.
2. Feed motor will not run until ESP senses 165 deg.
F. Maybe you did not put enough pellets in the burn
pot before lighting the re.
3. Feed motor has failed.
4. Something is restricting ow in the hopper or causing
the slide plate to stick.
5. Firebox draft may be too low for low draft pressure
switch in feeder circuit to operate. Check for closed
doors, loose or missing gasket on doors or hopper
lid, faulty pressure switch.
PARTIALLY BURNED PELLETS
1. Feed rate too high.
2. Draft too low. (Check burn pot clean-out slide and
door gasket).
3. Burn pot or heat exchanger ns may need to be
cleaned.
4. Combination of all of the above.
SMOKE SMELL
Seal the vent pipe joints and connection to stove with
high temp silicone.
FIRE HAS GONE OUT
1. No pellets in hopper.
2. Feed rate too low.
3. Something is restricting fuel ow.
4. Feed motor or draft motor has failed.
5. Power failure or blown fuse.
SMOKE IS VISIBLE COMING OUT OF VENT
1. Air-fuel ratio is too rich.
A. Feed rate too high.
B. Draft too low caused by a gasket leak.
LOW HEAT OUTPUT
1. Feed rate too low
2. Draft too low because of gasket leak.
3. Poor quality or damp pellets
4. Combination of 1. and 2.
Trouble-Shooting
Cleaning Burn Pot
Whenever your stove is not burning, take the
opportunity to scrape the burn pot to remove carbon
buildup. A vacuum cleaner is handy to remove the
residue. Be sure the stove is cold if you use a vacuum.
Carbon buildup can be scraped loose with the re
burning using the special tool provided with your stove.
Scrape the oor and sides of the burn pot. The carbon
will be pushed out by the incoming fuel. Always wear
gloves to do this.
Removing Ashes
Turn the Temperature Dial to minimum approximately
30 minutes before removing ashes. This will result in a
cooler stove and ash pan.
Maximum feed settings are not needed in most cases.
Operating in the normal range is recommended when
maximum heat output is not required. The ESP probe
prevents the stove from being over-red.
Keep the stove free of dust and dirt.
Helpful Hints
Pellet fuels are put into 3 categories in terms of ash content. Premium at 1% or less, Standard at 3% or less
and all others at 3% or more.
The P61 is capable of burning all 3 categories of pellets due to a patented feeder and burn pot system.
It should be noted, however, that higher ash content will require more frequent ash removal and may provide
less BTU's per lb. Normally, standard and high ash pellets cost less than premium pellets and can be cost effec-
tive when burned in the P61.
The moisture content must not exceed 8%. Higher moisture will rob BTU's and may not burn properly.
Fuel

19
5.250"
Specications
12.375"
34.5"
9"
32.375"
23.5"
29.5"
Weight 249 lbs.
Blower 135 cfm
Feed Rate .75 to 7.5 lbs. per hr.
Hopper Capacity 72 lbs.
Fuel Wood Pellets
Flue Size 3 inch
Outside Air Size 2 3/8 in. Inside diameter
On-Board Fuse 6 amp

20
Wiring Diagram
