Harman P43 User manual

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1813-90-436168i
Installation Manual
Installation and Appliance Setup
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Model(s):
P43, P61A & P68
Freestanding Pellet Stove
NOTICE: SAVE THESE INSTRUCTIONS
Tested and approved for wood pellets and or a mixture of
50-50 wood pellets / shelled corn mixture, burning of any
other type of fuel voids your warranty. When burning pellet/
corn blends more frequent cleanings may be required.
CAUTION
!
To obtain a French translation of this manual, please
contact your dealer or visit www.harmanstoves.com
Pour obtenir une traduction française de ce manuel, s’il
vous plaît contacter votre revendeur ou visitez www.
harmanstoves.com
NOTE
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
stove.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
ammable materials.
• Keepclothing,furniture,draperiesandotherammable
materials away.
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
WARNING
!
Please read this entire manual before
installation and use of this pellet fuel-
burning room heater.
Failure to follow these instructions could
result in property damage, bodily injury
or even death.
• Donotstoreorusegasolineorotherammablevapors
and liquids in the vicinity of this or any other appliance.
• Donotoverre-Ifanyexternalpartstartstoglow,you
areoverring.Reducefeedrate.Overringwillvoid
your warranty.
• Comply with all minimum clearances to combustibles
asspecied.Failuretocomplymaycausehousere.
WARNING
!
!WARNING
This product and the fuels used to operate this product
(wood), and the products of combustion of such fuels, can
expose you to chemicals including carbon black, which
is known to the State of California to cause cancer, and
carbon monoxide, which is know to the State of California
to cause birth defects or other reproductive harm. For
more information go to: www.P65Warnings.ca.gov

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1823-90-436168i
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the stove or to property.
Installation Standard Work Checklist...............3
1 Product Specic and Important Safety Information
A.ApplianceCertication .......................4
B.GlassSpecications .........................4
C. Mobile Home Approvals ......................4
D.BTUSpecications ..........................5
E.Non-CombustibleMaterialsSpecication .........5
F. CombustibleMaterialsSpecication.............5
G. Electrical Codes ............................5
2 Getting Started
A. Design and Installation Considerations ..........6
B. Tools and Supplies Needed ...................7
C. Inspect Appliance and Components .............7
3 Framing and Clearances

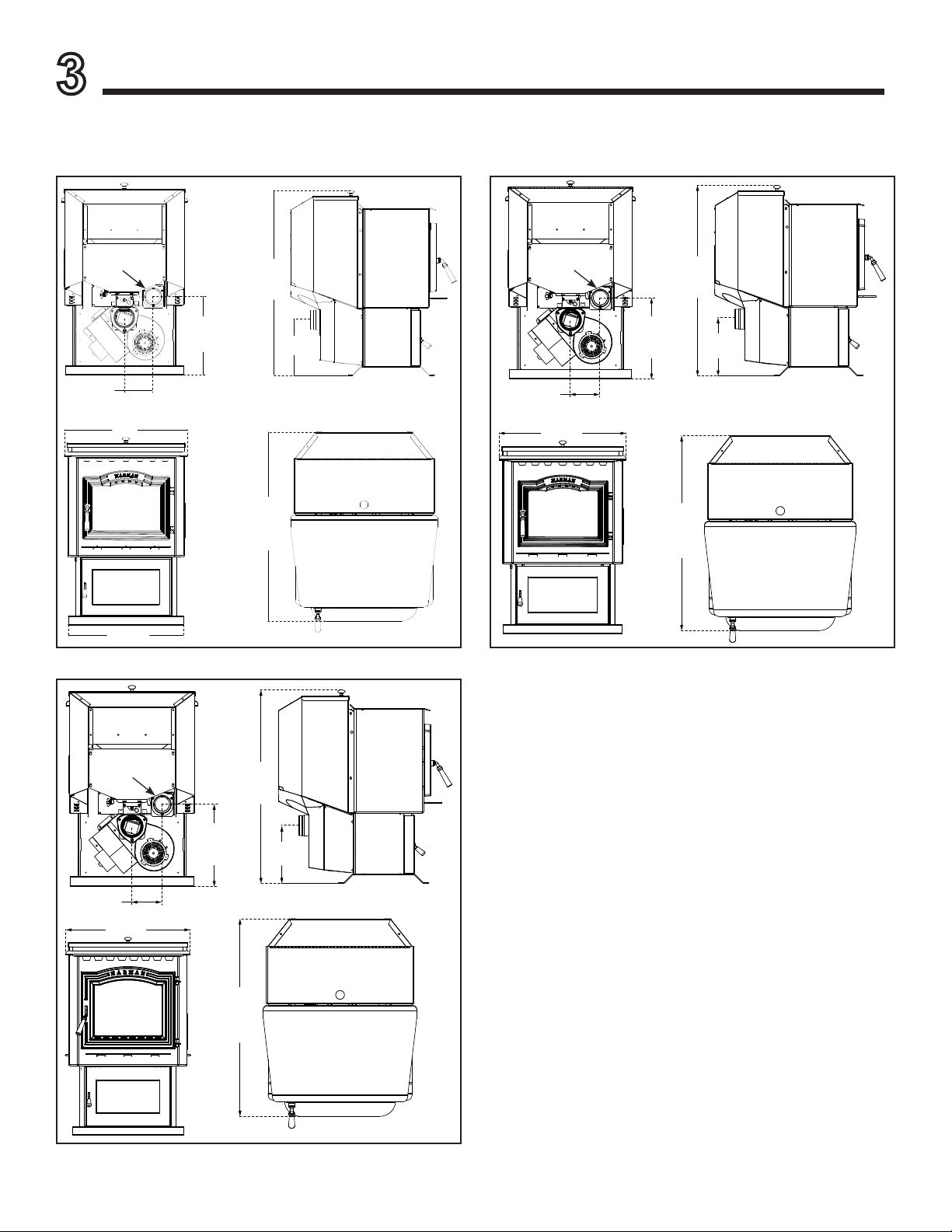

A. Appliance Dimension Diagram .................8

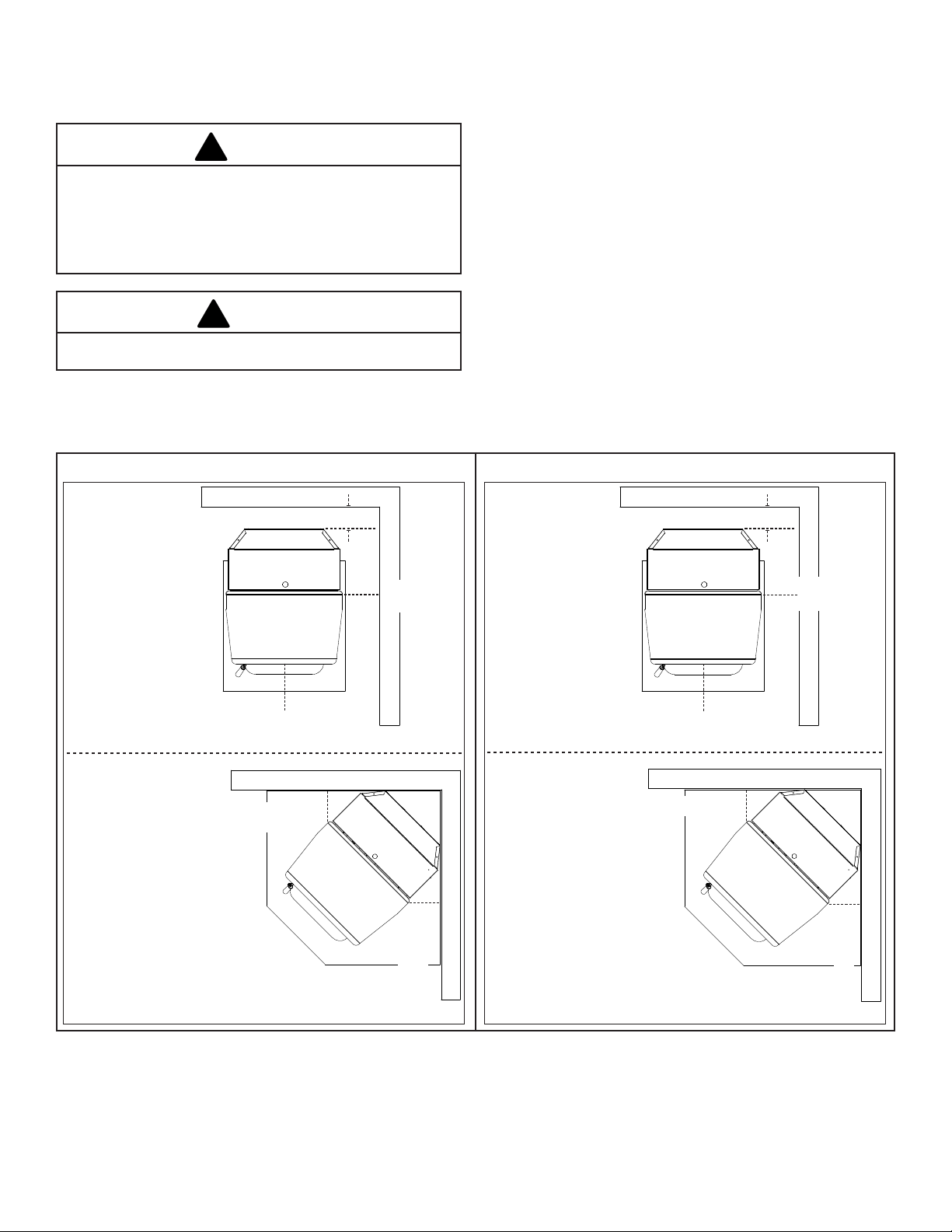

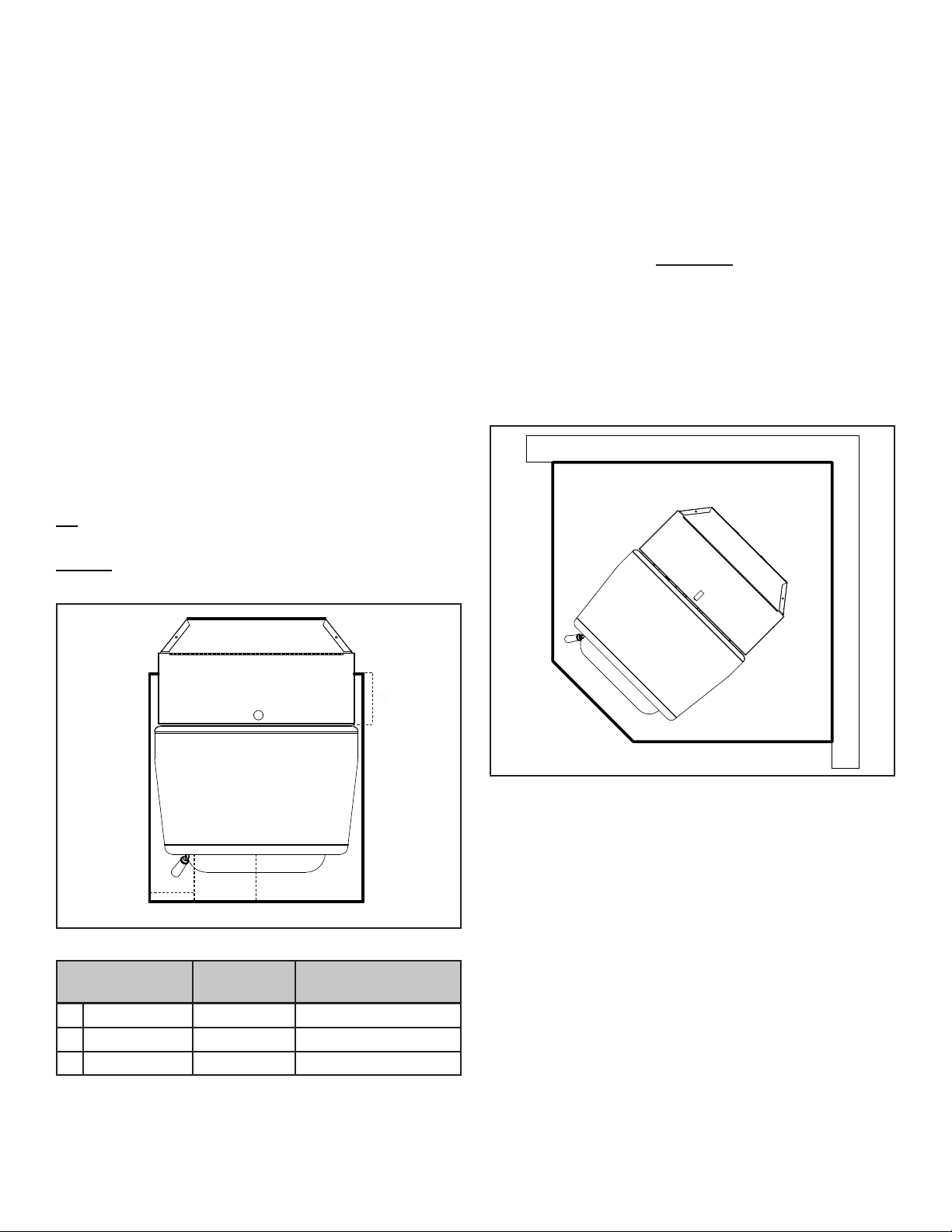

B. Clearances to Combustibles...................9
C. Floor Protection ...........................10
D. Mobile Home Installation ....................10
4 Termination Location and Vent Information
A. Vent Termination Minimum Clearances ......... 11

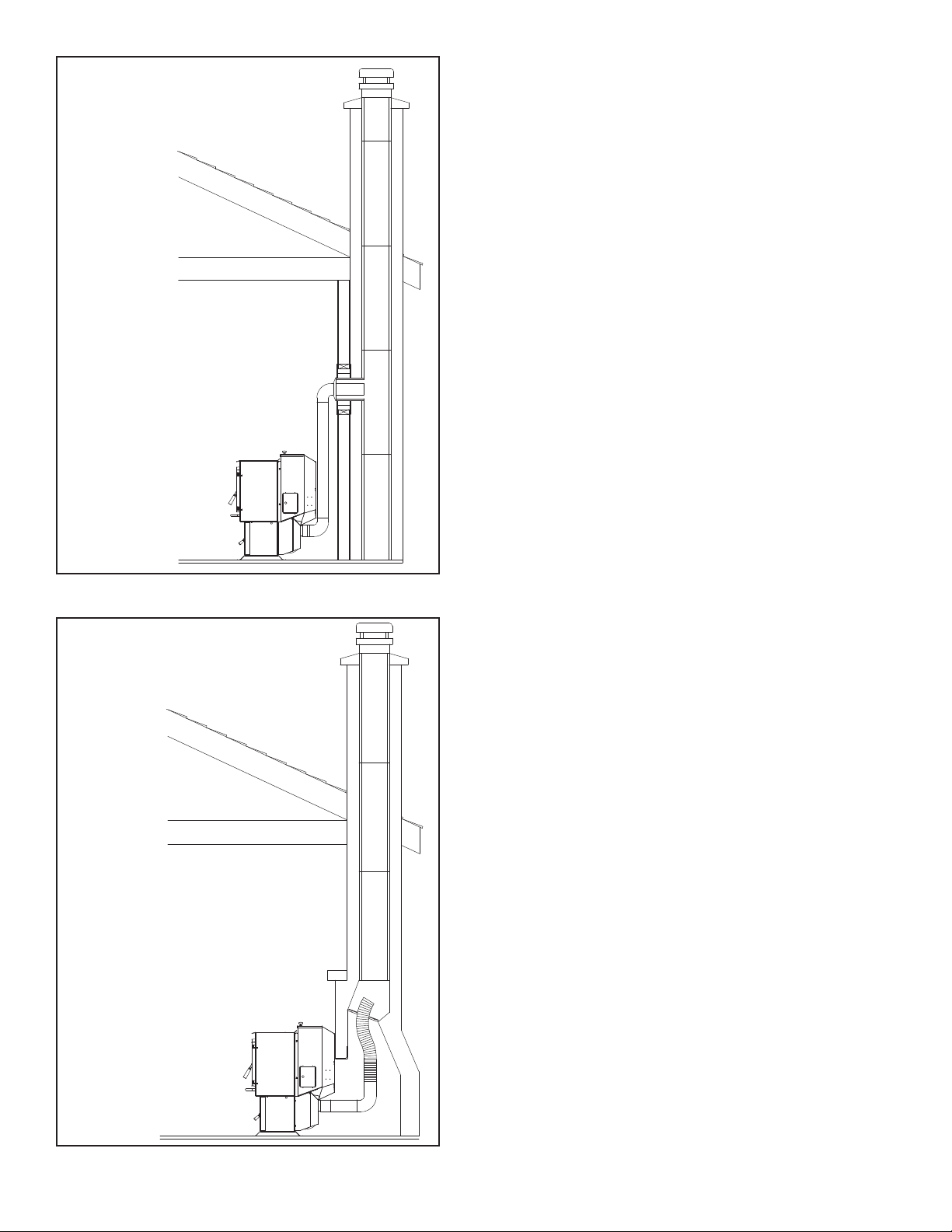

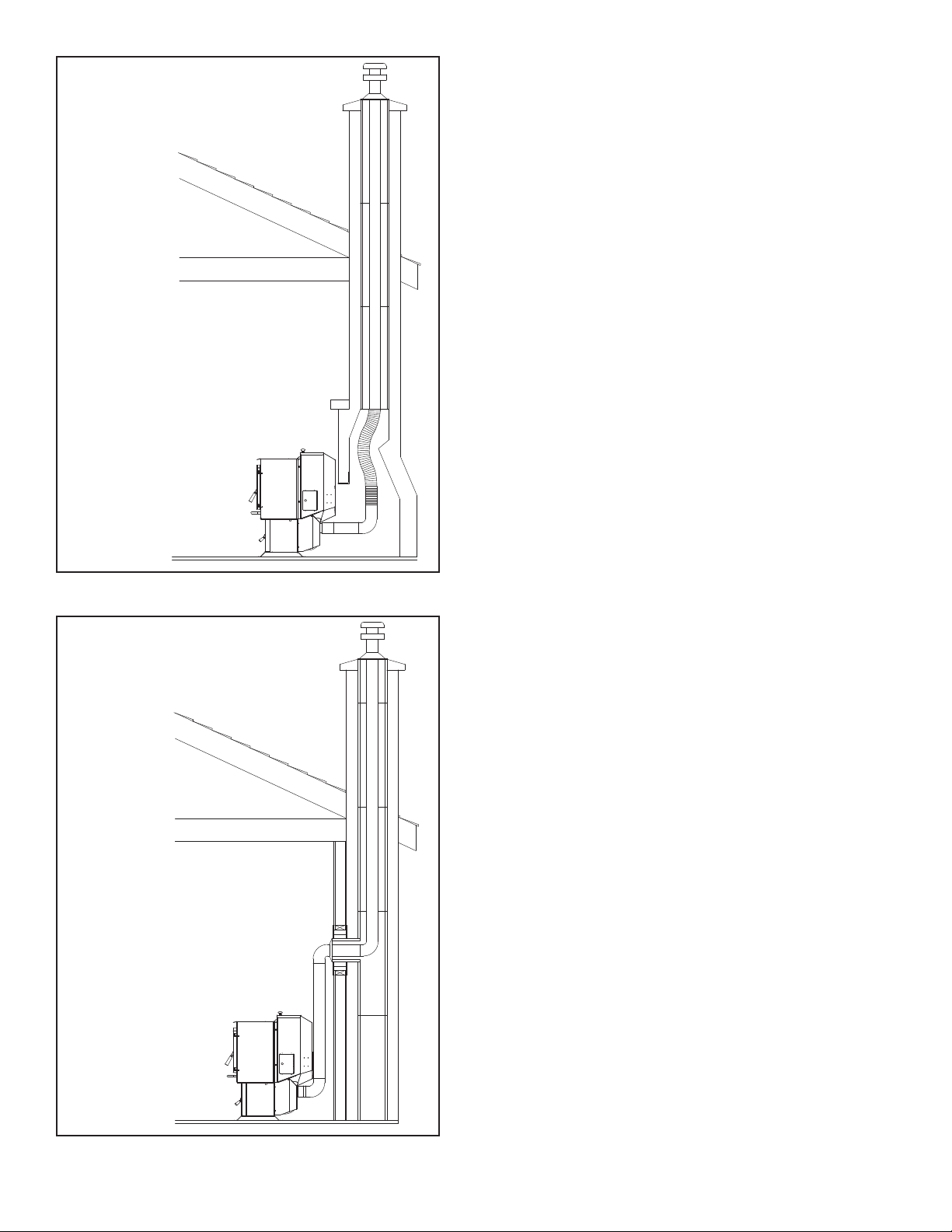

B. Chimney Diagram ..........................15

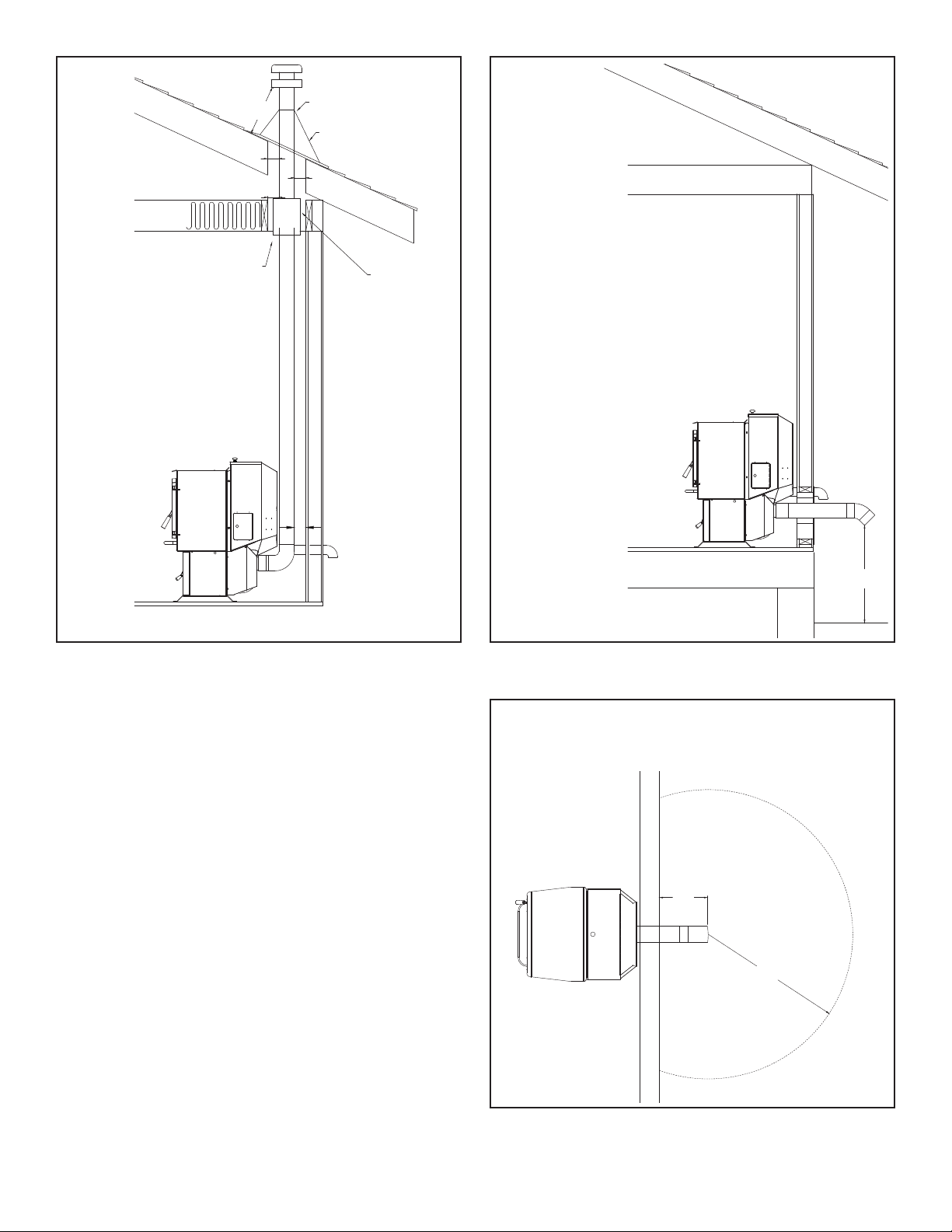

C. Venting & Use of Elbows ....................16
D.OutsideAir ...............................18
E. Locating Your Appliance and Chimney ..........19
F. Draft ....................................19
G. Negative Pressure .........................19
H.AvoidingSmoke&Odors ....................20
I. Fire Safety ...............................21
J. Inspect Appliance & Components..............21
5 Appliance Setup
A. Unpacking................................22
B. Removing Rear Cover Panels ................22
C. Firebrick .................................22
D. Flame Guide ..............................22
E. Room Sensor .............................23
F. Low Draft Voltage Adjustment.................23
6 Reference Materials
A. Safety Reminders ..........................24
B. Wiring Diagram ............................25
!
= Contains updated information


Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1833-90-436168i
Installation Standard Work Checklist
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in
this installation manual.
Customer: ________________________________ Date Installed: __________________________
Lot/Address: ________________________________ Location of Stove: __________________________
________________________________ Installer: __________________________
Model: ________________________________ Dealer/Distributer Ph #__________________________
Serial Number: __________________________
!
WARNING! Risk of Fire or Explosion! Failure to install appliance to these instructions can lead to a re
or explosion.
Appliance Install Section 3 YES IF NO, WHY?
Required non-combustible oor protection ________________________________
Veried clearances to combustible. ________________________________
Unit is Leveled and secured. ________________________________
Venting/Chimney Section 4
Venting Conguration complies to vent diagrams. ________________________________
Venting installed, sealed and secured in place with proper clearances. ________________________________
Exterior wall/roof ashing installed and sealed ________________________________
Terminations installed and sealed. ________________________________
Electrical Section 1
120 VAC unswitched power provided to the appliance. ________________________________
Check outlet with multi-meter for proper voltage. (115-120 VAC) ________________________________
Record voltage reading: ___________
Appliance Setup Section 5
All packaging and protective materials are removed ________________________________
Accessories installed properly ________________________________
Manual bag and all it’s contents are removed from inside the appliance
and given to party responsible for use and operation ________________________________
Started appliance and veried that all motors and blowers operate
as they should. ________________________________
Checked draft using a Manometer. Record readings: __________ ________________________________
Hearth and Home Technologies recommends the following:
Photographing the installation and copying this checklist for your le.
This checklist remain visible at all times on the appliance until the installation is complete.
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action
needed __________________________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
Comments communicated to party responsible____________________ by ________________________ on __________
(Builder / Gen Contractor) (Installer) (Date)
04/17

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1843-90-436168i
A. Appliance Certication B. Glass Specications
This appliance is equipped with 5mm mirrored ceramic
glass. Replace glass only with 5mm ceramic glass. Please
contact your dealer for replacement glass.
C. Mobile Home Approved
This appliance is approved for mobile home installations
when not installed in a sleeping room and when an outside
combustion air inlet is provided.
Thestructuralintegrityofthemobilehomeoor,ceiling,and
walls must be maintained. The appliance must be properly
grounded to the frame of the mobile home and use only listed
pellet vent, Class “PL” connector pipe.
A Harman®OutsideAirKitmustbeinstalledinamobilehome
installation.
NOTE: This installation must conform with local codes.
In the absence of local codes you must comply with
the ASTM E1509-2004, ULC-S627-00, ULC/ORD-C-
1482-M1990, (UM) 84-HUD
The P43, P61AandP68areCertiedto
comply with 2015 particulate emission
standards. Not approved for sale after
May 15, 2020.
1 Product Specic and Important Safety Information
MODEL: P43 Pellet Stove
LABORATORY: OMNITestLaboratories,Inc
REPORT NO. 135-S-23-4, 135-S-23b-6.2
TYPE: Pellet Fueled/Supplementary For
Residential Use
STANDARD(s): ASTME1509-04,ULC/ORD-
C1482-M1990, ULC-S627-00, EPA
Method 28 & 5G
MODEL: P61A Pellet Stove
LABORATORY: OMNITestLaboratories,Inc
REPORT NO. 135-S-22-4, 135-S-22b-6.2
TYPE: Pellet Fueled/Supplementary For
Residential Use
STANDARD(s): ASTME1509-04,ULC/ORD-
C1482-M1990, ULC-S627-00, EPA
Method 28 & 5G
MODEL: P68 Pellet Stove
LABORATORY: OMNITestLaboratories,Inc
REPORT NO. 135-S-13-2, 135-S-13b-2,
135-S-13c-6.2
TYPE: Pellet Fueled/Supplementary For
Residential Use
STANDARD(s): ASTME1509-04,ULC/ORD-
C1482-M1990, ULC-S627-00, EPA
Method 28 & 5G
THE STRUCTURAL INTEGRITY OF THE
MANUFACTURED HOME FLOOR, WALL, AND
CEILING/ROOF MUST BE MAINTAINED.
DO NOT INSTALL IN SLEEPING ROOM.
WARNING
!

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1853-90-436168i
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products, their
specicationsand/orpricewithoutnotice.
Harman®is a registered trademark of Hearth & Home
Technologies.
E. Non-Combustible Materials Specication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in
a Vertical Tube Furnace at 750° C and UL763 shall be
considered non-combustible materials.
F. Combustible Materials Specication
Materials made of or surfaced with wood, compressed
paper,plantbers,plastics,orothermaterialthatcanignite
andburn,whetherameproofedornot,orplasteredorun-
plastered shall be considered combustible materials.
G. Electrical Codes
120 VAC, 60 Hz, Start 4.2 Amps, Run 2.8 Amps
NOTE: Some generator or battery back-up systems may
not be compatible with the micro-processor electronics
on this appliance. Please consult the power supply
manufacturer for compatible systems.
WARNING! Risk of Fire! Hearth & Home Technologies
disclaims any responsibility for, and the warranty and agency
listing will be voided by the below actions.
DO NOT:
• Install or operate damaged appliance
• Modify appliance
• Install other than as instructed by Hearth & Home
Technologies
• Operate the appliance without fully assembling all
components
 • Overre
• Install any component not approved by Hearth &
Home Technologies
• Install parts or components not Listed or approved.
• Disable safety switches
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
Forassistanceoradditionalinformation,consultaqualied
installer, service agency or your dealer.
D. BTU & Efciency Specications
*WeightedaverageLHVefciencyusingdatacollected
during EPA emissions test.
**WeightedaverageHHVefciencyusingdatacollected
during EPA emissions test.
***ArangeofBTUoutputsbasedonEPADefaultEfciency
and the burn rates from the low and high EPA tests.
****Based on the maximum feed rate per hour multiplied by
approximately 8,600 BTU’s which is the average BTU’s from
a pound of pellets.
This wood heater needs periodic inspection and repair for
proper operation. It is against federal regulations to operate
this wood heater in a manner inconsistent with operating
instructions in this manual.
P43 Freestanding Pellet Stove:
EPA Certication Number: 945-14
EPA Certied Emissions: 1.3 g/hr
*LHV Tested Efciency: 78%
**HHV Tested Efciency: 69.5%
***EPA BTU Output: 12,600 - 31,300
****BTU Input: 17,200 - 42,500
Vent Size: 3 Inch
Hopper Capacity: 50 lbs
Fuel Wood Pellet
P61A Freestanding Pellet Stove:
EPA Certication Number: 966-14
EPA Certied Emissions: 1.7 g/hr
*LHV Tested Efciency: 78%
**HHV Tested Efciency: 73.5%
***EPA BTU Output: 10,600 - 45,100
****BTU Input: 14,200 - 60,300
Vent Size: 3 Inch
Hopper Capacity: 72 lbs
Fuel Wood Pellet
P68 Freestanding Pellet Stove:
EPA Certication Number: 963-14
EPA Certied Emissions: 1.3 g/hr
*LHV Tested Efciency: 78%
**HHV Tested Efciency: 72.7%
***EPA BTU Output: 11,800 - 53,500
****BTU Input: 15,800 - 71,200
Vent Size: 3 Inch
Hopper Capacity: 76 lbs
Fuel Wood Pellet

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1863-90-436168i
A. Design and Installation Considerations
1. Appliance Location
NOTICE: Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult insurance carrier, local building inspector,
re ofcials or authorities having jurisdiction over
restrictions, installation inspection and permits.
It is a good idea to plan your installation on paper, using exact
measurementsfor clearancesand oorprotection, before
actually beginning the installation
Consideration must be given to:
• Safety,convenience,trafcow
• Placement of the chimney and chimney connector.
• If you are not using an existing chimney, place the
appliance where there will be a clear passage for a
factory-built listed chimney through the ceiling and
roof.
• Installing an optional outside air kit would affect the
location of the vent termination.
Since pellet exhaust can contain ash, soot or sparks, you
must consider the location of:
• Windows
• Air Intakes
• Air Conditioner
• Overhang,softs,porchroofs,adjacentwalls
• Landscaping, vegetation
Marginal Location:
• Below peak
Location NOT recommended:
• Not the highest point of the roof
• Wind loading possible
Multi-level Roofs
Windward
Leeward
Recommended:
Outside Air Intake
on windward side
NOT recommended:
Outside Air Intake
on leeward side
Recommended Location:
• Above peak
Recommended:
• Insulated exterior chase
in cooler climates
Recommended Location:
• Above peak
• Inside heated space
Location NOT recommended:
• Too close to tree
• Below adjacent structure
• Lower roof line
• Avoid outside wall
Marginal Location:
• Wind loading possible
Figure 2.1
2 Getting Started
When locating vent and venting termination, vent above
roof line when possible.
Warning! Risk of Fire Damaged parts could impair safe
operation. Do NOT install damaged, incomplete or substitute
components.
NOTICE: Locating the appliance in a location of considerable
air movement can cause intermittent smoke spillage from
appliance. Do not locate appliance near:
• Frequently open doors
• Central heat outlets or returns
Installation and service of this
appliance should be performed by
qualiedpersonnel.Hearth&Home
Technologies recommends HHT
Factory Trained or NFI Certied
professionals.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Contactlocalbuildingorreofcialsaboutrestrictions
and installation inspection requirements in your area.
CAUTION
!

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1873-90-436168i
Reciprocating Saw
Hammer
Phillips Screwdriver
Tape Measure
Level
Non-Combustible Sealant
Material
Gloves
Safety Glasses
Electric Drill & Bits
May also need:
Vent Support Straps
Venting Paint
Tools and building supplies normally required
for installation, unless installing into an existing
masonry replace:
B. Tools And Supplies Needed
C. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative doors
and fronts may be shipped in separate packages.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
•Read all of the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benet.
Hearth & Home Technologies disclaims any responsibility
for, and the warranty will be voided by the following actions:
• Installation and use of any damaged appliance or
vent system component.
• Modicationoftheapplianceorventsystem.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Any such action may cause a re hazard.
WARNING
!
Risk of Fire, Explosion or Electric Shock! DO NOT use
this appliance if any part has been under water. Call a
qualied service technician to inspect the appliance
and to replace any part of the control system which
has been under water.
INSTALL EXHAUST VENT AT CLEARANCES SPECIFIED
BY THE MANUFACTURER.
Most pellet vent pipe requires a minimum of 1" of clearance
to combustible materials although some can be installed at
1" clearance.
Follow these instructions along with all local codes regarding
installation of this appliance.
Do NOT use makeshift compromises when installing this
appliance, serious consequences may result.
WARNING
!
RISK OF FIRE OR EXPLOSION! Damaged parts
could impair safe operation. DO NOT install damaged,
incomplete or substitute components. Keep appliance
dry.

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1883-90-436168i
3 Clearances
Figure 3.1
A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only.
20 3/4"
22"
10"
33 1/2"
5 1/8"
13 3/4"
28 5/16"
Outside
Air Intake
P43 Freestanding Pellet Stove
23 1/2"
10 "
36 1/2"
5 1/8"
13 3/4”
29 3/8"
Outside
Air Intake
P61A Freestanding Pellet Stove
10 "
37 1/2”
5 1/4"
13 3/4”
29 3/8"
23-1/2”
Outside
Air Intake
P68 Freestanding Pellet Stove

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1893-90-436168i
Place the stove away from combustible walls at least as far
as shown in Figure 3.2. Please note the difference in side
wall clearance with and without side shields.
Note that the clearances shown are minimum for safety but do
not leave much room for access when cleaning or servicing.
Please take this into account when placing the stove.
Due to high temperatures, the stove should be placed out of
trafcandawayfromfurnitureanddraperies.
Children and adults should be alerted to the hazards of high
surface temperatures and should stay away to avoid burns
to skin and/or clothing.
Young children should be carefully supervised when they are
in the same room as the stove.
Clothingandotherammablematerialsshouldnotbeplaced
on or near this unit.
B. Clearances to Combustibles
When selecting a location for the appliance it is important to
consider the required clearances to walls (see Figure 3.2).
Figure 3.2
CAUTION
!
THIS APPLIANCE MUST BE VENTED TO THE OUTSIDE.
WARNING
!
RISK OF FIRE OR BURNS! Provide adequate
clearance around air openings and for service
access. Due to high temperatures, the appliance should
be located out of trafc and away from furniture and
draperies.
NOTICE: IllustrationsreecttypicalinstallationsandareFOR
DESIGNPURPOSESONLY.Actualinstallationmayvarydue
to individual design preference.
9"(228mm)With Side Shields
13"(330mm) Without Side Shields
9"(228mm)-
13"(330mm)
9"(228mm)- 13"(330mm)
9" (228mm) With or Without Side Shields
9"(228mm)
9"(228mm)
*10" (254mm) with
side shields
*16" (406mm)
without side shields
2" (51mm)
36" (914mm)
*10" (254mm)
*16" (406mm)
2" (51mm)
36" (914mm)
14" (355mm)
20" (508mm)
14" (355mm) with
side shields
20" (508mm)
without side shields
P43 Freestanding Pellet StoveP61A & P68 Freestanding Pellet Stove

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1810 3-90-436168i
C. Floor Protection
Parallel Installation:
Place the stove on a noncombustible type oor or oor
protector that extends a minimum of 6 inches (152mm) to
the front of the load door opening, 6 inches (152mm) to the
sides of the door opening, and 6 inches to the rear.
TheP-SeriesdoesnotrequireRvalueoorprotection.
Theminimumoorprotectormaterialis20gaugesheetmetal.
OtheroorprotectormaterialsthatcanbeusedincludeType
I hearth pads, ceramic tile, stone, brick, etc. Figure 3.3
*Floor protection dimensions for the front and sides are
measured from the appliance door opening in The United
States. In Canada, the side dimension is measured from the
widest part of the appliance.
P43-Minimumsizerectangularoorprotectionis25-7/16”
Wide by 26-3/4” Deep (646mm X 680mm).
P61A-Minimumsizerectangularoorprotectionis25-1/8”
Wide by 27-3/4” Deep (638mm X 705mm).
P68-Minimumsizerectangularoorprotectionis25-3/16”
Wide by 27-3/4” Deep (640mm X 705mm).
Venting:
US - Follow PL vent manufacturers recommendations when
conguringventpipeinstallation.
Canada - Must extend 2” (51mm) beyond each side of any
horizontaluepipe.
Figure 3.3
J
K
L
Floor protector
D. Mobile Home Installation
When installing this unit in a mobile home, several
requirements must be followed:
1. Theunitmustbeboltedto the oor.Thiscanbedone
using an appropriate fastener for the application.
2. The unit must also be connected to outside air. See
“Termination Location and Vent Information” Section D.
3. Floor protection and clearances must be followed as
shown.
4. The appliance must be properly grounded to the frame of
the mobile home using a minimum of 8 AWG copper solid
or stranded, insulated or bare wire or equivalent.
Floor Protection
Requirements US Canada
JSides 6" 152mm
KFront 6” 152mm
LRear 6” 152mm
Corner Installation:
Minimumsizeoorprotectionforacornerinstallationhearth
pad is:
P43-Minimumsizeoorprotectionis25-7/16”Wideby26-
3/4” Deep (646mm X 680mm).
P61A-Minimumsizeoorprotectionis25-1/8”Wideby27-
3/4” Deep (638mm X 705mm).
P68-Minimumsizeoorprotectionis25-3/16”Wideby27-
3/4” Deep (640mm X 705mm).
Note: Floor protector WILL NOT touch the wall using
minimum clearances.
If corner oor protection is desired to touch the wall, the
oorprotectionwillneedtobeatleast40”x40”(1016mm
x 1016mm). Note: This will allow the oor protection to
touch the wall as shown. Figure 3.4.
Alternateoorprotectordimensionmaybeusedaslongas
they satisfy the measurement requirements shown below.
Figure 3.4

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1811 3-90-436168i
4 Termination Location and Vent Information
A. Vent Termination Minimum Clearances
Figure 4.1
Figure 4.2
INSTALL VENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER
#1 Preferred method (Figure 4.1)
This method provides excellent venting for normal operation
and allows the stove to be installed closest to the wall. Two
inches from the wall is safe; however, four inches allows
better access to remove the rear panel. The vertical portion of
theventshouldbethreetovefeethigh.Thisverticalsection
will help provide natural draft in the event of a power failure.
Seal pipe joints with silicone or aluminum tape in addition to
the sealing system used by the manufacturer.
Do not place joints within wall pass-through.
#2 Preferred method (Figure 4.2)
This method also provides excellent venting for normal
operation but requires the stove to be installed farther from
the wall. The vertical portion of the vent should be three to
vefeethighandatleast1”fromacombustiblewall.This
vertical section will provide natural draft in the event of a
power failure.
Seal pipe joints with silicone or aluminum tape in addition to
the sealing system used by the manufacturer.
If the stove is installed below grade be sure the vent
termination is at least 12" above grade. The outlet must also
be 1 foot from the house/building.
Do not place joints within wall pass-through.
CAUTION
!
Keep combustible materials (such as grass, leaves,
etc.) at least 3 feet away from the ue outlet on the
outside of the building.
3 Ft.
to
Combustibles
3 Ft.
to Combustibles
3 Ft.
to
Combustibles
3 Ft.
to Combustibles

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1812 3-90-436168i
Figure 4.3
Figure 4.4
#3 Installing into an existing chimney (Figure 4.3)
This method provides excellent venting for normal operation.
This method also provides natural draft in the event of a
power failure. If the chimney condition is questionable* you
may want to install a liner as in method #7.
In some places in the US and Canada it is required that the
vent pipe extend all the way to the top of the chimney.
*The chimney should be inspected and cleaned before
installing your stove. If you discover that the chimney does
nothaveaclaytilelinerorhascracksorakingofthetile
liner you will need to install a stainless steel liner within
the chimney. In most cases the inside diameter of this liner
shouldbe4".Eitherexibleorrigidlinermaybeusedforthis
purpose. Refer to Method 6 & 7. Seal pipe joints with silicone
or aluminum tape in addition to the sealing system used by
the manufacturer.
Be sure to design the venting so that it can be easily cleaned.
#4 Installing into an existing replace chimney (Figure 4.4)
This method provides excellent venting for normal operation.
This method also provides natural draft in the event of a
power failure. If the chimney condition is questionable* you
may want to install a liner as in method #6.
In some places in the US and Canada it is required that the
vent pipe extend all the way to the top of the chimney.
*The chimney should be inspected and cleaned before
installing your stove. If you discover that the chimney does
nothaveaclaytilelinerorhascracksorakingofthetile
liner you will need to install a stainless steel liner within
the chimney. In most cases the inside diameter of this liner
shouldbe4".Eitherexibleorrigidlinermaybeusedforthis
purpose. Refer to Method 5 & 6.
The chimney should be sealed at the damper using a
steel plate. Kaowool, mineral wool or an equivalent non-
combustible insulation is recommended to be installed on top
of the sealing plate to reduce the possibility of condensation.
The connector pipe should extend through the smoke
chambertothebaseorintotherstuetile.Sealpipejoints
with silicone or aluminum tape in addition to the sealing
system used by the manufacturer.
Be sure to design the venting so that it can be easily cleaned.

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1813 3-90-436168i
#5 Installing into an existing replace chimney (Figure
4.5) w/Full Liner
This method provides excellent venting for normal operation.
This method also provides natural draft in the event of a
power failure.
In some places in the US and Canada it is required that the
vent pipe extend all the way to the top of the chimney. The
pipe or liner inside the chimney should be 4" diameter.
In this method a cap should also be installed on the chimney
to keep out rain. Be sure to use approved pellet vent pipe
ttings. Seal pipe joints with silicone or aluminum tape in
addition to the sealing system used by the manufacturer. Pipe
size should be increased to 4" using this method.
#6 Installing into an existing chimney (Figure 4.6) w/Full liner
This method provides excellent venting for normal operation.
This method also provides natural draft in the event of a
power failure.
In some places in the US and Canada it is required that the
vent pipe extend all the way to the top of the chimney. Seal
pipe joints with silicone or aluminum tape in addition to the
sealing system used by the manufacturer. The pipe or liner
inside the chimney should be 4" diameter.
In this method a cap should also be installed on the chimney
to keep out rain.
Figure 4.5
Figure 4.6

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1814 3-90-436168i
12"
min. wall to outlet
36"
min. clearance to any
combustible material
#7 Installing through the ceiling
Through the ceiling vent, follow PL vent manufacturers
recommendations when using wall and ceiling pass through.
Seal pipe joints with silicone or aluminum tape in addition to
the sealing system used by the manufacturer.
Do not place joints within wall pass-through.
Figure 4.7 Figure 4.8
Figure 4.9
Area within dotted circle represents the minimum
clearance to combustible materials such as shrubbery,
mulch or tall grasses.
12"
min. above ground level
Minimum ue vent conguration
It is recommended that outside
air be installed with this venting
conguration.
PL vent manufacturer's
restop spacer and support
1" MIN.
No insulation or other
combustible materials
are allowed within 3"
of the PL vent pipe.
ashing
storm collar
1" MIN.
1" MIN.
12" MIN
1” MIN.

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1815 3-90-436168i
B. Chimney Diagram
V=Vent Terminal A=Air Supply Inlet =Area where termination is not permitted
Door
Sidewalk
Fixed
Closed
Openable
Openable Fixed
Closed
Inside Corner
Detail
Porch or
Openable
Deck
or Fixed
Requirements for Terminating the Venting
• Venting terminals must not be recessed into a wall
or siding.
• Only PL vent pipe wall pass-through and re stops
should be used when venting through combustible
materials.
• Always take into consideration the effect the
prevailing wind direction or other wind currents will
cause with yash and /or smoke when placing the
termination.
In addition, the following must be observed:
A. The clearance above grade must be a minimum of 12".
B. The clearance to a window or door that may be opened
must be a minimum of 48" to the side and 48" below the
window/door, and 12" above the window/door. (with
outside air installed, 12” to side and below)
C. A 12" clearance to a permanently closed window is
recommended to prevent condensation on the window.
D. Theverticalclearancetoaventilatedsoftlocatedabove
the terminal within a horizontal distance of 2 feet (60 cm)
from the center-line of the terminal must be a minimum
of 18".
E. The clearance to an unventilated soffit must be a
minimum of 12".
F. The clearance to an outside corner is 11" from center of
pipe.
G. The clearance to an inside corner is 12".
H. A vent must not be installed within 3 feet (90 cm) above
a gas meter/regulator assembly when measured from
the horizontal center-line of the regulator.
Figure 4.10
I. The clearance to service regulator vent outlet must be a
minimum of 6 feet.
J. The clearance to a non-mechanical air supply inlet to the
building or the combustion air inlet to any other appliance
must be a minimum of 48”.
K. The clearance to a mechanical air supply inlet must be a
minimum of 10 feet. (with outside air installed, 6 feet)
L. The clearance above a paved sidewalk or a paved
driveway located on public property must be a minimum
of 7 feet.
M. The clearance under a veranda, porch, deck or balcony
must be a minimum of 12 inches. (B. also)
Note: The clearance to vegetation and other exterior
combustibles such as mulch is 36” as measured from
the center of the outlet or cap. This 36” radius continues
to grade.
Certain Canadian and or Local codes or regulations may
require different clearances.
A vent shall not terminate directly above a side-walk or
paved driveway which is located between two single family
dwellings and serves both dwellings.
Onlypermittedif veranda, porch,deck, or balcony isfully
openonaminimumof2sidesbeneaththeoor.
See NFPA 211 for more installation clearance reductions
when using outside air. Where passage through a wall,
or partition of combustible construction is desired,
the installation shall conform to CAN/CSA-B365. (if in
Canada)

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1816 3-90-436168i
Harman pellet stoves depend on a combustion fan to pull air
through the unit for combustion. The venting system restricts
the ability of the combustion fan to move the required amount
of air through the unit. A system with too much resistance
will result in incomplete combustion, more frequent required
cleaning and poor unit performance. It is always best to
choose a location for the appliance that will result in a venting
system with the shortest equivalent vent length (EVL).
It is best to have your venting system designed by a Harman
authorizeddealerbefore you nalizeyourpurchase of an
appliance.
Equivalent Vent Length: The equivalent vent length for
common pellet vent components are:
• 90° Elbows or Tee: 5 EVL Units
• 45° elbow: 3 EVL Units
• Vertical Pipe or Liner: ½ EVL Unit
• Horizontal Pipe or liner: 1 EVL Unit
The total allowable equivalent vent length is:
• 20 EVL for 3” pellet vent pipe or liner
• 30 EVL for 4” pellet vent pipe or liner
Duetothe potential foryash accumulation inhorizontal
venting sections, the maximum permissible horizontal venting
length is:
• 4 ft. for 3” & 4” pellet vent pipe.
C. Venting & Use of Elbows
O
+= Positive static pressure
= Negative static pressure
O
-
Figure 4.11
+
+
Example: First Floor Installation
A unit is to be installed using 3” Pellet Pipe with 3 feet
of horizontal pipe, a Tee, 10 feet of vertical pipe, a 90°
elbow and a termination cap.
The equivalent vent length is:
3 ft. of Horizontal Pipe (1 x 3 EVL) = 3 EVL
90° Elbow or Tee (1 x EVL) = 5 EVL
10 ft. of Vertical Pipe (10 x .5 EVL) = 5 EVL
90° Elbow or Tee (1 x EVL) = 5 EVL
Termination Cap = 0 EVL
Equivalent Vent Length = 18 EVL
In the example system detailed above, the EVL was 138
which is less than the maximum of 20 EVL for 3” pellet
ventpipe,thusthisisasatisfactoryventingconguration.
Example: Connection to Masonry Chimney
A unit is to be installed using 3” Pellet Pipe with 2 feet of
horizontal pipe, a Tee, 4 feet of vertical pipe, an elbow, a
Tee, 21 feet of vertical liner, and a termination cap.
The equivalent vent length is:
2 ft. of Horizontal Pipe (1 x 2 EVL) = 2 EVL
90° Tee (1 x 5 EVL) = 5 EVL
4 ft. of Vertical Pipe (4 x .5 EVL) = 2 EVL
90° Elbow (1 x 5 EVL) = 5 EVL
90° Tee (1 x 5 EVL) = 5 EVL
21 ft. of Vertical Liner (21 x .5 EVL) = 10.5 EVL
Termination Cap = 0 EVL
Equivalent Vent Length = 29.5 EVL
In the example system detailed above, the EVL was
29.5 which exceeds the maximum of 20 ft. for 3” pellet
vent pipe, thus 3” vent pipe should not be used in this
installation. However, since 4” pipe can support an EVL
up to 30, the use of 4” pipe would create a satisfactory
installation.

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1817 3-90-436168i
C. Venting & Use of Elbows continued
Note: When the amount of vertical pellet vent pipe in the system exceeds 15 feet, 4” pellet vent pipe should be used.
Note: Equivalent Venting Length decreases as altitude increases.
Note:WhentheHighAltitudeFanBladeisused,themaximumlengthofOutsideAirPipedecreasesto20ft.
Example:
A unit with an EVL of 13, is to be installed at an altitude
of 3,000 feet above sea level.
From the chart to the left, at 3,000 feet of altitude, the
maximum permissible equivalent venting length is 26
feet. Therefore this would be an acceptable installation
with no need to change the combustion blower fan.
However, if the same unit (EVL 13)was to be installed
an altitude of 9,000 feet above sea level, the installation
would no longer be acceptable and the equivalent vent
length of the pipe would have to be reduced for proper
unit operation.
No Change of Combustion
Blower Fan Blade Needed
0 Ft5 Ft 5 Ft
10,000
9,000
8,000
7,000
6,000
5,000
4,000
3,000
5 Ft
0 Ft
10 Ft
Combustion Blower Fan
Blade Changeover Line
Altitude
10 Ft
15 Ft
20 Ft
25 Ft
30 Ft
5 Ft
0 Ft
15 Ft
Equivalent Vent Length (EVL)
Maximum Horizontal Run
• LongrunsofexorPLventpipeinstalleddirectlyverticalfromtheuestubmayrequiremorefrequentcleaningdueto
yashfallingoffinsideandcollectingdirectlyabovethecombustionbloweroutlet.
• 4" stainless steel ex vent piping is only allowed for use in masonry replaces and chimneys or factorybuilt wood-
burningreplaceswithClassAmetalchimneys.
• All pellet vent pipe must be secured together either by means provided by pipe manufacturer or by 3 screws at each joint.
• Useonlythespeciedventingcomponents.Useofanyothercomponentswillvoidtheproductwarrantyandmaypose
a hazard.
• Do Not Install a Flue Damper In The Exhaust Venting System of This Appliance.
• DONOTCONNECTTHISUNITTOACHIMNEYFLUESERVINGANOTHERAPPLIANCE.
• NOTE: Simpson DuraVent PelletVent Pro Harman®Adapter Part #3PVP-ADHB and PelletVent Pro Harman®Adapter
Increaser Part #3PVPX4ADHB are highly recommended to be installed on the starter collar to insure a proper pipe
connection to the unit.
• INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER
• Use silicone to create an effective vapor barrier at the location where the chimney or outside air ducting passes through
to the exterior of the structure

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1818 3-90-436168i
Outside air ex
pipe goes here.
Outside Air:
Hearth & Home Technologies recommend attaching
outside air in all installations, especially lower level and
main oor locations.
Per national building codes, consideration must be given to
combustion air supply to all combustion appliances. Failure
to supply adequate combustion air for all appliance demands,
may lead to back-drafting of those and other appliances.
When the appliance is side-wall vented: The air intake is best
located on the same exterior wall as the exhaust vent outlet
and located lower on the wall than the exhaust vent outlet.
When the appliance is roof vented: The air intake is best
located on the exterior wall oriented towards the prevailing
wind direction during the heating season.
The outside air connection will supply the demands of the
pellet appliance, but consideration must be given to the
total house demand. House demand may consume some
air needed for the stove, especially during a power failure. It
may be necessary to add additional ventilation to the space in
which the pellet appliance is located. Consult with your local
HVAC professional to determine the ventilation demands for
your house.

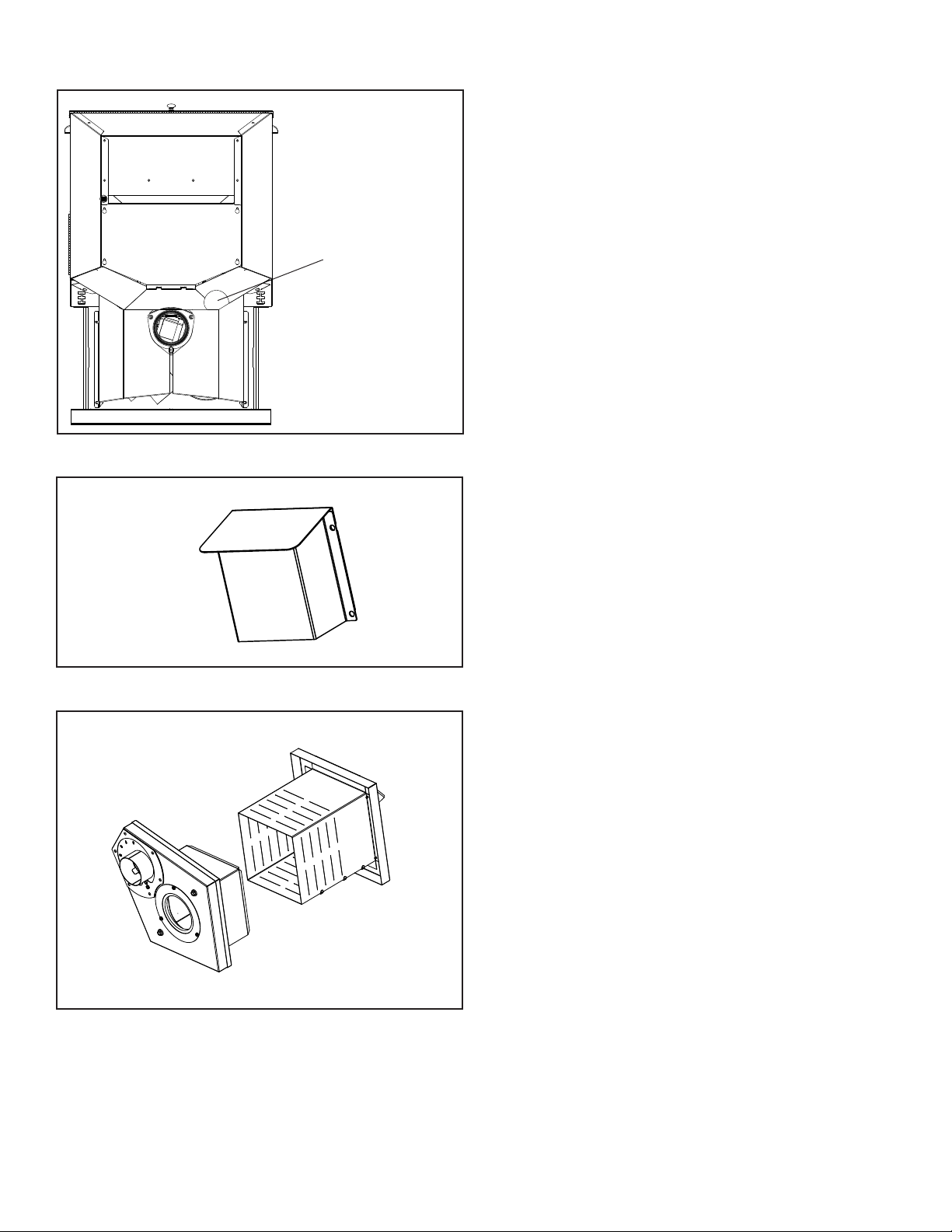

Toinstalloutsideairuse3".non-combustibleexpipeFigure
4.13. There is a break-away hole on the rear panel of the
P-Series stove which must be removed before connecting
theexpipe.Figure4.12.Thepipeshouldberunoutsideand
terminatetothesideorbelowtheventpipeoutletsotheue
outlet is more than 12" from the inlet cover. The Termination
Cap should be used to keep birds, rodents, etc. out of the
pipe Figure 4.13.
You may choose to use the optional Direct Vent Wall Pass-
through Kit which incorporates the venting pass-through and
outside air inlet into one component. Figure 4.14.
Use silicone to create an effective vapor barrier at the
location where the chimney or outside air ducting passes
through to the exterior of the structure.
Direct Vent Wall Pass-through Kit
(Part #1-00-677177)
D. Outside Air
Figure 4.12
Figure 4.14
Termination Cap
part# 1-10-09542
Figure 4.13

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1819 3-90-436168i
E. Locating Your Appliance & Chimney
Location of the appliance and chimney will affect performance.
• Install through the warm airspace enclosed by the
building envelope. This helps to produce more draft,
especiallyduringlightinganddie-downofthere.
• Penetrate the highest part of the roof. This minimizes the
effects of wind loading.
• Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.
• Minimize the use of chimney offsets.
• Consider the appliance location relative to oor and
ceiling and attic joists.
G. Negative Pressure
F. Draft
Draft is the pressure difference needed to vent appliances
successfully. When an appliance is drafting successfully, all
combustion by products are exiting the home through the
chimney.
Considerations for successful draft include:
• Preventing negative pressure
• Location of appliance and chimney
To measure the draft or negative pressure on your appliance
use a magnahelic or a digital pressure gauge capable of
reading 0 - 1 inches of water column (W.C.).
The appliance should be running on high for at least 15
minutes for the test.
With the stove running on high you should have a negative
pressure equal to or greater than the number given in the
chartbelow.Ifyouhavealowerreadingthanyoundonthe
chart, your appliance does not have adequate draft to burn
the fuel properly.
Minimum Vacuum Requirements: .35 - .55
• DONOTCONNECTTHISUNITTOACHIMNEYFLUE
SERVICINGANOTHERAPPLIANCE.
• DO NOT CONNECT TOANYAIR DISTRIBUTION
DUCTORSYSTEM.
Mayallowuegasestoenterthehouse
Priortoinstallingtheuepipe,connectadraftmeter.(The
draft meter must have a minimum range of 0 - .5”) Record the
rstreading.Connectuepipetostoveandbesurealldoors
and windows in the home are closed. Record the second draft
reading _______. If the second reading is more than .05”
lowerthantherstreading,checkforpossiblerestrictions
or the need for outside air. For more information on the draft
test procedure, refer to Page 21
CAUTION
!
Negative pressure results from the imbalance of air available
for the appliance to operate properly. It can be strongest in
lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water heaters
and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
-Recessed lighting
-Attic hatch
-Duct leaks
To minimize the effects of negative air pressure:
• Install the outside air kit with the intake facing prevailing
winds during the heating season
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and
seams taped or sealed
NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of the chimney
system caused by:
• Inadequate draft due to environmental conditions
• Downdrafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
Risk of Asphyxiation! Negative pressure can cause
spillage of combustion fumes and soot.
WARNING
!

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1820 3-90-436168i
H. Avoiding Smoke and Odors
Negative Pressure, Shut-down, and Power Failure:
To reduce the probability of back-drafting or burn-back in
the pellet burning appliance during power failure or shut-
down conditions, the stove must be able to draft naturally
without exhaust blower operation. Negative pressure in the
house will resist this natural draft if not accounted for in the
pellet appliance installation.
Heat rises in the house and leaks out at upper levels. This
airmustbereplacedwithcoldairfromoutdoors,whichows
into lower levels of the house. Vents and chimneys into
basements and lower levels of the house can become the
conduit for air supply, and reverse under these conditions.
Outside Air
An outside air kit is recommended in all installations. The
OutsideAirKitmustbeorderedseparately.
Per national building codes, consideration must be given to
combustion air supply to all combustion appliances. Failure
to supply adequate combustion air for all appliance demands
may lead to back drafting of those and other appliances.
When the appliance is roof vented (strongly recommended):
The air intake is best located on the exterior wall oriented
towards the prevailing wind direction during the heating
season.
When the appliance is side-wall vented:
The air intake is best located on the same exterior wall
as the exhaust vent outlet and located lower on the wall
than the exhaust vent outlet.
The outside air supply kit can supply most of the demands
of the pellet appliance, but consideration must be given to
the total house demand.
House demand may consume the air needed for the
appliance. It may be necessary to add additional ventilation
to the space in which the pellet appliance is located.
Consult with your local HVAC professional to determine the
ventilation demands for your house.
Vent Congurations:
To reduce probability of reverse drafting during shut-
down conditions, Hearth & Home Technologies strongly
recommends:
• Installing the pellet vent with a minimum vertical run of
vefeet,preferablyterminatingabovetheroofline.
• Installing the outside air intake at least four feet below
the vent termination.
To prevent soot damage to exterior walls of the house and
to prevent re-entry of soot or ash into the house:
• Maintainspeciedclearancestowindows,doors,and
air inlets, including air conditioners.
• Ventsshouldnotbeplacedbelowventilatedsofts.Run
the vent above the roof.
• Avoid venting into alcove locations.
• Vents should not terminate under overhangs, decks or
onto covered porches.
• Maintain minimum clearance of 12 inches from the
vent termination to the exterior wall. If you see deposits
developing on the wall, you may need to extend this
distance to accommodate your installation conditions.
Hearth & Home Technologies assumes no responsibility
for, nor does the warranty extend to, smoke damage
caused by reverse drafting of pellet appliances under
shut-down or power failure conditions.
Vent Pipe
Besuretouseapprovedpelletventpipewallandceilingpass-throughttingstogothroughcombustiblewallsandceilings.
Besuretouseastartingcollartoattachtheventingsystemtothestove.Thestartingcollarmustbesecuredtotheuestub
with at least three screws, and sealed with high temp silicone caulking.
4"stainlesssteelexventpipingisonlyallowedforuseinmasonryreplacesandchimneysorfactorybuiltwoodburning
replaceswithclassAmetalchimneys.
Pellet venting pipe (also known as Type L vent) is constructed of two layers with air space between the layers. This air space
acts as an insulator and reduces the outside surface temperature to allow a clearance to combustibles of only 1 inch. The
sections of pipe lock together to form an air tight seal in most cases; however, in some cases a perfect seal is not achieved.
For this reason and the fact that the P-Series operates with a positive vent pressure, we specify that the joints also be sealed
with silicone.
Where passing through an exterior wall or roof, be sure to use the appropriate pass-through device providing an adequate
vapor barrier. Venting manufacturers generally provide these pass-through devices.
