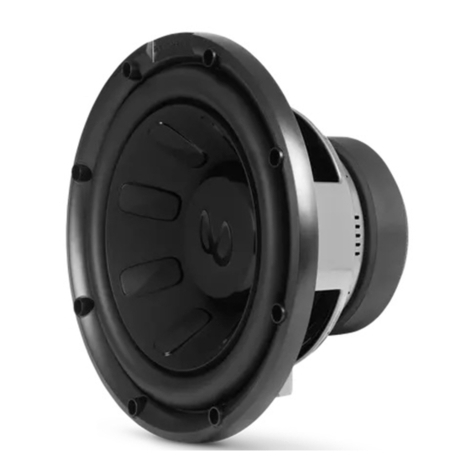

REFERENCE 1070 /
REFERENCE 1270
Subwoofer Owner's Manual
All manuals and user guides at all-guides.com
all-guides.com

EN
2-Ohm Setting
4-Ohm Setting
Reference subwoofers.
Reference subwoofers
REFERENCE
SUBWOOFERS
Infinity
Infinity
Infinity,
All manuals and user guides at all-guides.com

IMPORTANT: Make sure the
subwoofer amplifier is turned OFF before
setting the SSI switch. Do not change the
switch position while the subwoofer
amplifier is operating. Doing so could
damage the amplifier.
CONNECTING THE
AMPLIFIER
The subwoofer connectors are compatible
with quick-disconnect (not supplied) or
soldered connections. The recommended
wire gauge is between 14AWG and 8AWG,
depending on the length of the wire run
between the amplifier and woofer.
Heavier gauge wire is preferred for runs
over 6'(2m).
DIAMETER: 10" (254MM)
SENSITIVITY (2.83V @ 1M): 92dB
POWER HANDLING: 250Wrms (1000W PEAK)
FREQUENCY RESPONSE:30HZ~ 175HZ
NOMINAL 2OR 4 OHMS
VOICE-COIL DIAMETER: 2" (50MM)
DIMENSIONS:
VENTED-BOX VOLUME (INCLUDES DRIVER/PORT DISPLACEMENTS)
SEALED-BOX VOLUME (INCLUDES DRIVER DISPLACEMENT)
SPECIFICATIONS
VBOX= 0.50 ft3 (14.20 liters)
(side view)
diameter = 3" (76mm)
length = 11.3"
287mm
VBOX= 1.5 ft3(42.5 liters)
(side view)
VOICE-COIL DC RESISTANCE:R
EVC (OHMS) . . . . . . . . 2.00 . . . . . . . . . 4.30
VOICE-COIL INDUCTANCE @ 1KHZ:L
EVC (MH) . . . . . . . . . 1.21 . . . . . . . . . 0.77
DRIVER RADIATING AREA:S
D
(IN2) . . . . . . . . . . 51.17 . . . . . . . . 51.17
SD (CM2)......... 330.10....... 330.10
M
OTOR FORCE FACTOR:BL. . . . .. . . . . 10.20 . . . . . . . . 13.60
COMPLIANCE VOLUME:V
AS (FT3). . . . . . . . . . 1.14 . . . . . . . . . 1.08
VAS (LITERS) . . . . . . . 32.30 . . . . . . . . 30.60
SUSPENSION COMPLIANCE:C
MS (µM/N)...... 210.00........200.00
M
OVING MASS,AIR LOAD:M
MS (GRAMS)...... 134.00....... 133.90
F
REE-AIR RESONANCE:F
S
(HZ) . . . . . . . . . . 29.90 . . . . . . . . 30.70
MECHANICAL Q: QMS. . . . . . . . . . . . . . 4.10 . . . . . . . . . 2.60
ELECTRICAL Q: QES . . . . . . . . . . . . . . 0.48. . . . . . . . . . 0.60
TOTAL Q: QTS . . . . . . . . . . . . . . 0.43 . . . . . . . . . .0.49
MAGNETIC-GAP HEIGHT:H
AG (IN) . . . . . . . . . . . 0.24. . . . . . . . . . 0.24
HAG (MM) . . . . . . . . . . 6.00. . . . . . . . . . 6.00
VOICE-COIL HEIGHT:H
VC (IN)...........0.96 . .. .......0.96
H
VC (MM) . . . . . . . . . 24.50 . . . . . . . . 24.50
MAXIMUM EXCURSION:X
MAX (IN) . . . . . . . . . . 0.36 . . . . . . . . . 0.36
XMAX (MM) . . . . . . . . 9.25 . . . . . . . . . 9.25
2Ω4Ω
TECHNICAL DATA
DIAMETER: 12" (305MM)
SENSITIVITY (2.83V @ 1M): 93dB
POWER HANDLING: 275Wrms (1100W PEAK)
FREQUENCY RESPONSE:25HZ~ 175HZ
NOMINAL 2OR 4 OHMS
VOICE-COIL DIAMETER:
DIMENSIONS:
VENTED-BOX VOLUME (INCLUDES DRIVER/PORT DISPLACEMENTS)
SEALED-BOX VOLUME (INCLUDES DRIVER DISPLACEMENT)
SPECIFICATIONS
VBOX= 0.75 ft3 (21.20 liters)
(side view)
Port
fB = 30.0Hz
diameter = 4" (102mm)
length = 11.7"
298mm
VBOX= 2.5 ft3(70.8 liters)
(side view)
THIELE-SMALL PARAMETERS 2Ω4Ω
REFERENCE 1070 REFERENCE 1270
2" (50MM)
THIELE-SMALL PARAMETERS
(TM)
VOICE-COIL DC RESISTANCE:R
EVC (OHMS) . . . . . . . . 2.00 . . . . . . . . . 4.40
VOICE-COIL INDUCTANCE @ 1KHZ:L
EVC (MH) . . . . . . . . . 1.20 . . . . . . . . . 0.81
DRIVER RADIATING AREA:S
D
(IN2) . . . . . . . . . . 81.03 . . . . . . . . 81.03
SD (CM2)......... 522.80........522.80
M
OTOR FORCE FACTOR:BL.......... 10.30.........13.90
C
OMPLIANCE VOLUME:V
AS (FT3). . . . . . . . . . 2.16 . . . . . . . . . 2.11
VAS (LITERS) . . . . . . .61 .20 . . . . . . . . 59.70
SUSPENSION COMPLIANCE:C
MS (µM/N)...... 160.00........160.00
M
OVING MASS,AIR LOAD:M
MS (GRAMS)...... 155.10....... 154.90
F
REE-AIR RESONANCE:F
S
(HZ) . . . . . . . . . . 31.90 . . . . . . . . 32.40
MECHANICAL Q: QMS. . . . . . . . . . . . . . 4.64 . . . . . . . . . 3.02
ELECTRICAL Q: QES . . . . . . . . . . . . . . 0.59. . . . . . . . . . 0.72
TOTAL Q: QTS . . . . . . . . . . . . . . 0.52. . . . . . . . . . 0.58
MAGNETIC-GAP HEIGHT:H
AG (IN) . . . . . . . . . . . 0.24. . . . . . . . . . 0.24
HAG (MM) . . . . . . . . . . 6.00. . . . . . . . . . 6.00
VOICE-COIL HEIGHT:H
VC (IN)...........1.12 . .. ...... 1.12
H
VC (MM) . . . . . . . . . 28.50 . . . . . . . . 28.50
MAXIMUM EXCURSION:X
MAX (IN) . . . . . . . . . . 0.40 . . . . . . . . . 0.40
XMAX (MM) . . . . . . . . 10.25 . . . . . . . . .10.25
(TM)
2.Insert wires
into connector
openings
mounting depth
5-5/8" (142mm)
cutout diameter
9" (228mm)
outer diameter
10-3/4" (272mm)
mounting height
11/16" (17 mm)
mounting depth
6-1/2" (165mm)
cutout diameter
11-1/4" (285mm)
outer diameter
12-15/16" (328mm)
mounting height
11/16" (17 mm)
Port
fB = 30.0Hz
The wider terminal is the positive and the
narrower is negative (also indicated on the
terminal cover).
NOTE: If using untinned bare wire, be sure
that no stray “+” and “–” strands touch
each other. Touching strands can cause a
short circuit, which can damage your
amplifier.
IMPEDANCE:IMPEDANCE:
