Harman JBL Basspro Nano User manual

Basspro Nano
EN
Owner’s Manual

Basspro Nano
EN
WIRING FOR POWER AND GROUND
Remote turn-on (blue) to
aftermarket stereo REM out
+12V (red)
Ground
(black)
Fuse holder, 15A fuse
Chassis ground (–) Battery
18”(46cm)
WIRING FOR AUDIO SIGNAL
Line-level from aftermarket stereo
Right line output
(from stereo)
Left line output
(from stereo)
NOTE: When connecting an aftermarket stereo to the BassPro
Nano’s line-level inputs and remote turn-on wire, set the
button to .
Speaker-level from factory or aftermarket stereo
Right + (from stereo)
Right – (from stereo)
Left – (from stereo)
Left + (from stereo)
Harness high-level input wire guide
White/White with black stripe Left + / Left -
Gray/Gray with black stripe Right + / Right -
ABOUT THE MANUAL
This manual displays general Owner’s Manual guideline. However,
please note that proper installation of mobile audio components
requires qualified experience. If you do not have the knowledge
and tools to successfully perform this installation, we strongly
recommend consulting an authorized JBL dealer about your
installation options. Keep all instructions and sales receipts for
reference.
WHAT’S IN THE BOX
1X
1X
1X
1X
1X
2X 4X
8X
4X
MOUNTING THE BASSPRO NANO
Recommended location: under the passenger seat
NOTE: Before securing the BassPro Nano with mounting screws,
check beneath the mounting surface to ensure you will not
puncture fuel lines, brake lines, or any vehicle wires. Also ensure
that the BassPro Nano will not interfere with seat operation or
wiring, or block underseat heater/air conditioning vents.

EN
Note: When connecting a factory or aftermarket stereo to the
BassPro Nano’s speaker-level inputs, set the
button to .

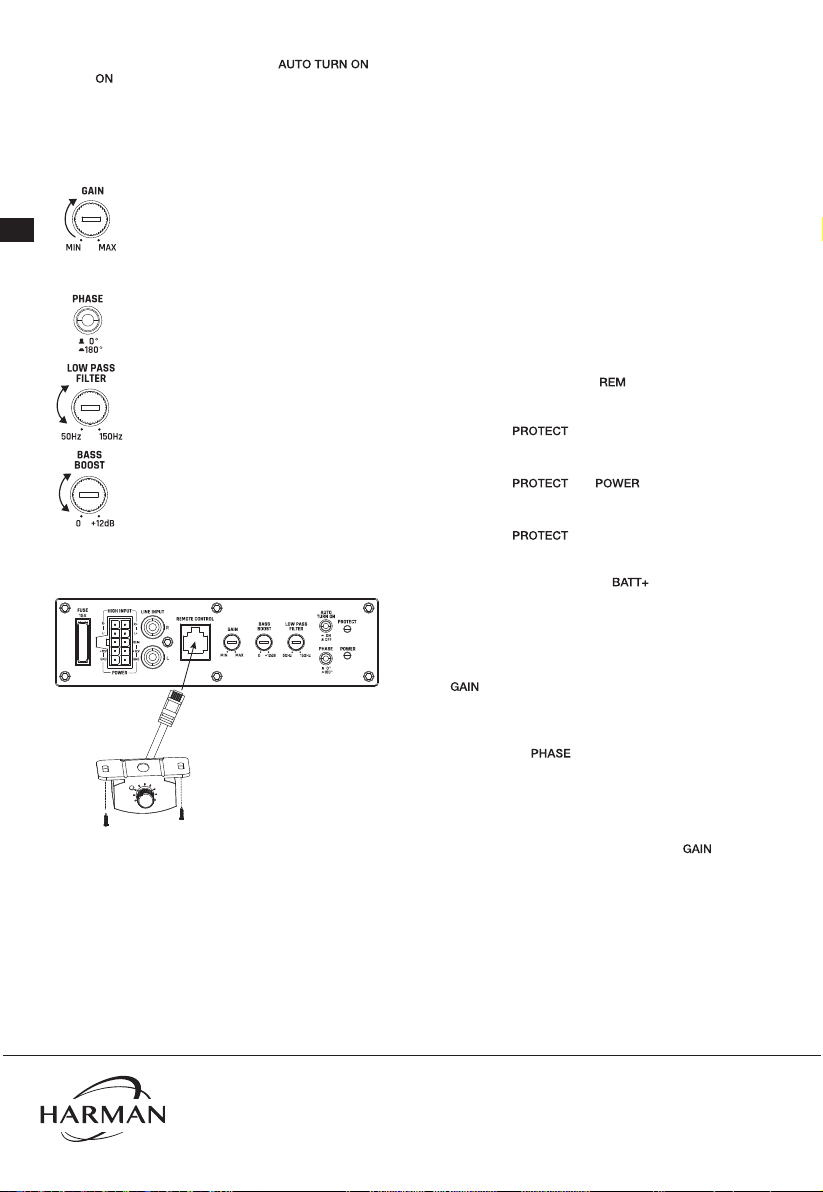

SETTING GAIN, ADJUSTING PHASE, LOW-
PASS FILTER, AND BASS BOOST
1. Start with GAIN control set to minimum,
and the crossover control rotated midway.
2. Choose music with substantial bass
content and turn the volume control on
your receiver to ¾ of its total output.
3. Adjust the GAIN control clockwise,
listening carefully to the bass output. If
you hear distortion, turn the GAIN control
counterclockwise to decrease the GAIN.
4. Switch the PHASE back and forth to
determine which setting provides the most
clean bass output.
5. Adjust the LOW-PASS FILTER control
until the BassPro Nano plays only low-
frequency information – you should not
hear elements such as vocals coming from
the woofer.
6. Adjust the BASS-BOOST control
clockwise or counterclockwise to suit your
taste.
CONNECTING THE REMOTE BASS
CONTROL MODULE
SPECIFICATIONS
• Driver Complement: 6” x 8” (152mm x 203mm) woofer
• Amplifier Power Output: 100WRMS, 200W Max
• Frequency Response: 30 Hz – 150 Hz
• Fuse: 15A
• Maximum Current Draw: 13A
• Quiescent Current Draw: <600 mA
• Input Sensitivity: 0.1 V – 4.0 V low-level input; 0.25 V – 10V
high-level input
• Crossover Frequency: 50 Hz – 150 Hz
• Crossover Slope: 12 dB/octave
• Bass Boost: 0 dB to +12 dB @ 50Hz
• Dimensions (L x W x H): 10-1/4” x 7-11/16” x 2-15/16”
(260mm x 195mm x 74.6mm)
• Weight: 7.78lbs. (3.53kg)
TROUBLESHOOTING
No audio and POWER indicator is off
• No voltage at BATT+ and/or terminals, or bad or no
ground connection. Check voltages at amplifier terminals with
VOM.
No audio and indicator ashes every 4 seconds
• DC voltage on amplifier output. Amplifier may need service; see
enclosed warranty card for service information.
No audio and and indicators ash
• Voltage less than 9V on BATT+ connection. Check vehicle
charging system.
No audio and indicator is on
• Amplifier is overheated. Make sure amplifier cooling is not
blocked at mounting location. Or, there may be voltage greater
than 16V (or less than 8.5V) on connection. Check
vehicle charging system.
Amplier fuse keeps blowing
• The wiring is connected incorrectly or there is a short circuit.
Check wiring connections.
Distorted audio
• is not set properly. Check setting. Check wires for shorts
or grounds. Amplifier or source unit may be defective.
Music lacks dynamics or “punch.”
• If using speaker-level inputs, check connections for proper
polarity. Switch back and forth between 0° and 180°
and leave on setting with best sound.
Engine noise—whining or clicking—in system when the
engine is on
• Amplifier is picking up alternator noise. First, check ground
connection on the amplifier – a loose or improper ground is
one of the main causes for noise. Turn down . Move RCA
audio cables away from power wires. Installing an alternator
noise filter on power line between battery and alternator might
also be necessary.
