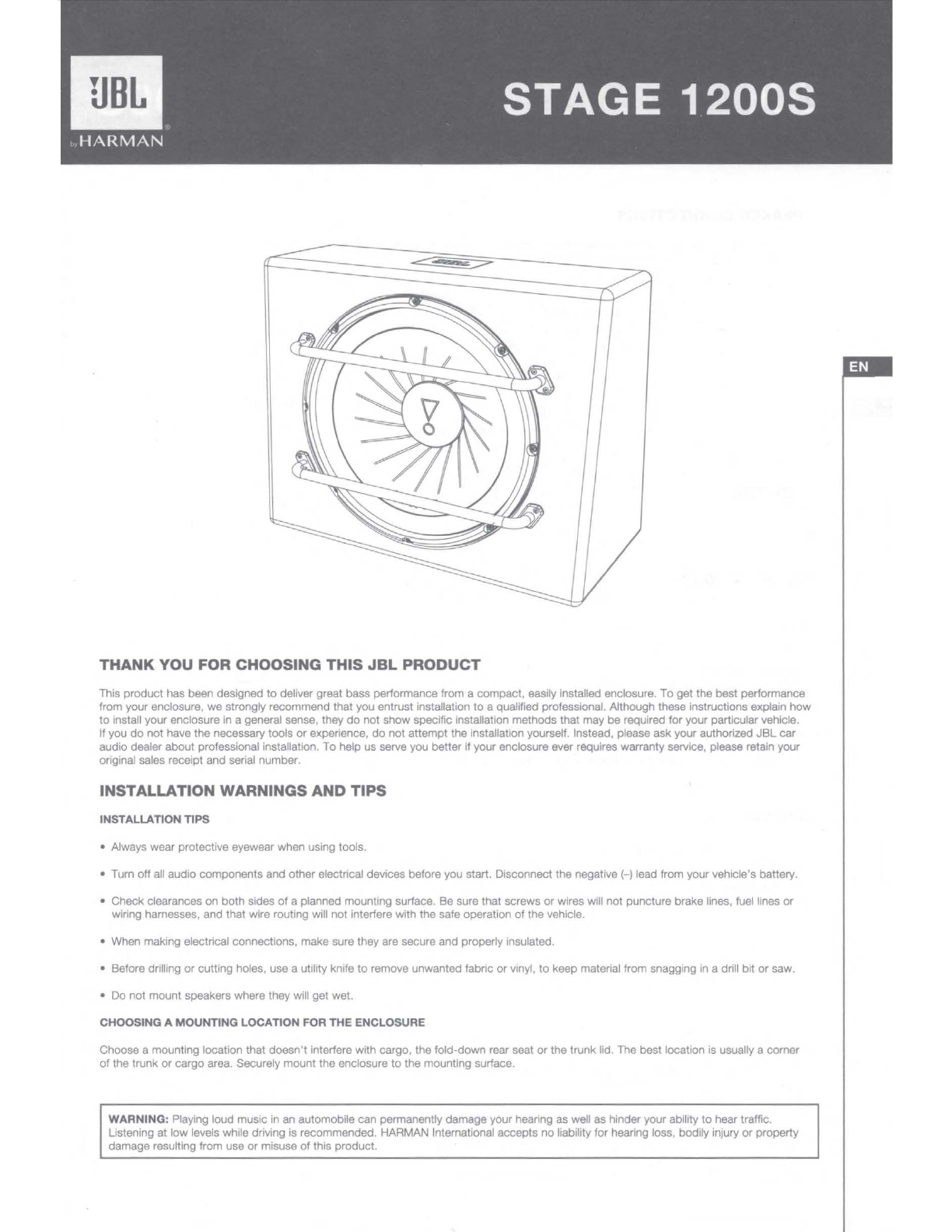

CA_JBI...Stago 12005 &bwoofer Endosu1t_OM_ CR _V5

THANK YOU FOR CHOOSING THIS JBL PRODUCT
This product has been designed to deliver great bass performance from a compact, easily installed enclosure. To get the best performance
from your enclosure, we strongly recommend that you entrust installation to a qualified professional. Although these instructions explain how
to install your enclosure 1n a general sense, they do not show specific installation methods that may be required for your particular vehicle.
Ifyou do not have the necessary tools or experience, do not attempt the installation yourself. Instead, please ask your authorized JBL car
audio dealer about professional installation. To help us serve you better ifyour enclosure ever requires warranty service, please retain your
original sales receipt and serial number.
INSTALLATION WARNINGS AND TIPS
INSTALLATION TIPS
• Always wear protective eyewear when using tools.
• Turn offall audio components and otherelectrical devices before you start. Disconnect the negative (-) lead from your vehicle's battery.
• Checkclearances on both sides of a planned mounting surface. Be sure that screws or wires will not puncture brake lines, fuel lines or
wiring harnesses, and that wire routing will not interfere with the safe operation of the vehicle.
• When making electrical connections, make sure they are secure and properly insulated.
• Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl, to keep material from snagging 1n a drill bit or saw.
• Do not mount speakers where they will get wet.
CHOOSING A MOUNTINGLOCATION FOR THE ENCLOSURE
Choose a mounting location that doesn't interfere with cargo, the fold-down rear seat orthe trunk lid The best location is usually a comer
of the trunk or cargo area. Securely mount the enclosure to themounting surface.
WARNING: Playing loud music in an automobile can permanently damageyour hearing as well as hinder your ability to hear traffic.
Listening at low levels while driving is recommended. HARMAN International accepts no liability for hearing loss, bodily injury or property
damage resulting from use or misuse of this product.

SPEAKER CONNECTIONS
Connect t he+ and -terminals on the enclosure to the amplifier's outputs, observing proper polarity. Use at least 0.5mm2
(20 AWG) speaker wire for the connections to the enclosure.
BATTERY
SPECIFICATIONS
Woofer:
Power handling:
Power handling, peak:
Sensitivity (2.83V@1m):
Frequency response:
Impedance:
Dimensions:
(WxHxD1xD2)
GENERAL CARE
HEAD UNIT
L
Stage 1200S
12" (300mm)
250Wrms
1000W
91dB
34Hz-200Hz
2 ohms
AMP
----
R Remote
Tum-On
Speaker Out
17-3/16" X 14-3/8" X 6-5/16" X 9-15/16"/
(436mm x 365mm x 159mmx 252mm)
The loudspeakermay be cleaned with a damp cloth. Do not useany cleaners or solvents.
Stage 1200S
A valid serial number is required for warranty coverage. This product is designed for mobile applications and is not intended for
connection to the mains.

~
HARMAN
~
HARMAN lntemat,onaJ
lndustnes, Inc.
8500 Balboa Boulevard,
Northndge, CA 91329 USA
www.JBL.com
0 2020 HARMAN lntematl008i lndustnes, lrcorporated. Al nghtsrese,ved
JBL Is atrademark of HARMAN International lndustnes, lnoofporated, regiStered In theUnited States and/orother countnes.
Features, spec,flcationsendappeon,nce are subject to changewithout notice.
