Harvest Pro Terp Trap Bath 801521 User manual

1
Terp Trap Bath
#801521
Harvest Pro Terp Trap Bath
-40 degree
#801522
Harvest Pro Terp Trap Bath
-80 degree

2

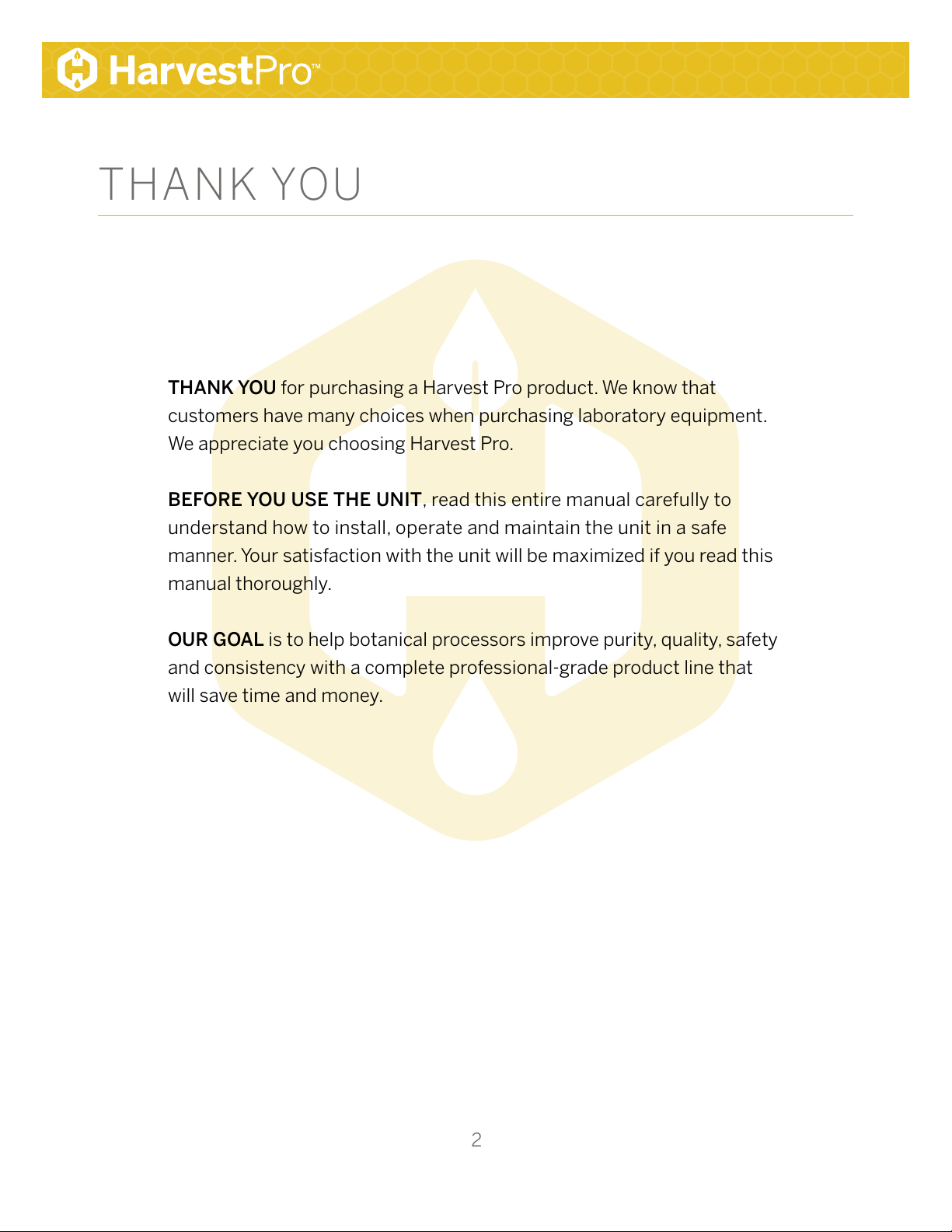

THANK YOU
THANK YOU for purchasing a Harvest Pro product. We know that
customers have many choices when purchasing laboratory equipment.
We appreciate you choosing Harvest Pro.
BEFORE YOU USE THE UNIT, read this entire manual carefully to
understand how to install, operate and maintain the unit in a safe
manner. Your satisfaction with the unit will be maximized if you read this
manual thoroughly.
OUR GOAL is to help botanical processors improve purity, quality, safety
and consistency with a complete professional-grade product line that
will save time and money.

3
TABLE OF CONTENTS
Table of Contents ........................................................................ 3
Warning Symbols ....................................................................... 4
Environmental Conditions ......................................................... 4
Key Features ................................................................................ 5
The Exterior ................................................................................ 6
Main Components ...................................................................... 7
Installation .................................................................................. 8
Settings and Operation ............................................................ 1 1
Specifications ........................................................................... 14
Maintenance and Service ........................................................ 15
Keep this manual on-hand, so that it can be
used by all operators of the unit. Use the unit
only in the way described in this manual.
Failure to follow the instructions in this
manual may cause improper operation.

4
WARNING SYMBOLS
Be sure you that you understand all of these symbols before operating the unit.
Read this manual carefully.
This symbol means that you should not do it.
Be careful about voltage!
Hot surface or steam.
ENVIRONMENTAL CONDITIONS
• Indoor use.
• Temperature 41°F to 104°F (5°C to 40°C).
• Maximum relative humidity 80% for temperatures up to 88°F (31°C) decreasing
linearly to 50% relative humidity at 104°F (40°C).
• Main supply voltage fluctuations up to ± 10% of the nominal voltage.
• Transient over-voltages up to the levels of over-voltage category II.
• Applicable pollution degree of the intended environment
(pollution degree 2 in most cases).
We are not responsible for any malfunction or defects caused
by user’s mis-operation or improper environmental conditions.
Make sure to follow proper power requirements.

5
KEY FEATURES
• Digital display of temp and time
• Multi key-in [100Ω (DIN Pt100Ω)
• Super cool down
• Glass trap easily opens
• Support multi glass trap
Circuit
breaker
switch
DEF
COMP
TC3YF
FAN ℉ ℃
MD
• Over-current protection
function • Rust-free stainless coil
↕

6
THE EXTERIOR
#801521
Harvest Pro
Terp Trap Bath
-40 degree
#801522
Harvest Pro
Terp Trap Bath
-80 degree

7

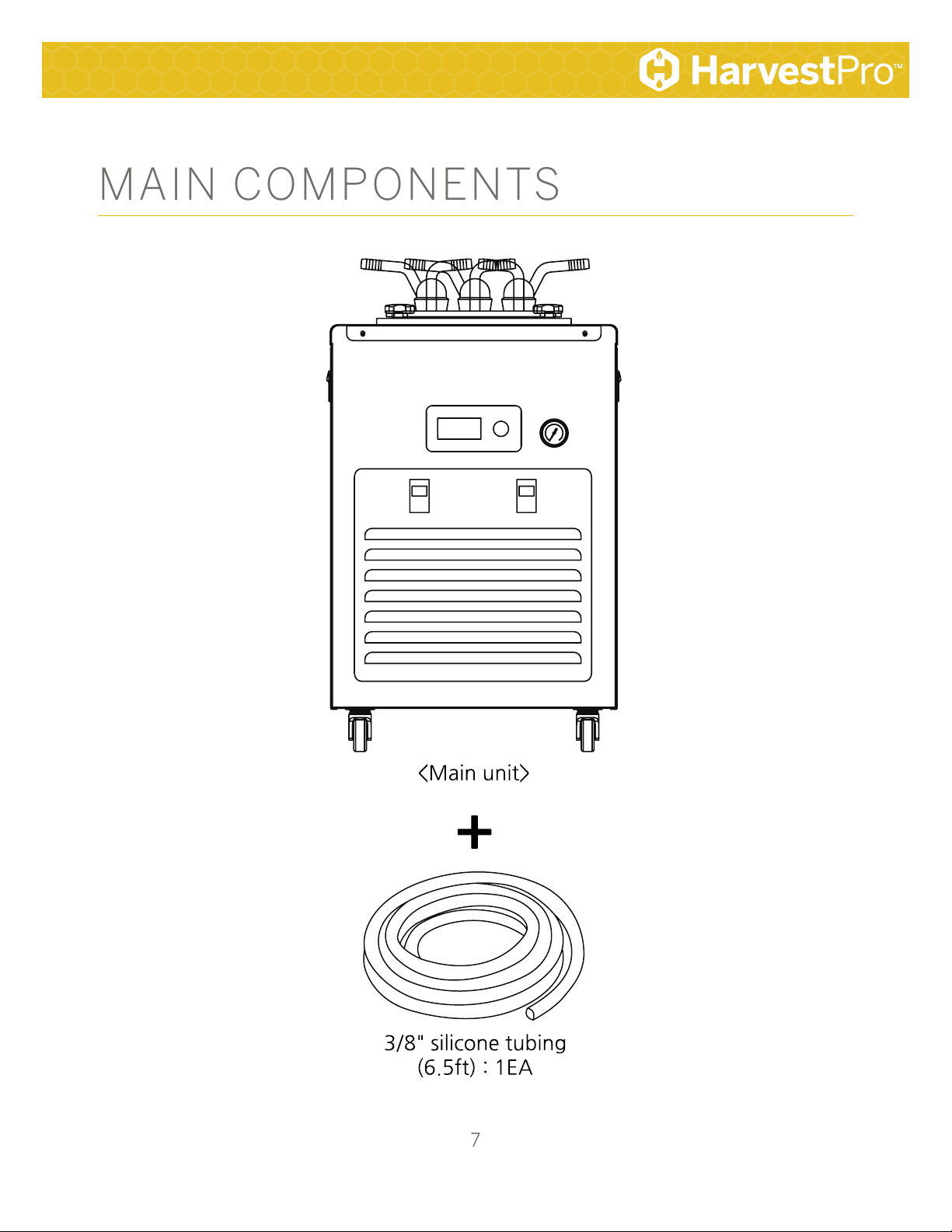

MAIN COMPONENTS

8
or
DOOR
D
O
O
R
DOOR
DOOR

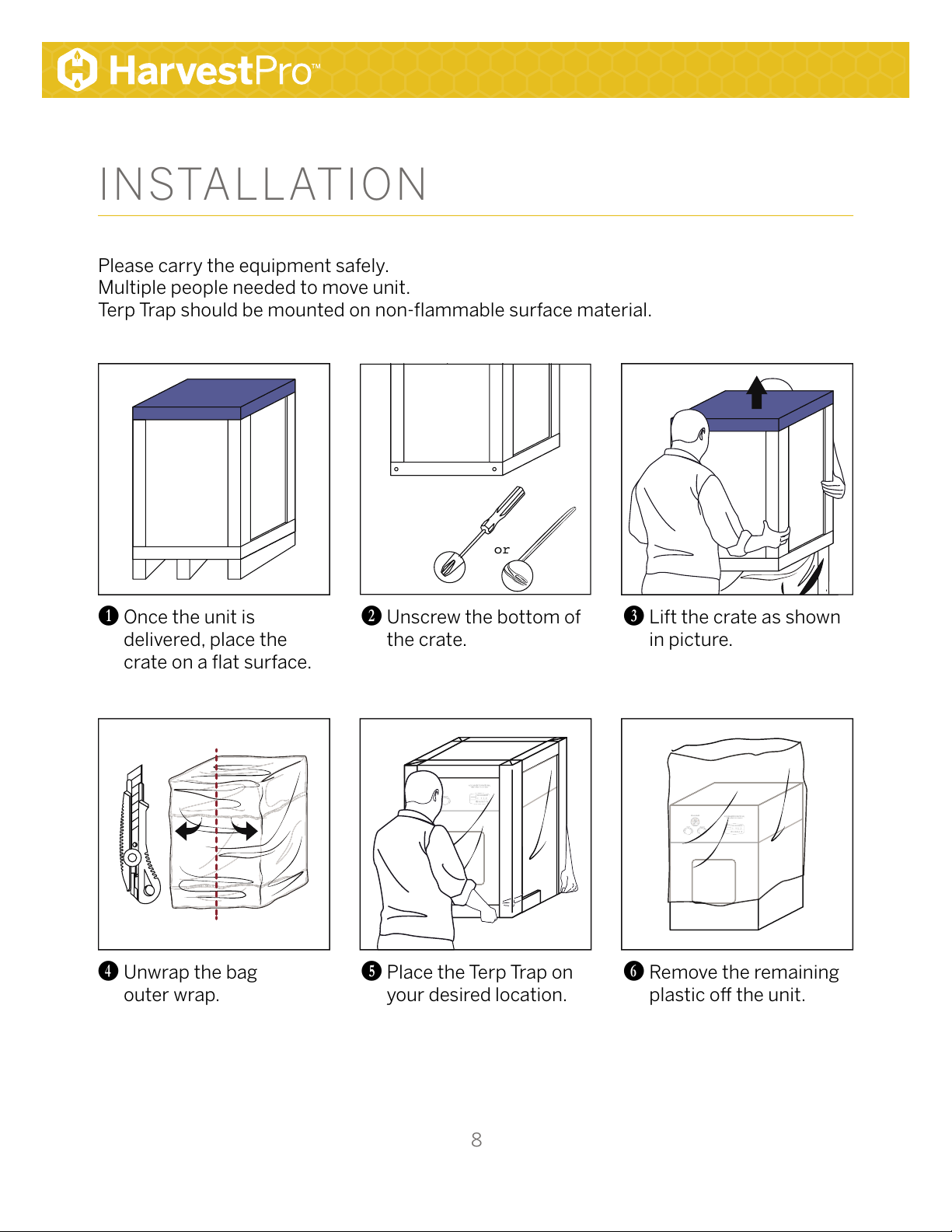

INSTALLATION
Please carry the equipment safely.
Multiple people needed to move unit.
Terp Trap should be mounted on non-flammable surface material.
B Once the unit is
delivered, place the
crate on a flat surface.
C Unscrew the bottom of
the crate.
D Lift the crate as shown
in picture.
E Unwrap the bag
outer wrap.
F Place the Terp Trap on
your desired location.
G Remove the remaining
plastic off the unit.

9
J Locate Terp Trap between vacuum oven and pump.
Refer to flask connecting illustration (Figure B).
I Make sure you plug into appropriate voltage
source. See faceplate (Figure A) for required
voltage power.
Figure A
H Make sure to unlock casters
while moving Terp Trap.
Load
Ground
K Make sure your
power supply is in
a dry location.
L Proper ventilation is needed
for safe operation. Keep
Terp Trap 4 inches (100mm)
from any walls on all sides
(see illustrations to the right
for reference). Make sure
there is enough space for
power plug to connect to
power outlet.
<TOP> <SIDE>
↔
4 inches
4 inches
4 inches
Figure B

10
Oven and Pump connection
1. Install the vacuum valve in your preferred configuration (see diagrams below).
2. Before operating, ensure that the vent valve and vacuum valve are closed.
3. Connect the tri-clamps and tri-clamp O-rings to the oven and to the vacuum pump.
4. When operating, strictly follow these procedures step by step:
A) Turn on the vacuum pump.
B) Open the vacuum valve.
C) Close vent valve.
C) In order to end operation, close vacuum valve.
D) Turn off the vacuum pump.
E) Open the vent valve.
Examples of vacuum valve position:
Lore

11
SETTINGS AND OPERATION
Use a dry cloth to clean the Terp Trap as needed.
Alcohol Oil
Use of solvents and some detergents can oxidize the Terp Trap causing undesired deposits.
Turn on main power switch (circuit breaker switch) to power up controller display(s).
B Start the unit
Push on/off switch to start the equipment.
C Stop the unit
Push on/off switch to stop the equipment.

12
D Temp checking and setting

13

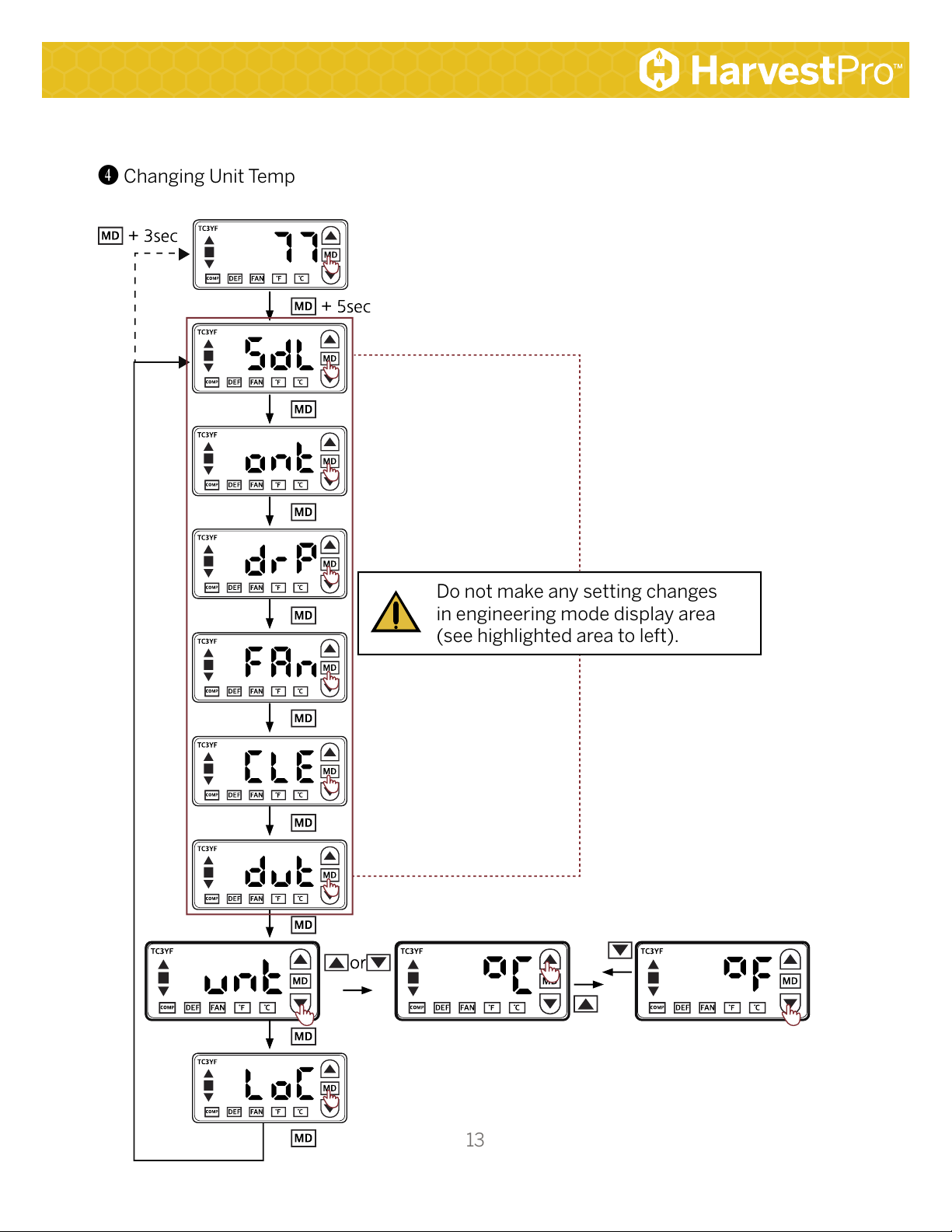

E Changing Unit Temp
Do not make any setting changes
in engineering mode display area
(see highlighted area to left).

14

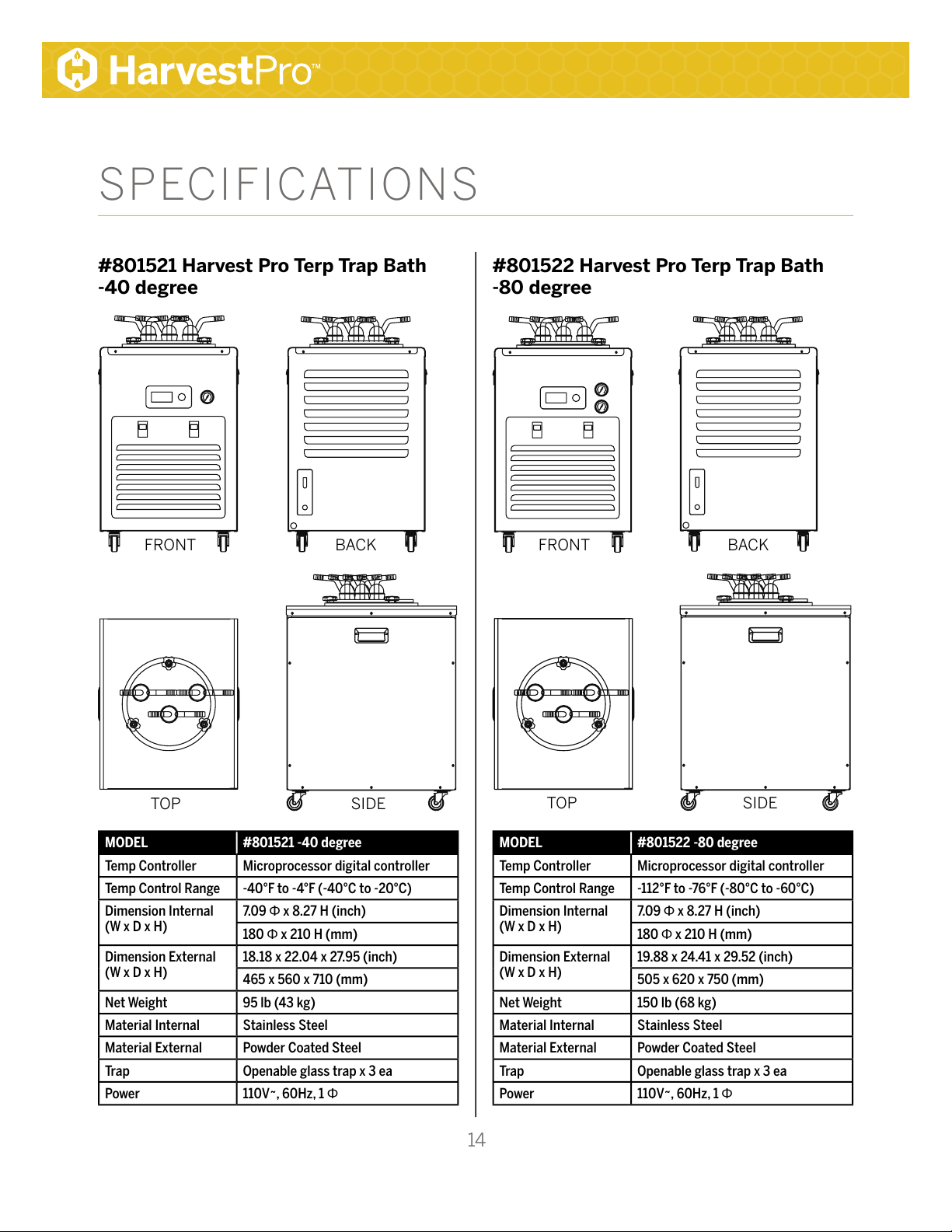

SPECIFICATIONS
#801521 Harvest Pro Terp Trap Bath
-40 degree
MODEL #801521 -40 degree
Temp Controller Microprocessor digital controller
Temp Control Range -40°F to -4°F (-40°C to -20°C)
Dimension Internal
(W x D x H)
7.09 Ф x 8.27 H (inch)
180 Ф x 210 H (mm)
Dimension External
(W x D x H)
18.18 x 22.04 x 27.95 (inch)
465 x 560 x 710 (mm)
Net Weight 95 lb (43 kg)
Material Internal Stainless Steel
Material External Powder Coated Steel
Trap Openable glass trap x 3 ea
Power 110V~, 60Hz, 1 Ф
FRONT BACK
TOP SIDE
FRONT BACK
TOP SIDE
#801522 Harvest Pro Terp Trap Bath
-80 degree
MODEL #801522 -80 degree
Temp Controller Microprocessor digital controller
Temp Control Range -112°F to -76°F (-80°C to -60°C)
Dimension Internal
(W x D x H)
7.09 Ф x 8.27 H (inch)
180 Ф x 210 H (mm)
Dimension External
(W x D x H)
19.88 x 24.41 x 29.52 (inch)
505 x 620 x 750 (mm)
Net Weight 150 lb (68 kg)
Material Internal Stainless Steel
Material External Powder Coated Steel
Trap Openable glass trap x 3 ea
Power 110V~, 60Hz, 1 Ф

15

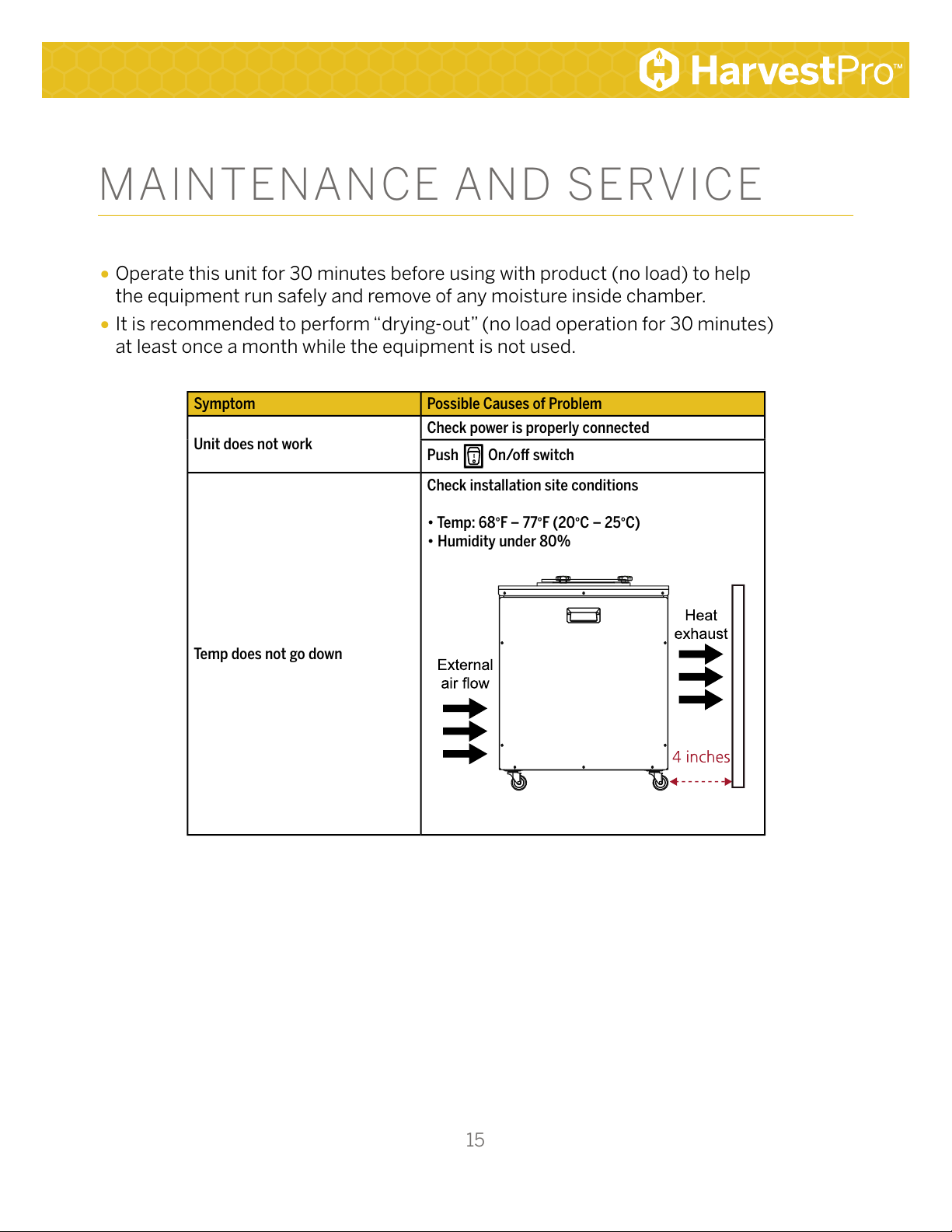

MAINTENANCE AND SERVICE
• Operate this unit for 30 minutes before using with product (no load) to help
the equipment run safely and remove of any moisture inside chamber.
• It is recommended to perform “drying-out” (no load operation for 30 minutes)
at least once a month while the equipment is not used.
Symptom Possible Causes of Problem
Unit does not work
Check power is properly connected
Push On/off switch
Temp does not go down
Check installation site conditions
• Temp: 68°F – 77°F (20°C – 25°C)
• Humidity under 80%

© 2018 Hawthorne Gardening Co.
071218BV
Harvest Pro
3204 NW 38th Circle
Vancouver, WA 98660
360.883.8846
