HAUL MASTER 63772 Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back
of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep
this manual and the receipt in a safe and dry place for future reference. 21k
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2021 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. 63772
Specifications
Capacity 700 lb. (one ramp)
Max. Tailgate Height 42″
Ramp Length 84″
Ramp Width 12″
Important Safety Information
1. Before use:
a. Read and understand manual.
b. Inspect before every use;
do not use if parts loose or damaged.
c. Turn vehicle’s ignition OFF
and set parking brake.
d. Clean dirt, oil and debris off
ramps and allow ramps to dry.
e. Unfold ramps completely.
f. Set up only on solid,
level, dry surface.
g. Turn ramps so flange end faces
downward. Position ramps so that
tongues fully contact tailgate.
h. Properly connect Safety Straps.
2. Load and unload vehicle slowly.
Do not ride vehicle up
or down ramps.
3. Do not exceed 700 lb. capacity per
ramp or 1,400 lb. capacity evenly
distributed across two ramps.
Be aware of dynamic loading!
Sudden load movement may
briefly create excess load
causing product failure.
4. Use safety straps as intended only.
5. Use ramps as intended only. Do not use:
a. as ladder(s),
b. to load/unload 3-wheeled vehicles,
c. if tailgate on carrying vehicle
is higher than 42″,
d. to load vehicle with wheel
width wider than ramp.
6. This product is not a toy. Do not allow
children to play with or near this item.
7. Maintain product labels and
nameplates. These carry
important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
8. Clean Ramps. Prior to each use,
clean dirt, oil, or any debris off ramps.
9. All persons not involved in the
loading process must stand
clear of the loading ramps.
Keep children away. Children must
not be allowed in the work area.
10. Do not exceed tailgate
weight capacity.
11. Avoid working alone. If an accident
happens, an assistant can bring help.
12. Keep work area clean and well lit.
Cluttered and dark areas invite injuries.

Page 3For technical questions, please call 1-888-866-5797.63772
13. Store idle equipment.
When not in use, store ramps in
a dry location to inhibit rust.
14. Dress properly. Do not wear loose
clothing or jewelry. Protective clothes
and nonskid footwear are recommended
when working. Wear restrictive hair
covering to contain long hair.
15. Wear ANSI-approved impact
safety goggles, a safety helmet,
and heavy-duty work gloves
when loading, unloading
or handling ramps.
16. Keep proper footing and balance
when loading or unloading.
17. Do not modify this product.
18. Stay alert. Watch what you are
doing, use common sense. Do not use
any ramp when you are tired.
19. Check for damaged parts.
Before using any ramp, any part that
appears damaged should be carefully
checked to determine that it will perform
its intended function. Check for any
broken parts or mounting fixtures and
any other condition that may affect
proper operation. Any part that is
damaged should be properly repaired
or replaced by a qualified technician.
20. Replacement parts and accessories.
When servicing, use only identical
replacement parts. Use of any
other parts will void the warranty.
Only use accessories intended
for use with these ramps.
21. Do not use ramp if under the
influence of alcohol or drugs.
Read warning labels on prescriptions to
determine if your judgment or reflexes
are impaired while taking drugs. If there
is any doubt, do not use the ramp.
22. Inspect Safety Strap before every
use; do not use if parts loose,
damaged, or deteriorated.
23. The warnings, cautions, and instructions
discussed in this instruction manual
cannot cover all possible conditions
and situations that may occur. It must
be understood by the operator that
common sense and caution are factors
which cannot be built into this product,
but must be supplied by the operator.
SAVE THESE INSTRUCTIONS.

Page 4 For technical questions, please call 1-888-866-5797. 63772
Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this manual including all text under subheadings therein before
set up or use of this product.

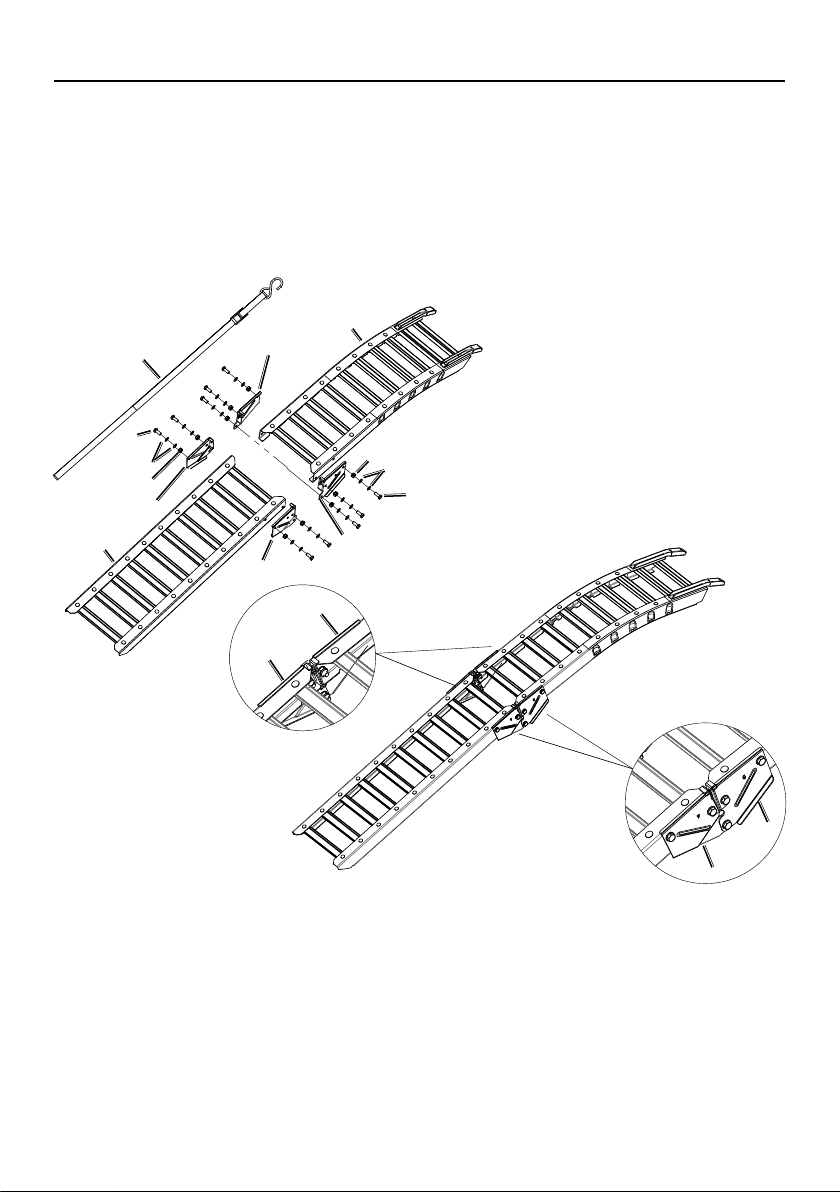

Note: For additional information regarding the parts listed in the following pages, refer to
Parts List and Diagram on page 10.
Note: Top of Ramp is where tongues (angled
lips) are located.
Note: Assemble Ramps on a safe and secured
area with plenty of room for assembled Ramps.

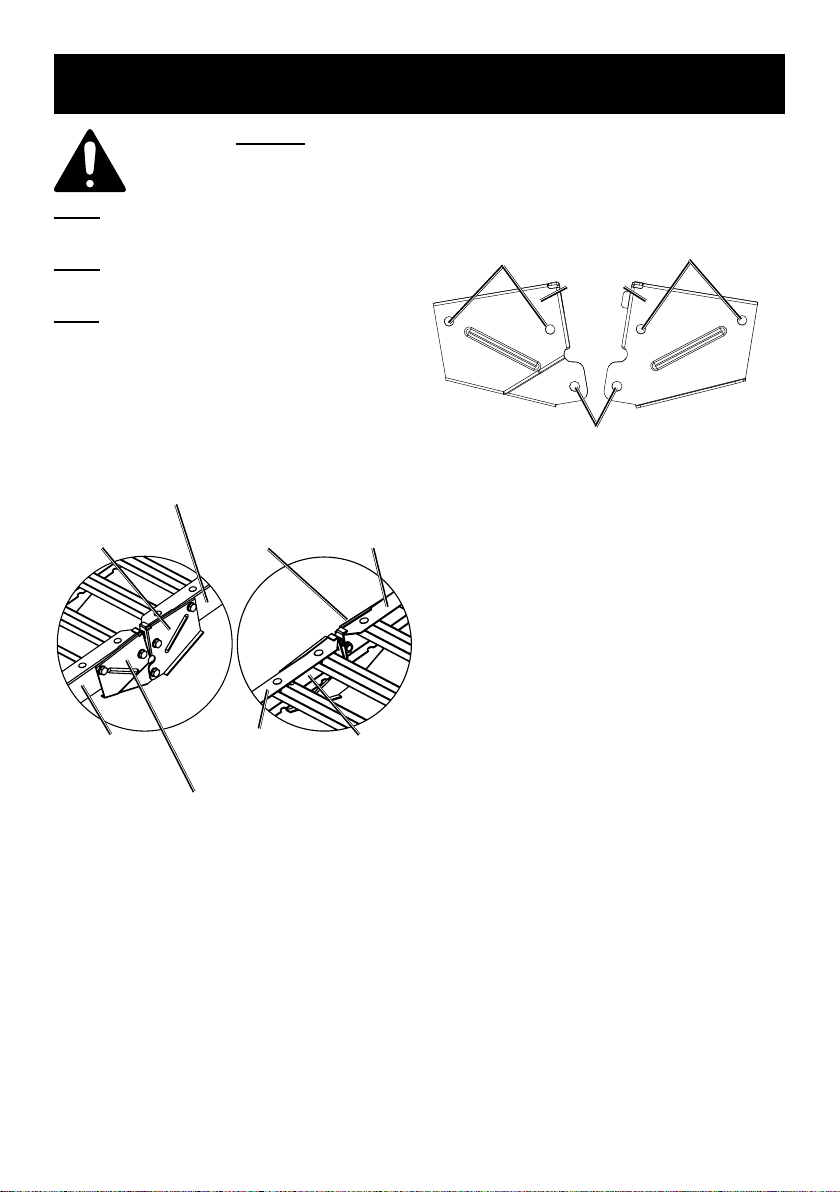

1. Place Connection Plate G (4) at the
bottom right side of Upper Ramp (2).
Bottom
Ramp (1)
Upper
Ramp (2)
Connecting
Plate G (4)
Connecting
Plate F (5)
Right
Side
Left
Side
Same Ramp
Upper
Ramp (2)
Bottom
Ramp (1)
Connecting
Plate I (7)
Connecting
Plate H (6)
2. Install two M10x20 Bolts (8), four
M10 Flat Washers (9) and two
M10 Lock Nuts (10) into two mount
holes attaching Connection Plate G
to Upper Ramp frame, bottom
right side. Refer to Figure A.
Mount holes attaching to Ramp Frame
Lower swivel mount holes
4,75,6
Figure A: Mount Hole Callouts.
3. Place Connection Plate I (7) at the
bottom left side of Upper Ramp.
4. Install two M10x20 Bolts, four
M10 Flat Washers and two
M10 Lock Nuts into two mount
holes attaching Connection Plate I
to Upper Ramp frame, bottom
left side. Refer to Figure A.
5. Place Connection Plate F (5) at the
upper right side of Bottom Ramp (1).
6. Install two M10x20 Bolts, four
M10 Flat Washers and two
M10 Lock Nuts into two mount
holes attaching Connection Plate F
to Bottom Ramp frame, upper
right side. Refer to Figure A.
7. Place Connection Plate H (6) at the
upper left side of Bottom Ramp.
8. Install two M10X20 Bolts, four
M10 Flat Washers and two
M10 Lock Nuts into two mount
holes attaching Connection Plate
to Bottom Ramp frame, upper
left side. Refer to Figure A.

Page 5For technical questions, please call 1-888-866-5797.63772
Note: Make sure Upper Ramp Connecting
Plates are on the Outside of Bottom Ramp
Connecting Plates.
9. Connect Upper Ramp to Bottom ramp.
10. Install two M10x20 Bolts, four
M10 Flat Washers and two
M10 Lock Nuts into lower swivel
mount holes connecting left
Connecting Plates H,I (6,7) and right
side Connecting Plates G,F (4,5),
Refer to Figure A.
11. Follow steps 1-10 to
assemble second ramp.
Setup and Operation Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this manual including all text under subheadings therein before
set up or use of this product.
TO PREVENT SERIOUS INJURY AND DEATH:
Before loading or unloading turn vehicle’s engine off, set its transmission
in gear or park, engage its emergency brake and block its wheels.
Make sure the Ramps are clean and dry before loading or unloading.
Setup
CAUTION! Unfold both Ramps completely,
being careful not to pinch your hands.
WARNING! TO PREVENT SERIOUS
INJURY: Connect Safety Straps (3) to
secure attachment points within the
truck bed able to withstand the pulling
force of loading. They must also be
tight enough to prevent the Ramps from
coming off the vehicle being loaded.
1. The tailgate and the Ramps must
be dry and clean. Check for and
tighten any loose hardware.
2. Sit the Tongue (angled lip) of the
Ramps on the tailgate. The Tongue
must face down, and fully contact
the truck’s tailgate. Extend the
Safety Strap (3) on each Ramp
up into the inside of the truck bed;
attach each Safety Strap to a secure
attachment point on the truck chassis.
Safety
Strap (3)
Tongue
(angled lip)
3. Pull the Ramps backwards
until the Straps are tight.
The entire Tongue portion of the
Ramps must fit onto the tailgate; if not,
adjust the Safety Straps accordingly.
Note: Store Safety Straps indoors after use.

Page 6 For technical questions, please call 1-888-866-5797. 63772
Safety Strap Adjustment
1. Loop the Safety Strap through
the anchoring point on the
truck and hook it to itself.
2. Adjust the other Safety
Strap to equal length.
4- Wheel ATV Loading and Unloading
• These Ramps are for use with 2-wheeled dirt bikes and 4-wheeled ATV’s only.
Do not use these Ramps to load/unload 3-wheeled vehicles.
• Do not use these Ramps to load or unload any vehicle that weighs more than 1400 lb.
• Do not use these Ramps to load or unload any vehicle with wheel width wider than the
Ramp.
• Do not use these Ramps to load or unload any vehicle that is carrying gear on its racks.
• Do not use these Ramps if the tailgate on the vehicle being
loaded or unloaded is higher than half each Ramp’s length (42″).
WARNING! TO PREVENT SERIOUS INJURY: Riding an ATV while loading or unloading
is dangerous and should not be attempted.
WARNING! Be aware of dynamic loading! Sudden load movement may briefly create excess
load causing the Ramps to fail.
WARNING! TO PREVENT SERIOUS INJURY: All persons not involved in the process must
stand clear of the Ramps and truck. Make sure no pets are nearby.
Loading Using a Winch (not included)
1. The winch and mounting/connection
points must all have appropriate capacity
to pull the ATV up the Ramps safely.
2. ATV Mounted Winch Setup:
Unwind cable from the winch and attach
it to a secure mounting location on the
truck, at the same height as the winch
will be after the ATV has been loaded.
3. Truck Mounted Winch Setup:
Attach the cable to the bottom
front part of the frame.
4. While operating the winch,
stand back and to the side of the
ATV, with the vehicle between
you and the winch cable.
5. Operate the winch to slowly load
the ATV onto the vehicle.
Unloading
WARNING! TO PREVENT SERIOUS
INJURY: Riding an ATV while unloading is
dangerous and should not be attempted.
1. Have an assistant monitor the Ramp
tongues for slippage on the tailgate.
2. Setup the Ramps on the truck
bed as explained under operation.
Remove all tie down straps and
securing equipment from the ATV.
WARNING! TO PREVENT SERIOUS
INJURY: Be sure the 4-wheel
ATV is centered on Ramps.

Page 7For technical questions, please call 1-888-866-5797.63772
3. While staying off the ATV, start the engine,
disengage the parking brake, put the
transmission into reverse, and make
sure the wheels are in a straight line with
the Ramps. While holding the brake,
position yourself in front of the ATV.
4. Release the brake and push on the ATV to
get it started down the Ramps. Allow the
ATV to roll down naturally, do not steer it
or apply the brakes. If it stops while on
the Ramps, gently give it throttle to back
it off the Ramps.
2-Wheel Dirt Bike Loading
1. Do not attempt to load any dirt bike
or other 2-wheel motor bike alone.
Have a qualified adult assist.
2. Line up the 2-wheel dirt bike
with one of the Ramps.
3. With one person pushing the dirt bike
slowly up the Ramp, a helper
should be in the bed of the hauling
vehicle both to guide and to apply
the brake if it is necessary to stop
the dirt bike while it is on the Ramp.
Have one person with a hand on the
dirt bike hand brake for safety.
4. Once the person inside the truck bed
has hold of the handle bars, apply
the brake and steady the dirt bike
while the other person moves behind
the dirt bike (but off to one side) and
pushes it all the way into the truck bed.
NOTE: While most dirt bikes are light
enough to safely load with two people, a third
person can make the job easier and safer.
5. Once the dirt bike is safely loaded,
secure it with four tie down straps
(not included), one on each side
of the front, and one on each side
at the rear of the dirt bike.
2-Wheel Dirt Bike Unloading
1. Position the Ramp against the
truck tailgate behind the rear tire
of the dirt bike and attach the
Safety Straps to the truck bed.
2. Remove the tie-down
straps (not included).
3. Slowly and carefully while using
an assistant, push the dirt bike
backwards until the back tire is at the
top of the Ramp. With one person
on the ground behind and to the
side of the Ramp, slowly push the
dirt bike onto the Ramp. Someone
must always hold the hand brake.
4. Slowly work the dirt bike down the
Ramp and onto the ground.

Page 8 For technical questions, please call 1-888-866-5797. 63772
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY:
Remove the Ramps from the vehicle before performing any maintenance or service.
Do not use damaged equipment.
If Ramps are damaged, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE,
inspect the general condition
of the Ramps. Check for:
• loose hardware,
• misalignment or binding of parts,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. Clean the Ramps after each use.
Make sure any dirt, oil, grease, or
debris are not on the Ramps.

Page 9For technical questions, please call 1-888-866-5797.63772
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS
LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL
ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT
HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN
FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT
ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY
CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO
THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING
OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 10 For technical questions, please call 1-888-866-5797. 63772
Part Description Qty
1 Bottom Ramp 2
2 Upper Ramp 2
3 Safety Strap 2
4 Connection Plate G 2
5 Connection Plate F 2
Part Description Qty
6 Connection Plate H 2
7 Connection Plate I 2
8 M10x20 Bolt 20
9 M10 Flat Washer 40
10 M10 Lock Nut 20
Parts List and Diagram
Parts List
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175451989 when ordering parts.

Page 11For technical questions, please call 1-888-866-5797.63772
Assembly Diagram
1
2
3
4
5
6
7
8
9
10
4
5
6
7
10
9
8

Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality
and durability standards, and warrants to the original purchaser that this product is free from
defects in materials and workmanship for the period of 90 days from the date of purchase.
This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence
or accidents, repairs or alterations outside our facilities, criminal activity, improper installation,
normal wear and tear, or to lack of maintenance. We shall in no event be liable for death,
injuries to persons or property, or for incidental, contingent, special or consequential damages
arising from the use of our product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation of exclusion may not apply to you.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation
charges prepaid. Proof of purchase date and an explanation of the complaint must accompany
the merchandise. If our inspection verifies the defect, we will either repair or replace
the product at our election or we may elect to refund the purchase price if we cannot readily
and quickly provide you with a replacement. We will return repaired products at our expense,
but if we determine there is no defect, or that the defect resulted from causes not within
the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
26677 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
