Havells Futuro User manual

We recommend installation to be done by Havells authorised electrician. For
installation call customer care numbers.
PACKING
The box consists of fan motor assembly and following accessories for
installation. Havells strongly recommend to use of original accessories to
install your product for trouble free performance.
2

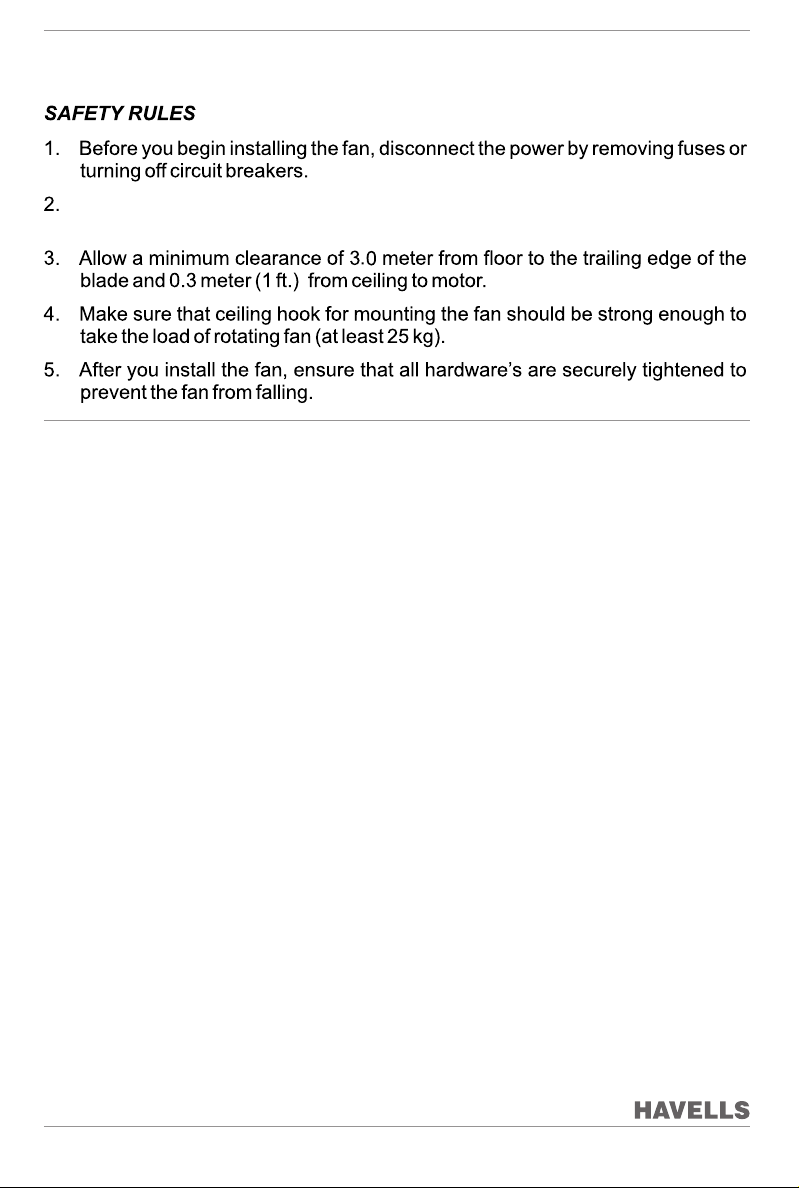

Read all instruction and safety information before installing your new fan.
1. Fan motor assembly
2. A set of 2 canopies
3. Under-light kit
4. Down-rod
5. Set of four blades
5. Shackle Assembly
6. Remote Control Set
7. Hardware Kit
8. Instruction Manual

Mounting Instructions
3

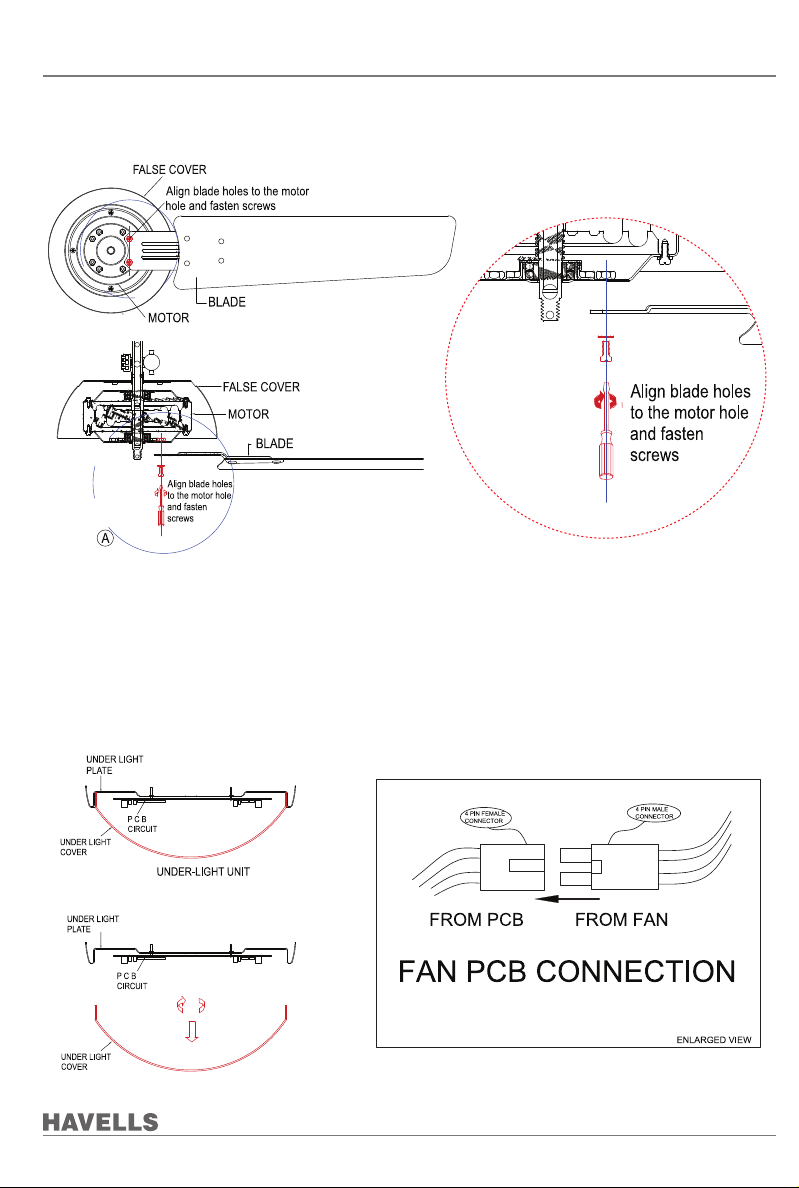

Step 1- Blade Mounting:
1. Align blade holes to the motor holes as shown in fig1.
2. Fasten blade screws securely. Mount all four blades.
Step 2- Fixing The Under-light Plate:
1. Twist and pull under-light cover from the under-light unit to remove the under-light cover as per figure -2. Keep the
cover safely.

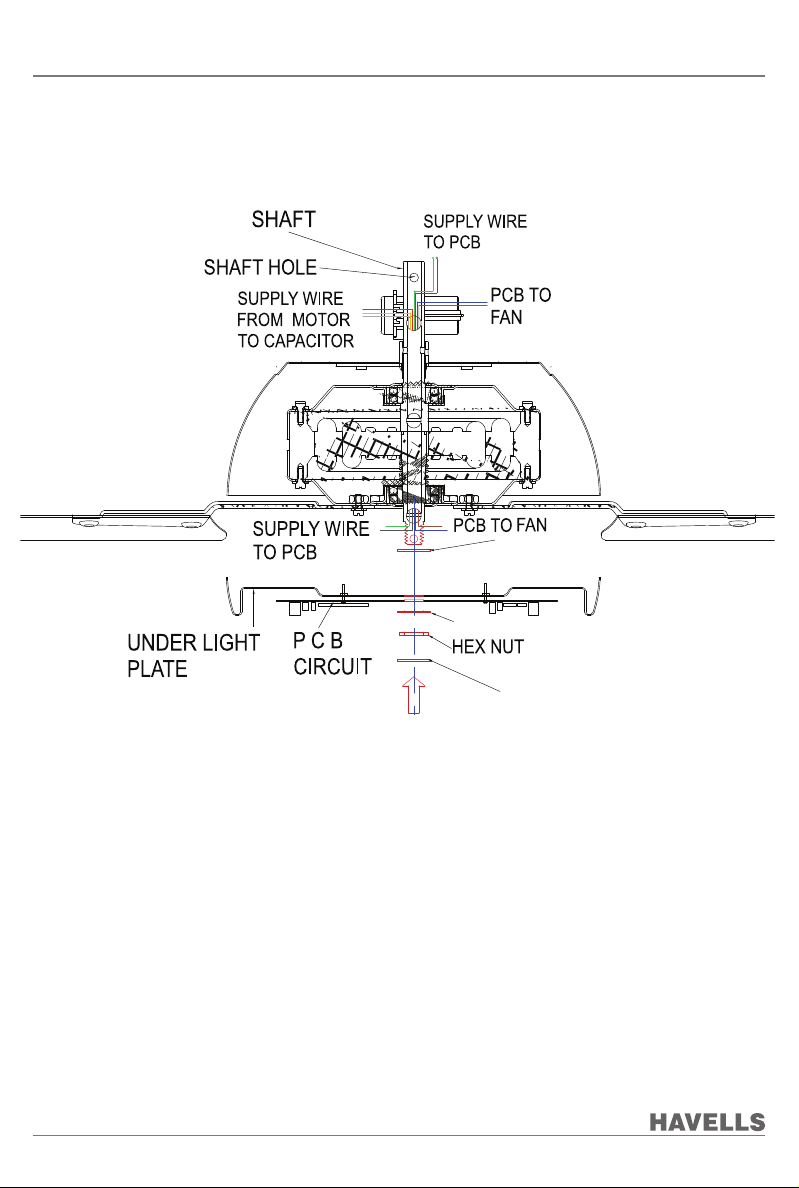

2. Mount the Under-light plate to the shaft with the help of washers, hex nut and lock nut-as shown in
figure -3 and join the provided connection on PCB & fan resp.
Figure 2
Figure 1 Detail at - A

Lock Nut
Washer
Wave Washer
Figure 3
STEP 3- FIXING DOWN-ROD:
1. Pass supply wire from ceiling through down-rod and connect to wires from PCB through connector
2. Place down-rod on the shaft. Align down-rod holes to the shaft hole as shown in fig-4 and detail - B.
3. Place aluminum spacer on either side of the hole, insert hex bolt followed by hex nut, lock nut and split pin as
shown in detail B.
Mounting Instructions
4

Mounting Instructions
Detail B
Figure 4
5

Figure 4
Step 4- Fixing Canopies:
1. Slide top and bottom canopy over down-rod as shown in fig. 5
Detail at - C
Figure 6
Mounting Instructions
6

Step 5. Mounting the fan to ceiling hook:
1. Unscrew the Shackle Assembly, slide the shackle clips over the down rod and rubber pad over the ceiling
hook as shown in figure -6 and detail C.
2. Align the holes, insert the hex bolt through the shackle clips and down rod holes.
3. Insert washer, screw hex nut and lock nut and secure with split pin.
4. Hang the fan by ceiling hook as per fig. 8 & detail B and connect the supply wires.
5. Slide the top canopy up to desired height as shown fig. 8
Detail at - D
Step 6. Fixing the under-light cover:
1. Twist and mount the Under-light cover after
complete assembly, as shown in figure - 9
Figure 8
Figure 9
Mounting Instructions
7
CAUTION
Make sure to remove
external regulator as use of
external regulator shall damage
the receiver circuit and warranty
shall not be applicable.

8
Havells Smart App User Manual
.
1. Make sure the fan is installed according to the instructions and safety guidelines provided in the
Installation Guide.

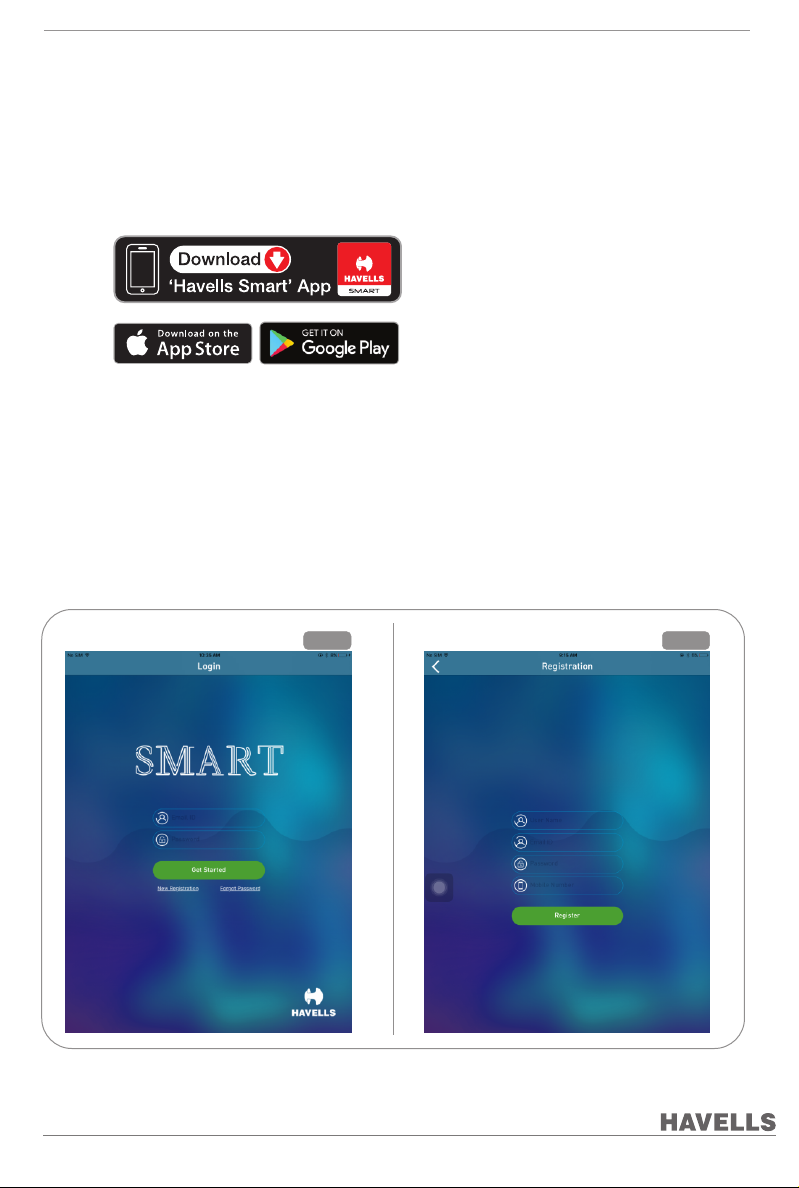

Download the Havells Smart app available for Android and iOS smart phones.
Step 1- Set Up Your Havells Smart App
Conditions Apply :
• The fan works with most smart phones having Bluetooth® (BLE) technology.
• The smart phones should be running on OS Version : iOS 8 & above / Android Kitkat & above.
• Visit smart.havells.com/futuro for any further details on compatible smartphones.
3. Create account: Enter user's email address, password and Phone number.
4. Verify the account: Verify by clicking on the link sent on the registered email address.
STEP 1
Login Page Fig. 1 New Registration Page Fig. 2

9
Step 2- Adding Futuro Fan to Your Smart Network
1. Go to 'Search New Device'.
2. Your device will appear, select the device and add this device to the Smart network.
3. The Under-light will blink 3 times, conforming the Havells Smart App association to Futuro fan.
If any problem regarding association, please follow Fan Hardware Reset*.
Search New Device Page Fig. 3 Device Selection Page Fig. 4
Fan Hardware Reset*
1. Switch ON the fan for 3 seconds and switch OFF for 2 seconds.
2. Repeat the above step 4 times to reset the Fan settings.

Step 3 - Control & Customize the Device
1. Add the above selected Device to any Area of your choice.
2. User can add custom Photograph if desired, to the Area.
3. Control the fan with Slide Bar button and open “Device” for detail control features.
10
Add particular
Area’s Photo
Camera option
for clicking the
Area’s Photo
Fan’s main ON/OFF
Select device for
detail control
Multiple areas available
to add devices
Home Page Fig. 5

11
Step 4 - Control Timer Feature
1. In Control Menu, open Fan Timer for timer setting/deletion.
2. Each connected Device can have individual Timer.
Under-light
Indication
8 Speed Dial
Under-light
control buttom
Timer control
Timer can be
Set/deleted
Time Setting
Selected Fan’s
Speed for the Timer
Fan Controller Page Fig. 6
Timer Screen Fig. 7

12
Step 5 - Adding Multiple/Family User
1. Master User can add up to 8 members in the Smart network.
2. Master user can invite for Admin/Guest* level user.
*Master User: can control, add/remove device & Area, as well as user.
Admin User: can control, add/remove device & Area.
Guest User: can control device & Area.
Havells Infrared Remote Manual
Step 1: Remove Battery's Sleeve before Use.
Step 2: Point the Remote toward fan for various operation.
Add New User Screen Fig. 8 List of User’s Network Information Fig. 9
