HAVOC OFFROAD HFB-09-001 User manual

Page 1
Mesh Shade Top, 2 & 4 Door
Bronco
Part # HFB-09-001
1.
2.
3.
Components and Hardware:
Components and Hardware: Tools for Installation:
1. Mesh Shade Top .............................................................................(1)
2. Cross Bow........................................................................................(1)
3. Turn Knob.........................................................................................(2)
•T50 Torx
HAVOC OFFROAD
SERVICE/SUPPORT: M-F 8am - 6pm EST 1-855-460-6800 | EMAIL: [e-mail]
FOR WARRANTY INFORMATION VISIT: www.havocoffroad.com

Page 2
Part # HFB-09-001
Mesh Shade Top, 2 & 4 Door Bronco
Lay Mesh Top on top of vehicle. Ensure metal hooks are
towards the front and are facing downward.
1. Align eyelet holes on Mesh Top over torx head bolts
in front corner. Remove inboard factory bolt, pass bolt
through eyelet and hand tighten. Repeat on outboard torx
bolt.
2. Insert metal hooks into the 2 factory metal tabs.
3. Repeat Step 1 on the Passenger Side. TIGHTEN ALL
HARDWARE AT THIS TIME.

Page 3
Part # HFB-09-001
Mesh Shade Top, 2 & 4 Door Bronco

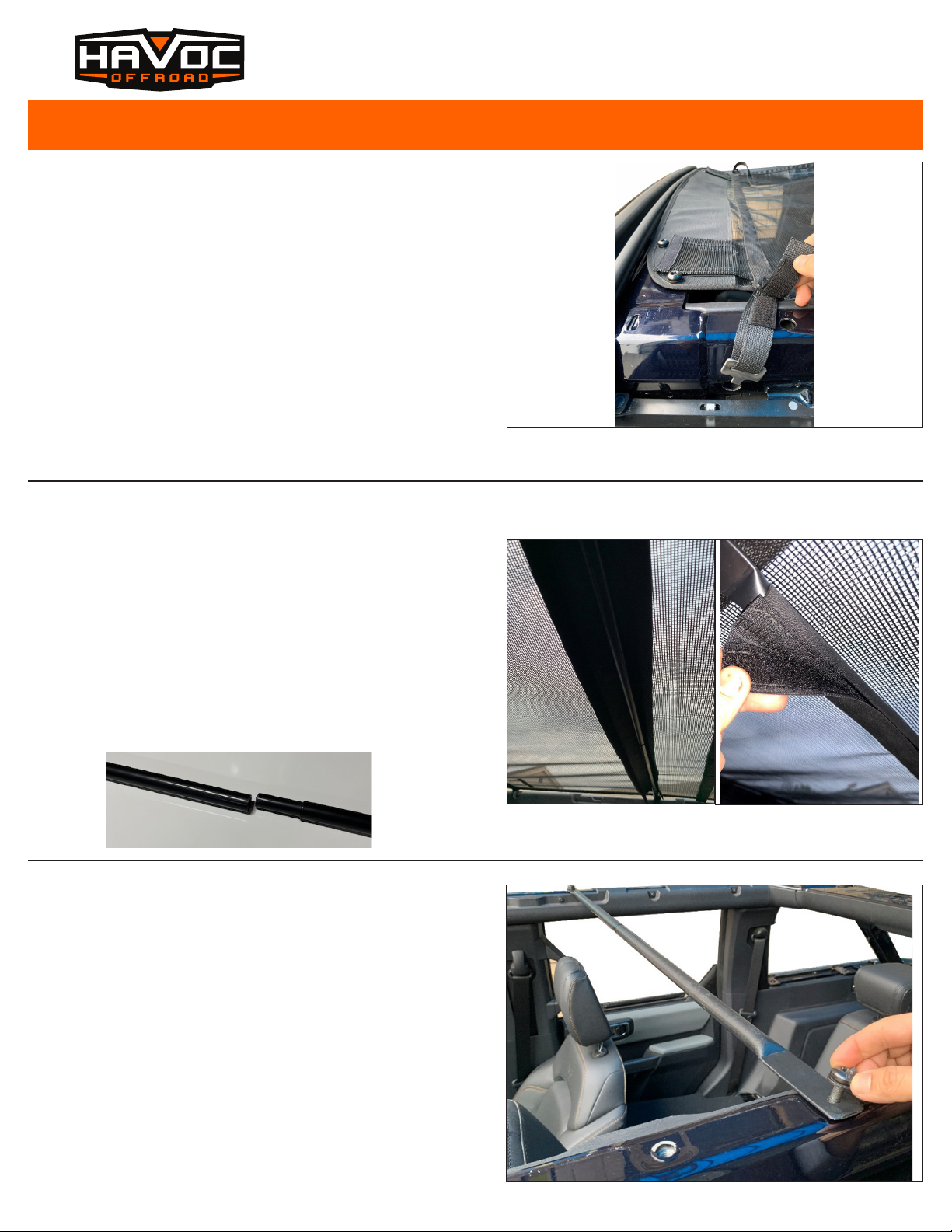

4. Insert front corner strap into the round hole on the side
of the roll-bar and tighten strap. Repeat on Passenger
Side.
5. Connect cross bow pieces.
Install the middle Support Bow:
4-door, install cross bow using forward most hook and
loop sleeve.
2-door, install cross bow using rear most hook and loop
sleeve.
6. Secure the Support Bow to the roll-bar with either fac-
tory torx head bolt OR supplied turn knob.

Page 4
Part # HFB-09-001
Mesh Shade Top, 2 & 4 Door Bronco
7. Install the 3 rear straps around the soundbar and the 2
rear corner straps as shown below.
8. The aps at the front corners can be secured open to
maintain access to the windshield clamps.
