Hawkley NJL01B108 User manual

REAR BUMPER
User Manual
2018-2022 Wrangler JL 4 Door
Model:
NJL01B108
Material:
Q235A
Product Dimensions:
65.54 x 17.25 x 9.72 inch
Package Dimensions:
33 x 17.32 x 10 inch
Product Weight:
48.17 lbs

※Thank you for purchasing the HAWKLEY REAR BUMPER. Please read this
manual carefully and keep it properly if you need to refer to it afterward. If you need
any support or assistance, please contact us with your product model number and
order number, and our support team will help you solve problems.
※This product is designed primarily to enhance the appearance of the vehicle. Do
not rely in any way on the components of this product to protect against injury or
death in the event of an accident. To reduce the risk of serious injury or property
damage, please read all safety messages and understand all instructions and
procedure notices before attempting to install or use this product.
※Properly torque and recheck fasteners and security of step tread after 250 miles
and inspect frequently. Do not use if damaged.
※Rear Bumper is heavy, and we strongly suggest the assistance of an able-bodied
assistant during the lifting and installation of your Rear Bumper.

REQUIRED TOOLS
Socket
Ratchet
Wrench
Allen Wrench
Safety Glasses
Parts Information
Parts NO.
Parts Name
Size
Line Graph
Qty
Color
/
Mid Bumper
/
1
Black
/
Left/Right
Bumper
/
2
Black
/
Connectors
/
2
Black
/
License Plate
Holder
/
1
Black
/
Nut Plates
/
2
Black
/
Tow Trailer
Hitch Receiver
/
1
Black
/
Shackles
/
2
PVC+Blue
Zinc Plating
/
License Plate
Light
/
1
12V，Black
B50
Half Head Allen
Bolts
M6 x15
7
SUS304

Parts NO.
Parts Name
Size
Line Graph
Qty
Color
W10
Flat Washer
Φ6x12x1.5
7
SUS304
N08
Hex Flange
Nuts
M6
5
SUS304
B15
Half Head Allen
Bolts
M8x20
21
Dacro Black
N14
Hex Flange
Nuts
M8
21
Dacro Black
B41
Hex Bolts
M12x110（30）
3
Blue Zinc
Plating
B45
Hex Bolts
M12x35
3
Blue Zinc
Plating
N24
Hex Nuts
M12
3
Blue Zinc
Plating
W28
Flat Washer
Φ12x30x3mm
9
Blue Zinc
Plating
W29
Spring Washer
Φ12
7
Blue Zinc
Plating
B55
Half Head Allen
Bolts
M6x30
5
Blue Zinc
Plating
N29
Hexagon
Lock Nut
M6
5
Blue Zinc
Plating
*Note: spare parts such as B50、W10、N08、B15、N14、B41、B45、N24、W28、
W29、B55、N29 are provided with 1PCS each (included in the number of parts
details).

Installation Instructions
Step 1: Open the carton and take out the parts. Check whether the number of
components is complete.

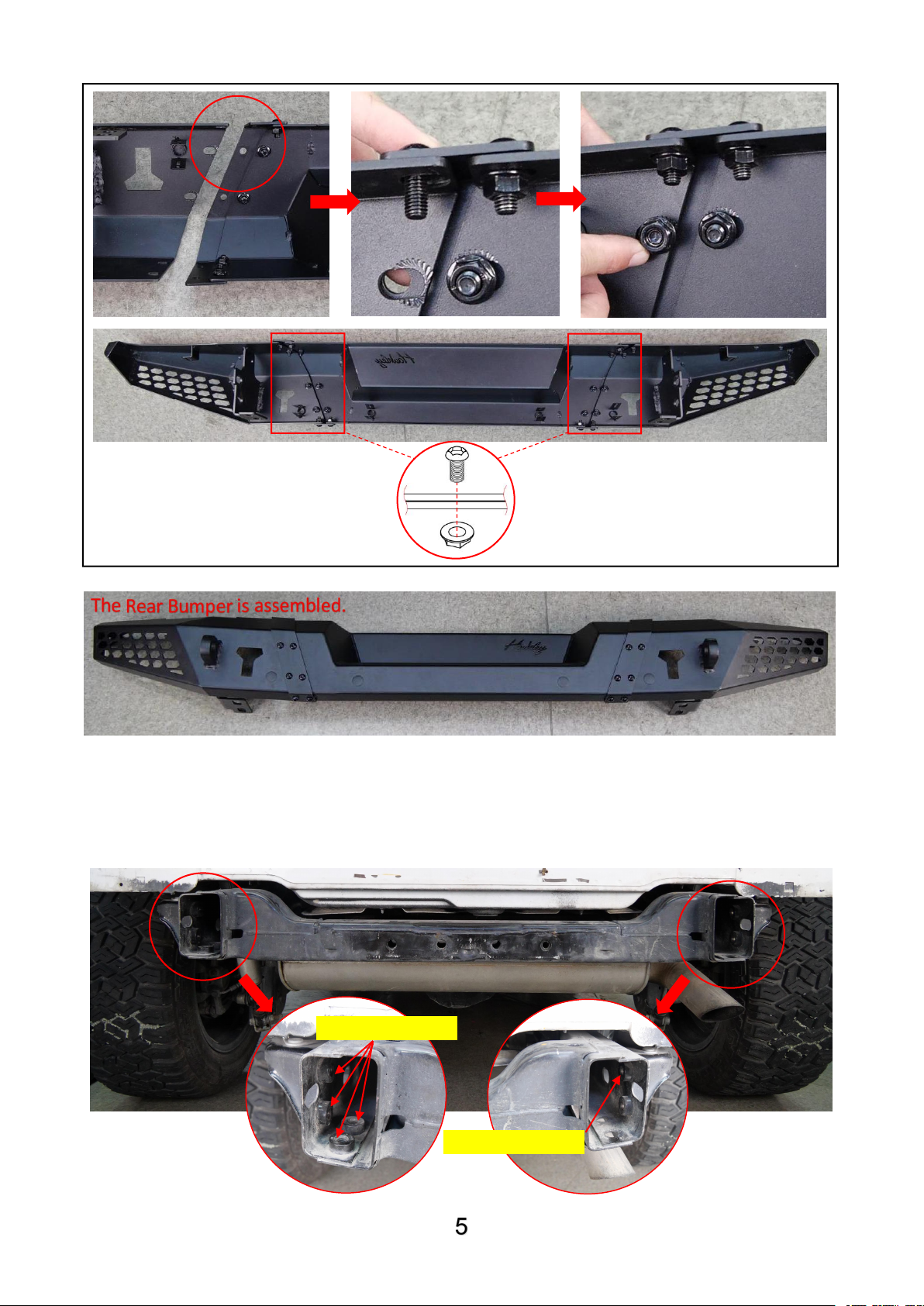

Step 2: Splice the Rear Bumper.
③Left
①
⑤
④
1② ③ ④B15：M8x20 ⑤N14：M8
x1 x2 x2 x20 x20
②Right
③Right
①
②Left
③Left
③Left
②Left
①
②

NOTICE: Do not tighten the screw in this step.
Step 3: Clean the rear of the car to ensure it is free of dust, dirt, and debris.
Step 4: Uninstall the vehicle's original bolts (6 pcs) before installation and keep it.
x20
original bolts x4
original bolts x2

NOTICE: The car shown above has 6 original bolts, but other versions may have 2
bolts on the left and right sides, a total of 4 original car bolts.

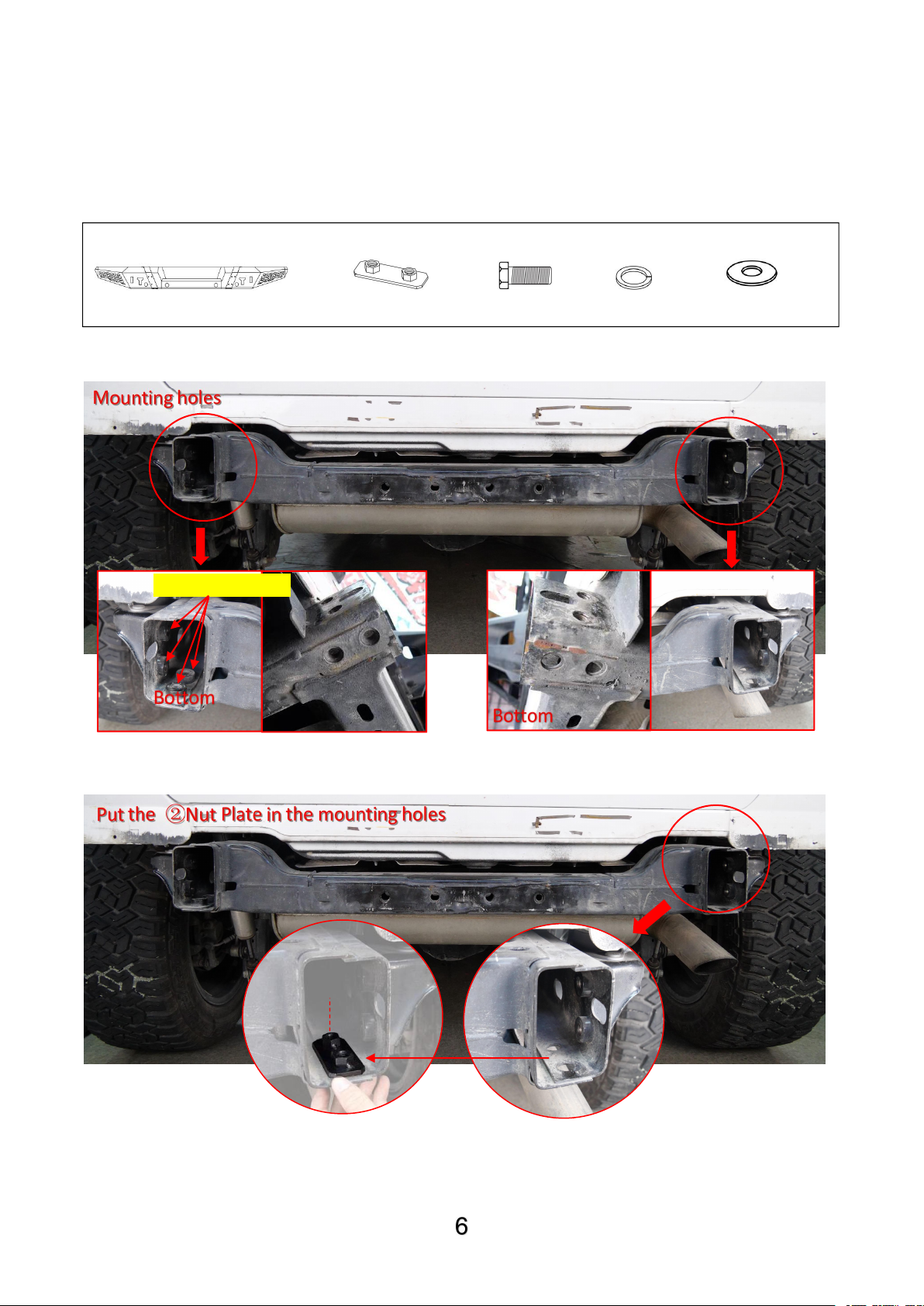

Step 5: Install the Rear Bumper.
Uninstall the vehicle's rear head bolts (4 pcs) before installation, keep it for Step 3
and ready to install.
① ② ③B45 ④W29 ⑤W28
x1 x1 x2 x2 x2
Mounting holes
Mounting holes
②

NOTICE: Do not tighten the screw in this step.

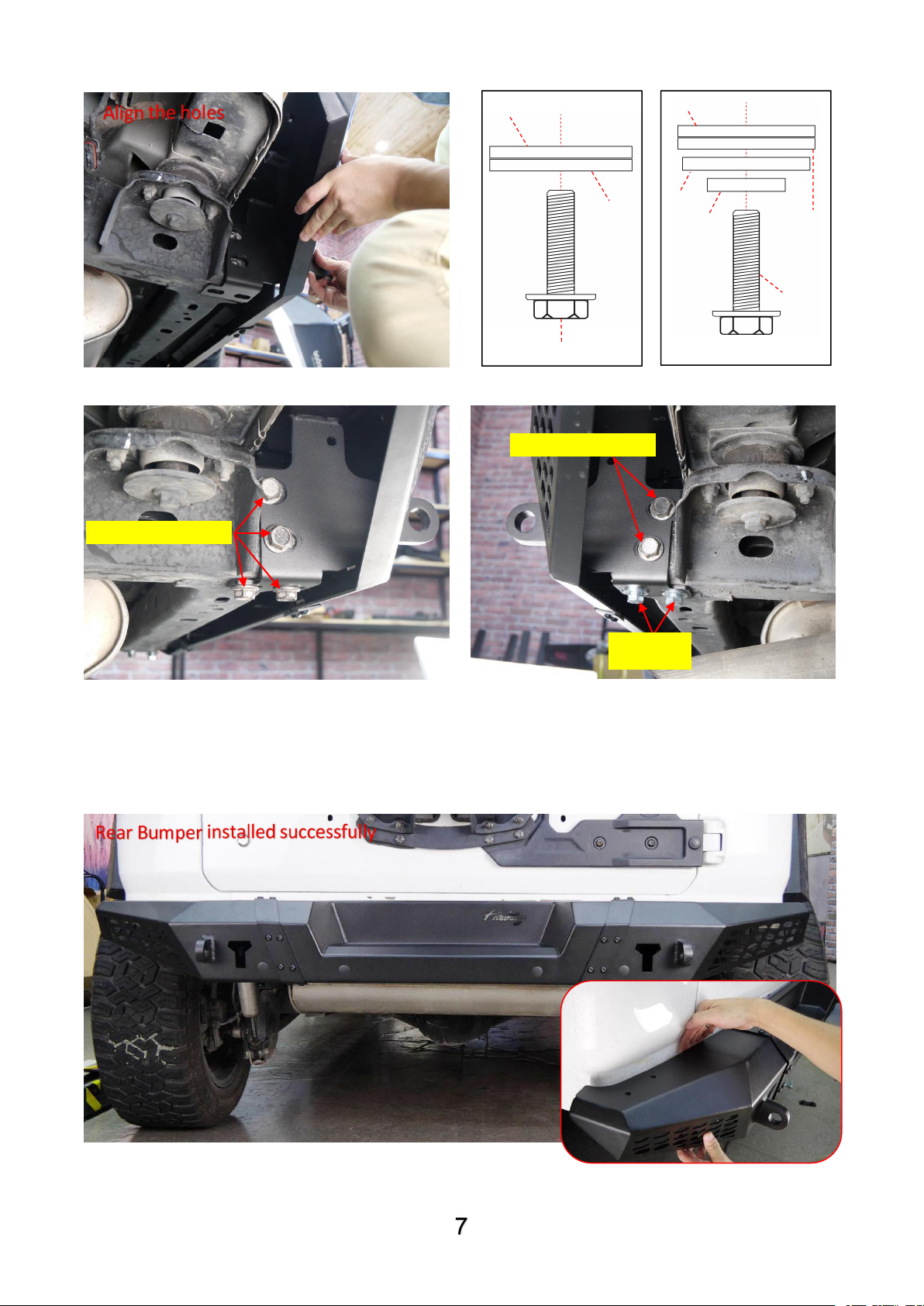

Step 6: Adjust the balance of the Rear Bumper and the car side and tighten the bolts.
Step 7: Tighten all the connecting bolts on the Rear Bumper.
③
Bumper
⑤
④
Car
Bumper
Car
Original bolts
Original bolts x4
③④⑤x2
Original bolts x2

Step 8: Install the Tow Trailer Hitch Receiver.
NOTICE: Do not tighten the screw in this step.

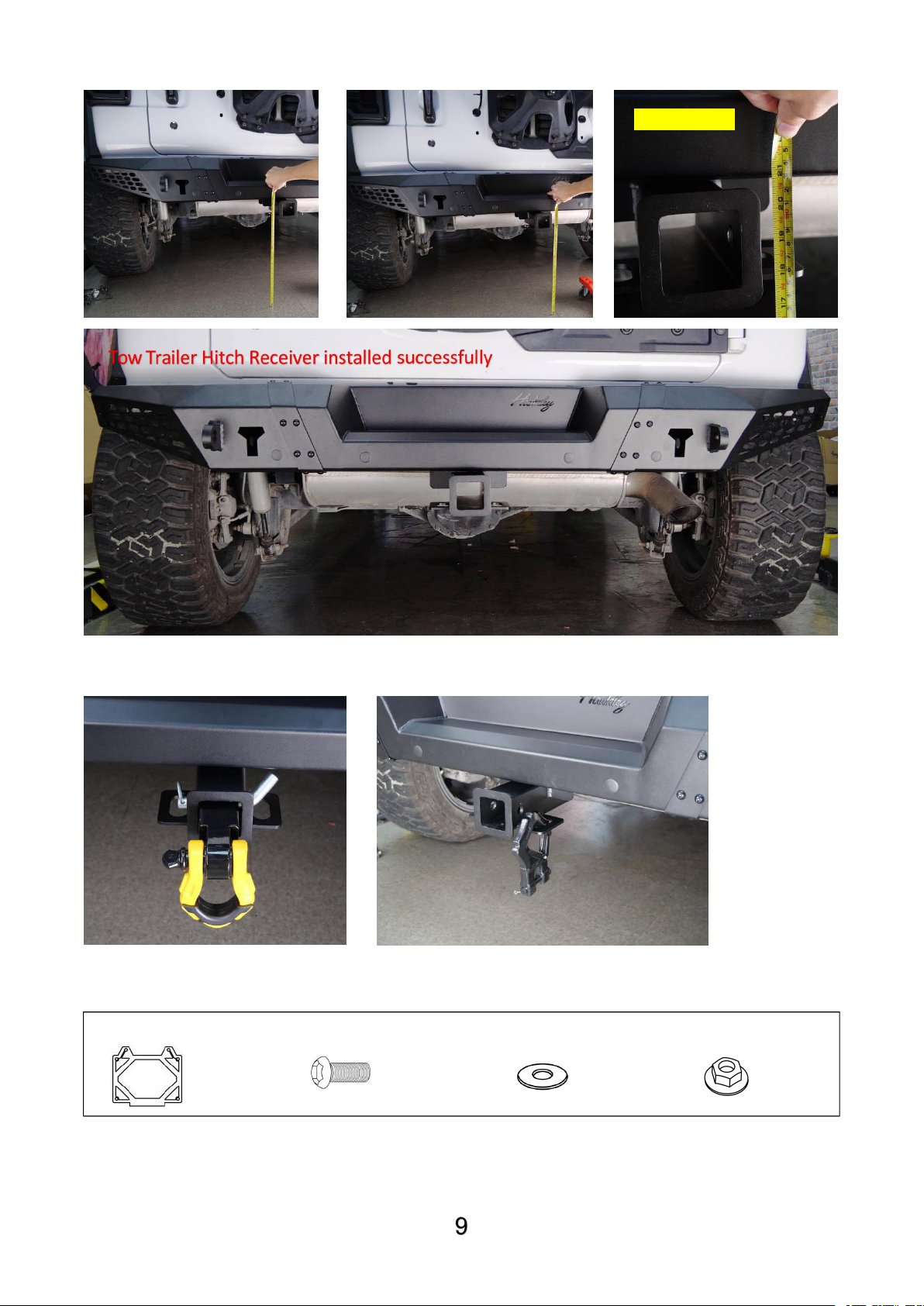

Step 9: Adjust the balance of the Rear Bumper to the ground and tighten the bolts.
Tips: Use a stretch ruler to measure and balance the left and right sides of the Rear
Bumper. Please ensure that the bumper has the same distance to the ground on both
sides.
① ②B41 ③W29 ④W28 ⑤N24
x1 x1 x2 x4 x2
⑤
③
④
④
②
①
Car
Car
①
③④⑤x2

Tips: Use effect display.

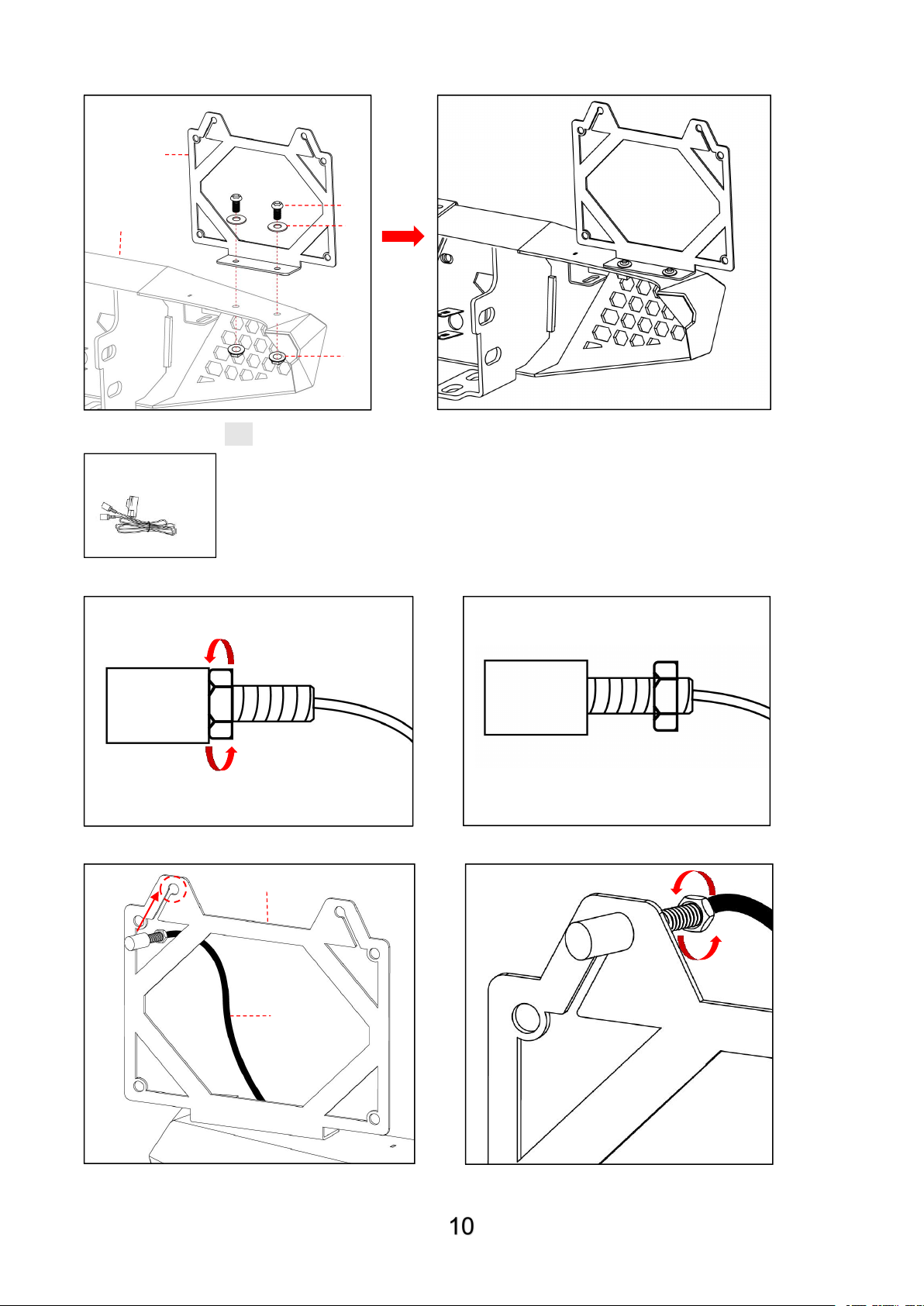

Step 10: Install the License Plate Holder.
About 17.7inch
① ② B50：M6x15 ③W10：Φ6 ④N08：M6
x1 x2 x2 x2

Step 11: Install the License Plate Light.
Bumper
①
③
④
②
①
x1
2
1
4
3
License Plate Holder
①

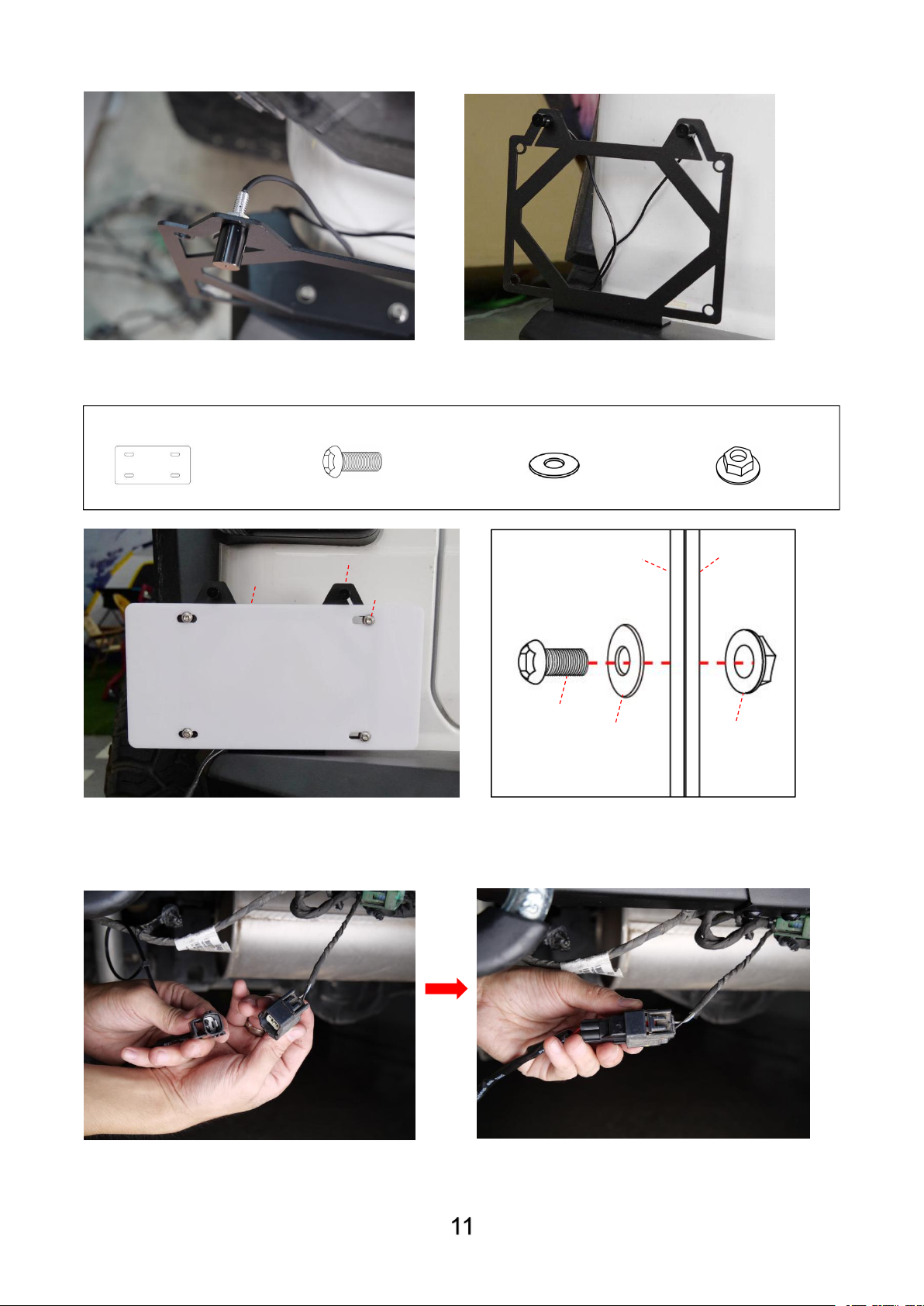

Step 12: Install the License.
Step 13: Connect the License Light.
Plug the License light plug to the original License light plug.
License
Plate
6
5
① ② B50：M6x15 ③W10：Φ6 ④N08：M6
x1 x4 x4 x4
④
③
②
①
②③④
①
License Plate

Step 14: Install the Shackles.

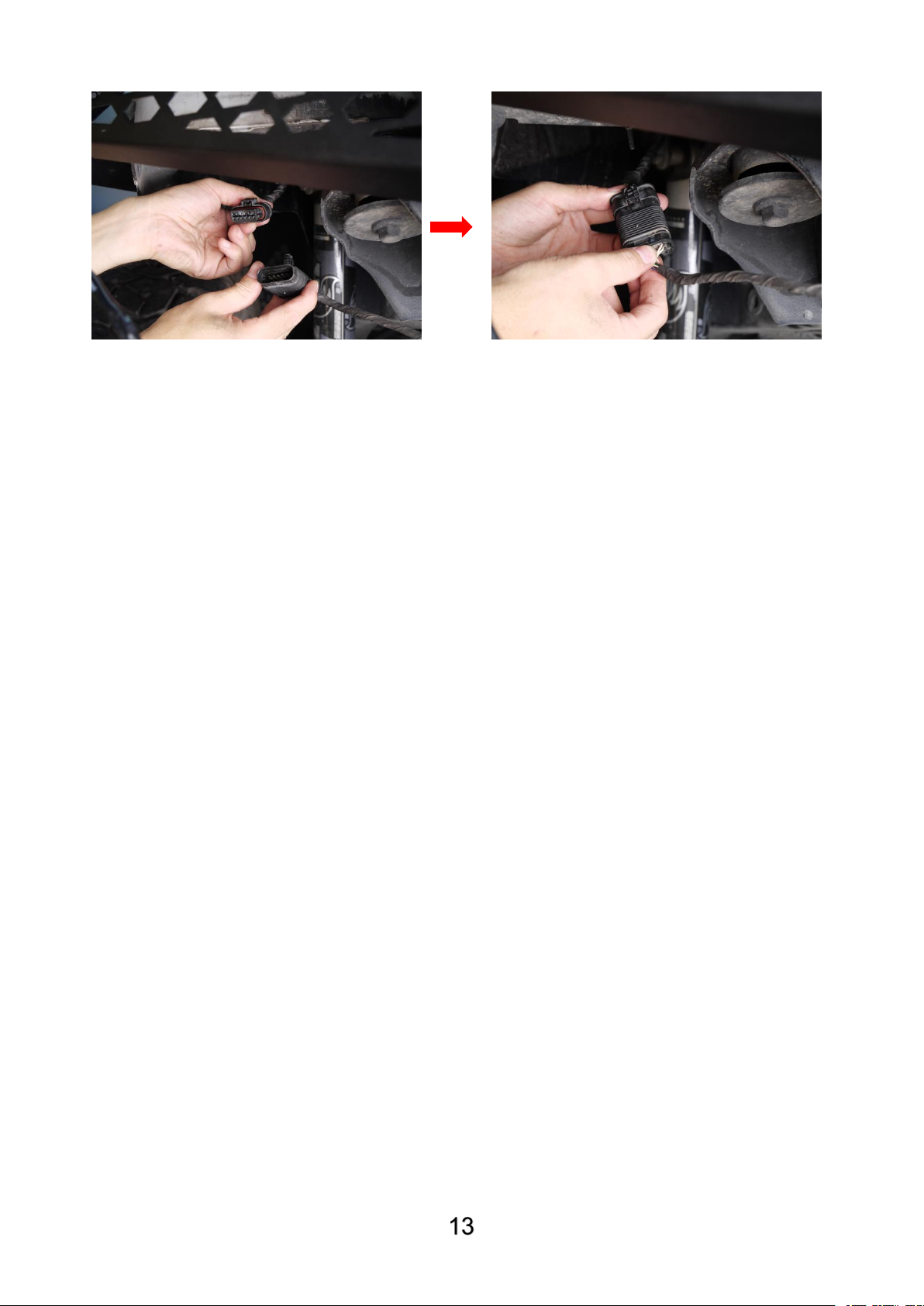

Step 15: Install the Radar Probe.
Note：If the car does not have a radar probe, this step can be ignored.
x2
①B55：M6x30 ②N29：M6
x4 x4
②
①
雷达
Radar Probe
Radar Probe

Step 16: Installation of the Rear Bumper is complete. Please do periodic inspections
of the Rear Bumper to make sure that all hardware is secure and tight.

Product Care and Maintenance:
Your REAR BUMPER have been designed and manufactured to provide years of use.
However, like any product, general maintenance is required to keep them looking
new.
Part one:
This Limited Warranty is the only warranty made in connection with your purchase.
HAWKLEY neither assumes nor authorizes any vendor, retailer or other person or
entity to assume for it any other obligation or liability in connection with this product or
Limited Warranty. This Limited Warranty does not apply and is not cumulative to any
accessory or part distributed by HAWKLEY for which the Manufacturer provides a
separate written warranty.
What is Covered:
Subject to the terms, exclusions, and limitations herein and with respect only to
HAWKLEY branded accessories first sold in the United States, HAWKLEY warrants
to the initial retail purchaser only that your HAWKLEY accessory shall be free of
defects in material and workmanship:
for a period of two years from date of retail purchase. This Limited Warranty is not
assignable and shall terminate upon sale of the vehicle upon which the HAWKLEY
accessory is installed or other transfer third persons.
All other warranties are hereby disclaimed, except to the extent prohibited by
applicable law in which case any implied warranty of merchant ability or fitness for a
particular purpose on this product is limited to 2 years from date of initial retail sale.
HAWKLEY reserves the rights to:
(1.) require invoice or other proof your accessory is within the terms of this product
and Limited Warranty as a condition of warranty service and,
(2.) make future revisions to this product and Limited Warranty without prior notice or
obligation to upgrade your product.

What is Not Covered:
Your HAWKLEY Limited Warranty does not cover products or parts HAWKLEY
determines to have been damaged by or subjected to:
(1.) installation damage, alteration, modification, combination with other parts, failure
to maintain or improper repair or service,
(2.) normal wear & tear, cosmetic damage or damage from moisture or water
immersion.
(3.) Acts of God, accidents, misuse, negligence, inadequate mounting or impact with
vehicle(s), obstacles or other aspects of the environments,
(4.) theft,vandalism or other intentional damage.
Remedy Limited to Repair/Replacement:
The exclusive remedy provided here under shall, upon HAWKLEY inspection and at
HAWKLEY’S option, be either repair or replacement of product or parts (new or
refurbished) covered under this Limited Warranty.
Customers requesting warranty consideration should first contact HAWKLEY to
obtain a RMA number 1 [phone].
All labor, removal, shipping and installation costs are customer’s responsibility.
Other Limitations - Exclusion of Damages - Your Rights
Under State Law:
In consideration of the purchase price paid, neither NIXON OFFROAD nor any
independent HAWKLEY distributor/licensee are responsible for any time loss, rental
costs, or for any incidental, consequential, punitive or other damages you may have
or incur in connection with any part or product purchased. Your exclusive remedy
here under for covered parts is repair/replacement as described above.
This Limited Warranty gives you specific rights. You may also have other rights that
vary from state to state. For example, some states do not allow limitation of how long
an implied warranty lasts and/or do not allow the exclusion Or limitation of incidental
or consequential damages, so the limitations and exclusions herein may not apply to
you.
