HAYMAC eCONO Apex 12x10 User manual

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS
The area you chose to install your building must be level, and flat- the more care you take in ensuring the
ground where your building is to be installed is level and flat the easier your building will be to install

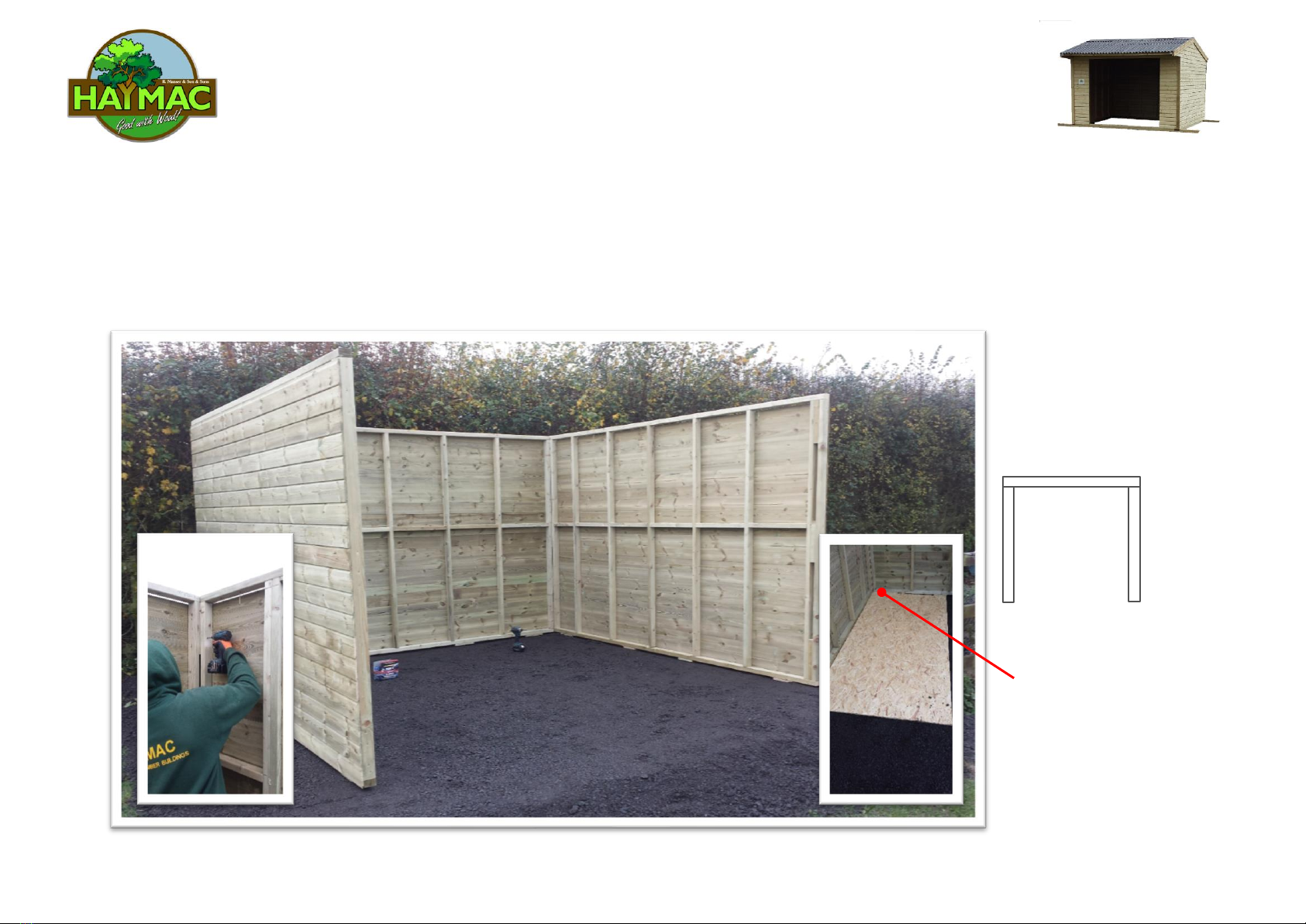

Fit left-hand side panel to rear panel as below using 3 x M8x100mm Coach screws and washers- Top
middle & bottom. Ensure the panel is level & upright. You can temporarily fix using 100mm screws and
install the coach screws and washers when all 4 walls are fitted together and squared up.
Approx. 3.47m
Approx. 3.0m or
3.6m
If your shelter has kick board
lining you can use the square
corner of a sheet to check the
building is square

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS
Fit right-hand side panel to rear panel as below using 3 x M8x100mm Coach screws and washers. Top
middle & bottom. Ensure the panel is level & upright.
You can temporarily fix using 100mm screws and install the coach screws and washers when all 4 walls are
fitted together and squared up
Approx. 3.0m
or 3.6m
If your shelter has kick board
lining you can use the square
corner of a sheet to check the
building is square

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS
Fit front panel to both side panels as below using 3 x M8x100mm Coach screws and washers to each side. Top middle &
bottom. Ensure the panel is level & upright. You can temporarily fix using 100mm screws and install the coach screws and
washers when all 4 walls are fitted together and squared up. Measure both internal diagonals to ensure they are both
equal –this will ensure the building is square- DO NOT PROCEED UNTIL BUILDING IS SQUARE OR YOUR ROOF SHEETS WILL
NOT FIT.
MUST BE EQUAL
If your shelter has kick board
lining you can use the square
corner of a sheet to check the
building is square

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS
Fit left & right-hand gable ends to the top of side walls (the block fixed to the underside of the gable end needs to butt up to the shelter wall).
Fix the gables in position temporarily using 100mm screws, once you are happy with the position fix using 3 x M8 x100mm coach screws and
washers from the underside of the top rail of the sidewall up and into the uprights on the gable ends.
The gable end bottom shiplap board oversails the
bottom timber and when in position the oversail
shiplap needs to be nailed to the side panel.Using the
40mm nails provided fix the bottom shiplap board of
the gable ends to the upright timbers of the side walls

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS
Fit the front height extension panel to the top of the front panel. The top height extension panel bottom shiplap board oversails the bottom
timber and when in position the oversail shiplap needs to be nailed to the front panel top beam.
Temporarily fix using 100mm screws, once you are happy with the position fix using 3 x M8x100mm coach screws and washers. Fix from
underneath, also fix into the 2 sidewalls for additional support using 100mm screws.
Using the 40mm nails provided fix the bottom shiplap board of the height extension panel to the top frame rail of the front panel.

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS

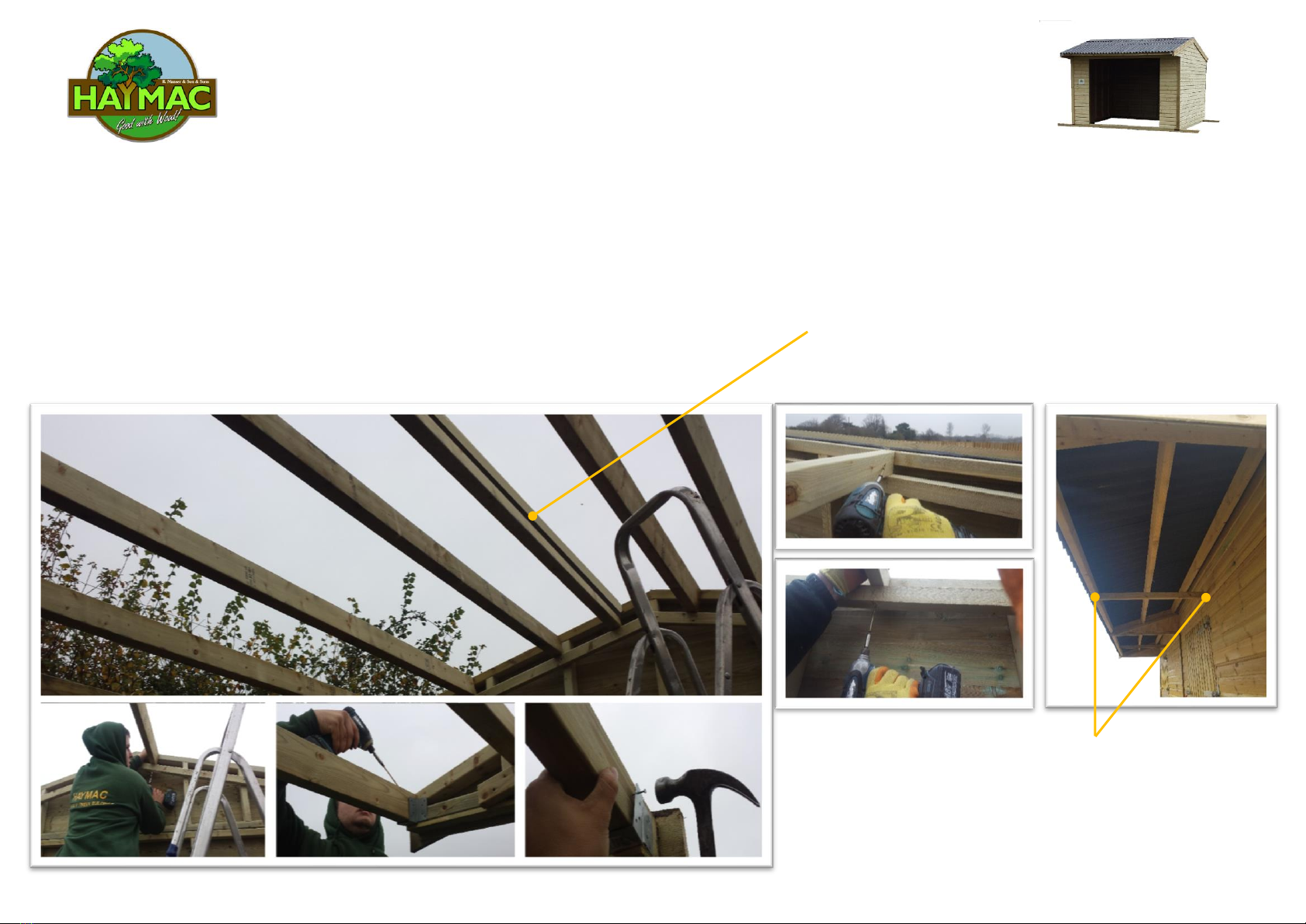

Fix roof purlins to top of support rail, each purlin sits above the indicated pencil mark- fix from below using 100mm screws- also install
additional screws from side or top of purlin through into the top rail of the gable end to stop any twisting.
The 2 purlins which fit into the metal hangers front & back are slightly smaller in depth to the standard purlins (these will have one sawn cut
face on the 45mm face) DO NOT USE A STANDARD DEPTH PURLIN IN THE HANGERS the correct purlin will sit flush with the top of the gable
end top plate while a standard purlin will sit above the gable end top plate and is an incorrect fit- must be flush! The 2 purlins that fit one
either side of the ridgeline have an add-on to help to fit the ridge cap. The add-ons must sit facing the ridgeline.
Fix the purlins into the hangers using the 40mm galvanised nails provided.
Fit the front purlin centre support- screw through face of
front purlin into centre support using 2 x No.5 x 100mm
screws. Screw either side of the centre support into the front
wall timber plate- dovetail screws in.

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS
Fit the first full-length roof sheets starting from the back at the left-hand side (note 10ft deep shelters only need one full sheet to reach from
eve to apex) ensure the edge of the first sheet fits tight into the bargeboard on the gable end and ensure the overlap to back of building is
adequate for water run-off. Make sure you leave a 20mm gap back from the ridgeline, this gap will be covered by the ridge cap. Continue
fitting the back run of sheets. For 12ft deep shelters fit the half sheet needed directly above the bottom sheet noting a good cover of overlap
and 20mm gap at ridgeline. Use 4 roof nails per purlin per sheet. Do not put a nail where the next sheet overlaps until the next sheet is fitted
(allow min. one roll overlap). Do not nail the top of the sheet at the first apex purlin as this will be fixed when the ridge cap is fitted. You may
need to stretch sheets to fit the width of your shelter exactly. Repeat the above for the front section of the roof. Install ridge caps- nail
through the bottom of ridge cap flat section and sheet beneath into the top purlins either side of the apex- thus fixing the top of the sheet
previously left unfixed- allow 70-100mm overlap. ONLY FIX THROUGH THE TOP OF A ROLL-not in the gutter-ONLY BANG IN ENOUGH TO GIVE
A TIGHT FIT OF THE NAIL CAP TO THE SHEET, OR YOU WILL DISTORT THE SHEET PROFILE
PLEASE NOTE- 10ft deep
shelters only use full
sheets- the half sheet
shown in the picture is
not required.

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS
Fit the front and rear cover fillets, screw in place using 2 x 70mm No. 4 screws top, middle & bottom. For eCONO Plus shelters fit the gallows
brackets using 100mm No. 5 screws, one top & bottom & fit the front fascia timber (18mmx145mm) using 8 x No. 5x50mm screws.

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS

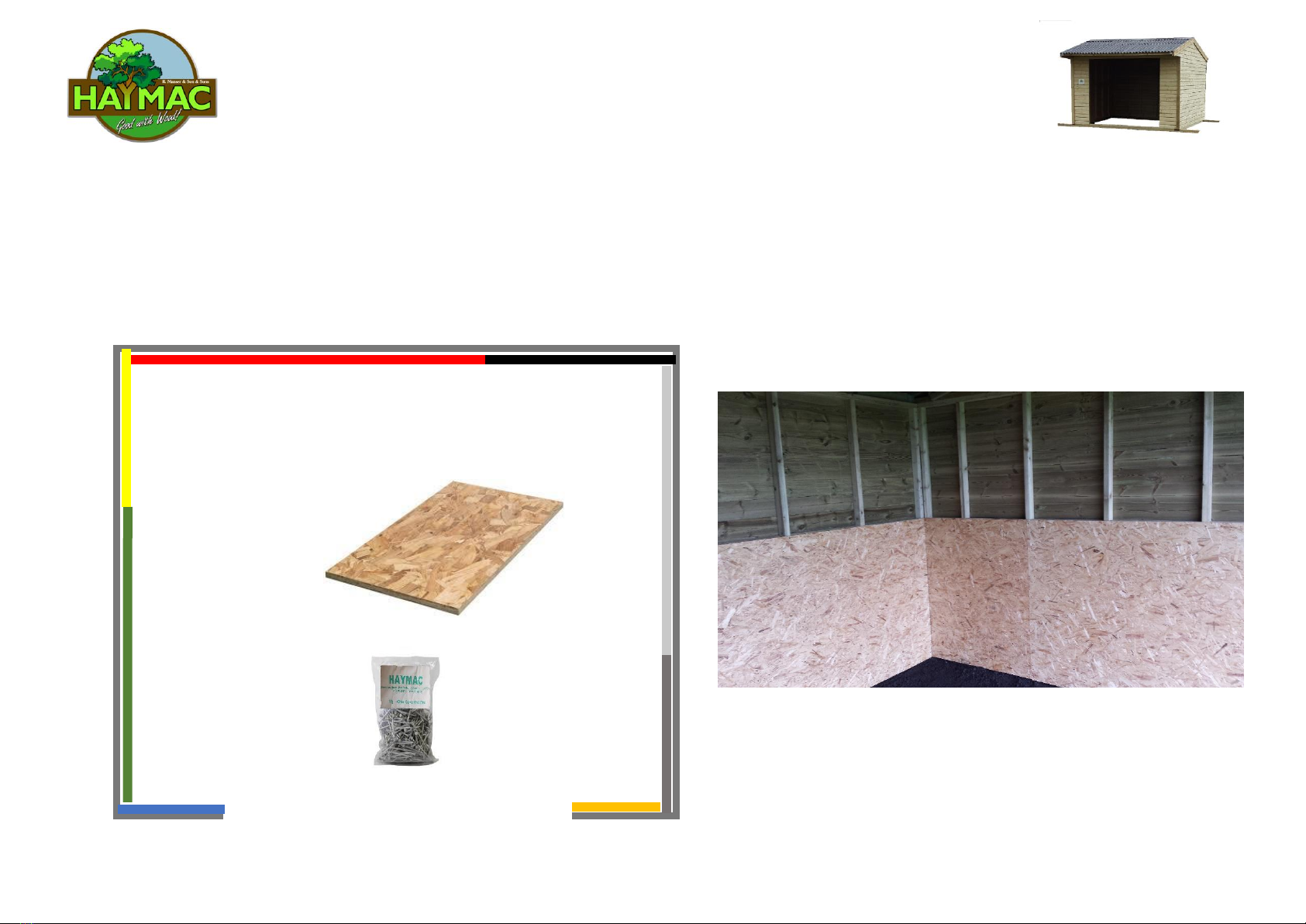

KICK BOARD LINED- optional extra on 10ft deep shelters
Install the kick boarding sheets following the design below- the kickboards will have letters marked in pencil on them.
Start with the first board hard into the corner, fix using 40mm galvanised nails. Start with A- finish with G.
A
B
C
D
E
F
G
H

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS

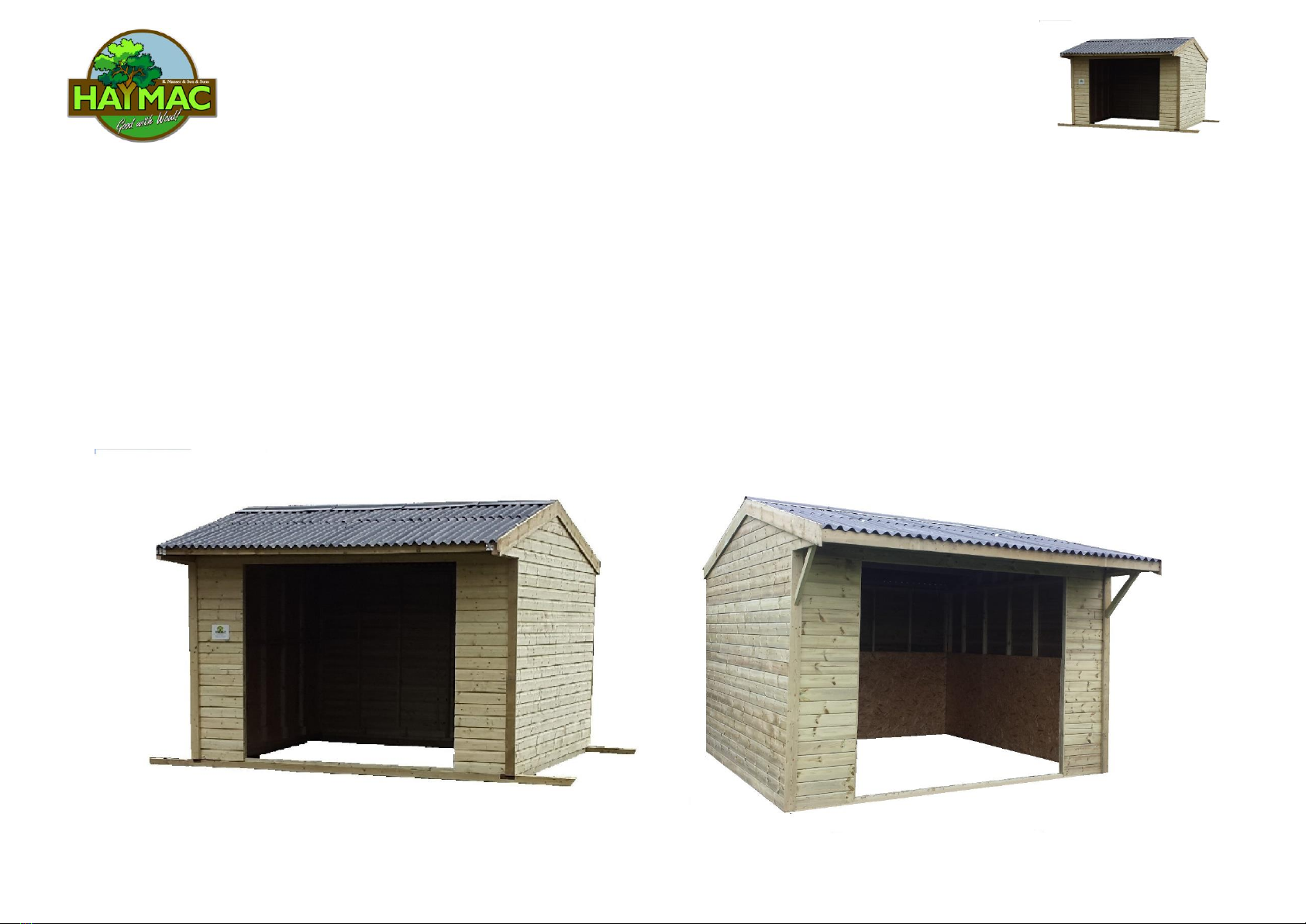

Completed shelter
PLEASE FIX DOWN TO STOP YOUR SHELTER BLOWING OVER IN HIGH WINDS.
We suggest bolting down to a concrete slab or fence posts driven into the ground a minimum of 2ft on all corners and
bolted to the shelter. The more fence posts you drive in and fix to the shelter, the more secure your shelter will be in high
winds.
PICTURE SHOWS OPTIONAL TIMBER SKID

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS
12 x 10 Materials List
•10 x Full black roof sheets
•5 x black ridge caps
•1 back panel –approx. 3.47m wide
•2 x side panels –approx. 3.0m wide
•1 x front panel –approx. 3.47m wide with door opening
•2 x gable ends
•1 x front height extension panel
•6 x full depth roof purlins
•2 x full depth roof purlins with side add-on for purlins at ridgeline.
•2 x reduced depth roof purlins (for first and last purlins in metal hangers –shorter in depth than standard)
•1 x centre canopy support.
•21 x M8 x 100mm coach screws and washers
•1 box (100) x No.5x100mm screws
•24 x No.4 x 70mm screws- for front & rear corner cover fillets
•230 roofing nails
•50 x 50mm galvanised wire nails- gable end & front height extension panel shiplap cladding.
•Optional kickboard lining - 8 x individual kickboards labelled A through H
•500g bag of 40mm galvanised nails if shelter supplied with kickboards

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS
12x12 Materials List
•10 x Full black roof sheets & 10 x Half black roof sheets
•5 x black ridge caps
•1 back panel –approx. 3.47m wide
•2 x side panels –approx. 3.6m wide
•1 x front panel –approx. 3.47m wide with door opening
•2 x gable ends
•1 x front height extension panel
•8 x full depth roof purlins
•2 x full depth roof purlins with side add-on for purlins at ridgeline.
•2 x reduced depth roof purlins (for first and last purlins in metal hangers –shorter in depth than standard)
•2 x gallows brackets.
•1 x front fascia board –18mm x 145 x approx. 3.5m
•1 x centre canopy support.
•21 x M8 x 100mm coach screws and washers
•1 box (100) x No.5x100mm screws
•24 x No.4 x 70mm screws- for front & rear corner cover fillets
•8 x No.5 x 50mm screws –for front fascia board fixing
•330 roofing nails
•Kickboard lining - 8 x individual kickboards, labelled A through H
•500g bag of 40mm galvanised nails if shelter supplied- kickboards & gable end & front height extension panel shiplap cladding.

12x10 & 12x12 eCONO Apex Shelter
FITTING INSTRUCTIONS
YOU WILL NEED THE TOOLS BELOW TO INSTALL YOU SHELTER
6ft Level, hammer, tape measure, Posi-drive No.2 screwdriver, 13mm Socket wrench or spanner, ladder.
HEALTH & SAFETY
You have chosen to fit you shelter yourself –please be very careful during construction
•DO NOT INSTALL YOUR SHELTER DURING PERIODS OF HIGH WINDS
•MAKE SURE YOU WEAR YOUR PERSONAL PROTECTIVE EQUIPMENT (not supplied)
•PLEASE ENSURE THAT WHEN USING A LADDER THAT IT HAS BEEN INSPECTED AND IS FREE FROM FAULTS.
•ALWAYS HAVE SOMEONE WITH YOU TO ‘FOOT’ THE LADDER WHILE YOU CLIMB THE LADDER.
•ENSURE THAT THE LADDER IS USED ON STABLE, HARD GROUND.
•TAKE EXTRA CARE WHILE WORKING AT HEIGHT.
