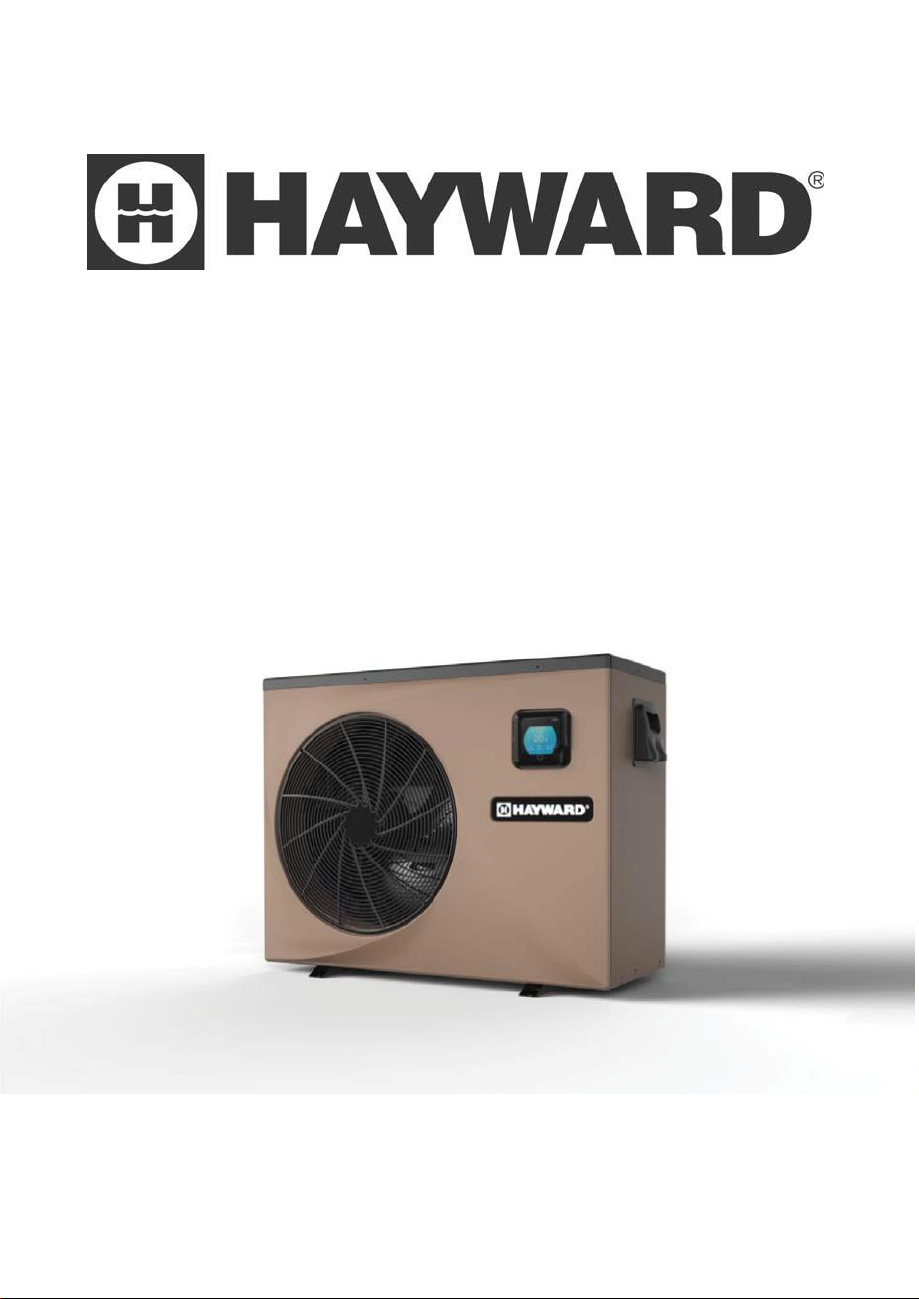

SWIMMING POOL HEAT PUMP
UNIT
Installation & Instruction Manual
Models HP50AEE
HP70AEE
Hayward Pool
Products Canada, Inc.
2880 Plymouth Dr., Oakville, ON L6H 5R4
Haywardpool.ca / 1.888.238.7665

CONTENTS
1. Preface 1
2. Specifications 2
2.1 Performance Data of Swimming Pool Heat Pump Unit 2
2.2 Dimensions for Swimming Pool Heat Pump Unit 3
3. Installation and Connection 4
3.1 Installation of System 4
3.2 Swimming Pool Heat Pumps Location 5
3.3 How Close to Your Pool? 5
3.4 Swimming Pool Heat Pumps Plumbing 6
3.5 Swimming Pool Heat Pumps Electrical Wiring 7
3.6 Initial Start-up of the Unit 7
4. Usage and Operation 8
4.1 Color screen wire controller interface introduction 8
4.2 Color screen wire controller function introduction 10
4.3 Parameter list and breakdown table 15
5. Maintenance and Inspection 17
6. Appendix 18
6.1 Connection of PCB: Illustration 18
6.2 Wiring Diagram 20
6.3 Exploded View and Spare Parts List 21
6.4 Warranty

1. PREFACE
In order to provide our customers with quality, reliability and versatility, this product has been made
to strict production standards. This manual includes all the necessary information about installa-
tion, debugging, discharging and maintenance. Please read this manual carefully before you open or
maintain the unit. The manufacture of this product will not be held responsible if someone is injured
or the unit is damaged, as a result of improper installation, debugging, or unnecessary
maintenance. It is vital that the instructions within this manual are adhered to at all times. The unit
must be installed by qualified personnel.
The unit can only be repaired by qualified installer centre , personnel or an authorised dealer.
Maintenance and operation must be carried out according to the recommended time and frequency,
as stated in this manual.
Use genuine standard spare parts only.
Failure to comply with these recommendations will invalidate the warranty.
Swimming Pool Heat Pump Unit heats the swimming pool water and keeps the temperature
constant. For split type unit, The indoor unit can be Discretely hidden or semi-hidden to suit a
luxury house.
Our heat pump has following characteristics:
1 Durable
The heat exchanger is made of PVC & Titanium tube which can withstand prolonged exposure to
swimming pool water.
2 Installation flexibility
The unit can be installed outdoors or indoors.
3 Quiet operation
The unit comprises an efficient rotary/ scroll compressor and a low-noise fan motor, which
guarantees its quiet operation.
4 Advanced controlling
The unit includes micro-computer controlling, allowing all operation parameters to be set.
Operation status can be displayed on the LCD wire controller. Remote controller can be chosen
as future option.
1

2.SPECIFICATION
2.1 Performance data of Swimming Pool Heat Pump Unit
REFRIGERANT: R410A
UNIT
Model
HP50AEE
HP70AEE
Rated Heating Power Input
kW
2.68
3.86
Range
kW
0.2-2.68
0.31-3.86
Rated Running Current Input
A
12.0
16.9
Range
A
1.1-12.0
1.5-16.9
Power Supply
V/Hz
208-230V~/60Hz
208-230V~/60Hz
Compressor Quantity
1
1
Compressor
rotary
rotary
Fan Quantity
1
1
Fan Power Input
W
100
100
Fan Rotate Speed
RPM
500-650
300-750
Fan Direction
horizontal
horizontal
Noise
dB(A)
43-53
42-57
Water Connection
inch
1.5’’
1.5’’
Water Flow Volume
m3/h /gpm
4.1/18.5
6.2/ 27.3
Water Pressure Drop(max)
kPa/psi
4.3/ 0.62
4.9/ 0.71
Unit Net Dimensions(L/W/H)
mm/ in
1048×442×770/ 41.2×17.4×30.3
1165×485×870/ 45.9×19.1×34.3
Unit Ship Dimensions(L/W/H)
mm/ in
1130×460×780/ 44.5×18.1×30.7
1210×510×880/ 47.6×20.1×34.6
Net Weight
kg
see nameplate
Shipping Weight
kg
see package label
Rated Heating: *Outdoor air temp: 27℃/24.3℃, Inlet water temp:26.7℃
During heating: Running ambient temperature: -5℃~43℃.
2

2.SPECIFICATION
844/33.2
870/34.3
744/ 29.3 770/ 30.3
485/19.1
442/17.4
2.2 The dimensionsfor Swimming Pool Heat Pump Unit
HP50AEE 1048/ 41.2
1002/ 39.4
water outlet
1.5’’
350/ 13.8
water inlet
1.5’’
104/4.1 610/ 24.0
unit：mm/in
HP70AEE
102/4.0
water outlet
1.5’’
400/ 15.7
water inlet
1.5’’
1165/ 45.9
1115/ 43.9
815/ 32.0
3

3.INSTALLATIONAND CONNECTION
3.1 Installation illustration
Chlorinator cell Water outlet Valve
Water supply
Water inlet Sand filter
(or other type filter)
Pool
Water pump
Installation items:
The factory only provides the main unit and the water unit; the other items in the illustration are
necessary spare parts for the water system ,that provided by users or the installer.
Attention:
Please follow these steps when using for the first time
1.Open valve and charge water.
2.Make sure that the pump and the water-in pipe have been filled with water.
3.Close the valve and start the unit.
ATTN: It is necessary that the water-in pipe is higher than the pool surface.
The schematic diagram is for reference only. Please check the water inlet/outlet label on the heat
pump while plumbing installation.
4

3.INSTALLATIONAND CONNECTION
500/ 19.7
3.2 Swimming Pool Heat Pumps Location
The unit will perform well in any outdoor location provided that the following three factors are presented:
1. Fresh Air - 2. Electricity - 3. Pool filter piping
The unit may be installed virtually anywhere outdoors. For indoor pools please consult the supplier. Unlike
a gas heater, it has no draft or pilot light problem in a windy area.
DO NOT place the unit in an enclosed area with a limited air volume, where the units discharge air will be
re-circulated.
DO NOT place the unit to shrubs which can block air inlet. These locations deny the unit of a continuous
source of fresh air which reduces it efficiency and may prevent adequate heat delivery.
Unit：mm/inch
Air inlet
Air outlet
3.3 How Close To Your Pool?
Normally, the pool heat pump is installed within 7.5 metres of the pool. The longer the distance from the
pool, the greater the heat loss from the piping. For the most part ,the piping is buried. Therefore, the heat
loss is minimal for runs of up to15 meters(15 meters to and from the pump = 30 meters total), unless the
ground is wet or the water table is high. A very rough estimate of heat loss per 30 meters is 0.6 kW-hour,
(2000BTU) for every 5 ℃difference in temperature between the pool water and the ground surrounding the
pipe, which translates to about 3% to 5% increase in run time.
5

3.INSTALLATIONAND CONNECTION
3.4 Swimming Pool Heat Pumps Plumbing
The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no special
plumbing arrangements except bypass(please set the flow rate according to the nameplate). The water
pressure drop is less than 10kPa at max. Flow rate. Since there is no residual heat or flame Tempera-
tures, The unit does not need copper heat sink piping. PVC pipe can be run straight into the unit.
Location: Connect the unit in the pool pump discharge (return) line downstream of all filter and pool
pumps, and upstream of any chlorinators, ozonators or chemical pumps.
Standard model have slip glue fittings which accept 32mm or 50 mm PVC pipe for connection to the
pool or spa filtration piping. By using a 50 NB to 40NB you can plumb 40NB
Give serious consideration to adding a quick coupler fitting at the unit inlet and outlet to allow easy
draining of unit for winterizing and to provide easier access should servicing be required.
To pool
PVC COUPLER
RECOMMENDED(Provided)
From pump
CONDENSATION DRAIN
BARB FTG
Condensation: Since the Heat pump cools down the air about 4 -5℃, water may condense on the fins
of the horseshoe shaped evaporator. If the relative humidity is very high, this could be as much as
several litres an hour. The water will run down the fins into the basepan and drain out through the
barbed plastic condensation drain fitting on the side of the basepan. This fitting is designed to accept
20mm clear vinyl tubing which can be pushed on by hand and run to a suitable drain. It is easy to
mistake the condensation for a water leak inside the unit.
NB: A quick way to verify that the water is condensation is to shut off the unit and keep the pool pump
running. If the water stops running out of the basepan, it is condensation. AN EVEN QUICKER WAY IS
to TEST THE DRAIN WATER FOR CHLORINE - if the is no chlorine present, then it's condensation.
6

3.INSTALLATIONAND CONNECTION
3.5 Swimming Pool Heat Pumps Electrical Wiring
NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it simply
prevents the flow of electricity to or from the pool water. Grounding the unit is still required to protect
you against short circuits inside the unit. Bonding is also required.
The unit has a separate molded-in junction box with a standard electrical conduit nipple already in
place. Just remove the screws and the front panel, feed your supply lines in through the conduit nipple
and wire-nut the electric supply wires to the three connections already in the junction box (four
connections if three phase). To complete electrical hookup, connect Heat Pump by electrical conduit,
UF cable or other suitable means as specified (as permitted by local electrical authorities) to a
dedicated AC power supply branch circuit equipped with the proper circuit breaker, disconnect or time
delay fuse protection.
Disconnect - A disconnect means (circuit breaker , fused or un-fused switch) should be located within
sight of and readily accessible from the unit, This is common practice on commercial and residential air
conditioners and heat pumps. It prevents remotely-energizing unattended equipment and permits
turning off power at the unit while the unit is being serviced.
3.6 Initial startup of the Unit
NOTE- In order for the unit to heat the pool or spa, the filter pump must be running to circulate water
through the heat exchanger.
Start up Procedure - After installation is completed, you should follow these steps:
1. Turn on your filter pump. Check for water leaks and verify flow to and from the pool.
2. Turn on the electrical power supply to the unit, then press the key ON/OFF of wire controller, It
should start in several seconds.
3. After running a few minutes make sure the air leaving the top(side) of the unit is cooler(Between 5-10 ℃)
4. With the unit operating turn the filter pump off. The unit should also turn off automatically,
5. Allow the unit and pool pump to run 24 hours per day until desired pool water emperature is reached.
When the water-in temperature reach setting, The unit just shuts off. The unit will now automatically
restart (as long as your pool pump is running)when the pool temperature drops more than 2℃below set
temperature.
Time Delay- The unit is equipped with a 3 minute built-in solid state restart delay included to protect
control circuit components and to eliminate restart cycling and contactor chatter. This time delay will
automatically restart the unit approximately 3 minutes after each control circuit interruption. Even a brief
power interruption will activate the solid state 3 minute restart delay and prevent the unit from starting
until the 5 minute countdown is completed. Power interruptions during the delay period will have no
effect on the 3 minute countdown.
7

4. USAGE
Time
°
°
Parameter
℃
4.1. Color screen wire controller interface introduction
4.1.1 Main interface
Shutdown status Booting status 5
Inlet water
℃
InlIenltetWwaateter r
20 .5
OFF
Time Temp Seting Outlet Water Time TeHmeaptinSgetStinetg OOuuttlleett Water
℃℃07 00 28.5
°
℃
18.5
℃

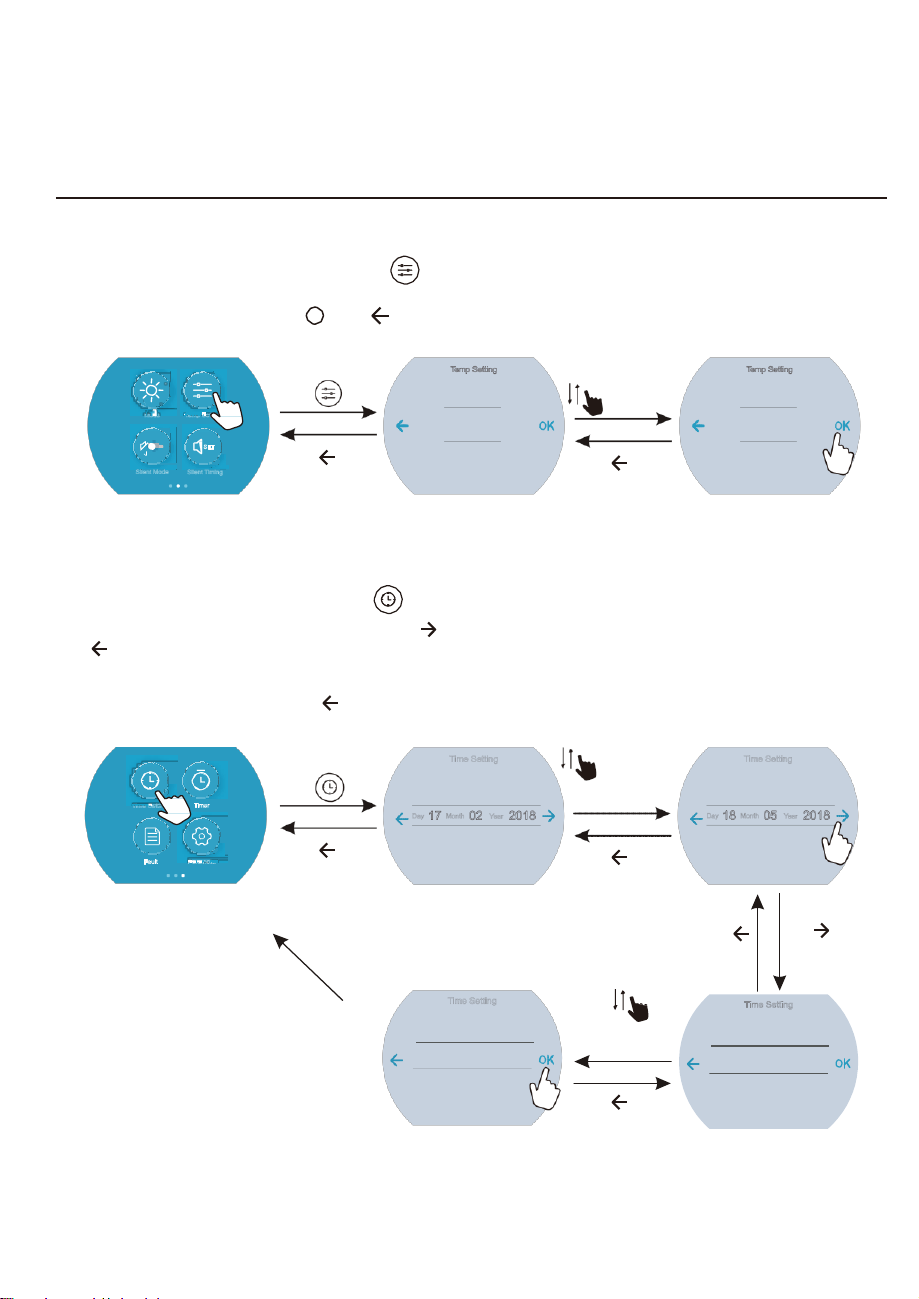

4.1.2 Function interface
Second interface 8 9
Third interface12 13
M d Temp Setting Time Setting
SET
Silent Mode Silent Timing
10 11 14 15
8

4. USAGE
4.1.2 Button and display Description
NO.
Name
Description
Time
Show the system time
Temp. Setting
Show the target temperature
Outlet Water
Show the outlet water temperature
Inlet Water
Show the inlet water temperature
1
ON/OFF or Back
Press to control the unit ON/OFF,or back to the previous interface
2
Defrost icon
The icon will display when the unit working on defrost mode
3
Mode
The icon will display the running mode (heating/ cooling/auto)
4
Compressor icon
The icon will display when the compressor work
5
Lock icon
The icon will display when the operation controller is locked
6
Fault icon
The icon will display when the unit fails
7
Current Interface
Slide left or right to switch the interface display
8
Mode
Click to enter mode setting
9
Temp Setting
Click to set the target temperature for current mode
10
Silent Mode
Click to switch the silent mode
11
Silent Timing
Click to to set the silent function timer
12
Time setting
Click to enter the system time setting
13
Timer
Click to enter the timing setting for the unit ON/OFF
14
Fault
Click to look up the fault history
15
Parameter
Click to enter system parameter interface
9

4. USAGE
Time Setting
ing
Temp Setting
Mode
Time
°
°
°
Time
°
°
°
℃
℃
℃
4.2. Color screen wire controller function introduction
4.2.1 Booting and shutdown
In the main interface：
1) In shutdown status, press the ON/OFF button for 0.5s then the unit will be booted.
2) In booting status, press the ON/OFF button for 0.5s then the unit will be shut down.
Inlet water press button
“”0.5s
Inl I e nl t et W wa a te te r r
20 .5
Time
OFF
Temp Seting Outlet Water
Time Te H m ea p tin S g et S tin et g O O u u t t l l e e t t Water
℃℃press button
“”0.5s 07 00 28.5
℃ 18.5 ℃
4.2.2 Function selection interface
In the main interface, slide left or right to select the function selection.
Inl I e nl t et W wa a te te r r
20 .5
slide right
Mode Temp Setting
slide right
Timer
Time
07 00
Te H m ea p tin S g et S tin et g O O u u t t l l e e t t Water
28.5 18.5 ℃ slide left
SET
Silent Mode Silent Timing slide left
Parameter
Main interface Second interface Third interface
4.2.3 Mode switch
In the Second function interface, click the Mode icon to enter into the Mode Setting interface.
Slide up and down to select the mode (Cooling-Heating-Auto) , click “OK” to save the setting and back
to the previous interface; click Back button “”or “”to quit the settings.
click Mode icon
Mode
ling
slide up
or down
Mode
ting
Heating
"
Auto
SET
Silent Mode Silent Timing click “”to quit
"
click “”to quit
ling
Note: when the unit is designed for single Cooling mode or single Heating mode, the mode can not
be switch.
10

4. USAGE
Temp Setting
Mode
Parameter
4.2.4 Target temperature setting
In the Second function interface,click “”to enter into the Temp Setting interface, slide up or
down to select the target temperature, click “OK” to save the setting and back to the previous
interface; click Back button “”or “”to quit the settings.
click “”
Temp Setting
32.5
33 .0
˫
slide up
or down
Temp Setting
33.0
33 .5
˫
SET
Silent Mode Silent Timing
click “”to quit
33.5
click “”to quit
34.0
4.2.5 System time setting
In the Third function interface, click “”to enter into Time Setting interface.
Slide up or down to select the DATE, click “”to save and enter into time setting interface; click
“ ”to cancel and back to the prevoius interface.
In the time setting interface, slide up or down to select TIME, click “OK” to save and return to the
Third function interface; click “”back to the prevoius interface.
Time Setti
n
n
g
click “”
Time Setting
16 0
2017
slide up or down
to select “D-M-Y”
Time Setting
17 04
2017
Day 17 Month 02 Year 2018 Day 18 Month 05 Year 2018
click “”to quit 18 03 2019
click “”to quit
19 06 2019
click “OK”
to save
click “”
to quit
click “ ”to save
and enter into the
next time interface
Time Setting
05 29
slide up or down
to select the time
Time Setting
08 0
Time 06：
30 Time 09：
02
07 3
click “”to quit 10 03
11

4. USAGE
Time Setting
Parameter
4.2.6 Timing settings
In the Third function interface,click “”to enter into the Time setting interface, click the value of
“ON” to enter into the Start time selecting interface, slide up or down to adjust the value, click “OK”
to save (click “”backspace); click the value of “OFF” to enter into End time selecting interface,
slide up or down to adjust the value, click “OK” to save (click “”backspace).
At last, slide right the right round button to active the timing settings or slide it left to Deactivate the
timing setttings; click “”back to the third function interface.
click “”
Time
ON
OFF
20： 00 21
：
00
00： 00 00
：
00
click the
timer “ON”
ON
19
20： 00
click “”to quit 2 0
click “”to quit
click “”
to quit slide up or down
to select the
Start time
OFF
20
21： 00
click the
timer “OFF”
Time
ON OFF
07： 00 21
：
00
00： 00 00
：
00
click “OK” to save
ON
06 59
07： 00
22 0
click “”to quit
click “”to quit 08 0
click “”
to quit
slide up or down
to select the
End time
OFF
Time
08
09： 30
click “OK” to save
ON
OFF
07： 00 21
：
30
OFF
ON slide right to start the timer setting;
slide left to close the timer function;
10 3
click “”to quit 00：
00 00： 00 click “”back to the Third interface.
12

4. USAGE
SET
4.2.7 Silent Mode and silent timing
（1）Silent Mode
In the Second function interface,click “”to active the Silent Mode, the icon show “”, click the icon again
the Silent Mode function can be off.
Mode Temp Setting
SET
Silent Mode Silent Timing
click “”to
active the function
click “”to
deactivate the function
Mode Temp Setti
n
n
n
SET
Silent Mode Silent Timing
ON:
OFF:
（2）Silent Timing
In the Second function interface,click “”to enter into the Silent Timing interface, click the value to adjust the
Start time or End time, slide the right round button to active or deactive the Silent Timing function.
Note: ON：，OFF .
click “ SET ”
Silent Timing
ON OFF
click the
timer “ON”
ON
2
Mode Temp Setting
SET
Silent Mode Silent Timing
click “”to quit
20： 00 23： 00
click “”to quit
22： 00
12
click “”
back to the
Third interface
slide up or down
click “”
to quit
slide up or down to
select the Start
time and click “OK”
to save
Silent Timing
ON OFF
20： 00 06
：
00
to select the
End time, click
“OK” to save
click “”
to quit
OFF
06： 00
07
click the
timer “OFF”
click “”to quit
Silent Timing
ON OFF
22： 00 23
：
00
Note:Start and end time setting value must be among the range of 00:00-23:00，and setting value can
be precise to hour digit.
13

4. USAGE
Time Setting
Time
°
°
°
Time
°
°
°
℃
4.2.8 The fault interface
When fault occus, the fault icon “”will display in the main interface.
To check the fault record list, slide to the Third function interface, click “”to enter into the Fault
history record interface, click “”or “”to page up or down, the fault interface will record the
time, code, name of the fault.
Click “Del” to clean the fault records and press the BACK button “”to return back to the Third
function interface.
Parameter
click “”
Fault
E08 Communication fault
21.11. 2018 01:01
P09 Antifreeze Temp. Sensor Fault
19. 11. 2018 05:20
P09 Antifreeze Temp. Sensor Fault
19. 11. 2018 06:20
P09 Antifreeze Temp. Sensor Fault
19. 11. 2018 07:20
1/10
Del
click “”
to page up
click “”to
page back
Fault
P07 Suction Temp. Sensor Fault
14. 05. 2018 08:22
P02 Outlet Temp. Sensor Fault
14. 05. 2018 09:22
2/10
Del
4.2.8 Keyboard locking
In the Main interface, press the “”button over 5 seconds, the screen is locked, press the “”
button over 5 seconds again to unlock the screen.
Inl I e nl t et W wa a te te r r
20 .5
press button
“”5s, it
shows “ ”
Inl I e nl t et W wa a te te r r
20
℃
.5
Time Te H m ea p tin S g et S tin et g O O u u t t l l e e t t Water Time Te H m ea p tin S g et S tin et g O O u u t t l l e e t t Water
07 00 28.5 18.5
℃ press button
“”5s,the icon
“ ”disppears
07 00 28.5
℃ 18.5
14

4. USAGE
4.3 Parameter list and breakdown table
4.3.1Electronic control fault table
15

4. USAGE
4.3.2 Frequency conversion board fault table:
Protection/fault
Fault
Reason
Elimination methods
Drv1 MOP alarm
F01
MOP drive alarm
Recoveryafter the 150s
Inverter offline
F02
Frequency conversion board and main
board communication failure
Checkthe communicationconnection
IPM protection
F03
IPM modular protection
Recoveryafter the 150s
Comp. Driver Failure
F04
Lack of phase, step or drive hardware
damag
Checkthe measuringvoltage check
requencyconversion board hardware
DC Fan Fault
F05
Motor current feedback open circuit or
short circuit
Checkwhether currentreturn wires
connectedmotor
IPM Overcurrent
F06
IPM Input currentis large
Checkand adjustthe current
measurement
Inv. DC Overvoltage
F07
DC bus voltage>Dc bus over-voltage
protection value
Checkthe input voltagemeasurement
Inv. DC Lessvoltage
F08
DC bus voltage<Dc bus over-voltage
protection value
Checkthe input voltagemeasurement
Inv. Input Lessvolt.
F09
The input voltage is low, causing the
inputcurrent is high
Checkthe input voltagemeasurement
Inv. Input Overvolt.
F10
The input voltage is too high, more than
outage protection current RMS
Checkthe input voltagemeasurement
Inv. Sampling Volt.
F11
The input voltage sampling fault
Checkand adjustthe current
measurement
Comm. Err DSP-PFC
F12
DSP and PFC connect fault
Checkthe communicationconnection
Input Over Cur.
F26
The equipment load is too large
PFC fault
F27
The PFC circuitprotection
ck the PFC switch tube short circuit
not
IPM Over heating
F15
The IPM module is overheat
Checkand adjustthe current
measurement
Weak Magnetic Warn
F16
Compressor magnetic force is not
enough
Inv. Input OutPhase
F17
The input voltage lost phase
Checkand measurethe voltage
adjustment
IPM Sampling Cur.
F18
IPM sampling electricity is fault
Checkand adjustthe current
measurement
Inv. Temp. Probe Fail
F19
Sensor is short circuit or open circuit
Inspectand replacethe sensor
Inverter Overheating
F20
The transducer is overheat
Checkand adjustthe current
measurement
Inv. Overheating Warn
F22
Transducer temperature is too high
Checkand adjustthe current
measurement
Comp. OverCur. Warn
F23
Compressor electricity is large
The compressorover-current
protection
Input Over Cur. Warn
F24
Input current is too large
Checkand adjustthe current
measurement
EEPROM Error Warn
F25
MCU error
Checkwhether the chip is damaged
Replacethe chip
V15V over/undervoltage fault
F28
The V15V is overload or undervoltage
ChecktheV15Vinput voltageinrange
13.5v~16.5vor not
16

5. MAINTENANCEAND INSPECTION
(2) Parameter list
Meaning
Default
Remarks
Refrigeration target temperature set point
27 ഒ
Ajustable
Heating the target temperature set point
27 ഒ
Ajustable
Automatic target temerature set point
27 ഒ
Ajustable
5. Maintenance and inspection
Check the water supply device and the release often. You should avoid the condition of no water or
air entering into system, as this will influence unit's performance and reliability. You should clear the
pool/spa filter regularly to avoid damage to the unit as a result of the dirty of clogged filter.
The area around the unit should be dry, clean and well ventilated. Clean the side heating exchanger
regularly to maintain good heat exchange as conserve energy .
The operation pressure of the refrigerant system should only be serviced by a certified technician.
Check the power supply and cable connection often,.Should the unit begin to operate abnormally,
switch it off and contact the qualified technician.
Discharge all water in the water pump and water system ,so that freezing of the water in the pump or
water system does not occur. You should discharge the water at the bottom of water pump if the unit
will not be used for an extended period of time. You should check the unit thoroughly and fill the
system with water fully before using it for the first time after a prolonged period of no usage.
17
