Hayward HP50B Instruction Manual

SWIMMING POOL HEAT PUMP
Installation & User Manual
Hayward Pool Products Canada, Inc.
T: 1-888-238-7665
www.haywardpool.ca
Model HP50B
HP65B

CONTENT
I. Application 4
II. Features 4
III. Technical Parameters 5
IV. Dimension 6
V. Installation Guide 7
VI. Controller Operation 10
VII. Testing 11
VIII. Precautions 12
IX. Maintenance 13

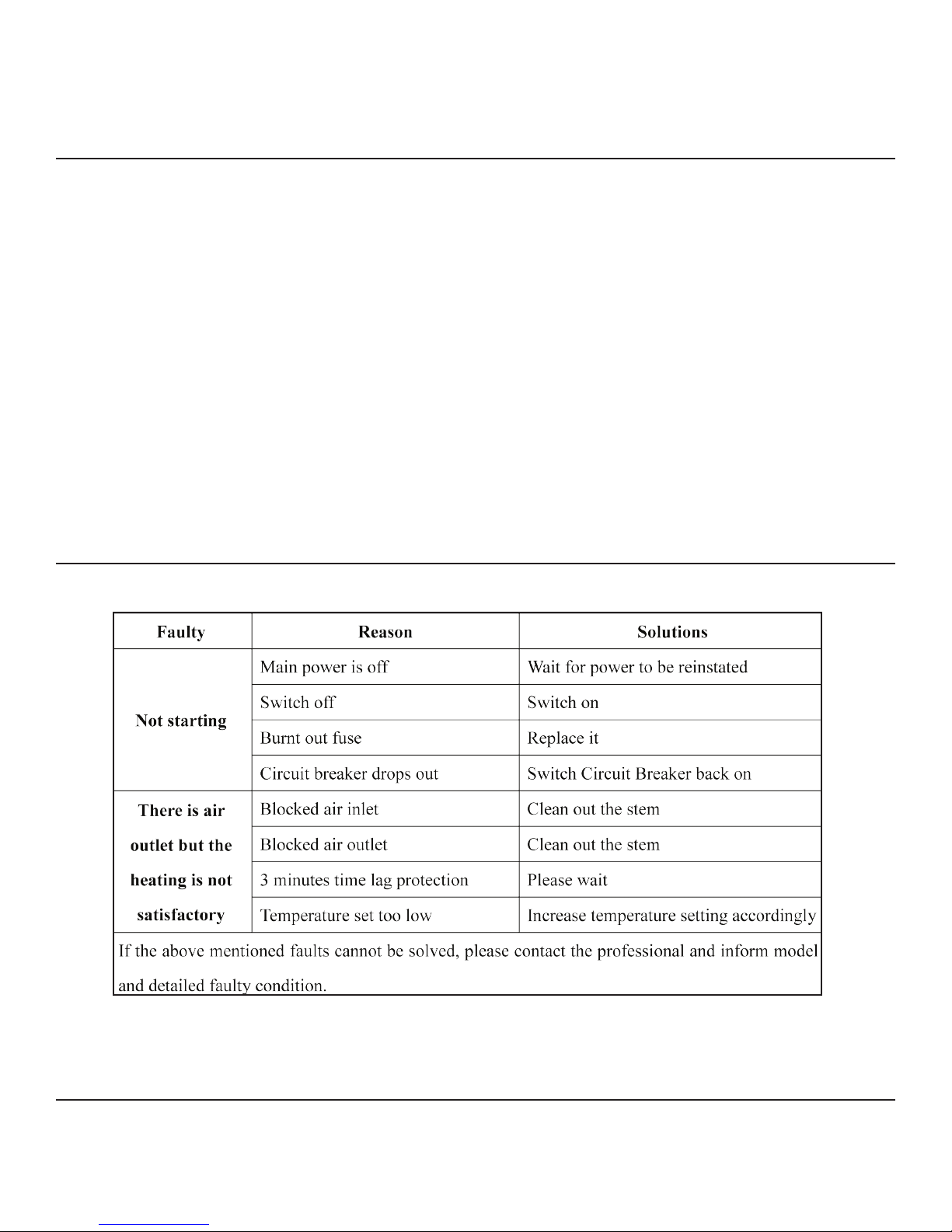

X. Troubleshooting 13

A) The Swimming Pool Heat Pump Unit is intended to heat the swimming pool water and regulate
the temperature. Use in any other application will void the warranty.
B) The inlet & outlet connections cannot support any load from another piping system.
C) Make sure outlet air does not hurt any person, animal & plant.
D) The unit must always be powered off before opening the access panel. Always cut the unit’s
main power whenever the access panel is open or removed.
A) All electrical connections must be done by a qualified electrician and according to national and
local electrical codes. We have provided important safety messages in this manual and on your
heater. Always read and obey all safety messages.
B) You will need to set the water temperature you desire.
C) Always install the machine outdoors, while respecting the minimal clearances needed for proper
operation and heating. DO NOT place the unit next to shrubs, fences, etc. which can block
the air inlet. These locations deny the unit a continuous source of fresh air which reduces its
efficiency and may prevent adequate heat delivery.
D) All Hayward Heat Pumps must be installed in accordance with all applicable National and Local
codes. In the absence of local codes, refer to the latest edition of the Canadian Electrical Code
(CEC).
E) The unit will automatically start up when there is proper flow and available power.
F) If the unit is stopped for an extended period of time or winterized, it must be drained of all water.
You will need to disconnect the IN and OUT water connections. Then the unit must then be tilted
or blown out with air until all water is out.
G) Do not insert any objects into the air outlet. Do not attempt to disassemble the fan at any time.
H) If at any time there is an abnormal noise, smell, smoke, electricity leakage, please switch off
power immediately and contact your local dealer. All repairs must be performed by a qualified
technician.
I) Do not store combustible or flammable material near unit.
WARNING
PRECAUTIONS
3

I. APPLICATION
II. FEATURES
1. For your comfort and pleasure, set swimming pool water temperature efficiently and economically.
2. All technical parameters are factory set. Please refer to technical parameter table.
1. Highly efficient titanium heat exchanger.
2. Sensitive and accurate temperature control and water temp display.
3. Environment-friendly R410A refrigerant.
4. High pressure, low pressure & water flow protection system.
5. Exceeding low temperature auto stop protection.
6. Temperature controlled compulsory defrosting.
7. International brand compressor.
8. Easy installation and operation.
4

III. TECHNICAL PARAMETERS
Remarks:
This product has been tested at air temperature of 32°F ~109°F. Efficiency cannot be guaranteed out of
these ranges. All parameters will differ under various conditions.
5

IV. DIMENSIONS
6
Note: The above diagram is the specification diagram of the pool heater, for technician’s
installation and layout reference only.

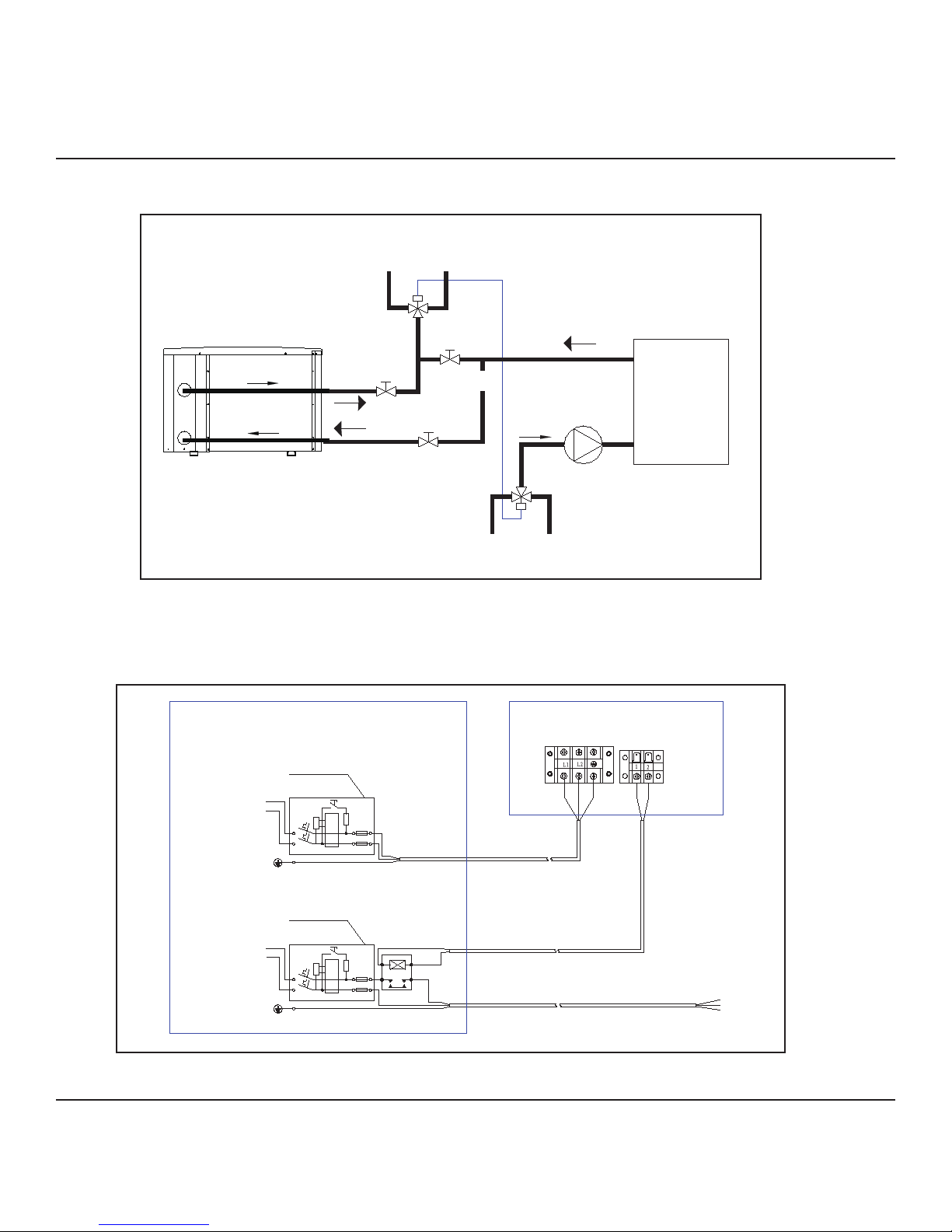

V. INSTALLATION GUIDE
1. Diagram for Water Piping Connections
2. Electric Wiring Diagram
7
Note: The diagram is for demonstration purposes only, and layout of the pipes is for reference only.
Note: The swimming pool heat pump must be grounded.
Breaker/fuse
(Customer prepare)
Earthing
Power Supply
230V/ 60Hz
L1
L2
Breaker/fuse
(Customer prepare)
Earthing
Power Supply
230V/ 60Hz
L1
L2
Pump
Heat Pump
contactor
Terminal Board
Users'Electric Box
Ground
Terminals
Ground
Pump
POOL WATER IN
WATER TO SWIMMING POOL
STOP VALVE
THREE WAY
VALVE
SWIMMING
POOL WATER
TREATMENT
SYSTEM
work together
STOP VALVE
STOP VALVE
THREE WAY
VALVE
FILTER
Outlet Valve
Inlet Valve
By-Pass Valve
V. INSTALLATION GUIDE
1. Diagram for Water Piping Connections
2. Electric Wiring Diagram
7
Note: The diagram is for demonstration purposes only, and layout of the pipes is for reference only.
Note: The swimming pool heat pump must be grounded.
Breaker/fuse
(Customer prepare)
Earthing
Power Supply
230V/ 60Hz
L1
L2
Breaker/fuse
(Customer prepare)
Earthing
Power Supply
230V/ 60Hz
L1
L2
Pump
Heat Pump
contactor
Terminal Board
Users'Electric Box
Ground
Terminals
Ground
Pump
POOL WATER IN
WATER TO SWIMMING POOL
STOP VALVE
THREE WAY
VALVE
Filter
work together
STOP VALVE
STOP VALVE
THREE WAY
VALVE
OUTLET
INLET

V. INSTALLATION GUIDE
Options for protecting devices and cable specification.
Pump protecting device, cable specification is subject to user’s option.
1. Installation Instruction and Requirements:
All electrical connections must be done by a qualified electrician and according to national and local electrical
codes. We have provided important safety messages in this manual and on your heater. Always read and
obey all safety warnings. All Hayward Heat Pumps must be installed in accordance with all applicable National
and Local codes. In the absence of local codes, refer to the latest edition of the Canadian Electrical Code
(CEC).
A. Installation
1. Always install the machine outdoors, while respecting the minimal clearances needed for proper operation
and heating. DO NOT place the unit next to shrubs, fences, etc. which can block the air inlet. These
locations deny the unit a continuous source of fresh air which reduces its efficiency and may prevent
adequate heat delivery.
2. Mount the unit on a sturdy base, preferably a concrete slab. The base should be completely isolated from
the building foundation wall to prevent the possibility of sound or vibration transmission into the building.
3. The pool heat pump is designed for outdoor installation and should not be installed in a fully
enclosed area, such as a shed, garage, etc. Recirculation of cold discharged air back into the evaporator
coil will greatly reduce unit heating capacity and efficiency.
8
Note: The above data is for an electrical cord of less than 10 m. If electrical cord is > 10 m, wire diameter must
be increased. The signal cable can be at maximum 50 m.

Air is pulled through the evaporator coil and discharged through the side grille. A minimum clearance of 98
inches should be allowed on the air outlet side for unrestricted air discharge. The unit must not be installed
under a porch. Any other side of the unit should be located at least 28 inches from a wall or from any other
obstruction for unrestricted air intake and service access.
4. The piping sequence is as follows: pool > pool pump > filter > heater > check valve > chemical feeder
> pool. Automated chlorine distribution systems, if used, must be placed downstream of the heater to
minimize harm to the pool equipment. Use rigid PVC piping if possible (SCH40 or SCH80). All joints should
be glued with PVC glue. When the piping installation is complete, operate the pool pump and check the
system for leaks. Then, check the filter pressure gauge to verify that there isn’t any indication of excessive
pump head pressure.
You can also make the connections using high-pressure flexible hose, but make sure the hose can
withstand high pressure. The installation of a heat pump bypass is not necessary unless the water flow
exceeds 75 GPM.
5. It is also normal to see water dripping from the drain at the base pan of the unit. While your pool heat
pump is in the heating mode, a large volume of warm and humid air passes over the evaporator and
causes condensation. To check if there really is a leak, you must stop the heat pump and leave the pool
pump running for at minimum 5 hours. If water is still coming out of your heat pump after this period, then
call your dealer for service.
B. Wiring
1. The wiring of your pool heat pump should be performed by a qualified electrician in accordance with local
requirements. A properly-sized breaker and copper wire must be used. Check the heat pump data
label for required maximum breaker size. Because all metals have different electrical potentials, all
metal and electrical components of the pool system must be bonded together. This includes the metal
framework of the pool, the light, the pump, the filter (if made out of metal), the heater, any automatic
chlorine generator, and any other metal or electrical equipment. On some older pools, this substructure
bond wire may not exist. In these cases, a 6 to 8 foot solid copper rod must be driven into the ground
near the equipment. All electric and metal components must then be bonded to each other, and then to
the copper rod.
2. The wiring of your pool heat pump must be performed by a qualified electrician in accordance with national
and local requirements.
3. Set leakage protector according to the local code for wiring (leakage operating current ≤ 30mA).
4. The layout of power cable and signal cable should be orderly and not affecting each other.
C. Switch on after finishing all wiring, installation and double checking.
V. INSTALLATION GUIDE
9

VI. OPERATION INSTRUCTION
10
1. Operation Display
a. The display shows the Time when the machine is off.
b. The display shows the Temperature of the swimming pool water when the machine is on.
2. Water Temperature Setting
a. Press MODE key to switch between HEAT-COOL modes.
b. Water temperature setting is available whether unit is running or not. Press HEAT or COOL
to start Heat Pump.
c. Press either to adjust water temperature. The controller indicates flashing
temp. Press to adjust to your desired water temp.
d. After 5 seconds, the display will return to its normal mode.
3. Time Setting
a. Time setting is available whether unit is running or not.
b. Press key to set time, when the clock on the screen is flashing, press again to
set hour. Use to adjust hour. Before the flashing stops, press again
to set minute. Use to adjust. After adjusting, press and water
temperature will be displayed. 30 seconds later, the controller display will be back to
normal mode.

VI. OPERATION INSTRUCTION
VII. TESTING
4. Timer On and Off
a. Press set timer on. When the indicator light is on and the time is flashing, press
again to set hour. Use to adjust. Before the flashing stops, press to set
minute.
b. Use to adjust. After adjusting, press and water temperature will be
seen. 30 seconds later, the controller display will be back to the normal mode.
c. Press to set timer off. When the indicator light is on and the time is flashing,
press again to set hour. Use to adjust before flashing stop, press to
set minute. Use to adjust. After adjusting, press and water temperature
will be seen. 30 seconds later, the controller display will be back to normal mode.
5. Cancel Timer On and Off
a. Press or to cancel timer on and off. When the number is flashing, press
when timer indicator light is off and LED shows water temperature, the timer on and off is
cancelled. 30 seconds later, the controller display will be back to normal mode.
11
1. Inspection before use
a. Check installation of the whole machine and the pipe connections according to the pipe
connection diagram
b. Check the electric wiring according to the electric wiring diagram; and make sure the Heat Pump is
bonded
c. Make sure that the main machine power switch is off
d. Check the temperature setting.
e. Check the air inlet and outlet.
2. Trial
a. The user must “Start the Pump before the Machine, And Turn off the Machine before the
Pump”, or the machine will be damaged
b. The user should start the pump, check for any water leakage of water; set temperature in the
thermostat, and then switch on power supply.
c. In order to protect the swimming pool heater, the machine is equipped with a time delay
starting function, when starting the machine, the blower will run for 3 minutes before the
compressor starts.
d. If at any time there is an abnormal noise, smell, smoke, electricity leakage, please switch
off power immediately and contact your local dealer. All repairs must be performed by a
qualified technician.

VIII. PRECAUTIONS
12
1. Attention
a. Set proper temperature in order to get comfortable water temperature; to avoid overheating or
over cooling.
b. Always install the machine outdoors, while respecting the minimal clearances needed for proper
operation and heating. DO NOT place the unit next to shrubs, fences, etc. which can block the air
inlet. These locations
deny the unit a continuous source of fresh air which reduces its efficiency and may prevent
adequate heat delivery.
c. Never put hands or any objects into outlet of the swimming pool heat pump, and don’t remove the
screen over the fan at any time.
d. If at any time there is an abnormal noise, smell, smoke, electricity leakage, please switch off power
immediately and contact your local dealer. All repairs must be performed by a qualified technician.
e. Do not use or stock combustible gas or liquids such as paint thinners, paint, fuel near or around
the heat pump.
f. As with all pool heaters, you are advised to use a pool cover at night and when the pool is not
in use. The pool cover should be used if night temperatures are 15°F less than desired pool
temperature. This will keep evaporation, the greatest source of heat loss, to a minimum, thus
greatly reducing the overall pool heating costs. During warmer weather, the pool cover may not be
required.
g. The heat pump should be installed within 10m of the pool to minimize heat loss in the underground
pipes.
2. Safety
a. Please keep the main power supply switch out of reach from children.
b. If there is a power outage while the machine is in operation, the heat pump will start up
automatically when power is restored.
c. Please switch off the main power supply during lightening storms to prevent any damage to the
unit.
d. If the machine is stopped for a long time, please cut off the power supply and drain water of
the machine by opening the tap of inlet pipe. If the unit is stopped for a long period of time or
for winterizing, the unit must be drained of all its water. You will need to disconnect the IN and OUT
water connections. Then the unit must be tilted or blown out with air until all water is out.

IX. MAINTENANCE
X. TROUBLESHOOTING
13
a. Disconnect power supply of the heater before any examination and repair.
The unit must always be powered off before opening the access panel. Always cut off the unit’s
main power whenever the access panel is open or removed.
b. In winter seasons, please drain water clear of the machine, disconnect power
Supply to prevent any machine damage, and cover the machine body with plastic cover to avoid
dust. If the unit is stopped for a long period of time or for winterizing, the unit must be drained of
all its water. You will need to disconnect the IN and OUT water connections. Then the unit must be
tilted or blown out with air until all water is out.
c. Please clean this machine with household detergents or clean water, NEVER gasoline, thinners
or any similar fuel. The area around the unit should be dry, clean and well ventilated. Clean the
side heating exchanger regularly to maintain good heat exchange and conserve energy. Dirt
can accumulate on the evaporator. You can easily remove it by using a non-pressured water spray
without damaging the small aluminum fins. The cleaning of the plastic cabinet can be done with the
help of a brush and soap.
d. Check bolts, cables and connections regularly.
ATTN: Do not disassemble or repair the swimming pool heat pump by yourself,
contact a licensed technician for service.
Common Faults

X. TROUBLESHOOTING
14

X. TROUBLESHOOTING

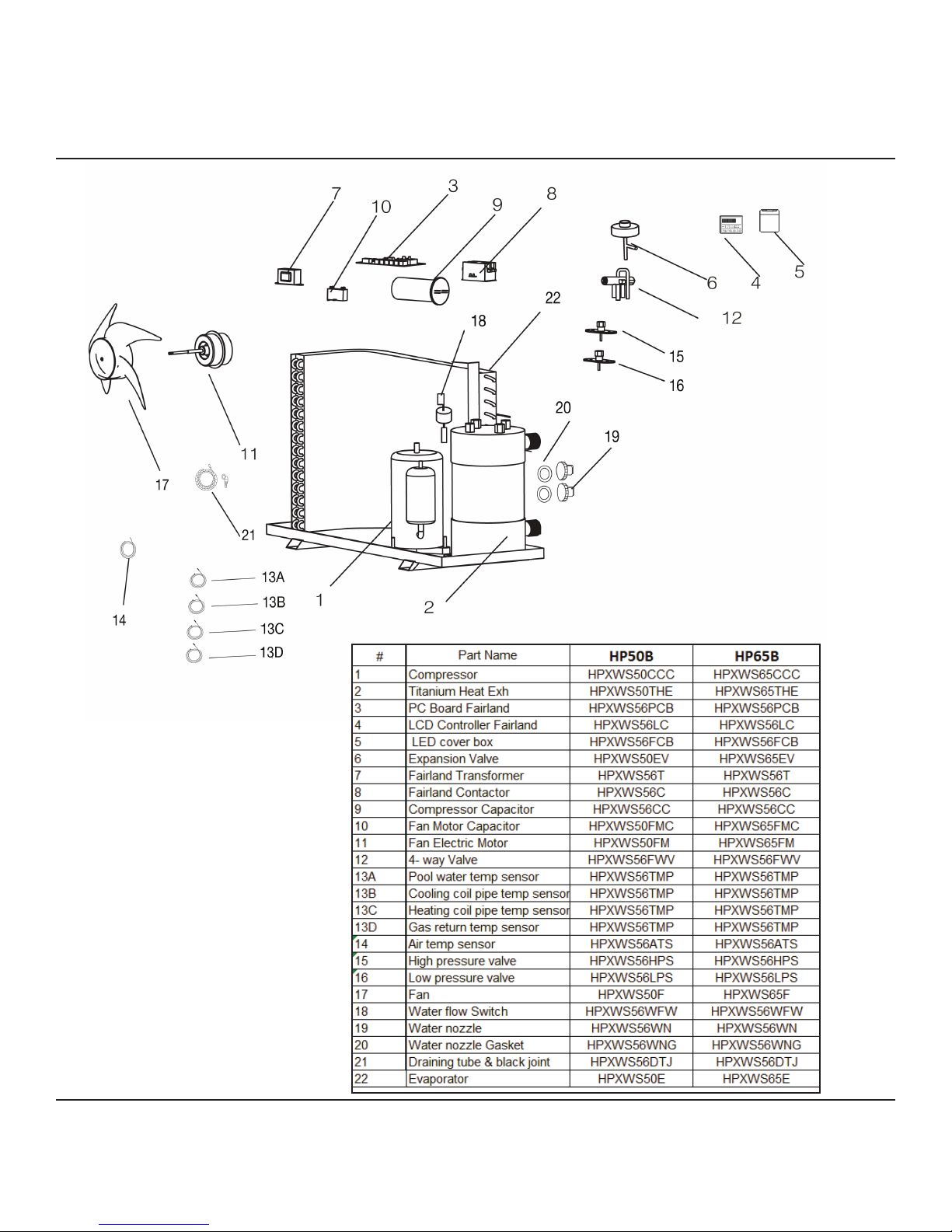

Parts Breakdown
15

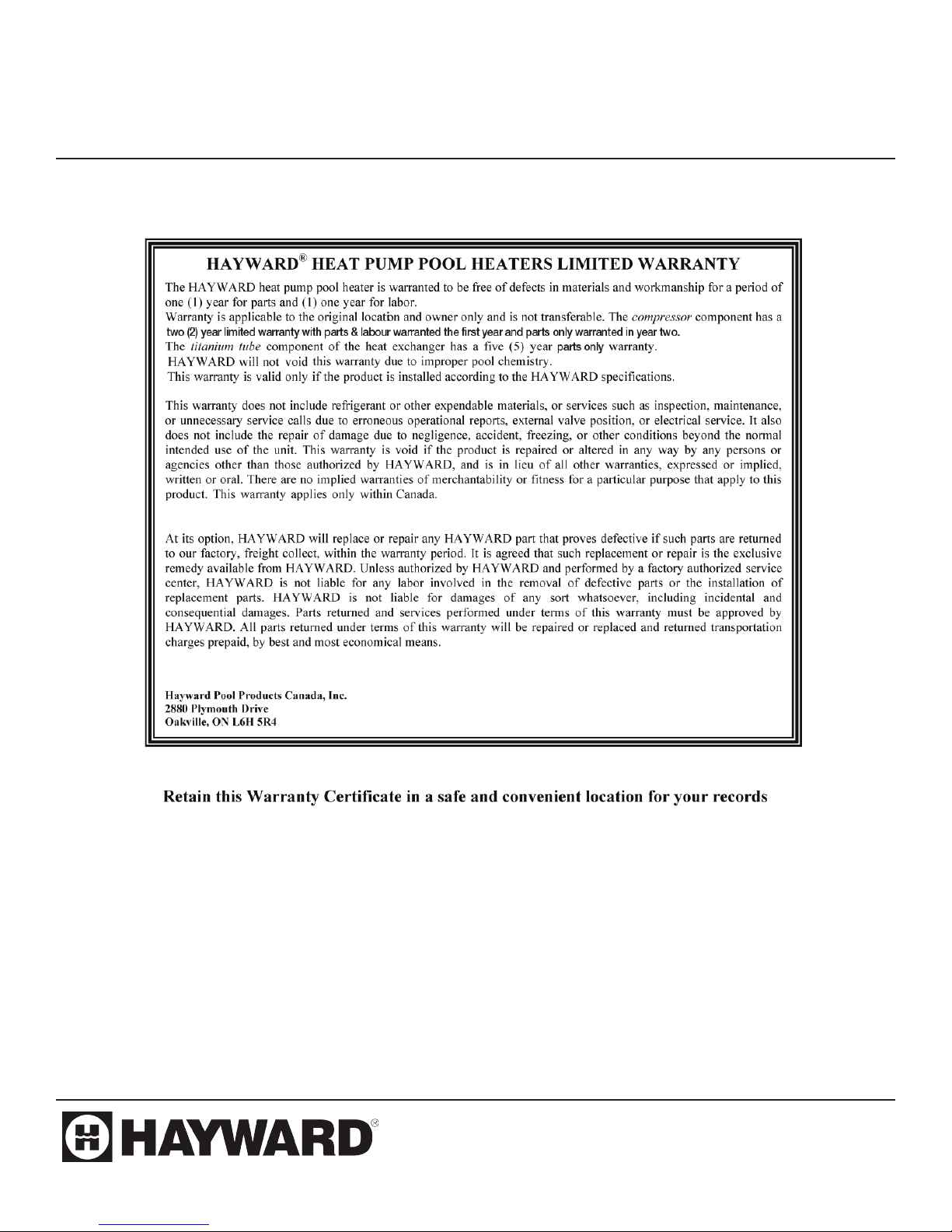

WARRANTY
Hayward Pool Products Canada, Inc.
T: 1-888-238-7665
www.haywardpool.ca

THERMOPOMPE DE PISCINE
Guide de l’utilisateur
Hayward Pool Products Canada, Inc.
T: 1-888-238-7665
www.haywardpool.ca
Modèle HP50B
HP65B

TABLE DES MATIÈRES
I. Utilisation 4
II. Caractéristiques 4
III. Paramètres techniques 5
IV. Dimensions 6
V. Installation 7
VI. Fonctionnement de l’appareil 10
VII. Vérication 11
VIII. Précautions 12
IX. Entretien 13
X. Diagnostic 13

A) L’unité de thermopompe réchauffe l’eau de la piscine, et maintient une température constante.
Toute autre application annule la garantie.
B) Les raccords d’entrée et de sortie ne peuvent pas supporter le poids d’un autre système de
tuyauterie.
C) Assurez-vous que la sortie d’air ne peut blesser une personne ou un animal, ou affecter vos
plantes.
D) L’appareil doit toujours être hors tension avant d’ouvrir le panneau électrique. Cessez toujours de
faire fonctionner votre thermopompe chaque fois que le panneau électrique est ouvert ou retiré.
A) Tous les raccords électriques doivent être effectués par un électricien professionnel certifié
conformément aux normes nationales et locales. Nous avons des messages de sécurité
importants. Toujours lire et respecter toutes les consignes de sécurité.
B) Vous devrez régler la température de l’eau que vous désirez.
C) Toujours installer l’unité à l’extérieur, tout en respectant les distances minimales nécessaires
pour un bon fonctionnement et le chauffage. NE PLACEZ pas l’unité auprès d’arbustes, qui
peuvent bloquer l’entrée d’air. A ces emplacements, l’unité ne peut plus bénéficier d’une
source continue d’air neuf, ce qui réduit son efficacité et peut empêcher une puissance
calorifique adéquate.
D) L’appareil démarre automatiquement quand il ya un propre débit et la puissance disponible.
E) Si l’appareil est arrêté pendant une longue période de temps ou pour l’hiver, l’appareil doit
être vidangé de toute son eau. Vous n’avez qu’à débrancher l’alimentation et la sortie d’eau.
Ensuite, vous devez éliminer toute eau stagnante dans l’échangeur de chaleur à l’aide d’un jet
d’air compressé.
F) Ne pas insérer des objets dans la sortie d’air. Ne tentez pas de démonter le ventilateur à
n’importe quel moment.
G) Si a n’importe quel moment il y a un bruit anormal, odeur, fumer, fuite de l’électricité s’il vous
plait éteignez immédiatement le courant et contactez votre piscinier. Toutes les réparations
doivent être effectues par un technicien.
H) N’entreposez pas de matières inflammables près de l’appareil (toiles, bois de foyer …).
ATTENTION
MISES EN GARDE
3

I. UTILISATION GÉNÉRALE
II. CARACTÉRISTIQUES DE L’APPAREIL
1. Pour votre confort et votre plaisir, réglez la température de l’eau d’une manière efficace et
économique.
2. Vous pouvez choisir les paramètres techniques de ce modèle de thermopompe de piscine,
tels que décrits dans le Guide; ils ont été optimisés en usine (référez-vous au tableau des
paramètres techniques). Tous les paramètres techniques sont réglés en usine. S’il vous plaît
consulter le tableau de paramètre technique.
1. Un échangeur d’air au titane, à haut coefficient d’efficacité.
2. Une grande précision du contrôle et de l’affichage de la température.
3. L’utilisation du réfrigérant R410A, qui respecte l’environnement.
4. Un système de détection et de protection de la pression d’eau (pression élevée
ou basse, contrôle du circuit de circulation).
5. Un arrêt automatique si la température est trop basse
6. Un contrôle automatique de la température de déglaçage.
7. Un fabricant du compresseur de réputation internationale.
8. Une installation et une utilisation faciles.
4
