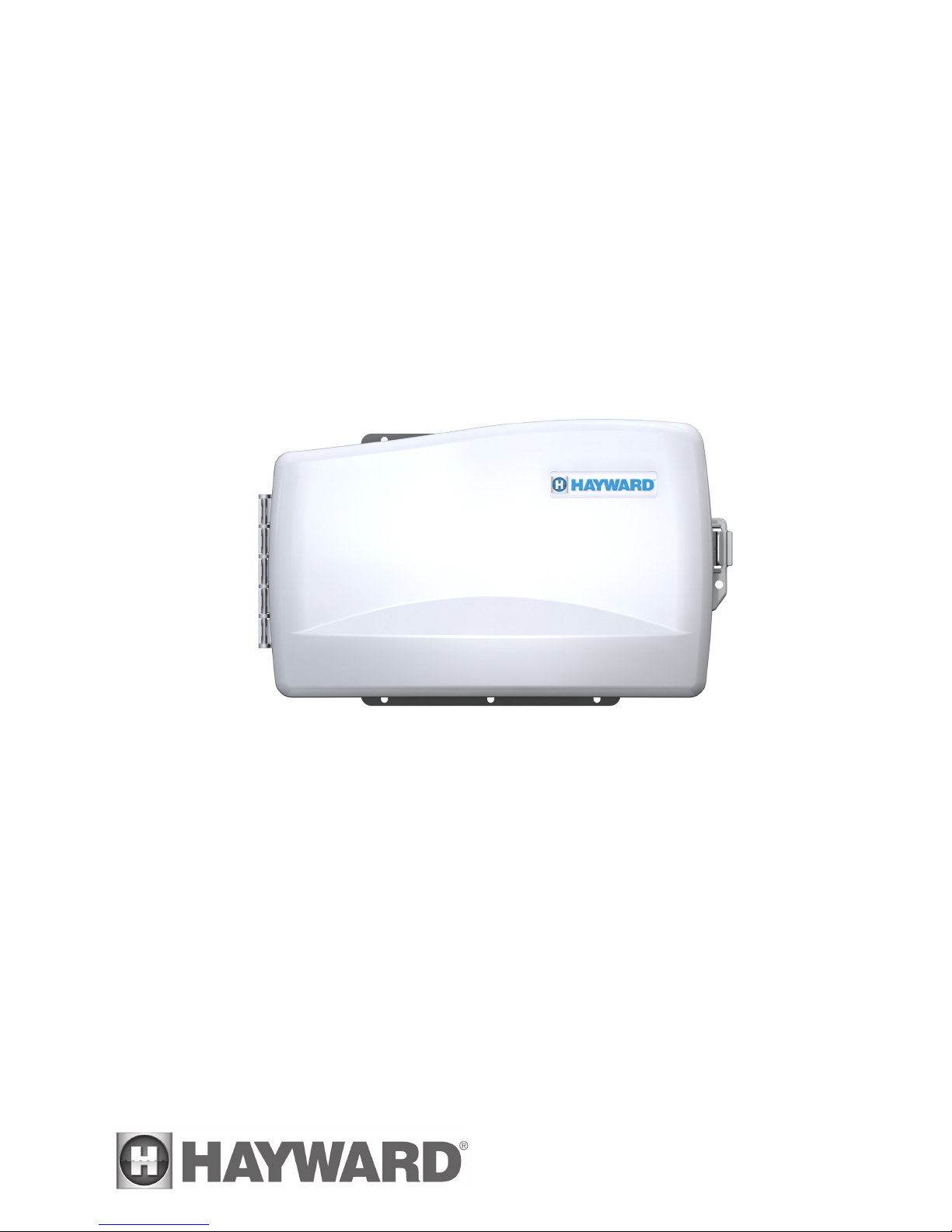

Hayward Oncommand User manual

092442A RevB

620 Division St.

Elizabeth, NJ 07207

Hayward

OnCommand

Automation

Operation Manual

ONCOM

ONCOM-ACT

ONCOM-RC

ONCOM-ACT-RC

www.hayward.com

for models

IMPORTANT SAFETY INSTRUCTIONS

When using this electrical equipment, basic safety precautions should always be

followed, including the following:

•READ AND FOLLOW ALL INSTRUCTIONS

•

WARNING: Disconnect all AC power during installation.

•

WARNING: Water in excess of 100 degrees Fahrenheit may be

hazardous to your health.

•

WARNING: To reduce the risk of injury, do not permit children to

use this product unless they are closely supervised at all times.

•A green colored terminal marked “Earth Ground” is located inside the wiring

compartment. To reduce the risk of electric shock, this terminal must be

connected to the grounding means provided in the electric supply service

panel with a continuous copper wire equivalent in size to the circuit conductors

supplying the equipment.

•A wire connector is provided on this unit to connect a minimum 8 AWG (8.4

mm) solid copper conductor between this unit and any metal equipment,

metal enclosures of electrical equipment, metal water pipe, or conduit within

5 feet (1.5m) of the unit, to connect the equipment assembly or spa to a

circuit protected by a ground-fault circuit-interrupter.

•SAVE THESE INSTRUCTIONS

LIMITED WARRANTY (effective 03/01/12) Hayward warrants its Pro Logic, OnCommand and E-

Command pool automation products as well as its Aqua Rite, Aqua Rite Pro, Aqua Plus and SwimPure

chlorination products to be free of defects in materials and workmanship, under normal use and service, for

a period of three (3) years. Hayward also warrants its Aqua Trol chlorination products to be free of defects

in materials and workmanship, under normal use and service for a period of one (1) year. These warranties

are applicable from the initial date of purchase on private residential swimming pools in the US and Canada.

Installations of product for use on commercial pools in the US and Canada is covered for a period of one (1)

year for defects in materials and workmanship. Hayward warrants all accessories and replacement parts

for the above-identified pool automation and chlorination products for a period of one (1) year. Accessories

also include remotes, actuators, base stations, temperature sensors, flow switches and chemistry probes.

Each of these warranties is not transferable and applies only to the original owner.

Hayward shall not be responsible for cartage, removal, repair or installation labor or any other such costs

incurred in obtaining warranty replacements or repair.

Proof of purchase is required for warranty service. If written proof of purchase is not provided, the

manufacturing date code will be the sole determinant of the date of installation of the product. To obtain

warranty service or repair, please contact the place of purchase or the nearest Hayward authorized warranty

service center. For more information on authorized service centers please contact the Hayward Technical

Service Support Center (61 Whitecap Road, North Kingstown RI, 02852) or visit the Hayward web site at

www.hayward.com.

WARRANTY EXCLUSIONS:

1. Material supplied or workmanship performed by others in process of installation.

2. Damage resulting from improper installation including installation on pools larger than the product rating.

3. Problems resulting from failure to install, operate or maintain the product(s) in accordance with the

recommendations contained in the owners manual(s).

4. Problems resulting from failure to maintain pool water chemistry in accordance with the recommendations

in the owners manual(s).

5. Problems resulting from tampering, accident, abuse, negligence, unauthorized repairs or alternations, fire,

flood, lightning, freezing, external water, degradation of natural stone used in or immediately adjacent to a

pool or spa, war or acts of God.

6. Use of a non-genuine Hayward replacement salt chlorination cell on any Hayward automation or chlorination

product will void the warranty for that product.

The express limited warranty above constitutes the entire warranty of Hayward Pool Products with respect

to its products and is in lieu of all other warranties expressed or implied, including warranties of merchantability

or fitness for a particular purpose. In no event shall Hayward Pool products be responsible for any

consequential, special or incidental damages of any nature. Some states do not allow a limitation on how

long an implied warranty lasts, or the exclusion of incidental or consequential damages, so the above limitation

may not apply to you. This warranty gives you specific legal rights, and you may also have other rights,

which vary from state to state.

Table of Contents

System Overview Block Diagram....................................................................... 1

Automation............................................................................. 1

Manual System Filter Pump............................................................................. 2

Operation Lights and Aux Outputs.......................................................... 3

Pool/Spa Valves..................................................................... 3

Service.................................................................................... 3

Automatic System Using the Programming Buttons.......................................... 4

Operation Programming Menu Flow Chart........................................... 5

(Programming) Settings Menu........................................................................ 6

Timers Menu.......................................................................... 9

Configuration Menu............................................................... 13

Quick “How To” Operate the Spa - Manually.................................................. 22

Guide Operate the Spa - Automatically.......................................... 22

Set the Heater Temperature................................................. 23

Set the Chlorinator Output ................................................... 23

Start/Stop Superchlorination................................................ 23

Program a Timeclock............................................................ 23

Program a Countdown Timer............................................... 23

Enter/Exit Service Mode....................................................... 24

Troubleshooting & Service Mode ....................................................................... 24

Diagnostic Information Check System Indicator........................................................ 24

Diagnostic Menu................................................................... 25

Salt Level............................................................................... 25

Water, Air, Solar Temperature.............................................. 25

Software Revision................................................................. 26

Warranty OnCommand Warranty......................................................... 28

System Overview

The OnCommand is a multifunction pool controller used to fully manage your pool/spa system. The OnCommand

can control pumps, valves, lighting, heaters, and chlorination. Although the OnCommand is easy to use, it is

important to completely read through this operating manual before attempting to operate the control.

NOTE: This manual assumes that the OnCommand has been wired and configured according to the Installation

Manual. Aspects of the OnCommand that pertain to system setup are not covered in this manual.

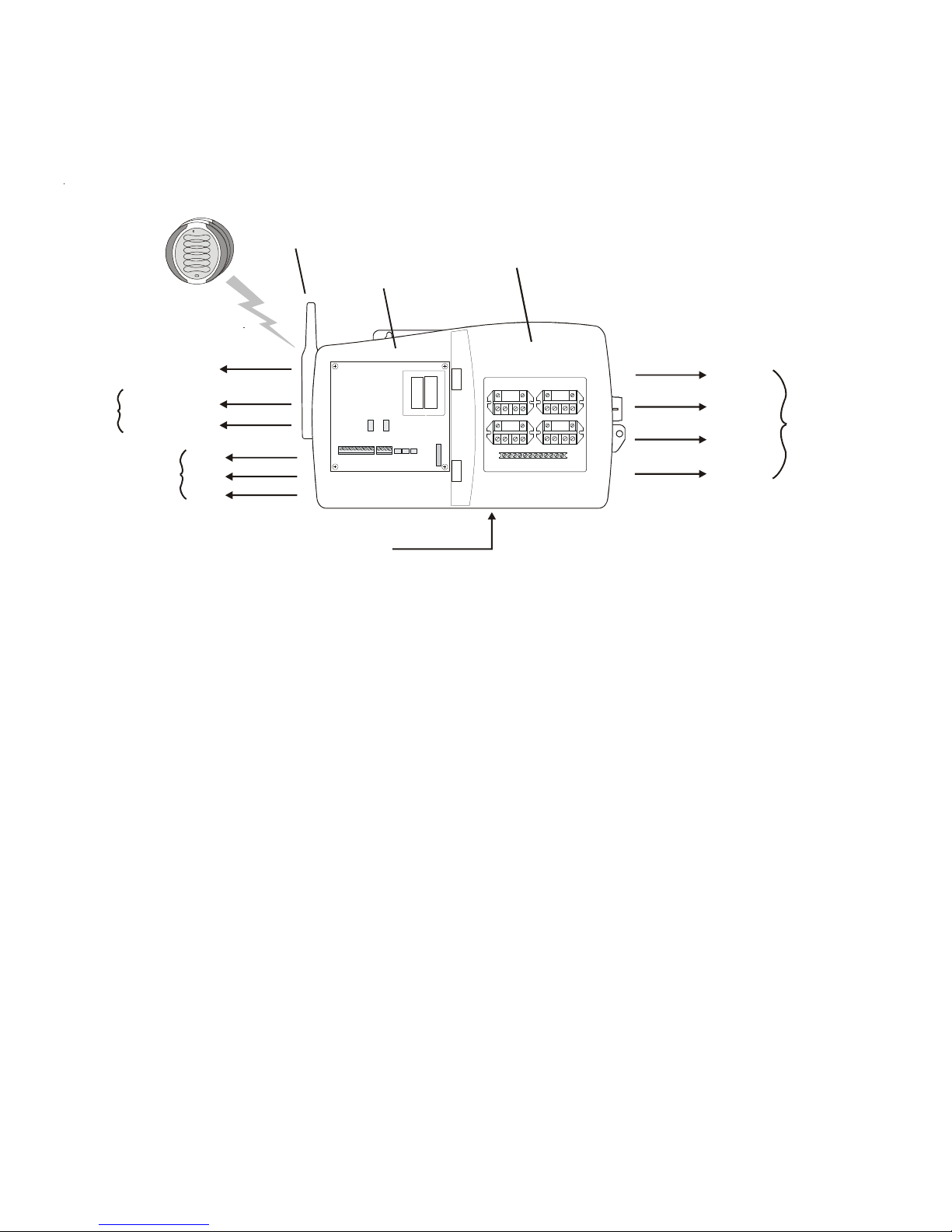

Automation

The OnCommand can control up to 4 high voltage (120/240V) pieces of equipment, up to 3 automatic valve

actuators, and a conventional and solar heater. Both manual and automatic (programmed) operation are available.

All of the control functions are programmed at the unit’s display/keypad. Although the OnCommand has no built-

in chlorinator feature, it can control an external Goldline Aqua Rite or Hayward Swimpure chlorinator.

Water

Air

Solar

120 VAC

Power

Filter Pump

Lights

Aux 1

Aux 2

Pool/Spa Suction

Return Valves&

Valve 3

Heater

Main Display

Keypad on Panel

Optional

Wireless Base

Receiver

Optional

External Chlorinator

(requires Aqua Rite)

Temperature

Sensors

120/240V

Relays

24V Valve

Actuators

Optional Wireless

Spaside Remote

LDLIN E

CONTROLSINC.

POOL SPA

ON OFF

VALVES

FILTER

HEATER

LIGHTS

AUX1

AUX2

Main Software

Revision 1.00

Display Software

Revision 3.12

Filter VSC

Software r1.00

Filter Bridge

Software r1.00

RF Base Software

r1.20 ID:1234

No function

Move to previous/next menu item

Available displays depend on configuration. If you call the Hayward/Goldline Technical Service

Dept. for assistance, they may ask for the software revisions of both the main unit and each of the

display/keypads or other devices that are attached to the system. Note that it is possible that different

display/keypads have different software revision levels. For this reason, it is advisable to check this

diagnostic menu item on every display.

Manual System Operation

Turn the power on at the main panel and turn the OnCommand control power circuit breaker on. The keypad will

show the default display. The default display alternates between the day/time, air and pool (or spa) temperature.

Under certain circumstances, additional displays may be added to the default menu to inform you about system

operation. Refer to the Programming Menu Flowchart on page 5 to view all possible displays. The OnCommand

will automatically scroll through all of the available default menu displays or you can press “<” or “>” to manually

scroll.

While the main objective of the OnCommand is to automate the operation of your pool/spa system, there may be

certain times when you want to override the automatic operation and control the equipment manually. To operate

the pool equipment manually while keeping the automation active, perform the following procedures. Note that if

you turn a relay on manually, it will remain on until either you turn it off manually, or the next time the programmed

automatic operation would normally turn that relay off. Example: the filter pump is programmed to run from 9:00A

to 5:00P daily. If you turn the filter pump on manually at 8:00PM, it will run continuously until the next day at

5:00PM at which time it will turn off and follow the normal program from then on. Manually turning off a relay

works in a similar fashion.

Filter Pump

Single Speed Filter Pump: If the pump is currently off, press the FILTER button to turn on the pump. Pressing

the FILTER button again will turn off the pump. However, if there is a heater in the system, and it is operating, and

the “Heater Cooldown” feature is enabled (Configuration Menu) then: when you press the FILTER button to turn

off the filter, only the heater will turn off, the Filter LED will flash and the display will indicate “Heater Cooldown”.

At this point the filter pump will automatically turn off after 5 minutes of heater cooldown operation. If you want to

override the heater cooldown, simply press the FILTER button again to turn off the filter pump.

Two Speed or Variable Speed Filter Pump: If the pump is currently off, simply press the “FILTER” button to

turn on high speed operation of the filter pump. The “Filter” LED will illuminate continuously. Pressing the

“FILTER” button again will switch to low speed operation and the “FILTER” LED will flash. Note that if the pump

has been off for more than 30 seconds, it will run at high(est) speed for 3 minutes regardless of selection. This high

speed operation helps allow the pump to prime and establish normal water flow.

Freeze Protection: This function protects the pool, plumbing, and equipment against freeze damage. If Freeze

Protection is enabled and the AIR temperature sensor falls below the preset freeze protection temperature (see

Filter Configuration), the OnCommand will turn on the filter pump to circulate the water.

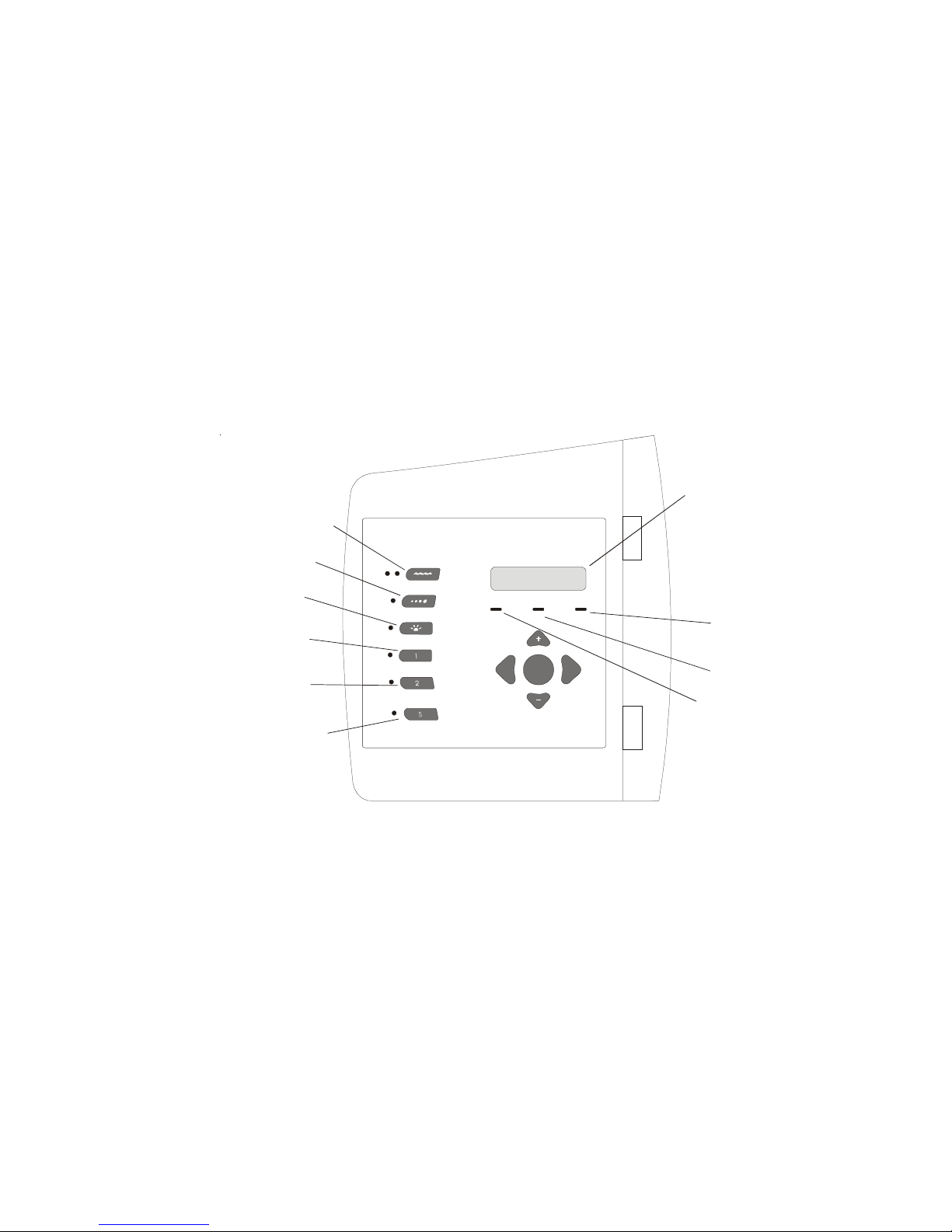

Filter Pump

(On/Off)

Lights

(On/Off)

Aux 1

(On/Off)

Aux 2

(On/Off)

Pool/Spa Button

(Pool/Spa/Spillover)

Heater Indicator

Valve 3

Indicator

Check System

Indicator

Service Button

Display

Salt Level

3200ppm

•Solar Sensor -- If the solar sensor is either an open or short circuit.

•External Chlorinator Comm Error -- If the external chlorinator is enabled and theAqua Rite or Swimpure is

not responding.

•Pool Bridge Comm -- If variable speed is selected for the Pool Filter and the VSC interface is not responding.

•Pool VSC Comm -- If variable speed is selected for the Pool Filter and the Hayward VSC is not responding.

•Pool VSC Err: x -- If variable speed is selected for the Pool Filter and the Hayward VSC is indicating and

error. x is the same decimal error displayed by the VSC itself.

For helpful troubleshooting information on any of these issues, go to the Diagnostic Menu and then scroll through

the various items until you see the cause for the “CHECK SYSTEM” LED being illuminated.

Diagnostic Menu

To enter the Diagnostic Menu, press the “Menu” button repeatedly until the display shows “Diagnostic Menu”. At

this point, you can use either the “<” or “>” buttons to scroll through the various menu items which are described

below:

Set Day and Time

Wednesday 10:37P

Move to previous/next menu item

Salt Level

3200PPM

No function

If external chlorination is used

Salt level of the pool is 3200. This is measured by the Goldline Aqua Rite or Hayward Swimpure when

external chlorination is used.

This display will be shown only if external chlorination is used and requires a Aqua Rite or Swimpure

chlorine generator. For the chlorinator to be operating, several other things must be happening: the

filter pump must be running, the flow switch must be detecting flow, the chlorinator setting must be set

greater than 0%, the water temperature at the cell must be between 50ºF and 140ºF, and the salt level

must be within the operating range. If any of these conditions are not met, the chlorinator diagnostic

display will tell you the reason. It’s possible to have more than one reason, in which case after you

rectify what was displayed the first time, a second display will appear.

Possible error messages are:

• PCB Error

• Low Salt/Amps/Minerals

• High Salt/Amps/Minerals

• Test Salt Level (Test Minerals)

Refer to the Aqua Rite or Swimpure manual to correct error.

Air Sensor

94ºF

Solar Sensor

Short circuit

Water Sensor

Open circuit

No function

Move to previous/next menu item

If the sensor appears to operating properly, then the temperature will be displayed. If this temperature

is not correct then check the placement of the sensor. If the problem is not placement related, then the

sensor will, most likely, require replacement. If the display is “Open Circuit” or “Short Circuit” then

check the wiring to the sensor and also make sure that the wires are secure in the terminal block in the

OnCommand main unit.

Lights, Aux1 and Aux2 Outputs

Standard Relay: Manual operation of all 3 relays is identical. Assuming that the relay is currently off, simply press

the appropriate button to turn on the relay. If the relay does not turn on, it probably is due to the “interlock” feature

(which was set up in the Configuration Menu) being activated that requires the filter pump to be running and the

valves to be in the pool-only position. This protects pumps and other equipment from possible damage. If the

controlled output is on, pressing the appropriate button again will turn off the relay. Manual turn off is disabled if the

“Freeze Protection” feature is enabled and the air temperature is less than the selected freeze temperature thresh-

old.

Dimmer Relay: If Lights or an Aux output is configured as a dimmer, pressing the corresponding button will

generate a temporary display which shows the dimmer output level (Off - On 100%). Pushing the “+” or “-”

button changes the level in increments of 20%. When the desired output level is displayed, press the correspond-

ing button again to turn off the display and return to normal operation. When the Lights or Aux output comes on

again (either manually or automatically), the dimmer output level will be the same as the last time that it was set.

Pool/Spa Valves

Pool-only or spa-only systems: The POOL/SPA button has no function.

Pool and Spa systems without spa spillover: In pool-only mode, the left LED next to the POOL/SPA button is

illuminated. Pressing the POOL/SPA button will switch the OnCommand to spa-only operation (right LED illumi-

nated). Pressing the POOL/SPA button again will switch back to pool-only. Note that the filter pump will turn off

while the pool/spa valves are turning.

Pool and Spa systems with spa spillover: In pool-only mode, the left LED next to the POOL/SPA button is

illuminated. Pressing the POOL/SPA button will switch the OnCommand to spa-only operation (right LED illumi-

nated). Pressing the POOL/SPA button again will switch to spa spillover operation (both LED’s illuminated).

Pressing the POOL/SPAbutton again will switch back to pool-only. Note that the filter pump will turn off while the

pool/spa valves are turning.

Service

The main unit keypad has a SERVICE key. This button is used primarily during servicing of the pool equipment.

If you want to completely disable the automatic operation and operate the system manually, you can put the system

into Service or Service-Timed mode by pressing the SERVICE button. Pressing the SERVICE button once will

switch the system into service mode which means that all automatic functions are disabled, and the remote display/

keypads are disabled (except for manual turn off for emergencies). The red SERVICE LED will be illuminated and

the OnCommand will remain in this mode of operation until manually taken out of service mode.

Pressing the SERVICE button again will cause the OnCommand to switch to service-timed mode which is very

similar to service mode, except that the OnCommand will automatically return to normal operation after 3 hours.

During service timed operation, the “Service” LED will flash and the time remaining will be displayed on the remote

display/keypad(s).

Pressing the SERVICE button again, will return the OnCommand to normal (automatic) operation. See Trouble-

shooting/Diagnostic Information (page 25) for more information about the service modes.

Note: A setting of 0:00 will display as “manual on/off”. The countdown automatic turn off

function is disabled but manual operation is still permitted. There may be other automatic or

manual operations that prevent the relay/valve from operating—see a more detailed discussion

under Automatic System Operation/Timers Menu/Aux Timeclock or in Troubleshooting/Diag-

nostic Information.

Enter/Exit Service (or Service—Timed) Mode

1. Go to OnCommand main unit (normally mounted near the pool equipment).

2. Pressing the “Service” button rotates through normal operation (red LED off), service mode (red

LED on continuously) and service-timed mode (red LED flashing).

Note: This operation can only be performed at the main OnCommand unit. Both “Service”

and “Service-Timed” disable all automatic programmed operations and allow manual opera-

tion from the main unit only. The buttons on the remote display/keypads will still be able to turn

equipment off in case of an emergency, but will not turn any equipment on. If the system is in

“Serviced-Timed” it will automatically switch back to normal operation at the end of the 3

hour time period.

Troubleshooting and Diagnostic Information

The OnCommand provides 2 different tools to aid in troubleshooting any problems that may occur in your pool

and/or spa system. The Service mode will allow you to disable automatic operation and manually control most of

the equipment (the heater and general purpose Valve3 output are the exceptions). The Diagnostic Menu will

provide some detailed information regarding system operation.

While both of the features are primarily intended for the use of the professional service technician, their function is

fully explained below. .

Service Mode

The main unit keypad has a SERVICE button that is used primarily during servicing of the pool equipment.

If you want to completely disable the automatic operation and operate the system manually, you can put the system

into Service or Service-Timed mode by pressing the “Service” button. Pressing the “SERVICE” button once will

switch the system into service mode which means that all automatic functions are disabled, the optional remote

display/keypads are disabled (except for manual turn off for emergencies). The outputs can be manually controlled

by pressing the buttons on the local display/keypad. The red “SERVICE” LED will be illuminated and the

OnCommand will remain in this mode of operation until manually taken out of service mode.

Pressing the “SERVICE” button again will cause the OnCommand to switch to service-timed mode which is very

similar to service mode, except that the OnCommand will automatically return to normal operation after 3 hours.

During service timed operation, the “SERVICE” LED will flash and the time remaining will be displayed on the

remote display/keypad(s).

Pressing the “SERVICE” button again, will return the OnCommand to normal (automatic) operation.

Check System Indicator

The “CHECK SYSTEM” LED will alert you when the OnCommand detects any of the following conditions that

are abnormal and require attention for optimal operation of your pool. Press “<“ or “>” to view all of the existing

“Check System” conditions.

•Water Sensor -- If the water sensor is either an open or short circuit.

•Air sensor -- If the freeze protection feature is enabled (Configuration Menu/ Filter Config.) and the air sensor

is either an open or short circuit.

Automatic System Operation

The OnCommand controls most of your pool equipment automatically in order to minimize the time spent working

on your pool. Most of the pool equipment can be programmed to operate on a timeclock basis. In addition, the

desired pool and spa temperatures can be programmed. This section will guide you on how to program the

automatic operation for each function.

The programming of automatic functions can be performed at either the main display/keypad located at the pool

equipment pad or the in-home remote display/keypad.

Using the programming buttons

There are 5 buttons on each keypad that are used for programming (refer to diagram).

There are 4 steps to programming any function:

1. Press the “MENU” button to get to the desired menu. Multiple pushes of the button will

rotate through all 6 menus and return to the starting point.

2. Press either key to scroll through the various items in the selected menu. Multiple pushes

of the button will rotate through all menu items and return to the starting point. Only menu

items that are applicable to your pool will appear. (Example: if you don’t have a spa, then

no spa related menu items will appear).

3. Once a menu item has been selected above, the current setting/selection will appear (flashing)

on the display. Use the “+” and/or “-” keys to change this selection. Sometimes “+” and

“-“ will adjust a value up or down (example: heater temperature setting or timeclock on/off

time). In this case, pushing the “+” or “-” will change the value by one increment and

holding the “+” or “-” button in for more than one second will make the values auto scroll.

In other cases, the “+” and “-“ may toggle between 2 options (example: turning

superchlorination ON or OFF).

4. After you have adjusted the item to the desired value, simply move on to the next menu

item to “lock in” your new setting. The OnCommand memory will maintain the setting,

even if power is removed for an extended period.

Note: During the programmed spa time, the valves will automatically switch to the “spa-only”

position, the filter pump will turn on, and, if the spa is not up to the desired temperature, the

heater will start. This operation is the highest priority and will take precedence over other

automatically programmed operations. At the end of the spa period, the OnCommand will

return to its normally programmed operation state.

Set the Heater Temperature (or turn heater permanently off)

1. Press the “MENU” button repeatedly until “Settings Menu” is displayed.

2. Press the “>” button repeatedly until the “Spa Heater” or “Pool Heater” is displayed.

3. Press the “+” or “-“ buttons repeatedly to adjust the temperature. If you adjust the temperature below

65ºF or above 104°F the display will indicate “off” and the heater will not operate regardless of

temperature.

Note: Separate temperatures for the pool and spa must be set. If the valves are in the pool-only

or spa spillover positions, then the heater will use the pool setting. If the valves are in the spa-

only position then the heater will operate according to the spa setting.

Set the Chlorinator Output (for external chlorinator)

1. Press the “MENU” button repeatedly until “Settings Menu” is displayed.

2. Press the “>” button repeatedly until the “Spa Chlorinator” or “Pool Chlorinator” is displayed.

3. Press the “+” or “-“ buttons repeatedly to adjust the setting. If you adjust the setting to 0% the

chlorinator will be off all the time.

Note: Separate chlorinator output levels for the pool and spa must be set. If the valves are in

the pool-only or spa spillover positions, then the chlorinator will operate according the pool

setting. If the valves are in the spa-only position then the chlorinator will operate according to

the spa setting. The actual amount of chlorine introduced into the pool/spa is determined by:

this output setting, the amount of time the filter pump is running, the water temperature, and

the amount of salt in the water. Also see Start/Stop Superchlorination below.

Start/Stop Superchlorination (for external chlorinator)

1. Press the “MENU” button repeatedly until “Settings Menu” is displayed.

2. Press the “>” button repeatedly until “Super Chlorinate” is displayed.

3. The display will show whether superchlorination is “on” or “off”.

4. Press “+” or “-“ to toggle between “on” and “off”.

Note: Once started, superchlorination will run for the programmed number of hours (Timers

Menu/Super Chlorinate Hours) or until you manually turn it off. Superchlorination may be

temporarily interrupted for a programmed spa operation.

Program a Timeclock

1. Press the “MENU” button repeatedly until “Timers Menu” is displayed.

2. Press the “>” button repeatedly until “xxx—all” or “xxx—wkend” (where xxx is the parameter that

you want to program) is displayed.

3. Use the “+” and “-“ buttons to set the desired start time, then press “>” to switch to the off time. Use

the “+” and “-“ buttons to adjust the off time. If you are setting the “weekend” timeclock, press “>” to

go to the “weekday” settings.

Note: During the programmed time, there may be other automatic or manual operations that

prevent the relay/valve from operating—see a more detailed discussion under Automatic Sys-

tem Operation/Timers Menu/Aux Timeclock or in Troubleshooting/Diagnostic Information.

Program a Countdown Timer

1. Press the “MENU” button repeatedly until “Timers Menu” is displayed.

2. Press the “>” button repeatedly until the “xxx—Timer” (where xxx is the parameter that you want to

program) is displayed.

3. Use the “+” and “-“ buttons to set the desired timer period.

Salt Level

3200ppm

Use “+” and “-” Buttons

to adjust settings

Use the “MENU” Button to

select the desired menu

Use “<” and “>” Buttons to

select items from a menu

Programming Menu Flowchart

The OnCommand’s five menus have many items that allow you to customize the operation of your pool/spa

equipment. The chart below shows the OnCommand’s menus as well as each menu’s specific settings.

Remote Menus

Enabled

Toggle between Enabled (default) and Disabled Remote Menus

Move to previous/next configuration menu

This feature will prevent unauthorized access to the Settings, Timers, and Configuration menus from

any of the OnCommand’s remote display/keypads. When disabled, the remote display/keypads will

only show the default menu and allow on/off control via the pushbuttons. Note that the function of

the OnCommand’s built-in display/keypad is unchanged by this selection. Once disabled, the only

way to enable “Remote Menus” is to use the local display/keypad.

All Timeclocks

7-day

Move to previous/next configuration menu

Toggle between 7-day (default) and Weekend/Weekday time options

This selection affects ALL of the timeclock logic in the OnCommand. If “7-day” is selected, each

timeclock will have one set of turn-on/turn-off settings that operate every day of the week. If “Weekend/

Weekdays” option is selected then the user can enter one set of turn-on/turn-off times for the weekend

(fixed as Saturday/Sunday) and another set of turn-on/turn-off times for weekdays (Monday through

Friday).

Time Format

12 hour AM/PM

Units

ºF and PPM

Move to previous/next configuration menu

Toggle between 12 hour AM/PM (default) and 24 hour time format options

Toggle between ºF and PPM (default) and ºC and g/L (Metric) options

Reset Config. to

Default Press +

Are you sure?

+ to proceed

Config. reset

Confirmed

Initiate reset of all configuration parameters

Reset all configuration parameters

Move to previous/next configuration

menu (config. not reset)

Move to previous/next menu (config. not reset)

Move to previous/next configuration menu

Use this function to erase all previous system configuration and reset all configuration parameters

back to the factory default values. This function is NOT reversible--be careful.

Quick “How To” Guide

Operate the Spa—Manually

1. Press the “Pool/Spa” button to go to “spa-only” operation (right LED illuminated). In some cases,

this may take more than one press of the button.

2. If the filter pump is not already on, press the “FILTER” button to turn it on.

3. If the spa is below the desired temperature, the heater will turn on automatically when the filter pump

is on and the valves are in the spa-only position. If you have not already set the desired temperature

for the spa, see “Set Heater Temperature” below.

4. If the spa has a separate jet pump and or blower, determine if the jet pump/blower is controlled by

Aux1 or Aux2 (it should be marked on the label inside the door). Then press the appropriate button

to turn on the jets/blower.

Operate the Spa—Automatically

1. Press the “MENU” button repeatedly until “Timers Menu” is displayed.

2. Press the “>” button repeatedly until the “Spa—all” or “Spa—wkend” is displayed.

3. Use the “+” and “-“ buttons to set the desired start time, then press “>” to switch to the off time. Use

the “+” and “-“ buttons to adjust the off time. If you are setting the “weekend” timeclock, press “>” to

go to the “weekday” settings.

denotes conditional items

12 hour or 24 hour time format

ºF or ºC

reset to default

default menu

day and time

water temperature

air temperature

chlorinator setting

salt level

reason pump is running (not scheduled)

reason hi-speed is running (not scheduled)

countdown time remaining

heater control status

system manual off

check system error

filter speed

settings menu

spa heater temperature

pool heater temperature

spa solar temperature

pool solar temperature

superchlorinate

spa chlorinator setting

pool chlorinator setting

spa high/low speed

pool high/low speed

day and time

backlit display light

beeper

teach wireless remote

wireless channel

timers menu

pool filter pump

spa

lights

aux1

aux2

valve3

superchlorinate

diagnostic menu

salt level

water sensor

air sensor

solar sensor

main software revision

display software revision

filter bridge/vsc software revision

RF base software revision

configuration menu

chlorinator

pool/spa

filter

heater

solar

lights

aux1

aux2

valve3

remote menus

7-day or weekend/weekday timeclock

The Default Menu is a series of informative displays with nothing to set. The OnCommand will automatically

switch to the default menu when no keys have been pressed for 2 minutes and will then scroll through each display.

The Settings Menu and the Timers Menu are the menus you will be using most often to adjust the operation of your

pool. The Configuration Menu is used when the system is installed and defines what equipment is connected to

each output and the operational logic that will control the equipment. This menu is normally “locked” and should

only be used by a pool professional. Details regarding the Configuration menu are included in both the Operation

and the Installation Manual.

The “Diagnostic Menu” is primarily intended for the service technician and contains information and details about

the system operation that are helpful in troubleshooting, if problems occur.

Settings Menu

The Settings Menu allows you to set all system operating parameters except the timeclock and countdown timers

which are part of the Timers Menu.

Spa Heater

Off

Adjust the desired spa temperature (Off, 65°F, 66°F, ...103°F, 104°F, Off)

Move to previous/next menu item

The spa heater setting will only appear if the system has been setup for “spa only” or “pool and spa”

operation and the heater control is enabled. The heater will turn on whenever the pool/spa valves are

in the “spa only” position and the filter pump is running and the spa water temperature is less than the

desired temperature setting. If you have both solar heat and a conventional heater and the solar

priority option is selected (Configuration Menu), then the conventional heater will only operate when

solar heat is NOT available.

Pool Heater

Off

Adjust the desired pool temperature (Off, 65°F, 66°F, ...103°F, 104°F, Off)

Move to previous/next menu item

The pool heater setting will only appear if the system has been setup for “pool only” or “pool and

spa” operation and the heater control is enabled. The heater will turn on whenever the pool/spa

valves are in the “pool only” or “spa spillover” position and the filter pump is running and the pool

water temperature is less than the desired temperature setting. If you have both solar heat and a

conventional heater and the solar priority option is selected (Configuration Menu), then the

conventional heater will only operate when solar heat is NOT available.

Spa Solar

102°F

Adjust the desired spa temperature (Off, 65°F, 66°F, ...103°F, 104°F, Off)

Move to previous/next menu item

The spa solar setting will only appear if the system has been setup for “spa only” or “pool and spa”

operation and the solar control is enabled. The solar system will turn on whenever the pool/spa

valves are in the “spa only” position and the filter pump is running and the spa water temperature is

less than the desired temperature setting and solar heat is available.

Pool Solar

88°F

Adjust the desired pool temperature (Off, 65°F, 66°F, ...103°F, 104°F, Off)

Move to previous/next menu item

The pool solar setting will only appear if the system has been setup for “pool only” or “pool and spa”

operation and the solar control is enabled. The solar system will turn on whenever the pool/spa

valves are in the “pool only” or “spa spillover” position and the filter pump is running and the pool

water temperature is less than the desired temperature setting and solar heat is available.

Valve3 Pump Spd

Settings Menu

Select between Settings Menu (default) and the desired pump speed

only if filter pump is set to variable

and relay type is set to standard

Move to previous/next configuration menu

Valve3 Freeze

Disabled

Toggle between Enabled and Disabled (default) Valve3 Freeze

Move to previous/next configuration menu

for all functions except super chlorinate

Valve3 Config.

+ to view/change

Valve3 Function

Solar

Push to access Valve3 options

Rotates between k

Timecloc (default), Solar, In-floor Cleaner,

Filter, Lights, Aux1 and Aux2

Move to previous/next configuration menu

Move to next menu item

Valve3 Interlock

Disabled

Toggle between Enabled and Disabled (default) Valve3 Interlock

Move to next menu item

for all functions except solar and super chlorinate

Valve3 Function

Timeclock (default) – the valve turns on/off at the times set for the valve3 timeclock in the Timers

Menu (see Operations Manual).

Solar – the valve operates when the filter pump is running and solar heat is available and the water is

less than the desired temperature setting. Solar heating must be enabled in the “Solar Config. menu

for proper operation to occur.

In-Floor Cleaner – the valve switches the water returning to the pool between the in-floor cleaner and

the normal return jets which facilitate efficient surface skimming. The valve will operate the in-floor

cleaner for the first half of each clock hour and then switch to the jets/skimming for the last half of the

hour.

Group – the valve operates when the Group function is initiated and shuts off when the Group

function is terminated. See Valve3 Group section for operation information for the Group function.

Valve3=Filter – the valve operates whenever the Filter relay is on.

Valve3=Lights – the valve operates whenever the Lights relay is on.

Valve3=Aux1 – the valve operates whenever the Aux1 relay is on.

Valve3=Aux2 – the valve operates whenever the Aux2 relay is on.

Valve3 Interlock

If “Enabled”, this feature will override the function (timeclock or in-floor cleaner) selected above and

turn the valve off when: the filter pump is off, first 3 minutes of filter pump operation (allows the pump

to prime and get water flowing), or for the first 3 minutes after solar turns on (allows air in the solar

panels to be purged). Interlock is not available for solar or super chlorinate.

Valve3 Group

The valve3 Group function allows the user to perform multiple tasks when the automated valve3

function is initiated. When setting up a Group function, refer to page 12 for specific programming

information. There are two Group menus; the first menu determines how the group command will be

initiated (Manual On/Off, Countdown Timer, or Timeclock) and the second menu selects the desired

functions and their respective control parameters.

Valve3 Freeze Protection

This function protects the pool and plumbed equipment against freeze damage. If Freeze Protection

is enabled and the AIR temperature falls sensor falls below the selected freeze temperature threshold,

the OnCommand will turn on the valve to allow circulation of the water. IMPORTANT: this only

enables operation of the valve3 output during freeze--see the “Filter Pump Config.” menu to enable

freeze protection for the main circulation system.

Valve3 Pump Speed

This is the speed of the pump when the Valve3 output is on. The choices are the Settings Menu speed

and a speed that is unique to the Valve3 output only. The default selection is “Settings Menu”. This

is the speed of the pump that has been selected in the Settings Menu for normal filter operation. If an

alternate speed is desired when the Valve3 output is on, push “+” or “-” and select from “Lowest” to

“Highest” in 5% increments.

Super Chlorinate

Off

Turn super chlorinate on or off

Move to previous/next menu item

This display only appears if the external chlorinator is enabled.

When you have an unusually high bather load, a large amount of rain, a cloudy water condition, or

any other condition that requires a large amount of chlorine to be introduced to the pool, activate the

OnCommand Super Chlorinate function. The OnCommand will turn on the filter pump, set the pool/

spa valves to the correct position, and set the external chlorine generator to maximum output. The

super chlorinate function will continue for the programmed number of hours (see Timers/Super

Chlorinate Hours below) overriding the normal filter pump timeclock settings. At the end of the super

chlorinate period, the pool will return to normal operation.

If you manually turn off the filter pump (using the FILTER button on any display/keypad), the super

chlorinate function terminates. When you turn the filter pump back on, super chlorinate will resume

for the balance of the programmed number of hours.

Spa Chlorinator

Adjust the desired chlorinator output for spa (0,1,2,3...9,10,15,20...95,100%)

Move to previous/next menu item

This setting will appear only if the system has been setup for external chlorinator and “spa only” or

“pool and spa”. It will determine the external chlorinator output when the system is operating in spa-

only mode. The actual amount of chlorine introduced into the spa is determined by this setting, the

amount of time the pool operates in spa-only mode, the water temperature, and the amount of salt in

the water. If the filter pump is running due to the freeze protection feature, then the chlorinator will not

operate during this time.

Pool Chlorinator

60%

Adjust the desired chlorinator output for pool (0,1,2,3...9,10,15,20...95,100%)

Move to previous/next menu item

This setting will appear only if the system has been setup for external chlorinator and “pool only” or

“pool and spa”. It will determine the chlorinator output when the system is operating in pool only or

spa spillover modes. The actual amount of chlorine introduced into the pool is determined by this

setting, the amount of time the filter pump is running, the water temperature, and the amount of salt in

the water. If the filter pump is running due to the freeze protection feature, then the chlorinator will not

operate during this time.

Spa High Speed

100%

Adjust the desired high speed for variable speed operation

Move to previous/next menu item

This setting will appear if “pool only” is not selected and variable speed filter pump is enabled. This

setting determines the speed of the pump during high speed spa operation. This value can be set from

20% to “Highest Speed” in 5% increments. “Highest Speed” is default.

Spa Low Speed

50%

Adjust the desired low speed for variable speed operation

Move to previous/next menu item

This setting will appear if “pool only” is not selected and variable speed filter pump is enabled. This

setting determines the speed of the pump during low speed spa operation. This value can be set from

“Lowest Speed” to 50% in 5% increments. 50% is default.

Pool High Speed

100%

Adjust the desired high speed for variable speed operation

Move to previous/next menu item

This setting will appear if “spa only” is not selected and variable speed filter pump is enabled. This

setting determines the speed of the pump during high speed pool or spillover operation. This value

can be set from 20% to “Highest Speed” in 5% increments. “Highest Speed” is default.

Countdown Timer – the aux relay will turn on when the AUX button is pressed and then will turn off

automatically after a programmed time (see Timers Menu, Operation Manual). The AUX button can

also be used to turn the output off.

Low Speed of a 2-speed Filter Pump – the OnCommand will operate the aux relay whenever the low

speed operation of the filter pump is required. It is very important that the “2-speed” filter pump

option be selected under the “Filter Config.” Menu for proper operation.

Timeclock – the aux relay will turn-on and turn-off at the times set for the aux1 timeclock in the Timers

Menu. The AUX button can also be used to turn the output on and off.

Solar – the aux relay operates a solar booster pump which will turn on when the filter pump is running

and solar heat is available and the water is less than the desired temperature setting. It is important to

note that “Solar Control” must be enabled in the “Solar Config.” menu for proper operation to occur.

Group – the aux relay operates when the Group function is initiated and shuts off when the Group

function is terminated. See Aux1 Group section for operation information for the Group function.

Super Chlorinate – if “Chlorinator” is enabled, this option allows the user to start a Super Chlorinate

cycle when the Aux button is pressed, rather than using the Settings Menu. Note that only one

button can be assigned to this function.

Aux1 Relay

This feature allows the user to select either “Standard” (default) or “Dimmer” type relay for the Aux1

output. The optional AQL-DIM dimmer kit must be installed if “Dimmer” is desired. When “Dimmer”

is selected, and the Aux1 output is manually turned on, the “+” and “-” buttons adjust the level from

20% to 100% (default). The level is saved for the next time the aux1 output is turned from off to on.

Aux1 Interlock

If “Enabled”, this feature will override the function (Manual On/Off, Countdown Timer, Timeclock),

selected above and turn the aux1 off when: filter pump is off, first 3 minutes of filter pump operation

(allows the pump to prime and get water flowing), when the pool/spa suction return valves are in any

position other than “pool only”, or for the first 3 minutes after solar turns on (allows air in the solar

panels to be purged). Interlock is not available for solar, low speed filter pump, super chlorinate,

dimmer or group.

Aux1 Group

The Aux1 Group function allows the user to perform multiple tasks with a single push of the “Aux1”

button. When setting up a Group function, refer to page 12 for specific programming information.

There are two Group menus; the first menu determines how the group command will be initiated

(Manual On/Off, Countdown Timer, or Timeclock) and the second menu selects the desired functions

and their respective control parameters.

Aux1 Freeze Protection

This function protects the pool, plumbing, and equipment against freeze damage. If Freeze Protection

is enabled and the AIR temperature sensor falls below the selected freeze temperature threshold, the

OnCommand will turn on the aux relay to circulate the water. IMPORTANT: this only enables

operation of the AUX output during freeze--see the “Filter Pump Config.” menu to enable freeze

protection for the main circulation system.

Aux1 Pump Speed

This is the speed of the pump when the Aux1 output is on. The choices are the Settings Menu speed

and a speed that is unique to the Aux1 output only. The default selection is “Settings Menu”. This

is the speed of the pump that has been selected in the Settings Menu for normal filter operation. If an

alternate speed is desired when the Aux1 output is on, push “+” or “-” and select from “Lowest” to

“Highest” in 5% increments.

Pool Low Speed

50%

Adjust the desired low speed for variable speed operation

Move to previous/next menu item

This setting will appear if “spa only” is not selected and variable speed filter pump is enabled. This

setting determines the speed of the pump during low speed pool or spillover operation. This value

can be set from “Lowest Speed” to 50% in 5% increments. 50% is default.

Set Day and Time

Wednesday 10:37P

Adjust the current day of the week

Move to hours setting

Set Day and Time

10:37P

Set Day and Time

Wednesday 37

Set Day and Time

Wednesday 10: P

Adjust the current hour (including AM/PM if applicable)

Adjust the current minute

Move to minutes setting

Move to previous/next menu item

Use this function to set the current day of the week and time. These values are used for all the

automatic timeclock functions of the OnCommand and are also displayed as part of the default menu.

The OnCommand is designed to keep the clock running during power outages lasting less than 7

days. If power has been off for longer than 7 days, then the time may have to be reset.

Display Light

On for 60 sec

Toggle between Always On and On for 60 sec.

Move to previous/next menu item

This function controls the backlight on the display. If the “60 seconds” option is selected, then the

backlight will automatically turn off 60 seconds after the last key is pressed and will stay off until next

time a key is pressed.

Note that the Display Light selection only applies to the display keypad that you are currently using.

Other display/keypads will not be affected. In other words, you need to individually set this option

for each display/keypad in the system.

Beeper

Enabled

Toggle between

Enabled (default) and Disabled Beeper

Move to next menu item

When “Enabled”, the keypad will beep every time a key is pressed. If this audible indication is not

desired, select “Disabled”.

This function only applies to the display/keypad that you are currently using. You need to set this

option for each display/keypad in your system.

NOTE: This function is not supported on all display/keypads. If the “Enabled” selection is not

blinking, then the current software revision of that particular keypad/display does not support the

option and it will default to Beeper Enabled.

Lights Interlock

If enabled, this feature will override the function (Manual On/Off, Countdown Timer, Timeclock)

selected above and turn the lights relay off when: filter pump is off, first 3 minutes of filter pump

operation (allows the pump to prime and get water flowing), when the pool/spa suction return valves

are in any position other than “pool only”, or for the first 3 minutes after solar turns on (allows air in

the solar panels to be purged). Interlock is not available for solar, low speed filter pump, super

chlorinate, dimmer or group.

Lights Group

The Lights Group function allows the user to perform multiple tasks with a single push of the “Lights”

button. When setting up a Group function, refer to page 12 for specific programming information.

There are two Group menus; the first menu determines how the group command will be initiated

(Manual On/Off, Countdown Timer, or Timeclock) and the second menu selects the desired functions

and their respective control parameters.

Lights Freeze Protection

This function helps protect equipment that is wired to the lights relay against freeze damage. If Freeze

Protection is enabled and the AIR temperature sensor falls below the selected freeze temperature

threshold, the OnCommand will energize the lights relay. IMPORTANT: this only enables operation

of the lights relay during freeze--see the “Filter Pump Config.” menu to enable freeze protection for the

main circulation system.

Lights Pump Speed

This is the speed of the pump when the Lights output is on. The choices are the Settings Menu speed

and a speed that is unique to the Lights output only. The default selection is “Settings Menu”. This

is the speed of the pump that has been selected in the Settings Menu for normal filter operation. If an

alternate speed is desired when the Lights output is on, push “+” or “-” and select from “Lowest” to

“Highest” in 5% increments.

NOTE: The configuration parameters for the Aux2 output are the same as shown below for Aux1.

Aux1 Pump Spd

Settings Menu

Select between Settings Menu (default) and the desired pump speed

only if filter pump is set to variable

and relay type is set to standard

Move to previous/next configuration menu

Aux1 Config.

+ to view/change

Aux1 Function

Manual On/Off

Aux1 Relay

Standard

Push to access Aux options

Toggle between Standard (default) and Dimmer

Move to previous/next configuration menu

Move to next menu item or previous/next configuration menu

Aux1 Interlock

Disable

Aux1 Freeze

Disable

Toggle between Enabled and Disabled (default) Aux1 Interlock

Toggle between Enabled and Disabled Aux1 Freeze(default)

Move to next menu item

Move to previous/next configuration menu

for manual on/off, countdown

timer and timeclock functions

Move to next menu item

Rotates between

Manual On/Off (default), Countdown Timer,

Low Speed- Filter, Timeclock, Solar, and Super Chlorinate

for all functions except dimmer relay, solar

super chlorinate, and low speed

or all functions except dimmer relay,

Aux1 Group

Filter: Unaffected

Aux1 Group

Timer: None(Manual)

Options available depend on the function that is selected

Rotates between Manual On/Off (default),Countdown Timer and Timeclock

Move to previous/next menu item or next configuration menu

Move to next menu item

for group function only

WARNING: Do not use the OnCommand to control an automatic pool cover. Swim-

mers may become entrapped underneath the cover.

Aux1 Function

Manual On/Off (default)—the aux relay will alternate between turning on and off when the aux button

is pressed. There is no automatic control logic.

Teach Wireless

+ to start

Teach

Successful

Wireless

Teach

NOT Successful

Wireless

Teach Wireless

Base NOT Found

Press and hold

wireless button

Push to start process

Move to previous/next menu item

Press any button on wireless remote

This menu will only appear if a wireless base station is connected to the OnCommand. Perform this

procedure each time a wireless remote control is added to the OnCommand system. During this

procedure the wireless remote “learns” and remembers the ID code for the wireless base station

connected to this particular OnCommand unit and will reject messages with any other ID codes. If

“Base NOT found” is displayed, then the OnCommand can not communicate with the transmitter/

receiver base station attached to the main unit. If “NOT Successful” is displayed, then the base

station did not receive a signal from the remote control. This may be due to the distance between the

Base Receiver and the remote device being too great or may be due to interference caused by other RF

equipment operating in the neighborhood. Try changing the channel and then repeat the “Teach

Wireless” command.

Wireless

Channel: 1

Reteach all

wireless units

Confirm Change:

+ to proceed

Push to confirm the channel change

Change the desired wireless channel (1 - 5)

Move to previous (Teach Wireless) menu

If channel is changed, move to confirmation menu

Move to previous/next menu item

If channel is not changed, move to previous/next menu item

This setting changes the channel to be used by the wireless base station and remote(s). If the channel

is changed and confirmed, all of the wireless remotes will have to be retaught. This menu will only

appear if a wireless base station is connected to the OnCommand.

Timers Menu

The Timers Menu allows you to set all timeclock and countdown timers which control the automatic operation of

your pool/spa system.

The OnCommand has 4 timeclocks available for each function. Each timeclock has a single on/off program per

day. All of the timeclocks are programmed in the Configuration Menu either as “all days” or “weekends/week-

days”. If “weekends/weekdays” are selected, the start and stop times will need to be programmed separately for

both weekdays and weekends, even if the same times will be used. All times are adjusted in 15 minute increments

(9:00A, 9:15A, 9:30A, etc.). If you program the start time equal to the stop time (ex. “10:00A to 10:00A”), the

function will be disabled and the display will show “Off”. If, at a later time, you wish to re-activate the timeclock,

simply press either the “+” or “-” buttons to go back to a normal timeclock programming display.

Two speed or variable speed pumps: Two timeclocks are required to program the run time for dual or variable

speed pumps. One timer is used for high speed, the other timer for low speed.

The Countdown timer is programmed in increments of 5 minutes from “Manual On/Off” (0 minutes) to a maximum

of “21:00” (21 hours). When “Manual On/Off” is displayed, the countdown timer is disabled and the output will be

manually controlled. When a countdown timer is equal or greater than “0:05”, pressing the appropriate output

button will turn the output on and start the timer. Pressing the button again will turn the output off or, when the

programmed time has elapsed, the output will automatically turn off.

Lights Pump Spd

Settings Menu

Select between Settings Menu (default) and the desired pump speed

only if filter pump is set to variable

and relay type is set to standard

Move to previous/next configuration menu

Lights Config.

+ to view/change

Lights Function

Manual On/Off

Lights Relay

Standard

Push to access Lights options

Rotates between

Manual On/Off (default), Countdown Timer,

Low Speed- Filter, Timeclock, Solar, and Super Chlorinate

Toggle between Standard (default) and Dimmer

Move to previous/next configuration menu

Move to next menu item

Move to next menu item or previous/next configuration menu

Lights Interlock

Disable

Lights Freeze

Disable

Toggle between Enabled and Disabled (default) Lights Interlock

Toggle between Enabled and Disabled (default) Lights Freeze

Move to next menu item

Move to next menu item or previous/next configuration menu

super chlorinate, low speed, and group

or all functions except dimmer relay, solar

super chlorinate, low speed, and group

or all functions except dimmer relay,

for manual on/off, countdown

timer and timeclock functions

Lights Group

Filter: Unaffected

Lights Group

Timer: None(Manual)

Options available depend on the function that is selected

Rotates between Manual On/Off (default),Countdown Timer and Timeclock

Move to previous/next menu item or next configuration menu

Move to next menu item

for group function only

Lights Function

Although designated as the “Lights” output, the function of the lights relay is similar to the aux1 and

aux2 relays. If pool lights are wired to the lights relay, some options including Solar function, Low

Speed of a 2-Speed Filter Pump, Lights Interlock and Lights Freeze Protection will not be necessary

and should be disabled. If no pool lights are used, the lights relay can be used to control other pool

devices that may require these options. The function of each option is shown below.

Manual On/Off (default)—the lights relay will alternate between turning on and off when the LIGHTS

button is pressed. There is no automatic control logic.

Countdown Timer—the lights relay will turn on when the LIGHTS button is pressed. The lights relay

will turn off automatically after a programmed time (see Timers Menu in Operation Manual). The

LIGHTS button can also be used to turn the output off.

Low Speed of a 2-speed Filter Pump – the OnCommand will turn on the lights relay whenever the low

speed operation of the filter pump is required. It is very important that the “2-speed” filter pump

option be selected under the “Filter Config.” Menu for proper operation.

Timeclock – the lights relay will turn-on and turn-off at the times set for the lights timeclock in the

Timers Menu (see Timers Menu in Operation Manual). The LIGHTS button can also be used to turn

the output on and off.

Solar – the lights relay can operate a solar booster pump which will turn on when the filter pump is

running and solar heat is available and the water is less than the desired temperature setting. It is

important to note that “Solar Control” must be enabled in the “Solar Config.” menu for proper operation

to occur.

Group – the lights relay operates when the Group function is initiated and shuts off when the Group

function is terminated. See Lights Group section for operation information for the Group function.

Super Chlorinate – if “Chlorinator” is enabled, this option allows the user to start a Super Chlorinate

cycle when the Lights button is pressed, rather than using the Settings Menu. Note that only one

button can be assigned to this function.

Lights Relay

This feature allows the user to select either “Standard” (default) or “Dimmer” type relay for the Lights

output. The optional AQL-DIM dimmer kit must be installed if “Dimmer” is desired. When “Dimmer”

is selected, and the Lights output is manually turned on, the “+” and “-” buttons adjust the level from

20% to 100% (default). The level is saved for the next time the lights are turned from off to on.

For one speed pumps, this is the first filter timeclock and will determine the normal hours of filtration for

the pool. For pool/spa combination systems with spillover enabled, the valves will automatically

switch to spillover mode at the start of the filtration period. For all other systems, the valves will switch

to the pool-only position. Refer to the text above for general notes regarding timeclock programming.

For two speed or variable speed pumps, this setting will be the period of time when the pump runs at

high speed (the word “Filter T1” in the display will be replaced with “Hi T1”, and “Filter T3” will be

replaced with “Hi T3”). There is a separate timeclock for the low speed operation (see “Filter T2”

below). If the high speed and low speed periods overlap, then the pump will operate in low speed

during the overlap period.

There are several reasons the filter pump may be running at times other than the timeclock period set

above. These include super-chlorination, spa operation, manual operation, heater cooldown, freeze

protection and “solar-extend”.

For one speed pumps, this is the second filter timeclock.

For two speed or variable speed pumps, this timeclock will set the normal time period for filter pump

low speed operation (the word “Filter T2” in the display will be replaced with “Lo T1”, and “Filter T4”

will be replaced with “Lo T4”). If the filter pump was off prior to the start of this time period, the filter

pump will first turn on at high speed for 3 minutes to prime and establish water flow. Afterwards, it will

drop down to low speed for the remainder of the programmed low speed time period. While this time

clock will override the high speed timeclock (see above), there are several reasons why the pump will

automatically switch to high speed operation during this programmed time period. These include

manual operation, spa operation, or heating operation. Refer to page 9 for general notes regarding

timeclock programming.

This menu is only available if the system has been setup for “pool and spa”. Only one timeclock is

available for Spa operation. During the programmed spa time, the OnCommand will turn on the filter

pump and move the pool/spa valves into the “spa-only” position. The heater will automatically heat

the spa up to the programmed spa temperature (page 6). This programmed spa operation will take

precedence over all other automatic functions and only manual operation of the filter button or pool/

spa valve button will override this function.

If your pool has a separate jet pump or blower controlled by Aux1 and/or Aux2 , you will have to

program those separately (see page 11).

Solar Config.

+ to view/change

Solar

Disabled

Solar-Extend

Disabled

Solar Priority

Disabled

Push to access solar options

Toggle between Enabled and Disabled (default) Solar

Toggle between Enabled and Disabled (default) Solar Extend

Toggle between Enabled and Disabled (default) Solar Priority

Move to previous/next configuration menu

Move to next menu item or previous/next configuration menu

Move to next menu item

if “Solar” is enabled

Allow Low Speed

Disabled

Toggle between Enabled and Disabled (default)

Move to

next menu item or previous/next configuration menu

if “Solar” is enabled and

“1-speed Filter” is not selected

Solar

If the solar control logic is “Enabled”, several additional steps must be taken to ensure proper operation

of the solar system. If the solar is operated by a valve, then the Valve3 output must be setup for solar

logic. If the solar is operated by a pump, then one of the AUX relays must be set up for solar logic.

Also, the “solar” temperature sensor must be installed. This sensor is typically mounted near the

collector array and is used to sense whether sufficient solar heat is available.

If solar is “Enabled”, the valve or solar pump relay will turn on when the water temperature is less than

the desired temperature setting AND the solar sensor is hotter than the water. The desired temperature

is in the “Settings Menu”. If applicable, the homeowner will be prompted to enter separate pool and

spa desired temperature settings. Depending on the position of the pool/spa suction valve, the

proper temperature setting will be used.

Solar Extend

If “Enabled”, the filter extend logic keeps the filter pump running beyond the normal turn-off time if

solar heat is still available. When solar heat is no longer available, both the solar valve/pump and filter

pump will turn off simultaneously. Solar extend will NOT cause the filter pump to turn on, it will only

delay the turn off time when solar is operating.

Solar Priority

If both “Solar Control” and “Heater Control” are enabled, the Solar Priority feature will keep the

conventional heater off whenever solar heat is available. This provides the most cost effective way of

heating the pool. When solar heat is not available, the conventional heater will operate normally.

Allow Low Speed

This menu only appears if the pool filter is configured for 2-speed or variable speed operation. During

default operation, high speed mode is used whenever the solar heater is on. If Allow Low Speed is

enabled, low speed pump operation will be allowed during solar heating except for the first 3 minutes

after solar heat turns on.

Set Day and Time

Wednesday 10:37P

Adjust time setting

Move between start and stop times & to previous/next menu item

Filter T1-all

8:30A to 4:00P

Filter T1-wkend

8:30A to 4:00P

Filter T1-wkday

8:30A to 4:00P

Adjust time setting

Move between start and stop times & to previous/next menu item

T1 and T3 configurations are identical

Set Day and Time

Wednesday 10:37P

Adjust time setting

Move between start and stop times & to previous/next menu item

Filter T2

8:30A to 4:00P

-all

Filter T2-wkend

8:30A to 4:00P

Filter T2-wkday

8:30A to 4:00P

Adjust time setting

Move between start and stop times & to previous/next menu item

T2 and T4 configurations are identical

Set Day and Time

Wednesday 10:37P

Adjust time setting

Move between start and stop times & to previous/next menu item

Spa-all

6:00P to 9:00P

Spa-wkend

6:00P to 9:00P

Spa-wkday

6:00P to 9:00P

Adjust time setting

Move between start and stop times & to previous/next menu item

This menu will appear only if the Lights are configured for timeclock. The lights will turn on and off at

the designated times. The only override on this function is manual on/off control by the “Lights”

button.

This menu will appear only if the Lights are configured for countdown timer. This setting is the time

after you manually turn on the lights until the OnCommand automatically turns off the lights. You can

also manually turn off the lights at an earlier time by pressing the LIGHTS button. If the Lights relay

is on during the programmed off time, it may be because of freeze protection.

Aux1 and Aux2 configurations are identical.

This menu will appear only if the Aux1 is configured for timeclock. The Aux output will turn on and off

at the designated times. If the Aux relay is off during the programmed on time— note that some pool

equipment (example pressure side pool cleaner) can only be operated when the filter pump is running

and the pool/spa valves are in the pool-only position—the OnCommand will keep the relay off until

these other conditions are suitable for operation. If the Aux relay is on during the programmed off

time, it may be because of freeze protection. Also, manual operation overrides the timeclock.

This menu will appear only if the Aux1 is configured for countdown timer. This setting is the time after

you manually turn on the Aux relay until the OnCommand automatically turns off the relay. You can

also manually turn off the relay at an earlier time by pressing the AUX1 button.

This menu will appear only if Valve3 is configured for timeclock. The valve will rotate on and off at the

designated times. There is no manual override. If the Valve3 relay is on during the programmed off

time, it may be because of freeze protection.

Set Day and Time

Wednesday 10:37P

Adjust time setting

Move between start and stop times & to previous/next menu item

Lights-all

8:00P to 11:00P

Lights-wkend

8:00P to 11:00P

Lights-wkday

8:00P to 11:00P

Adjust time setting

Move between start and stop times & to previous/next menu item

Lights-CountDn

0:20

Adjust time setting (Manual On/Off, 0:05, 0:10, 0:015...)

Move to previous/next menu item

Set Day and Time

Wednesday 10:37P

Adjust time setting

Move between start and stop times & to previous/next menu item

Aux1-all

8:30A to 4:00P

Aux1-wkend

8:30A to 4:00P

Aux1-wkday

8:30A to 4:00P

Adjust time setting

Move between start and stop times & to previous/next menu item

Aux1-CountDn

0:20

Adjust time setting (Manual On/Off, 0:05, 0:10, 0:15...)

Move to previous/next menu item

Set Day and Time

Wednesday 10:37P

Adjust time setting

Move between start and stop times & to previous/next menu item

Valve3-all

8:30A to 4:00P

Adjust time s

Valve3-wkend

8:30A to 4:00P

Valve3-wkday

8:30A to 4:00P

Adjust time setting

Move between start and stop times & to previous/next menu item

Heater Config.

+ to view/change

Heater

Disable

Heater Cooldown

Disabled

Heater Extend

Disabled

Push to access heater options

Toggle between Enabled and Disabled (default) Heater

Toggle between Enabled and Disabled (default) Heater Cooldown

Toggle between Enabled and Disabled (default) Heater Extend

Move to previous/next configuration menu

Move to next menu item or previous/next configuration menu

Move to next menu item

Move to previous/next configuration menu

if “Heater1” is enabled

Allow Low Speed

Disabled

Toggle between Enabled and Disabled (default)

Move to

next menu item or previous/next configuration menu

if “Heater1” is enabled and

1-speed filter pump is not selected

Heater

If the heater is “Enabled”, the heater relay will turn on when the water temperature is less than the

desired temperature setting and the filter pump is running. The desired temperature is in the “Settings

Menu”. If applicable, the homeowner will be prompted to enter separate “pool” and “spa” settings.

Depending on the position of the pool/spa suction valve, the proper temperature setting will be used.

Heater Cooldown

This feature ensures that the heater cools down before water circulation is stopped. When enabled,

the OnCommand will continue to run the filter pump for 5 minutes after the heater turns off. During

this period the filter pump LED will flash and also a “Heater Cooldown, X:XX remaining” message will

scroll on the display.

When the filter pump is running and the heater is on: Pressing the “Filter” button once will cause the

heater to turn off, but the filter pump will continue to run for heater cooldown (filter LED flashing and

message on display). Pushing the filter button a second time will override the heater cooldown

operation and turn the filter pump off.

Heater Extend

If “Enabled”, the filter extend logic keeps the filter pump running beyond the normal turn-off time until

the pool (or spa) is heated up to the desired temperature setting (see Settings Menu). Heater extend

will NOT cause the filter pump to turn on, it will only delay the turn off time when the heater is

operating.

Allow Low Speed

This menu only appears if the filter is configured for 2-speed or variable speed operation. During

default operation, high speed mode is used whenever the heater is on. If Allow Low Speed is enabled,

low speed will be allowed even if the heater is on.

Super Chlorinate

24 hours

djust Superchlorination period (1 - 96 hours)

Move to previous/next menu item

If external chlorination is enabled. For larger pools or when you have an unusually high bather load,

a large amount of rain, a cloudy water condition, or any other condition that requires a large amount

of chlorine to be introduced to the pool, adjust the Superchlorination period to provide adequate

chlorination. Smaller pools require less hours of Superchlorination.

Group Function

The OnCommand offers the ability to assign one Group function to a particular button. Instead of the button

controlling one particular function, the button can be programmed to initiate a sequence of commands that are

programmed in the Configuration Menu. For example, instead of the Lights button turning on and off the pool light

only, the button can be programmed to turn on the pool light, turn on the bug light, turn off the pool cleaner, and turn

on the music all at the same time. This convenient feature can be assigned to either one of the Aux buttons, the

Lights button or the Valve 3 automated function.

Before assigning and configuring all the desired functions and their control parameters within the group, the group

itself must be configured. The options for controlling groups are Manual On/Off, CountdownTimer, and Timeclock.

The group will turn on and off based on this selection.

When setting up a Group function in the Configuration Menu, the first menu allows you to select the control

parameter (how the group is activated and de-activated) and the second menu allows you to select which functions

are to be controlled in the group.

A table of functions and their corresponding control parameters are listed below.

Note that all functions in the table may not be offered. The available functions are dependent on how the OnCommand

is configured. Also, under some circumstances, functions will be displayed but can’t be changed. Note that the

function whose menu you are in, will not be displayed as an option and will automatically turn on when the group is

activated. For example, if programming a Group function under the Lights menu, the Lights function will not be

offered as an option and the Lights function will automatically turn on with the group.

The available control parameters vary with each function. All functions offer “Unaffected”, which should be

selected if you do not wish to control that particular function within the group. All other parameters will depend on

the particular function selected.

Filter Config.

+ to view/change

Filter Pump

1 Speed

Freeze Protect

Enabled

Lowest Speed

10%

Highest Speed

100%

Push to access pump options

Rotates between 1-speed (default), 2-speed and variable speed options

Toggle between Enabled (default) and Disabled Freeze Protection

Adjust the lowest speed desired for variable speed operation

Adjust the highest speed desired for variable speed operation

Move to next menu item

Move to previous/next configuration menu

Move to next menu item or previous/next configuration menu

Move to next menu item

if “Variable Speed” is selected

Freeze Temp

38ºF

Freeze Protect

High Speed

Adjust the desired freeze protection temperature (33ºF - 42ºF)

Toggle between high speed (default) and low speed

Move to previous/next configuration menu

Move to next menu item

if “Freeze Protect” is enabled

and “1-speed Filter” is not selected

Filter Pump

For 2-speed pumps: When a 2-speed pump is configured, one of the AUX relays must also be

configured to control the low speed motor winding on the pump. Refer to the appropriate sections in

the Installation manual for specific information regarding the control logic for 2-speed and variable

speed pump operation.

For the Hayward Tristar variable speed pump: The Filter relay is used to supply input power to the

VSC pump control. The relay will be on when the filter pump output is on. When the filter pump

output is off, the relay will be off. On , off and speed is controlled by commands sent to the pump.

Lowest Speed

This is the lowest speed that the variable speed pump is allowed to run at. It is used as the lower limit

in the Low Speed Settings Menu. Set lowest speed from 10% (default) to 50%.

Highest Speed

This is the highest speed that the variable speed pump is allowed to run at. It is used as the upper limit

in the High Speed Settings Menu. Also, this is the speed that the pump will run at during the first 3

minutes of operation anytime the pump has been off for more than 30 seconds. Set highest speed from

20% to 100% (default).

Freeze Protection

Freeze protection is used to protect the pool and plumbed equipment against freeze damage. If freeze

protection is enabled and the AIR temperature sensor falls below the freeze threshold (see below), the

OnCommand will turn on the filter pump to circulate the water. If “Pool and Spa” is selected in the Pool/

Spa sub-menu, the valves will also alternate between the pool and spa every 30 minutes and the filter

pump will turn off while the valves are turning. The chlorinator will not operate if freeze protection is

the only reason the pump is running.

Freeze Protection Speed

This menu only appears if freeze protection is enabled and the pump is configured for 2-speed or

variable speed pump operation. This is the speed that the pump will run at during freeze protection

operation. Select high (default) or low speed operation.

Freeze Protection Temperature

Select the temperature to be used for freeze protection. Temperature is adjustable from 33ºF - 42ºF

(1ºC - 6ºC). 38ºF (3ºC) is default. This threshold will be used for all outputs that have freeze protection

enabled.

Pool/Spa Unaffected, Pool only, Spa only, or Spillover

Pool Filter Unaffected, Off, On, High speed, or Low speed

Function Control Parameter

Lights Unaffected, Off, or On

Lights Unaffected, Off, On, 100%, 80%, 60%, 40%, or 20%

Aux1&2 Unaffected, Off, On

Aux1&2 Unaffected, Off, On, 100%, 80%, 60%, 40%, or 20%

Valve3 Unaffected, Off, or On

Spa Htr Set Unaffected, Off, 65º-104ºF

Pool Htr Set Unaffected, Off, 65º-104ºF

Spa Solar Set Unaffected, Off, 65º-104ºF

Pool Solar Set Unaffected, Off, 65º-104ºF

SuperChlr Unaffected, Off, On

Spa High Unaffected, 20% to Highest speed

Spa Low Unaffected, Lowest speed to 50%

Pool High Unaffected, 20% to Highest speed

Pool Low Unaffected, Lowest speed to 50%

(standard relay)

(dimmer relay)

tandard relay)

Heater Setpoints in Groups

The OnCommand can be programmed to use alternate heater setpoints (conventional and/or solar) while running

a group command. This allows the heater to be set to a higher or lower temperature than normal, while the group

is activated. When the group stops, the setpoint will return to its normal setting.

Changing the setpoint while the group is running will make the group release the alternate setpoint control and

revert back to the normal heater setting. Any changes that are made at that point will affect the normal heater

setting. The next time the group is activated, the temperature will return to the group setpoint that was originally

programmed in the Configuration Menu. To change the setpoint while the group is running, go to the Settings menu

and press the +/- button while “Group Control” is displayed. The setpoint will change and be retained as the new

normal heater setpoint.

Super Chlorinate (requires external chlorinator)

If a Hayward Swimpure or GoldlineAqua Rite chlorinator is used, the OnCommand can be programmed to Super

Chlorinate the pool or spa while running a group command. When the group starts, the Super Chlorinate cycle will

begin. Super Chlorinate will continue until the preset time expires (see Timers Menu/Super Chlorinate Hours) or

until the group turns off. Changing the Super Chlorinate state using the Settings Menu, the Aqua Pod Super

Chlorinate button, or a Super Chlorinate assigned Aux/Lights/Valve button will temporarily cancel the group’s

control of Super Chlorinate until the next time the group is activated.

Variable Speed in Groups

The OnCommand can be programmed to use alternate pump speeds while running a group command. This allows

the pump(s) to be set to a higher or lower speed than normal, while the group is activated. When the group stops,

the speed will return to its normal setting.

Changing the speed setting while the group is running will make the group release the alternate speed setting and

revert back to the normal speed setting. Any changes that are made at that point will affect the normal speed

setting. The next time the group is activated, the speed will return to the group speed setting that was originally

programmed in the Configuration Menu. To change the speed setting while the group is running, go to the Settings

menu and press the +/- button while “Group Control” is displayed. The speed setting will change to the normal

speed setting.

Configuration Menu Items

Each item needs to be programmed and may contain additional sub-menu items. Refer to the following pages for

information on programming.

Move to next menu item

Ext. Chlorinator

Enabled

Display

Salt

Chlor. Config.

+ to view/change

Toggle between Display Salt (default) and Minerals

Toggle between External Chlorinator Enabled and Disabled (default)

Move to previous/next configuration menu

Move to next configuration menu

Push to access Chlorinator option

Chlorinator

If the optional external chlorinator is enabled (requires the use of a Goldline Aqua Rite or Hayward

Swimpure chlorinator), the OnCommand will automatically chlorinate both the pool and spa according

to the desired output setting (see Settings Menu in the Operation manual). If disabled (default), all

displays relating to the chlorinator will be suppressed.

When the chlorinator is enabled, the OnCommand will automatically detect and control any Aqua

Rite/Swimpure(s) that is installed in the system.

Display

Allows for the display of salt (default) or mineral values.

Pool/Spa Config.

+ to view/change

Pool/Spa Setup

Pool and Spa

Spa Spillover

Enabled

Filter Operation

Spa Spillover

Push to access Pool/Spa options

Rotates between Pool Only (default), Spa Only and

Pool and Spa

Toggle between Enabled and Disabled Spa Spillover

(default)

Toggle between Pool Only and Spa Spillover options

(default)

Move to previous/next configuration menu

Move to next menu item

Move to next menu item or previous/next configuration menu

Move to previous/next configuration menu

if “Pool and Spa” is

selected and

if “Spa Spillover” is enabled

Spa - CountDn

00:30

Adjust time setting (Manual On/Off, 0:05, 0:10, 0:15..., (default is 4:00))

Move to next menu item

if “Pool and Spa” is selected

V1=Aux1, V2=Aux2

Disabled

Toggle between Enabled and Disabled

(default)

if “Pool Only” or “Spa Only” is selected

Move to previous/next configuration menu

Filter Off Valve

Change: Enabled

Toggle between Enabled and Disabled(default)

if “Pool and Spa” is selected

Move to previous/next configuration menu

Pool/Spa Setup

If “Pool Only” or “Spa Only” are selected, then the pool/spa valves are not needed and pushing the

POOL/SPA button on the display/keypad will have no effect. If “Pool and Spa” is selected, then the

pool/spa suction and return valve actuators should be connected to the OnCommand. Pressing the

POOL/SPA button on the display/keypad will allow the homeowner to alternate between pool and spa

operation.

Spa CountDn

This menu will appear only if Pool/Spa Setup is set to “Pool and Spa”. This setting is the time, after

you manually switch the Pool/Spa valves to “Spa Only”, until the OnCommand automatically returns

the valves to their previous positions. It is programmed in increments of 5 minutes, from “Manual On/

Off” (0 minutes) to “21:00” (21 hours). The filter is forced on during this time period.

Spa Spillover

When spa spillover is “Enabled” and “Pool and Spa”, the homeowner will be able to rotate through

“Pool Only” (both suction and return valves switched to pool), “Spa Only” (both suction and return

valves switched to spa) and “Spillover” (suction valve switched to pool and return valve switched to

spa) by successive presses of the “Pool/Spa button.

Filter Operation

If “Spa Spillover” is selected, the OnCommand will automatically switch the pool/spa suction and

return valves to “spillover” at the start of the programmed pool filtering time period or when the super-

chlorinate function is turned on. The valves will remain in this position for the remainder of the super-

chlorinate period. This option is usually preferable because both the pool and spa water will be

filtered and sanitized.

If “Pool Only” is selected, then the OnCommand will switch the pool/spa valves to the “pool only”

position at the start of the programmed pool filtering time period or when the super-chlorinate function

is turned on. This may be desirable on some systems with in-floor cleaners because it allows the

cleaner to operate all the time the pool is being filtered and/or the super chlorinate is running.

V1=Aux1, V2=Aux2

This menu appears only if the Pool/Spa Setup is “Pool Only” or “Spa Only”. When enabled, Valve 1

(return) will follow the Aux1 output and Valve 2 (suction) will follow the Aux2 output. When disabled

(default), the return and suction pool/spa valves function normally.

Filter Off Valve Change

This menu appears only if Pool/Spa setup is set to “Pool and Spa - Std”. When enabled (default), the

filter pump will shut off for 35 seconds whenever the Pool/Spa valves are turning. The pump will NOT

shut off when a heater is in Heater Cooldown mode.
