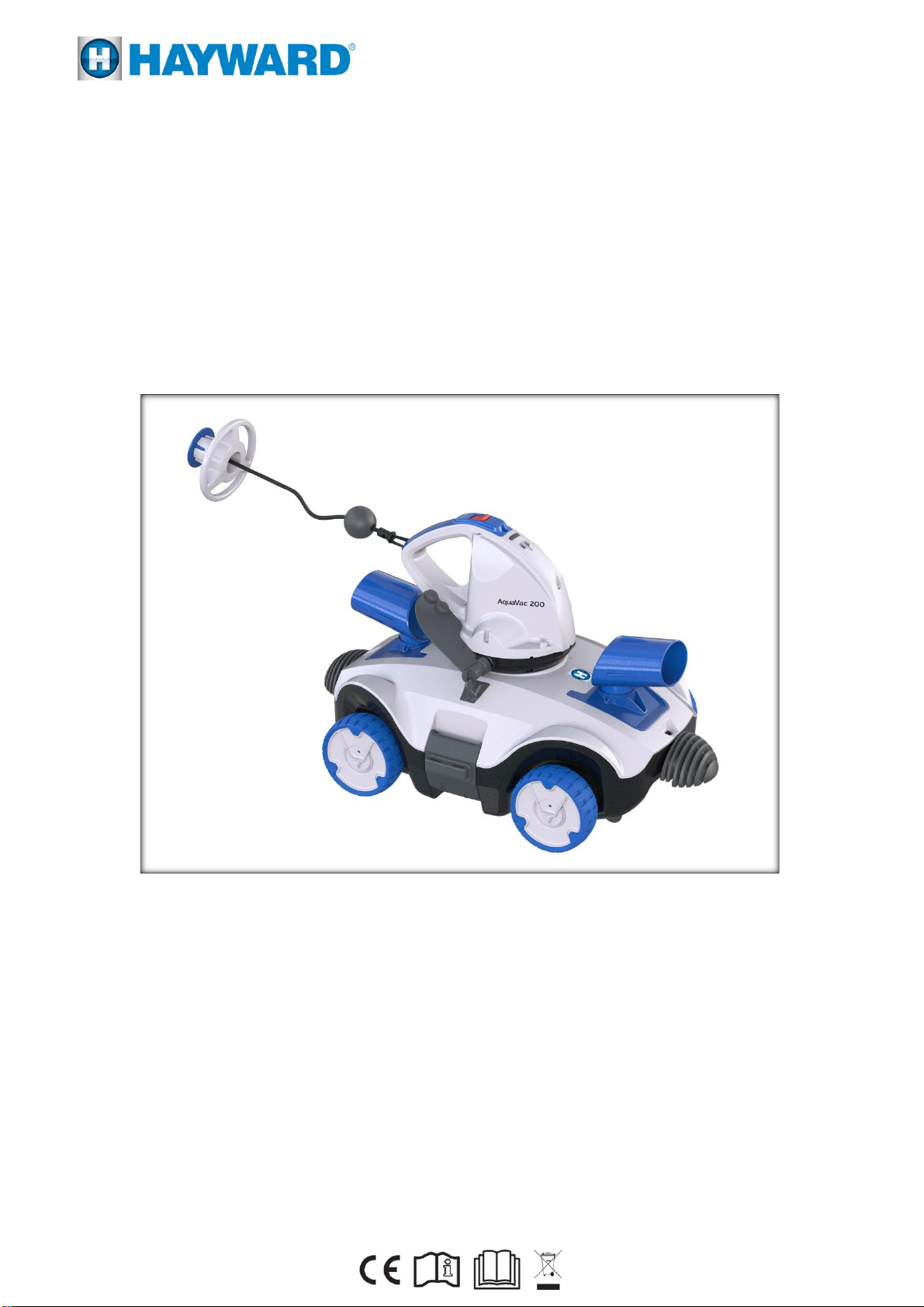

AquaVac®250
CORDLESS ELECTRIC POOL CLEANER USER MANUAL
ROBOT NETTOYEUR ELECTRIQUE SANS FIL MANUEL D’UTILISATION
ROBOT SIN CABLE PARA PISCINAS MANUAL DE USUARIO

1
Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS &
WARNINGS P.4
HOW THE ROBOT WORKS P.7
GETTING STARTED P.8
Charging The Battery P.8
Set-Up Before Use P.9
oClip-on Rake/ Brush Assembly P.9
oAdjustment of Trajectory P.10
Tube setting P.10
Bumper P.11
Pool Preparation P.11
OPERATION P.12
EMPTYING THE DEBRIS COMPARTMENT P.14
MAINTENANCE & STORAGE P.15
BATTERY DISPOSAL P.15
How to remove the battery pack P.16
TROUBLESHOOTING P.17
Remark: Product/parts photos/drawings in this manual are for demonstration only.
Product/parts in photos/drawings may vary with the model purchased.

4
IMPORTANT SAFETY INSTRUCTIONS & WARNINGS
When installing and using this electrical equipment, safety precautions should
always be followed, including:
SAVE THESE INSTRUCTIONS
WARNING!
-READ AND FOLLOW ALL INSTRUCTIONS in this manual and on the
equipment. Failure to do so could result in severe or fatal injuries.
-Ensure that children do not attempt to access cleaner while it is operating.
Closely supervise children and pets at all times to ensure they do not play with
the cleaner. This is not a TOY. Children should be kept out of reach from this
robot and its accessories.
-Never allow children to operate this product.
-This robot is not intended for use by someone with reduced physical, sensory
or mental capabilities or a lack of experience and knowledge unless they have
been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
-Make sure the robot is fully immersed in the water before operation. The
minimum water level required to operate the robot must reach above the swivel
head of the robot. Operating the robot when it is not immersed in the water
correctly could damage the unit and void the warranty as a result.
-Maximum operating depth in water is 3 meters (10 ft).
-Operating water temperature: 5˚C (41˚F) –35˚C (95˚F)
-Only use the detachable supply unit (external adaptor) provided with this robot
to charge the battery.
-Detachable supply unit (external adaptor)
-In the United States, the external adaptor must be connected only to a supply
circuit that is protected by a ground-fault circuit interrupter (GFCI). Contact a
qualified electrician if you cannot verify that the circuit is protected by a GFCI.
This GFCI should be tested on a routine basis. To test the GFCI, push the test
button. The GFCI should interrupt power. Push reset button. Power should be
restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the
GFCI interrupts power to the external adaptor without the test button being
pushed, a ground current is flowing, indicating the possibility of an electrical
shock. Do not use the external adaptor. Disconnect the external adaptor and
contact the manufacturer for assistance.
-In Europe, Australia and New Zealand, the cleaner power supply unit must be
supplied through a residual current device (RCD) having a rated residual
operating current not exceeding 30 mA. Contact a qualified electrician if you
cannot verify that the circuit is protected by a RCD.

5
-Do not use this robot if any damage is detected.
-Replace damaged parts as soon as possible. Only use parts certified by the
distributor or manufacturer.
-Turn off the robot, disconnect the external adaptor from the power source, and
unplug the external adaptor from the charging base, before detaching the robot
from the charging base.
-Disconnect the robot from the supplymains and make sure the robot is powered
OFF prior to servicing it such as cleaning the filter and swivel smoothing-ring.
-The battery installed is a rechargeable Li-ion battery pack. Never attempt to
replace it.
-The robot is only to be recharged with the external adaptor and charging base
delivered with this product.
-DO NOT handle the robot, external adaptor, and charging base while it is
charging with wet limbs and without shoes.
-You should not operate this robot when people/pets are present in the water.
-DO NOT use this robot without an intact filter in place, otherwise your warranty
will be voided as a result.
-Suction entrapment hazard: This robot generates suction. Do not allow hair,
body, and any loose parts of your clothing to make contact with the suction hole
of the robot during its operation.
-Never insert body parts, clothing and other objects into the openings and
moving parts of the robot.
-DO NOT use this robot to pick up any toxic substance, flammable and
combustible liquids such as gasoline, and in the presence of explosive /
flammable fumes.
-Under no circumstances should you attempt to disassemble the robot and
replace the impeller, motor, and battery by yourself.
-Never insert fingers and any object to touch the impeller.
-This robot shall not be used by children.
-The battery must be removed from the robot before it is scrapped.
-This robot contains a battery that are only to be removed by skilled person.
-The robot must be disconnected from the supply mains prior to the battery is
removed.
-For details regarding battery disposal, refer to the section "Battery Disposal” in
this manual
-The battery must be disposed safely in accordance with local ordinances or
regulations.
-The robot contains a maintenance-free, rechargeable lithium-ion battery pack,
which must be disposed properly. Recycling is required; please contact your
local authorities for more information.
-External adaptor and charging base:
Never use the external adaptor and charging base for anything other than
charging the battery of the robot that is supplied in the same pack.

6
The external adaptor and charging base should not be used outdoors,
nor should it be exposed to rain, humidity, any liquid or heat.
The transformer (or external adaptor) should be located outside zone 1
Keep the external adaptor and charging base out of reach of children.
Never use the external adaptor and charging base if any damage is
detected.
DO NOT handle the external adaptor and charging base with wet hands.
Keep the external adaptor disconnected from power when it is not in use.
Never attempt to open the external adaptor.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent, or an equally-qualified person in order to prevent
hazards of any kind.
Make sure the robot is completely dry before charging.
SAVE THESE INSTRUCTIONS
CAUTION!
-This robot is designed for underwater use only; it is not an all-purpose vacuum cleaner.
DO NOT attempt to use it to clean anything other than your pool.
-Use only the original accessories delivered with this product.
-DO NOT use this robot right after pool-shocking. It is recommended to first leave the pool
circulating for at least 24-48 hours.
-If you are planning on using the robot in a saltwater pool, make sure all salts are dissolved
before placing it into the water.
-It is not recommended to use this robot with another automatic cleaner/cleaner
simultaneously.
-Avoid picking up hard, sharp objects with this product, as they may damage the robot and
filter.
-To avoid damaging the external adaptor and charging base, do not attempt to carry the
robot by the cord of external adaptor, or pull the cord to disconnect it from the power
source and charging base.
-Charge the robot indoors in a clean, dry area with good ventilation and away from
sunlight.
-DO NOT leave the robot charged for over 10 hours.
-If the robot will not be used for an extended period, detach it from the charging base and
use a damp cloth to clean and dry the robot and its accessories. Make sure to charge the
robot to about 30% to 50% of the battery capacity before it is stored. Store in a well-
ventilated area away from sunlight, heat, ignition sources, pool chemicals, and children.
Recharge the robot every three months.
-All actions concerning the disassembly of the swivel head (ie. battery disposal) can only
be carried by an authorized technician.
Above warnings and cautions are not intended to incorporate all possible
instances for risks and / or severe injuries. Pool / spa owners should always exercise
extra caution and common sense when utilizing the product.

7
HOW THE ROBOT WORKS
The robot has a water-propelling nozzle at the bottom of the swivel head. Water is first sucked
in through the suction mouth at the bottom of the robot, which then goes through the filter and is
discharged via the propelling nozzle. Water jetting from the nozzle propels the robot forward.
Once the robot stops against an obstacle such as the pool wall, its side flap sways and its swivel
head turns 180o, allowing the robot to move in the opposite direction. The robot moves in a
generally straight pattern in one direction and in an arc pattern in the other direction. The robot
vacuums the pool bottom as it moves, collecting debris in its compartment.

8
GETTING STARTED
Charging The Battery
IMPORTANT NOTE: Fully charge the robot (about 5-6 hrs) before using it for the first time.
WARNING!
Use only the original external adaptor and charging base provided.
Make sure the robot and the charging port are clean and dry before set-up.
Make sure the robot is off by sliding the switch to the OFF position prior to charging.
1. Place the unit on a flat surface. Slide the switch to the OFF position.
OFF
ON
2. Place the unit on a flat surface. Plug the socket of the charging base into the built-in charging
pins once they are aligned. WARNING! Be sure not to invert the charging base. Plug the
charging cable of the external adaptor
3. Connect the external adaptor to the power source. Once the robot begins charging, the
indicator light on the external adaptor will turn red.
The indicator light on the external adaptor will turn green when the robot is charged. Charge
it for 5-6 hours for best performance.
RED light - Charging
GREEN light - Charged
Immediately disconnect the external adaptor from the power source if you detect any of the
following:
-Offensive or unusual odor
-Excessive heat

9
-Deformation, cracks, leaks
-Smoke
4. When charging is complete, disconnect the external adaptor from the power source and
unplug the charging cable from the charging base.
IMPORTANT: Make sure to unplug the charging base from the swivel head after charging is
complete.
Normally the robot can operate up to 120 minutes on a full charge.
NOTE: Clean the debris compartment regularly. Excessive debris inside the compartment
increases the burden to motor operation and shortens the operating duration as a result.
NOTE: Rechargeable lithium-ion battery is classified as a consumable item. It has a limited life
and will gradually lose its capacity to hold a charge. Therefore, the running time of the robot will
gradually reduce after repeated charging and discharging throughout its product life.
Once the lifespan of the battery reaches its end, refer to section “BATTERY DISPOSAL” for
instructions regarding battery disposal and replacement of swivel head.
NOTE: Let the robot rest for around 30 to 40 minutes before charging it again.
Set-Up Before Use
Clip-on Rake/ Brush Assembly
TIPS: Press on the two hook ends to remove the rake/brush
IMPORTANT NOTE: Remove rake/brush after use. Otherwise, they may deform due to
constant compression, and could interrupt robot movement as a result.

10
Adjustment of Trajectory: Tube setting
Set the tubes A & B according to below instruction.
1)For pools where the shortest length is 3 meters or above
Turn the tube A to position “0” or “1”
Set tube Bin position
Tips: To achieve a steeper curve in trajectory, adjust the tube A to position “2”.
2) For pools where the shortest length is below 3 meters
Set the tube A to position “2”
Set tube Bin position

11
NOTE: In case the robot is moving in circle or cannot cover the entire pool, set the tube B to
position “ ” as below:
Note: You will hear a “click” sound everytime you adjust the fin.
Bumper
Use of the bumper is optional and can be applied in the following situation:
If the robot tends to follow the perimeter of a round pool, clipping a bumper on each side of
the robot will eliminate this pattern.
Pool Preparation
- If there are stones, roots or metal corrosion in contact with the underside of the liner,
discard them prior to using the robot. If necessary, seek assistance from a qualified professional.
- If the liner is brittle, damaged or wrinkled, contact a qualified professional to perform the
necessary repairs or perform a liner replacement prior to using the robot.
- Remove any pool ladder, surface skimmer, and other floating objects from the pool as
they may obstruct the movement of the robot’s float and, consequently, the movement of the
robot also.
- If you are using a saltwater pool, make sure all salt are dissolved before placing the robot
into the water.
IMPORTANT NOTE: Turn off the filtration system (as instructed in your filtration manual)
at least 15 minutes prior to deploying the robot.

12
OPERATION
WARNING! Make sure the robot is off.
1. Bring your robot to the side of your pool. NOTE: Do not place the robot in the pool corner and
against the pool wall as starting location. Attach the hook of the float to the handle of the
swivel head. Press on the side clip to eject the stem from the float. Release the rope from the
stem to a length equivalent to the depth of pool water plus an excess of about 0.5 meters (1.6
feet). Once the desired length has been achieved, maintain it by holding onto the rope on the
stem and reattach it to the float by pressing on the side clip as shown.
2. Slide the power switch to the ON position and the power indicator lights will turn on.
ATTENTION: Motor activates only when the robot is submerged in water completely.
Power indicator lights
(Green)
3. Immerse the robot into the water and operation will automatically begin as water level covers
the sensors at the top of the swivel head. Let the robot sink to the pool floor and observe the
cleaner's first forward and reversed movements across the pool bottom. If the robot runs
along the pool wall instead of perpendicular to it, reposition it to make sure that its front/back
faces the pool wall.
IMPORTANT NOTE: The swivel head may rotate repeatedly for a few minutes once the
robot sinks to the pool bottom. This phenomenon will stop once the air trapped inside the
robot is gradually discharged and the robot will begin to move regularly.

13

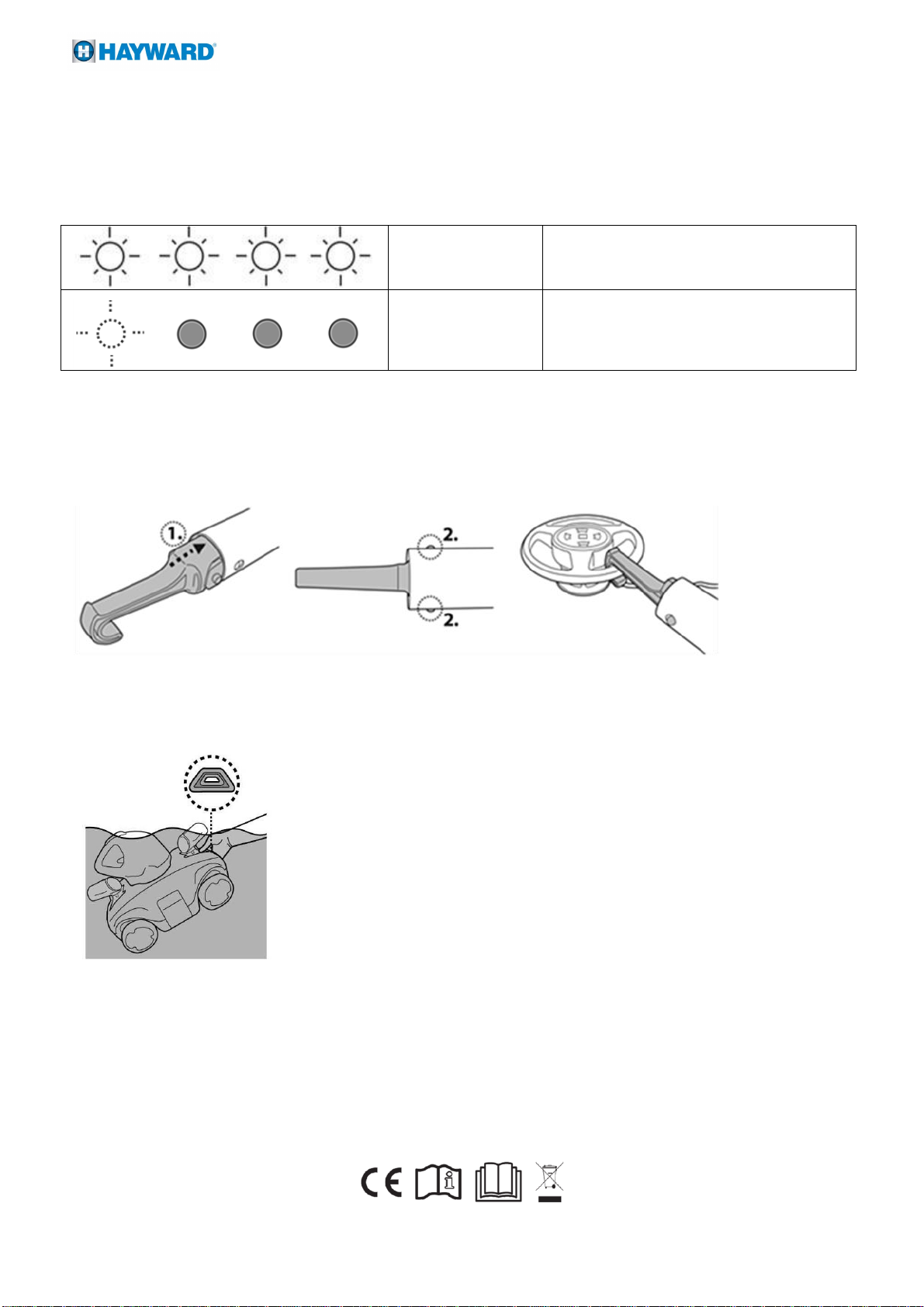

Power indicator lights:
As the robot moves around the pool and collects debris, battery levels will gradually drop and
the indicator lights will follow suit.
4 lights ON
Up to 120 minutes left
Last light blinks
Only 10 minutes of usage remains
once the last light starts blinking.
NOTE:
-Refrain from making any physical contact with both water sensors.
4. To retrieve the robot from the pool, attach the hook to a telescopic pole (not provided) and
use it to retrieve the float, if you are unable to retrieve with your hands.
As the robot reaches the water surface, locate the end with the red triangle (as shown in the
image below) and grab onto the robot via the grip (Note: holding the other end of the robot will
lead to escape of debris through the drainage outlet) to lift the cleaner to drain the water out of
the robot.
5. Slide the power switch OFF. Rinse the robot with fresh water after every use. DO NOT use
any detergent.
NOTE: To ensure the most efficient cleaning, when your pool is quite dirty, it is recommended to
empty the debris compartment after the first 30min of operation, or whenever the robot’s
movement has slowed down noticeably. Then return the robot (with an emptied debris
compartment) to the pool, and let it run through the remaining of its cycle.

14
EMPTYING THE DEBRIS COMPARTMENT
WARNING! Using the robot without its filter cover in place will VOID your warranty.
In order to maximize the cleaning efficiency, clean the debris compartment and the filter cover
before and after each use.
CAUTION! Before cleaning the debris compartment, make sure the robot is OFF.
1. Place the cleaner on a flat surface. Pull one side clip outwards to lift one side of the cover
and repeat the steps on the other side to lift the entire top cover to expose the filter cover and
filter plate.
2. Detach the filter cover and remove the debris from the compartment. It is recommended to
clean the filter cover net with splashing water. If brushing is deemed necessary, use only a
soft brush to clean it carefully and gently to avoid any damage.
3. After cleaning, make sure that filter cover is in place and the top cover is correctly installed
and secured by the side clips.
CAUTION!
-Replace a damaged filter cover immediately with a new one before the next operation.
-Replace a damaged flap immediately with a new one before the next operation.

15
MAINTENANCE & STORAGE
NOTE:
1. Battery discharges on its own during storage. Make sure to fully charge the robot before
storage.
2. You must recharge the battery at least once every three months when it is not in use.
Unplug the external adaptor from the socket and the charging cable from the charging base.
IMPORTANT: Make sure to unplug the charging base from the swivel head after charging is
complete.
Detach accessories from the robot. If necessary, rinse the robot and accessories with fresh
water. DO NOT use detergent.
Be sure to drain the water from the robot before storage.
Use a damp cloth to clean and dry the robot and its accessories.
Store them in a well-ventilated area away from sunlight, heat, ignition sources, pool chemicals
and from children. Ambient temperature for storage should be 10˚C – 25˚C (50˚F – 77˚F).
NOTE: A higher storage temperature may reduce the battery life.
WARNING!
-Under no circumstances should you attempt to disassemble the swivel head and replace
the impeller, motor and battery by yourself.
-To replace a damaged squeegee, push it out of the cavity and replace with a new one.
CAUTION!
Excessive heat can damage the battery and reduce the lifespan of your robot as a result.
Consult your dealer regarding battery replacement if the following happens:
-Battery does not charge fully.
-Battery operation time is noticeably reduced. Observe and record the run times of the
first few operations (on a full charge). Use these run times as a reference point for
comparison with run times in the future.
The battery must be removed from the robot before it is scrapped.
The robot must be disconnected from the supply mains when the battery is being removed.
The battery is to be disposed safely in accordance with local ordinances or regulations. NOTE:
Incorrect maintenance may reduce the battery life and affect its capacity as a result.
BATTERY DISPOSAL
Your robot is equipped with a maintenance-free rechargeable lithium-ion battery pack, which
must be disposed of properly. Recycling is required; please contact your local authority for
more information.
WARNING! Never attempt to disassemble a battery pack
Remove all personal items such as rings, bracelets, necklaces and watches when the battery
pack is unwired from the robot.
A battery can produce a short circuit current high enough to weld a ring (or similar item) to
metal, causing a severe burn in the process.
Wear complete eye protection, gloves and protective clothing when the battery pack is being
removed.
Avoid touching the wires altogether and avoid contact between them and any metal items,
which could cause sparking and/or short circuit the battery.
Never smoke or allow a spark or flame in the vicinity of the battery or the robot.

16
Do not expose the battery to fire or intense heat as this may result in an explosion.
CAUTION!
If a battery leak occurs, avoid any contact with the leaking fluids and place the damaged battery
in a plastic bag.
-If leaking fluids come in contact with skin and clothing, wash immediately with plenty of
soap and water.
-If leaking fluids come in contact with eyes, do not rub eyes, immediately flush eyes with
cool running water for at least 15 minutes and do not rub them. Seek medical attention as
soon as possible.
How to remove the battery pack (To be done by authorized technician) Recommended
tools (not included): Screwdriver.
1. Follow section “EMPTYING THE DEBRIS COMPARTMENT” to release the top
cover (preassembled with the swivel head). Place the cover upside down and use the
screwdriver to unfasten the screw on the bottom locking plate. Turn the bottom locking
plate anticlockwise to release the swivel head. Remove the swivel smoothening-ring.
2. Use the screwdriver to unscrew the 4 screws located at the bottom of the head to
release the bottom plate first, then unscrew all the screws at the base as shown. Remove
the impeller and pry open the base to expose the head inside.
3. Remove the battery pack to expose the PCBA. To detach the battery connection
wire, press on the clip of the connector to pull it out. NOTE: Wrap the connector
immediately with insulating tape in order to avoid any short circuit caused by the contact
of both wire terminals.

17
TROUBLESHOOTING
Problem
Possible Cause
Solution
Robot does not capture debris
Battery is running out
Charge the robot again.
Impeller is jammed
Power off the robot and inspect the hole under the swivel head to
see if the impeller is jammed by large debris. If necessary,
contact your dealer for further instructions.
WARNING!Make sure the robot is off before
the unit is serviced.
Suction mouth is clogged
Remove clogged objects from the suction mouth.
Impeller is broken
Contact your dealer for replacement.
Debris compartment is full
Clean both debris compartment and filter cover.
Robot stopped moving in the
middle of pool but swivel head
is still turning
Robot stopped by obstacle or large
creases in the pool liner.
Check to see that if there is anything obstructing the cleaner.
Remove the obstacle.
Robot is stopped by suction from the
main drain of pool floor
Turn off the filtration system as instructed in manual.
Swivel head rotates
repeatedly
Air trapped inside the robot
The swivel head may rotate repeatedly for a few minutes once
the robot sinks to the pool bottom. This phenomenon will stop
once the air trapped inside the robot is gradually discharged and
the robot will begin to move regularly.
Robot does not cover the
entire pool
Debris compartment is full
Clean the debris compartment
Operation time is shorter as expected
Clean the filter compartment and recharge the robot for
6 hrs
Moving direction is interrupted by water
circulation generated by filtration system
Turn off the filtration system (as instructed in filtration manual) at
least 15 minutes before robot operation.
Wheel is jammed
Check and remove debris from the wheel.
Robot moves along the pool wall of
round pool
Make sure the bumpers have been installed as instructed in
manual.
Rake / brush is deformed
Lay them under sunlight for a few hours to straighten them. If
necessary, replace with a new rake / brush.
Tube setting is not correct
Follow instructions to set the adjustable tube accordingly.
Algae renders the pool floor slippery
which results in the robot going in
circles.
Scrub the pool bottom and robot wheels to remove the algae
Robot moves slowly or does
not move at all.
Debris compartment is full or filter cover
is clogged.
Clean the debris compartment. Flush the screen with water to
remove small particles. If brush is deem necessary, use a soft
brush to clean the screen gently. Note: make sure that the filter
cover is In place before next operation
Suction mouth is clogged
Remove clogged objects from the suction mouth
Filter cover screen is clogged
Flush the screen with water to remove small particles. If brushing
is deemed necessary, use a soft brush to clean the screen
gently.
Rake/ brush is deformed
Lay them under sunlight for a few hours to straighten them. If
necessary, replace with a new rake / brush. If the situation
persists, use only one rake or brush in operation.
Impeller is jammed
Power off the robot and inspect the hole under the swivel head to
see if the impeller is jammed by large debris. If necessary,
contact your dealer for further instructions.
WARNING!Make sure the robot is off before
the unit is serviced.
Swivel head does not turn or
turn noticeably slowly
Side flap does not come up.
Check and remove any debris that hinders the movement of the
flap.
Swivel head bottom is jammed
Detach the swivel head and smoothening-ring in accordance
with instructions of section “How to remove the battery pack”
from the manual, then:
- Remove trapped debris

18

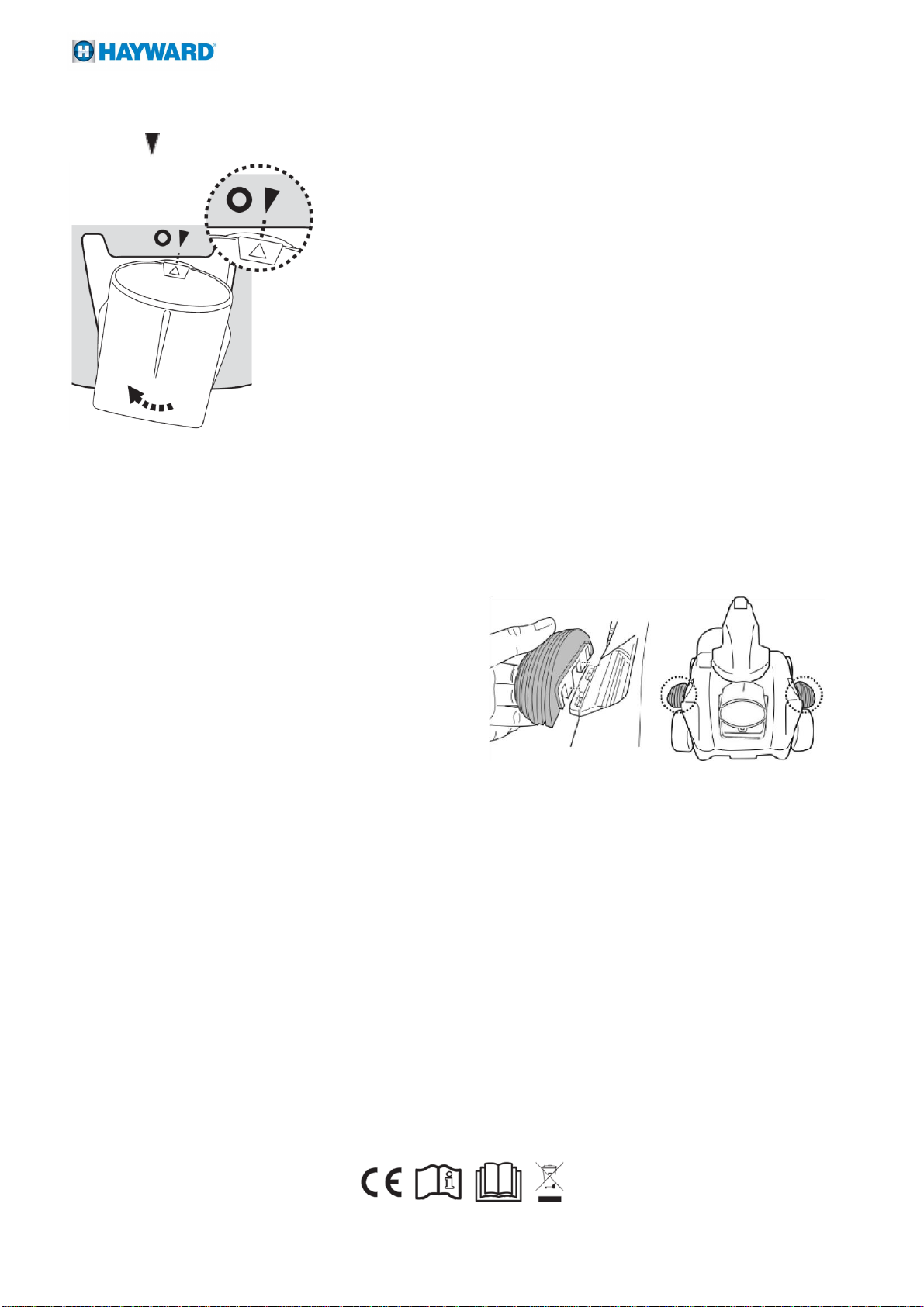

- Verify the smoothening-ring and bottom plate are installed
correctly (refer to below diagrams)
Inspect the smoothening-ring for potential damages and wear
and tear. Replace with a new one if necessary
Debris escapes from the robot
Suction mouth’s flap ( at cleaner bottom)
is damaged
Suction mouth’s flap works like a door to prevent the debris from
escaping from the debris compartment.
Contact dealer for replacement parts and instruction.
Debris clogged at suction mouth and
prevents the flap to close.
Remove clogged debris from the suction mouth.
Debris leaks outside at the
filter cover
Filter cover net is damaged
Replace with a new filter cover. Contact your dealer for
replacement parts.
Float sinks
Float is broken and water leaks in
Replace with a new float. Contact your dealer for replacement
parts.
Robot operation lasts shorter
than advertised
Battery is not fully charged
Charge the robot for at least 6 hrs.
Robot cannot be charged /
recharged
Battery is damaged
Contact dealer for battery replacement.
WARNING! DO NOT replace the battery by
yourself. This could result in severe or fatal injuries and the
warranty will be voided as a result.
Charging base is not completely
connected with the external adaptor
and robot.
Make sure that the charging base is connected with external
adaptor and robot properly and completely.
Refer to instruction manual.
External adaptor is out of order
Contact dealer for replacement.
WARNING!Using the wrong external adaptor
will result in damaging the robot / battery and voiding the
warranty as a result.
SAVE THESE INSTRUCTIONS

19
FCC (US)
Product: Aquavac 200 Series Cleaner
FCC Responsible Party: Hayward Industries, Inc.
400 Connell Drive,Suite 6100
Berkeley Heights, New Jersey
07922 USA
www.hayward.com
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by Hayward could void the user’s authority to
operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio / TV technician for help.
NOTE: This device complies with FCC and IC RF radiation exposure limits set forth for general
population. This device must be installed to provide a separation distance of at least 20cm from
all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter.
ICES (Canada)
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
The term “IC” before the certification / registration number only signifies that the Industry Canada
technical specifications were met.
