HD FIRE PROTECT H3 User manual

:E>5" !# HD 235PAGE 1 OF 17
DESCRIPTION
Deluge Valve is known as a system control valve in
a deluge system, used for fast application of water
in a spray system. Deluge valve protects areas such
as power transformer installation, storage tank,
conveyor protection and other industrial application
etc. With the addition of foaming agent deluge valve
can be used to protect aircraft hanger and
inflammable liquid fire.
VALVE OPERATION
HD Deluge valve is a quick release, hydraulically
operated diaphragm valve. It has three chambers,
isolated from each other by the diaphragm operated
clapper and seat seal. While in SET position, water
pressure is transmitted through an external bypass
check valve and restriction orifice from the system
supply side to the top chamber, so that supply
pressure in the top chamber act across the
diaphragm operated clapper which holds the seat
against the inlet supply pressure because of the
differential pressure design.On detection of fire the
top chamber is vented to atmosphere through the
outlet port via opened actuation devices. The top
chamber pressure cannot be replenished through
the restricted inlet port, and the upward force of
the supply pressure lifts the clapper allowing the
water flow to the system piping network and alarm
devices.
TRIM DESCRIPTION
The trims are functionally termed as Dry Pilot Trim,
Wet Pilot Trim, Electric Trim and Test and Alarm
Trim as per the mehod of actuation of the deluge
valve.
The functionality of these trims is described below..
a) DRYPILOT TRIM (PNEUMATIC RELEASE)
Dry pilot operation uses a pilot line of closed
Sprinkles/QB detectors containing air under
pressure, located in the areato be protected. It
requires regulated dry air supply with main supply
point through restricted orifice. The air pressure
to bemaintained as specified in the catalogue of
Dry Pilot Actuator. The pilot line is connected to
air inlet side of actuator. The top chamber of the
deluge valve is connected to water inlet side of
actuator.
When there is an air pressure drop, or due to
release of any of the release device on detection
of fire, the diaphragm of actuator is lifted and
allows the water to drain. This releases the water
pressure in the top chamber of the deluge valve,
allowing the deluge valve to open and water to
flow into the system piping & alarm devices.
Recommended air supply pressure for dry pilot
trim system is 3.5 kg/sq.cm.
User must install non return valve at air supply
connection to deluge valve trim.
DELUGE VALVE MODEL-H3
(DUCTILE IRON)
TECHNICAL DATA
MODEL H3-Ductile Iron ASTM A
536-77 GRADE 65-45-12
NOMINAL SIZE 200, 150, 100, 80 and
50 NB
SERVICE PRESSURE 1.4 to 17.5 Bar
(20 to 250 PSI)
THREADED OPENING BSPT
MOUNTING Vertical or Horizontal
mounting
FACTORY HYDROSTATIC 35 Kg./sq.cm. (500 PSI)
TEST PRESSURE
FLANGE CONNECTION ANSI B 16.5 #150 RF
(FF-Optional)
WET PILOT SPRINKLER As per graph in the
HEIGHT LIMITATION catalogue
NET WEIGHT 200 NB - 153 Kg
WITHOUT TRIM 150 NB - 79 Kg
100 NB - 50 Kg
80 NB - 35 Kg
50 NB - 32 Kg
FINISH RAL 3000
APPROVAL UL Listed
ORDERING 1. Size of valve
INFORMATION 2. Flange specification
3. Valve trim vertical or
horizontal
4. Trim type
LISTED
9P76
U
L

:E>5" !# PAGE 2 OF 17 HD 235
In dry pilot trim, an actuator (DPA) is provided.
An optional Pneumatic Reset Device (PRD) can
be provided, which acts as a manual reset device
in the dry pilot line.
b) WET PILOT TRIM (HYDRAULIC RELEASE)
Wet pilot operation uses a pilot line of closed
Sprinklers/QB detectors containing pressurized
water, supplied through the upstream side of the
Deluge valve, through a restricted orifice. All the
release lines are connected to a common release
line. Due to release of any one of the release
device, the water pressure in the top chamber
of the Deluge valve drops and the Deluge valve
opens.
c) ELECTRIC RELEASE TRIM
To actuate a Deluge valve electrically, a solenoid
valve is provided to drain the water from the
top chamber of the Deluge valve. A pressure
switch is provided to activate an electric alarm,
to shut down the desired equipment or to give
"Tripped" indication of the Deluge valve. In addition
to this a pressure switch can also monitor "Low
air pressure" and "Fire condition" when used in
dry pilot air line.
d) TEST AND ALARM TRIM
This trim is supplied with a test valve is provided
to test thenormal operation of the sprinkler
alarm bell. The sprinkler alarmcan be supplied
additionally, which bells on actuation of the Deluge
valve.
e) DRAIN AND DRIP TRIM
This consists of main and system drain valve in
addition with drip valve.
TRIM TYPES
The trims are designated as follwing.
W =Wet Pilot trim. D = Dry Pilot Trim
a) Type ET-W and ET-D
This type of trim is basic trim required to operate
the deluge valve. A solenoid valve for electric
remote actuation and pressure switch for
sensing & announciation are optional.
b) Type ETW-D and ETD-D
This trim type is a combination of components
of the ET trim along with the drip and drain trim.
A solenoid valve for electric remote actuation
and pressure switch for sensing & announciation
are optional.
c) Type ETW-T and ETD-T
This trim type is a combination of components of
the ET trims along with the test and alarm trim.
In dry pilot trim, an actuator DPA-H1 is provided
with optional Pneumatic Reset Device (PRD-1).
A solenoid valve for electric remote actuation
and pressure switch for sensing & announciation
are optional.
d) Type NT-W and NT-D
This trim type is a combination of components
of the ET trim along with the test and alarm trim
as well as the drip and drain trim. A solenoid valve
for electric remote actuation and pressure
switch for sensing & announciation are optional.

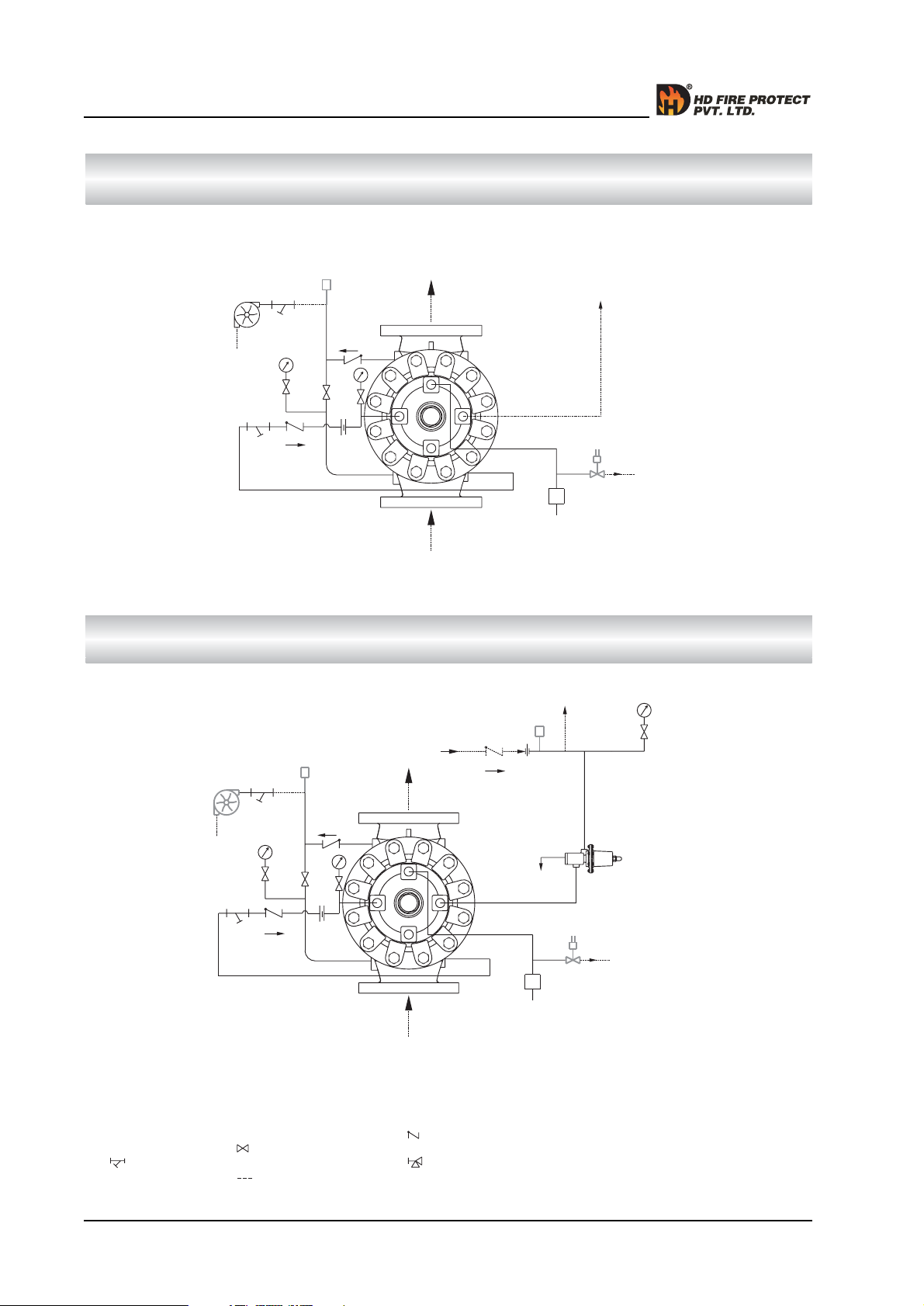

ETW Basic Wet Pilot Trim Vertical Schematic 1
ETD Basic Dry Pilot Trim Vertical Schematic 2
ETW-T Basic Wet Pilot Trim with Test & Alarm Trim Vertical Schematic 3
ETD-T Basic Dry Pilot Trim with Test & Alarm Trim Vertical Schematic 4
ETW-D Basic Wet Pilot Trim with Drip & Drain Trim Vertical Schematic 5
ETD-D Basic Dry Pilot Trim with Drip & Drain Trim Vertical Schematic 6
NTW Basic Wet Pilot Trim with Test & Alarm Trim and Drip & Drain Trim Vertical Schematic 7
NTD Basic Dry Pilot Trim with Test & Alarm Trim and Drip & Drain Trim Vertical Schematic 8

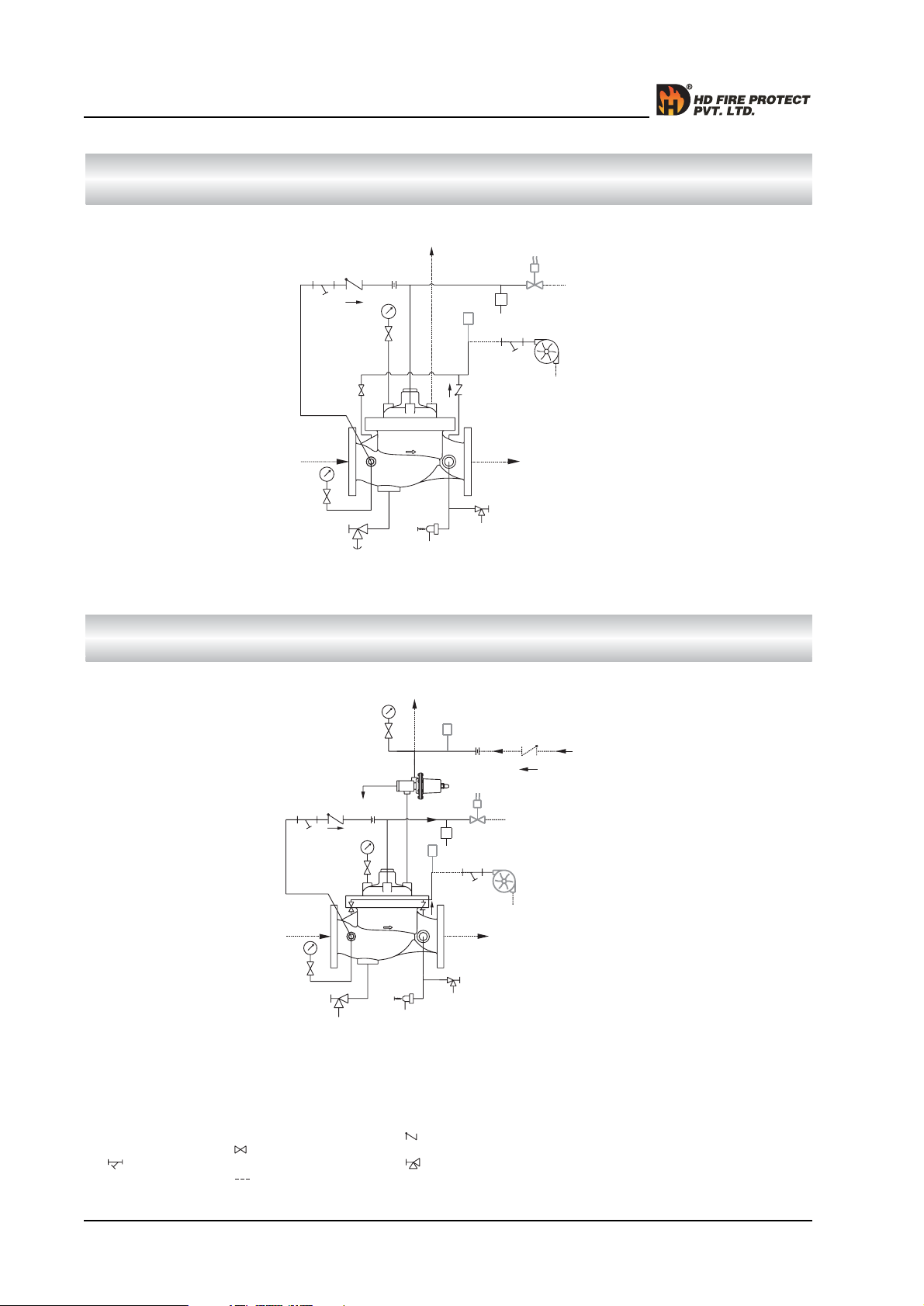

ETW Basic Wet Pilot Trim Horizontal Schematic 9
ETD Basic Dry Pilot Trim Horizontal Schematic 10
ETW-T Basic Wet Pilot Trim with Test & Alarm Trim Horizontal Schematic 11
ETD-T Basic Dry Pilot Trim with Test & Alarm Trim Horizontal Schematic 12
ETW-D Basic Wet Pilot Trim with Drip & Drain Trim Horizontal Schematic 13
ETD-D Basic Dry Pilot Trim with Drip & Drain Trim Horizontal Schematic 14
NTW Basic Wet Pilot Trim with Test & Alarm Trim and Drip & Drain Trim Horizontal Schematic 15
NTD Basic Dry Pilot Trim with Test & Alarm Trim and Drip & Drain Trim Horizontal Schematic 16
TRIM TRIM DESCRIPTION MOUNTING SCHEMATIC
MODEL NO.
NO.

:E>5" !# HD 235PAGE 3 OF 17
RESETTING PROCEDURE FOR THE
DELUGE VALVE
(i) Close the upstream side stop valve provided
below the deluge valve
ii) Open both the drain valves/ drain plugs and close
when the flow of water has ceased
(iii) Close the release device/replace the Sprinkler
if release was through Sprinkler/QB Detector
iv) Inspect and release if required, or close the
section of the detection system subjected to
"Fire condition"
(v) In case of dry pilot detection system, open the
air supply valve to build-up air pressure. Open
the priming valve fully. Open the upstream side
of the stop valve provided below the Deluge
valve. No water should flow into the system
vi) Where priming shut off valve is provided for
resetting, in addition to above steps press the
knob on actuator while resetting
CAUTION
(a) Do not close the priming valve, downstream
and upstream stop valves, while the system is
in service
(b) The releasing device must be maintained in the
open position, when actuated, to prevent the
deluge valve from closure if anti shut off valve
is not provided

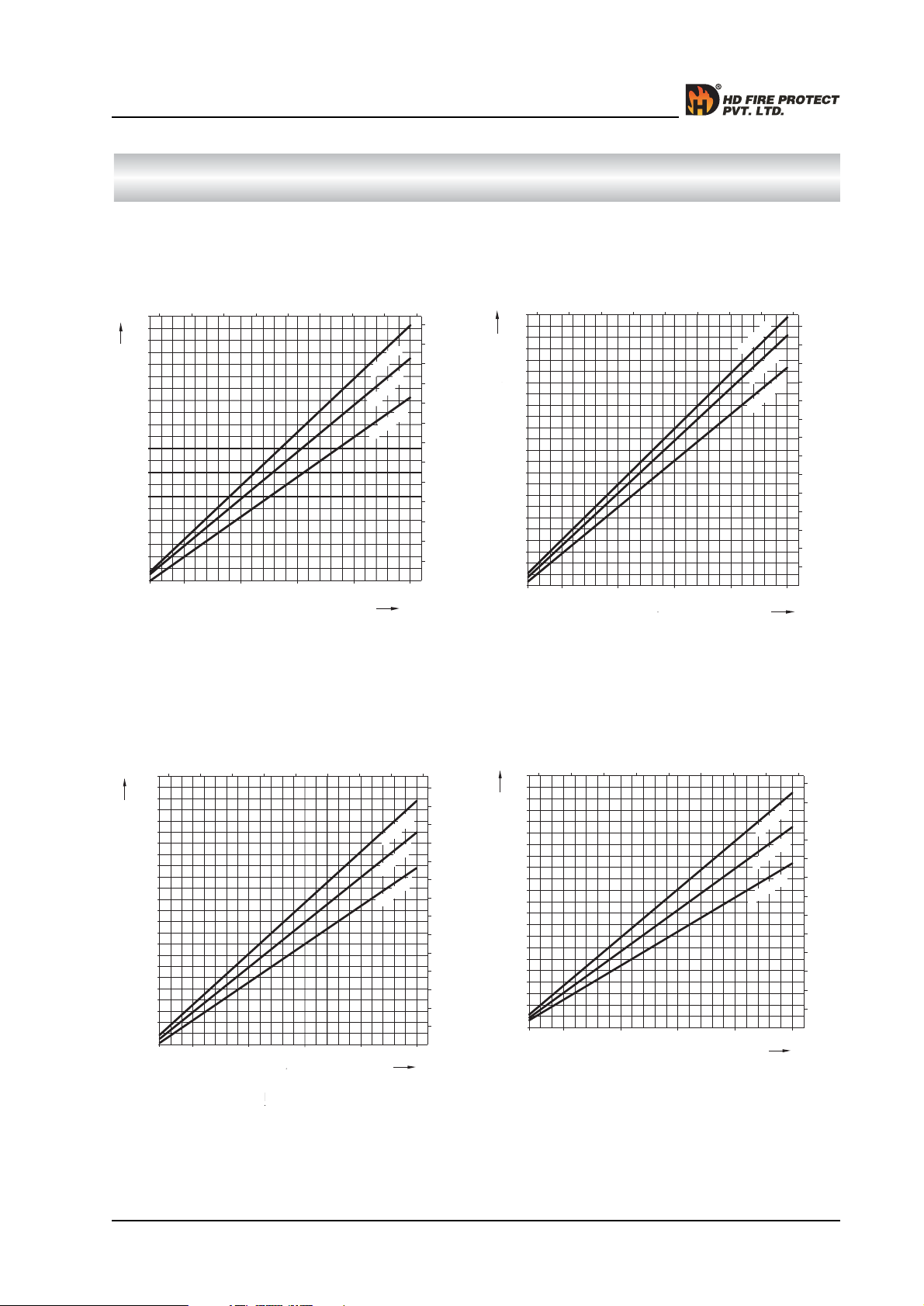

(c) While using a Deluge valve in the wet pilot
system the height and the length of the wet
pilot detection line is to be limited as shown in
the wet pilot sprinkler height limitation graph
(d) Do not connect the Sprinkler Alarm outlet drain
line to close a common drain as it may create
back pressure and Sprinkler Alarm may not
function
(e) Deluge valve must have support to absorb
sudden opening or closing vibration shock to
the piping
(f) To avoid water damage, take precautions when
opening the water supply main control valve,
since water will flow from all open system valves
(g) The responsibility of maintenance of the
protection system and devices in proper
operating condition lies with the owner of the
system
SYSTEM TESTING PROCEDURE
(i) Keep the upstream side of the stop valve
partially open. To avoid water flow to system
side close the system side stop valve. This valve
is to be kept in open position after the testing
is completed
(ii) Let any of the release devices to trip. This will
result in a sudden drop of water pressure in
the deluge valve top chamber which in turn will
open the deluge valve. Close the upstream side
stop valve immediately
(iii) Reset the valve as per the procedure given
under heading "RESETTING PROCEDURE FOR
THE DELUGE VALVE"
INSPECTION AND MAINTENANCE
Installed system piping network must be flushed
properly before placing the Deluge valve in service.
A qualified and trained person must commission the
system. After few initial successful tests, an
authorized person must be trained to perform
inspection and testing of the system. It is
recommended to have regular inspection and test
run of the system as per NFPA guideline or in
accordance to the organisation having local
jurisdiction.
(i) WARNING
Inspection and testing is to be carried out only
by authorised and trained personnel. DO NOT
TURN OFF the water supply or close any valve
to make repair(s) or test the valve, without
placing a roving fire patrol in the area covered
by the system. Also inform the local security
personnel and central alarm station, so that
there is no false alarm signal.
It is recommended to carry out physical
inspection of the system at least twice in a
week. The inspection should verify that all the
control valves are in proper position as per the
system requirement and that there are no
damages to any component.
The frequency of inspections must be increased
in the presence of contaminated water supplies,
corrosive/ scaling water supplies, and corrosive
atmospheres.
(ii) NORMAL CONDITION
(a) All main valves are open and are sealed
with tamper proof seal
(b) Drain valves must be kept closed
(c) No leak or drip is detected from the drip
valve
(d) All the gauges except the system side
water pressure gauge, should show the
required pressure
(e) There should be no leakage in the system
(iii) NORMAL CONDITION TEST
(a) The system should be checked for normal
condition at least once in a week
(b) Test the sprinkler alarm bell or electric
alarm by turning the alarm test valve to
the test position. The alarm should sound.
This test should be carried out at least
once in a week

:E>5" !# PAGE 4 OF 17 HD 235
(c) Depress the drip valve knob. Significant
accumulation indicates a possible seat
leakage
(d) Conduct the water flow test as per the
procedure of system testing at least once
a month
(iv)PERIODIC CHECK
Conduct the water flow test by actuating few of
the release devices provided in the system. Clean
all strainer(s) and priming line restriction. This
test is to be carried out at least once in three
months.
ABNORMAL CONDITION
(i) ALARM FAILS TO SOUND
(a) Check for any obstruction in the alarm
test line, make certain that the sprinkler
alarm is free to operate
(b) If an electric alarm is provided, check the
electrical circuitry to the alarm
(ii) FALSE TRIPS
(a) Check for clogging in priming line,
restriction orifice check valve, priming
valve & strainer
(b) Leakage in the release system
(c) The deluge air panel orifice clogged or low
supply pressure
(iii) LEAKAGE THROUGH THE DELUGE VALVE
(a) Damaged deluge valve seat or obstruction
on the seat face by foreign object
(b) Leakage in release system
(c) Partly clogged priming line restriction
orifice check valve
(d) Low air pressure on release system line
or leakage in release system

:E>5" !# HD 235PAGE 5 OF 17

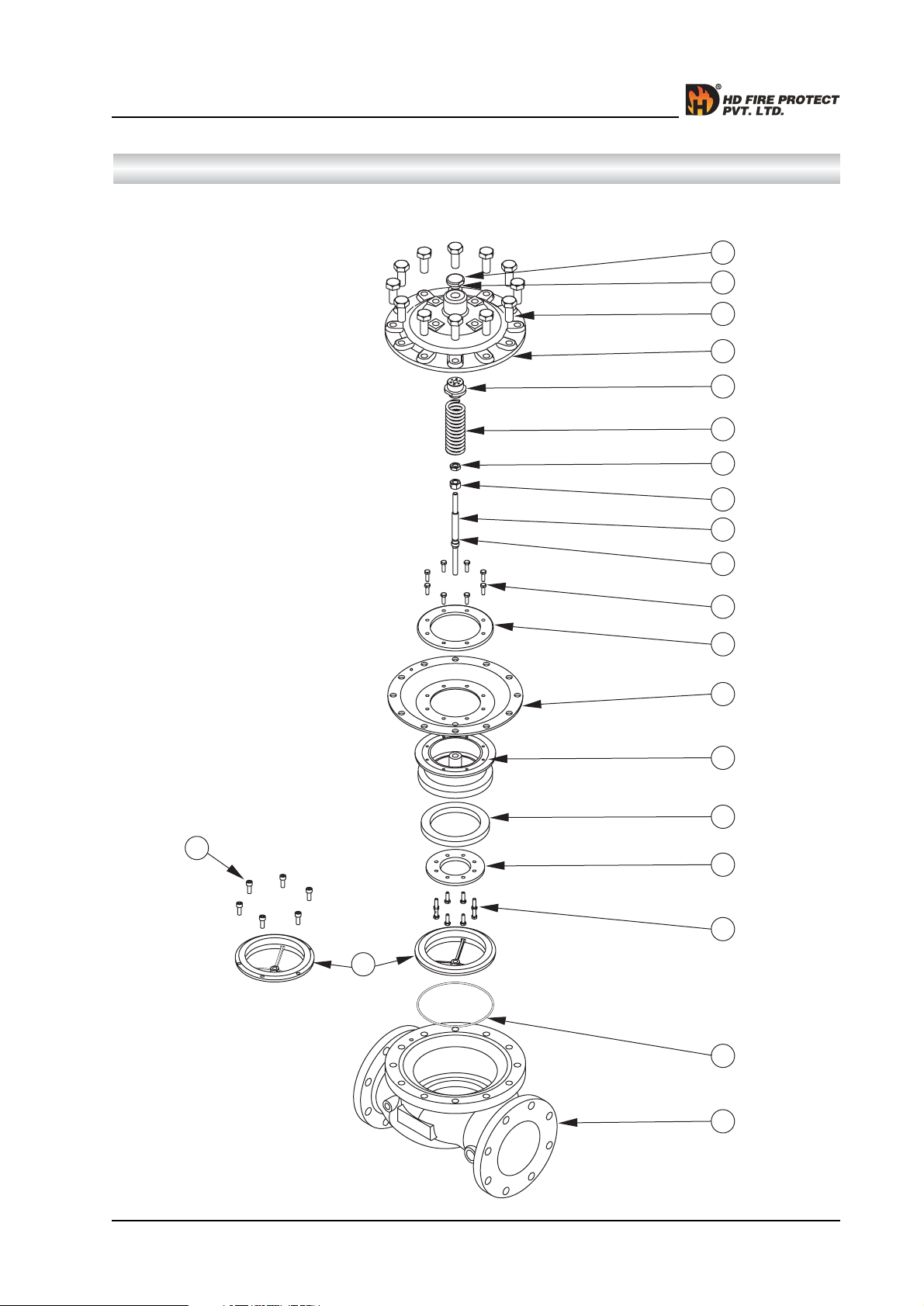

DELUGE VALVE MODEL - H3 SIZE 200 / 150 / 100 / 80/ 50 NB
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
21

:E>5" !# PAGE 6 OF 17 HD 235
DELUGE VALVE MODEL - H3 SIZE 200 / 150 / 100 / 80 / 50 NB
200 NB 552 332
150 NB 462 282
100 NB 412 245
80 NB 372 232
50 NB 320 232
DIMENSION in millimeter (Approximate)
VALVE
NOMINAL A B
SIZE
* Optional Bronze
PART LIST PART NO.
ITEM 200 150 100 80 50 DESCRIPTION 200 150 100 80/50 MATERIAL
NO. NB NB NB NB NB NB NB NB NB SPECIFICATION
QTY.
1 4024 3991 4001 4015 4039 HOUSING 1 1 1 1 DUCTILE IRON
2 8561 9783 9784 9791 9791 “O”RING 1 1 1 1 NEOPRENE
RUBBER
3 4025 3993 4003 4017 4017 SEAT 1 1 1 1 BRONZE
4 9151 9112 9112 - - BOLT 8 4 4 - STAINLESS STEEL
5 4026 3994 4004 4018 4018 RUBBER CLAMP 1 1 1 1 BRONZE
6 4027 4000 4005 4023 4023 RUBBER SEAT 1 1 1 1 NEOPRENE
RUBBER
7 4034 3990 4011 4041 4041 CLAPPER 1 1 1 1 DUCTILE IRON /*
8 4035 2427 2786 2786 2786 DIAPHRGM 1 1 1 1 NEOPRENE
RUBBER
9 4030 2424 2504 2788 2788 CLAMP RING 1 1 1 1 BRONZE
10 8806 9151 9151 9187 9187 BOLT 12 8 8 8 STAINLESS STEEL
11 9986 9986 9986 9986 9986 “O”RING 1 1 1 1 NEOPRENE
RUBBER
12 4029 3996 4007 4020 4020 SPINDLE 1 1 1 1 STAINLESS STEEL
13 9185 8838 8838 9185 9185 NUT 1 1 1 1 STAINLESS STEEL
14 9186 9184 9184 9186 9186 LOCK NUT 1 1 1 1 STAINLESS STEEL
15 2980 2979 2978 2977 2977 SPRING 1 1 1 1 STAINLESS STEEL
16 4033 3998 4010 3983 3983 ADAPTOR 1 1 1 1 BRONZE
17 4032 3992 4002 4016 4016 COVER 1 1 1 1 CAST STEEL
18 9008 9049 9051 8692 8692 BOLT 16 12 12 12 CARBON STEE
19 9982 9982 9982 9982 9982 “O”RING 1 1 1 1 NEOPRENE
RUBBER
20 2514 2514 2514 2514 2514 PLUG 1 1 1 1 STEEL PLATED
21 8843 - - - - ALLEN BOLT 6 - - - STAINLESS STEEL

:E>5" !# HD 235PAGE 7 OF 17
SCHEMATIC FOR DRY PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR VERTICAL MOUNTING
SCHEMATIC FOR WET PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR VERTICAL MOUNTING
DV – DELUGE VALVE G – SPRINKLER ALARM (WMG) – SWING CHECK VALVE M – EMERGENCY RELEASE STATION
OD – OPEN DRAIN – VALVE RN – RESTRICTION NOZZLE –
– STRAINER SV – SOLENOID VALVE – ANGLE VALVE PG –
DR.V – DRIP VALVE – BY USER P 1 – LOW AIR ALARM PRESSURE SWITCH –
P 2 – WATER FLOW PRESSURE ALARM SWITCH RN-A – RESTRICTION NOZZLE (AIR LINE)
S
S
(PRIMING LINE) DPA DRY PILOT ACTUATOR
PRESSURE GAUGE
OPTIONAL
**
PG
~
M
OD
INLET
SCV
PG
OUTLET
LINE
TO DETECTION
RN
OD
DV
SV
**
~
ETW
PS2
**
PG
~
M
OD
INLET
SCV
PS1
PG
PG
OUTLET
DPA
RN-A
AIR SUPPLY
LINE
TO DETECTION
**
RN
OD
OD
DV
SV
**
~
SCV
ETD
PS2
**
SCHEMATIC 1
SCHEMATIC 2

:E>5" !# PAGE 8 OF 17 HD 235
SCHEMATIC FOR WET PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR VERTICAL MOUNTING
SCHEMATIC FOR DRY PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR VERTICAL MOUNTING
DV – DELUGE VALVE G – SPRINKLER ALARM (WMG) – SWING CHECK VALVE M – EMERGENCY RELEASE STATION
OD – OPEN DRAIN – VALVE RN – RESTRICTION NOZZLE –
– STRAINER SV – SOLENOID VALVE – ANGLE VALVE PG –
DR.V – DRIP VALVE – BY USER P 1 – LOW AIR ALARM PRESSURE SWITCH –
P 2 – WATER FLOW PRESSURE ALARM SWITCH RN-A – RESTRICTION NOZZLE (AIR LINE)
S
S
(PRIMING LINE) DPA DRY PILOT ACTUATOR
PRESSURE GAUGE
OPTIONAL
**
PG
~
M
SCV
PG
LINE
TO DETECTION
RN
OD
DV
SV
**
~
G
OD
PS2
**
SCV
ETWT
INLET
OUTLET
OD
**
PG
~
M
OD
PG
DPA
LINE
TO DETECTION
RN
OD
OD
DV
~
G
OD
PS2
**
SCV
ETDT
INLET
OUTLET
SCV
PG
SV
**
SCV
**
PS1
**
AIR SUPPLY
RN-A
SCHEMATIC 3
SCHEMATIC 4

:E>5" !# HD 235PAGE 9 OF 17
SCHEMATIC FOR WET PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR VERTICAL MOUNTING
SCHEMATIC FOR DRY PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR VERTICAL MOUNTING
DV – DELUGE VALVE G – SPRINKLER ALARM (WMG) – SWING CHECK VALVE M – EMERGENCY RELEASE STATION
OD – OPEN DRAIN – VALVE RN – RESTRICTION NOZZLE –
– STRAINER SV – SOLENOID VALVE – ANGLE VALVE PG –
DR.V – DRIP VALVE – BY USER P 1 – LOW AIR ALARM PRESSURE SWITCH –
P 2 – WATER FLOW PRESSURE ALARM SWITCH RN-A – RESTRICTION NOZZLE (AIR LINE)
S
S
(PRIMING LINE) DPA DRY PILOT ACTUATOR
PRESSURE GAUGE
OPTIONAL
**
PG
~
M
OD
SCV
PG
LINE
TO DETECTION
RN
OD
DV
SV
**
~
DR.V
OD
OD
~
OD
ETWD
INLET
OUTLET
PS2
**
PG
~
M
OD
PG
DPA
LINE
TO DETECTION
RN
OD
OD
DV
~
DR.V
OD
OD
~
OD
ETDD
OUTLET
SCV
PG
SV
**
SCV
PS1
**
AIR SUPPLY
RN-A
PS2
**
INLET
SCHEMATIC 5
SCHEMATIC 6

:E>5" !# PAGE 10 OF 17 HD 235
SCHEMATIC FOR WET PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR VERTICAL MOUNTING
SCHEMATIC FOR DRY PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR VERTICAL MOUNTING
DV – DELUGE VALVE G – SPRINKLER ALARM (WMG) – SWING CHECK VALVE M – EMERGENCY RELEASE STATION
OD – OPEN DRAIN – VALVE RN – RESTRICTION NOZZLE –
– STRAINER SV – SOLENOID VALVE – ANGLE VALVE PG –
DR.V – DRIP VALVE – BY USER P 1 – LOW AIR ALARM PRESSURE SWITCH –
P 2 – WATER FLOW PRESSURE ALARM SWITCH RN-A – RESTRICTION NOZZLE (AIR LINE)
S
S
(PRIMING LINE) DPA DRY PILOT ACTUATOR
PRESSURE GAUGE
OPTIONAL
**
PG
~
M
OD
SCV
PG
RN
OD
DV
SV
**
~
G
OD
PS2
**
DR.V
OD
OD
~
OD
LINE
TO DETECTION
SCV
NTW
INLET
OUTLET
**
PG
~
M
OD
RN
OD
DV
~
G
OD
PS2
**
PG
DR.V
DPA
LINE
TO DETECTION
OD
OD
OD
~
OD
SCV
NTD
INLET
OUTLET
SCV
PG
SV
**
SCV
**
PS1
**
AIR SUPPLY
RN-A
SCHEMATIC 7
SCHEMATIC 8

:E>5" !# HD 235PAGE 11 OF 17
SCHEMATIC FOR DRY PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR HORIZONTAL MOUNTING
SCHEMATIC FOR WET PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR HORIZONTAL MOUNTING
DV – DELUGE VALVE G – SPRINKLER ALARM (WMG) – SWING CHECK VALVE M – EMERGENCY RELEASE STATION
OD – OPEN DRAIN – VALVE RN – RESTRICTION NOZZLE –
– STRAINER SV – SOLENOID VALVE – ANGLE VALVE PG –
DR.V – DRIP VALVE – BY USER P 1 – LOW AIR ALARM PRESSURE SWITCH –
P 2 – WATER FLOW PRESSURE ALARM SWITCH RN-A – RESTRICTION NOZZLE (AIR LINE)
S
S
(PRIMING LINE) DPA DRY PILOT ACTUATOR
PRESSURE GAUGE
OPTIONAL
**
INLET
PG
OUTLET
PG
OD
SV
M
OD
**
RN
SCV
~
~
LINE
ETW
TO DETECTION
DV
PS2
**
INLET
PG
OUTLET
TO DETECTION
PG
LINE
PG
OD
DPA
SV
M
OD
**
RN
~
OD
~
SCV
ETD
PS1
**
AIR SUPPLY
RN-A
DV
PS2
**
SCHEMATIC 9
SCHEMATIC 10

:E>5" !# PAGE 12 OF 17 HD 235
SCHEMATIC FOR WET PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR HORIZONTAL MOUNTING
SCHEMATIC FOR DRY PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR HORIZONTAL MOUNTING
DV – DELUGE VALVE G – SPRINKLER ALARM (WMG) – SWING CHECK VALVE M – EMERGENCY RELEASE STATION
OD – OPEN DRAIN – VALVE RN – RESTRICTION NOZZLE –
– STRAINER SV – SOLENOID VALVE – ANGLE VALVE PG –
DR.V – DRIP VALVE – BY USER P 1 – LOW AIR ALARM PRESSURE SWITCH –
P 2 – WATER FLOW PRESSURE ALARM SWITCH RN-A – RESTRICTION NOZZLE (AIR LINE)
S
S
(PRIMING LINE) DPA DRY PILOT ACTUATOR
PRESSURE GAUGE
OPTIONAL
**
INLET
PG
OUTLET
PG
OD
SV
M
OD
**
RN
SCV
~
~
TO DETECTION
LINE
PS2
**
G
~
OD
SCV
ETWT
**
DV
INLET
PG
OUTLET
TO DETECTION
PG
LINE
PG
OD
DPA
SV
M
OD
**
RN
~
OD
~
G
~
OD
PS2
**
SCV
ETDT
PS1
**
AIR SUPPLY
**
RN-A
DV
SCHEMATIC 11
SCHEMATIC 12

:E>5" !# HD 235PAGE 13 OF 17
SCHEMATIC FOR WET PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR HORIZONTAL MOUNTING
SCHEMATIC FOR DRY PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR HORIZONTAL MOUNTING
DV – DELUGE VALVE G – SPRINKLER ALARM (WMG) – SWING CHECK VALVE M – EMERGENCY RELEASE STATION
OD – OPEN DRAIN – VALVE RN – RESTRICTION NOZZLE –
– STRAINER SV – SOLENOID VALVE – ANGLE VALVE PG –
DR.V – DRIP VALVE – BY USER P 1 – LOW AIR ALARM PRESSURE SWITCH –
P 2 – WATER FLOW PRESSURE ALARM SWITCH RN-A – RESTRICTION NOZZLE (AIR LINE)
S
S
(PRIMING LINE) DPA DRY PILOT ACTUATOR
PRESSURE GAUGE
OPTIONAL
**
INLET
PG
TO DETECTION
PG
LINE
PG
OD
DPA
SV
M
OD
**
RN
~
OD
~
OD
~
OD
DR.V
~
OD
SCV
ETDD
PS1
**
AIR SUPPLY
RN-A
DV
PS2
**
OUTLET
INLET
PG
OUTLET
PG
OD
SV
M
OD
**
RN
SCV
~
~
TO DETECTION
LINE
OD
~
OD
DR.V
~
OD
ETWD
DV
PS2
**
SCHEMATIC 13
SCHEMATIC 14

:E>5" !# PAGE 14 OF 17 HD 235
SCHEMATIC FOR WET PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR HORIZONTAL MOUNTING
SCHEMATIC FOR DRY PILOT BASIC TRIM FOR DELUGE VALVE
MODEL - H3 FOR HORIZONTAL MOUNTING
DV – DELUGE VALVE G – SPRINKLER ALARM (WMG) – SWING CHECK VALVE M – EMERGENCY RELEASE STATION
OD – OPEN DRAIN – VALVE RN – RESTRICTION NOZZLE –
– STRAINER SV – SOLENOID VALVE – ANGLE VALVE PG –
DR.V – DRIP VALVE – BY USER P 1 – LOW AIR ALARM PRESSURE SWITCH –
P 2 – WATER FLOW PRESSURE ALARM SWITCH RN-A – RESTRICTION NOZZLE (AIR LINE)
S
S
(PRIMING LINE) DPA DRY PILOT ACTUATOR
PRESSURE GAUGE
OPTIONAL
**
OD
~
OD
DR.V ~
OD
INLET OUTLET
NTW
PG
OD
SV
M
OD
**
RN
SCV
~
~
TO DETECTION
LINE
PS2
**
G
~
OD
SCV
**
DV
PG
OD
~
DR.V
PG
~
OD
TO DETECTION
PG
LINE
PG
OD
DPA
M
OD
RN
PS2
**
SV
**
~
OD
~
INLET OUTLET
G
~
OD
SCV
NTD
PS1
**
AIR SUPPLY
**
RN-A
~
DV
SCHEMATIC 15
SCHEMATIC 16

:E>5" !# HD 235PAGE 15 OF 17
SPRINKLER HEIGHT LIMITATION
DV 150NB
60
20
20
40
120
80
100
140
EQUIVALENT LENGTH BASED ON 1/2" SCHEDULE 40 PIPE WITHC=120
SYSTEM SUPPLY PRESSURE - PSI
DV 150NB
5
10
15
20
25
30
35
40
METERS
2 4 6 8 10 12
KG/SQCM
160
180
200
14 16 18
45
50
55
60
50 100 150 200 250
0
220.
240
65
70
MAXIMUM PILOT LINE HEIGHT - FEET
25 FEET
250 FEET
500 FEET
DV 200NB
60
20
20
40
120
80
100
140
EQUIVALENT LENGTH BASED ON 1/2" SCHEDULE 40 PIPE WITHC=120
SYSTEM SUPPLY PRESSURE - PSI
MAXIMUM PILOT LINE HEIGHT - FEET
DV 200NB
5
10
15
20
25
30
35
40
METERS
2 4 6 8 10 12
KG/SQCM
160
180
200
14 16 18
45
50
55
60
50 100 150 200 250
0
220.
65
25 FEET
250 FEET
500 FEET
DV 100NB DV 80NB
60
20
20
40
120
80
100
140
EQUIVALENT LENGTH BASED ON 1/2" SCHEDULE 40 PIPE WITHC=120
SYSTEM SUPPLY PRESSURE - PSI
DV 100NB
5
10
15
20
25
30
35
40
METERS
40
2 4 6 8 10 12
KG/SQCM
160
180
200
14 16 18
45
50
55
60
50 100 150 200 250
0
220.
240
65
70
MAXIMUM PILOT LINE HEIGHT - FEET
25 FEET
250 FEET
500 FEET
60
20
20
40
120
80
100
140
EQUIVALENT LENGTH BASED ON 1/2" SCHEDULE 40 PIPE WITHC=120
SYSTEM SUPPLY PRESSURE - PSI
DV 80NB
5
10
15
20
25
30
35
METERS
40
24681012
KG/SQCM
160
180
200
14 16 18
45
50
55
60
50 100 150 200 250
0
220. 65
MAXIMUM PILOT LINE HEIGHT - FEET
25 FEET
250 FEET
500 FEET

:E>5" !# PAGE 16 OF 17 HD 235
60
20
20
40
120
80
100
140
EQUIVALENT LENGTH BASED ON 1/2" SCHEDULE 40 PIPE WITH C = 120
SYSTEM SUPPLY PRESSURE - PSI
DV 50NB
5
10
15
20
25
30
35
METERS
40
2 4 6 8 10 12
KG/SQCM
160
180
200
14 16 18
45
50
55
60
50 100 150 200 250
0
220. 65
MAXIMUM PILOT LINE HEIGHT - FEET
25 FEET
250 FEET
500 FEET
DV - 50NB
SPRINKLER HEIGHT LIMITATION
DELUGE VALVE MODEL H3
50 NB ( 2 INCH )
80 NB ( 3INCH )
100 NB ( 4 INCH )
150NB(6INCH)
200NB(8INCH)
*
**
**
0.1
0.2
0.3
0.4
0.5
0.6
0.8
1.0
2
3
4
5
6
8
10
20
30
40
100 1000 800
600400300200 2000 10000 20000700050003000
Flow Rate in Liters Per Minute (LPM)
* 2.3 PSI pressure loss @ 15 feet per second (4.57 met/sec) velocity having flow of 594 LPM thru 50 NB DV
* 4.7 PSI pressure loss @ 15 feet per second (4.57 met/sec) velocity having flow of 1308 LPM thru 80 NB DV
* 4.7 PSI pressure loss @ 15 feet per second (4.57 met/sec) velocity having flow of 2255 LPM thru 100 NB DV
* 7.5 PSI pressure loss @ 15 feet per second (4.57 met/sec) velocity having flow of 5117 LPM thru 150 NB DV
*
8.4 PSI pressure loss @ 15 feet per second (4.57 met/sec) velocity having flow of 8854 LPM thru 200 NB DV
Nominal Pressure Loss in Pounds per Square Inch (PSI)
( * flow at 15 feet per second ( 4.57 meter per second)
Nominal Pressure Loss vs Flow

:E>5" !# HD 235PAGE 17 OF 17
NOTICE :
The equipment presented in this bulletin is to be installed in accordance with the latest publication standards of NFPA or other similar organisations
and also with the provision of government codes or ordinances wherever applicable.
The information provided by us are to the best of our knowledge and belief, and are general guidelines only. Site handling and installation control is beyond
our reach. Hence we give no guarantee for result and take no liability for damages, loss or penalties whatsoever, resulting from our suggestion,
information, recommendation or damages due to our product.
Product development is a continuous programme of HD FIRE PROTECT PVT. LTD. and hence the right to modify any specification without prior notice is
reserved with the company.
C-3/6, THE NANDANVAN IND. ESTATE, L.B.S. MARG, THANE 400 604., INDIA.
PHONES : + (91) 22 2583 5434 2582 6958 2582 6793
FAX : +(91) 22 2581 2524 6796 9049
EMAIL : [email protected] WEBSITE : www.hdfire.com
LIMITED WARRANTY
HD FIRE PROTECT PVT. LTD. hereby referred to as HD FIRE warrants to the original purchaser of the fire protection products manufactured by HD
FIRE and to any other person to whom such equipment is transferred, that such products will be free from defect in material and workmanship under
normal use and care, for two (2) years from the date of shipment by HD FIRE. Products or Components supplied or used by HD FIRE, but manufactured
by others, are warranted only to the extent of the manufacturer’s warranty. No warranty is given for product or components which have been
subject to misuse, improper installation, corrosion, unauthorized repair, alteration or un-maintained. HD FIRE shall not be responsible for system
design errors or improper installation or inaccurate or incomplete information supplied by buyer or buyer’s representatives.
HD FIRE will repair or replace defective material free of charge, which is returned to our factory, transportation charge prepaid, provided after our
inspection the material is found to have been defective at the time of initial shipment from our works. HD FIRE shall not be liable for any incidental
or consequential loss, damage or expense arising directly or indirectly from the use of the product including damages for injury to person, damages
to property and penalties resulting from any products and components manufactured by HD FIRE. HD FIRE shall not be liable for any damages or
labour charges or expense in making repair or adjustment to the product. HD FIRE shall not be liable for any damages or charges sustained in the
adaptation or use of its engineering data & services. In no event shall HD Fire’s product liability exceed an amount equal to the sale price.
The foregoing warranty is exclusive and in lieu of all other warranties and representation whether expressed, implied, oral or written, including but
not limited to, any implied warranties or merchantability or fitness for a particular purpose. All such other warranties and representations are
hereby cancelled.
