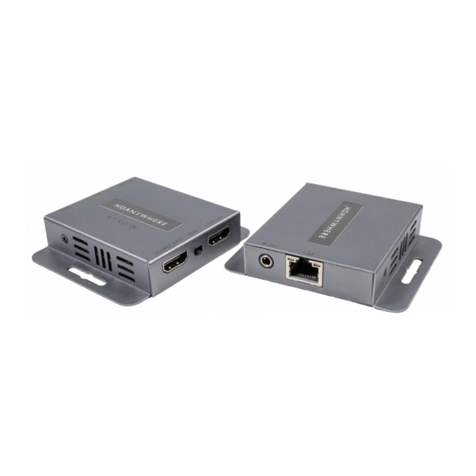

HDanywhere 2.50.716 User manual

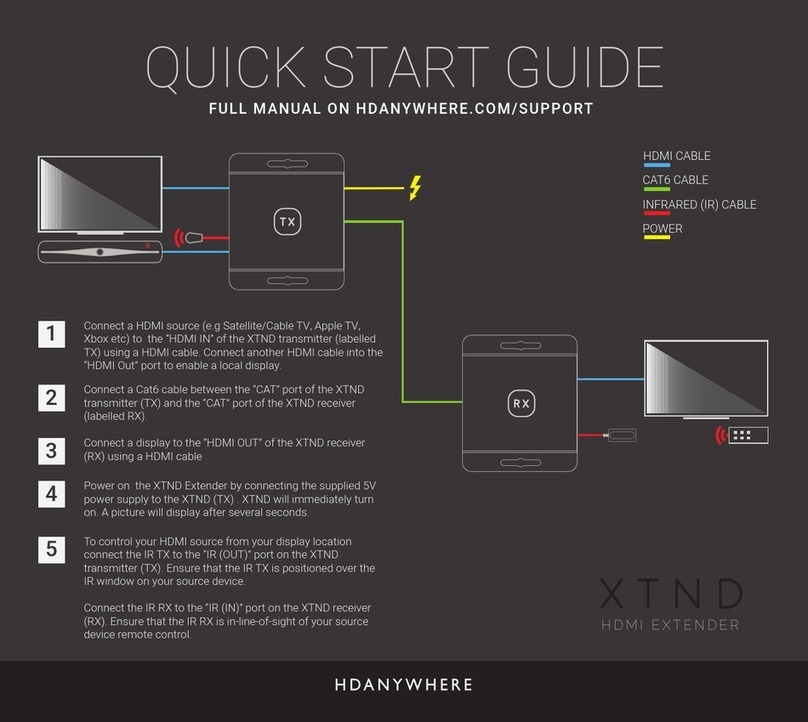

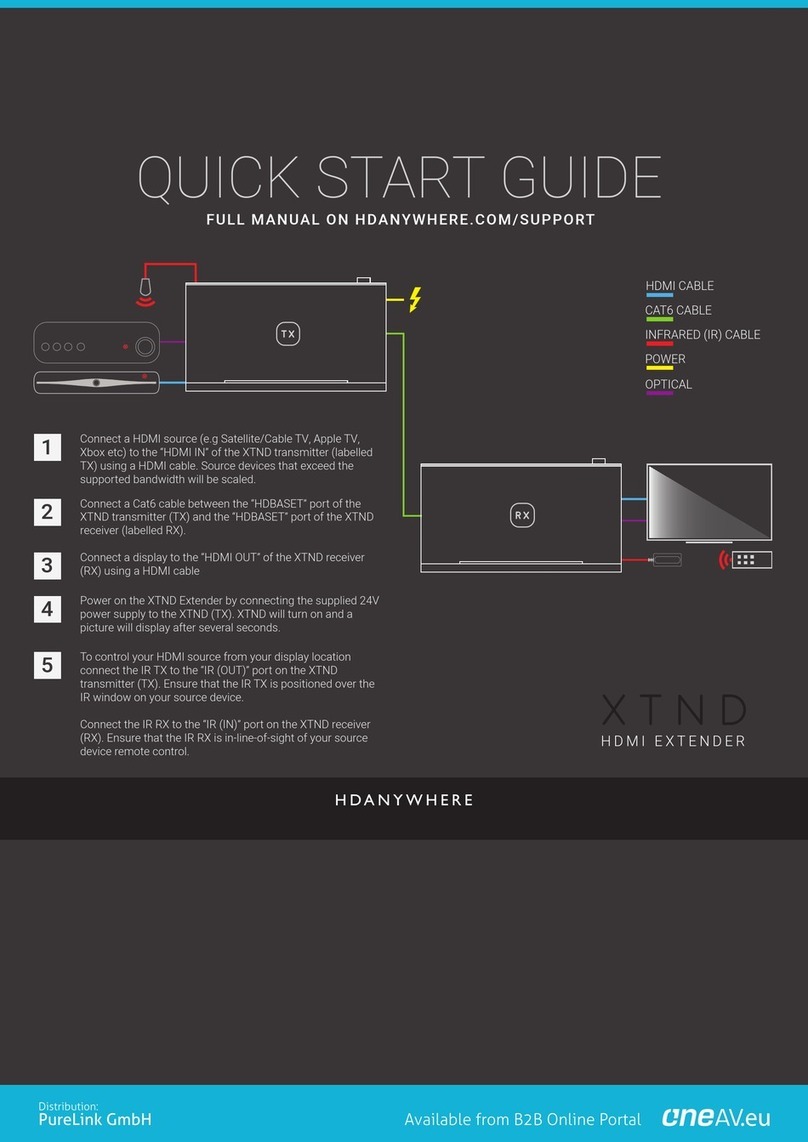

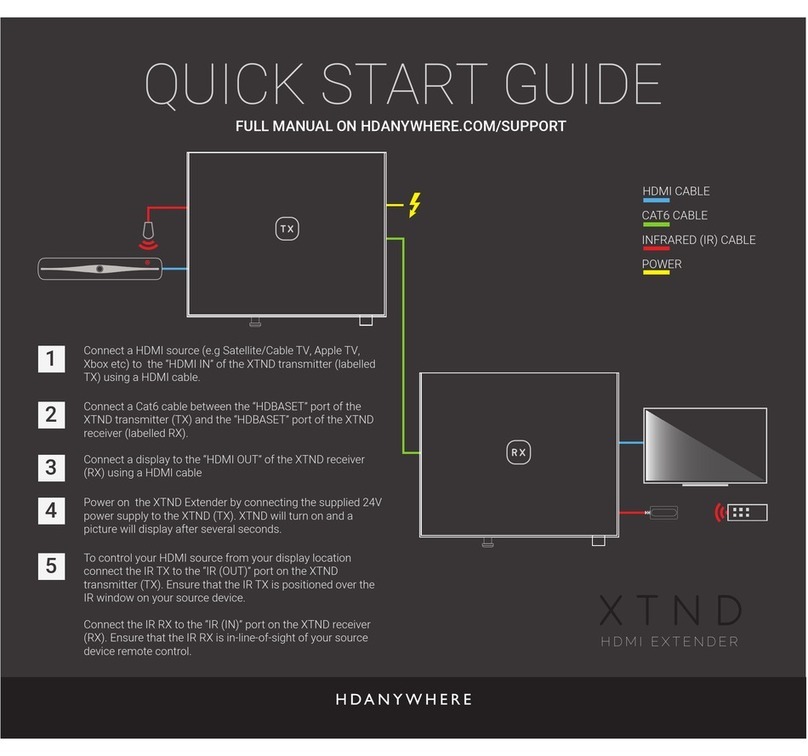

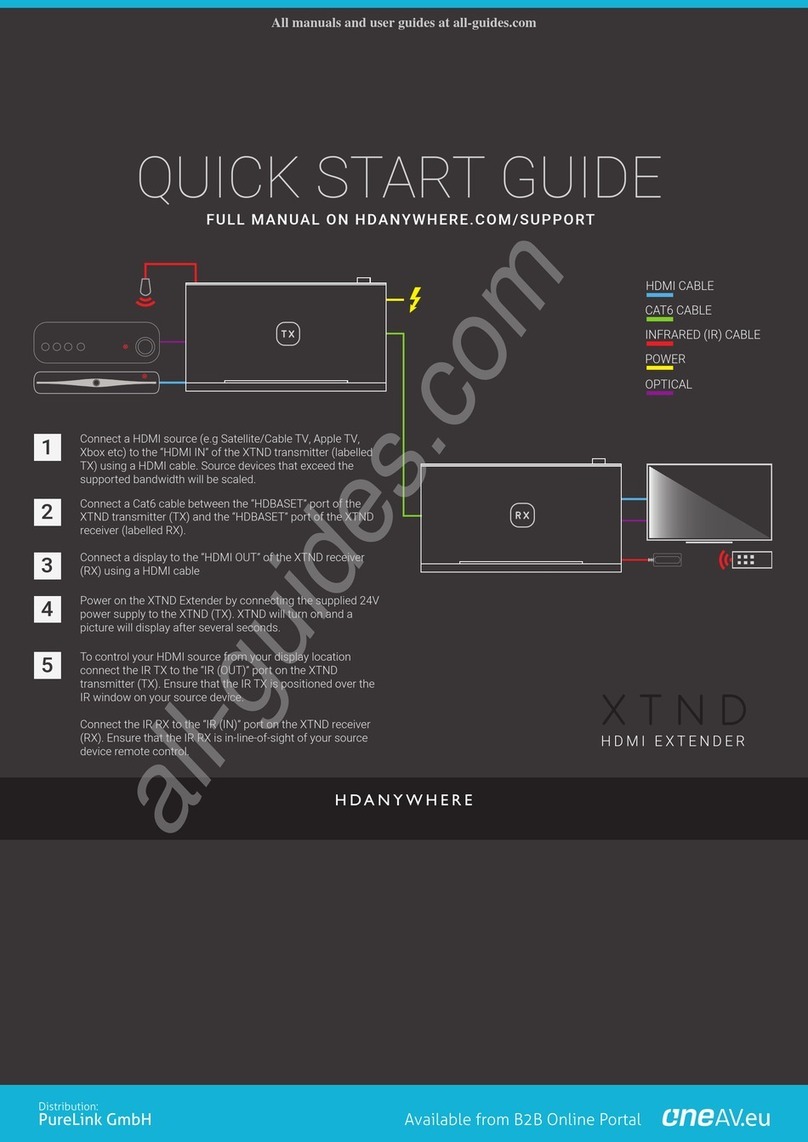

QUICK START GUIDE
HDMI CABLE
CAT6 CABLE
INFRARED (IR) CABLE
POWER
1Connect a HDMI source (e.g Satellite/Cable TV, Apple TV,
Xbox etc) to the “HDMI IN” of the XTND transmitter
(labelled TX) using a HDMI cable. Connect another HDMI
cable into the “HDMI Out” port to enable a local display.
2Connect a Cat6 cable between the “CAT” port of the XTND
transmitter (TX) and the “CAT” port of the XTND receiver
(labelled RX).
3Connect a display to the “HDMI OUT” of the XTND receiver
(RX) using a HDMI cable
4Power on the XTND Extender by connecting the supplied
5V power supply to the XTND (TX) and (RX). XTND will turn
on and a picture will display after several seconds.
5To control your HDMI source from your display location
connect the IR TX to the “IR (OUT)” port on the XTND
transmitter (TX). Ensure that the IR TX is positioned over
the IR window on your source device.
Connect the IR RX to the “IR (IN)” port on the XTND
receiver (RX). Ensure that the IR RX is in-line-of-sight of
your source device remote control.
HDMI EXTENDER
FULL MANUAL ON HDANYWHERE.COM/SUPPORT
Distribution:
PureLink GmbH Available from B2B Online Portal

CAT6 RESOLUTION/DISTANCE GUIDE
IN THE BOX
INFRARED (IR) CABLE
HD
INSTALL AT SOURCE LOCATION
0m
0ft
10m
32ft
20m
65ft
30m
98ft
40m
131ft
50m
164ft
60m
197ft
70m
230ft
80m
262ft
90m
295ft
100m
328ft
INSTALL AT DISPLAY LOCATION POWER
2x IR RX
2x 5V 1A PSU
1x XTND RECEIVER (RX)
1x XTND TRANSMITTER (TX)
4x MOUNTING WINGS
2x IR TX
FULL MANUAL ON HDANYWHERE.COM/SUPPORT
Distribution:
PureLink GmbH Available from B2B Online Portal
