Hdav Hd?c5s4 User manual



HDMIAudio&VideoSingle

CAT5/RJ45ExtenderKit

UserManual

(HD‐C5S4)



[MustbeusedwithSolidCAT5eorCAT6Cable]



Allinformationissubjecttochangewithoutnotice.

Allnames&trademarksarepropertyoftheirrespectiveowners.

Rev.1108



MadeinTaiwan

SafetyandNotice

TheHD‐C5S4HDMIAudio&VideoSingleCAT5/RJ45ExtenderKithasbeentestedforconformanceto

safetyregulationsandrequirements,andhasbeencertifiedforinternationaluse.However,likeall

electronicequipments,theHD‐C5S4shouldbeusedwithcare.Pleasereadandfollowthesafety

instructionstoprotectyourselffrompossibleinjuryandtominimizetheriskofdamagetotheunit.



zFollowallinstructionsandwarningsmarkedonthisunit.

zDonotattempttoservicethisunityourself,exceptwhereexplainedinthismanual.

zProvideproperventilationandaircirculationanddonotusenearwater.

zKeepobjectsthatmightdamagethedeviceandassurethattheplacementofthisunitisonastable

surface.

zUseonlythepoweradapterandpowercordsandconnectioncablesdesignedforthisunit.

zDonotuseliquidoraerosolcleanerstocleanthisunit.Alwaysunplugthepowertothedevicebefore

cleaning.

TableofContents

◇ INTRODUCTION……………………………..………………..…………………………………………………..p.2

◇ PANELDESCRIPTION………………………..…………………………….…………………………………..p.4

◇ HARDWAREINSTALLATION………………………….……………………………………………………..p.6

◇ EDIDLEARNING………………………….……………………..……………………..………………………..p.6

◇ CONNECTIONDIAGRAM…………..…………………….…………………………………………………..p.7

◇ PINDEFINITION…………………………………………….………….…………………………………………p.8

◇ NOTICE……………………………………………………………………………………………………………….p.9

INTRODUCTION

TheHD‐C5S4HDMIAudio&VideoSingleCAT5/RJ45ExtenderKitboostsupyourvideo/audio

transmissiondistanceupto60m(200ft)inHDTV1080iformat,40m(130ft)inHDTV1080pformat,and

20m(65ft)inHDTV1080pwith36‐bitcolordepth.HD‐C5S4alsosupportsthemostadvanced3Dvideo

formatcomplaintwithHDMIandthereforeguaranteesthehighest3Dvideocompatibilityonthemarket.

WithonlyonecosteffectiveCat.5/5e/6cable,userscanreadilyextendHDTVsourcesfromDVDplayers,

Blu‐rayDiscplayer,PS3,PC,andanyotherkindsofsourcescompliantwithTMDStodistantdisplay

monitorsincludingHDMIorDVIenabledTVsetsorLCDPCmonitors.Withtheadvanceddesignforthe

latestHDMItechnology,deepcolorvideo,DTS‐HDMasterAudioorDolbyTrueHDaudio,andHDCP

supportsandcompatibilityareallfurtherinsured.ThisflexibilitymakesHDCPcompliantDVDplayersorPS3

transmitutmosthighqualityvideoandaudiowithagreaterdistanceattheminimalcost,whenintegrating

severalcomponentsapart.Inaddition,HD‐C5S4isalsoequippedwithbi‐directionalIRpass‐throughpath.

ThisbonusfeatureallowsuserstoboostIRcontroldistanceupto100m(330ft)andmakesIRcontrol

possiblethroughonlysingleCat.5/5e/6cableincludingHDMIsignals.

TheHD‐C5S4includestwounits:transmittingunitofHD‐C5S4andreceivingunitofHD‐C5S4.The

transmittingunitisusedtocapturetheinputHDMI/DVIsignalswithIRcontrolpacketsandcarrythe

signalsviaonecosteffectiveCat.5/5e/6cable.Thereceivingunitisresponsibleforequalizingthe

transmittedHDMIsignalandreconstructingIRsignals.Thetransmissiondistancebetweenthesendingand

receivingunitscanbeupto60m(200ft)atHD720por1080i;or40m(130ft)atFullHD1080p.Withan

8‐levelequalizationrotarycontrolonthereceivingunit,userscanadjusttheequalizationstrengthtothe

receivedHDMIsignalsaccordingly,andthereforeoptimizethetransmissiondistancebetweensourceand

destination.



Features

zSupportHDMIDeepColor&full3D

zExtendthetransmissionupto60m(200ft)fromtheHDMIsourceatHD1080ior720p24‐bit

zExtendthetransmissionupto40m(130ft)fromtheHDMIsourceatFullHD1080p24‐bit

zExtendthetransmissionupto20m(65ft)fromtheHDMIsourceatFullHD1080p36‐bit

zHDCP1.1compliant

zMinimizethecableskewbyadjustable8‐levelequalizationcontrol

zPureunaltereduncompressed7.1chdigitalHDMIoverCat.5/5e/6cabletransmission

zDTS‐HDMasterAudioandDolbyTrueHDhighbitrateaudiosupport

zAllowscascading

zWallmountinghousingdesignforeasyandrobustinstallation

zPerfectlyintegratedwithotherHDMIoverCat.Xseriesproducts



Theclaimedtransmissiondistancehereissubjecttothegradeofinstalledcable(s),sourcedeviceand

display.

ForoverCAT.Xtransmission,thecable(s)hastobesolid,notstranded.Anykeystonejackalongthe

transmissionpathwillkillthetransmissionperformancesignificantly!

Specifications&PackageContents

ModelNameHD‐C5S4

Technical

RoleofusageTransmitter[TX] Receiver[RX]

HDMIcomplianceYes

HDCPcomplianceYes

VideobandwidthSingle‐link225MHz[6.75Gbps]

Videosupport480i/480p/720p/1080i/1080p60

HDMIoverUTP

transmission[24‐bit]

FullHD(1080p)‐40m(130ft)[CAT5e]/50m(165ft)[CAT6]

HD(720p/1080i)‐50m(165ft)[CAT5e]/60m(200ft)[CAT6]

AudiosupportSurroundsound(upto7.1ch)orstereodigitalaudio

SignalEqualization8‐leveldigitalcontrolatRX

InputTMDSsignal1.2Volts[pea

‐to‐peak]

InputDDCsignal5Volts[pea

‐to‐peak,TTL]

ESDprotection[1]Humanbodymodel—±19kV[ai

‐gapdischarge]&±12kV[contactdischarge]

[2]Corechipset—±8kV

PCBstac

‐up4‐layerboard[impedancecontrol—differential100Ω;single50Ω]

Input1xHDMI 1xRJ45

Output1xRJ45 1xHDMI

HDMIsourcecontrolControllableviaIRpass‐throughfromRXtoTXwithIRextenders

HDMIconnectorTypeA[19‐pinfemale]

RJ45connectorWE/SS8P8Cwith2LEDindicators

RotarycontrolswitchEDIDMode Signallevel

Mechanical

HousingMetalenclosure

DIMENSIONS

[LxWxH]

Model91x60x24mm[3.6"x2.4"x0.9"]

Package270x175x80mm[10.6"x6.9"x3.1"]

WeightModel198g[7oz] 194g[6.8oz]

Package780g[1.7lbs]

FixednessWall‐mountingcasewithscrews

Powersupply5V2ADC

Powerconsumption3Watts

Operationtemperature0~40°C[32~104°F]

Storagetemperature‐20~60°C[‐4~140°F]

Relativehumidity20~90%RH[nocondensation]

PackageContents

1xHD‐C5S4[TX&RX]

2xDC5V2Awallwart

1xUserManual

PANEL DESCRIPTION

InputPanel—HD‐C5S4Transmitter(TX)

MODE:0‐EDIDFull‐HD(1080p@60)‐24bit2Dvideo&7.1chaudio

1‐EDIDFull‐HD(1080p@60)‐24bit2Dvideo&2chaudio

2‐EDIDFull‐HD(1080p@60)‐36bit2Dvideo&7.1chaudio

3‐EDIDFull‐HD(1080p@60)‐36bit2Dvideo&2chaudio

4‐EDIDHD(1080p@30)(1080i@60)(720p@60)‐24bit2Dvideo&7.1chaudio

5‐EDIDHD(1080p@30)(1080i@60)(720p@60)‐24bit2Dvideo&2chaudio

6‐EDIDFull‐HD(1080p@60)‐36bit3Dvideo&2chaudio

7‐EDIDlearningmode

HDMIIN:ConnectstoaHDMIsourcewithaHDMImale‐malecable



OutputPanel—HD‐C5S4Transmitter(TX)



+5VDC:Connectto5VDCpowersupply.

HDMISignalOUT:PluginaCat‐5/5 e /6 cablethatneedstobelinkedtothetransmitting

unitofHD‐C5S4.



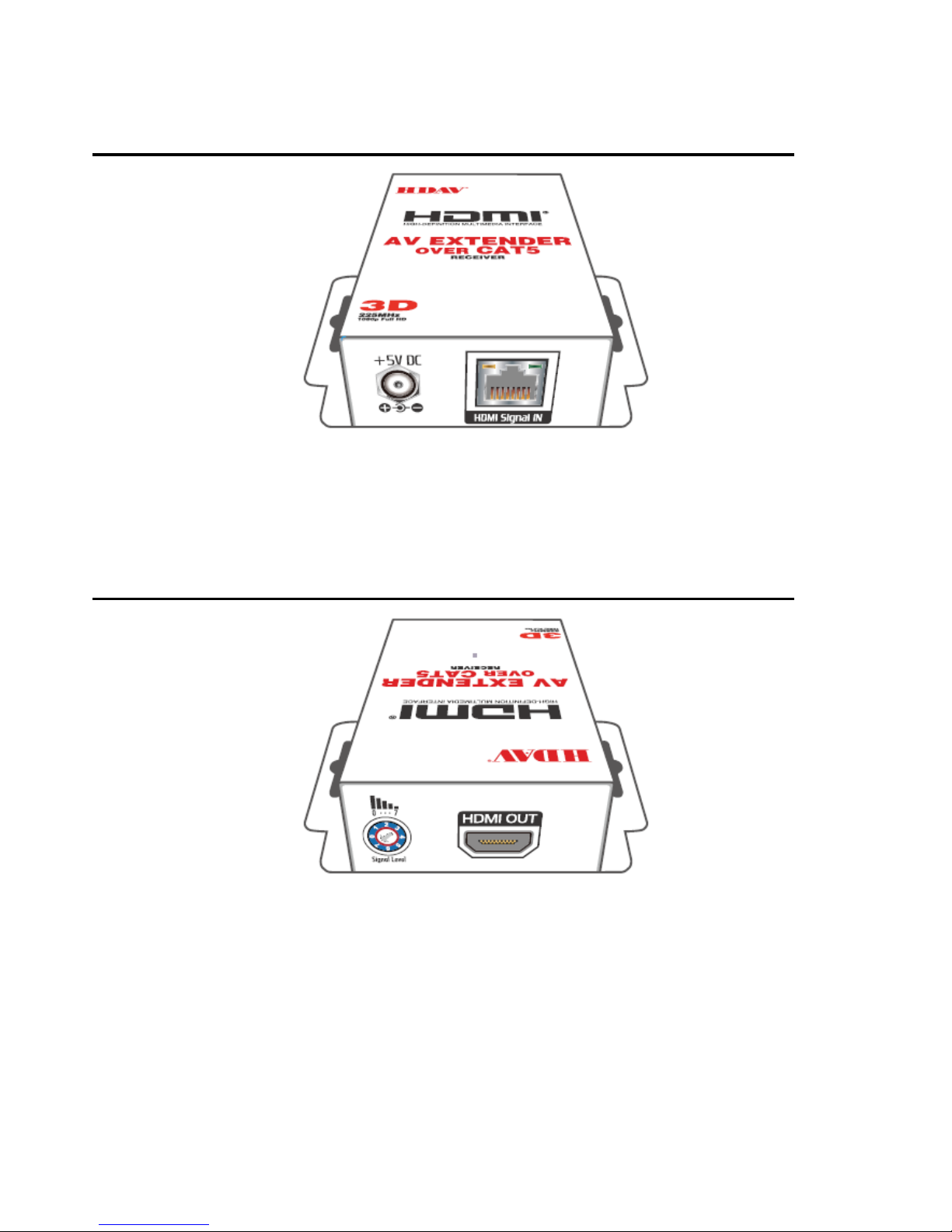

InputPanel—HD‐C5S4Receiver(RX)

+5VDC:Connectto5VDCpowersupply.

HDMISignalIN:PluginaCat‐5/5 e /6 cablethatneedstobelinkedtothereceivingunitofHD‐C5S4.



OutputPanel—HD‐C5S4Receiver(RX)

SignalLevel:Adjustthe8‐levelequalizationcontroltothereceivedHDMIsignals.TheHDMIsignallevel

variesfrom0(strongest)to7(weakest)forrespectivetransmissionlengthfromlongestpossiblerange

toshortdistance.Pleaseadjustthesignallevelfrom7to0andstopturningtherotaryswitch

whenevertheaudio/videoisplayingnormally.Inappropriatesignallevelsettingmaycause

overpoweringissuethatwouldshortentheproductlifesignificantly!

HDMIOUT:ConnecttoaHDMIdisplaywithaHDMImale‐malecable.

HARDWARE INSTALLATION

1.ConnectaHDMIorDVIsource(suchasaBlu‐rayDiscplayer)tothetransmittingunitofHD‐C5S4.

2.ConnectaHDMIorDVIdisplay(suchasaLCDTV)tothereceivingunitofHD‐C5S4.

3.ConnectIRBlaster/ReceivertobothTXandRXunits.

4.ConnectaCat‐5/5 e /6 cablebetweenthetransmittingandreceivingunits.

5.MakesurethisCat‐5/5 e /6 cableistightlyconnectedandnotloose.

6.Plugin5VDCpowersupplyunittothepowerjackofthereceivingunitofHD‐C5S4.

7.Plugin5VDCpowersupplyunittothepowerjackofthetransmittingunitofHD‐C5S4.

8.Ifyouseeflickeringorblinkingimageonthedisplay,pleaseadjusttherotarycontrolswitchtoimprove

thecableskew.0standsforthestrongestHDMIsignallevelforlongestpossibletransmissionlength

while7standsfortheweakestHDMIsignallevelforshorttransmissionlength.Pleaseadjustthesignal

levelfrom7to0andstopturningtherotaryswitchwhenevertheaudio/videoisplayingnormally.

Inappropriatesignallevelsettingmaycauseoverpoweringissuethatwouldshortentheproductlife

significantly!



EDID LEARNING

1. TurnofftransmittingunitofHD‐C5S4anddisconnecttheCat.5/5e/6betweentransmittingand

receivingunits.

2. ConnecttheHDMIdisplayto"HDMIIN"onthetransmittingunitwithaHDMIcable.

3. Set"MODE"onthetransmittingunitat7.

4. Turnonthetransmittingunit.

5. TheLEDontheRJ45oftransmittingunitwilldimandlightagain,whichindicatestheEDIDlearning

procedureiscomplete.

6. UnplugtheHDMIcablefromthedisplayandfollowtheinstructionin[HardwareInstallation]tosetup

theHD‐C5S4andenjoytheexperience.



CONNECTION DIAGRAM



PIN DEFINITION

HDMI

TypeA(Receptacle)HDMI

Pin1TMDSData2+Pin11TMDSClockShield

Pin2TMDSData2ShieldPin12TMDSClock–

Pin3TMDSData2–Pin13NC

Pin4TMDSData1+Pin14Reserved(N.C.ondevice)

Pin5TMDSData1ShieldPin15SCL

Pin6TMDSData1–Pin16SDA

Pin7TMDSData0+Pin17DDC/CECGround

Pin8TMDSData0ShieldPin18+5VPower

Pin9TMDSData0–Pin19HotPlugDetect

Pin10TMDSClock+

CAT5 [RJ45]



NOTICE

1.Whenadjustingthesignallevelonthereceiverunit,pleasedialtherotarycontrolswitchfrom7to0

andstopturningtherotaryswitchwhenevertheaudio/videoisplayingnormally.Inappropriatesignal

levelsettingmaycauseoverpoweringissuethatwouldshortentheproductlifesignificantly!

2. IftheDVIorHDMIdevicerequirestheEDIDinformation,pleaseuseEDIDReader/Writertoretrieve

andprovideDVIorHDMIdisplayEDIDinformation.

3.AllHDMIoverCAT5transmissiondistancesaremeasuredusingBelden1583ACAT5e125MHzUTP

cableandASTRODESIGNVideoSignalGeneratorVG‐859C&VG‐870B.

4. ThetransmissionlengthislargelyaffectedbythetypeofCat‐5/5 e /6 cables,thetypeofHDMIsources,

andthetypeofHDMIdisplay.ThetestingresultshowssolidUTPcables(usuallyintheformof300m

[1,000ft]bulkcables)cantransmitalotlongersignalsthanstrandedUTPcables(usuallyintheformof

fixedlengthpatchcords).ShieldedSTPcablesarebettersuitedthanunshieldedUTPcables.Asolid

UTPCat‐5ecableshowslongertransmissionrangethanstrandedSTPCat‐6cable.Forlongextension

applications,solidUTP/STPcablesaretheonlyviablechoice.

5. EIA/TIA‐568‐Btermination(T568B)forCat‐5/5 e /6 cablesisrecommendedforbetterperformance.

6. ToreducetheinterferenceamongtheunshieldedtwistedpairsofwiresinCat‐5/5 e /6 cable,onecan

useshieldedSTPcablestoimproveEMIproblems,whichisworseninlongtransmission.

7. BecausethequalityoftheCAT5/6cableshasthemajoreffectonhowlongthetransmissionlimitcan

achieveandhowgoodisthereceivedpicturequality,theactualtransmissionrangeissubjecttoone's

choiceofCat‐5/5 e /6 cables.Fordesiredresolutionsgreaterthan1080ior1280x1024,aCat‐6cableis

recommended.

8. IfyourHDMIdisplayhasmultipleHDMIinputs,itisfoundthatthefirstHDMIinput[HDMIinput#1]

generallycanproducebettertransmissionperformanceamongallHDMIinputs.



PerformanceGuideforVGAoverRJ‐45/CAT5CableTransmission

PerformanceratingTypeofcategorycable

WiringShieldingCAT5CAT5eCAT6

Solid

Unshielded(UTP)

Shielded(STP)

Stranded

Unshielded(UTP)

Shielded(STP)

TerminationPleaseuseEIA/TIA‐568‐Btermination(T568B)atanytime



Table of contents

Other Hdav Extender manuals

Hdav

Hdav HD-C5 User manual

Hdav

Hdav HD4?C6E User manual

Hdav

Hdav HDMI-C5IRB User manual

Hdav

Hdav HDMI-C5S4IR User manual

Hdav

Hdav HD-C5S4P User manual

Popular Extender manuals by other brands

Altimium

Altimium TPA33P user manual

CLEAN ROOM DEVICES

CLEAN ROOM DEVICES CRD220SS Operation manual

Allworx

Allworx Px 6/2 installation guide

Milestone pro

Milestone pro MPTP-T60S-H2 user manual

TP-Link

TP-Link TL-WA860RE Quick installation guide

Playvision

Playvision HDV-E50S2 user manual

ActionTec

ActionTec ECB7250A KIT quick start guide

SMART-AVI

SMART-AVI USB-100 user manual

Black Box

Black Box IC490A manual

SureCall

SureCall Fusion5X user guide

Black Box

Black Box ServSwitch ACU5010A user manual

Vimar

Vimar Elvox 46264.001 quick start guide

HighPoint

HighPoint Rocket EJ340 Quick installation guide

Franklin Electric

Franklin Electric E-Tech GD Series Use and installation manual

Dagan

Dagan KVM-EXTEND38 user manual

Hawking

Hawking HWUR54G Specification sheet

Sunhans

Sunhans eSunRc SHRC24G3WP user manual

Sonos

Sonos BOOST user guide

Hdav HD?C5S4 User manual

Popular Extender manuals by other brands
