Hdav HDMI-C5S4IR User manual

HDMI Extender over Single Cat.X
with Bi-direconal IR
User Manual
(HDMI-C5S4IR)
7.1 CH
AUDIO
7.1 CH
AUDIO
[Must be used with Solid CAT5e or CAT6 Cable]
All informaon is subject to change without noce.
All names & trademarks are property of their respecve owners.
Rev.1101
Made in Taiwan

Safety and Noce
The HDMI-C5S4IR HDMI Extender over Single Cat.X with Bi-directional IR has been tested
for conformance to safety regulaons and requirements, and has been cered for internaonal use.
However, like all electronic equipments, the HDMI-C5S4IR should be used with care. Please read and
follow the safety instrucons to protect yourself from possible injury and to minimize the risk of damage
to the unit.
● Follow all instrucons and warnings marked on this unit.
● Do not aempt to service this unit yourself, except where explained in this manual.
● Provide proper venlaon and air circulaon and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a stable
surface.
● Use only the power adapter and power cords and connecon cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
Table Of Contents
INTRODUCTION .............................................................................. p.1
PANEL DESCRIPTIONS ..................................................................... p.3
IR PASS-THROUGH .......................................................................... p.5
HARDWARE INSTALLATION ............................................................. p.6
EDID LEARNING .............................................................................. p.6
PIN DEFINITION .............................................................................. p.7
NOTICE .......................................................................................... p.8

1
INTRODUCTION
The HDMI-C5S4IR HDMI Extender over Single Cat.X with Bi-directional IR boosts up your video/audio
transmission distance up to 60m (200) in HDTV 1080i format, 40m (130) in HDTV 1080p format, and 20m (65)
in HDTV 1080p with 36-bit color depth. HDMI-C5S4IR also supports the most advanced 3D video format complaint
with HDMI 1.4 specification and therefore guarantees the highest 3D video compatibility on the market. With
only one cost eecve Cat.5/5e/6 cable, users can readily extend HDTV sources from DVD players, Blu-ray Disc
player, PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors including HDMI
or DVI enabled TV sets or LCD PC monitors. With the advanced design for the latest HDMI technology, deep color
video, DTS-HD Master Audio or Dolby TrueHD audio, and HDCP supports and compability are all further insured.
This flexibility makes HDCP compliant DVD players or PS3 transmit utmost high quality video and audio with a
greater distance at the minimal cost, when integrang several components apart. In addion, HDMI-C5S4IR is also
equipped with bi-direconal IR pass-through path. This bonus feature allows users to boost IR control distance up
to 100m (330 ) and makes IR control possible through only single Cat.5/5e/6 cable including HDMI signals.
The HDMI-C5S4IR includes two units: transming unit HDMI-C5S4IR-TX and receiving unit HDMI-C5S4IR-RX. The
transming unit is used to capture the input HDMI / DVI signals with IR control packets and carry the signals via
one cost eecve Cat.5/5e/6 cable. The receiving unit is responsible for equalizing the transmied HDMI signal
and reconstrucng IR signals. The transmission distance between the sending and receiving units can be up to 60m
(200) at HD 720p or 1080i; or 40m (130) at Full HD 1080p. With an 8-level equalizaon rotary control on the
receiving unit, users can adjust the equalizaon strength to the received HDMI signals accordingly, and therefore
opmize the transmission distance between source and desnaon.
Features
● HDMI 1.4a compliant [3D video]
● Extend the transmission up to 60m (200) from the HDMI source at HD 1080i or 720p 24-bit
● Extend the transmission up to 40m (130) from the HDMI source at Full HD 1080p 24-bit
● Extend the transmission up to 20m (65) from the HDMI source at Full HD 1080p 36-bit
● HDCP 1.1 compliant
● Minimize the cable skew by adjustable 8-level equalizaon control
● Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
● DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
● Support full frequency IR signal from 20kHz to 60kHz
● Bi-direconal IR pass-through
● Allows cascading
● Wall mounng housing design for easy and robust installaon
● Perfectly integrated with other HDMI over Cat.X series products
The claimed transmission distance here is subject to the grade of installed cable(s), source
device and display.
For over CAT.X transmission, the cable(s) has to be solid, not stranded. Any keystone jack along
the transmission path will kill the transmission performance signicantly!
Package Contents
● 1x HDMI-C5S4IR [TX & RX] ● 1x IR blaster
● 1x IR receiver ● 2x DC 5V 2A wall wart
● 1x User manual

2
Specicaons
Model Name HDMI-C5S4IR
Technical
Role of usage Transmitter [TX] Receiver [RX]
HDMI compliance HDMI 1.4a
HDCP compliance Yes
Video bandwidth Single-link 225MHz [6.75Gbps]
Video support 480i / 480p / 720p / 1080i / 1080p60
HDMI over UTP
transmission [24-bit] Full HD (1080p)-40m (130ft) [CAT5e] / 50m (165ft) [CAT6] HD (720p/1080i)-50m (165ft) [CAT5e] / 60m (200ft) [CAT6]
Audio support Surround sound (up to 7.1ch) or stereo digital audio
Signal Equalization 8-level digital control at RX
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω]
IR pass-thru Bi-directional
Input 1x HDMI + 1x 3.5mm 1x RJ45 + 1x 3.5mm
Output 1x RJ45 + 1x 3.5mm 1x HDMI + 1x 3.5mm
HDMI source control Controllable via IR pass-through from RX to TX with IR extenders
IR remote control Electro-optical characteristics: τ= 25° / Carrier frequency: 20-60kHz
HDMI connector Type A [19-pin female]
RJ45 connector WE/SS 8P8C with 2 LED indicators
3.5mm connector IR receiver IR blaster
Rotary control switch EDID Mode Signal level
Mechanical
Housing Metal enclosure
Dimensions
[L x W x H]
Model 75 x 92 x 27mm [3” x 3.6” x 1”]
Package 270 x 175 x 80mm [10.6” x 6.9” x 3.1”]
Carton 450 x 370 x 300mm [1’6” x 1’3” x 1’]
Weight Model 480g [1.1 lbs]
Package 780g [1.7 lbs]
Fixedness Wall-mounting case with screws
Power supply 5V 2A DC
Power consumption 3 Watts
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]

3
PANEL DESCRIPTIONS

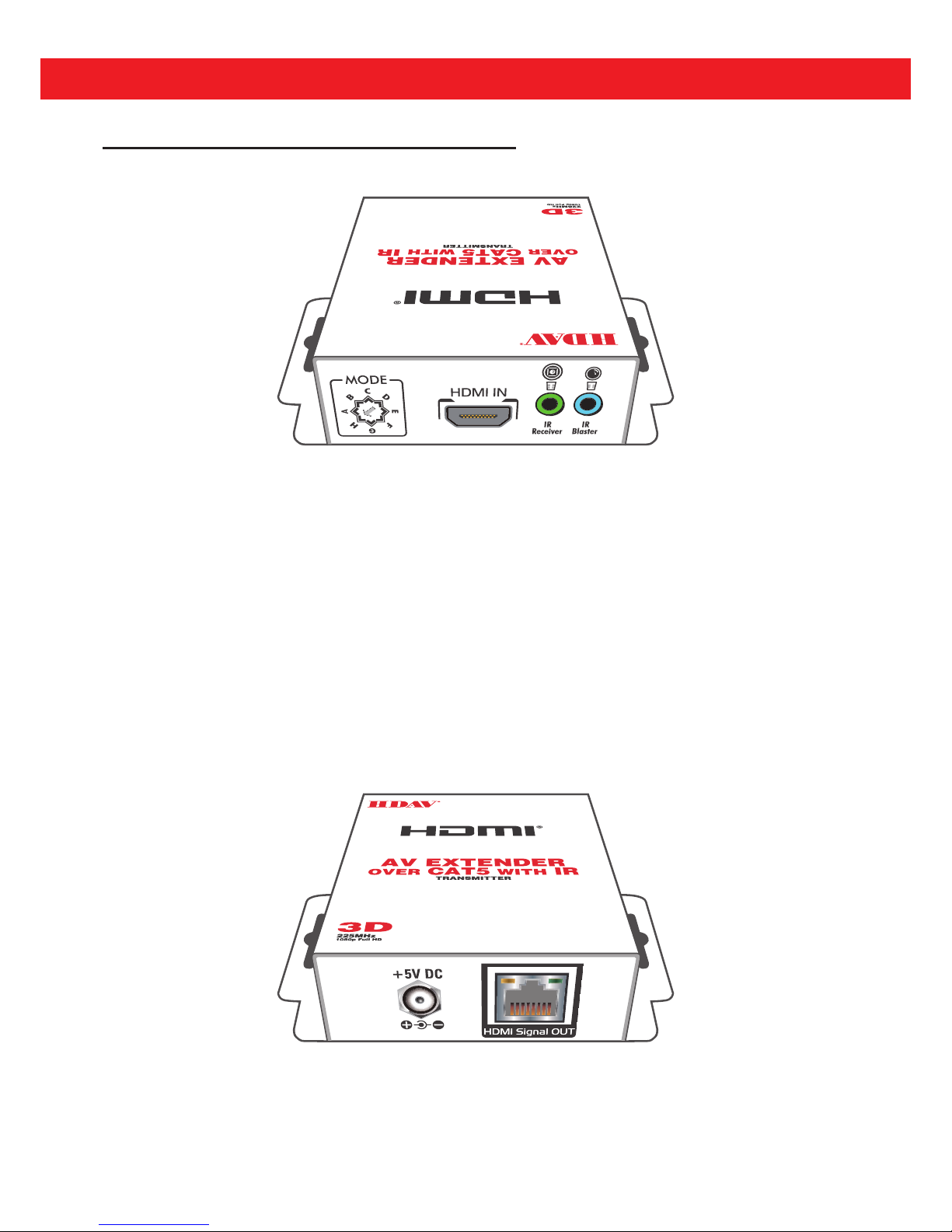

Transming unit of HDMI-C5S4IR
Front Panel
MODE: A - EDID Full-HD(1080p@60) - 24bit 2D video & 7.1ch audio
B - EDID Full-HD(1080p@60) - 24bit 2D video & 2ch audio
C - EDID Full-HD(1080p@60) - 36bit 2D video & 7.1ch audio
D - EDID Full-HD(1080p@60) - 36bit 2D video & 2ch audio
E - EDID HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video & 7.1ch audio
F - EDID HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video & 2ch audio
G - EDID Full-HD(1080p@60) - 36bit 3D video & 2ch audio
H - EDID learning mode
HDMI IN: Connects to a HDMI source with a HDMI male-male cable
IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
Rear Panel
+5V DC: Connect to 5V DC power supply.
HDMI Signal OUT: Plug in a Cat-5/5e/6 cable that needs to be linked to the transming unit HDMI-C5S4IR-TX.

4

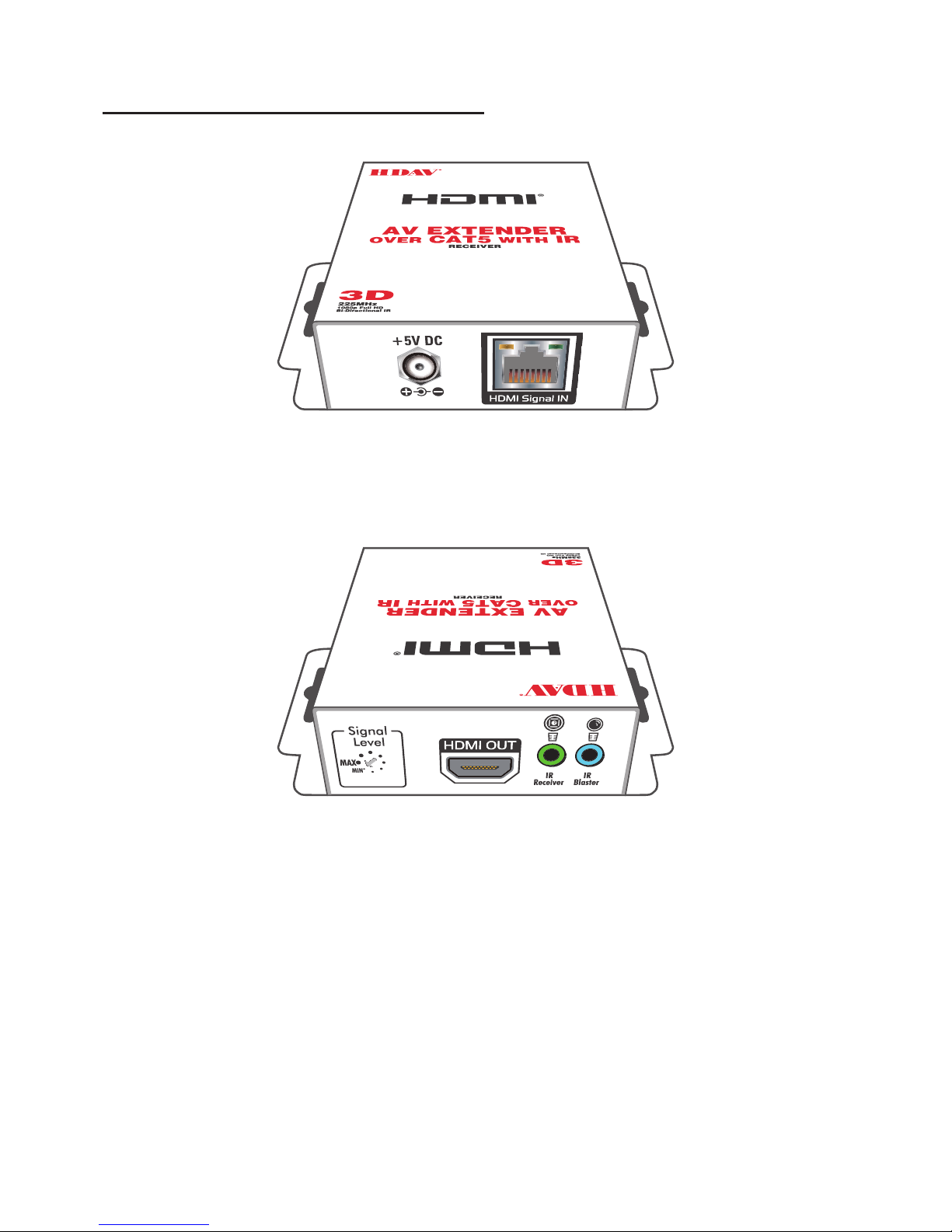

Receiving Unit of HDMI-C5S4IR
Front Panel
+5V DC: Connect to 5V DC power supply.
HDMI Signal IN: Plug in a Cat-5/5e/6 cable that needs to be linked to the receiving unit HDMI-C5S4IR-RX.
Rear Panel
Signal Level: Adjust the 8-level equalizaon control to the received HDMI signals. The HDMI signal level varies
from MAX (strongest) to MIN (weakest) for respective transmission length from longest possible range to
short distance. Please adjust the signal level from MIN to MAX and stop turning the rotary switch whenever
the audio/video is playing normally. Inappropriate signal level setting may cause overpowering issue that
would shorten the product life signicantly!
HDMI OUT: Connect to a HDMI display with a HDMI male-male cable.
IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster

5
IR PASS-THROUGH

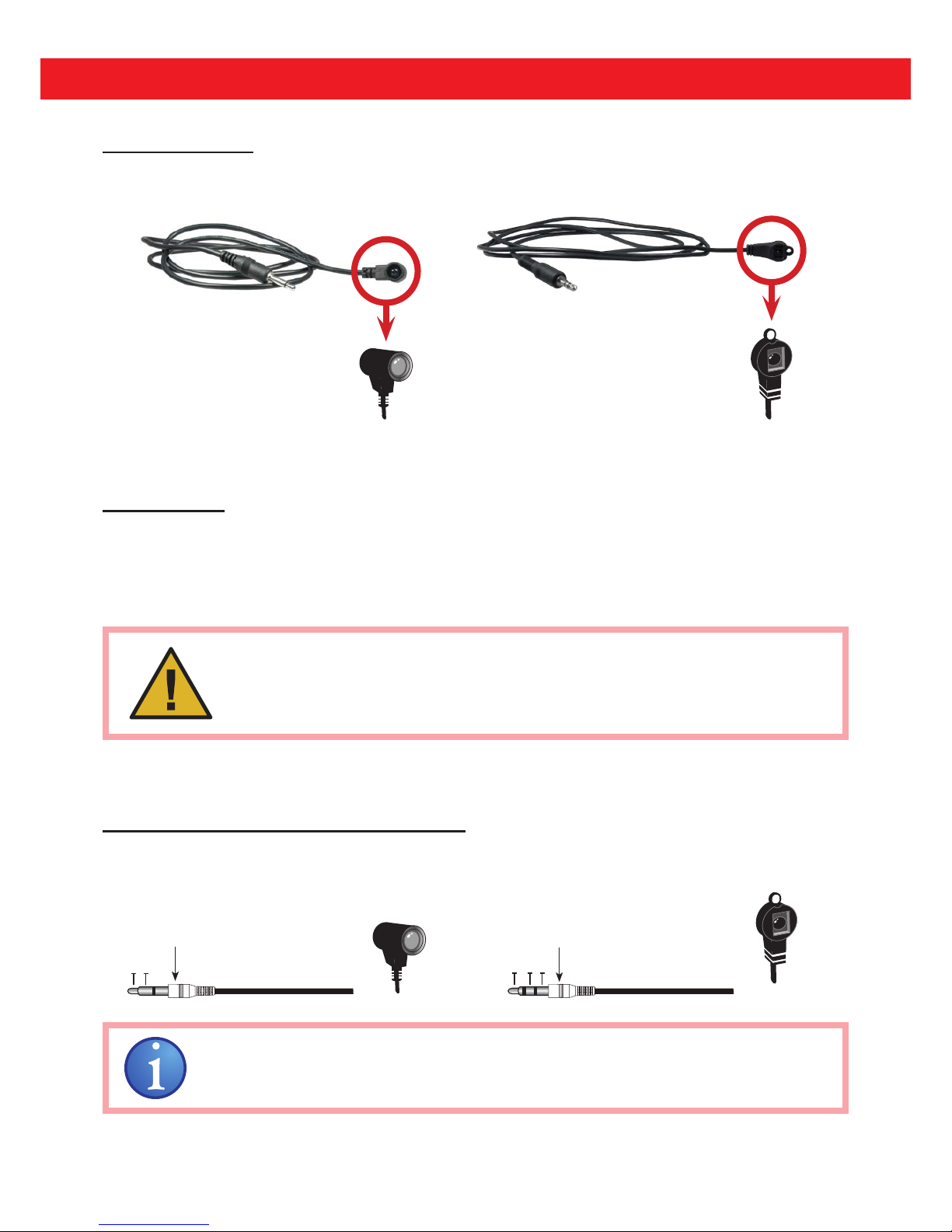

IR Extenders
IR Blaster IR Receiver
IR Sockets
IR Blaster: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other
enf to control the devices corresponding to the IR signals.
IR Receiver: plug in the IR receiver to receive all IR command signals from the IR remote controls of the
corresponding devices.
CAUTION!
Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders.
Please check carefully before plugging in the IR extender to the respective IR sockets.
Warranty will not cover the damage.
Denion of IR Earphone Jack
IR Blaster IR Receiver
1. IR Signal
2. Grounding
1 2 1
1. IR Signal [20-60 kHz]
2. Grounding
3. Power
23
You can buy any IR extension cables in the market that are compable to the denion of the
IR sockets for the matrix if necessary for replacement use. However, IR cables longer than 2m
(6-) may not work.

6
HARDWARE INSTALLATION
1. Connect a HDMI or DVI source (such as a Blu-ray Disc player) to the transming unit HDMI-C5S4IR-TX.
2. Connect a HDMI or DVI display (such as a LCD TV) to the receiving unit HDMI-C5S4IR-RX.
3. Connect IR Blaster/Receiver to both TX and RX units.
4. Connect a Cat-5/5e/6 cable between the transming and receiving units.
5. Make sure this Cat-5/5e/6 cable is ghtly connected and not loose.
6. Plug in 5V DC power supply unit to the power jack of the receiving unit HDMI-C5S4IR-RX.
7. Plug in 5V DC power supply unit to the power jack of the transming unit HDMI-C5S4IR-TX.
8. If you see ickering or blinking image on the display, please adjust the rotary control switch to improve the cable
skew. 0 stands for the strongest HDMI signal level for longest possible transmission length while 7 stands for
the weakest HDMI signal level for short transmission length. Please adjust the signal level from 7 to 0 and stop
turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level seng may
cause overpowering issue that would shorten the product life signicantly!
EDID LEARNING
1. Turn o HDMI-C5S4IR-TX and disconnect the Cat.5/5e/6 between HDMI-C5S4IR-TX and HDMI-C5S4IR-RX.
2. Connect the HDMI display to "HDMI IN" on the HDMI-C5S4IR-TX with a HDMI cable.
3. Set "MODE" on the transming unit HDMI-C5S4IR-TX at H.
4. Turn on the HDMI-C5S4IR-TX.
5. The LED on the RJ45 of HDMI-C5S4IR-TX will dim and light again, which indicates the EDID learning procedure is
complete.
6. Unplug the HDMI cable from the display and follow the instruction in [Hardware Installation] to set up the
HDMI-C5S4IR and enjoy the experience.

7
PIN DEFINITION
HDMI
Type A (Receptacle) HDMI
Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 SCL
Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 SDA
Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground
Pin 4 TMDS Data1+ Pin 11 TMDS Clock Shield Pin 18 +5V Power
Pin 5 TMDS Data1 Shield Pin 12 TMDS Clock– Pin 19 Hot Plug Detect
Pin 6 TMDS Data1– Pin 13 CEC
Pin 7 TMDS Data0+ Pin 14 Reserved (N.C. on device)
CAT5 [RJ45]
Function
TX0-
TX0+
TX1-
TX2-
TX2+
TX1+
TXC-
TXC+
PIN
1
2
3
4
5
6
7
8
Color
W-O
O
W-G
BL
W-BL
G
W-BR
BR
Data Link TIA/EIA-568-B
W-OOW-G
JACK POSITION
PAIR3
PAIR1PAIR2PAIR4
RJ-45 Jack
G
W-BL
W-BR
BR
BL

8
NOTICE
1. When adjusng the signal level on the Receiving unit, please dial the rotary control switch from MIN to MAX
and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level
seng may cause overpowering issue that would shorten the product life signicantly!
2. Wrongly insert IR blaster and IR receiver to wrong 3.5mm infrared sockets may result in the failure of the IR
extenders. Please check carefully before plugging in the IR extender to the respecve IR sockets.
3. If the DVI or HDMI device requires the EDID informaon, please use EDID Reader/Writer to retrieve and provide
DVI or HDMI display EDID informaon.
4. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP cable and
ASTRODESIGN Video Signal Generator VG-859C & VG-870B.
5. The transmission length is largely affected by the type of Cat-5/5e/6 cables, the type of HDMI sources, and
the type of HDMI display. The tesng result shows solid UTP cables (usually in the form of 300m [1,000] bulk
cables) can transmit a lot longer signals than stranded UTP cables (usually in the form of fixed length patch
cords). Shielded STP cables are beer suited than unshielded UTP cables. A solid UTP Cat-5e cable shows longer
transmission range than stranded STP Cat-6 cable. For long extension applicaons, solid UTP/STP cables are the
only viable choice.
6. EIA/TIA-568-B terminaon (T568B) for Cat-5/5e/6 cables is recommended for beer performance.
7. To reduce the interference among the unshielded twisted pairs of wires in Cat-5/5e/6 cable, one can use
shielded STP cables to improve EMI problems, which is worsen in long transmission.
8. Because the quality of the CAT5/6 cables has the major eect on how long the transmission limit can achieve
and how good is the received picture quality, the actual transmission range is subject to one's choice of Cat-
5/5e/6 cables. For desired resoluons greater than 1080i or 1280x1024, a Cat-6 cable is recommended.
9. If your HDMI display has mulple HDMI inputs, it is found that the rst HDMI input [HDMI input #1] generally
can produce beer transmission performance among all HDMI inputs.
Performance Guide for HDMI over Category Cable Transmission
Performance rating Type of category cable
Wiring Shielding CAT5 CAT5e CAT6
Solid Unshielded (UTP)   
Shielded (STP)   
Stranded Unshielded (UTP)   
Shielded (STP)   
Terminaon Please use EIA/TIA-568-B terminaon (T568B) at any me
