Marmitek Powermid 300 XTRA User manual

Powermid 300 XTRA
Powermid 300 XTRA™
20574/20121210 • Powermid 300 XTRATM
ALL RIGHTS RESERVED MARMITEK ©
USER MANUAL 3
GEBRAUCHSANLEITUNG 7
GUIDE UTILISATEUR 11
MODO DE EMPLEO 15
MANUALE D’ISTRUZIONE 19
GEBRUIKSAANWIJZING 23
20574_20121210_UG_124x176mm_80g_Powermid_300_XTRA_6_languages.indd 1 28-02-13 17:13

2 © MARMITEK
20574_20121210_UG_124x176mm_80g_Powermid_300_XTRA_6_languages.indd 2 28-02-13 17:13

ENGLISH
3Powermid 300 XTRA™
SAFETY WARNINGS
• To prevent short circuits, this product should only be used inside and only in dry spaces.
Do not expose the components to rain or moisture. Do not use the product close to a
bath, swimming pool etc.
• Do not expose the components of your systems to extremely high temperatures or bright
light sources.
• Do not open the product: the device contains live parts. The product should only be
repaired or serviced by a qualified repairman.
• In case of improper usage or if you have opened, altered and repaired the product yourself,
all guarantees expire. Marmitek does not accept responsibility in the case of improper
usage of the product or when the product is used for purposes other than specified.
Marmitek does not accept responsibility for additional damage other than covered by the
legal product responsibility.
• Only connect the adapter to the mains after checking whether the mains voltage is the
same as the values on the identification tags. Never connect an adapter or power cord
when it is damaged. In that case, contact your supplier.
1. INTRODUCTION
Congratulations on purchasing a Powermid 300 XTRA™. This can be used to operate your
A/V equipment with your own remote control, even the equipment is stored in a closed
cabinet, located on the other side of the room or even in another room entirely! The compact
design means that the Powermid 300 XTRA™ is suitable for use in every interior.
Marmitek products are manufactured with the utmost care and are exceptionally high
quality. Please read this manual carefully and follow the instructions in order to get the best
from this product.
2. SET CONTENTS
1x IR Receiver
1x IR Transmitter
1x USB power adapter
1x Micro USB cable
2x AAA alkaline batteries
1x Instruction manual
20574_20121210_UG_124x176mm_80g_Powermid_300_XTRA_6_languages.indd Sec1:3 28-02-13 17:13

4 © MARMITEK

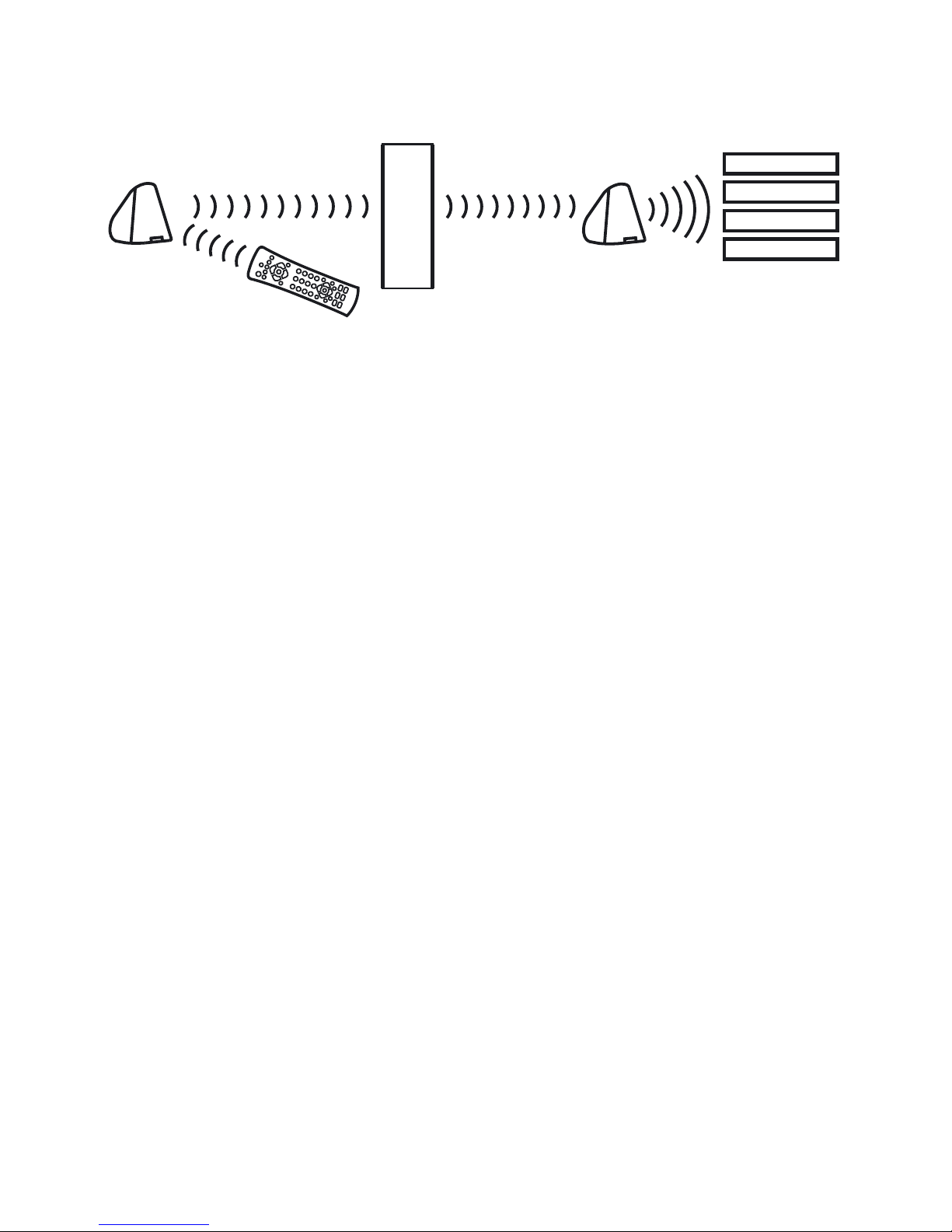

3. HOW DOES IT WORK?
HD RECORDER
SET-TOP BOX
SATELLITE
AUDIO SET
WALL
IR TRANSMITTER
IR RECEIVER
Point your remote control at the Powermid 300 XTRA™ IR Receiver. The IR Receiver receives
these infrared signals, converts them into RF signals and sends them onto the Powermid 300
XTRA™ IR Transmitter. The IR Transmitter then converts these back into infrared signals and
sends them to your HDD-recorder, set-top box, satellite decoder, audio set, etc.
4. INSTALLATION
4.1 IR Receiver
1. Place the IR Receiver in the room/area from which you wish to operate your equipment.
2. Point the front of the IR Receiver towards the point at which you want to use the remote
control (maximum 6 metres).
3. The IR Receiver is dual power:
a. with batteries (included)
Insert 2 pieces ‘AAA’ size ALKALINE batteries into the battery compartment with
correct polarity. Note: Remove the batteries when they are empty or if you are not
using the device for a longer period.
b. With micro USB cable (not included)
Connect the micro USB cable to the IR Receiver.
4.2 IR Transmitter
4. Place the IR Transmitter in the room/area in which the A/V equipment you wish to operate
is located.
5. Point the front of the IR Transmitter towards the equipment you wish to operate.
6. Connect the USB Power Adapter to the IR Transmitter and insert this into the socket.
4.3 Range between Transmitter and Receiver depends on:
• The number of floors and walls through which the signal has to travel and the materials used.
• Other 433 MHz sources such as wireless headphones or wireless speakers can significantly
limit the range of the Powermid 300 XTRA™. The best result is obtained if these sources
are switched off when using the Powermid 300 XTRA™. The Powermid 300 XTRA™ works
fine with wireless telephones.
20574_20121210_UG_124x176mm_80g_Powermid_300_XTRA_6_languages.indd 4 28-02-13 17:13

ENGLISH
5Powermid 300 XTRA™
• Some satellite receivers must be placed closer to the Powermid 300 XTRA™ as a result
of the effect the two devices have on one another. Try the Transmitter at a range of
locations in order to obtain the best range.
5. FREQUENTLY ASKED QUESTIONS
• In a few cases, the Receiver may be disrupted by interference and cannot, therefore, pick
up the signals it receives. If this is the case the red light will be continuously illuminated
and the Receiver must be relocated. This interference is caused by equipment in the
vicinity such as dimmers, energy-saving light bulbs, IR alarms and so on. Direct sunlight
can also disrupt the Receiver.
• Powermid 300 XTRA does not work with remote controls which use High Frequency
signals (such as B&O)
Do you have other questions that have not been resolved by the above information?
Please go to www.marmitek.com
6. TECHNICAL DATA
IR Receiver
Power: 2 x AAA 1.5V non-rechargeable alkaline batteries (included) or
micro USB (not included)
RF range: Up to 100m free field, up to 30m through walls and ceilings
RF frequency: 433.92 MHz
IR frequency range: 30 – 60 kHz
IR reception angle: 60°(+30°/-30° from center)
IR reception range: 4 – 8 meters
Dimensions: 72 x 67 x 58 mm
IR Transmitter
Power: 100 – 240 VAC 50/60Hz, micro USB adapter (included)
IR Output: 1x 3.5mm jack plug
IR transmission range: 4 – 8 meters
Dimensions: 72 x 67 x 58 mm
