Grandbeing EX0101-XN52-000 User manual

Version: V1.0.1
User Manual
EX0101-XN52-000
EX0101-XN53-000
HDMI over Single Cat5e/6 Cable Extender

Important Safety Instructions
Note:
In case of any content change, we are sorry for no further notice.
Warning:
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

1
Table of Contents
Introduction.................................................................................................... 2
Overview................................................................................................... 2
Features ................................................................................................... 3
Package Contents .................................................................................... 3
Specifications............................................................................................ 4
Panel ........................................................................................................ 6
Transmitter EX0101-XN52-000.......................................................... 6
Receiver EX0101-XN53-000 ............................................................. 7
Hardware Installation..................................................................................... 8
DIP Switch Description.................................................................................. 9
Transmitter................................................................................................ 9
Receiver ................................................................................................. 10
Troubleshooting........................................................................................... 11
Product Service ........................................................................................... 12
Maintenance ........................................................................................... 12
Provided Service..................................................................................... 12
Mail-In Service........................................................................................ 12
Warranty ................................................................................................. 13
Warranty Limits and Exclusions .............................................................. 13
Glossary ....................................................................................................... 15
Appendix ...................................................................................................... 16

2
Introduction
Overview
EX0101-XN52/XN53-000 is a HDMI extender over single Cat5e/6 cable. It is
capable of transmitting full 1080p HD video, HD audio and bi-direction IR
control together up to 40 meters.
It features EQ DIP switches on both transmitter and receiver in the event of
installation difficulties. Furthermore, it supports one side power supply by

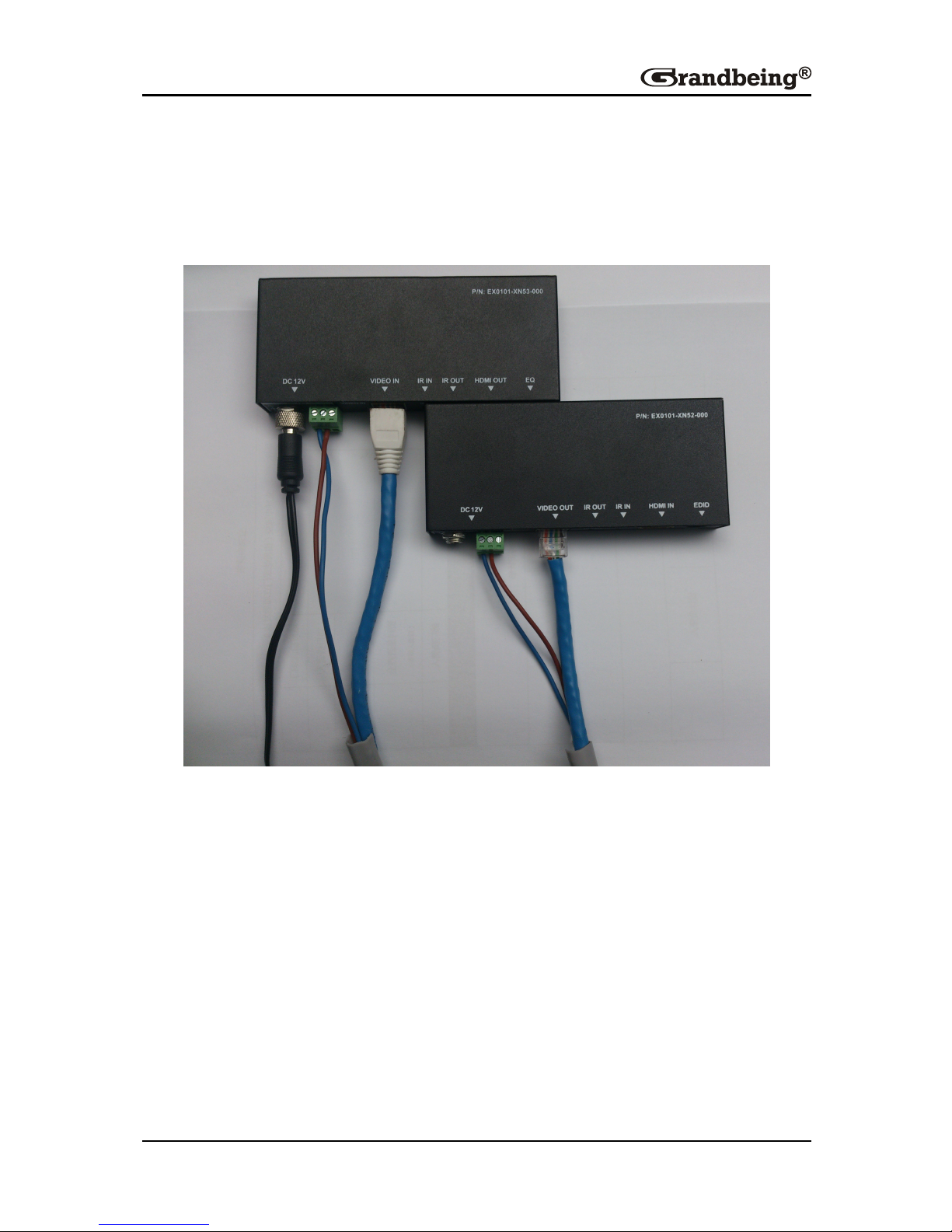

using a special Cat5e/6 cable (see Appendix), which means as long as
either transmitter or receiver is connected to power, the extender still works.

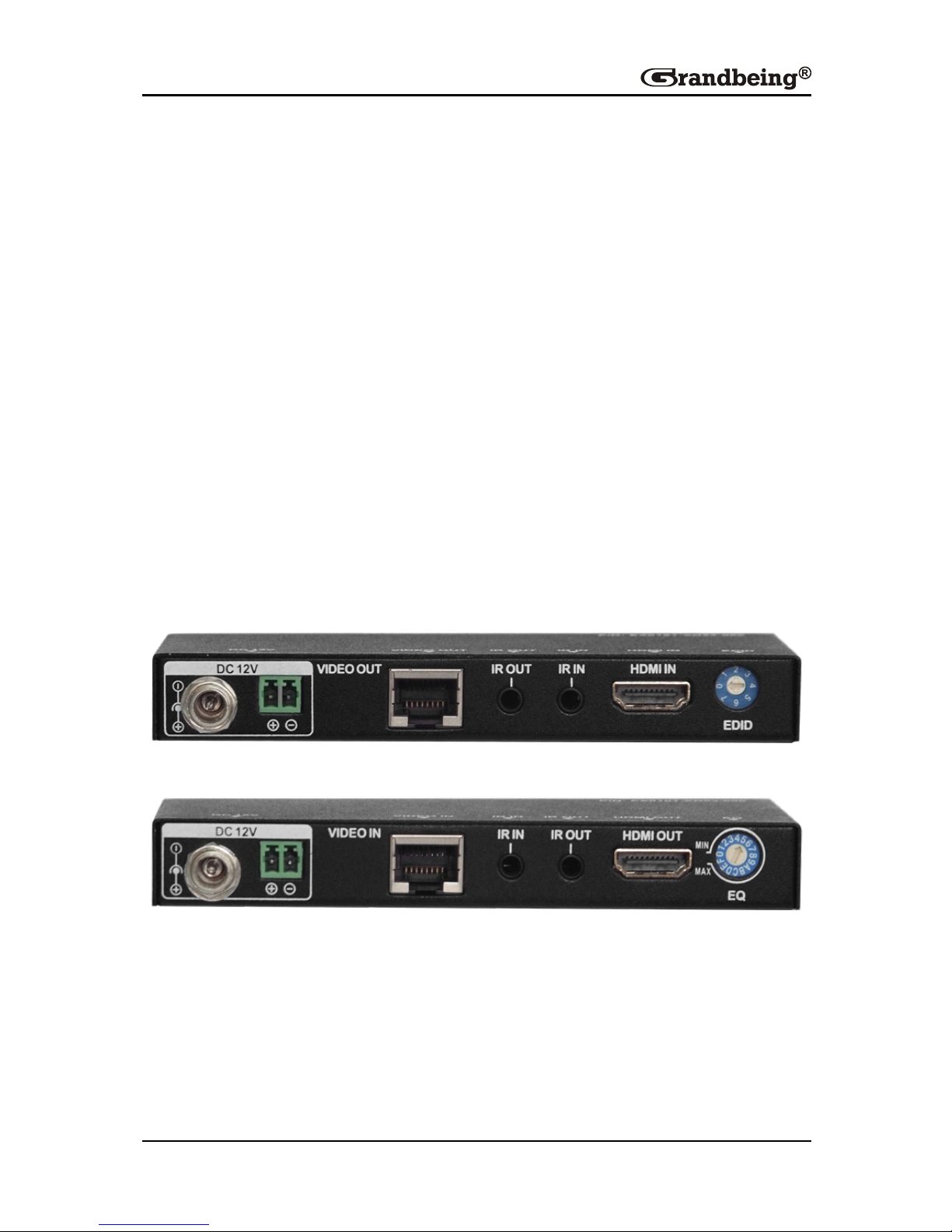

The extender provides affordable, high quality HDMI signal transmission
solutions for your audio/video and IR control needs.
EX0101-XN52-000
EX0101-XN53-000

3
Features
Easy to use, one pair as a full functional module
Use single Cat5e/6 cable to substitute HDMI cable to achieve signal
transmission
Transmission distance reaches up to 40 meters under the video format of
1080p
HDMI 1.3a compliant.
HDMI 1.4 compliant with 3D formats
Supports HDMI or DVI inputs
Bi-direction IR control
With ESD protection inside
Transfers IR control signal together with the HDMI signal
Package Contents
1 xTransmitter EX0101-XN52-000
1 xReceiver EX0101-XN53-000
2 x 12V 0.5A DC Power Supply
4 x Mounting Ear
1 x IR Emitter
1 x IR Receiver (30-50KHz)

4
Specifications
Technical
Data Rate 2.25Gbps Maximum
Maximum Distance 40 meters
I/O Connections
Transmitter
1 x RJ45 port,
1 x HDMI IN,
1 x IR IN,
1 x IR OUT
Receiver
1 x RJ45 port,
1 x HDMI OUT,
1 x IR IN,
1 x IR OUT
Power Supply 12V 0.5A DC
Power Consumption 5Watts (Max)
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Video Format
Supported
DTV/HDTV;
1080P/1080i/720P/576P/480P/576i/480i
Output Video HDMI 1.3
Output Audio DTS-HD, Dolby-HD
IR Wavelength &
Frequency
Wavelength: 940nm
IR Frequency: 38 KHz
Operating Temperature 32°F to 95°F (0°C to 35°C)
10% to 90%, non-condensing

5
Technical
Storage Temperature -4°F to 140°F (-20°C to 70°C)
10% to 90%, non-condensing
General
Dimension (W x H x D) 127mm×17mm×54mm
5'' x 0.67'' x 2.12''
Mass (Main unit) 0.3kg / 1.16lb (Pairs)
Certification CE, FCC, RoHS

6
Panel
Transmitter EX0101-XN52-000
Front Panel
1 2
ID
Name
Description
1 Power Displays power status
2 Status Displays signal connection status
Rear Panel
1 2 3 4 5 6 7
ID
Name
Description
1 Power 1 12V 0.5A DC power supply input
2 Power 2 Connects to 3.5mm phoenix male connector, 12V 0.5A
3 VIDEO OUT RJ45 port
4 IR OUT Connects to an IR emitter
5 IR IN Connects to an IR receiver (30-50KHz)
6 HDMI IN Connects to an HDMI source
7 EDID EDID DIP switch

7

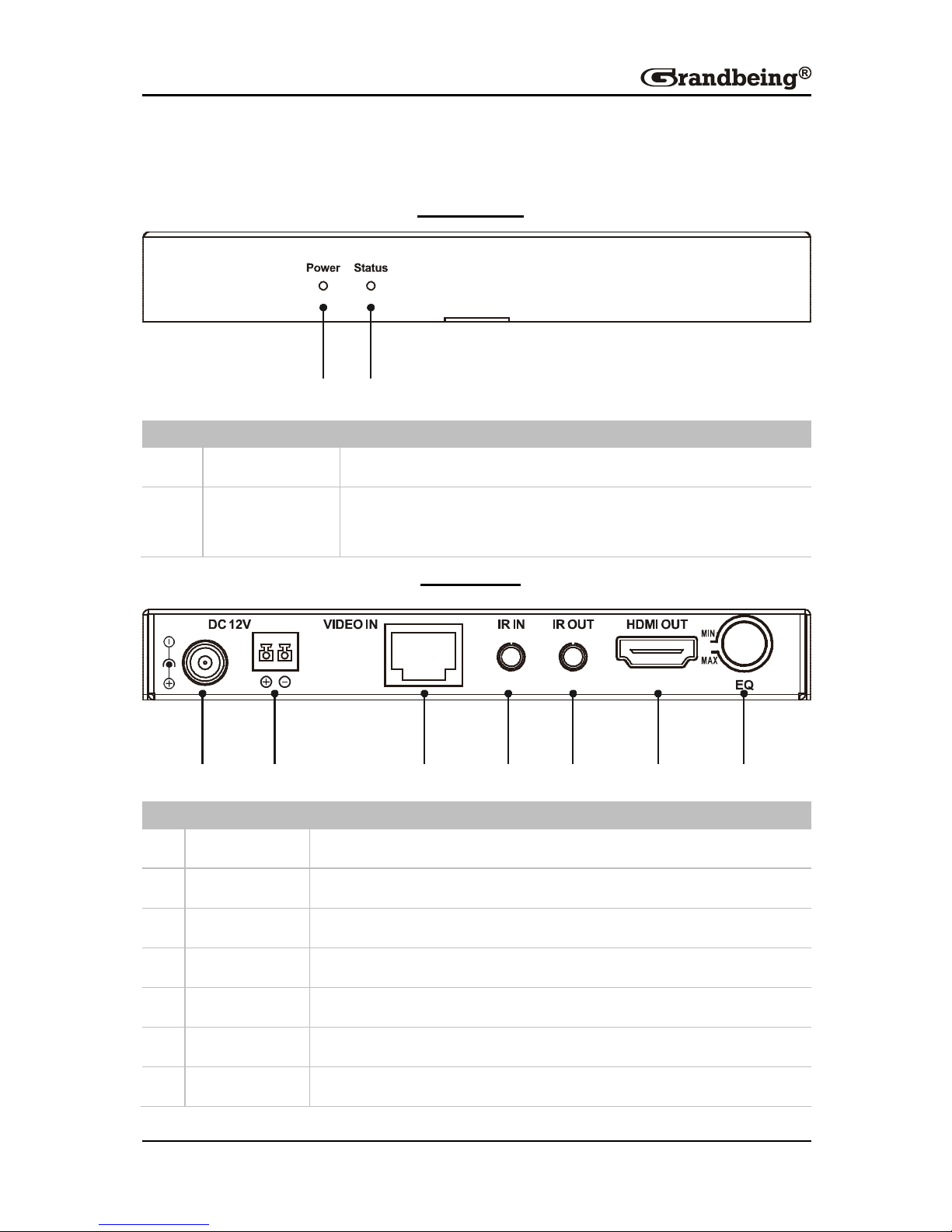

Receiver EX0101-XN53-000
Front Panel
1 2
ID
Name
Description
1 Power Displays power status
2 Status Displays HDMI signal status, this indicator is on if
there is HDMI signal
Rear Panel
1 2 3 4 5 6 7
ID
Name
Description
1 Power 1 12V 0.5A DC power supply input
2 Power 2 Connect to 3.5mm phoenix male connectors, 12V 0.5A
3 VIDEO IN RJ45 port
4 IR IN Connects to an IR receiver (30-50KHz)
5 IR OUT Connects to an IR emitter
6 HDMI OUT Connects to an HDMI sink
7 EQ Equalization. The EQ value is up to the cable length.

8
Hardware Installation
1. Connect HDMI source (such as a DVD player) to EX0101-XN52-000.
2. Connect EX0101-XN52-000 and EX0101-XN53-000 with a Cat5e cable.
3. Connect HDMI sink (such as HD-LCD) to EX0101-XN53-000.
4. Connect the IR receiver unit into EX0101-XN52-000 IR IN, connect the
IR emitter unit into EX0101-XN53-000 IR OUT.
5. Power on all the devices.
EX0101-XN52-000
EX0101-XN53-000
Ethernet
Remote TV
Remote DVD Player

9

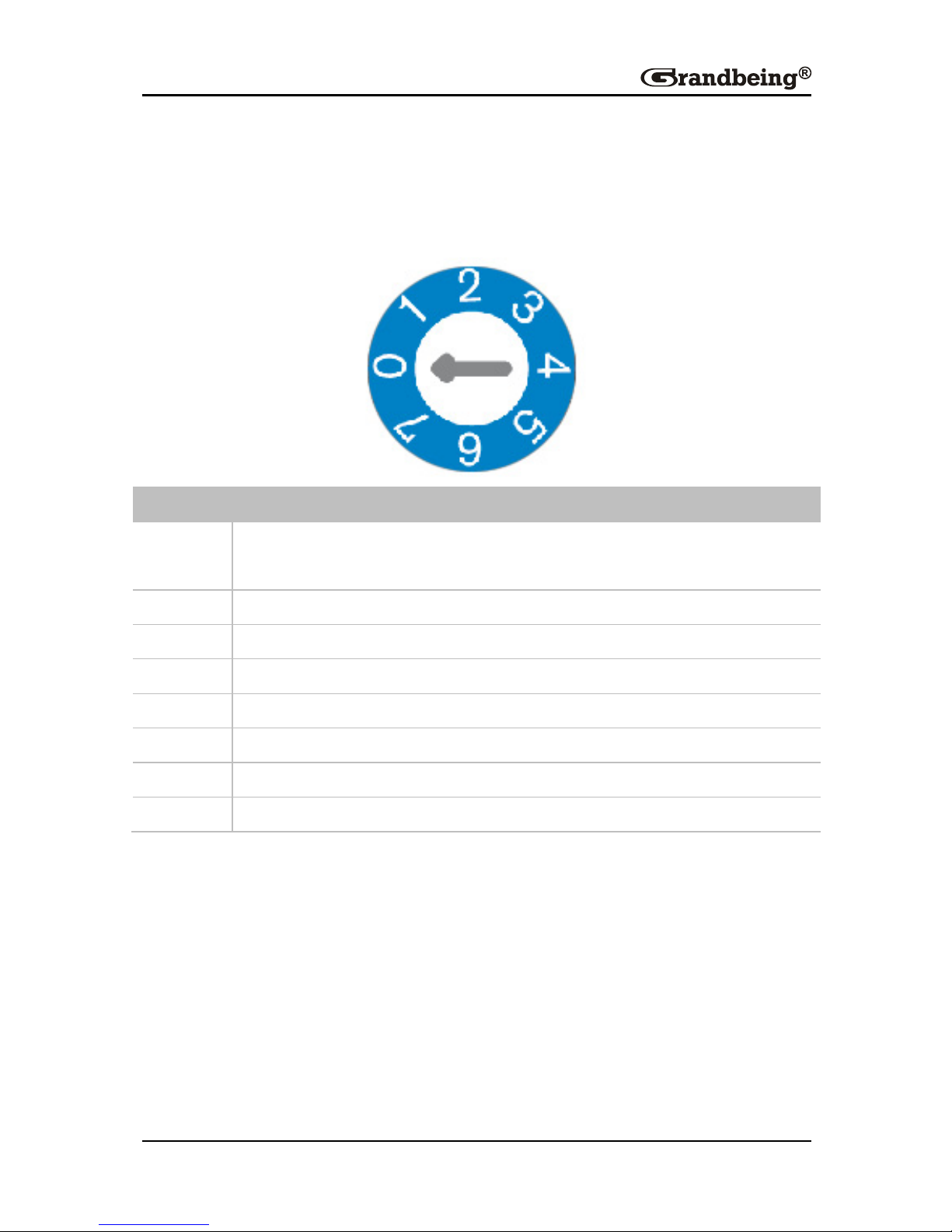

DIP Switch Description
Transmitter
Position Functions
0
(default) 1080P stereo
1 1080p 5.1
2 EDID Copy Mode (Copy EDID from display )
3 1080i stereo
4 1080p stereo Long Cable mode (LC mode)
5 1080p 5.1 LC mode
6 EDID Copy Mode LC mode
7 1080i stereo LC mode

10
Receiver
Occasionally, the installation environment, such as the distance between
source and sink may be a factor in the perfect transmission and reception of
a signal. The receiver can be further fine-turned depending on the length of
Cat5e/6 cable used for optimum performance.
Position Functions
0 to1 0-10m transmission distance
2 to 5 10-30m transmission distance. The default value is 4.
6 to 7 30-40m transmission distance
8 to F Reserved
Note:
This table is for your reference, the impedance of the cable may affect
the performance as well.

11
Troubleshooting
1. No image
Check all devices are powered on
A picture is achieved when connecting the source to the sink directly
Check the cables are qualified and properly connected
Check the EQ value
2. The status indicators are off on transmitter and receiver.
Check all devices are powered on
Check the cables are qualified and properly connected
Check the source output is normal

12
Product Service
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or
benzine to clean this unit.
Provided Service
1. Damage Requiring service: The unit should be serviced by qualified
service personnel if:
The DC power supply cord or AC adapter has been damaged;
Objects or liquids have gotten into the unit;
The unit has been exposed to rain;
The unit does not operate normally or exhibits a marked change in
performance;
The unit has been dropped or the cabinet damaged.
2. Servicing Personnel: Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3. Replacement parts: When parts need replacing ensure the service uses
parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result in
fire, electric shock, or other hazards.
4. Safety check: After repairs or service, ask the service to perform safety
checks to confirm that the unit is in proper working condition.
Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured
and preferably in the original carton. Include a letter detailing the complaint and
provide a daytime phone and/or email address where you can be reached.

13
If repair is needed during the limited warranty period the purchaser will be
required to furnish a sales receipt/proof of purchase indicating date of
purchase, amount paid and place of purchase. Customer will be charged for
the repair of any unit received without such proof of purchase.
Warranty
If your product does not work properly because of a defect in materials or
workmanship, Grandbeing Company (referred to as “the warrantor”) will, for
the length of the period indicated as below, （Parts (1) Year，Labor(90) Days）
which starts with the date of original purchase (“Limited Warranty period”), at
its option either (a) repair your product with new or refurbished parts, or (b)
replace it with a new or a refurbished product. The decision to repair or replace
will be made by the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. You must
mail-in your product during the warranty period. This Limited Warranty is
extended only to the original purchaser and only covers product purchased as
new. A purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
Warranty Limits and Exclusions
1. This Limited Warranty ONLY COVERS failures due to defects in
materials or workmanship, and DOES NOT COVER normal wear and
tear or cosmetic damage. The Limited Warranty ALSO DOES NOT
COVER damages which occurred in shipment, or failures which are caused
by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration,
faulty installation, set-up adjustments, maladjustment of consumer controls,
improper maintenance, power line surge, lightning damage, modification, or
service by anyone other than a Factory Service Center or other Authorized

14
Service, or damage that is attributable to acts of God.
2. There are no express warranties except as listed under “limited
warranty coverage”. The warrantor is not liable for incidental or
consequential damages resulting from the use of this product, or
arising out of any breach of this warranty. (As examples, this excludes
damages for lost time, cost of having someone remove or re-install an
installed unit if applicable, travel to and from the service location, loss of or
damage to media or images, data or other recorded content. The items listed
are not exclusive, but are for illustration only.)
3. Parts and service, which are not covered by this limited warranty, are
your responsibility.

15
Glossary
Acronym
Complete Term
DIP Dual In-line Package
DTS Digital Theatre Systems
DVI Digital Visual Interface
EDID Extended Display Identification Data
EQ Equalization
HD High Definition
HDMI High Definition Multimedia Interface
IR Infrared

16
Appendix
The following figure shows the special Cat5e/6 cable, it has a RJ45
connector and a phoenix male connector on both end.

Grandbeing Technology Co., Ltd.
Address:
B-301, Science and Technology Building Phase11,
1057 Nanhai Rd, Nanshan District, Shenzhen, P.R.China
Tel: [phone] Fax: [phone]
Post Code: 518067
www.grandbeing.biz
