CopperLink™ Ethernet
Extenders
Model 2158 & 2168
Part# 07M2158_2168 Rev. A
Doc# 058091U
Revised 3/24/03
An ISO-9001Certified
Company

2
CONTENTS
1.0 Warranty Information ................................................................. 4
1.1 Radio and TV Interference............................................................ 4
1.2 CE Notice...................................................................................... 4
1.3 Service.......................................................................................... 5
2.0 General Information.................................................................... 6
2.1 Features........................................................................................ 6
2.2 Description.................................................................................... 6
3.0 Installation................................................................................... 8
3.1 Standalone unit installation........................................................... 8
3.2 Rack card installation.................................................................... 9
3.3 Connecting the Twisted-Pair Line Interface................................ 10
3.4 Connecting the 10/100Base-T Ethernet Interface ...................... 11
Connecting the 10/100Base-T Ethernet Port to a Hub............... 12
Connecting the 10/100Base-T Ethernet Port to a PC (DTE)...... 12
3.5 Connecting Power ...................................................................... 12
4.0 Configuration (Model 2168 Only) ............................................ 14
4.1 Configuring the hardware DIP switches...................................... 14
4.2 Configuring DIP Switch S1 ......................................................... 16
Switch S1-1: Ethernet Auto Sense............................................. 16
Switches S1-2 and S1-4: Data Rate........................................... 16
5.0 Operation................................................................................... 18
5.1 Power Up.................................................................................... 18
5.2 Front Panel LED Status Monitors............................................... 18
A Specifications ........................................................................... 21
A.1 LAN Connection .......................................................................... 21
A.2 Transmission Line ....................................................................... 21
A.3 CopperLink Line Rate ................................................................. 21
A.4 CopperLink Distance .................................................................. 21
A.5 CopperLink Surge Suppressor ................................................... 21
A.6 LED Status Indicators ................................................................. 21
A.7 Power Supply .............................................................................. 21
A.8 Temperature Range .................................................................... 22
A.9 Humidity ...................................................................................... 22
A.10 Dimensions ................................................................................. 22
B Model 2158 Series Factory
Replacement Parts and Accessories...................................... 23
C Model 2168 Series Factory
Replacement Parts and Accessories...................................... 24

3
D CopperLink Series Interface Pin Assignment........................ 25
D.1 10/100Base-T Interface .............................................................. 25
RJ-45.......................................................................................... 25
D.2 CopperLink Interface .................................................................. 25
RJ-45.......................................................................................... 25
Terminal Block............................................................................ 25
E Distance Chart, Based on 24 AWG (0.5 MM).......................... 26

4
1.0 WARRANTY INFORMATION
Patton Electronics warrants all CopperLink Ethernet Extender compo-
nents to be free from defects, and will—at our option—repair or replace
the product should it fail within one year from the first date of the ship-
ment.
This warranty is limited to defects in workmanship or materials, and does
not cover customer damage, abuse or unauthorized modification.If this
product fails or does not performs as warranted, your sole recourse shall
be repair or replacement as described above.Under no condition shall
Patton Electronics be liable for any damages incurred by the use of this
product.These damages include, but are not limited to, the following:lost
profits, lost savings and incidental or consequential damages arising
from the use of or inability to use this product. Patton Electronics spe-
cifically disclaims all other warranties, expressed or implied, and the
installation or use of this product shall be deemed an acceptance of
these terms by the user.
Note Conformity documents of all Patton products can be viewed
online at www.patton.com under the appropriate product page.
1.1 RADIO AND TV INTERFERENCE
The CopperLink Ethernet Extender generates and uses radio frequency
energy, and if not installed and used properly-that is, in strict accordance
with the manufacturer’s instructions-may cause interference to radio and
television reception.The CopperLink Ethernet Extender has been tested
and found to comply with the limits for a Class A computing device in
accordance with specifications in Subpart B of Part 15 of FCC rules,
which are designed to provide reasonable protection from such interfer-
ence in a commercial installation. However, there is no guarantee that
interference will not occur in a particular installation. If the CopperLink
Ethernet Extender does cause interference to radio or television recep-
tion, which can be determined by disconnecting the unit, the user is
encouraged to try to correct the interference by one or more of the follow-
ing measures: moving the computing equipment away from the receiver,
re-orienting the receiving antenna and/or plugging the receiving equip-
ment into a different AC outlet (such that the computing equipment and
receiver are on different branches).
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates that it is
in compliance with the Electromagnetic Compatibility (EMC) directive
and the Low Voltage Directive (LVD) of the European Union (EU).A Cer-
tificate of Compliance is available by contacting Technical Support.

5
1.3 SERVICE
All warranty and non-warranty repairs must be returned freight prepaid
and insured to Patton Electronics. All returns must have a Return Materi-
als Authorization number on the outside of the shipping container.This
number may be obtained from Patton Electronics Technical Services at:
• Tel: [phone]
• Email: [email protected]
• URL: http://www.patton.com
Note Packages received without an RMA number will not be
accepted.

6
2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product.This
product has been thoroughly inspected and tested and is warranted for
one year for parts and labor. If any questions or problems arise during
installation or use of this product, contact Patton Electronics Technical
Support at [phone].
2.1 FEATURES
• Easy to install standalone CopperLink Ethernet Extenders (no configu-
ration required)
• Auto-sensing full or half-duplex Ethernet
• Auto-sensing 10/100Base-T
• Extends network connections up to 6,000 ft (1.83 km) over 2-wire 24-
AWG unconditioned lines
• Switch selectable line rates up to 16.67 Mbps (Model 2168 only)
• 7 symmetric or asymmetric settings via DIP switch (Model 2168 only)
• Transparent operation
• LED indicators for Power, Ethernet Link & Activity, CopperLink link & Quality
of Line (QOL)
• Surge suppression up to 20 kA (8/20 µ s)
• Available in rack-mount or standalone configurations
• Made in the USA
2.2 DESCRIPTION
The Patton Electronics CopperLink/L and CopperLink/R Ethernet
Extenders provide high-speed LAN connections between peered Ether-
net LANs, remote PCs, or any other network enabled 10/100Base-T
device.
Operating in pairs, a CopperLink/L (local) located at one end of the LAN
extension and a CopperLink/R (remote) at the other end, these units can
automatically forward LAN broadcasts, multicasts, and frames across a 2-
wire voice-grade twisted-pair link.The data is passed transparently
(unmodified) through the CopperLink Ethernet Extenders.The CopperLink
Ethernet Extenders automatically add and delete MAC addresses, only

7
passing packets across the CopperLink link that are meant for the remote
peered LAN.

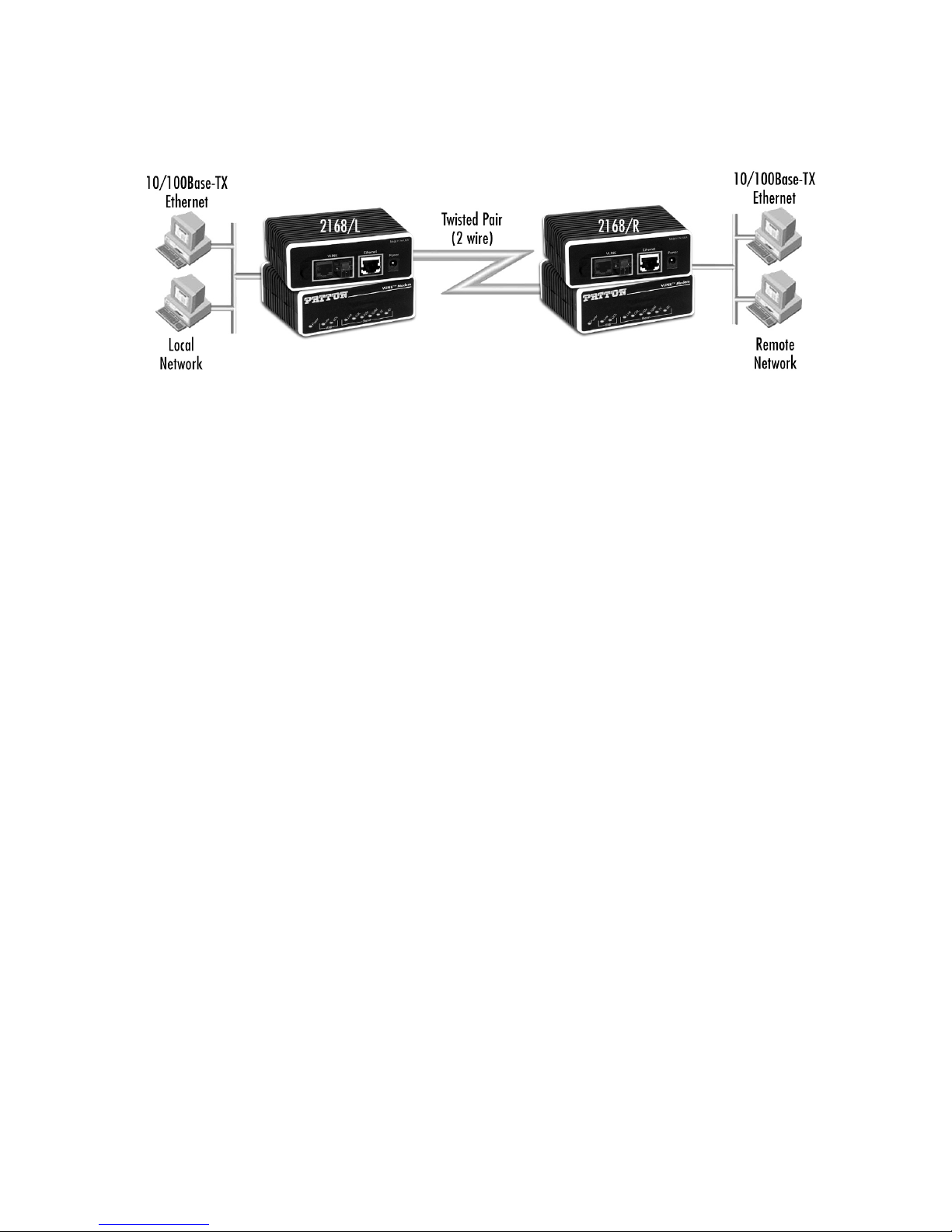

Figure 1. Typical application
The CopperLink/L modem and CopperLink/R modem work together to
create a transparent extension between two peered Ethernet LANs.
Figure 1 shows a typical point-to-point application.

8
3.0 INSTALLATION
Because the CopperLink Ethernet Extender requires no configuration, it can
be installed quickly.If you are installing a standalone unit, refer to section 3.1
“Standalone unit installation”.Otherwise, refer to section 3.2 “Rack card
installation”.
Note If asymmetric transmission or line rates other than 12.5 Mbps
are required (Model 2168 only), refer to section 4.0, “Configura-
tion (Model 2168 Only)” on page 14.
3.1 STANDALONE UNIT INSTALLATION
Do the following:
1. Connect the line interface between the units (refer to section 3.3,
“Connecting the Twisted-Pair Line Interface” on page 10)
Note See Figure 2 for the standalone unit’s rear panel arrangements.
2. Connect the Ethernet interface (refer to section 3.4, “Connecting the
10/100Base-T Ethernet Interface” on page 11).
3. Connect the power plug (refer to section 3.5, “Connecting Power”on
page 12).

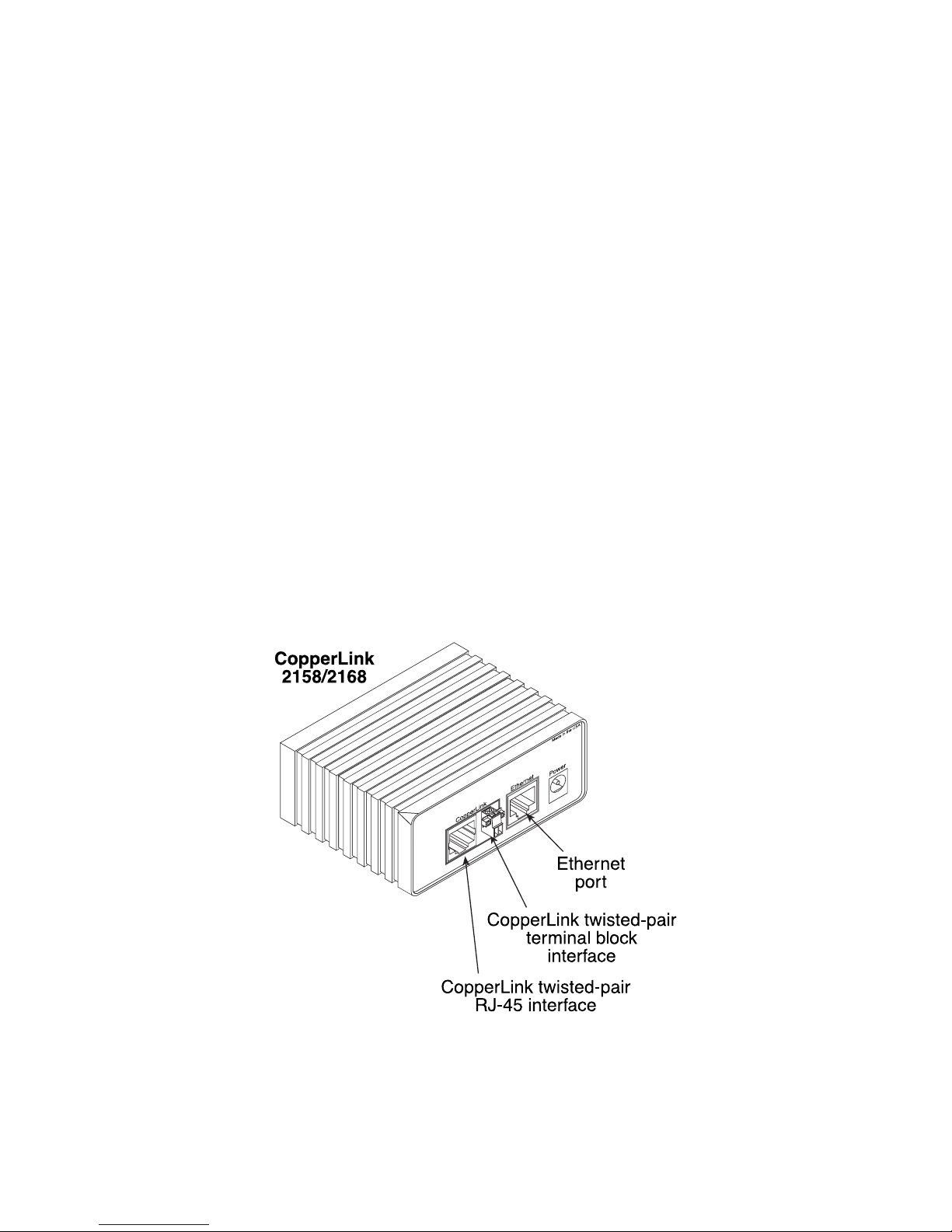

Figure 2. CopperLink Ethernet Extender standalone rear panel

9
3.2 RACK CARD INSTALLATION
The CopperLink Ethernet Extender rack card comprised a front card and
a rear card.Do the following to install the cards into the rack chassis:
1. Slide the rear card into the back of the chassis along the metal rails.
2. Secure the rear card using the supplied metal screws.
3. Slide the front card into the chassis until you feel resistance as the
front card engages the rear card.When that happens,
gently push
the front card forward until it is fully seated in the card-edge recepta-
cle of the rear card (it should
click into place).
4. Secure the front card using the captive fasteners.
Note The Model 1001R14 chassis supports “hot swapping” of cards,
so it is not necessary to power down the rack when you install or
remove a CopperLink Ethernet Extender rack card.

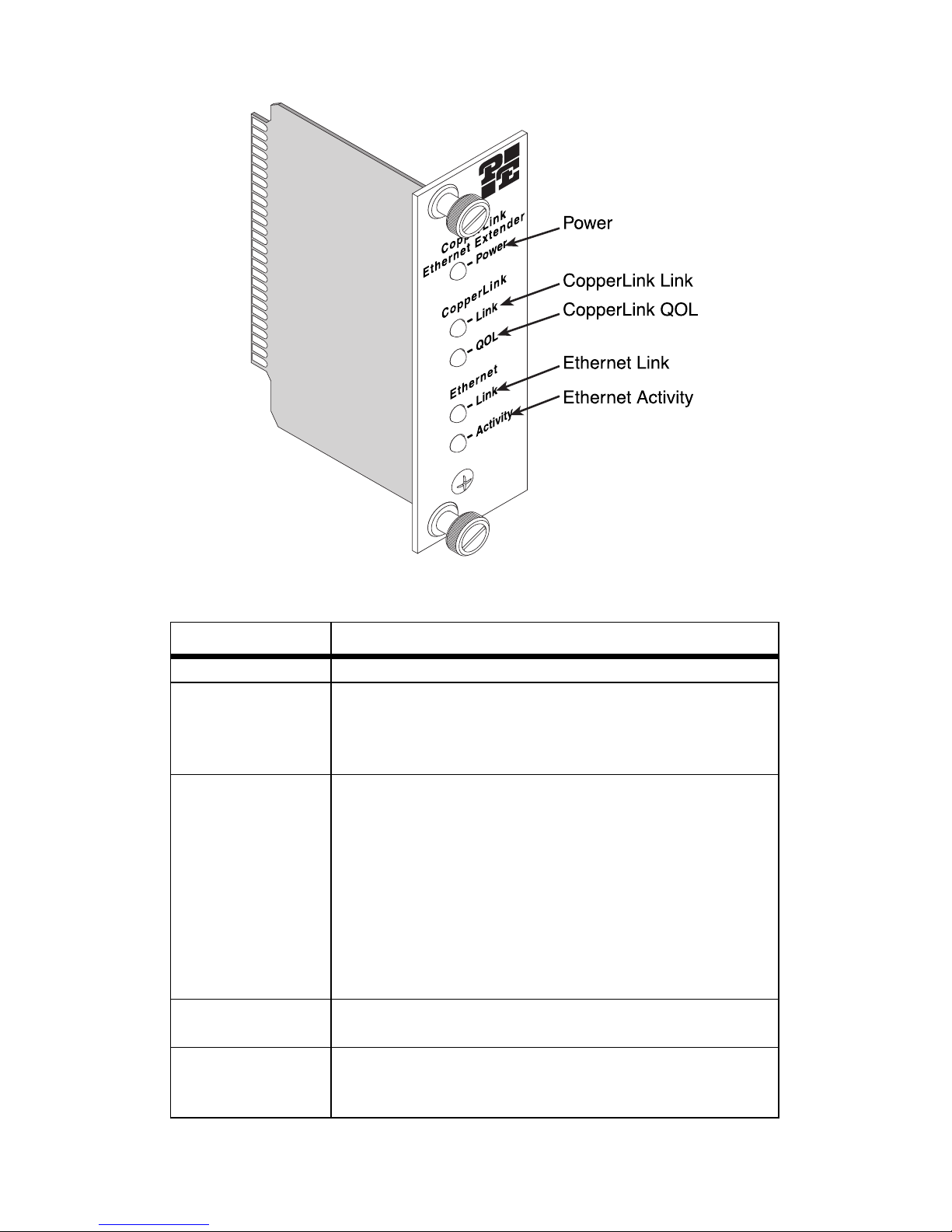

Figure 3. CopperLink Ethernet Extender rack cards
5. Connect the line interface between the units (refer to section 3.3,
“Connecting the Twisted-Pair Line Interface” on page 10)
Note See Figure 3 for the rack card’s panel arrangements.

10
6. Connect the Ethernet interface (refer to section 3.4, “Connecting the
10/100Base-T Ethernet Interface” on page 11).
3.3 CONNECTING THE TWISTED-PAIR LINE INTERFACE
The CopperLink Ethernet Extender supports communication between
two peer Ethernet LAN sites over a distance of up to 6,000 ft (1.83 km)
over 24 AWG (0.5 mm) twisted-pair wire.
Note Actual distance and link performance may vary depending on
the environment and type/gauge of wire used.
Follow the steps below to connect the CopperLink Ethernet Extenders
interfaces.
Note The CopperLink units work in pairs.One of the CopperLink units
must be an L (local), and the other unit must be an R (remote).It
does not matter which end is the L and which is the R.The link is
always initiated by the R. As long as the L is powered on, the R
can establish a link by being powered on or by having its power
reset.
1. To function properly, the two CopperLink Ethernet Extenders must
be connected together using twisted-pair, unconditioned, dry, metal
wire, between 19 (0.9mm) and 26 AWG (0.4mm). Leased circuits
that run through signal equalization equipment are not acceptable.
2. The CopperLink Ethernet Extenders are equipped with two interface
jacks that can be used on the CopperLink interface, an RJ-45 or a ter-
minal block.These CopperLink interfaces are a two-wire interface.
Observe the signal/pin relationships on the CopperLink Ethernet
Extender's CopperLink interface jacks.
The RJ-45 connector on the CopperLink Ethernet Extender's twisted
pair interface is polarity insensitive and is wired for a two-wire inter-
face.The signal/pin relationship is shown in Figure 4.
Figure 4. CopperLink Ethernet Extender (RJ-45) twisted pair line interface.
1 (no connection)
2 (no connection)
3 (no connection)
4 (2-Wire RING)
5 (2-Wire TIP)
6 (no connection)
7 (no connection)
8 (no connection)
1
2
3
4
5
6
7
8

11
The terminal block connector on the CopperLink Ethernet Extender's
twisted pair interface is polarity insensitive and is wired for a two-wire
interface.The signal/pin relationships is shown in Figure 5.
Figure 5. CopperLink Ethernet Extender twisted pair line interface.
3.4 CONNECTING THE 10/100BASE-T ETHERNET INTERFACE
The shielded RJ-45 port labeled Ethernet is the 10/100Base-T interface.
This port is designed to connect directly to a 10/100Base-T network.
Figure 6 shows the signal/pin relationships on this interface.You may
connect this port to another Ethernet device via a Type 4 or Type 5 cable
that is up to 328 ft long.

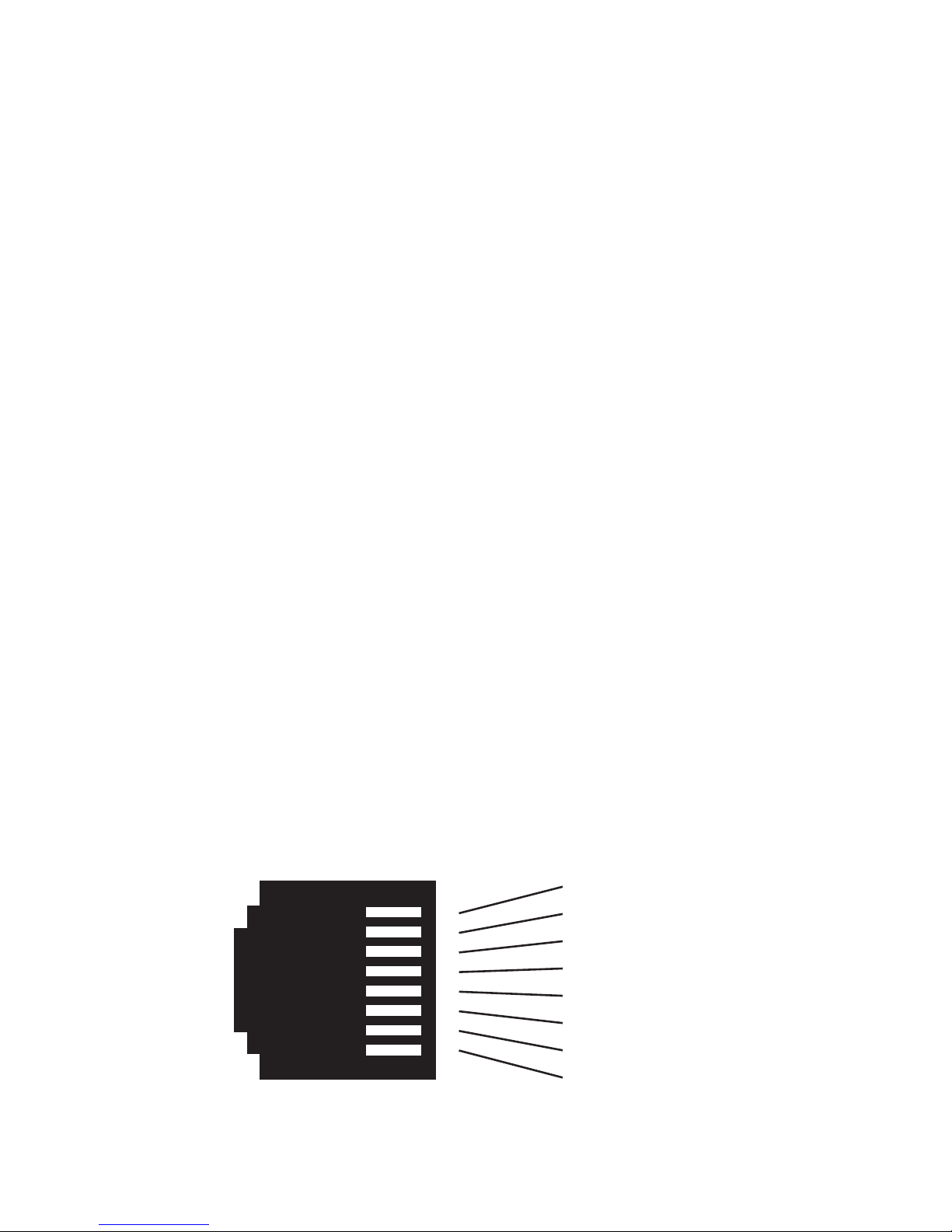

Figure 6. CopperLink Ethernet Extender 10/100Base-T RJ-45 Connector Pinout.

12
Connecting the 10/100Base-T Ethernet Port to a Hub
The CopperLink Ethernet Extender 10/100Base-T interface is configured
as DTE (Data Terminal Equipment), just like a 10/100Base-T network
interface card in a PC.Therefore, it “expects” to connect to a
10/100Base-T Hub using a straight-through RJ-45 cable.Figure 7 dia-
grams the cable wiring for connecting the CopperLink Ethernet Extender
to a 10/100Base-T hub.
Figure 7. Wiring diagram for connecting the CopperLink Ethernet Extender to a 10/100Base-
T hub
Connecting the 10/100Base-T Ethernet Port to a PC (DTE)
The CopperLink Ethernet Extender 10/100Base-T interface is configured
as DTE (Data Terminal Equipment).If you wish to connect the Copper-
Link Ethernet Extender to another DTE devices such as 10/100Base-T
network interface card in a PC (or CopperLink Ethernet Extenders in a
back-to-back arrangement), you must construct a 10/100Base-T cross-
over cable as shown in Figure 8.
Figure 8. 10/100Base-T crossover cable
3.5 CONNECTING POWER
An external AC or DC power supply is available separately.This connec-
tion is made via the barrel jack on the rear panel of the CopperLink
Ethernet Extender. No configuration is necessary for the power supply
(See Appendix B for domestic and international power supply and cord
options).
1 (TX+) 1 (TX+)
2 (TX-) 2 (TX-)
3 (RX+) 3 (RX+)
6 (RX-) 6 (RX-)
10/100Base-T DTE
RJ-45 Pin No.

13
DC power (supplied via the power supply jack to the CopperLink Ether-
net Extender) must meet the following requirements; DC power supplied
must be regulated +5VDC ±5%, 1.0A minimum.Center pin is +5V.The
barrel type plug has a 2.5/5.5/10mm I.D./O.D./Shaft Length dimensions.
The CopperLink Ethernet Extender does not have a power switch, so it
powers up as soon as it is plugged in.
WARNING
There are no user-serviceable parts in the Copper-
Link Ethernet Extender.Fuse replacement should
only be performed by qualified service personnel.
Contact Patton ElectronicsTechnical support at (301)
975-1007 for more information.

14
4.0 CONFIGURATION (MODEL 2168 ONLY)
The CopperLink Ethernet Extender has eight DIP switches for configur-
ing the unit for a wide variety of applications.This section describes
switch locations and explains the different configurations.
4.1 CONFIGURING THE HARDWARE DIP SWITCHES
Using a small flat-tip screwdriver, remove the protective cover located on
the underside of the CopperLink Ethernet Extender (see Figure 9).
Figure 9. Removing protective cover

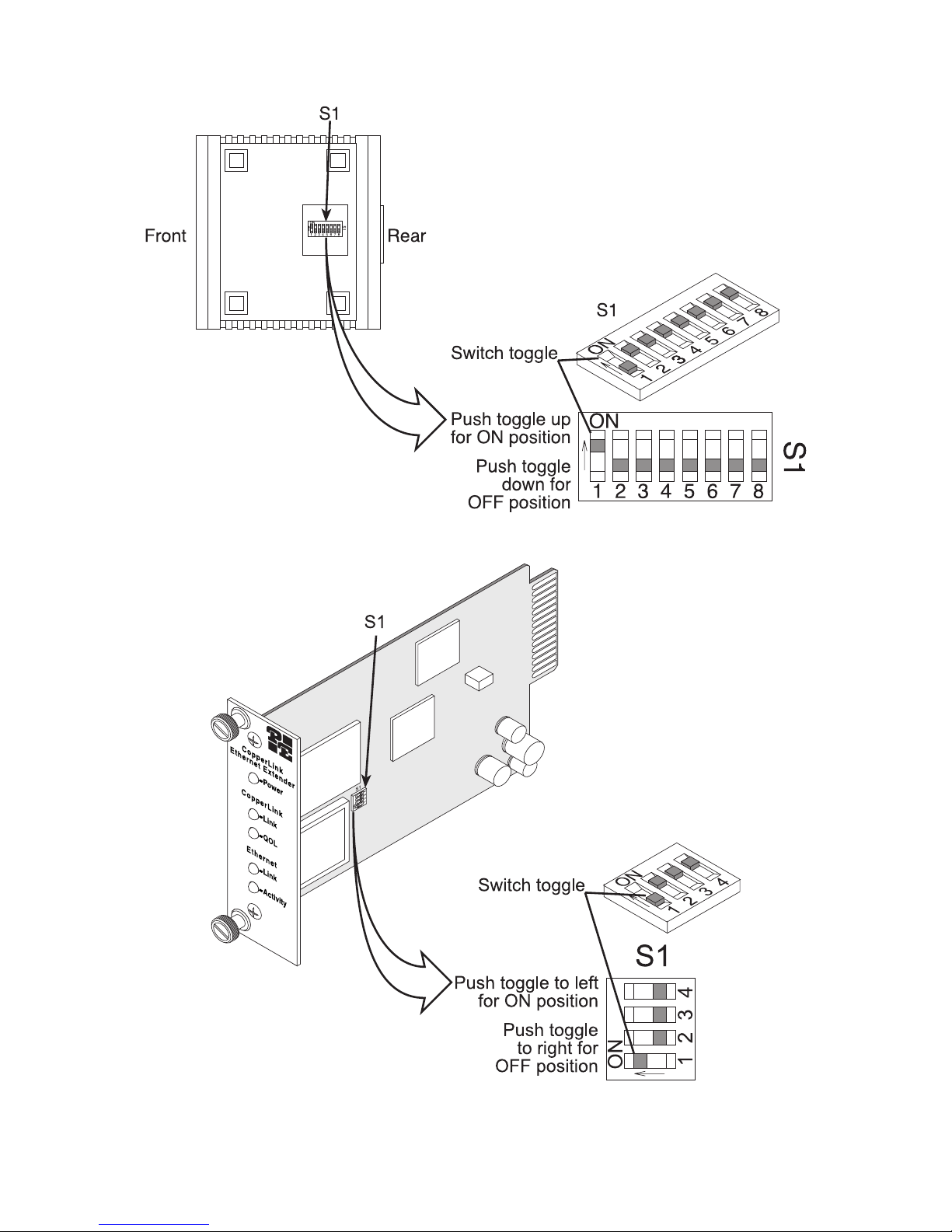

Figure 10 and Figure 11 on page 15 show the orientation of the DIP
switches in the On and Off positions.

15
Figure 10. Model 2168 standalone modem DIP switch orientation
Figure 11. Model 2168 rack card DIP switch orientation

16
4.2 CONFIGURING DIP SWITCH S1
DIP switch S1 is where you configure the CopperLink line rate, symmet-
ric or asymmetric, Ethernet full auto negotiation capability (100Base-T
full or half duplex, 10Base-T full or half duplex) or limited auto sense
(only 100Base-T half duplex, 10Base-T full or half duplex).
Switch S1-1: Ethernet Auto Sense
Use switch S1-1 to configure the unit for full auto sense capability or lim-
ited auto sense capability.Full Auto sense capability consists of standard
Ethernet Auto sensing (100BaseT full duplex, 100BaseT half duplex,
10BaseT full duplex, and 10BaseT half duplex). Limited Auto sensing
capability consists on only auto sensing for 100BaseT half duplex,
10BaseT full duplex, and 10BaseT half duplex.The limited auto negotia-
tion feature is used when an Ethernet device does not comply with IEEE
802.3x (back pressure flow control) at 100M full duplex.
Switches S1-2 and S1-4: Data Rate
Use switches S1-2 and S1-4 to configure the CopperLink line rates.
Table 1: Ethernet Auto Negotiation Selection Chart
S1-1 Setting
OFF Full Auto Negotiation (Factory Default)
(100 Mbps, Full or Half Duplex)
(10 Mbps, Full or Half Duplex)
ON Limited Auto Negotiation
(100 Mbps Half Duplex)
10 Mbps Full or Half Duplex)
Table 2: Symmetric CopperLink Line Rates Selection Chart
S1-2 S1-3 S1-4 Symmetric Line Rate
ON ON ON 6.25 Mbps
ON ON OFF 9.38 Mbps
ON OFF OFF 12.5 Mbps (Factory Default)
ON OFF ON 16.67 Mbps

17
Table 3: Asymmetric CopperLink Line Rates Selection Chart
S1-2 S1-3 S1-4 Asymmetric Line Rates DS/US
OFF OFF ON 4.17 Mbps/1.56 Mbps (Mode 0)
OFF ON ON 9.38 Mbps/1.56 Mbps
OFF ON OFF 16.67 Mbps/2.34 Mbps
Table 4: Reserved for future use
S1-5 S1-6 S1-7 S1-8 Reserved for future use
OFF OFF OFF OFF Reserved (Factory Default)

18
5.0 OPERATION
Once the CopperLink Ethernet Extenders are properly installed, they
should operate transparently. No user settings required.This section
describes reading the LED status monitors.
5.1 POWER UP
Before applying power to the CopperLink Ethernet Extender, please
review section 3.5, “Connecting Power” on page 12 to verify that the unit
is connected to the appropriate power source.
5.2 FRONT PANEL LED STATUS MONITORS
The CopperLink Ethernet Extender features nine front panel LEDs (five
on the rack card) that monitor power, the Ethernet signals, and the Cop-
perLink connection. Figure 12 (standalone version) and Figure 13 on
page 20 (rack card version) show the front panel LEDs. Table 5 on
page 19 describes the LED functions for the standalone model, Table 6
on page 20 describes the LED functions for the rack card.

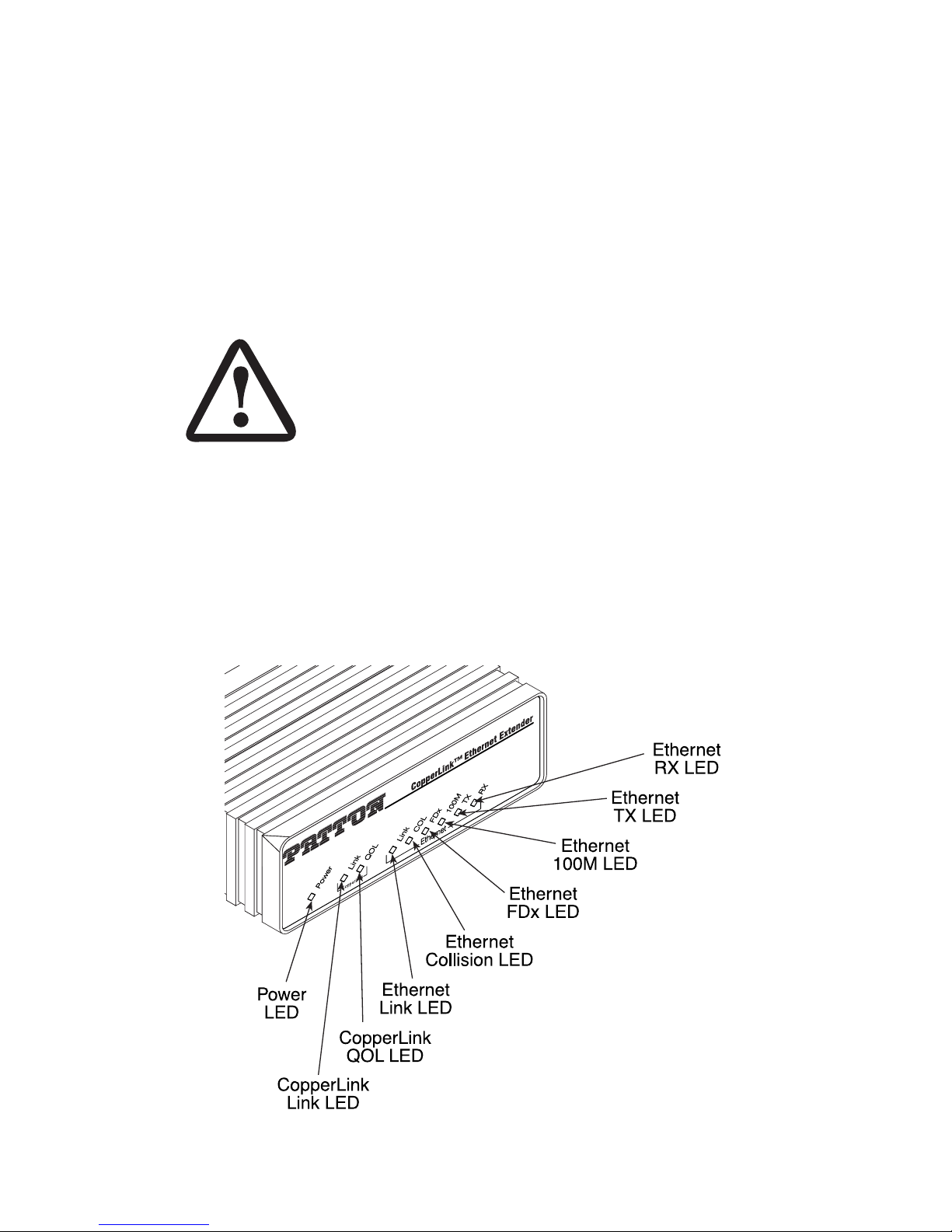

Figure 12. CopperLink Ethernet Extender standalone unit front panel
WARNING
There are no user-serviceable parts in the Copper-
Link Ethernet Extender. Fuse replacement should
only be performed by qualified service personnel.
Contact Patton ElectronicsTechnical support at (301)
975-1007 for more information.

19
Table 5: Front panel LED description for standalone modem
LED Description
Power On (green) when power is applied to the unit. Off
when no power is applied to the unit.
CopperLink -
Link
On (green) when the end-to-end CopperLink link
between the units is established. Off when the link
has not been established or when the link fails
CopperLink -
QOL
Flashes yellow at different rates to indicate the
amount of error correction taking place on data pass-
ing over the CopperLink link.This is a normal operat-
ing condition and all data is passing correctly over the
link even if the link is solidly yellow. However, if the
LED is solid yellow and the CopperLink Link LED
is Off , Off when no power is applied to the unit.
Ethernet - Link On (green) when the 10/100Base-T Ethernet link
has been established. Off when the 10/100Base-T
Ethernet link has not been established or when the
link fails.
Ethernet - COL
(Collision)
Flashes yellow to indicate Ethernet collisions are
occurring.
Ethernet - FDx
(Duplex)
On (yellow) when in full-duplex Ethernet mode. Off
when when operating in half-duplex Ethernet mode.
Ethernet - 100M On (yellow) when the link has not been established
or when operating in 100-Mbps Ethernet mode. Off
when operating in 10-Mbps Ethernet mode.
Ethernet - TX Flashes yellow when data is transmitted from the
unit to the LAN.
Ethernet - RX Flashes yellow when data is received at the unit
from the LAN.

20
Figure 13. CopperLink Ethernet Extender rack card front panel
Table 6: Front panel LED description for rack card modem
LED Description
Power Solid GREEN to indicate the unit is powered on.
CopperLink
Ethernet
Extender Link
(Active Green) Solid green (ON) to indicate that the
end-to-end CopperLink link between the CopperLink
Ethernet Extenders is established.The CopperLink
Ethernet Extender LED is OFF when the link is down.
CopperLink
Ethernet
Extender QOL
(ActiveYellow) FlashesYELLOW to indicate the pro-
cessor is correcting an error in the data thus prevent-
ing the transmission of corrupted data to the Ethernet
port.The more error corrections, the more often the
LED blinks. If the light remains lit continuously, it
means that the CopperLink line is noisy—although
the data at the Ethernet port remains uncorrupted.
Further impairment of the line however, risks having
the line fail, as indicated by the green CopperLink
Ethernet Extender Link LED extinguishing.
Ethernet Link (Active Green) Solid Green indicates that
10/100Base-T Ethernet link has been established.
Ethernet Activity (ActiveYellow) Flashes yellow to indicate Ethernet
activity on the CopperLink Ethernet Extender’s
10/100Base-T Ethernet port.
