HDTV Supply HDTVET0101VL7 User manual
HDTVET0101VL7VL8Usermanual
HDTV Supply Inc. 800-841-9238 nc lupply.c 1
HDTVET0101VL7VL8 User Manual
HDTVET0101VL7VL8Usermanual
HDTV Supply Inc. 800-841-9238 nc lupply.c 2
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please keep
this manual for future reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.
SAFTY AND NOTICE
1. The transmission distances of HDMI over UTP cables are measured using TE
CONNECTIVITY 1427071-6
2. EIA/TIA-568-B termination (T568B) for CAT cables is recommended for better
performance.
3. DO NOT use 568A/568B standard mixed CAT cable (cross-over cable) because there are
2 pairs swapped, this will make POE OVER-CURRENT and damage POE components.
Please use straight-through CAT cable (both RJ45 headers are 568A or 568B standard).
4. It is recommended that power up the device after connections of source, sink and CAT
cable.
5. To reduce the interference among the unshielded twisted pairs of wires in CAT cable, do
not run HDBaseT / Zone Cat5e/6/6a cabling with or in close parallel proximity to mains
power cables. Shielded CAT cables can be used to improve EMI problems, which is
worsen in long transmission.
6. Because the quality of the CAT cables has the major effect on how long the transmission
limit can achieve and how good is the received picture quality, the actual transmission
range is subject to one’s choice of CAT cables.
7. Do not substitute or use any other Power Supply other than the enclosed unit, or a
Tonlyware approved Replacement Part. Doing so will void the warranty and potentially
expose the user to dangerous voltages resulting in an electrical shock.
8. Do not disassemble the device for any reason. Doing so will void the manufacturer’s
warranty. Also, our unique case is an integral part of the design of this unit and is
responsible for cooling and circuitry shielding. Any modifications to this case will
potentially cause malfunction and product failure.
9. Do not expose the device to water, moisture, or liquids. Possible electric shock may result
as well as failure of the unit to operate.
HDTVET0101VL7VL8Usermanual
HDTV Supply Inc. 800-841-9238 nc lupply.c 3
Table of Contents
1. Introduction.........................................................................................4
2. Features...............................................................................................4
3. Panel Description..................................................................................5
4. Connection Diagram....................................................................7
5. Specifications.......................................................................................8
6. Package Contents................................................................................8
HDTVET0101VL7VL8Usermanual
HDTV Supply Inc. 800-841-9238 nc lupply.c 4
Introduction

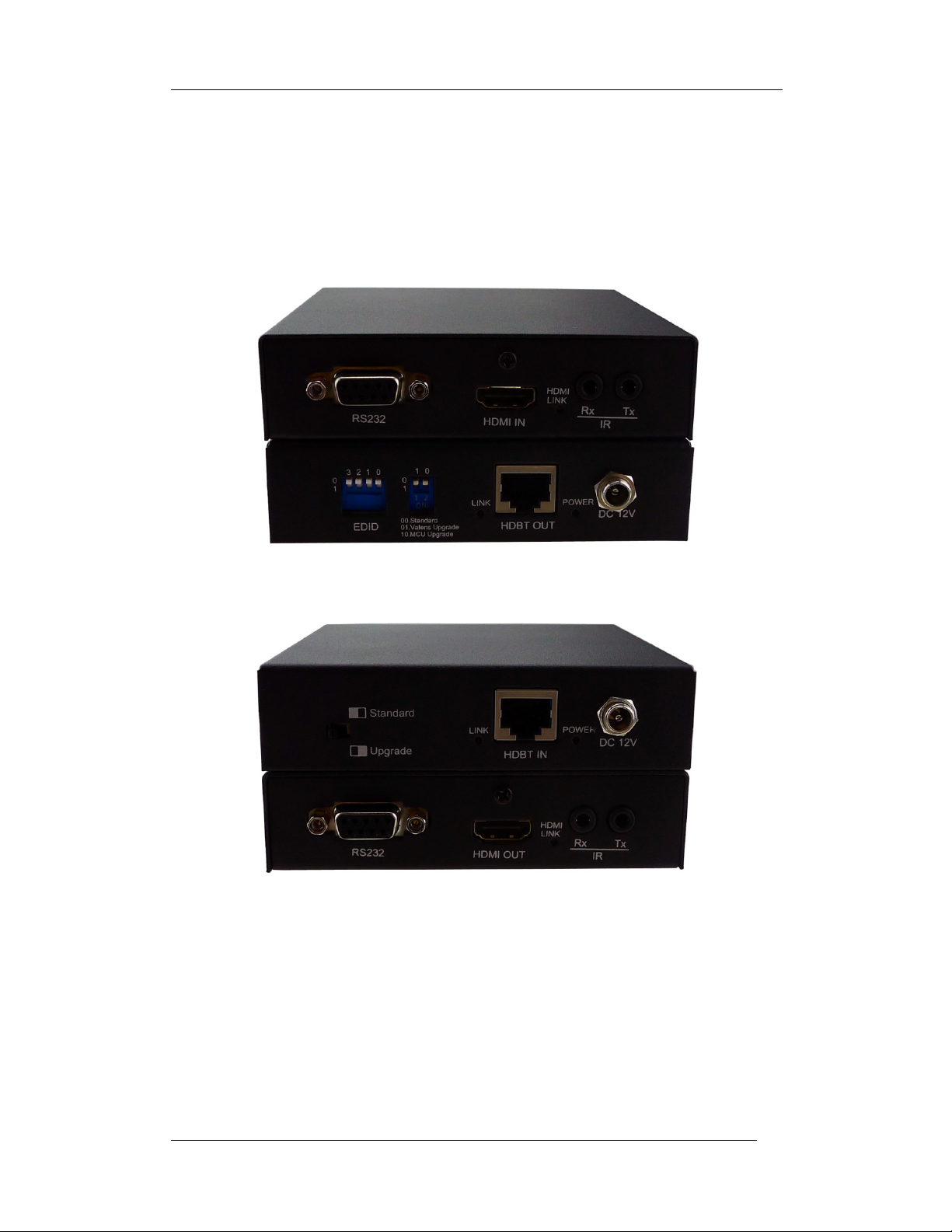

HDTV Supply's HDTVET0101VL7 (Transmitter)/HDTVET0101VL8 (Receiver) is a 70m
(230ft) HDBaseT Extender. It transmits 1080P@60HZ at 48bit deep color via single
Cat5e up to 70 meters (230ft) and 4K@30Hz to 40 meters (130ft). Bi-directional IR
and RS232 can also be transmitted over the same Cat5e cable. With support of POH
(power over HDBaseT), only one power supply is needed at either transmitter or receiver.
Features
HDMI v1.4 and HDCP compliant, support 1080p@60Hz, 3D and 4Kx2K
Support 1080P@60Hz or VESA: 1920x1200@60Hz up to 70m (230ft).
Transmission distance for 4Kx2K@30Hz up to 40m (130ft).
Dolby TrueHD and DTS-HD master audio pass through HDMI output
Bi-Directional IR and RS232 pass through.
Power over HDBaseT supported, only one power supply needed at either transmitter or
receiver side.
With ESD Protection.
EHDTVET0101VL7VL8Usermanual
HDTV Supply Inc. 800-841-9238 nc lupply.c 5

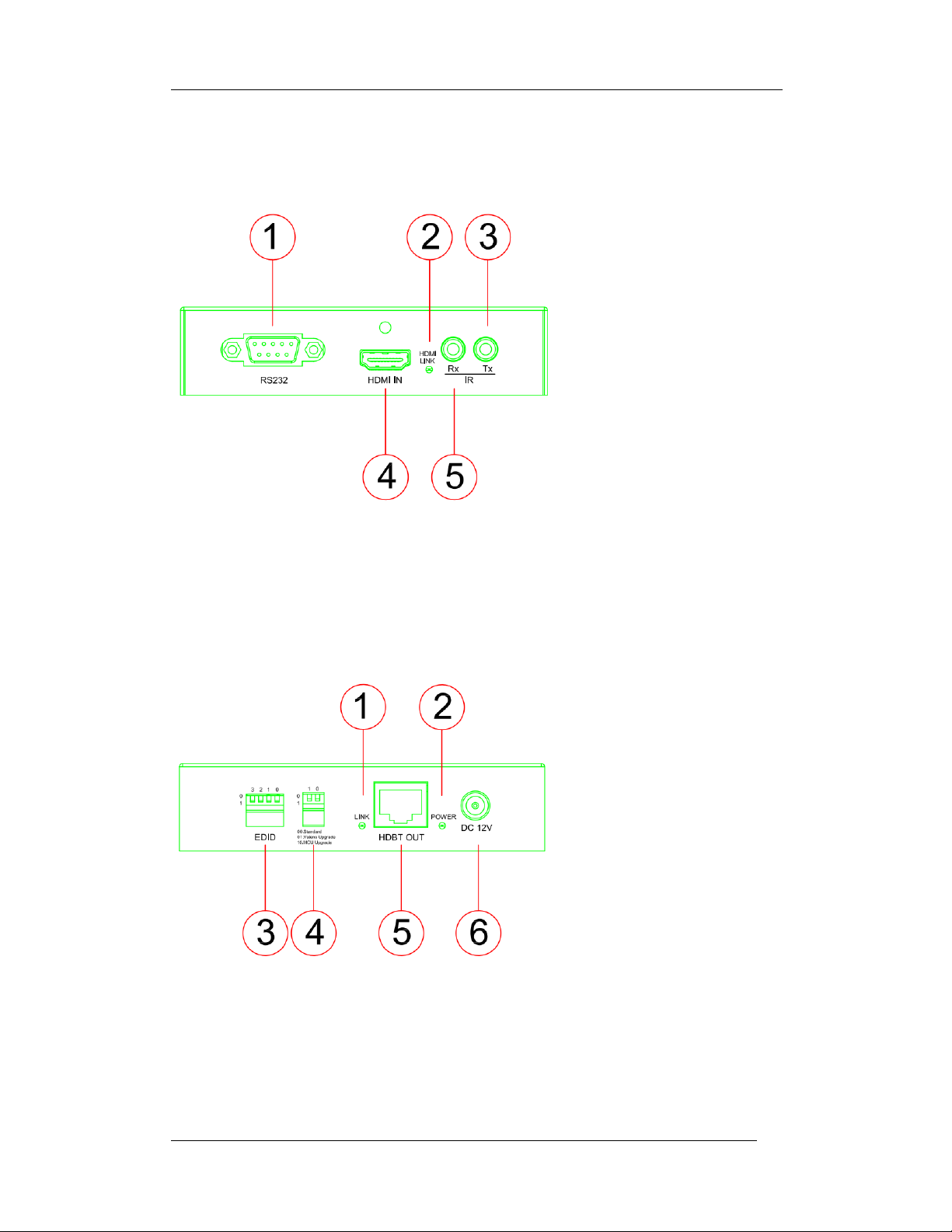

Panel Description
HDTVET0101VL7
1. RS232 connector
2. HDMI link indicator
3. IR TX jack
4. HDMI input
5. IR RX jack
1. Signal Link indicator
2. Power status indicator
3. EDID DIP switch ( UP=0, DOWN=1)
[DIP]=0000: HDMI 1080p@60Hz, Audio 2CH PCM
[DIP]=1111: Copy EDID from HDMI output, i.e., EDID pass through
[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY
HDTVET0101VL7VL8Usermanual
HDTV Supply Inc. 800-841-9238 nc lupply.c 6
[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0011: HDMI 1080i@60Hz, Audio 2CH PCM
[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0110: HDMI 1080p@60Hz/3D, Audio 2CH PCM
[DIP]=0111: HDMI 1080p@60Hz/3D, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1000: HDMI 1080p@60Hz/3D, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1001: HDMI 4K2K, Audio 2CH PCM
[DIP]=1010: HDMI 4K2K, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1011: HDMI 4K2K, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1100: DVI 1280x1024@60Hz, Audio None
[DIP]=1101: DVI 1920x1080@60Hz, Audio None
[DIP]=1110: DVI 1920x1200@60Hz, Audio None
4. Upgrades DIP switch
5. HDBT output
6. DC 12V screw type connector

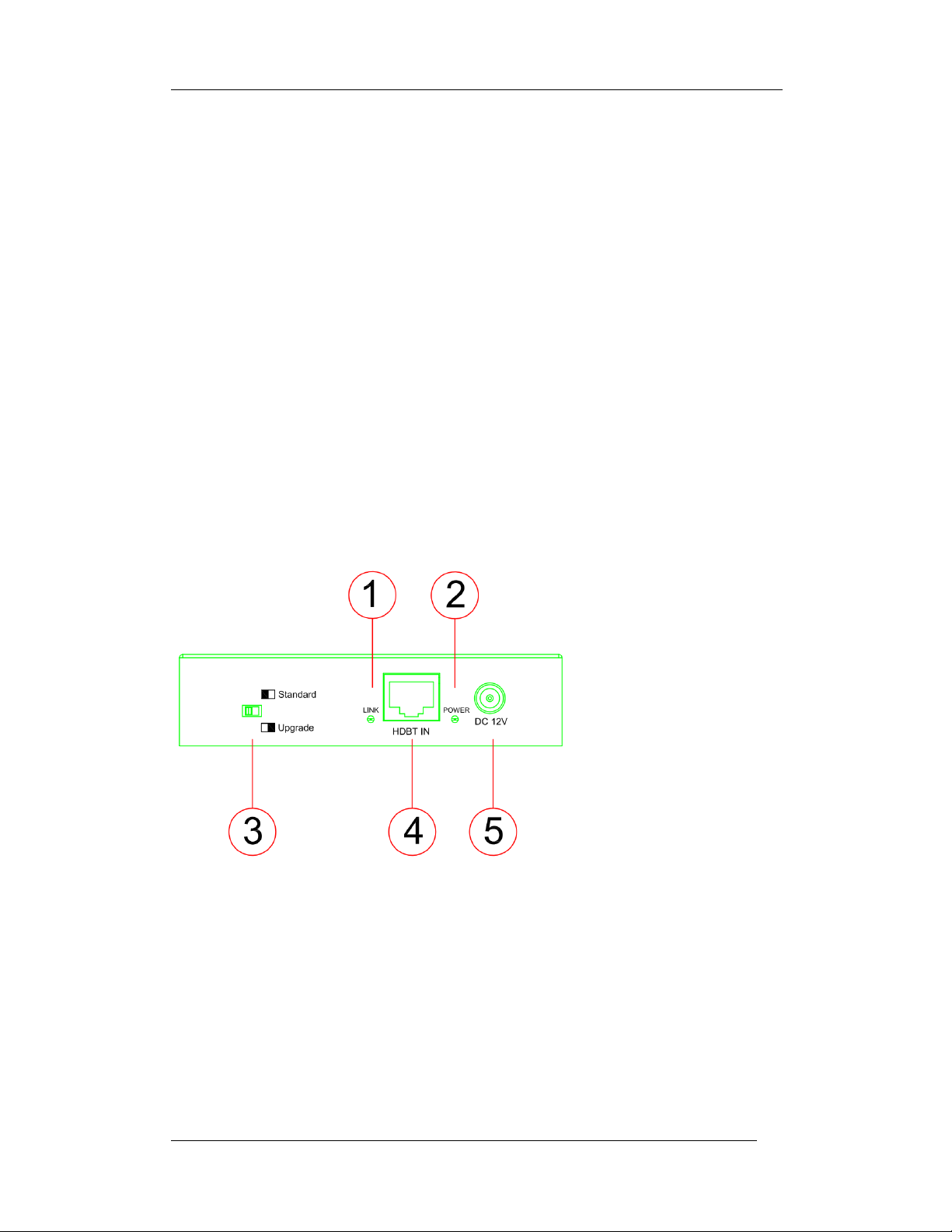

HDTVET0101VL8
1. Signal Link indicator
2. Power status indicator
3. Standard/Upgrade mode switch - On Standard side, for signal pass-thru. On Upgrade side,
for Valens chipset firmware upgrade.
4. HDBT input
5. DC 12V screw type connector
HDTVET0101VL7VL8Usermanual
HDTV Supply Inc. 800-841-9238 nc lupply.c 7

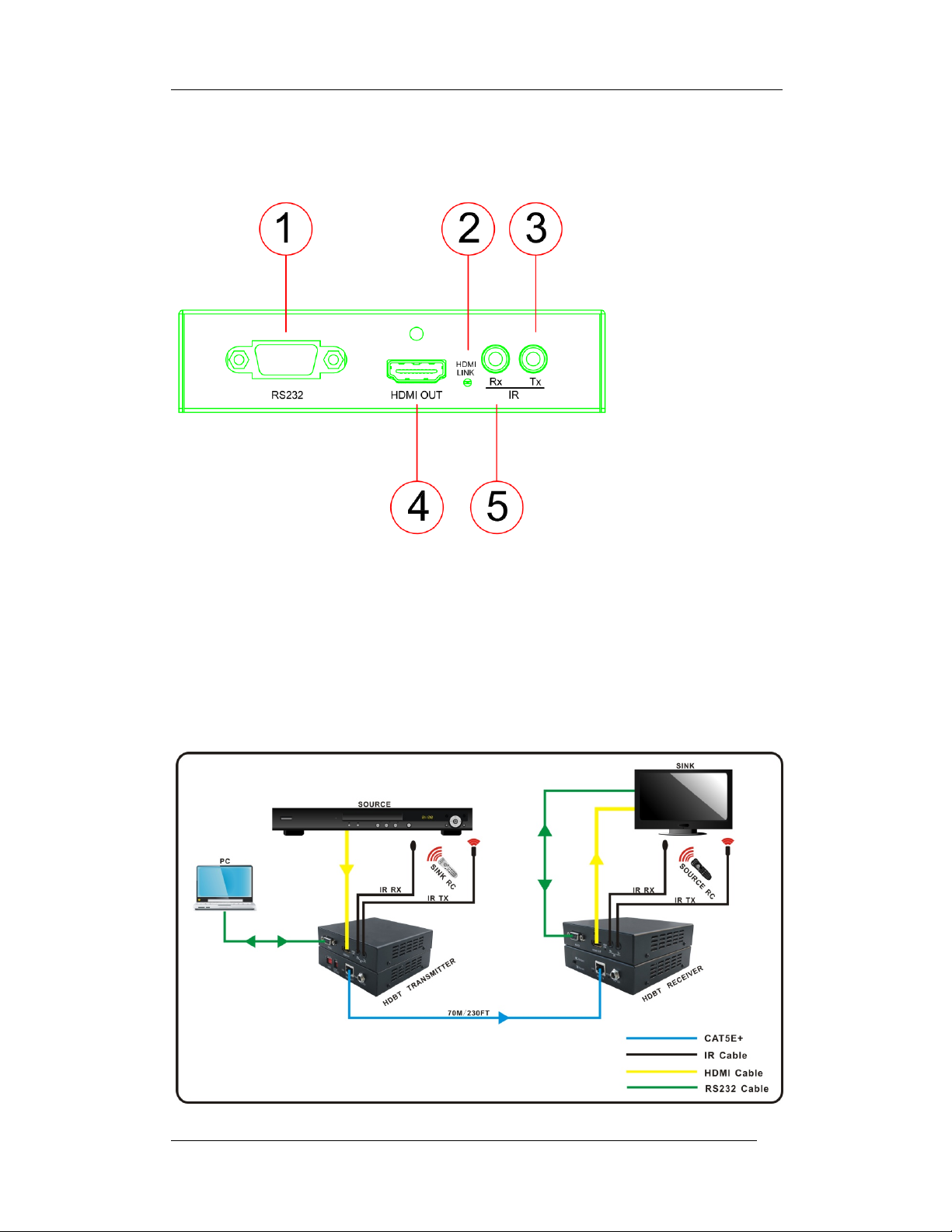

1. RS232 connector
2. HDMI link indicator
3. IR TX jack
4. HDMI output
5. IR RX jack
Connection Diagram
HDTVET0101VL7VL8Usermanual
HDTV SupplyInc. Contact:sales@upply.com 8
Specifications
Bandwidth 2.97Gbps per Color
Video input HDTVET0101VL7
1XHDMI Type A, 19-pin, female
HDTVET0101VL8
1xRJ45
Video output HDTVET0101VL7
1xRJ45
HDTVET0101VL8
1XHDMI Type A, 19-pin, female
IR input 2x3.5mm stereo jack
IR output 2x3.5mm stereo jack
RS232 control 2x DB9
Power Supply 12V/2A DC, screw type connector
Power Consumption 9.5W
Audio Passes up to Dolby TrueHD or DTS-HD Master Audio
Resolution Video: up to 4Kx2K
VESA: up to 1920x1200
Distance 230ft @ 1080p over CAT5e/6
130ft @ 4Kx2K over CAT5e/6
Dimensions 107x107x27mm
Weight 200g
Temperature Operating
32°F to 104°F (0°C to 40°C)
Storage
-4°F to 140°F (20°C to 60°C)
Rack-Mountable Rack ears included
NOTE: Specifications are subject to change without notice. Weight and dimensions are approximate.
Package Contents
1x HDTVET0101VL7
1x HDTVET0101VL8
1x 12V/2A DC power supply
1x IR Transmitter, 1x IR
Receiver.
4x mounting brackets.
