HDX 1501HDXA User manual

USE AND CARE GUIDE
LAWN AND GARDEN SPRAYER
Model #1501HDXA
1502HDXA
Operation
1 Filling the sprayer
WARNING:
(i.e. acids, chlorines and bleach), corrosive,
heated, or self-heating solutions with this
sprayer.
Remove the pump assembly (D) from the
tank (A) by locking the pump handle down,
then turning counterclockwise.
Prepare the spray solution following
the instructions listed on the chemical
manufacturers’ label. Mix only the amount
FILL LINE).
Screw the pump assembly (D) back into the
tank (A) by turning clockwise. Firmly hand
tighten.
A
D
2 Pressurizing the sprayer
WARNING: To prevent the ejected pump
assembly and/or solution from striking and
injuring you, never stand with your face or body
directly over the top of the tanks when pumping
or loosening the pump.
To operate the pump (D), unlock the pump
handle by turning counterclockwise. Be
careful not to loosen the pump (D) from the
tank (A).
To create pressure, move the pump handle
up and down until it is hard to pump.
Lock the pump handle back into the pump
assembly (D) by turning clockwise.
A
D
Part Description Quantity
A Tank 1
B Hose assembly 1
C Wand 1
D Pump assembly 1
Pre-Assembly
PACKAGE CONTENTS
A DCB
Operation (continued)

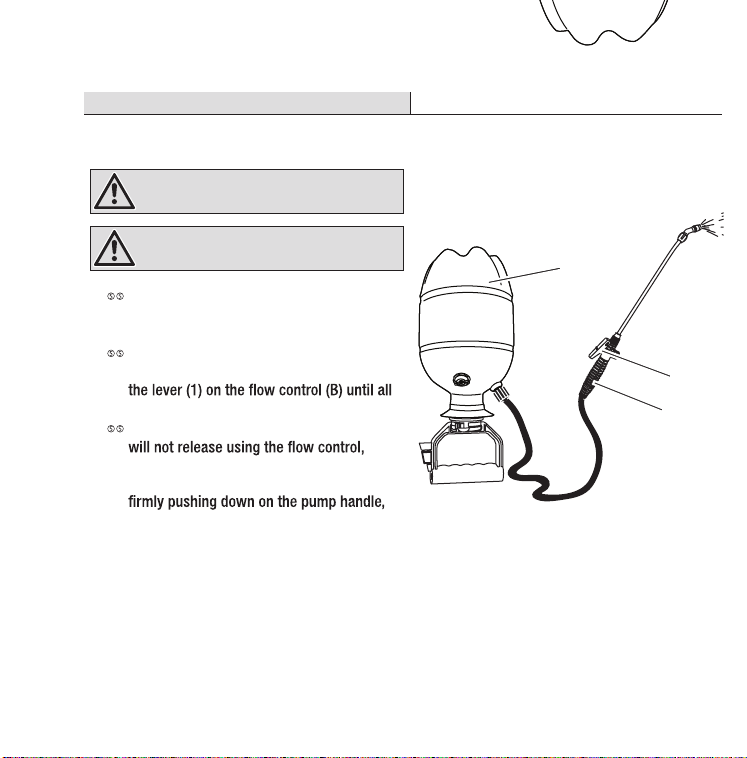

4 Releasing pressure from the tank
WARNING: Always release pressure in
sprayer before servicing.
WARNING: Never leave a pressurized sprayer
unattended.
If your sprayer has a pressure relief valve,
turn the yellow knob clockwise until all air
pressure is gone.
To release pressure from the tank (A), turn
the tank (A) upside down, and then squeeze
the air pressure is gone.
If your sprayer is clogged and the pressure
place a rag over the top of the pump handle,
covering the top of the sprayer and while
slowly turn counterclockwise.
Operation (continued)
3 Operating the sprayer
WARNING:
cap does not regulate or adjust pressure or
CAUTION: Always wear long sleeve shirts,
long pants, goggles, gloves, and durable shoes.
To start spraying, squeeze the lever (1) on
To stop spraying, release the lever (1) on
the lever.
To spray continuously, squeeze the lever (1)
lock in place.
If your sprayer has an adjustable cone
and counterclockwise for a coarse stream.
B1
1
2
B
2
2
1
B
Safety Information
WARNING: This product is designed to spray
chemicals that may be harmful and could cause
serious personal injury if inhaled or brought into
contact with the user. Failure to read and follow
these instructions before use and/or misuse
of this product could result in explosive failure
with major injuries.
WARNING: Always test the sprayer before
each use.
WARNING: Always wear long sleeve shirts,
long pants, goggles, gloves, and durable shoes
when using this product.
WARNING: Always read and follow the label
instructions for the chemicals to be applied.
WARNING: After each use, release the
pressure and clean the sprayer.
WARNING: Always release the pressure in the
sprayer before servicing.
WARNING: Do not alter the sprayer or any
components.
WARNING:
(i.e. acids, chlorines and bleach), corrosive,
heated, or self-heating solutions with this
sprayer.
WARNING: Do not store liquids in the sprayer.
WARNING:
line on the tank.
Care and Cleaning
Do not store chemicals in the tank. If the chemical is stored in the tank, it can clog the system as
it dries and destroys the seals and other components.
To prolong the life of the sprayer, clean the sprayer after each use. After using water-based
After spraying solvent or oil-based products, follow the chemical manufacturers’ recommended
followed by clean water.
control) from the tank.
Loosen the pump assembly, but leave in the tank when storing.
Store all components in a clean, dry area.
THANK YOU
continually create quality products designed to enhance your home. Visit us online to see our full line of products
available for your home improvement needs. Thank you for choosing HDX!
Warranty
WHAT IS COVERED
The supplier warrants to the original purchaser only that the product purchased will continue to function
as intended if used in accordance with operating instructions (under NORMAL CONSUMER USE) for
length of the warranty. If the product fails to function as intended—DO NOT RETURN IT TO THE STORE—
call our Consumer Service Team at 1-800-253-4642 for fast service. We will, at our option, repair or
replace any non-functioning parts without charge (shipping and handling charges will apply). This
warranty does not apply to damage resulting from accident, misuse, neglect, alterations, operation not in
accordance with instructions, commercial use, or normal wear of O-rings, seals, or gaskets.
repair or replacement of the non-functioning product or part. The supplier excludes liability under this
warranty for any and all incidental and consequential loss or damage.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitation of incidental or consequential damages, so these limitations or exclusions may not apply to
to state.
Questions, problems, missing parts? Before returning to the store,
call Customer Service
Year Round: 8 a.m.-7 p.m., EST, Monday-Friday,
March 1 - August 30: 8 a.m. - 7 p.m., EST, Monday - Friday, 10 a.m. to 4 p.m., EST, Saturday
1-800-253-4642
RLFLOMASTER.COM
HOMEDEPOT.COM
971-001
Assembly
1 Attaching the hose to the tank
Lubricate the black o-ring on the black hose
insert (B) and then push into the threaded
tank nipple (1) on the tank (A) until fully
seated.
Screw the hose nut (2) onto the threaded
tank nipple (1). Firmly hand tighten and pull
to ensure a tight connection.
2 Attaching the wand to the flow control
all the way into the shoulder.
To ensure the correct assembly, test the
C
1
2
Flow Control Cap
A
B
2
1
WARNING: Always close the pressure
release valve when pressurizing the sprayer.
A
B
1
