Health & Life HL158LD User manual

1
I
In ns st tr ru uc ct ti io on n M Ma an nu ua al l
Automatic
Wrist Blood Pressure Monitor
M
Mo od de el l N No o. . H HL L1 15 58 8L LD D

2
Table of Contents
Medical Disclaimer……………………………………………………………………………03
Intended Use………………………………………………………………………………..…03
About Blood Pressure………………………………………………………………………04
Measurement Method…………………………………………………………………06
Accuracy……………………………………………………………………………………………07
Precautions…………………….…………………………………………………………………08
Device Overview……………………………………………………………………………….10
Symbol Definitions………………………………………………………………………….12
Features………………………………………………………………………………………….13
Installing Batteries………………………………………………………………………….18
Applying the Cuff…………………………………………………………………………….19
Positioning Guide………….………………………………………………………………….20
Measurement Procedure………….…………………………………………………….21
Memory Function…………………………………………………………………………….23
Bluetooth Transmission……………………………………………………………………24
Storage and Maintenance……………………………………………………………….25
Troubleshooting……………………………………………………………………………….26
Warranty & Recalibration……………….……………………………………………….27
Specifications………………………………………………………………………………….28
Note………………………………………………………………………………………….…….30
Appendix…………………………………………………………………………………….…….32
Blood Pressure Diary……………….……………………………………………….…….34

3
Medical Disclaimer
This manual and product are not meant as a substitute for advice
provided by your doctor.
You are not to use the information contained herein, or this product
for diagnosing or treating a health problem or prescribing any
medication. If you have or suspect that you have a medical problem,
promptly consult your healthcare provider.
Intended Use
HL158LD automatically measures human’s Systolic, Diastolic blood
pressure and heart rate by using the oscillometric method. All values
can be read out in one LCD panel. Measurement position is at human
being’s wrist. The intended use of this over-the-counter device is for
adults aged 18 years and older with wrist circumference ranging from
5.3 inches to 7.7 inches (approx. 135 mm to 195 mm) and for home
use.
HL158LD detects the appearance of irregular heartbeats during
measurement; an indicated symbol will appear with measuring
reading. And the BP Category Indicator will show the information with
the readings on the screen for the user tracking their blood pressure
level.

4
About Blood Pressure
A. What is blood pressure?
Blood pressure is the measurement of the force of blood pushing
against the walls of the arteries. Arterial blood pressure is
constantly fluctuating during the course of the cardiac cycle. The
highest pressure in the cycle is called the systolic blood pressure,
and represents the pressure in the artery when the heart is beating.
The lowest pressure is the diastolic blood pressure, and represents
the pressure in the artery when the heart is at rest. Both the
systolic and the diastolic pressure are necessary for a physician to
evaluate the status of a patient's blood pressure.
Many factors such as physical activity, anxiety or the time of day,
can influence your blood pressure. Blood pressure is typically low
in the mornings and increases from the afternoon to the evening.
It is on average lower in the summer and higher in the winter.
B. Why is it useful to measure blood pressure
at home?
Having one's blood pressure measured by a doctor in a hospital or
a clinic, is often associated with a phenomenon called “White Coat
Hypertension” where the patient becomes nervous or anxious,
thus raising his blood pressure. There are also numerous other
factors that might cause your blood pressure to be raised at a
specific time of day. This is why medical practitioners recommend
home monitoring as it is important to get readings of blood
pressure during different times of the day to really get an idea of
your real blood pressure.
Medical practitioners generally recommend the “Rule of 3”, where
you are encouraged to take your blood pressure three times in a
row (at 3 ~ 5 minute interval), three times a day for three days.
After three days you can average all the results and this will give
you an accurate idea of what your blood pressure really is.

5
About Blood Pressure

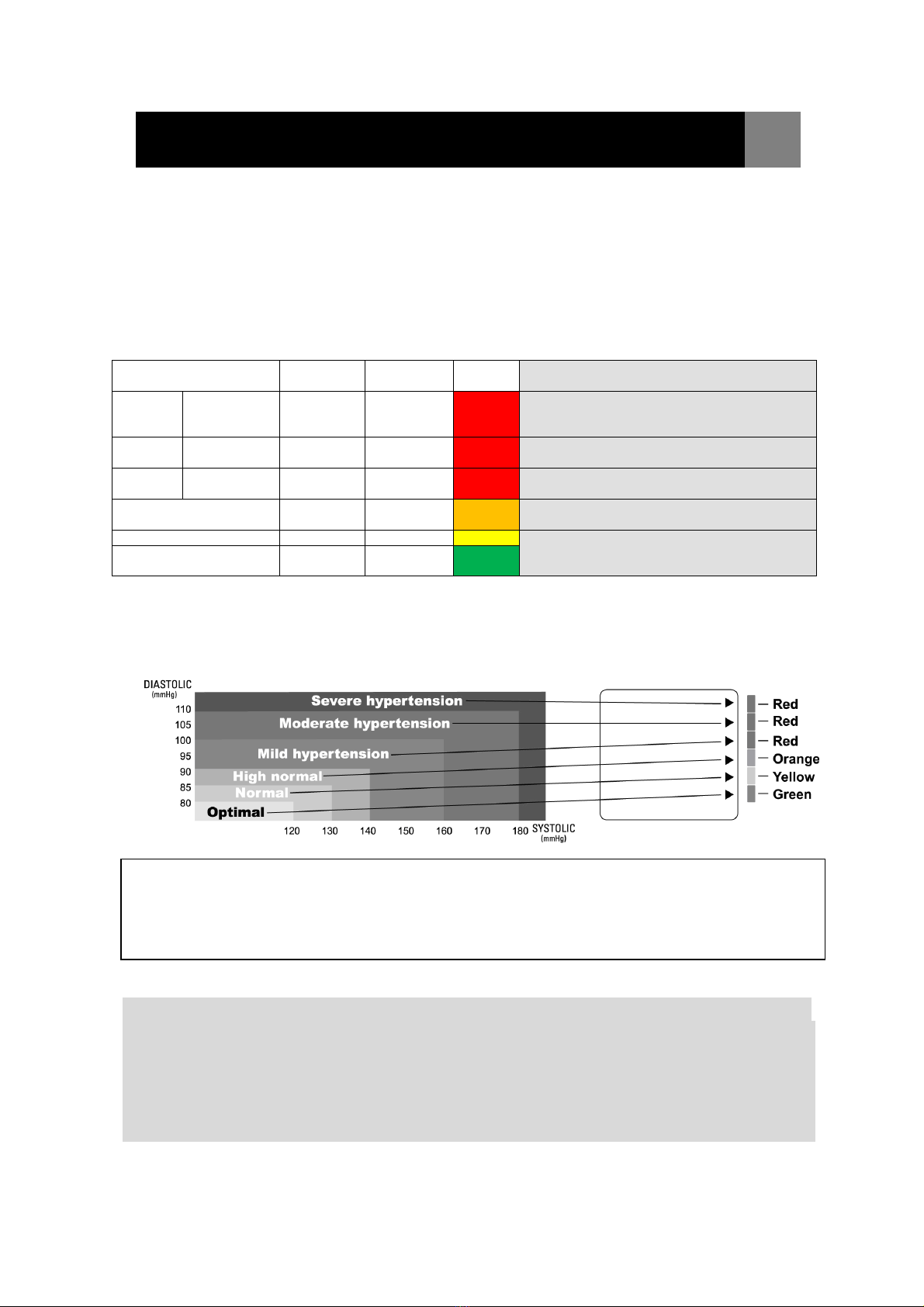

A. WHO blood pressure classifications:
Standards for assessment
of high or low blood pressure
without regard to age, have
been established by the World
Health Organization (WHO),
as shown in the chart.
However this chart is not
exact for classification of blood pressure and it's intended to be
used as a guide in understanding non-invasive blood pressure
measurements. Please consult with your physician for proper
diagnosis.
B. Variations in blood pressure:
Individual blood pressures vary greatly both on a daily and a
seasonal basis. These variations are even more pronounced in
hyper tense patients. Normally the blood pressure rises while at
work and is at its lowest during sleeping period.
(hyper tense: means a person who has high blood
pressure symptom.)
The graph below illustrated the variations in blood pressure
over a whole day with measurement taken every five minutes.
The thick line
represents sleep.
The rise in blood
pressure at 4 PM (A
in the graph) and
12 AM (B in the
graph) correspond
to an attack of
pain.
(Direct arterial pressure recording in unrestricted man.
Beven, Honour & Stott: Clin. Sci. 36:329. 1969)

6
Measurement Method
HL158LD Automatic Wrist Blood Pressure Monitor measures blood
pressure and heart rate by oscillometric method, meaning the
fluctuations in pressure are measured. Once the cuff is wrapped
around your wrist, just turn on the monitor and inflation
automatically starts. The inflation of the cuff creates pressure around
the arteries inside the wrist.
Within the cuff is a gauge which senses the fluctuations (oscillations)
in pressure. The fluctuation measured represents the degree of
intensity that your arteries contracting with each heart beat, and also
a result of the pressure that the cuff has placed on the wrist. The
monitor measures these contractions and converts the information to
a digital value. This is the result displayed on the monitor screen.
Once the measurement is complete, the cuff will automatically
deflate.
Note!
* The patient is an intended operator.
* The applied part is the cuff.

7
Accuracy
HL158LD Automatic Wrist Blood Pressure Monitor has been clinically
tested against a scientific device called a mercury
sphygmomanometer, considered the gold standard in blood pressure
measurement.
All HL158LD Automatic Wrist Blood Pressure Monitors have
performed equivalent to measurements taken with this scientific
device and are within the accuracy limits prescribed by the American
National Standard for Electronic or Automated
Sphygmomanometers.
The SPHYGMOMANOMETER was clinically investigated according to
the requirements of ISO 81060-2:2013.
*In case it is needed to have the device checked for calibration, please
consult the distributor.

8
Precautions
* Read the Instruction Manual thoroughly before measuring and
keep it at hand for your reference at any time.
* The device is designed for home use and not suitable for clinical
use.
* This monitor is not intended for use in the MR environment.
Do not take a measurement in a low (less than 41 /℉5 )℃and
high (more than 104 /40 )℉℃temperature, nor in a place outside
humidity ranges (15 % ~ 93 % R.H.), and atmospheric pressure
ranges (700 ~ 1060 hPa), or you may get inaccurate readings.
Wait 30 ~ 45 minutes before measurement if you’ve just
consumed caffeinated beverages or smoked cigarettes.
Rest at least 5 ~ 10 minutes before taking a measurement.
To allow your blood vessels to return to the condition prior to
taking the measurement, please wait at least 3 ~ 5 minutes in
between measurements. You may need to adjust the wait time
according to your personal physiological situation.
We recommend you using the same wrist (preferably the left wrist)
and measuring around the same time each day.
Perform measurements in a quiet and relaxed environment at
room temperature.
Do not move or shake the device during a measurement. Please
keep quiet and do not talk during measurements.
This product is not suitable for:
Pregnant women
People with arrhythmias
Undergoing intravenous injection on any limb
Currently in a dialysis treatment
In pre-eclampsia condition

9
*Attention ！
1. Do not use the device on infants, children, or those who cannot express their own
intention.
2. The medical device should not used adjacent to or stacked with other equipment. In
case adjacent or stacked use is necessary. The medical device should be observed to
verify normal operation in the configuration in which it will be used.
3. Consider the electromagnetic compatibility of the device (ex. power disturbance, radio
frequency interference etc.) Please use it indoor only.
4. Over high frequency measurements may result in blood flow interference, which is
likely to cause uncomfortable sensations, such as partial subcutaneous hemorrhage, or
temporary numbness to your arm. In general, these symptoms should not last long.
However, if you do not recover in time, please seek your medical practitioners for help.
Precautions
For those who have had mastectomy surgery (especially lymph
nodes removed), it’s recommend take a measurement on the
unaffected side.
When used among medical electronic equipment on the same limb,
pressurization of the cuff may cause temporarily malfunction to
other device.
If you have one of the circulatory problems as arteriosclerosis,
diabetes, liver disease, kidney disease, severe hypertension,
peripheral circulation……, please consult your healthcare
professional before using the device.
Blood pressure measurements taken with this device are
equivalent to those obtained by a trained observer using the cuff /
stethoscope auscultation method and are within the accuracy
limits prescribed by the American National Standard for Manual,
electronic, or Automated Sphygmomanometers.

10
Device Overview
Product components
START / STOP
BUTTON
AAA “LR03
”
(1.5V)
ALKALINE BATTERY X 2
STORAGE
CASE
*Caution ！
Substitution of a component different from that supplied might result in measurement error.
SET
BUTTON
MEMORY
BUTTON
BP CATEGORY
INDICATOR
MODE
BUTTON
LCD DISPLAY

11
Device Overview

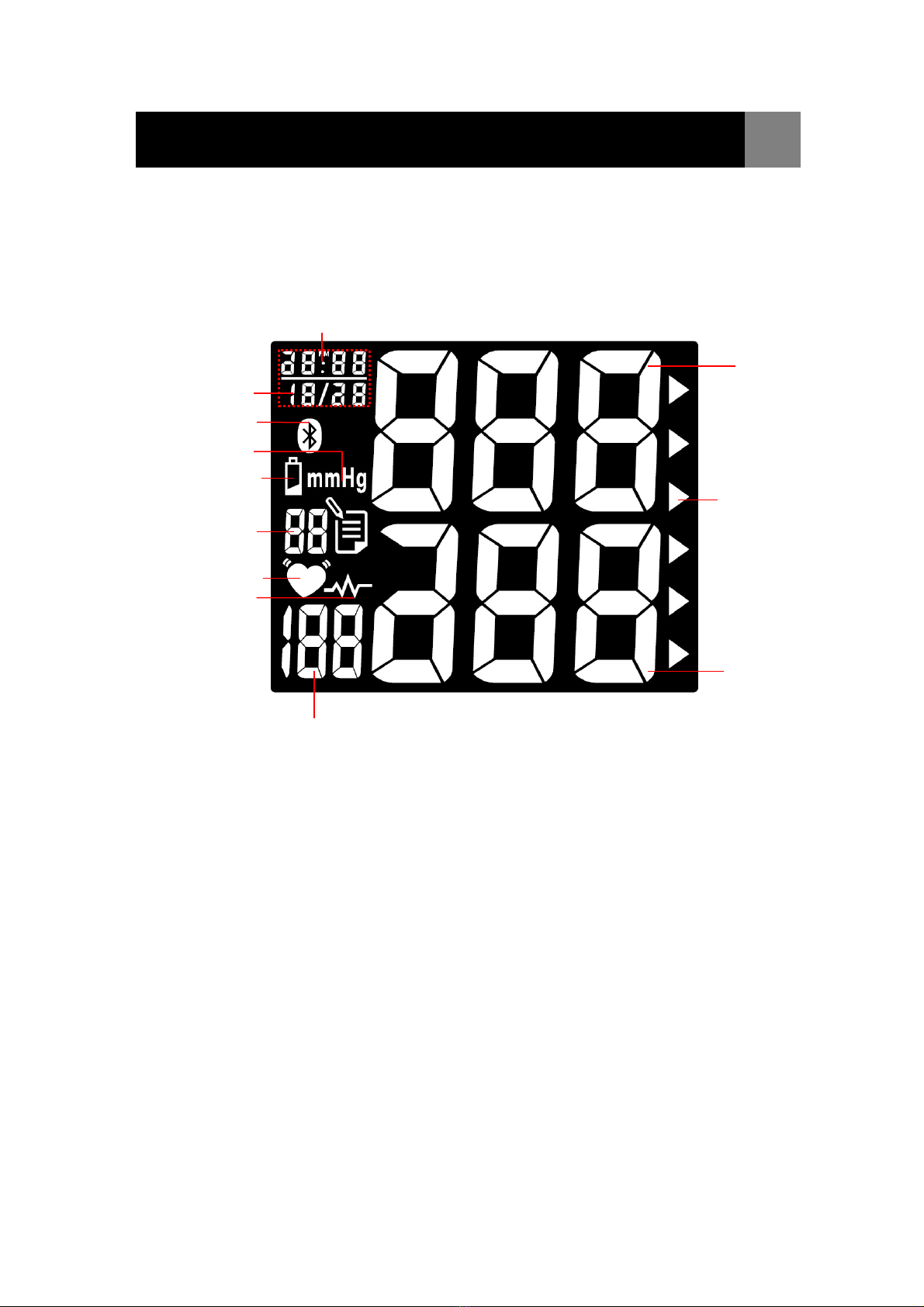

Unit display
Heart Rate
Low Battery Symbol
Memory Record
Numbe
r
Blood Pressure Uni
t
Month
/
Date
Hour : Minute
(Also represents YEAR in Setting Mode)
Pulse Symbol
Diastolic Rate
Systolic Rate
BP Category
Indicator
Irregular Heartbeat
Detector
Bluetooth S
y
mbol

12
Symbol Definitions
SYMBOLS Definitions
Low Battery Symbol
This symbol appears when the battery power is excessively
low or the polarity reverses.
We suggest you replace all batteries with new ones, and
make sure the +/- polarities are properly positioned.
Pulse Symbol
Once pulse is detected, the symbol flashes with each pulse
beat.
Our suggestion:
Please do not talk or move during measurements.
Irregular Heartbeat
Detector
This symbol appears for 1 minute when the user was talking,
moving, shaking, or an irregular heart beat was detected
during measurements.
Our suggestion:
Please do not talk or move during measurements.
Repeat the measurement after resting for at least 5 minutes,
and restart your measurement while sitting down comfortably
and quietly.
Bluetooth Symbol
LCD displays this symbol when Bluetooth Function turns ON.
BP Category Indicator Bar
The arrowhead points out the specific BP Category that your
measurement reading fits in.
Memory Record
Symbol
This symbol goes along with figures according to the order of
reading stored in the memory.

13
Features
BP Category Indicator
This device is equipped with BP Category Indicator which classifies
your blood pressure measurements into six stages (Optimal to Severe
hypertension) as shown in below chart:
*Source: WHO, 2003
After each measurement is completed, LCD display will show your
position automatically on the six segments of the bar indicator which
corresponds to BP Category Indicator.
*Note ！
When a person’s systolic and diastolic pressures fall into different categories, the higher
category should apply.
e.g. systolic rate 181 & diastolic rate 99 Red category (Severe Hypertension)
e.g. systolic rate 110 & diastolic rate 95 Red category (Mild Hypertension)
*Note !
The above table is not exact for classification of blood pressure and it's intended to be
used as a guide in understanding non-invasive blood pressure measurements.
Usually this is not a cause for concern; however we recommend you consult with your
physician for proper diagnosis or seek medical advice according to our recommendation
mentioned above. Please note that the device does not appropriate to diagnose
hypertension, and it is only for user reference on blood pressure monitoring.
Stages of Blood
Pressure Levels
Systolic
(mmHg)
Diastolic
(mmHg) Color Recommendations by
SIGN 49: Hypertension in older people
Grade 3 Severe
Hypertension ≧180 ≧110 Red
Confirm immediately and repeat BP in one
day and again within one week depending on
clinical situation.
Grade 2 Moderate
Hypertension 160 ~ 179 100 ~ 109 Red Serial blood pressures repeated within one
month.
Grade 1 Mild
Hypertension 140 ~ 159 90 ~ 99 Red Provide advice about lifestyle modification
and confirm within two months.
High-Normal 130 ~ 139 85 ~ 89 Orange Provide advice about lifestyle modification
and recheck in one year.
Normal 120 ~ 129 80 ~ 84 Yellow Recheck in 2 - 5 years.
(patients aged > 75 years offered annual
health check)
Optimal < 120 < 80 Green

14
Features
Irregular Heartbeat Detector
The symbol will appear on screen indicating a certain
heartbeat irregularity was detected during measurement.
The heartbeat rhythm that is more than or less than 25% from the
average rhythm is usually defined as an irregular heartbeat rhythm.
Talking, moving, shaking or an irregular pulse during the
measurement can result in the appearance of this symbol.
Usually this is not a cause for concern, however if the symbol
appears often, we recommend you seek medical advice.
And please note that the device does not replace a cardiac
examination, but serves to detect pulse irregularities at an early
stage.
*Note ！
The pulse display is not suitable for checking the frequency of heart
pacemakers. If a certain pulse irregularity is detected during measurement
often, we recommend you seek medical advice.
As a safeguard, we recommend that if you have arrhythmias such as atrial or
ventricular premature beats and atrial fibrillation or any other special
conditions you should check with your physician before using your device.
The IHB function is not designed for use by people with arrhythmias nor for
diagnosing or treating an arrhythmic problem. In order to filter the unstable
status of user and avoid affecting the detection of heart rate from any
movement, shaking or talking in the beginning of measurement, the method of
averaging heart beat intervals of subject device is calculated with the three
proper heart beat pulses detected in the beginning of measurement and that is
different from a strict mathematical averaging of all recorded intervals.
At least 3 beats with at least 25 % difference from the average heart beat
interval will generate the IHB icon on the screen.

15
Features
Bluetooth Data Transmission
HL158LD features a built-in “Bluetooth Data Transmission” function, which
enables the device automatically transmit measuring results to paired
Bluetooth-enabled device after measurement. When connection established,
BPM would transmit memory data such as Measure Date, Systolic, Diastolic
and Pulse to the Bluetooth enabled device.
If paired Bluetooth-enabled device is not working or is not within RF range of
this device, the measuring results will be stored in the blood pressure
monitor's memory. Besides, user can press “ ” button for one time to open
the Bluetooth function.
Bluetooth compatibility with blood pressure monitor for Bluetooth-enabled
device is:
Bluetooth 4.0 for Android 4.3 or above,
Bluetooth 4.0 for iOS 7.0 or above
*Note ！
HL158LD is subject to and complies with electromagnetic compatibility
(EMC) standard of IEC 60601-1-2, EN 301 489-1, EN 301 489-17, EN
300 328 and U.S. federal guidelines, Part 15 of the FCC (Federal
Communications Commission) rules for devices with RF capability. These
guidelines help ensure that your device will not affect the operation of
other nearby devices. Additionally, other devices should not affect the
use of your device.
Other wireless devices that are in use nearby, such as a cell or mobile
phone, or a wireless network, may prevent or delay the transmission of
data from your device to paired Bluetooth-enabled device. Moving away
from the source of the interference or turning off these devices to resolve
the problem.
Make sure HL158LD and paired Bluetooth-enabled device are within
acceptable distance (no more than 10 meters) with each other. If not,
put them closer.
Be sure to select the correct User on the monitor before your blood
pressure measurement begins.
Bluetooth date transmission is not available under measurement.

16
Features
Application Software for Bluetooth
To fully utilize this feature, users need to ensure Bluetooth support of
Wireless (usually under settings menu) on their Android or iOS device
for contactless data exchange. Then, download and install
“DailyChek®” application software from Google Play on the
Bluetooth-enabled device which is compatible with Android 4.3 or iOS
7.0 or above. Please follow the following steps for installing:
1. To install DailyChek®FREE APP, go to the Google Play TM APP store,
and search for DailyChek®.
2. Click the INSTALL button. Once installed, click on DailyChek®
APP icon.
3. Now you can start using your Android version or iOS version of
DailyChek®APP with Bluetooth feature, it’s a simple tool to log,
track and trend your test results from your Bluetooth-enabled
Device.
*Note ！
1. DailyChek®Software Manual contains explanations of functions
and instructions of how to activate them.
2. Access DailyChek®Software Manual via DailyChek®Application
Software to completely utilize this feature.

17
Installing Batteries
When LOW BATTERY SYMBOL appears on the display, or no
reaction toward operation, please change batteries.
Replace all worn-out batteries with new ones and do not mix new and
used batteries. Do not mix alkaline, standard (carbon-zinc) or
rechargeable (cadmium) batteries either. Such action may shorten
the battery life or cause the device to malfunction.
Slide the battery cover and insert 2 AAA (LR03) alkaline batteries into
the battery compartment as shown on the figure below. Make sure
the polarities “+” and “–” ends are coinciding with similar markings
engraved on the battery housing.
*Attention
！
Batteries are hazardous waste. Do not dispose of them together with the household
garbage. Please discard worn-out batteries to the recycling site according to local
regulations.
Keep the battery away from children in case they choke on it.
To prolong the battery life and prevent damage caused by leakage, remove the
batteries from the device if the device is not to be used for a long period.
The device will keep the last measuring results after changing batteries, please
reset date and time.
Please replace all worn-out batteries with new ones when you are operating the
Bluetooth transmission function, and the LOW BATTERY SYMBOL appears on
the display.
All batteries used must be the same type. Do not mix alkaline, standard
(carbon-zinc) or rechargeable (cadmium) batteries. Do not mix old and new
batteries.

18
Applying the Cuff
Do not place the pressure cuff over a
jacket or sweater sleeve. Wrap the
pressure cuff around the bare wrist with
the monitor facing you.
Wrap the cuff snugly. Do not make it too tight.
Fold the remaining part of the cuff back
out of the way.
Leave approximately 0.4 inch (10 mm)
between the cuff and the bottom of your
hand palm.
*Note
！
Do not use this device if your wrist has any wound or injury.
Do not wrap the cuff around any body part other than your
wrist.
In case the cuff kept pumping up no-stop, open the cuff at
once
0.4 inch (10 mm)
5.3 ~ 7.7 inch (approx.135 ~ 195 mm)

19
Positioning Guide
It is extremely important that the cuff be at the same height as the
heart.
Having the cuff higher or lower may cause inaccurate results.
1. Sit on a chair comfortably, put your feet
flat on the floor and lay your forearm on
the table, make sure your back and arm
supported, legs uncrossed.
2. Position the blood pressure monitor on
your wrist.
3. Place your elbow on the table and rest
the back of your hand on the device
storage case or other object.
4. Rest your wrist on the armrest until it’s
at the same height as your heart.
5. Relax your hand and turn your palm upwards.

20
Measurement Procedure

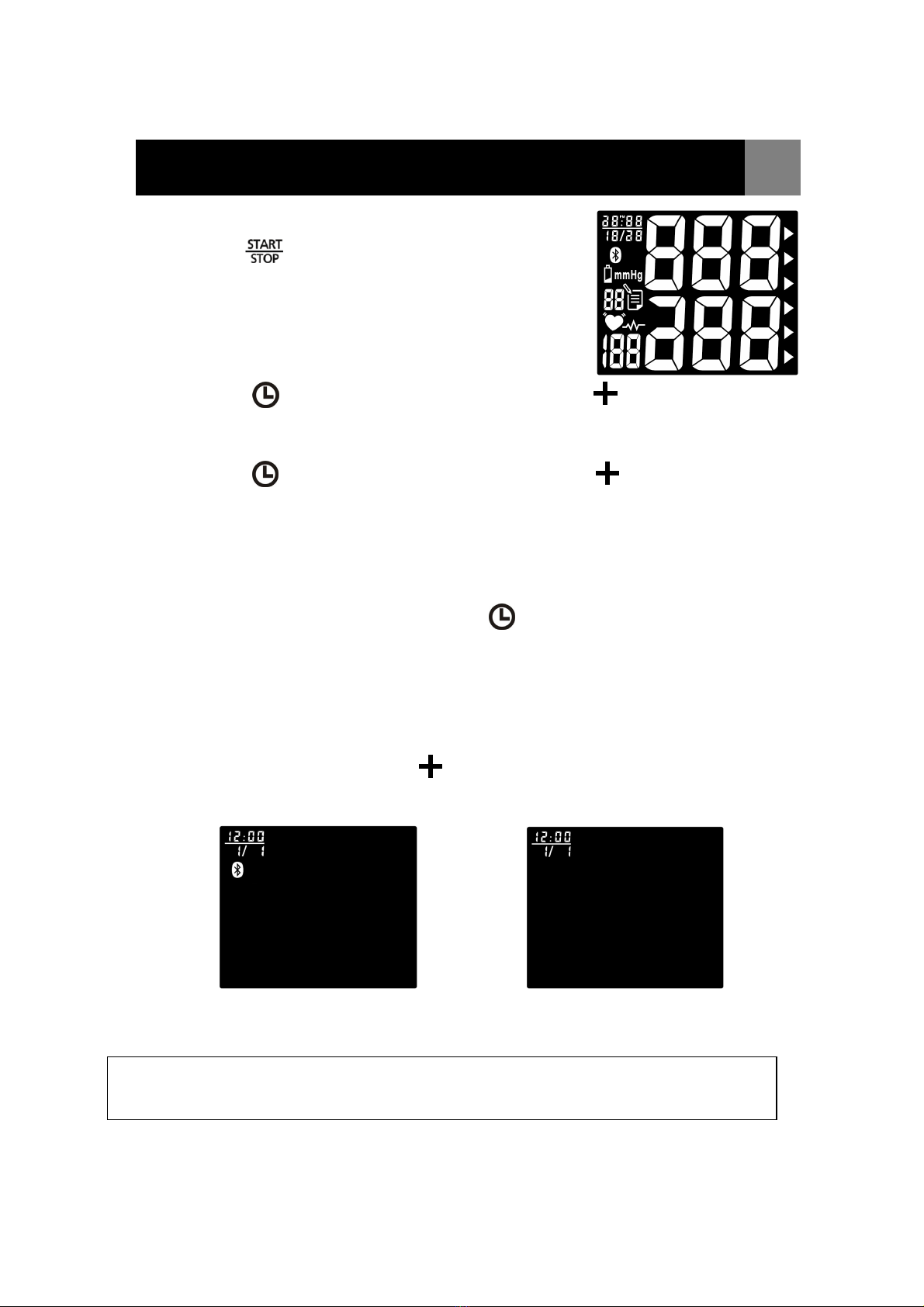

Switch on the Monitor
A. Press button to switch on the monitor.
B. All segments appear on the screen.
Setting Year, Date and Time
A. Press button ("YEAR" flashes). Press button to adjust
YEAR value.
B. Press button ("MONTH" flashes). Use button to adjust
MONTH (1, 2, 3,……, 12).
C. Adjust DATE (1, 2, 3,…, 31), HOUR (1, 2, 3,……..12PM,1 PM,…, 12)
and MINUTE (00,01,02,03,.....59) as described in Step A above.
D. When settings are done, press button to confirm the above
settings. The device is ready to measure.
Turning Bluetooth Feature ON/OFF
User can press and hold button 3 seconds to turn the
Bluetooth feature ON/OFF in Standby Mode.
*Note ！
The Bluetooth Feature Switch default setting is ON
Once Bluetooth Feature turns ON, the LCD appears Bluetooth symbol in any mode.
Bluetooth feature ON Bluetooth feature OFF
