Hearth and Home Technologies 6000BE User manual

1
Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
Underwriters
Laboratories Listed
Models:
6000BE
6000BE-IPI
IntheCommonwealthofMassachusetts:
• installation must be performed by a licensed
plumberorgasfitter;
• a CO detector shall be installed in the room
where the appliance is installed.
Î
- Do not store or use gasoline or other
flammablevapors andliquids inthe vi-
cinity of this or any other appliance.
- What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your build-
ing.
• Immediatelycallyour gassupplierfrom
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
- Installation and service must be
performedby aqualified installer, service
agency, or the gas supplier.
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THISAPPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1.This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyforusewith thetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
Please contact your Heat & Glo dealer with any
questionsorconcerns.For the numberofyournearest
Heat &Glo dealer, please call 1-888-427-3973.
Printed in U.S.A. Copyright 2005
Heat&Glo,a brand ofHearth&HomeTechnologiesInc.
20802KensingtonBoulevard,Lakeville,MN55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
Thisproductmaybecoveredbyoneormoreofthefollowingpatents:(UnitedStates) 4593510, 4686807, 4766876, 4793322, 4811534,5000162,5016609,5076254,5113843, 5191877, 5218953, 5263471,
5328356,5341794,5347983,5429495,5452708,5542407,5601073,5613487,5647340,5688568,5762062,5775408,5890485,5931661,5941237,5947112,5996575,6006743,6019099,6048195,6053165,
6145502,6170481, 6237588, 6296474,6374822,6413079,6439226,6484712,6543698,6550687, 6601579,6672860,6688302B2,6715724B2,6729551,6736133,6748940,6748942,6769426,6774802,
6796302,6840261,6848441,6863064,6866205, 6869278, 6875012, 6880275, 6908039,6919884,D320652,D445174, D462436; (Canada) 1297749,2195264,2225408, 2313972; (Australia) 780250,
780403,1418504 or otherU.S. and foreignpatents pending.
Owner’s Manual
Installation and Operation

2Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

3
Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
TABLE OF CONTENTS
Safety and Warning Information ................................................ 2
Service Parts Lists ..................................................................... 4
Section 1: Approvals and Codes ............................................... 8
ApplianceCertification................................................................... 8
InstallationCodes.......................................................................... 8
HighAltitude Installations............................................................... 8
Section 2: Getting Started ......................................................... 9
Introducing the Hearth & Home Technologies Gas Fireplaces ..... 9
Pre-installationPreparation ........................................................... 9
Section 3: Installing the Fireplace...........................................11
Constructing the Fireplace Chase ...............................................11

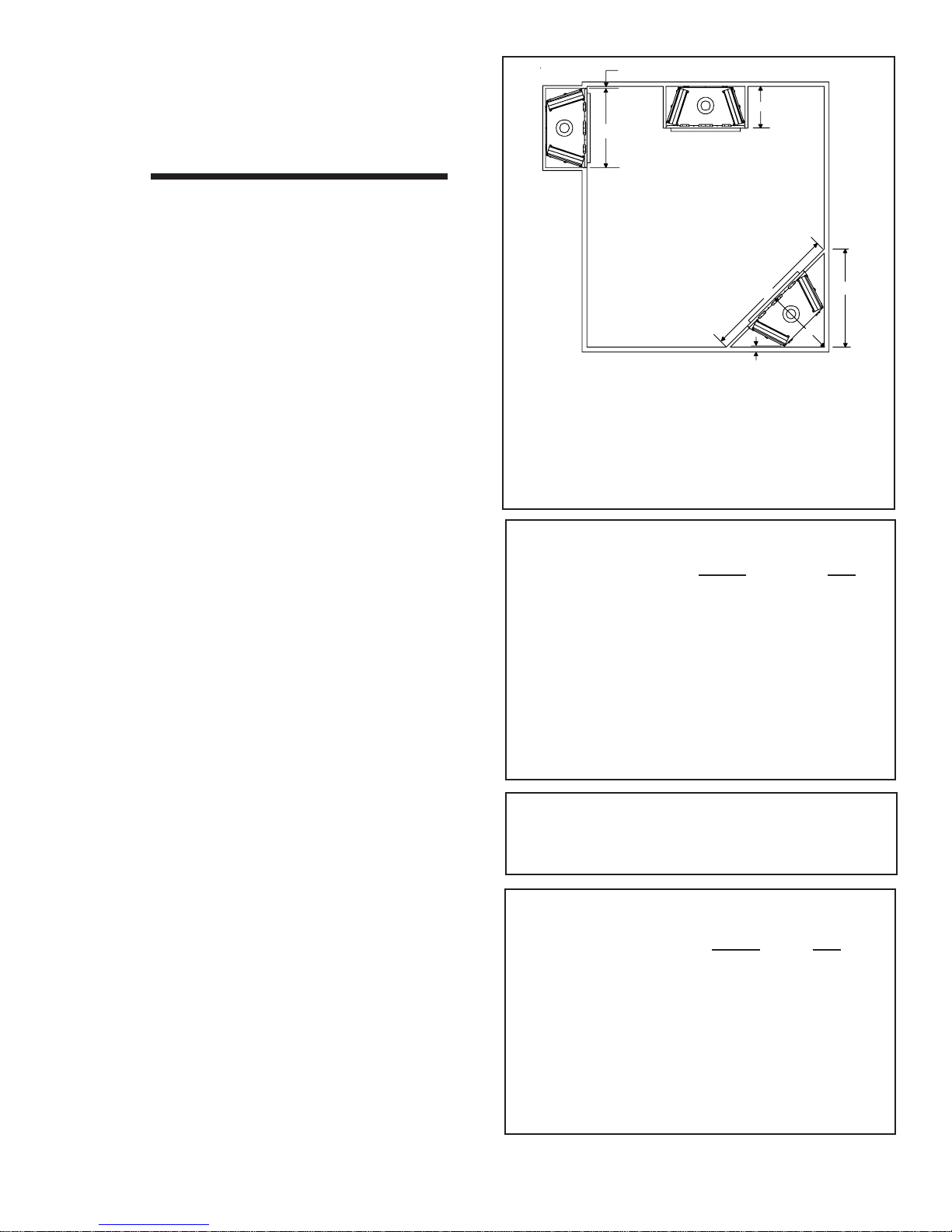

Step 1 Locating the Fireplace ..................................................11
Step 2 Framing the Fireplace.................................................. 12
Step 3 Installing the Vent System............................................ 14
A. Vent SystemApprovals........................................... 14
B. Installing Vent Components.................................... 21
C. Vent Termination .................................................... 24
Step 4 Positioning, Leveling,and
Securing the Fireplace................................................. 26
Step 5 Installing theOptional Heat-ZoneKit............................ 27
Step 6 The Gas Control Systems........................................... 27
Step 7 The Gas Supply Line ................................................... 28
Step 8 Gas Pressure Requirements ...................................... 28
Step 9 Wiring the Fireplace .................................................... 29
Step 10 Finishing ...................................................................... 31
Step 11 Installing Trim, Logs, and Ember Material.................... 31
Installing the Trim......................................................... 31
Positioning the Logs .................................................... 32
Placing the Ember Material.......................................... 34
Glass Specifications .................................................... 34
Step 12 Before Lighting the Fireplace ....................................... 35
Step 13 Lighting the Fireplace .................................................. 36
Afterthe Installation..................................................................... 36
Section 4: Maintaining and Servicing Your Fireplace......... 36
Î= Containsupdated information.
Î
Î
Î
Î
Î

4Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
Partnumber list on followingpage.
5
12
6 Log Set Assembly
2
13
11 7

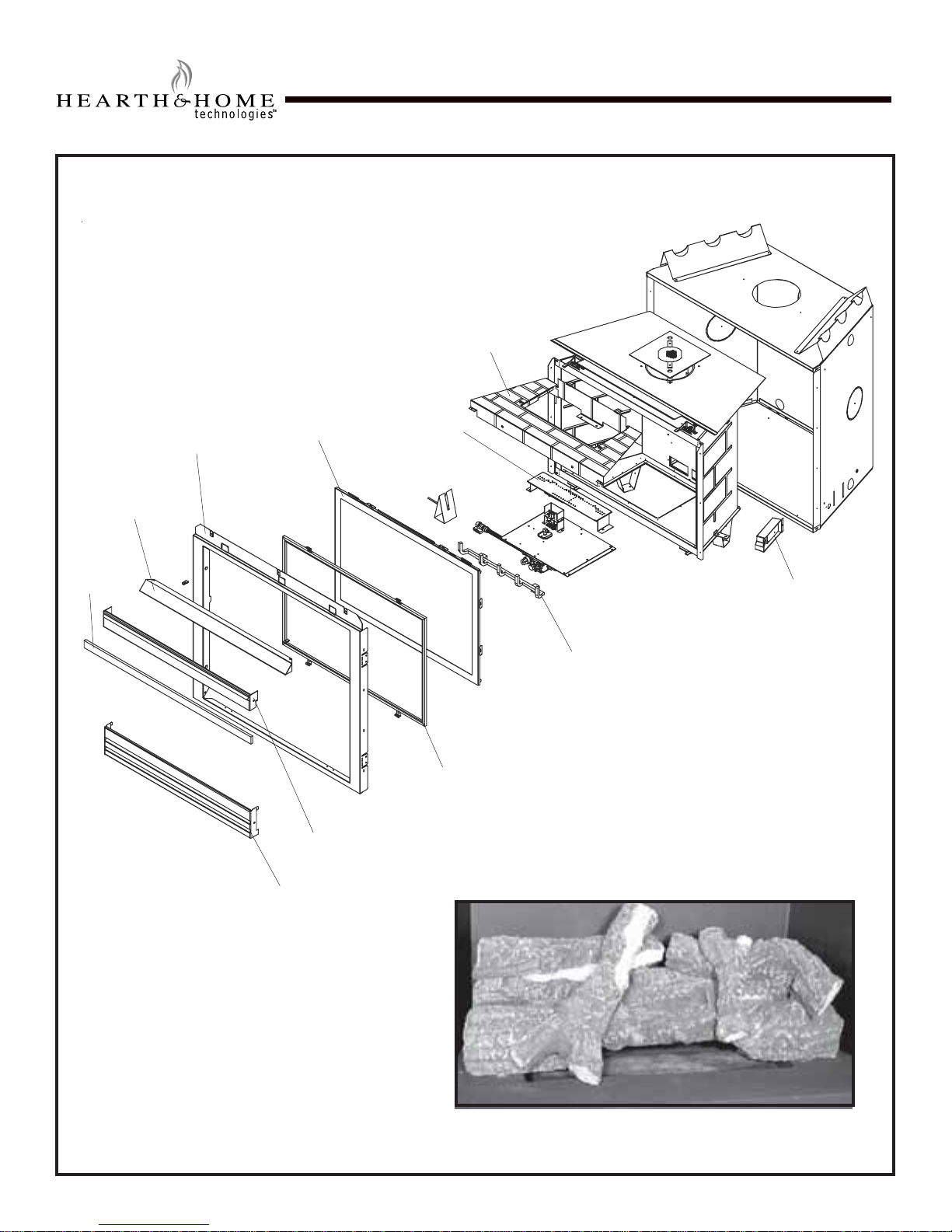

(NG, LP) Exploded Parts Diagram
Service Parts 6000BE, 6000BE-IPI
Beginning Manufacturing Date: 6-03
Ending Manufacturing Date: ______
4
10
9
8

5
Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
ITEM COMMON PARTS SERIAL # PART NUMBER
1 Surround 2026-108
2 Hood SRV60-143-BK
3 Glass Door Assembly GLA-750TR
4BurnerNG 381-376A
4BurnerLP 381-375A
5 Log Grate 060-361A
6 Log Set Assembly (Only sold as a set) LOGS-6000BE
7 Junction Box 4021-013
8 Louver, Bottom 394-114
9 Louver, Top 394-249
10 Mesh Assembly 530-382A
11 Insulation Board 385-401
12 Base Refractory 381-124
Vent Gasket 2025-114
Wire Assembly 571-514A
Touch Up Paint TUP-GBK-12
Glass Latch Assembly 386-122A
Flue Restrictor 385-128
ACCESSORIES
Conversion Kit NG NGK-6000BE
Conversion Kit LP LPK-6000BE
Conversion Kit IPILP LPK-6000BE-IPI
Brass Trim Kit PBK-6000BE
Service Parts List
IMPORTANT: THISIS DATEDINFORMATION.The most currentinformation is located onyour dealers VIPsite. When order-
ing, supply serial and model numbers to ensure correct service parts.
6000BE, 6000BE-IPI
Also see pages 6 and 7 for additional IPI and Standing Pilot service part numbers.
Í
Í
Í

6Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
(NG, LP) Exploded Parts Diagram
Service Parts 6000BE-IPI
ITEM DESCRIPTION SERIAL # PART NUMBER
1 Valve Bracket 2025-101
2 Flex Ball Valve Assembly 302-320A
3PilotAssemblyNG 4021-025
3 Pilot Assembly LP 4021-026
4 ON/OFF Rocker Switch 060-521A
5ValveNG 750-500
5 Valve LP 750-501
6 Burner Orifice NG (#38C) 582-838
6 Burner Orifice LP (#52C) 582-852
7Module 593-592
8WireAssembly 593-590A
9 12" Flexible Gas Connector 383-302A
10 Ground Strap 2025-512
11 Pilot Bracket 530-164
Battery Pack 593-594A
3 Volt Transformer 593-593A
Gasket Assembly 385-402A
Beginning Manufacturing Date: 6-03
Ending Manufacturing Date: ______
Intermittent Pilot Ignition
ValveAssembly
1
9
4
7
8
6
3
11
10
5
2
Î
Í

7
Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
(NG, LP) Exploded Parts Diagram
Service Parts 6000BE
ITEM DESCRIPTION SERIAL # PART NUMBER
1 Burner Orifice (NG) (#38C 582-838
1 Burner Orifice (LP) (#52C) 582-852
2ValveNG 060-522
2 Valve LP 060-523
3 Flexible Gas Connector 383-302A
4PiezoIgnitor 291-513
5 Pilot Assembly NG 485-510A
5 Pilot Assembly LP 485-511A
6 Pilot Bracket 530-164
7 Flex Ball Valve Assembly 302-320A
8ValveBracket 2025-101
Wire Assembly 040-557A
Bracket Assembly 385-402A
Gasket Assembly 385-402A
Beginning Manufacturing Date: 6-03
Ending Manufacturing Date: ______
Standing Pilot Ignition
ValveAssembly 6
1
3
78
4
5
2
Î
Í
Í

8Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
Appliance Certification
The Hearth & Home Technologies fireplace models
discussed in this Installers Guide have been tested to
certification standards and listed by the applicable
laboratories.
Certification
MODELS: 6000BE,6000BE-IPI
LABORATORY: UnderwritersLaboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD:ANSIZ21.88-2000•CSA2.33-M98•UL307B
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes.Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Intheabsence oflocal codes,the fireplaceinstallation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
theUnitedStates)or theCAN/CGA-B149InstallationCodes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric CodeANSI/NFPANo. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(inCanada).
Thesemodels may be installedin a bedroom orbed-sitting
room in the U.S.A. and Canada.
1Approvals and
Codes
HighAltitude Installations
U.L. Listed gas appliances are tested and approved with-
outrequiring changes for elevations from 0 to 2,000feet in
the U. S.A. and in Canada.
Wheninstalling this appliance at an elevation above2,000
feet, it may be necessary to decrease the input rating by
changingthe existing burner orifice to a smallersize.Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between2000and 4500feet inCanada.If theheating value
of the gas has been reduced, these rules do not apply.To
identify the proper orifice size, check with the local gas
utility.
Ifinstalling this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.

9
Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
2Getting Started
Introducing the Hearth & Home Technologies
Gas Fireplaces
Hearth& HomeTechnologiesdirect vent gasfireplaces are
designedto operate with all combustion air siphoned from
outside of the building and all exhaust gases expelled to
the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems.Gasfireplace diagrams,includingthe dimensions,
are shown in this section.
Pre-install Preparation
Thisgasfireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.
The Hearth & Home Technologies Warranty will be voided
by, and Hearth & Home Technologies disclaims any
responsibilityfor, the following actions:
• Installationofanydamagedfireplace orventsystemcom-
ponent.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/or use of anycomponent part not manu-
facturedand approvedbyHearth &HomeTechnologies,
not withstanding any independent testing laboratory or
otherpartyapprovalofsuchcomponent partoraccessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•Thevent system configuration to be used.
•Gas supply piping.
•Electricalwiring.
•Framingand finishing details.
•Whether optional accessories—devices such as a fan,
wallswitch,or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplaceshould be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

10 Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05

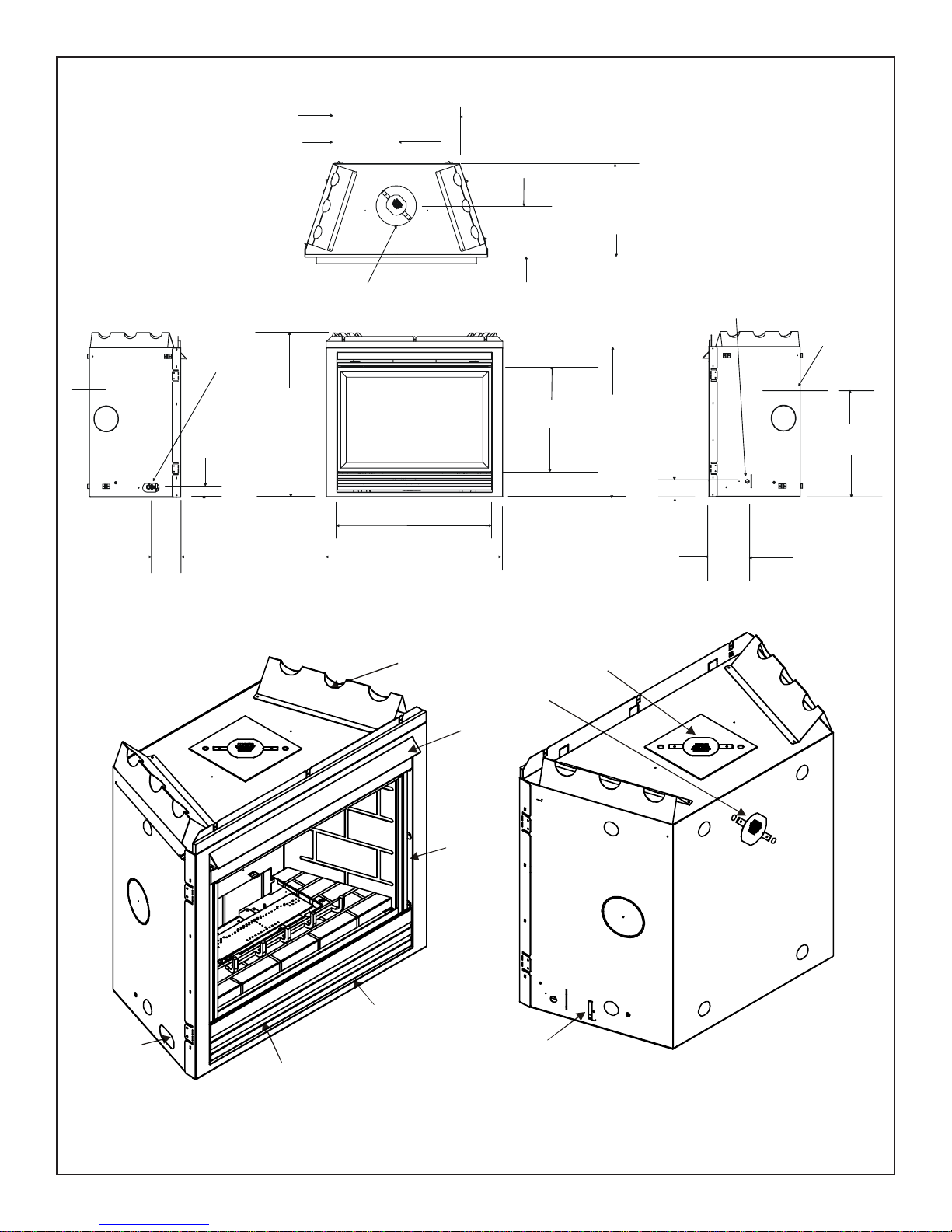

Figure 1. Diagram of the 6000BE, 6000BE-IPI
41
[1040mm]
38
[965mm]
36 1/8
[916mm]
25 1/4
[642mm]
34 5/8
[879mm]
8
[203mm]
VENT
COLLARS
ELECTRICAL
ACCESS
26 7/8
[682mm]
12 3/4
[323mm]
3 1/2
[90mm]
GAS LINE
ACCESS
2 1/8
[55mm]
6 7/8 [174mm]
14 1/4
[362mm]
8 [203mm]
VENT COLLARS
21 1/2 [548mm]
11 5/8 [297mm]
28 1/2 [724mm]
Î
TOP VENT COLLARS
REAR VENT COLLARS
GAS
LINE
ACCESS ELECTRICAL
ACCESS
GAS
CONTROLS
RATING PLATE
AND LABELS
TRIM
DOOR
HOOD
TOP STANDOFFS

11
Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
3Installing the Fireplace
Step 1. Locating the Fireplace
Thefollowingdiagram showsspace andclearance require-
ments for locating a fireplace within a room.
ABC DE
42” 22” 36” 51” 72”
Note* 42” 22” 40” 57” 80”
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front........................ 36 .................... 914
Floor ................................... 0 ....................... 0
Rear ...................................1/2 ..................... 13
Sides .................................1/2 ..................... 13
SurroundSides*.................. 0 ....................... 0
Top ................................... 3 1/2 ................... 89
Ceiling**............................. 31 .................... 787
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................ 25
Horizontal Sections
Top..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
At Wall Firestops
Top.................................. 2 1/2 ............63.7
Bottom ..............................1/2............... 13
Sides ................................. 1 ................ 25
* See Figure 3.
**Theclearance totheceilingismeasuredfrom thetop
of the unit, excluding the standoffs (see Figure 38).
Thedistance from the unitto combustible construction
is to be measured from the unit outer wrap surface to
thecombustibleconstruction,NOT fromthescrewheads
that secure the unit together.
For minimum clearances, see the direct vent termination
clearance diagrams on pages 24 and 25 in this manual.
1/2” MIN. (13mm)
D
C
E
B
1” MIN. (25mm)
A
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.The minimum clearanceto a perpendicularwall
extendingpastthe faceof thefireplace isone inch(25 mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.
Constructing the Fireplace Chase
A chase is a vertical box-like structure built to enclose the
gasfireplace and/or itsvent system.Vertical ventsthat run
onthe outside of a building maybe, but are not required to
be, installed inside a chase.
CAUTION: TREATMENTOF FIRESTOPSPACERSAND
CONSTRUCTIONOFTHECHASE MAYVARYWITH THE
TYPEOF BUILDING.THESEINSTRUCTIONSARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDINGCODES.THEREFORE, YOURLOCAL BUILD-
INGCODES MUST BE CHECKED TO DETERMINETHE
REQUIREMENTSFOR THESE STEPS.
Factory-builtfireplace chasesshould beconstructed in the
manner of all outside walls of the home to prevent cold air
draftingproblems. The chaseshould not break theoutside
buildingenvelopein anymanner.
This means that the walls, ceiling, base plate and cantile-
ver floor of the chase should be insulated. Vapor and air
infiltration barriers should be installed in the chase as per
regional codes for the rest of the home.Additionally, in re-
gionswhere cold air infiltrationmay be an issue, theinside
surfaces may be sheetrocked and taped for maximum air
tightness.
Tofurtherpreventdrafts,thewallshield andceilingfirestops
shouldbecaulkedwith hightemperaturecaulkto sealgaps.
Gas line holes and other openings should be caulked with
high temp caulk or stuffed with unfaced insulation. If the
appliance is being installed on a cement slab, a layer of
plywoodmay be placed underneathto prevent conducting
cold up into the room.
THECHASE SHOULDBECONSTRUCTEDSO THATALL
CLEARANCES TO THE FIREPLACEARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.
*If venting with (2) 900elbows off rear of unit
the dimensions C, D, and E, will change.
Î
Î

12 Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
A.............. 42”*
B..........38 1/2”
C................ 22”
D..........42 3/4”
E. .........27 7/8”
Figure 3. Framing Dimensions
Step 2. Framing the Fireplace
Fireplaceframing canbe builtbefore orafter thefireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelow showsframing referencedimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILSBEFORE FRAMING.
Framing should be
constructed of 2 X 4
lumber or heavier.
1/2” CLEARANCE FROM BACK OF FIREPLACE TO COMBUSTIBLE
0” CLEARANCE TO
FRAMING MEMBER
0” CLEARANCE
1/2” CLEARANCE
FROM BOTH SIDES
OF FIREPLACE
TO COMBUSTIBLE
FRAMING
MEMBER
Shows center of 10” x 12” vent framing
holes for top and rear venting. The center
of the hole is one (1) inch (25.4mm) above
the center of the horizontal vent pipe.
A
B
C
D
E

13
Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05

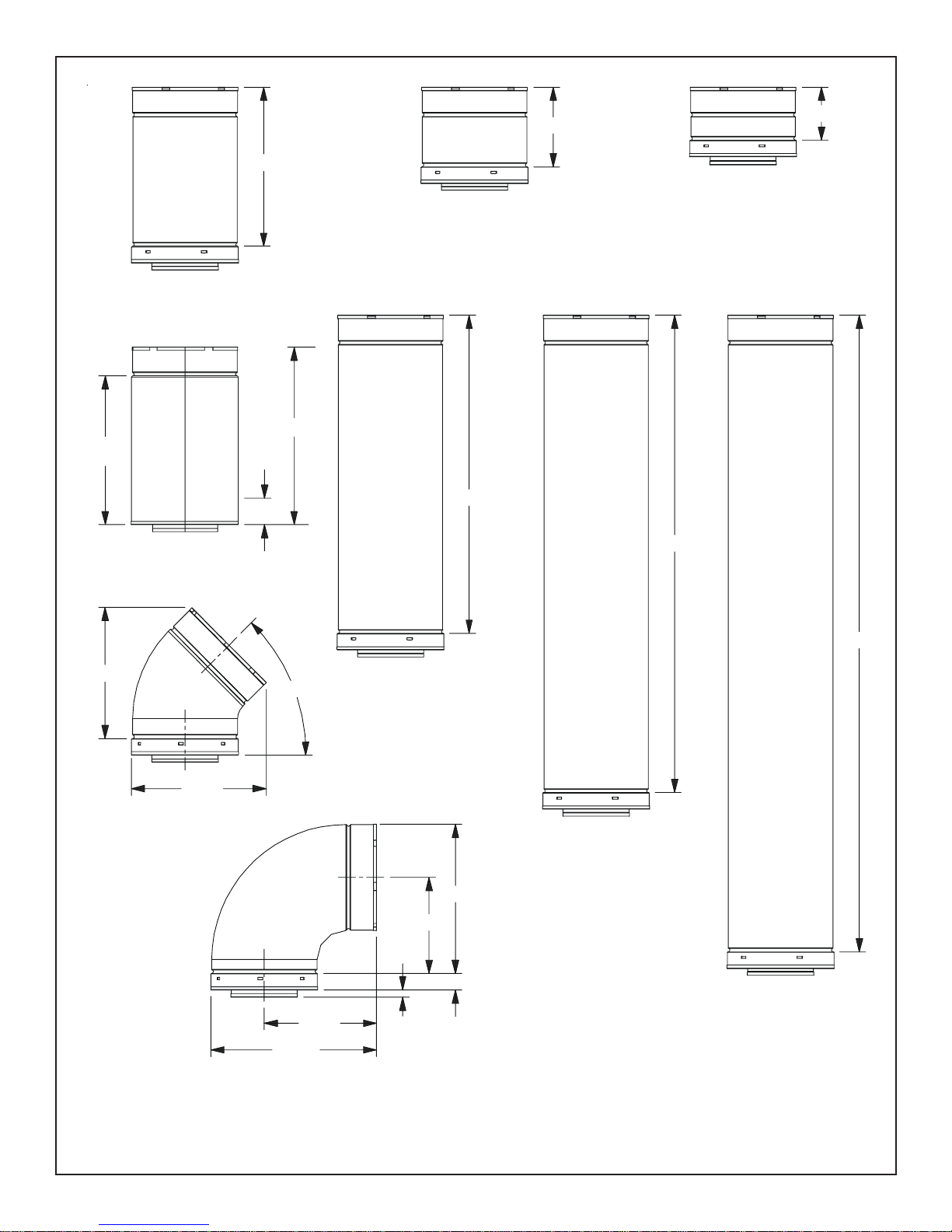

Figure 4. DVP-Series Direct Vent Component Specifications (5-inch inner pipe / 8-inch outer pipe)
NOTE: PIPESOVERLAP 1-1/4 INCHESATEACH JOINT.
DVP90ST
12-9/16
11-1/4
7-1/4
1-1/4 TYP
1/2 TYP
8-9/16
DVP36
DVP48
48
24
36
4
6
DVP4
DVP6
12
DVP12
2
MIN.
DVP12A
12-3/16
MAX.
DVP24
9-7/8
45.0
O
10-1/4
DVP45
14-1/4

14 Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05

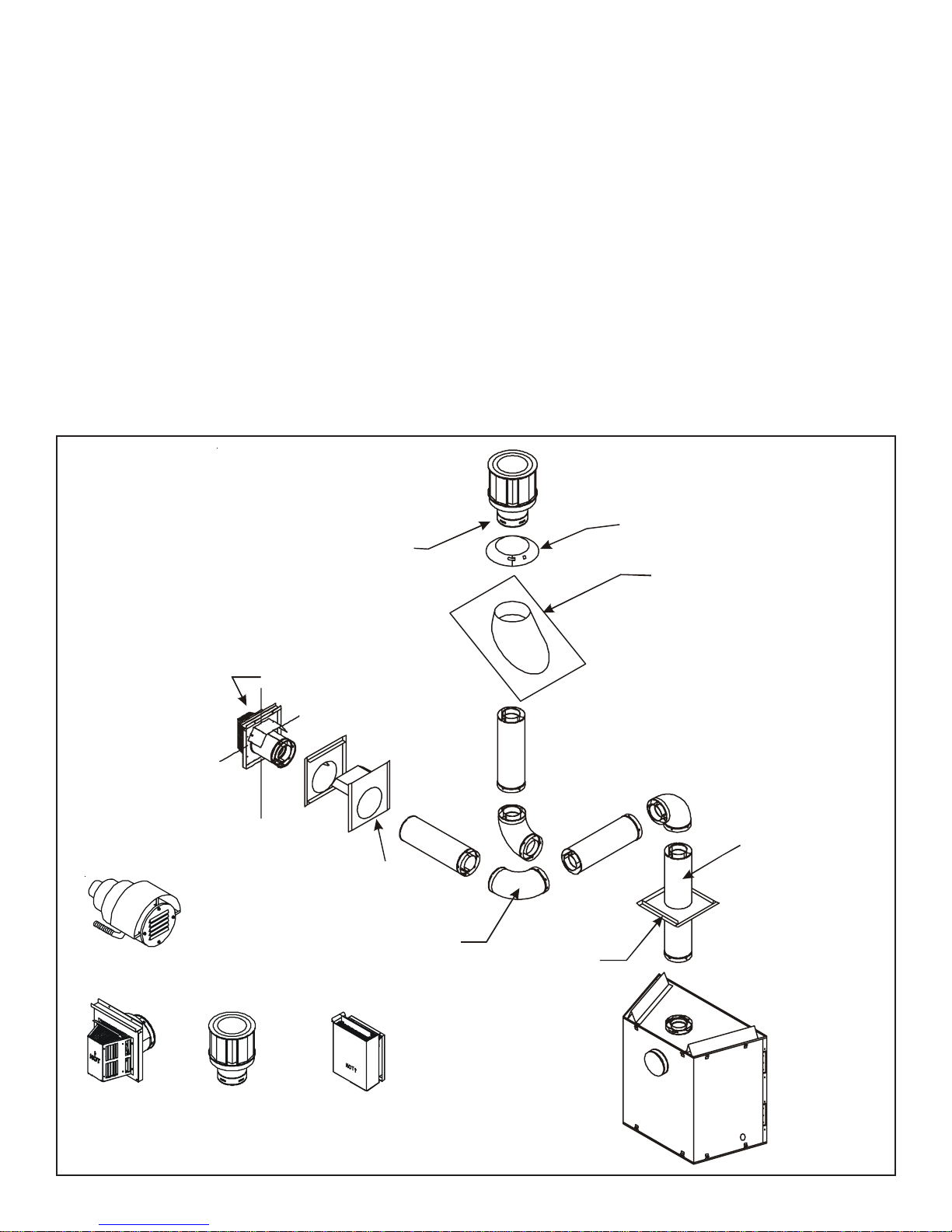

Figure 5. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
Thesemodels are approved to use DVP-series directvent
pipe components and terminations (see Figures 4 and 5).
Approvedvent system componentsare labeled for identifi-
cation. This pipe is tested and listed as an approved com-
ponent of the fireplace. The pipe is tested to be run inside
an enclosed wall. There is no requirement for inspection
openingsat each joint within the wall. There is no required
pitch forhorizontal vent runs. NO OTHER VENTING SYS-
TEMS OR COMPONENTS MAY BE USED.
Detailedinstallationinstructions areincludedwith eachvent
termination kit and should be used in conjunction with this
InstallersGuide.
Theflameandemberappearancemayvarybasedonthetype
offuelburnedandtheventingconfigurationused.
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90°elbow assemblies. The rela-
tionshipsof vertical rise to horizontal run inventconfigura-
tions using 90° elbows MUST BE strictly adhered to. The
riseto run relationships are shown in the venting drawings
andtables.Referto thediagramsonthe nextseveralpages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
Thismodel has ventstarting collars onboth the topand the
back of the unit. Depending upon the installation, decide
whichONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must remain
on the starting collar NOT used.
Terminations Kits
(For use on IPI units only)
(Required to have a minimum of 3
feet of vertical in the vent system)
DVP-TVPVK-80
DVP-TVHW
DVP-TRAP DVP-TB1
SERIES
HORIZONTAL
TERMINATION
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
PIPE LENGTH
CEILING
FIRESTOP
90 DEGREE
ELBOW
WALL FIRESTOP
Î

15
Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05

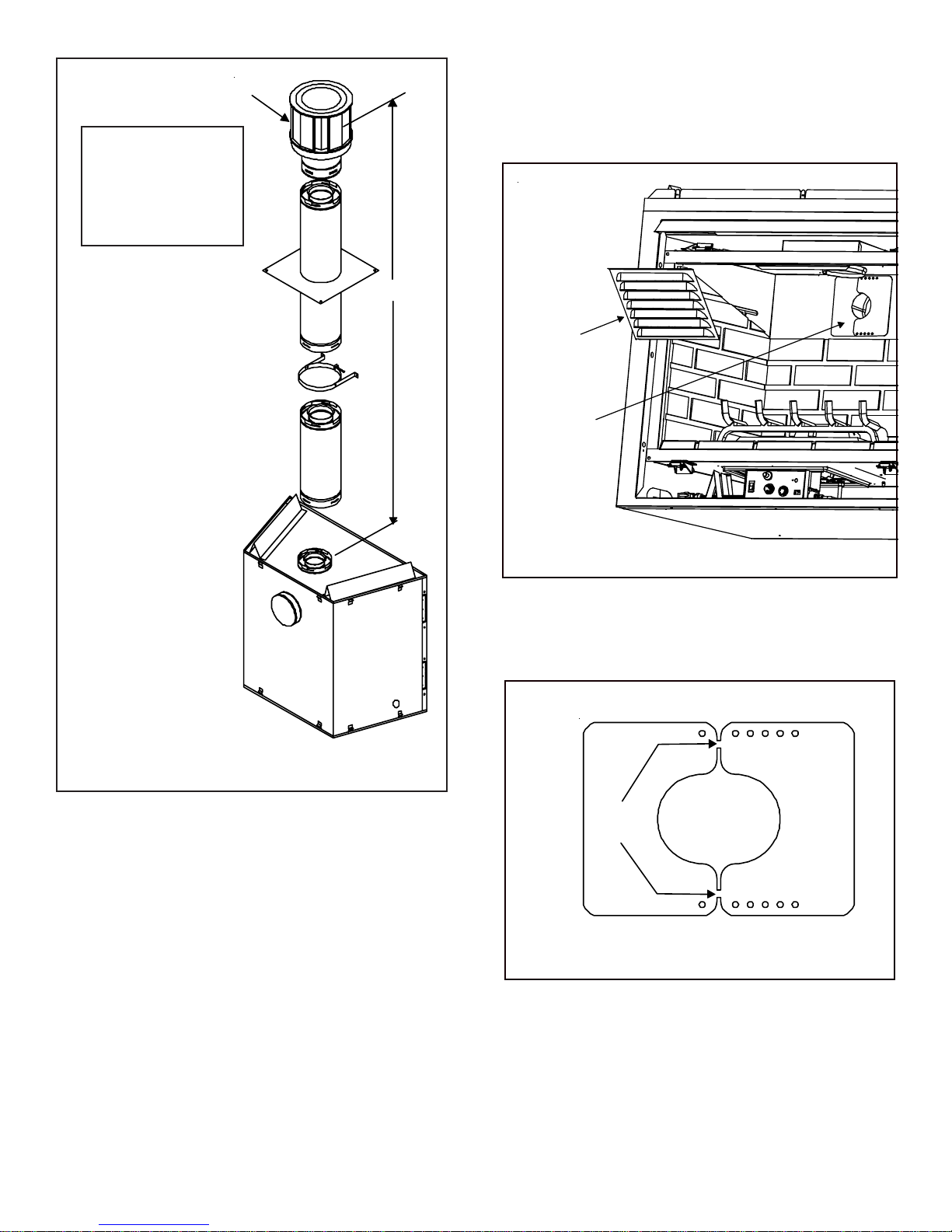

Figure 6.
Straight Up Vertical Venting
STRAIGHT UP
VERTICALVENTING
V (FT.)
40' MAX. (12.4 M)
CAP
V
Flue Restrictor Instructions
1. Remove Exhaust Shield using a 1/4” nut driver by
removing the four screws securing it in place (see
Figure 7).
Figure 8. Flue Restrictor
BREAK
HERE
Figure 7
EXHAUST
SHIELD
FLUE
RESTRICTOR
2. Break the Flue Restrictor into two pieces. Do this
by bending the part back and forth until it breaks
(see Figure 8).
NOTE: On vertical venting
configurations over 10 feet
install the flue restrictor
(385-128). See flue restric-
tor installation instructions.

16 Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05

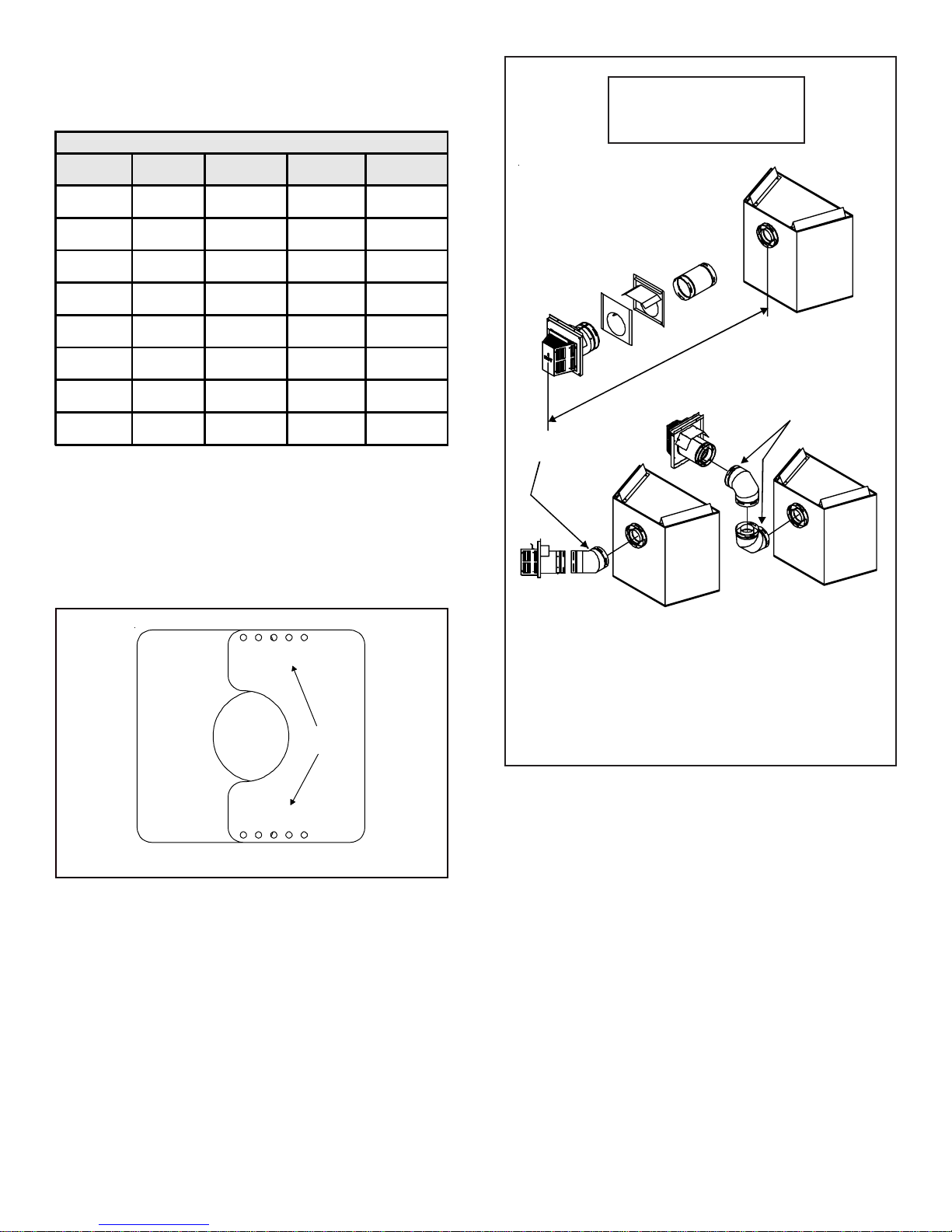

HORIZONTALVENTING
KitNo. H Max. Run
DVP-TRAP 24" (610 mm)
Figure 11. Corner Installation
NOTE: This model is tested and approved to
use 45° elbows in corner installations. Howev-
er, 90° elbows will result in better performance.
The use of two 900elbows in a corner installation
will affect space requirements (see Figure 2).
3. Match the amount of vertical you have in the sys-
tem with the chart to find the appropriate position
to set the Flue Restrictor (see Figure 9).
1 2 3 4 5
SETTINGS
1 2 3 4 5
Figure 10
4.Center the Flue Restrictor on vent and secure in
place by using two self-tapping screws (see Fig-
ure 10).
5. Reinstall the Exhaust Shield.
- CHART -
Vertical Top Vent
NG Top Vent LP Rear Vent NG Rear Vent LP
4' 1-1 No
Restrictor No Restrictor No Restrictor
8' 2-2 1-2 1-1 No
Restrictor
15' 3-3 3-2 2-2 1-2
20' 3-4 3-3 3-3 2-3
25' 3-4 3-3 3-3 2-3
30' 4-4 3-4 3-4 3-3
35' 4-4 3-4 3-4 3-3
40' 5-4 4-4 4-4 3-4
Figure 9.
Í
H
45-DEGREE
ELBOW
90-DEGREE
ELBOWS

17
Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
V H
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m) H = 8' MAX. (2.4m)
NOTE:Onverticalventingconfigurations,where
the vertical component is over 10 feet, install
the flue restrictor included in the manual bag
assemblyto improve flameappearance.
Figure 12. Venting with One 90° Elbow
VENTING WITH ONE (1) 90° ELBOW
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10'MAX. (3.1m)
3' MIN. (914mm) 15'MAX. (4.65m)
4' MIN. (1.22m) 20'MAX. (6.2m)
V+H= 40’ MAX. (12.4MM) H = 20' MAX. (6.2m)
Figure 13. Venting with One 90° Elbow
NOTE: If a 90oelbow is first attached to the unit,
themaximum horizontal run is3-feet (914mm).
NOTE: Forcorner installations:A6-inch (152mm)
section of straight pipe may need to be attached to
thefireplace before a 90o elbow, to allow the vent
pipe to clear the top standoffs.
H
V
V
H
H
V

18 Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05

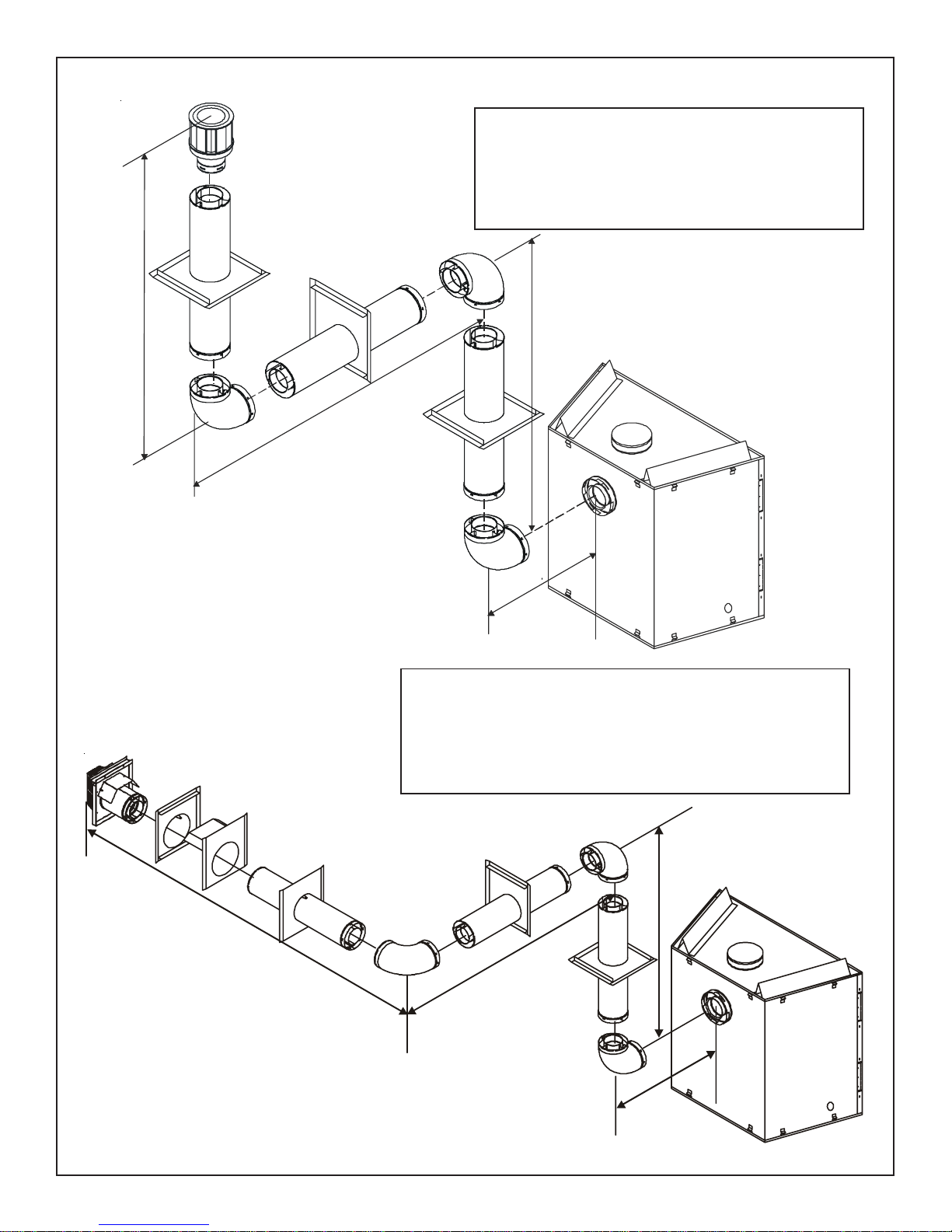

Figure 14. Venting with Two 90° Elbows
VENTING WITH TWO (2)
90° ELBOWS
V H H + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´ MAX. (3.1m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2m)
V+H+H 1 =40´MAX.(12.4m) H=8´MAX.(2.48m) H+H
1
=20´MAX. (6.2m)
Figure 15. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90oELBOWS
V FT. H + H1(FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´MAX.(3.1m)
3' MIN. (914mm) 15´MAX.(4.65m)
4' MIN. (1.22m) 20´MAX.(6.2m)
V+H+H1=40' MAX.(12.4m) H+H
1
= 20´ MAX.(6.2m)
V+V1+H=40' MAX.(12.4m)
H
1
V
H
V
V
1
H
Î
H
1
H
V

19
Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05

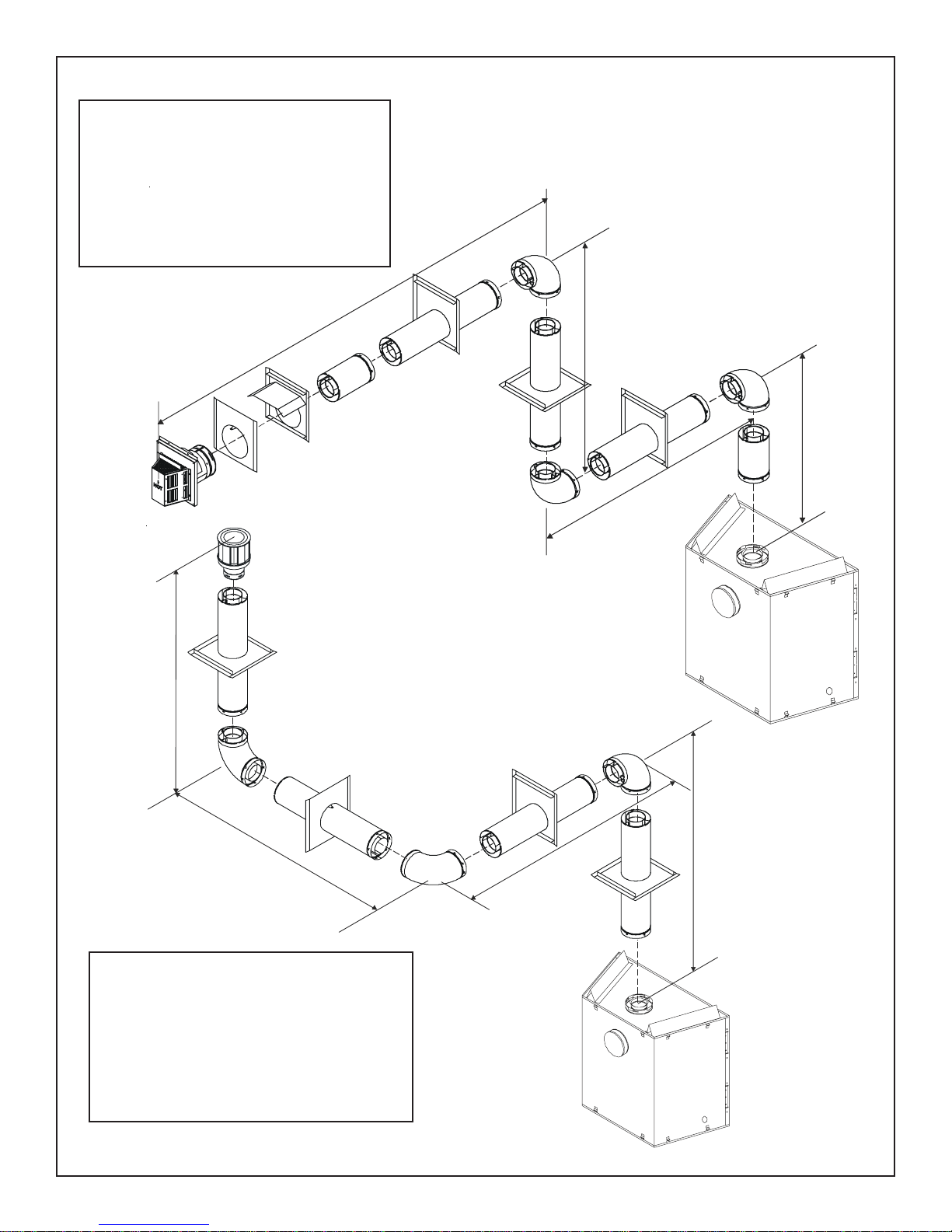

Figure 16. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V+H+H
1
+H
2
= 40´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
+H
2
= 20´ MAX. (6.2 m)
V H H + H1 + H2
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V
1
+V+H+H
1
= 40´ MAX.(12.4 m) H = 8´MAX.(2.48 m) H+H
1
= 20´MAX.(6.2 m)
V H H + H1
H
V
H
1
V
1
Î
H
H
1
2
V
H

20 Hearth & Home Technologies • 6000BE, 6000BE-IPI • 2024-900 Rev. G • 11/05
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10'MAX.(3.1m)
3' MIN. (914mm) 15'MAX.(4.65m)
4' MIN. (1.22m) 20'MAX.(6.2m)
NOTE: H + H1= 20' MAX. (6.2m)
V + V1 + H + H1= 40' MAX. (12.4m)
V + V1(FT.) H + H1(FT.)
1' MIN.(305mm) 5' MAX.(1.52m)
2' MIN.(610mm) 10' MAX.(3.1m)
3' MIN.(914mm) 15' MAX.(4.65m)
4' MIN.(1.22m) 20' MAX. (6.2m)
H+H1= 20' MAX. (6.2m)
NOTE:V+V1+H+H1=40'MAX.(12.4m)
Figure 17. Venting with three 90° elbows
V
H
H
1
V
1
V
H
H
1
V
1
