Hearth and Home Technologies AZTEC User manual

Hearth & Home Technologies, Inc. • Bravo, Aztec • InD • 703-900 Rev. N • 8/06 1
Models:
Aztec
Bravo
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
bya qualifiedinstaller,serviceagency, orthe
gas supplier.
If the information in these instruc-
tions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. Do
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
WARNING
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high temperatures.
• Do NOT operate with protective barriers open or
removed.
• Keep clothing, furniture, draperies and other
combustibles away.
Glass and other surfaces are hot during
operation and cool down.
• Keep children away.
Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
CAUTION
ThisappliancemaybeinstalledasanOEM installation in manu-
facturedhome(USAonly)ormobilehomeandmust be installed
inaccordancewiththemanufacturer’sinstructionsandtheman-
ufacturedhomeconstructionand safety standard, Title 24 CFR,
Part 3280 or Standard for Installation in Mobile Homes, CAN/
CSA Z240MH.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
Technologiessuggests NFI certified or factory-trained
professionals, or technicians super-
vised by an NFI certified professional.
Leave this manual with
party responsible for
use and operation.
•••
DO NOT
DISCARD
In the Commonwealth of Massachusetts:
• installation must be performed by a licensed plumber
or gas fitter;
• a CO detector shall be installed in the room where the
appliance is installed.
Important operating
and maintenance
instructions included.
Read, understand and follow
these instructions for safe
installation and operation.
WARNING

Hearth & Home Technologies • Bravo, Aztec • InD • 703-900 Rev. N • 8/06
2
Congratulations
Listing Label Information/Location
Model Name:___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on appliance: ____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
Congratulations on selecting a Hearth & Home
Technologies gas appliance —an elegant and clean
alternative to wood burning appliances. The Hearth &
Home Technologies gas appliance you have selected is
designed to provide the utmost in safety, reliability, and
efficiency.
As the owner of a new appliance, you’ll want to read and
carefully follow all of the instructions contained in this
Owner’s Manual. Pay special attention to all Cautions
and Warnings.
This Owner’s Manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this Owner’s Manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Hearth & Home Technologies gas appliance will
give you years of durable use and trouble-free enjoyment.
Welcome to the Hearth & Home Technologies family of
appliance products!
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
We recommend that you record the following
pertinent information about your appliance.
Gas and Electric
Information
Model Number
Serial Number
Type of Gas
The model information regarding your specific appliance can be found on
the rating plate usually located in the control area of the appliance.
Homeowner Reference Information
Hearth & Home Technologies, Inc.
20802 Kensington Blvd. Lakeville, Mn 55044

Hearth & Home Technologies, Inc. • Bravo, Aztec • InD • 703-900 Rev. N • 8/06 3
- Table of Contents -
Section 1: Listing and Code Approvals
A. Appliance Certification................................... 4
B. Glass Specifications...................................... 4
C. BTU Specifications........................................ 4
D. High Altitude Installations .............................. 4
E. Non-Combustible Materials Specifications.... 4
F. Combustible Materials Specifications............ 4
Section 2: Getting Started
A. Design and Installation Considerations......... 5
B. Tools and Supplies Needed........................... 5
C. Inspect Appliance and Components..............5
Section 3: Framing and Clearances
A. Selecting Appliance Location......................... 6
B. Constructing the Appliance Chase ................7
C. Clearances .................................................... 7
D. Mantel Projections......................................... 8
Section 4: Termination Locations
A.Vent Termination Minimum Clearances......... 9
Section 5: Vent Information and Diagrams
A. Vent Table Key..............................................11
B. Use of Elbows...............................................11
C. Measuring Standards...................................11
D. Vent Diagrams............................................. 12
Section 6: Vent Clearances and Framing
A. Pipe Clearances to Combustibles............... 17
B. Wall Penetration Framing............................ 17
C. Vertical Penetration Framing....................... 18
Section 7: Appliance Preparation
A. Securing and Leveling the Appliance ..........19
Section 8: Installing Vent Pipe
A. Assembly of Vent Sections.......................... 20
B. Disassembly of Vent Sections..................... 22
C. Installing Heat Shield & Termination Cap ...23
D. Installing Roof Flashing and Vertical
Termination Cap .......................................... 24
Section 9: Gas Information
A. Fuel Conversions...................................... 26
B. Gas Pressures.......................................... 26
C. Gas Connection........................................ 26
Section 10: Electrical Information
A. Recommendation for Wire........................ 28
B. Connecting to the Appliance..................... 28
C. Intellifire Ignition System Wiring................28
D. Wall Switch (Required) ............................. 28
E. Junction Box ............................................. 30
F. Wall Switch Installation for Fan................. 30
Section 11: Finishing
A. Mantel Projections .................................... 31
B.Facing Material......................................... 31
C. Finishing Styles......................................... 32
Section 12: Appliance Setup
A. Remove Shipping Materials...................... 35
B. Clean the Appliance.................................. 35
C. Accessories .............................................. 35
D. Lava Rock, Ember Placement..................35
E. Positioning the Logs .................................36
F. Glass Assembly ........................................ 42
G. Air Shutter Setting..................................... 42
Section 13: Operating Instructions
A. Before Lighting Appliance......................... 43
B. Lighting Appliance..................................... 44
C. After Appliance is Lit ................................. 45
D. Frequently Asked Questions..................... 45
Section 14: Troubleshooting
A. Intellifire Ignition System........................... 46
Section 15: Maintaining and Servicing Appliance........... 48
Section 16: Reference Materials
A. Appliance Dimension Diagram .................50
B. Vent Components Diagrams..................... 51
C. Service Parts ............................................54
D. Bravo Warranty......................................... 59
Aztec Warranty ......................................... 60
E. Contact Information .................................. 61
Î= Contains updated information.
Î
Í
Î
Í
Í
Í
Í
Í

Hearth & Home Technologies • Bravo, Aztec • InD • 703-900 Rev. N • 8/06
4
E. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750oC, shall be considered
non-combustible materials.
F. Combustible Materials Specification
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that can
ignite and burn, whether flame proofed or not, or whether
plastered or unplastered shall be considered combustible
materials.
B. Glass Specifications
Hearth&HomeTechnologiesappliancesmanufacturedwith
tempered glass may be installed in hazardous locations
such as bathtub enclosures as defined by the Consumer
Product Safety Commission (CPSC). The tempered glass
has been tested and certified to the requirements of ANSI
Z97.1and CPSC16 CFR1202 (Safety GlazingCertification
Council SGCC# 1595 and 1597.ArchitecturalTesting, Inc.
Reports 02-31919.01 and 02-31917.01).
This statement is in compliance with CPSC 16 CFR
Section 1201.5 “Certification and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certificate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
NOTE: Thisinstallationmust conform with local codes.Inthe
absence of local codes you must comply with the National
Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A.
and the CAN/CGA B149 Installation Codes in Canada.
NOTINTENDEDFORUSE AS A PRIMARYHEATSOURCE.
Thisapplianceistested and approved as either supplemental
room heat or as a decorative appliance. It should not be fac-
tored as primary heat in residential heating calculations.
Listing and Code Approvals
D. High Altitude Installations
U.L.Listed gasappliances aretested andapproved without
requiring changes for elevations from 0 to 2000 feet in the
U.S.A. and Canada.
When installing this appliance at an elevation above 2000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above
a 2000 foot elevation in the U.S.A., or 10% for elevations
between 2000 and 4500 feet in Canada. If the heating
value of the gas has been reduced, these rules do not
apply. To identify the proper orifice size, check with the
local gas utility.
If installing this appliance at an elevation above 4500 feet
(in Canada), check with local authorities.
C. BTU Specifications
1
MODELS: Aztec, Bravo
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Direct Vent Gas Appliance Heater
STANDARD: ANSI Z21.88-2000•CSA2.33-M2000•UL307B
WARNING
DoNOTusethis appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
This product is listed to ANSI standards for “Vented Gas
Appliance Heaters” and applicable sections of “Gas Burn-
ing Heating Appliances for Manufactured Homes and
RecreationalVehicles”,and “GasFiredAppliancesforUse
at High Altitudes”.
Models
(U.S. or Canada) Maximum
Input BTUH
Orifice
Size
(DMS)
Aztec, Bravo (NG) US
(0-2000 FT) 23,000 42
CANADA
(2000-4500 FT) 20,700 43
Aztec, Bravo (LP) US
(0-2000 FT) 23,000 53
CANADA
(2000-4500 FT) 20,700 54
A. Appliance Certification
Thesemodelsmay beinstalled in abedroom orbed-sitting
room in the USA and Canada.

Hearth & Home Technologies, Inc. • Bravo, Aztec • InD • 703-900 Rev. N • 8/06 5
A. Design and Installation Considerations
Hearth & Home Technologies direct vent gas appliances
are designed to operate with all combustion air siphoned
from outside of the building and all exhaust gases ex-
pelled to the outside. No additional outside air source is
required.
Getting Started
C. Inspect Appliance and Components
2
When planning an appliance installation, it’s necessary to
determine the following information before installing:
• Where the appliance is to be installed.
• The vent system configuration to be used.
• Gas supply piping.
• Electrical wiring.
• Framing and finishing details.
• Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Reciprocating saw Framing material
Pliers Hi temp caulking material
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level 1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
Manometer Voltmeter
Tape measure Noncorrosive leak check solution
One 1/4 inch female connection (for optional fan).
• Carefully remove the appliance and components from
the packaging.
• Thevent systemcomponentsand trimdoorsareshipped
in separate packages.
• The gas logs may be packaged separately and must
be field installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the in-
stallation. Follow these instructions carefully dur-
ing the installation to ensure maximum safety and
benefit.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, fire officials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
CAUTION
Keep appliance dry.
• Mold or rust may cause odors.
• Water may damage controls.
WARNING
Inspect appliance and components for
damage. Damaged parts may impair safe
operation.
WARNING
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
• Installation and use of any damaged
appliance or vent system component.
WARNING
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Any such action may cause a fire hazard.

Hearth & Home Technologies • Bravo, Aztec • InD • 703-900 Rev. N • 8/06
6
3Framing and Clearances
NOTE:
•Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
•Illustrations/diagrams are not drawn to scale.
•Actual installation may vary due to individual design
preference.
WARNING
Fire Risk
Provide adequate clearance:
• Around air openings
• To combustibles
• For service access
Locate appliance away from traffic areas.
A. Selecting Appliance Location
Whenselecting alocationfor yourappliance itis importantto
consider the required clearances to walls (see Figure 3.1).

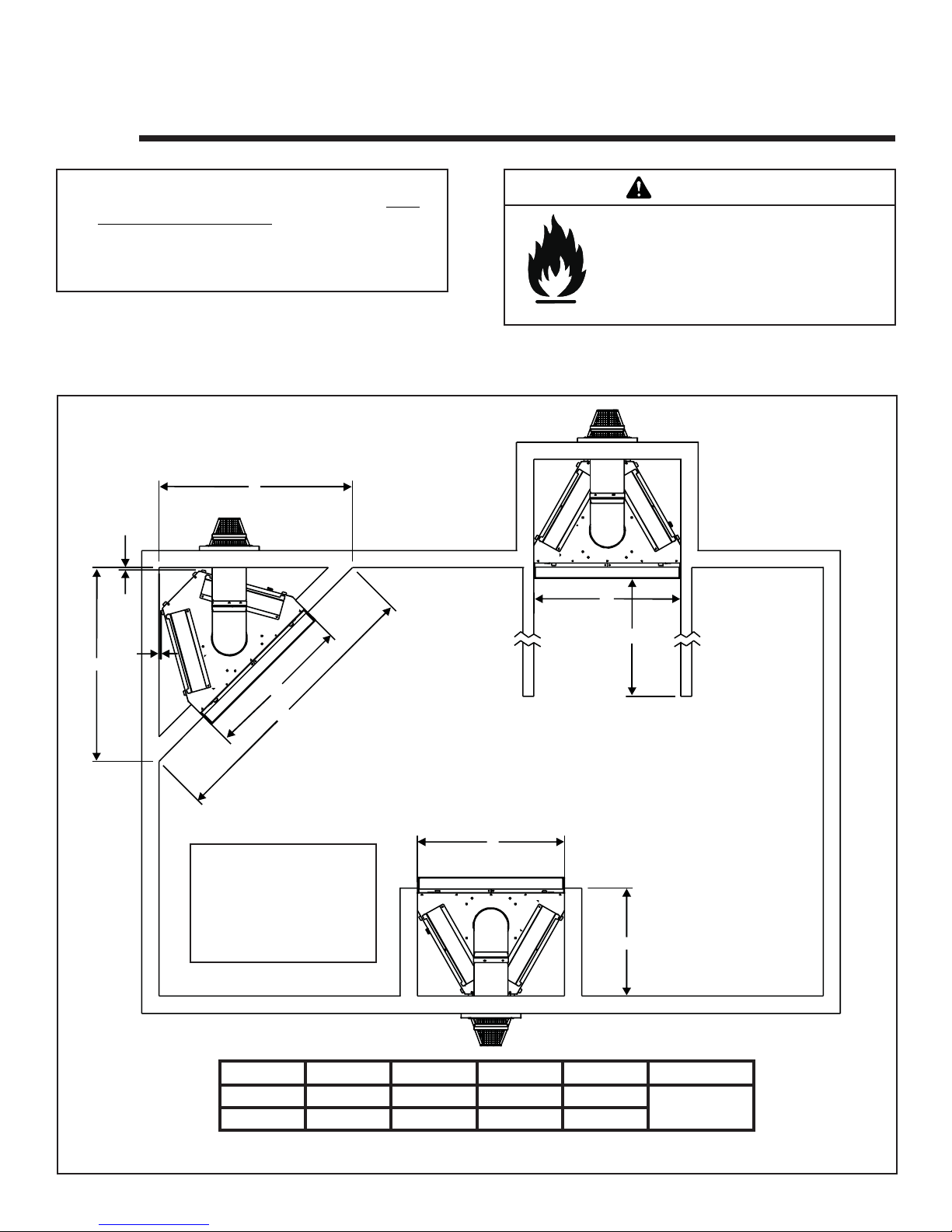

Figure 3.1 Appliance Locations
NOTE: For actual appliance dimensions refer to Sec-
tion 16.
ABCD E
Inches 45-1/8 34-3/8 63-7/8 25-1/4 No maximum
Millimeters 1146 873 1622 641
A
½
½
A
B
C
B
E
B
D
In addition to these framing dimensions, also reference the following sections:
• Clearances and Mantel Projections (Section 3.C and 3.D)
• Vent Clearances and Framing (Section 6).
NOTE:These dimensions
are for flush wall finishing
method. For a recessed
arch finishing method refer
to Option B in Finishing
(Section 11).

Hearth & Home Technologies, Inc. • Bravo, Aztec • InD • 703-900 Rev. N • 8/06 7
Fire Risk.
•Construct chase to all clearance
specifications in manual.
•Locate and install appliance to all
clearance specifications in manual
WARNING
B. Constructing the Appliance Chase
A chase is a vertical boxlike structure built to enclose the
gasappliance and/oritsventsystem.Vertical ventsthat run
on the outside of a building may be, but are not required to
be, installed inside a chase.
Construction of the chase may vary with the type of building.
These instructions are not substitutes for the requirements
of local building codes. Local building codes MUST be
checked.
Chasesshouldbe constructed inthemanner ofalloutside
walls of the home to prevent cold air drafting problems.
The chase should not break the outside building envelope
in any manner.
Walls, ceiling, base plate and cantilever floor of the chase
shouldbe insulated.Vaporand airinfiltrationbarriers should
beinstalled inthe chaseas perregionalcodesfortherestof
the home.Additionally, in regions where cold air infiltration
may be an issue, the inside surfaces may be sheetrocked
and taped for maximum air tightness.
To furtherprevent drafts,thewallshieldandceilingfirestops
shouldbe caulkedwith hightemperaturecaulktosealgaps.
Gas line holes and other openings should be caulked with
C. Clearances

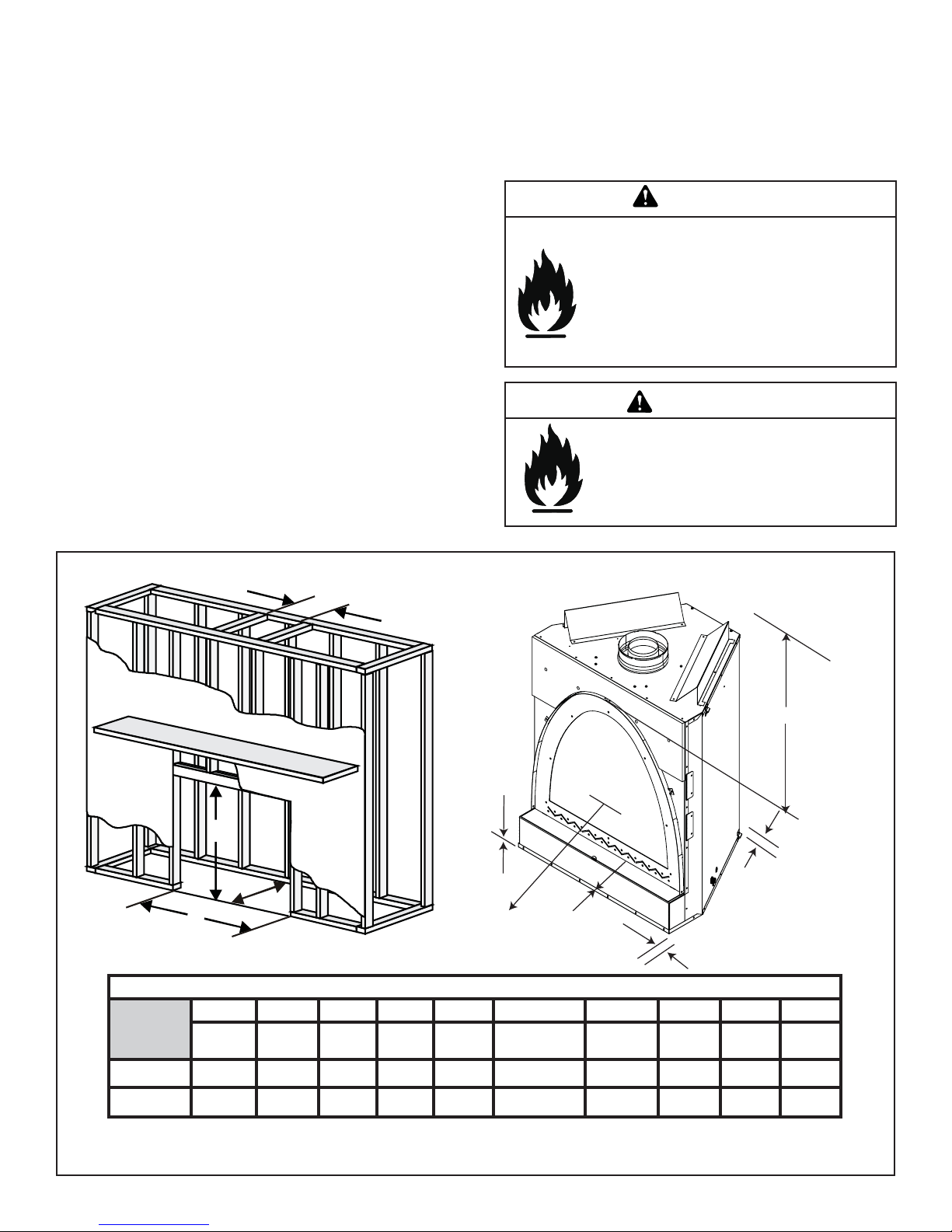

Figure 3.2 Clearances to Combustibles
Fire Risk.
Odor Risk.
•Install appliance on hard metal or wood
surfaces extending full width and depth of
appliance.
•Do NOT install appliance directly on
carpeting, vinyl, tile or any combustible
material other than wood.
WARNING
high temp caulk or stuffed with unfaced insulation. If the
appliance is being installed on a cement slab, a layer of
plywood may be placed underneath to prevent conducting
cold up into the room.
C
B
D
A
*
*For additional framing options and dimensions, see Section 11, Finishing.
Clearance to Combustibles
A B C* D E F G H IJ
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width) Clearance
to Ceiling Non-Combustible Floor Combustible Flooring Behind Appliance Sides of Appliance Front of Appliance
Inches 10 44 25-1/4 35-3/8 34-7/8 0 0 1/2 1/2 36
Millimeters 25 1118 641 699 886 0 0 13 13 914
FROM
TOP OF
FINISHING
STRIP TO
CEILING
H
E
GI
F
J

Hearth & Home Technologies • Bravo, Aztec • InD • 703-900 Rev. N • 8/06
8
D. Mantel Projections
Figure 3.3 Clearances to Mantels or other
Combustibles above Appliance
Figure 3.4 Clearances to Mantel Legs or Wall Projections
(Acceptable on both sides of opening.)
Note: All
measurements
in inches.
1 INCH
MINIMUM
TO
VENT PIPE
31
CEILING
37/8
14
1213
17
91/8
MIN.
31/8
11
910
7
56
TOP OF
FINISHING STRIP TOP OF
UNIT
16
18
15
8

Hearth & Home Technologies, Inc. • Bravo, Aztec • InD • 703-900 Rev. N • 8/06 9
A. Vent Termination Minimum Clearances
Fire Risk.
Explosion Risk.
Maintain vent clearance to combustibles as
specified.
WARNING
• Do not pack air space with insulation or
other materials.
Failure to keep insulation or other materials
away from vent pipe may cause fire.
Roof Pitch H (Min.) Ft.
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12.................................................1.25*
Over 7/12 to 8/12.................................................1.5*
Over 8/12 to 9/12.................................................2.0*
Over 9/12 to 10/12...............................................2.5
Over 10/12 to 11/12.............................................3.25
Over 11/12 to 12/12.............................................4.0
Over 12/12 to 14/12.............................................5.0
Over 14/12 to 16/12.............................................6.0
Over 16/12 to 18/12.............................................7.0
Over 18/12 to 20/12.............................................7.5
Over 20/12 to 21/12.............................................8.0
Figure 4.1
Figure 4.2 Minimum Height from Roof to
Lowest Discharge Opening
Termination Locations
4
Measure horizontal clearances from this surface.
Measure vertical clearances from this surface.
Figure 4.3 Multiple Vertical Termination
Figure 4.2 specifies minimum vent heights for various
pitched roofs.
(See Figure 4.4 for specific clearances)
* 3 foot minimum in snow regions
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
Gas Termination Wood & Fuel Oil Termination
A6 in. 20 in.
20 IN.
(MINIMUM) TO
PERPENDICULAR
WALL
(GAS ONLY)
GAS
TERMINATION
GAS, WOOD OR FUEL
OIL TERMINATION

Hearth & Home Technologies • Bravo, Aztec • InD • 703-900 Rev. N • 8/06
10

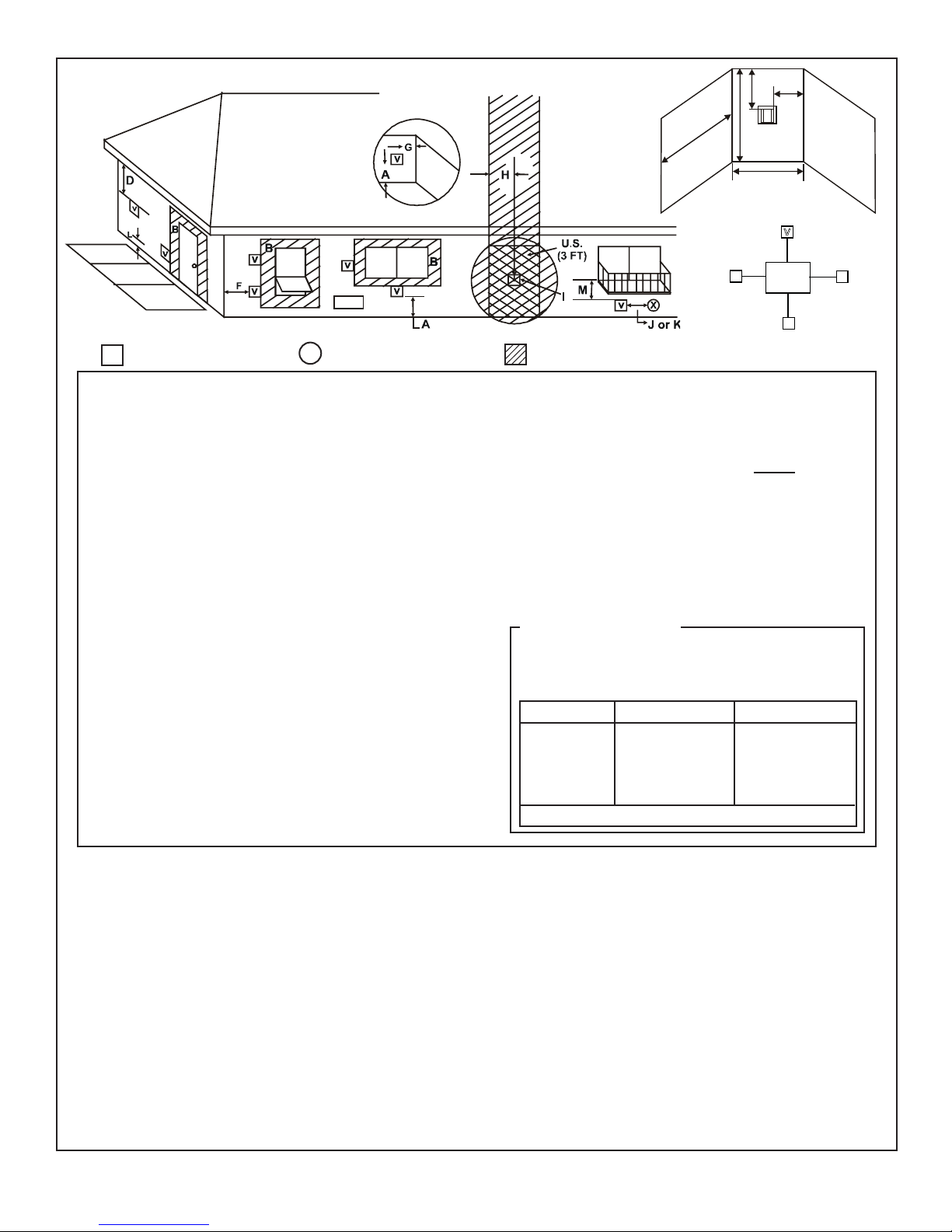

V= VENT TERMINAL X= AIR SUPPLY INLET = AREA WHERE TERMINAL IS NOT PERMITTED
Figure 4.4 Minimum Clearances for Termination
A = 12 inches...............clearancesabovegrade,veranda,
porch, deck or balcony
B = 12 inches...............clearances to window or door
thatmay be opened,ortoperma-
nently closed window. (Glass)
D* = 18 inches...............vertical clearance to unventilated
soffitorto ventilated soffitlocated
above the terminal
*30 inches..............for vinyl clad soffits and below
electrical service
F = 9 inches................clearance to outside corner
G = 6 inches.................clearance to inside corner
H = 3 ft. (Canada)........not to be installed above a gas
meter/regulator assembly within 3
feet (90cm) horizontally from the
center-line of the regulator
I = 3 ft. (U.S.A.)
6 ft. (Canada).........clearancetogasserviceregulator
vent outlet
J = 9 inches (U.S.A.)
12 inches (Canada) clearance to non-mechanical
air supply inlet to building or the
combustion air inlet to any other
appliance
K = 3 ft. (U.S.A.)
6 ft. (Canada)...........clearance to a mechanical
(powered) air supply inlet
L** = 7 ft...........................clearance above paved
sidewalk or a paved driveway
located on public property
M*** = 18 inches.................clearance under veranda, porch,
deck, balcony or overhang
42 inches ................vinyl
CAUTION: IF EXTERIOR WALLS ARE FINISHED WITH VINYL SIDING, IT IS SUGGESTED THAT A VINYL PROTECTOR KIT BE INSTALLED.
** aventshallnotterminate directlyabove asidewalkor paveddriveway
whichislocated betweentwosingle familydwellingsand servesboth
dwellings.
*** only permitted if veranda, porch, deck or balcony is fully open on a
minimum of 2 sides beneath the floor, or meets Note 2.
NOTE 1: On private property where termination is less than 7 feet above
a sidewalk, driveway, deck, porch, veranda or balcony, use of a listed cap
shield is suggested. (See vents components page)
NOTE 2: Termination in an alcove space (spaces open only on one side
and with an overhang) are permitted with the dimensions specified for
vinyl or non-vinyl siding and soffits. 1. There must be 3 feet minimum
between termination caps. 2. All mechanical air intakes within 10 feet
of a termination cap must be a minimum of 3 feet below the termination
cap. 3. All gravity air intakes within 3 feet of a termination cap must be a
minimum of 1 foot below the termination cap.
(See Note 1)
(See Note 1)
(See Note 2)
NOTE 3: Local codes or regulations may require different
clearances.
NOTE 4: Termination caps may be hot. Consider their proximity to
doors or other traffic areas.
NOTE 5: Location of the vent termination must not interfere with
access to the electrical service.
WARNING: In the U.S: Ventsystem terminationisNOT permittedin
screenedporches.Youmust follow sidewall,overhang and ground
clearances as stated in the instructions.
In Canada: Vent system termination is NOT permitted in screened
porches. Vent system termination is permitted in porch areas with
two or more sides open. You must follow all side walls, overhang
and ground clearances as stated in the instructions.
Hearth & Home Technologies assumes no responsibility for the
improper performance of the appliance when the venting system
does not meet these requirements.
QMIN = # termination caps x 3 RMAX = (2 / # termination caps) x QACTUAL
N = 6 inches ..................non-vinyl sidewalls
12 inches ................vinyl sidewalls
P = 8 ft.
Alcove Applications
S = 6 inches...................clearancefromsidesofelec-
trical service
T = 12 inches..................clearance above electrical
service
(See Note 5)
(See Note 5)
Electrical
Service
V
S
VS
V
T
D*
V
MN
P
R
Q
QMIN RMAX
1 cap 3 feet 2 x Q ACTUAL
2 caps 6 feet 1 x Q ACTUAL
3 caps 9 feet 2/3 x Q ACTUAL
4 caps 12 feet 1/2 x Q ACTUAL

Hearth & Home Technologies, Inc. • Bravo, Aztec • InD • 703-900 Rev. N • 8/06 11
5Vent Information and Diagrams
Fire Hazard.
Explosion Risk.
Asphyxiation Risk.
Do NOT connect this gas appliance to a
chimney flue serving a separate solid-fuel or
gas burning appliance.
• Vent this appliance directly outside.
• Use separate vent system for this appliance.
May impair safe operation of this appliance or
other appliances connected to the flue.
WARNING
CAUTION
ALL vent configuration specifications MUST be followed.
• This product is tested and listed to these
specifications.
• Appliance performance will suffer if specifications are
not followed.

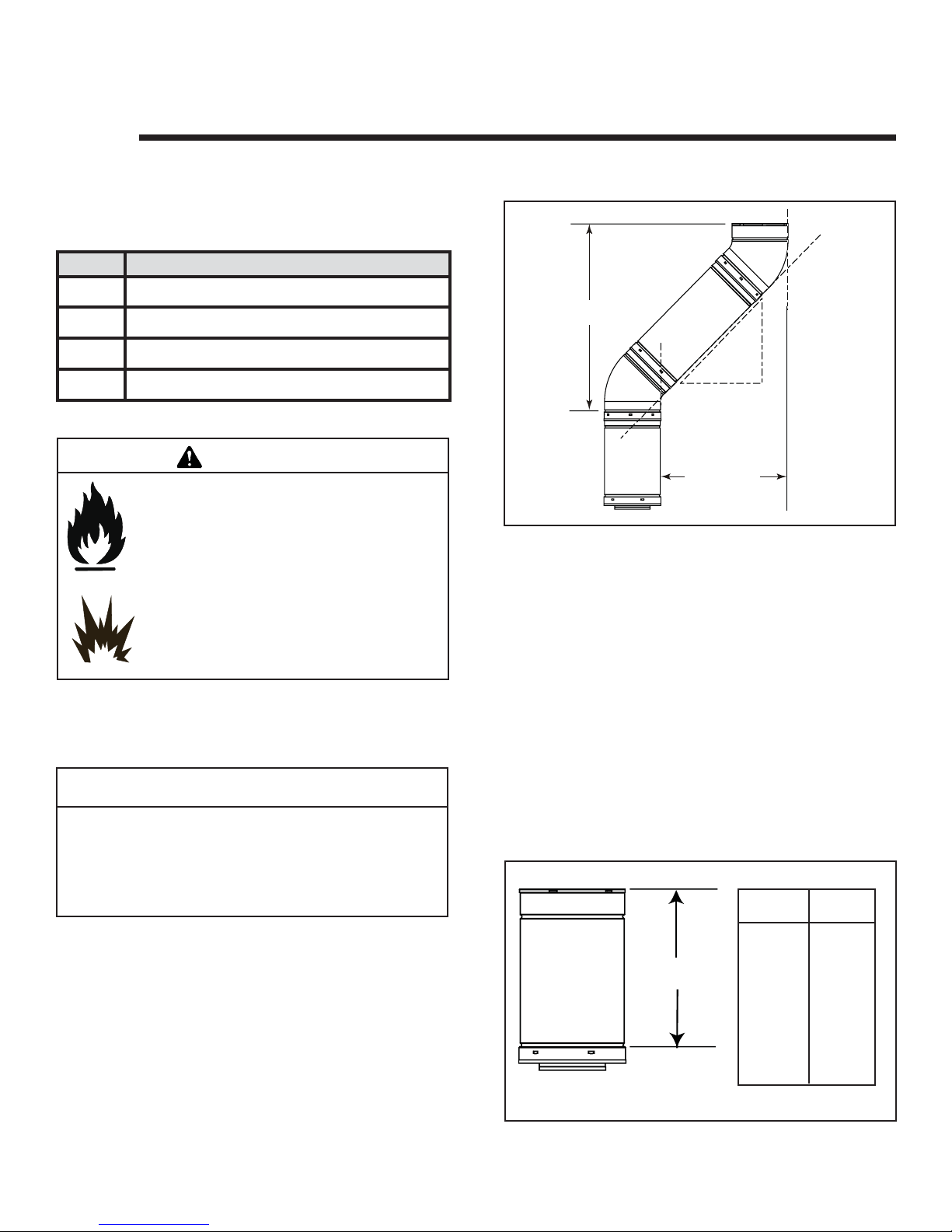

B. Use of Elbows
Diagonal runs have both vertical and horizontal vent as-
pects when calculating the effects. Use the rise for the
vertical aspect and the run for the horizontal aspect (see
Figure 5.1).
Two450elbowsmay beusedin placeof one 900elbow.On
450runs, one foot of diagonal is equal to 8.5 inches hori-
zontal run and 8.5 inches vertical run. A length of straight
pipe is allowed between two 450elbows (see Figure 5.1).
Figure 5.1
A. Vent Table Key
The abbreviations listed in this vent table key are used in
the vent diagrams.
C. Measuring Standards
Vertical and horizontal measurements listed in the vent
diagrams were made using the following standards.
1. Pipemeasurementsareshown usingtheeffectivelength
of pipe (see Figure 5.2).
2. Measurementsaremadefromtheapplianceouterwrap,
not from the standoffs.
3. Horizontal terminations are measured to the outside
mountingsurface (flangeof terminationcap) (seeFigure
4.1).
4. Vertical terminationsaremeasuredtobottomoftermina-
tion cap.
5. Horizontal pipe installed level with no rise.
Figure 5.2 DVP Pipe Effective Length
Effective
Height/Length
DVP4 4
DVP6 6
DVP12 12
DVP24 24
DVP36 36
DVP48 48
DVP6A 3 to 6
DVP12A 3 to 12
DVP12MI 3 to 12
DVP24MI 3 to 24
Length/
Inches
Pipe
Symbol Description
V1First section (closest to appliance of vertical length
V2Second section of vertical length
H1First section (closest to appliance) of horizontal length
H2Second section of horizontal length
Horizontal
V
ertical
8-1/2 in.
8-1/2 in.
12 in.

Hearth & Home Technologies • Bravo, Aztec • InD • 703-900 Rev. N • 8/06
12
Figure 5.3
Figure 5.4
D. Vent Diagrams
WARNING
1. Top Vent - Horizontal Termination
One Elbow
Two Elbows
NOTE: When venting with one elbow, a
straight section of venting (3 ft. minimum)
MUST be attached directly to starting col-
lars on unit.
NOTE: V1MUST be a
minimum of 3 feet.
V1Minimum H1Maximum
3 ft. 0.9 m 2 ft. 0.6 m
4 ft. 1.2 m 4 ft. 1.2 m
5 ft. 1.5 m 6 ft. 1.8 m
12 ft. 3.7m 20 ft. 6.1 m
V1+ H1= 40 ft. (12.2 m) Maximum
H1= 20 ft. (6.1 m) Maximum
NOTE: The first elbow used MUST always
be DVP90ST.
Fire Risk. Explosion Risk.
Do NOT pack insulation or other combustibles between ceiling firestops.
• ALWAYS maintain specified clearances around venting and firestop systems.
• Install wall shield and ceiling firestops as specified.
Failure to keep insulation or other material away from vent pipe may cause fire.
NOTE: The first elbow used
MUST always be DVP90ST.
V1Minimum H1+ H2 Maximum
3 ft. 0.9 m 2 ft. 0.6 m
4 ft. 1.2 m 4 ft. 1.2 m
5 ft. 1.5 m 6 ft. 1.8 m
12 ft. 3.7 m 20 ft. 6.1 m
V1+ H1+ H2 = 40 ft. (12.2 m) Maximum
H1+ H2 = 20 ft. (6.1 m) Maximum
Í
Í

Hearth & Home Technologies, Inc. • Bravo, Aztec • InD • 703-900 Rev. N • 8/06 13

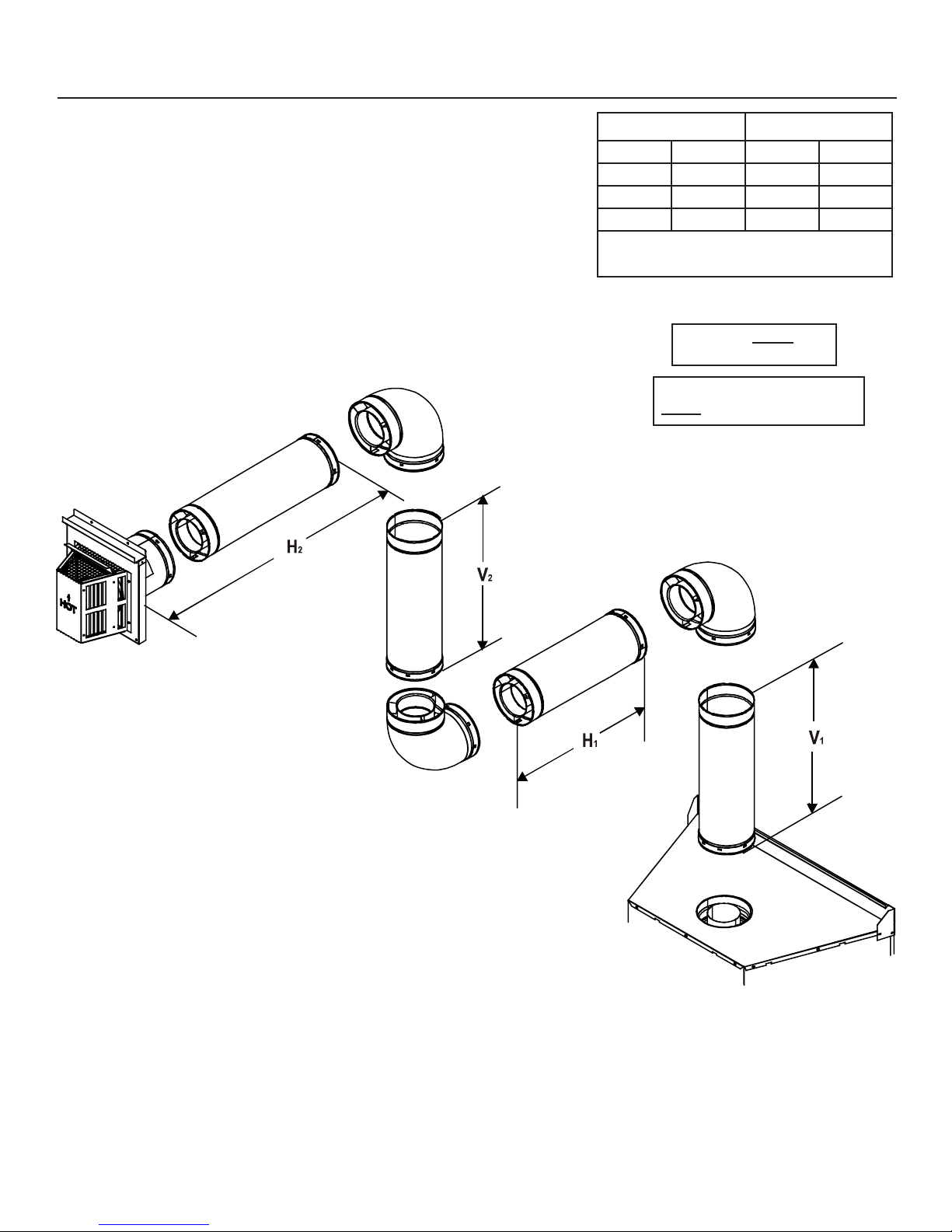

Figure 5.5
1. Top Vent - Horizontal Termination - (continued)
Three Elbows V1+ V2 Minimum H1+ H2 Maximum
3 ft. 0.9 m 2 ft. 0.6 m
4 ft. 1.2 m 4 ft. 1.2 m
5 ft. 1.5 m 6 ft. 1.8 m
12 ft. 3.7 m 20 ft. 6.1 m
V1+ V2 + H1+ H2 = 40 ft. (12.2 m) Maximum
H1+ H2 = 20 ft. (6.1 m) Maximum
NOTE: V1MUST be a
minimum of 3 feet.
NOTE: The first elbow used
MUST always be DVP90ST.
Í

Hearth & Home Technologies • Bravo, Aztec • InD • 703-900 Rev. N • 8/06
14

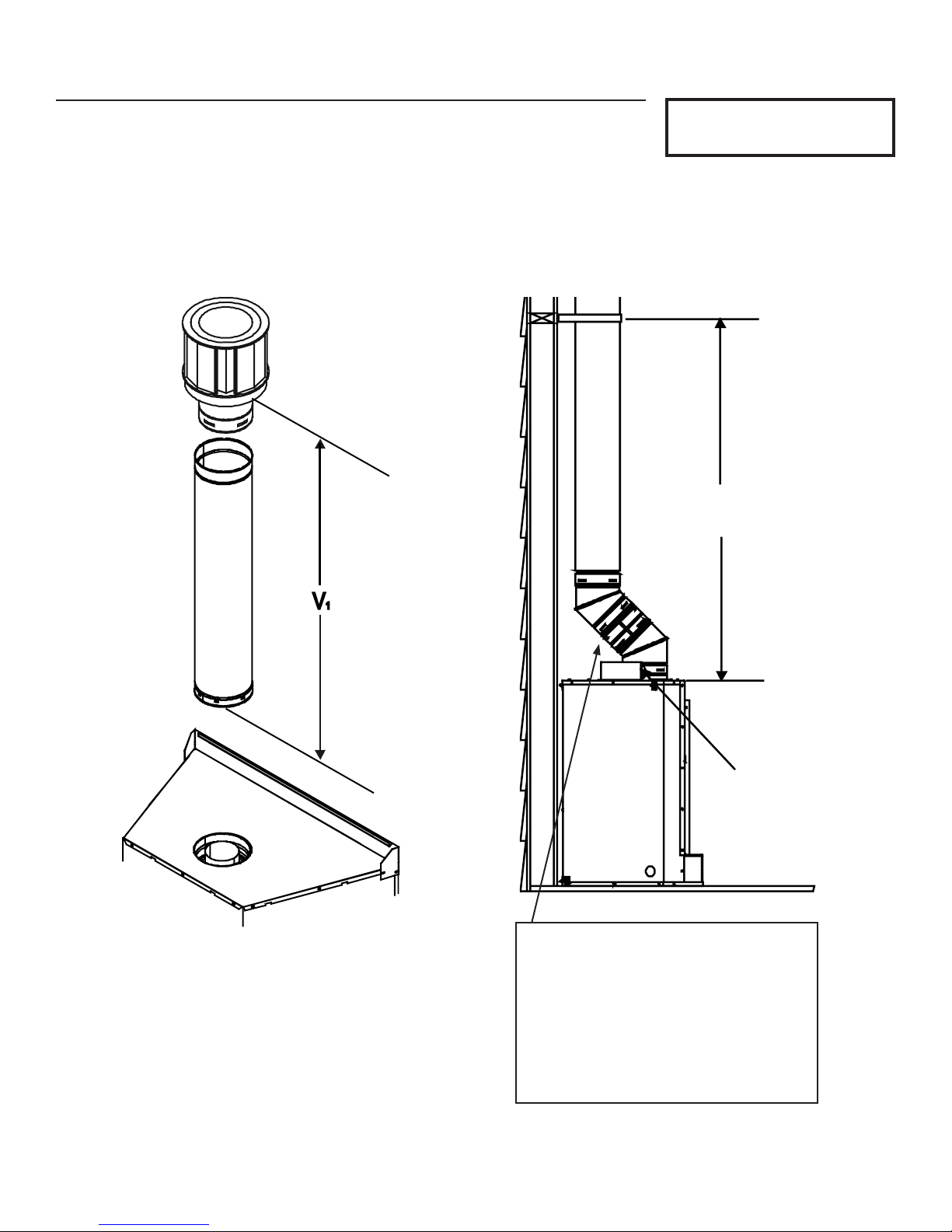

2. Top Vent - Vertical Termination
No Elbow
Figure 5.6
V1= 46 ft. Max. (14.0 m)
Note: A 45Oelbow may be attached
directly to starting collars on unit only
if used in conjunction with a return 45O
elbow AND terminating vertical with V =
8 feet MINIMUM.
A straight section of pipe can be used
between the two 450elbows.
8 FT.
(2.4mm)
FLUE
OUTLET

Hearth & Home Technologies, Inc. • Bravo, Aztec • InD • 703-900 Rev. N • 8/06 15
Figure 5.7
Two Elbows V1Minimum H1 Maximum V2
3 ft. 0.9 m 2 ft. 0.6 m *
4 ft. 1.2 m 4 ft. 1.2 m *
5 ft. 1.5 m 6 ft. 1.8 m *
12 ft. 3.7 m 20 ft. 6.1 m *
V1 + V2 + H1 = 40 ft (12.2 m) Maximum
*No specific restrictions on this value EXCEPT
V1 + V2 + H1 cannot exceed 40 ft (12.2 m)
NOTE: V1MUST be a
minimum of 3 feet.
NOTE: The first elbow used
MUST always be DVP90ST.
Í

Hearth & Home Technologies • Bravo, Aztec • InD • 703-900 Rev. N • 8/06
16

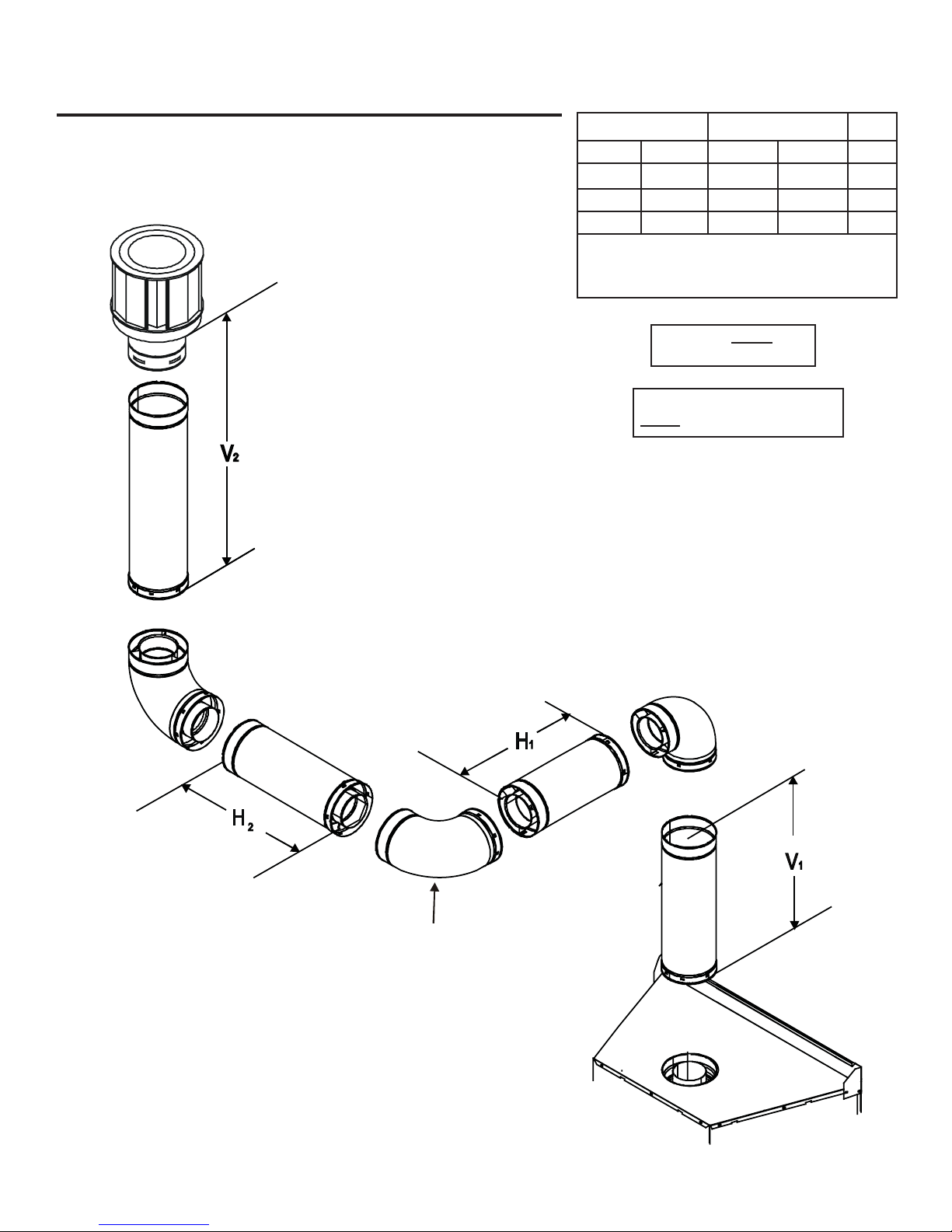

Figure 5.8
2. Top Vent - Vertical Termination - (continued)
Three Elbows
INSTALLED
HORIZONTALLY
NOTE: V1MUST be a
minimum of 3 feet.
NOTE: The first elbow used
MUST always be DVP90ST.
V1H
1+ H2 V2
3 ft. 0.9 m 2 ft. 0.6 m *
4 ft. 1.2 m 4 ft. 1.2 m *
5 ft. 1.5 m 6 ft. 1.8 m *
12 ft 3.7 m 20 ft. 6.1 m *
H1 + H2 = 20 ft (6.1 m) Maximum
*No specific restrictions on this value EXCEPT
V1 + V2 + H1 + H2 = 40 ft (12.2 m) Maximum

Hearth & Home Technologies, Inc. • Bravo, Aztec • InD • 703-900 Rev. N • 8/06 17
A. Pipe Clearances to Combustibles
Vent Clearances and Framing
6
Combustible Wall Penetration
Frame a hole in a combustible wall for an interior wall
shield firestop, (Figure 6.2) whenever a wall is penetrated.
Use same size framing materials as those used in the wall
construction. The wall shield firestop maintains minimum
clearances and prevents cold air infiltration.
Non-Combustible Wall Penetration
If the hole being penetrated is surrounded by noncombus-
tible materials such as concrete, a hole with diameter one
inch greater than the pipe is acceptable.
Fire Risk.
Explosion Risk.
Maintain vent clearance to combustibles as
specified.
WARNING
• Do not pack air space with insulation or
other materials.
Failure to keep insulation or other materials
away from vent pipe may cause fire.
B. Wall Penetration Framing
Figure 6.1 Pipe Clearances
1 in. CLEARANCE
A
ROUND VERTICAL
SECTIONS
3 in. TOP
CLEARANCE
1 in. SIDE AND
BOTTOM CLEARANCE
Figure 6.2 Exterior Wall Hole
A* B
77 in. 76 in.
* Shows center of vent framing hole for top venting. The
center of the hole is one (1) inch (25.4mm) above the
center of the horizontal vent pipe.
Figure 6.2 Horizontal Venting Clearances to
Combustible Materials
WALL
HEAT
SHIELD HEAT
SHIELD
3in.TOP
CLEARANCE
WALL
SHIELD
FIRESTOP
1in.CLEARANCE
BOTTOM & SIDES
NOTE: Slope
not required.
B
A
10 in.
12 in.
Î

Hearth & Home Technologies • Bravo, Aztec • InD • 703-900 Rev. N • 8/06
18
C. Vertical Penetration Framing
Installing the Ceiling Firestop
• Frame an opening 10 inches by 10
inches whenever the vent system
penetrates a ceiling/floor (see Figure
6.3).
• Frame the area with the same sized
lumber as used in ceiling/floor joist.
• When installing a top vent vertical ter-
mination appliance the hole should be
directlyabove theappliance, unlessthe
flue is offset.
• Donotpack insulationaround thevent.
Insulation must be kept away from the
pipe.
Figure 6.3
ATTIC
ABOVE
A
B
WARNING
Fire Hazard
Keep loose materials or blown
insulation from touching the
vent pipe.
Installing Attic Shield
Note: An additional ceiling firestop is not
required if attic shield is used.
• Frame opening for attic shield.
• Attic shield may be installed above or
below ceiling (see Figure 6.4).
• Secure with three fasteners on each
side.
• Fold tabs at top of attic shield in toward
vent pipe. Tabs must keep vent pipe
centered within shield.
• Fieldconstruct additionalshield heightif
insulation is deeper than height of attic
shield.
Figure 6.4 Installing the Attic Shield
• National building codes recommend us-
ing attic shield to keep loose materials/
blown insulation from contacting vent.
• Hearth & Home Technologies requires
the use of an attic shield.
A B
10 in. 10 in.
DVP
PIPE
3 FASTENERS
PER SIDE
BEND TABS IN
AROUND PIPE
ATTIC SHIELD INS TALLED
BELOW CEILING ATTIC SHIELD INS TALLED
ABOVE CEILING

Hearth & Home Technologies, Inc. • Bravo, Aztec • InD • 703-900 Rev. N • 8/06 19
Appliance Preparation
7
CAUTION
Sharp Edges
• Wear protective gloves
and safety glasses dur-
ing installation.
The diagram shows how to properly position, level, and
secure the appliance (see Figure 7.1). Nailing tabs are pro-
vided to secure the appliance to the framing members.
• Place the appliance into position.
• Level the appliance from side to side and front to
back.
• Shimtheappliance asnecessary. Itisacceptable touse
wood shims.
• Bend out nailing tabs on each side.
• Keep nailing tabs flush with the framing.
• Secure the appliance to the framing by using nails or
screwsthrough thenailingtabs.Holesare providedinthe
basepan (inside the hearth) for securing to the floor.
A. Securing and Leveling the Appliance
WARNING
Fire Risk.
•Prevent contact with sagging, loose
insulation.
•Do NOT install against combustible
materials such as exposed insulation,
plastic and insulation backer.
WARNING
Fire Risk.
• ALWAYS maintain specified
clearances around the appliance.
• Do NOT notch into the framing around the appliance spacers.
Failure to keep insulation, framing or other material away
from the appliance may cause fire.
Figure 7.1 Proper Positioning, Leveling and
Securing of a Appliance
NAILING TABS
(BOTH SIDES)

Hearth & Home Technologies • Bravo, Aztec • InD • 703-900 Rev. N • 8/06
20
Fire Risk
Exhaust Fumes Risk
Impaired Performance of Appliance
• Overlap pipe slip sections at least 1-1/2 inches.
• Use pilot holes for screws.
• Screws must not exceed one inch long.
• Pipe may separate if not properly joined.
WARNING
A. Assembly of Vent Sections
Installing Vent Pipe
8
Assembling Pipe Sections
Insert the inner flue of section A into the flared inner flue of
section B.
Start the outer flue of sectionAover the outer flue of section B (see
Figure 8.2).Note: Theend ofthe pipesectionswith thelances/tabs
on it will face towards the appliance.
Attaching Vent to the Firebox Assembly
To attach the first pipe section to the collars, slide the male end of
theinnervent ofthepipe sectionoverthe innercollaron the firebox
assembly.Atthesame time,slide theouterflueoverthe outercollar
onthe appliance.Push thepipe sectionintotheappliancecollaruntil
all the lances (see Figure 8.1) have snapped in place. Tug slightly
on the section to confirm it has completely locked into place.

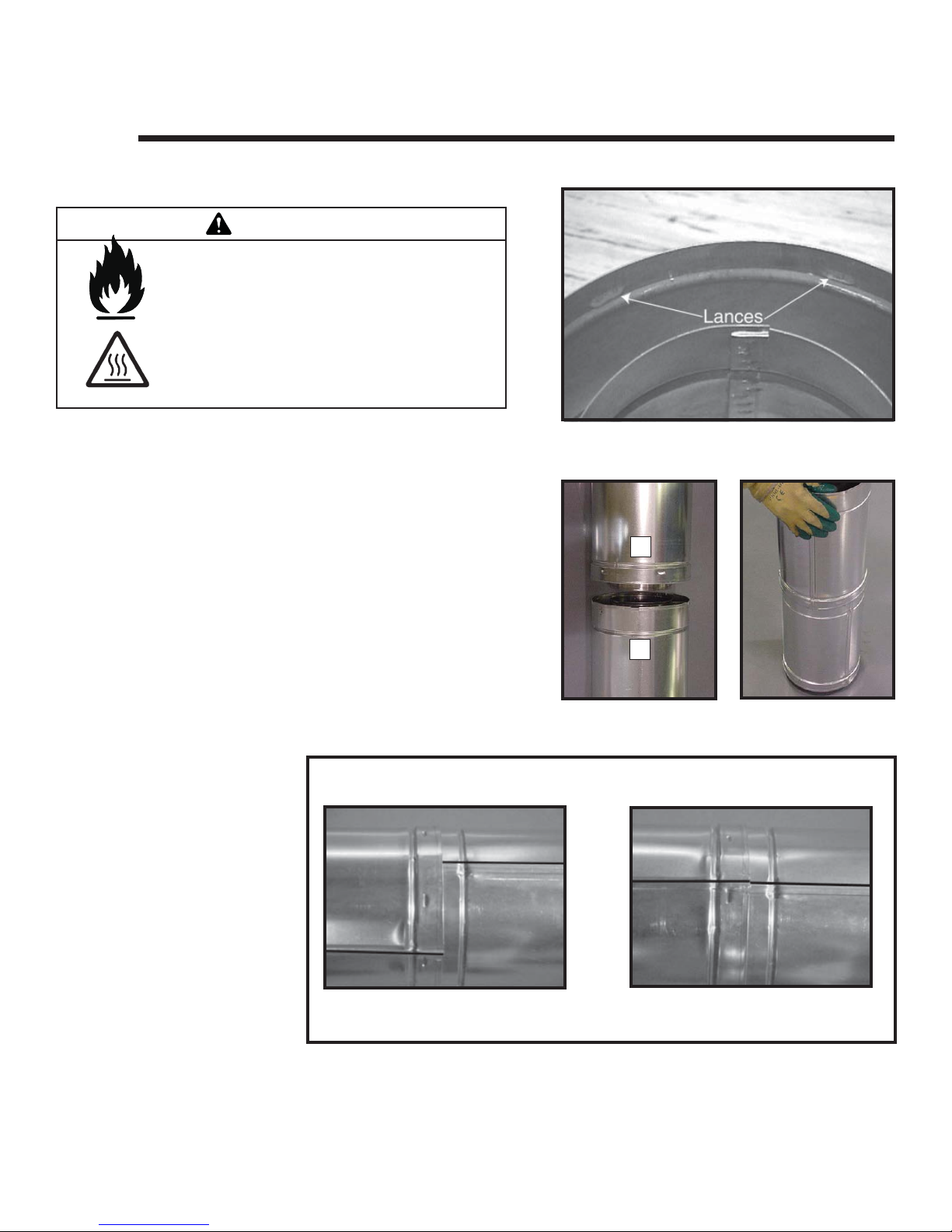

Figure 8.1 Lances
Figure 8.2
A
B
Figure 8.3
Figure 8.4 Seams
Note: Make sure that the seams are not aligned to prevent unintentional disconnection.
INCORRECT
CORRECT
Once both inner and outer flues
are started, press sectionAonto
section B firmly until all lances
have snapped into place. Check
to make sure they have snapped
together (see Figure 8.3) and
the seams are not aligned (see
Figure 8.4). Tug slightly on sec-
tionAto confirmit hascompletely
lockedintoplace. Itis acceptable
to use screws no longer than 1
inch to hold outer pipe sections
together. If predrilling holes, do
NOT penetrate inner pipe.
For 90° and 45° elbows that are changing the vent direction from
horizontaltovertical, onescrew minimumshould beputin theouter
flue at the horizontal elbow joint to prevent the elbow from rotating.
Use screws no longer than 1 inch. If predrilling screw holes, do
NOT penetrate inner pipe.
