Models:
GO24MTCH
GO30MTCH
Grand Oak Match Light
Gas Log Sets
Installation
Instructions
Check with your local building code agency before you begin installation to ensure compliance with local codes, including
the need for permits and follow-up inspections. If you encounter any problems regarding code approvals, or if you need
clarification of any of the instructions contained here, contact the Technical Services Dept., Hearth & Home Technologies
Inc., 20802 Kensington Blvd., Lakeville, MN 55044, phone [phone] or 1-800-927-6841.
Note: An arrow () found in the text signifies change
in content.
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating
and maintenance
instructions included.
• Leave this manual with
party responsible for
use and operation.
• Read, understand
and follow these
instructions for safe
installation and
operation.
DO NOT
DISCARD
If the information in these instruc-
tions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas:
- Do not try to light any appliance.
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
WARNING
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
WARNING
• Keep children away.
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
• Do NOT operate with protective barriers removed or
door open.
• Keep clothing, furniture, draperies and other
combustibles away.
Glass and other surfaces are hot during
operation and cool down.
Installation and service of this
appliance should be performed by
qualified personnel. Hearth & Home
Technologies suggests NFI certified
or factory-trained professionals,
or technicians
supervised by
an NFI certified
professional.
Listing #1238
Complies with LARGA2-72
In the Commonwealth of Massachusetts:
• This appliance must be installed by a licensed plumber
or gas fitter.
• The chimney flue damper, when used with gas logs, will
be welded open or completely removed.
• A CO detector shall be installed in the room where the
appliance is installed.


Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05
2
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
Congratulations on selecting a Hearth & Home Technologies
gas log set—an elegant and clean alternative to burning
wood. The Hearth & Home Technologies gas log set you
have selected is designed to provide the utmost in safety,
reliability, and efficiency.
As the owner of this new gas log set, you’ll want to read and
carefully follow all of the instructions contained in this owner’s
manual. Pay special attention to all cautions and warnings.
This owner’s manual should be retained for future reference.
We suggest you keep it with your other important documents
and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new gas log set will give you years of durable use and
trouble-free enjoyment. Welcome to the Hearth & Home
Technologies family of appliance products!
Listing Label Information/Location
The model information regarding your specific gas log set can be found on the rating plate.
Congratulations
Homeowner Reference Information
Model Name: Date purchased/installed:
Serial Number: Location on appliance:
Dealership purchased from: Dealer phone:
Notes:
We recommend that you record the following pertinent
information about your gas log set:
Hearth & Home Technologies
Decorative Gas Logs MODEL NUMBER
SERIAL NUMBER
INPUT RATING BTU/HR
GAS TYPE
MANIFOLD PRESS. in.water
column
Manufacturer: Hearth & Home Technologies
Angier NC, 27501
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
NOTE: TO BE USED IN A WOOD-BURNING
FIREPLACE ONLY. KEEP DAMPER
WIDE OPEN WHEN IN USE.
Listing # 1238
Complies with LARGA2-72
Model #
Serial #
Gas Type

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05 3
A. Design and Installation Considerations
The Gas Log Hearth Kit consists of the following:
• Log Set
• Burner/Pan Assembly
• Grate Assembly
• Rock Wool
• Sand
• Lava Rock
• Damper Stop
• Vermiculite
• Platinum Embers
B. Tools and Supplies Needed
Tools and supplies normally required for installation:
Pliers
Phillips screwdriver
Tape measure
Crescent wrenches
Gas shutoff valve
Non-corrosive leak check solution
3/4 in. wrench, 7/16 in. wrench
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this appliance. For assistance or additional information
consult a qualified installer, service agency or the gas
supplier.
WARNING
Sharp Edges
• Wear protective gloves
and safety glasses during
installation.
CAUTION
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
WARNING
• Keep children away.
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
• Keep clothing, furniture, draperies and other
combustibles away.
Glass and other surfaces are hot during
operation and cool down.
C. Important!
• Do not remove any of the attached metal plates, which
contain important safety and operating information.
• Keep the appliance area clear and free of all combustible
materials, gasoline and other flammable vapors and
liquids.
• Any safety screen or guard removed during servicing must
be replaced before operation.
• A qualified service technician must perform installation
and repair. The appliance should be inspected and cleaned
annually by a qualified service technician. More frequent
cleaning may be required due to excessive lint, dust, pet
hair, etc. It is imperative that the control compartments,
burners and air passageways are unobstructed during
operation.
- Review proper placement of logs, rockwool, lava rock
and vermiculite.
- Check the wiring.
- Ensure there are no gas leaks.
- Ensure the flow of combustion and ventilation air is not
obstructed (front grilles and vent caps).
• Before installing into a solid fuel burning fireplace, the
chimney and firebox should be inspected and cleaned to
remove soot, creosote, ashes, paint, bird nests etc.
• Annual examination of the chimney must be performed
by a qualified agency to ensure proper ventilation of flue
gases created by this appliance.
Fire Risk
Exhaust Fumes Risk
• Do NOT use this appliance as a “vent-free
heater.
The flue must be permanently open according
to Tables 1 and 2.
WARNING
• Have the chimney and adjacent structure inspected
and cleaned by qualified professionals. Hearth & Home
Technologies recommends that NFI or CSIA certified
professionals, or technicians under the direction of certified
professionals, conduct a minimum of an NFPA 211 Level 2
inspection of the chimney.
• Replace component parts of the chimney and fireplace as
specified by the professionals.
• Ensure all joints are properly engaged and the chimmney
is properly secured.
• Do not allow fans to blow directly into the fireplace. Avoid
any drafts that alter burner flame pattern.
• Do not use a blower insert, heat exchanger insert or other
accessories not approved for use with this appliance.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05
4
D. Appliance Certification
This appliance has been evaluated by RADCO in accor-
dance with the requirements of LARGA2-72 Standard for
Decorative Log Sets for Installation in Wood Burning Fire-
places. Installation and the provisions for combustion and
ventilation air must conform to the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, or the CSA B149.1, Natural Gas
and Propane Installation Code.
• This appliance must have a screen in place while the
appliance is in operation and, unless other provisions for
combustion air are provided, the screen shall have an
opening for introduction of combustion air.
• Solid fuels shall not be burned in a fireplace where a
decorative appliance is installed.
• If glass doors are present, the glass doors must be fully
opened while appliance is in operation.
Do NOT use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
WARNING
E. Gas Supply Connection
A 3/8 in. flared fitting has been installed on the gas valve
inlet at the factory. Ensure fittings are of the appropriate size
and type on the gas line connection. If the tubing has to be
cut to length be sure to use the proper cutting and flaring
tool. Also, be careful not to crimp the tubing while bending. If
the tubing becomes crimped, do not use for installation.
Gas resistant pipe compound must be used on all threaded
male connections to ensure a tight seal.
F. Gas Pressure
Proper input pressures are required for optimum appliance
performance. Gas line sizing requirements need to be made
following NFPA51.
Fire Risk
Explosion Risk
Verify inlet pressures.
• High pressure may cause overfire
condition.
• Low pressure may cause explosion.
Install regulator upstream of valve if line
pressure is greater than 1/2 psig.
WARNING
Fire Risk
Explosion Risk
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 1/2 psig.
WARNING
• Gas Supply Pressure: Minimum inlet gas supply pressure
must be 7.0 in. W.C. for natural gas. The gas line
supplying the appliance must be sufficient size to furnish
the appropriate supply pressure to the appliance while
operating in the “High” setting. (Minimum line ID of 1/2 in.
required if the line is longer than 20 ft.
• Pressure tap screws must be closed before turning gas
on to the appliance.
• Gas Line Pressure Test: Perform pressure test according
to state and local code (if pressure exceeds 1/2 in. psi (3.5
kPa)) before appliance is connected. Be sure to release
air pressure from the gas line before connection is made
to the appliance. Excessive pressure will damage the gas
control and may cause a gas leak.
• Gas Leak Test: Make sure the gas connections are tight.
Turn on the gas and coat each joint with a non-corrosive
gas leak check solution. Air bubbles will form indicating
any leaks. DO NOT USE A FLAME OR ANY TYPE OF
IGNITION SOURCE TO CHECK FOR LEAKS. All leaks
must be corrected before proceeding with installation.
• The appliance must only be installed in a solid-fuel burning
fireplace with the flue damper clamped open according
to Tables 1 and 2. The fireplace must be constructed of
non-combustible material.
• The minimum permanent free opening (in square inches)
that must be provided by the fireplace chimney or damper
to vent the flue gases is provided in Tables 1 and 2. If the
free opening is smaller than the specified area, do not use
this appliance.
• The damper must be removed or fixed in a manner in
which will secure it open. Some jurisdictions require the
damper to be removed or permanently welded fully open.
Check with state and local codes.
• Be sure that the chimney is completely unobstructed to
ensure proper ventilation of flue gases including carbon
monoxide (CO). CO (a poisonous gas) is tasteless,
odorless, colorless and undetectable without proper
equipment.
• Refer to Table 3 to determine minimum fireplace opening
requirements before proceeding.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05 5
Asphyxiation Risk
This appliance produces carbon monoxide
(CO).
• The free opening areas (in square inches)
of the chimney damper as shown in the
following tables must be met.
• User must make sure damper is locked
open.
• The installer is responsible to ensure
proper ventilation of flue gases before
appliance is used.
Fire needs to draft properly for safe
operation.
WARNING
G. Negative Pressure
Negative pressure results from the imbalance of air avail-
able for the fireplace to operate properly. Causes for this
imbalance include:
• Exhaust fans (kitchen, bath, etc.).
• Range hoods.
• Combustion air requirements for furnaces, water heaters
and other combustion appliances.
• Clothes dryers.
• Location of return-air vents to furnace or air
conditioning.
• Imbalances of the HVAC air handling system.
• Upper level air leaks: recessed lighting, attic hatch
opening, duct leaks.
Table 1 for Factory Built Fireplaces
Free Opening Area (in square inches) of Chimney Damper for
Venting combustion Products from Decorative Appliances for
Installation in Solid Fuel Burning Fireplaces.
Chimney Ht.
(Feet)*
24 in. Log Set
Natural Gas
30 in. Log Set
Natural Gas
10 not approved not approved
15 38.5 45.4
20 31.2 37.4
25 27.3 31.2
30 24.6 28.3
35 22.1 25.5
40 20.4 23.8
Table 2 for Masonary Built Fireplaces
Free Opening Area (in square inches) of Chimney Damper for
Venting combustion Products from Decorative Appliances for
Installation in Solid Fuel Burning Fireplaces.
Chimney Ht.
(Feet)*
24 in. Log Set
Natural Gas
30 in. Log Set
Natural Gas
6 64 71.4
8 59.7 66.9
10 54.3 60.2
15 48.8 54.1
20 44.4 49.1
30 40.3 44.5
* Height is measured from the hearth to the top of the chimney.
Minimum height is 6 ft.
Table 3 for Minimum Fireplace Dimensions
Log Set
Size
Front
Opening Depth Height
Rear
Width
Natural
BTU
24 32 in. 15 in. 18 in. 21 in. 73,000
30 38 in. 15 in. 18 in. 27 in. 80,000

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05
6
H. Inspect the Appliance and Components
• Remove the contents from the carton labeled “Burner”.
Attached to the burner are tags identifying the manufacturer
name, serial number, model number (including gas log
size), BTU ratings, gas type, etc.
• Review the attached tags before proceeding. Ensure
that all minimum fireplace dimension requirements are
achieved using Table 3. See Figure 1. Ensure the gas
type provided in the fireplace coincide with the gas type
marked on the tag.
Figure 2 Placing Grate

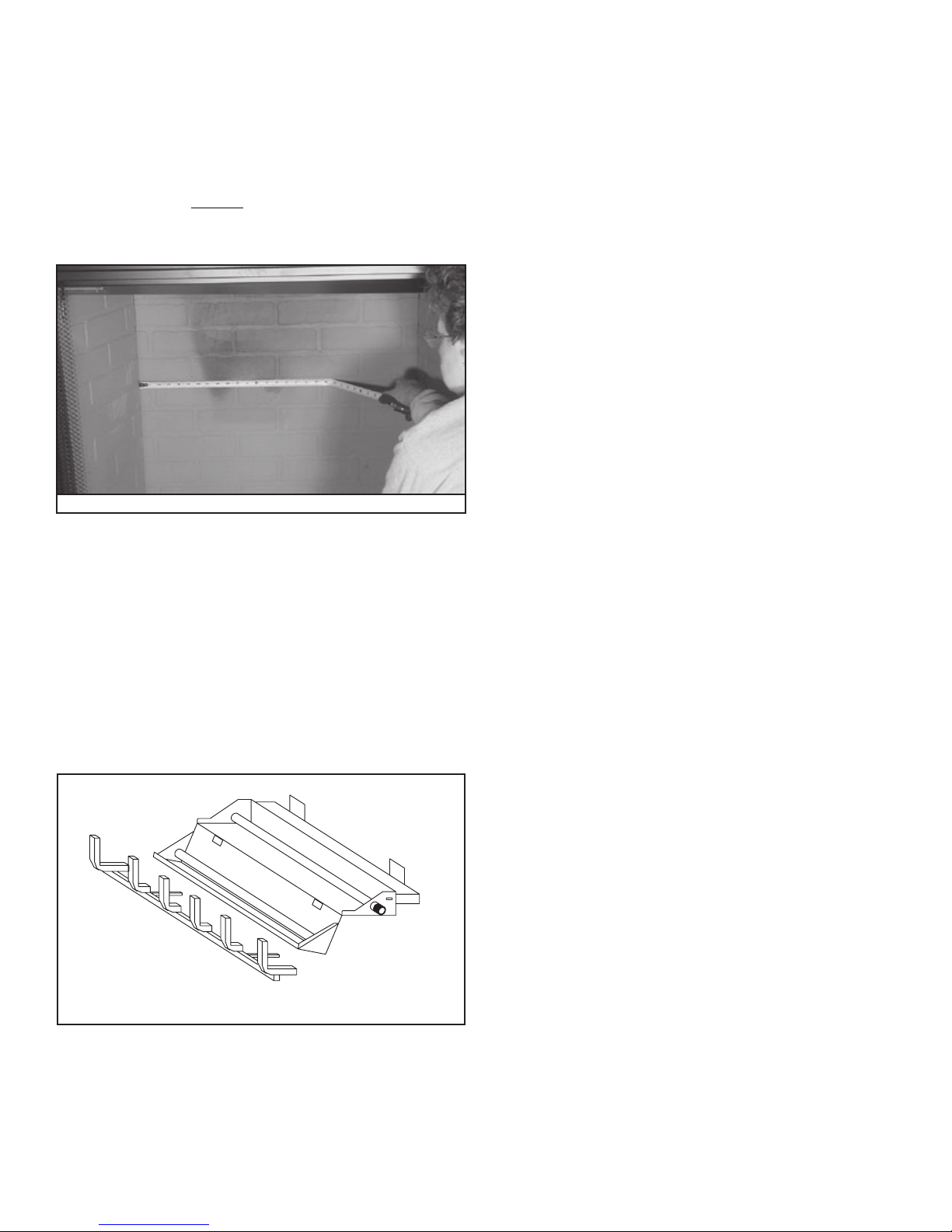

Figure 1 Measure Firebox
• The burner is assembled with the controls installed at the
factory and is designed to connect one end of the 3/8 in.
supply line before placing inside the fireplace. Ensure the
connection is tightened using a 3/4 in. wrench.
• Place the burner towards the rear and center of the
fireplace and connect to the gas line. Follow instructions
in “F. Gas Pressure” to check for gas leaks.
• Install the grate by placing the inserts (attached to the
grate) into the slots provided in the burner pan. Slide the
inserts into the slots (See Figure 2) and push the grate
as far as possible to the locked position.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05 7
I. For Natural Gas Installation
• Pour sand into the burner pans to the point where the
burner pipe is covered. See Figure 3. Level the sand from
right to left to ensure an even flame pattern. At this point
the pan should be half full.
• Pour vermiculite over the sand in the pans until they are
full. See Figure 4.
Note: For best results, do not pack down the rock wool.
The placement of rock wool can have an effect on flame
pattern and may need to be adjusted to achieve a desired
appearance.
Fire Risk
Explosion Risk
Personal Injury Risk
Failure to position the parts in accordance
with the diagrams provided with the log
packages or failure to use only parts
approved with this appliance may result in
property damage or personal injury.
WARNING
Figure 4 Placing Vermiculite
Figure 3 Sand
Figure 5 Placing Rock Wool
• Lightly place dime-size pieces of rock wool evenly on top
of the sand and vermiculite to achieve a glowing ember
effect. See Figure 5.
• Remove the Platinum Bright Embers™ from the package.
For optimum performance peel each piece apart in layers
and lightly place on top of the vermiculite and rock wool
where the flame is blue. This will achieve the desired
realism.
• The gas burns at the point of the least resistance. In
case of an uneven flame pattern it may be necessary to
adjust the materials in the pans (using an object such as
a screwdriver) to achieve the desired effect.
• Place desired amount of lava granules on the floor of the
fireplace. DO NOT ALLOW THE GRANULES TO COME
IN CONTACT WITH THE FLAMES. (Lava granules may
contain moisture which, when heating, may cause it to pop
out during installation and set-up.) Ensure the controls
and switches are unobstructed after the granules are
installed.
• Place logs. See Sections L and N.
• Place accent logs around burner on floor of fireplace.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05
8
Damper
Stop Clamp
Damper
Figure 6 Damper Stop Clamp
J. Damper Stop Installation Instructions
Included in the burner assembly box is a damper stop clamp
which attaches to the damper as shown (Figure 6). Install
the clamp to the damper ensuring that the minimum require-
ments (Tables 1 and 2) are achieved. Use a 7/16 in. wrench
to secure the clamp to the damper. If the damper clamp pro-
vided does not fit your application, other means of securing
the proper opening must be provided by the installer.
Note: The state of Massachusetts requires that the
chimney flue damper, when used with gas logs, be welded
open or completely removed. In the Commonwealth of
Massachusetts this appliance must be installed by a
licensed plumber or gasfitter.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05 9
K. 24 in. Grand Oak Series Logs (GO24)
• Open the log box and remove the paper packaging and logs.
• Inspect each log for breakage that may have occurred during shipping and handling.



SRV736 SRV738
SRV737
SRV722
SRV723
SRV724
SRV728
SRV729
SRV742
SRV743

SRV727

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05
10
Step 1
Step 2
Step 3
SRV737
SRV738
SRV736
SRV722
SRV723
SRV729
SRV724
SRV743
SRV728
SRV742
SRV727 not shown. See page 12, Step 3 for placement of log.
L. 24 in. Grand Oak Series (GO24) Log Placement Instructions
• Place logs EXACTLY as the following photos depict.
Fire Risk
Explosion Risk
Personal Injury Risk
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this
appliance may result in property damage or personal injury.
WARNING

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05 11
M. 30 in. Grand Oak Series Logs (GO30)
• Open the log box and remove the paper packaging and logs.
• Inspect each log for breakage that may have occurred during shipping and handling.


SRV726
SRV720
SRV721B
SRV722
SRV723
SRV724
SRV728
SRV740
SRV742
SRV743

SRV721A

SRV727


Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05
12
N. 30 in. Grand Oak Series (GO30) Log Placement Instructions
• Place logs EXACTLY as the following photos depict.
Step 1
Step 2
Step 3
SRV721B
SRV720
SRV721A
SRV722
SRV723
SRV740
SRV743
SRV728
SRV742
SRV722
SRV724
SRV727
SRV726

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05 13
O. Inspect the Venting System
The fireplace venting system is designed and constructed to
develop a positive flow adequate to remove flue gases to the
outside atmosphere. See fireplace installation instructions.
Possible cures if spilling occurs:
• The damper needs to be opened further.
• The fireplace opening needs to be reduced by adding a
drop panel across the top under the lintel.
• The air supply from outdoors needs to be increased. Open
the outside air kit if the appliance is so equipped, or crack
open a door or window.
• If necessary, seek expert advice. Do not operate this
appliance.
Cleaning
• Periodic examination and cleaning of the venting system
of the fireplace should be done before initial use and at
least annually by a qualified agency.
A spillage test must be made before the installed
appliance is left with the consumer.
• Close all doors and windows in the home.
• Light the log set (see Lighting Instructions).
• After three minutes, test with a smoke match, smoke
candle, stick incense or cigarette 1 in. below the top of
the opening (lintel) moving across the full width. If spillage
(smoke down into the room) occurs, it will most likely be
near the top, outside corners.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05
14
P. Lighting Instructions- Match Light
Asphyxiation Risk
Gas-burning appliances produce smoke and
carbon monoxide gas during operation.
• The damper must be open
• The chimney must draw properly
These fumes can be harmful if not vented
properly.
WARNING
1. STOP! Read the safety information previously listed above.
2. Turn gas control manual valve to the full “OFF” position.
3. Wait 5 minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B”
in the safety information above on this label. If you don’t smell gas, go to the next step.
4. Place a lit match on the surface of the burning embers. Do not hold match in hand.
5. Turn gas control manual valve to the full “ON” position.
6. If appliance will not operate, follow the instructions “TO TURN OFF GAS TO APPLIANCE” and call your service
technician or gas supplier.
TO TURN OFF GAS TO APPLIANCE
LIGHTING INSTRUCTIONS
A. This appliance has a manually lighted burner and must be lit by hand. When lighting the burner, follow these
instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system and any gas control that has been under water.
D. Use only your hand to push in or turn the gas control handle. Never use tools. If the handle will not push in or turn
by hand, do not try to repair it. Call a qualified service technician. Force or attempted repair may result in fire or
explosion.
Turn manual gas control handle to “OFF” position. Do not force.
FOR YOUR SAFETY READ BEFORE LIGHTING
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING! IF THESE INSTRUCTIONS ARE NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
(Place lit match in ember bed before turning on valve)
(Located in wall or floor
near fireplace)
Valve Key
Valve

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05 15
Q. Cleaning and Maintenance Instructions
Always remember:
• Do not place any combustible material near the
appliance.
• Do not place any paper, trash or other material on the log
set or in the heater.
• Do not touch any part of the appliance when it is in
operation.
• Do not operate this appliance without the fireplace screen
closed.
Before cleaning the appliance, be sure it is turned
completely off. The appliance must be completely
cooled.
CAUTION
Do not allow soot to build up on the logs
Your logs require little care. Keep the burner assembly, logs
and burner area surrounding the logs clean by brushing with
a dry paint brush at least twice a year.
• Always turn off the gas before cleaning. For relighting,
refer to Section P. Lighting Instructions.
• Always keep the appliance clean and free from combustible
materials, gasoline and other flammable vapors and
liquids.
• Never obstruct the flow of combustion and ventilation air.
Keep the front of the appliance clear of all obstacles and
materials.
• Leave clearance of at least 36 in. from the front of the
fireplace.
• The air shutter should not be blocked.
• Logs can get very hot. Handle only when they are
cool.
CAUTION
After burning, the logs become fragile. Take care in
handling.
CAUTION
Your appliance is designed to be virtually maintenance free,
although periodic visual inspection and cleaning is required.
Follow the instructions below for the correct procedures. An
annual examination and cleaning the venting system by a
qualified person is also recommended.
If at any time the flames on your log set look abnormal or an
odor is noticed coming from the appliance, contact a quali-
fied service technician or the gas company.
Inspect the main burner.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05
16
R. Fequently Asked Questions
Can I close the glass doors on my fireplace when using my gas logs?
No. The gas log sets are designed for use in fireplaces with all fireplace doors fully opened. Operating your log set with the doors
closed will cause overheating, premature failure of valve systems, and will void the warranty of your log set.
What sort of maintenance do gas logs require?
Vented gas logs do not require regular maintenance. However, it is a good idea to have valves, pilots and gas connections on your
set periodically inspected by a hearth professional. Although it is not required maintenance, annually refurbishing the ember material
and periodic cleaning of the logs will help maintain your set’s beauty and realism.
Does the ember material burn-up, and do I need to replace it periodically?
The ember material is a fireproof, organic mineral material called rock wool, and does not burn or require periodic replacement;
however, annual refurbishment of the embers will help maintain the beauty and realism of your log set.
Can I burn real wood along with my gas logs?
No. The intense heat of a wood fire will damage your logs, burners, grates and valves, and will void your warranty.
Will gas logs help my chimney that drafts poorly?
No. Improper or poor draft will not be helped by gas logs. Please have your chimney inspected by a hearth professional or chimney
sweep in order to determine how to correct the problem.
Can I close my fireplace damper to get more heat from my vented gas log set?
No. Vented gas logs are designed to be operated with the damper in the fully opened position. This gas log set produces carbon
monoxide gas. The damper must be removed or clamped fully open using the “C” clamp provided with the set.
My gas logs make a whistling noise when I burn them. What causes this?
This behavior is normally caused by using a corrugated flex connector to hook up the gas log set. We recommend the installer use
the supplied aluminum connector rather than the corrugated flexible type.
Can I move or change the position of the logs on my gas log set?
RADCO certified log sets should not be altered - log placement must be exactly as indicated in the set’s installation instructions. Log
placement on non-certified, vented log sets may be altered, but minimal handling is recommended, to prevent log breakage.
Can I install my gas log set myself?
No. We recommend installation be performed by an NFI certified hearth professional, HVAC professional, gas fitter, or plumber
experienced in gas log installation. Most localities require installation of any gas appliance to be performed by a professional.
Please check with your local inspection agency/department.
What are the gas logs made of?
The gas logs are made of a mixture of pre-fired, expanded clay and a special high-temperature cement, with a wire mesh
reinforcement. This combination creates a strong, ceramic material capable of withstanding extreme temperatures, yet also allows
molding of the intricate detail found in these gas log sets.
I have a vented log set, and the logs have black soot on them. Is this normal?
Soot build-up on vented gas logs is a normal part of the combustion process. Natural gas log sets generally produce less soot
than liquid propane log sets. We recommend any soot build up be removed periodically using a product designed for gas log soot
removal.
Can I add a remote control to my log set after it has been installed?
No.
Is the gas log set approved by a testing agency?
Yes. The GO series has been design certified by RADCO under the ANSI Z21.60-2004 Decorative Appliances for Installation in
Solid Fuel Burning Fireplaces. The installation and the provisions for combustion and ventilation air must conform to the National
Fuel Gas Code, ANSI Z223.1/NFPA 54. Check with your local inspections department for further information.
What is the warranty coverage of the GO log set?
The logs carry a lifetime warranty to the original owner in the original installation. All metal parts (burners, brackets, grates, etc.)
carry a 5-year warranty and all valves, pilot assemblies, and other mechanical parts are warranted for 1 year. The complete
warranty is printed in the back of the owner’s manual.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05 17
S. Replacement Parts
TM
TM
Grand Oak Gas Logs
Service Parts

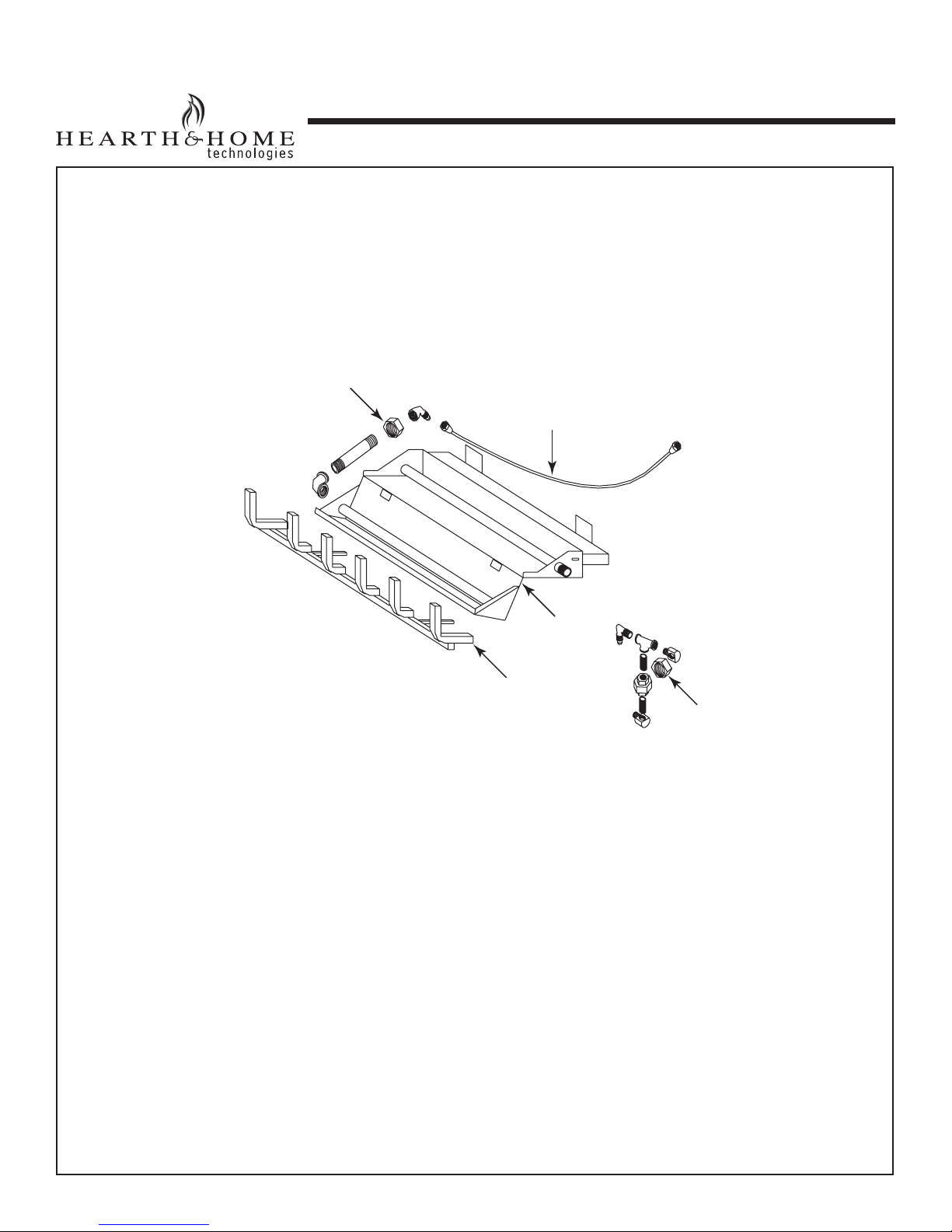

Exploded Parts Diagram Beginning Manufacturing Date: N/A
MTCH GO Gas Logs Ending Manufacturing Date: Active
3
4
2
1
5

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05
18
TM
TM
Grand Oak Gas Logs
Service Parts
Service Parts List Beginning Manufacturing Date: N/A
MTCH GO Gas Logs Ending Manufacturing Date: Active
# Description of Part 24 in. 30 in. Qty.
1 Grate Assembly GR-300-24 GR-300-30 1
2 Burner Pan Assembly BPA-300-24 BPA-300-30 1
3 Connector FT-1-24 FT-1-30 1
4 Bottom Burner Orifice NG BPO-2-40 BPO-2-38 1
5 Top Burner Orifice NG BPO-2-26 BPO-2-26 1
Sand (NG only) 4004-108 4004-108 2
Vermiculite 4004-109 4004-109 2
Lava Rock 4004-110 4004-110 2
Rock Wool 4004-111 4004-111 2
Damper Stop Assy 14354 14354 1
Platinum Bright Embers PBE-5 PBE-5 1

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05 19
TM
TM
DECORATIVE GAS LOG LIMITED WARRANTY
Hearth & Home Technologies Inc. (HHT) extends the following warranty for decorative gas log sets as described herein, while it is in its loca-
tion or original installation. Dealers and employees of HHT have no authority to make any warranty or authorize any remedies in addition to or
inconsistent with the terms of this Program. This warranty gives you specific legal rights. You may also have other rights which vary from state
to state.
LIMITED WARRANTY. This decorative gas log set is comprised of a gas burner assembly with safety pilot valve and ceramic fiber logs that are
manufactured by HHT. This Limited Warranty does not cover any part of the woodburning fireplace system in which this decorative gas appli-
ance must be installed. This decorative gas log set is warranted to be free of defects in material and workmanship for a period of five (5) years
from the date of installation. This Limited Warranty extends only to decorative gas log sets installed in the United States or Canada.
EXCLUSIONS AND QUALIFICATIONS. This Limited Warranty is subject to the following exclusions and qualifications: (1) This Limited War-
ranty does not apply to, and HHT assumes no responsibility for, any damages that result due to the installation or operation of this decorative
gas log set not in accordance with both the installation instructions and operating instructions furnished. (2) The decorative gas log set must be
subjected to normal use as explained in the operating instructions and the listing agency identification label attached to the burner pan assem-
bly. This decorative gas log set is only intended to burn the fuel specified on the listing agency identification label. Use of any other fuel other
than specified on the listing agency identification label can create a life threatening situation and will void this limited warranty. (3) This Limited
Warranty applies only if the decorative gas log system has been installed in a vented fireplace that is suitable for burning wood. Adequate ven-
tilation must be provided to allow proper drafting of the fireplace chimney system. HHT assumes no responsibility for improper performance of
the decorative gas log set caused by inadequate draft due to environmental conditions (e.g. wind currents, downdrafts), tight-sealing construc-
tion of the structure, or mechanical devices (e.g. air handling devices that include forced air furnaces and air conditioning units, exhaust fans
and ventilating devices), any and all of which may cause a negative pressure within the structure where the decorative gas log set is installed.
(4) This Limited Warranty applies only to the components of the Appliance manufactured by HHT. HHT expressly excludes from this Limited
Warranty any liability hereunder for defects or damage caused by the installation or use of any parts, devices or components that are not manu-
factured by HHT. (5) Labor costs to be paid by HHT pursuant to this Limited Warranty must be approved in advance of the performance of the
work by HHT and must not exceed the retail price of the replacement part. (6) This Limited Warranty will be voided if the decorative gas log
set is at any time removed or has been removed from the location in which it was originally installed. (7) Since building code requirements vary
greatly throughout the United States and Canada, users of this decorative gas log set should determine in advance whether there are any build-
ing code restrictions on the installation and use of this product. HHT makes no representation or warranty regarding building code compliance
and shall not be responsible for compliance therewith.
THERE ARE NO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE LIMITATION OF LIABILITY.
IT IS EXPRESSLY AGREED AND UNDERSTOOD THAT HHT’S OBLIGATION AND PURCHASERS EXCLUSIVE REMEDY UNDER THIS
LIMITED WARRANTY, UNDER ANY OTHER WARRANTY, EXPRESSED OR IMPLIED (INCLUDING MERCHANTABILITY AND FITNESS FOR
PARTICULAR PURPOSE), OR OTHERWISE, SHALL BE LIMITED TO THE REPLACEMENT OR REPAIR Of ONLY HHT BRAND COMPO-
NENTS AND OPTIONAL COMPONENTS AS SPECIFIED ABOVE. THE DURATION OF ANY IMPLIED WARRANTY INCLUDING MERCHANT-
ABILITY AND FITNESS FOR PARTICULAR PURPOSE APPLICABLE TO THIS GAS APPLIANCE IS LIMITED TO THE DURATION OF THE
FOREGOING WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS SO THE
ABOVE WARRANTY MAY NOT APPLY TO YOU. IN NO EVENT SHALL HHT BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES CAUSED BY DEFECTS IN THE DECORATIVE GAS LOG SET, WHETHER SUCH DAMAGE OCCURS OR IS DISCOVERED
BEFORE OR AFTER REPLACEMENT OR REPAIR, AND WHETHER SUCH DAMAGE IS CAUSED BY HHT NEGLIGENCE. SOME STATES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
HOW TO OBTAIN SERVICE. To obtain service under this Program, you must:
1. Send written notice of the claimed condition to the Technical Service Department, Hearth & Home Technologies Inc., 1915
West Saunders Street, Mt. Pleasant, Iowa 52641.
2. Provide proof of purchase to HHT.
3. Provide HHT reasonable opportunity to investigate the claim, including reasonable opportunity to inspect the Fireplace prior
to any repaid or replacement work and before the Fireplace has been removed from the place of original installation.
4. Obtain HHT’s consent to any warranty work before the work is done.
ADDITIONAL INFORMATION. If you would like information on current Hearth & Home Technologies products or want to locate a dealer in your
area, simply call 800-843-2848 or 1-888-427-3973.
2003 Hearth & Home Technologies Inc.
T. Warranty

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev C • 12/05
20
U Contact Information
Please contact your Hearth & Home Technologies dealer with any questions or concerns.
For the number of your nearest Hearth & Home Technologies dealer, please call 1-800-927-6841 or 1-888-427-3973.
- NOTES -
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating
and maintenance
instructions included.
• Leave this manual with
party responsible for
use and operation.
• Read, understand
and follow these
instructions for safe
installation and
operation.
DO NOT
DISCARD
TM
TM
This product may be covered by one or more of the following patents: (United States) 4593510, 4686807, 4766876, 4793322,
4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495,
5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112,
5996575, 6006743, 6019099, 6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226,
6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940, 6748942,
6769426, 6774802, 6796302, 6840261, 6848441, 6863064, 6866205, 6869278, 6875012, 6880275, 6908039, 6919884,
D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403, 1418504 or
other U.S. and foreign patents pending.

