Hearth and Home Technologies Heatilator Dynasty FD36 User manual

07/03 33362 Rev C 1
DYNASTY GAS LOG SET
MANUAL LIGHT
FD36
FD42
FOR RESIDENTIAL USE
WARNING!
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this
manual. For assistance or additional information, consult a qualified installer, service agency or the gas supplier.
WARNING: If the information in this manual
is not followed exactly, a fire or explosion may
result causing property damage, personal in-
jury or loss of life
 Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
 What to do if you smell gas
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use
any phone in your building.
 Immediately call your gas supplier from a
neighbors phone. ollow the gas suppliers
instructions.
 If you cannot reach your gas supplier, call the
fire department.
 Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
Installation & Operating Instructions

2 33362 Rev C 03/03
DYNASTY GAS LOG SET INSTALLATION INSTRUCTIONS
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Safety Precautions
1. Please read these installation instructions completely before beginning installation procedures. ailure to follow
them could cause a fireplace malfunction resulting in serious injury and/or property damage.
2. Always check your local building codes prior to installation. The installation must comply with all local, regional,
state, and national codes and regulations.
3. EVER leave children unattended when there is a fire burning in the fireplace.
4. This gas log set is built to burn natural gas only.
5. The flue damper must be open at all times when the fireplace is in use.
6. While servicing this log set, always shut off any electricity or gas to the appliance. This will prevent possible
electrical shock or burns. Also, make sure the appliance is completely cooled before servicing.
7. Solid fuels cannot be burned in a fireplace where the decorative gas appliance is installed.
TABLE OF CONTENTS
A. Listings and Code Approvals ....................................................................................................................................... 3
B. Description of the Dynasty Gas Log Set/Manual Light ................................................................................................ 3
C. Important Information ................................................................................................................................................... 4
D. Step-by-Step Installation ............................................................................................................................................... 5
E. Operating Instructions for the Dynasty Gas Log Set ................................................................................................... 8
. Glass Doors .................................................................................................................................................................. 9
H. Inspecting the Venting System ..................................................................................................................................... 9
G. Cleaning........................................................................................................................................................................ 9
I. Important Safeguards................................................................................................................................................... 9
J. Servicing...................................................................................................................................................................... 10
K. Owner Registration/Warranty ..................................................................................................................................... 10
L. Replacement Parts .................................................................................................................................................... 10
M. Troubleshooting - Manual Series ...............................................................................................................................11
Warranty ...................................................................................................................................................................... 12

03/03 33362 Rev C 3
DYNASTY GAS LOG SET INSTALLATION INSTRUCTIONS
A. LISTINGS AND CODE APPROVALS
The Dynasty Series Gas Log Set/Manual Light has been tested and listed in the U.S. and Canada in accordance with
A SI Z21.84-1999 (Manually Lighted, Natural Gas Decorative Gas Appliance for Installation in Solid uel-Burning
Appliances). It has been listed by Underwriters Laboratories Inc. for installation and operation in the United States and
Canada as described in these Installation and Operating Instructions. All components are UL, AGA, CGA or CSA safety
certified.
Check with your local building code agency prior to installing this appliance to ensure compliance with local codes,
including the need for permits and follow-up inspections. In the absence of local codes, comply with the ational Fuel
Gas Code, A SI Z223.1-Latest Edition in the U.S.; in Canada, the CA /CGA B149 Installation Codes. If any assistance
is required during installation, please contact your local dealer.
HEATILATOR® is a registered trademark of Hearth & Home Technologies Inc., Division of HON Industries.
WARNING!
This Heatilator appliance and its components are designed to be installed and operated as a system. Any
alteration to or substitution for items in this system, unless allowed by these installation instructions, will void
the Underwriters Laboratories listing and may void the product warranty. It may also create a hazardous instal-
lation. Read through these instructions thoroughly before starting your installation and follow them carefully
throughout your project.
WARNING!
Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
B. DESCRIPTION OF THE DYNASTY GAS LOG SET/
MANUAL LIGHT
The HEATILATOR® Dynasty Gas Log Set/Manual Light
consists of the following:
1. Burner/Hearth Assembly
2. Grate Assembly
3. our iber Logs
24DFrebmuNedoCredrOtesgoL
DF thgiLlaunaM/teSgoLseireSytsanyD
63
24
teSgoL"63
teSgoL"24
DYNASTY SERIES NOMENCLATURE
Tools and building supplies normally
required for installation:
Pliers
Phillips screwdriver
Tape measure
Crescent wrenches
Gas Shutoff Valve
Note: The illustrations and diagrams used throughout
these installation instructions are not drawn to scale.

4 33362 Rev C 03/03
DYNASTY GAS LOG SET INSTALLATION INSTRUCTIONS
.oNledoMtupnI.rH/UTBeifirO
63DF000,05441.
24DF000,06751.
ERUSSERPSAG
)..N(erusserpylppussagtelnI.c.w.ni).xam(0.7-).nim(5.4
)..N(erusserpdlofinamlamitpO.c.w.ni5.3
C. IMPORTANT INFORMATION
Installer: Please leave these instructions with the owner.
Owner: Please retain these instructions for future reference.
Important: Read these instructions carefully before making installation
 This appliance must be installed only in a solid-fuel burning (woodburning) fireplace with a working flue and
constructed of noncombustible materials.
 The fireplace area must be kept clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
 A fireplace screen must be in place when the log set is burning and, unless other provisions for combustion air
are provided, the screen shall have an opening(s) for introduction of combustion air.
 Installation and the provisions for combustion and ventilation air must conform with the latest edition of the
ational Fuel Gas Code A SI Z223.1 or in Canada, the current CA /CGA-B149.1 and B149.2.
 The appliance and its individual manual shutoff valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 PSIG.
 The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply pipe system at test pressure equal to or less than 1/2 PSIG.
 The minimum size fireplace in which the log set can be installed and the minimum permanent free opening that
must be provided by either the fireplace chimney or chimney damper to vent the flue gases must be in accordance
with the tables in igure 1.
 Any chimney damper must be fixed so that the minimum permanent vent opening will be maintained at all
times. ( ixed by screw, bolt at damper edge or hole in damper.)
 Solid fuel shall not be burned in a fireplace where a decorative gas appliance is installed.
The Dynasty Gas Log Set/Manual Light is not equipped with an automatic valve system. The log sets are equipped with
a gas pressure regulator. The Dynasty Gas Log Set/Manual Light is for use only with, and available only for, natural gas.
These HEATILATOR gas log sets and components have been tested and will operate safely when installed in accordance
with this installation manual. This decorative appliance is a highly engineered system. Unless you use HEATILATOR
components which have been designed for the system, you may create a fire hazard.
High Altitude Installation
or U.S. installation, appliances are tested and approved for elevations from 0-2000 feet. When installing this Dynasty
manual series gas lot set at an elevation above 2000 feet, National uel Gas Codes require a decrease of the input
rating by changing the existing burner orifice to a smaller size. Input should be reduced 4% for each 1000 feet above sea
level. Check with the local gas utility for proper orifice size identification. The current orifice is available from your
Heatilator distributor.
or Canada, appliances are certified for elevations from 0-4500 feet. When installing this Dynasty manual gas log set at
an elevation between 0-4500 feet in Canada, the input rating does not need to be reduced. When installing this log set
at an elevation above 4500 feet in Canada, check with local authorities.
WARNING!
This valve has been preset at the fac-
tory. Altering settings may result in fire
hazard or bodily injury.

03/03 33362 Rev C 5
DYNASTY GAS LOG SET INSTALLATION INSTRUCTIONS
Minimum Dimensions
snoisnemiDxoberiFmuminiM
eziSteShtpeDthgieHgninepOtnorF
"63"31"61"03
"24"31"61"43
:etoN "8nahtsseleulfyenmihcanoesutonoD
.hgih'01nahtsseldnaretemaid
Figure 1
gninepOeerFtnenamrePmuminiM
).tf(.tHyenmihC"63"24
'01.ni.qs04.ni.qs04
If the damper stop doesnt fit your application, use a
permanent means that will keep the damper open at
least to the minimum vent opening outlined in
igure1.
3 Positioning the Log Set in the Fireplace
The burner assembly should be located as far back
as possible and centered left to right in the fireplace.
4 Gas Line Connection
a. Remove the four screws that secure the burner
assembly to the hearth pan. See igure 3.
b. Set the burner assembly aside.
1 Unpacking
Carefully remove all parts from the shipping container.
Your set includes four fiber logs, a burner assembly,
the grate assembly, mineral wool, lava rock, damper
stop and 10 flex connector.
2 Installing Damper Stop
To install the damper stop: Open the damper to the
fully open position and secure it open with the stop as
shown in igure 2.
Figure 3 - Burner Assembly
c. The gas line connection for the Dynasty Series
Gas Log Set may be plumbed from either the
right or left side of the appliance.
d. The 1/2 iron pipe incoming gas line should be
piped into the regulator compartment from either
the right or left side and connected to the brass
flare connector and the 10 stainless steel flex
line (supplied). See igure 4.
Figure 2 - Damper Operation
D. STEP-BY-STEP INSTALLATION
Figure 4 - Gas Line Connection

6 33362 Rev C 03/03
DYNASTY GAS LOG SET INSTALLATION INSTRUCTIONS
e. Bleed the gas line to extract any air that may have
been trapped inside the pipe. All connections
must be tightened and checked for leaks with a
soap and water solution or a leak detector. DO
OT USE A OPE FLAME. Turn off the gas after
the leak test.
f. Reassemble the burner assembly with the four
screws removed earlier.
Note: An individual manual shutoff valve (not
supplied) is required when installing this appliance.
The manual shutoff valve must be located in an
easily accessible area, no more than 6 feet from
the appliance.
Note: Be sure when reassembling the burner
assembly that the burner neck is properly
positioned on the orifice.

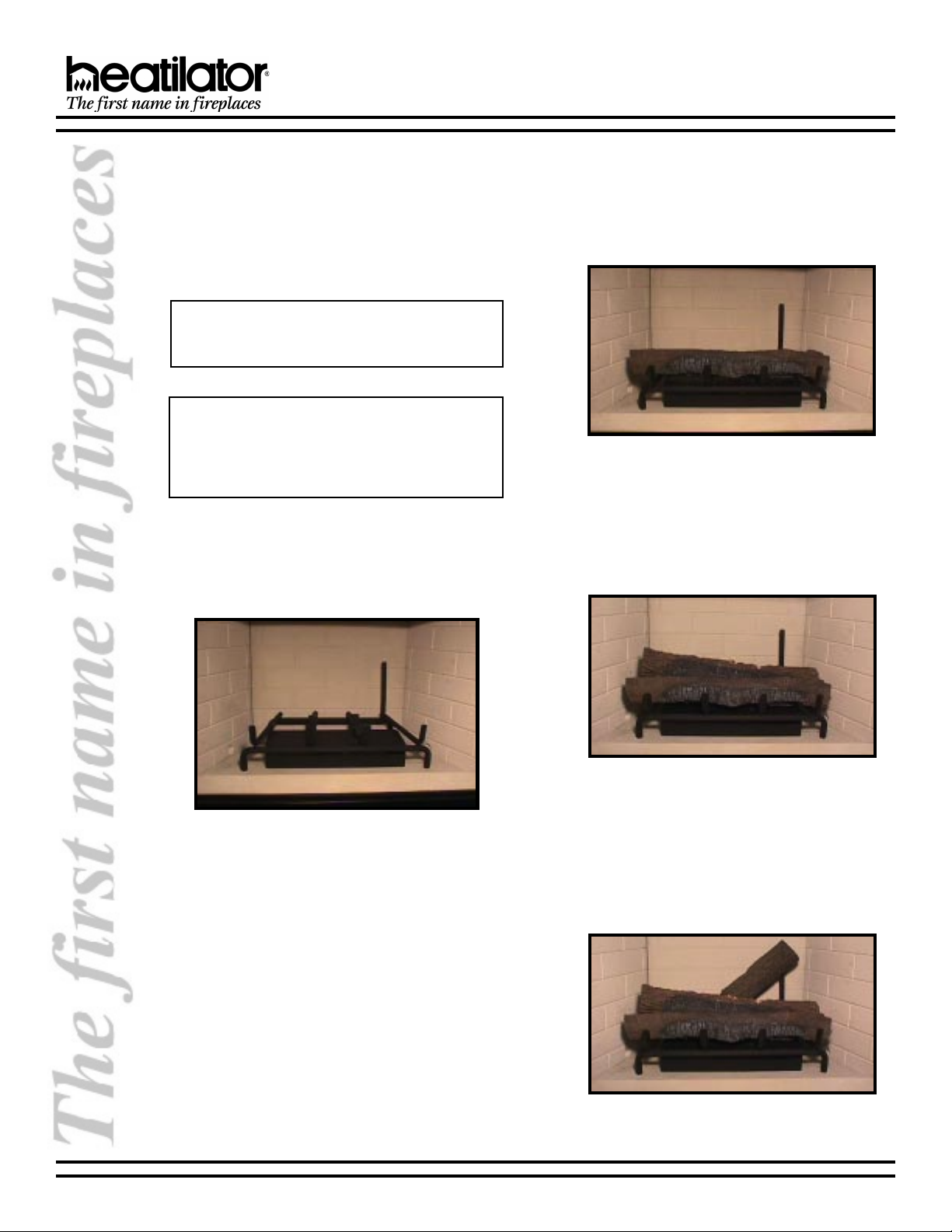

Figure 5 - Placing the Grate Assembly
5 Grate Placement
The grate assembly should be positioned where the
rear two legs of the grate fit into the two large holes
located on the rear of the pan. See igure5.
6 Log Placement
a. Front Log
The front log is supplied with locating slots in the
base of the log. Line up the locating slots with the
front locating tabs on the grate and gently push
the log onto the tabs. See igure 6.
b. Middle Log
The middle log is also supplied with locating slots
in the base of the log. Align the slots with the
middle locating tabs on the grate and push the
log into place. See igure7.
c. Rear Log
The rear log is supplied with locating holes in the
base of the log. Hold the rear log upright with the
notched end of the log in your left hand and place
the rear log over the two locating pins on the rear
of the grate. Align the holes with the pins. See
igure 8.
Figure 6 - Placing the Front Log
Figure 7 - Middle Log
Figure 8 - Rear Log

03/03 33362 Rev C 7
DYNASTY GAS LOG SET INSTALLATION INSTRUCTIONS
7 Mineral Wool, Fire Glow, Lava Rock and
Vermiculite
a. Mineral Wool
Place approximately 1/2 diameter pieces of
mineral wool on the top of the burner covering
from underneath the front log to the front of the
burner. Cover the entire length of the burner pan
but do not cover the burner ports. See igure10.
Figure 9 - Top Log for FD36 & FD42 Series
b. Fire Glow
ire Glow ( ire 98) is a flame colorant material
that also adds to the realism of the gas fireplace
flame. After placing the mineral wool, sprinkle
some of the fire glow on the top of the burner
assembly and the mineral wool.
Figure 10 - Placing Mineral Wool
Figure 11 - Placing Lava Rock
c. Lava Rock
Lava rock is placed on the hearth refractory of the
fireplace, all around the log set. See igure11.
d. Vermiculite
When placing the vermiculite, sprinkle it evenly
over the area covered by the lava rock.
It is not necessary to use the entire bag of the
mineral wool, the ire Glow, the lava rock, or the
vermiculite. Save the remaining portions for later
use.
8 Electrical Requirements
Appliance Requirements: This appliance does not
require 110V AC supply for operation.
d. Top Log - 36
The 36 top log has two locating holes in the
bottom of the log. Align the two holes with the two
locating pins on the top of the middle log and set
the log in place. See igure 9.
e. Top Log - 42
The 42 top log is supplied with a locating hole
on the bottom of the log, close to its center. The
right side of the top log contains a locating notch.
Align the hole in the top log with the pin in the
middle log; align the notch to the locating tab on
the right side of the front log. See igure9.

8 33362 Rev C 03/03
DYNASTY GAS LOG SET INSTALLATION INSTRUCTIONS
E. OPERATING INSTRUCTIONS FOR THE DYNASTY GAS
LOG SET
Lighting Instructions, Dy-
nasty

03/03 33362 Rev C 9
DYNASTY GAS LOG SET INSTALLATION INSTRUCTIONS
F. GLASS DOORS
If your fireplace is equipped with a glass door, the glass doors should be in the full open position when the appliance is
operating. Operating the fireplace with the glass doors closed will block the radiant heat output of the fireplace and may
cause incomplete combustion of the natural gas fuel.
IMPORTANT!
Always ensure that the wire fireplace screen is closed when the fireplace is operating.
Your gas logs require little care. Keep the burner assembly, logs and burner area surrounding the logs clean by
vacuuming or brushing with a dry paint brush at least twice a year.
 Always turn off the gas to the appliance before
cleaning. or relighting, refer to lighting
instructions located on page 8 of these
instructions.
 Always keep the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
CAUTION:
The logs can get very hot. Handle only when they are
cool.
CAUTION:
After burning, the log becomes fragile, so take care
in handling.
The fireplace venting system is designed and constructed to develop a positive flow adequate to remove flue gases to
the outside atmosphere. See vented fireplace installation instructions.
G. CLEANING
H. INSPECTING THE VENTING SYSTEM
1 Other Fuels
a. Although your gas log set is very realistic in
appearance, it is not a real woodburning fire and
must not be used for burning any fuel other than
natural gas.
b. To avoid irreparable damage to the appliance and/
or personal injury, wood, matches, paper, garbage
or any other material must not be placed or thrown
on top of the logs.
I. IMPORTANT
SAFEGUARDS
Figure 12 - Checking for Spillage
 Never obstruct the flow of combustion and
ventilation air. Keep the front of the appliance clear
of all obstacles and materials.
 Leave clearance of at least 36 from the front of
the fireplace.
 The air shutter should not be blocked.
1 A spillage test must be made before the
installed appliance is left with the consumer
a. Close all doors and windows in the home.
b. Light the log set.
c. After three minutes, test with a smoke match,
smoke candle, stick incense or cigarette 1 below
the top of the opening (lintel) moving across the
full width. See igure 12. If spillage (smoke drawn
into the room) occurs, it will most likely be near
the top, outside corners.
2 Possible Cures
a. The damper needs to be opened further.
b. The fireplace opening needs to be reduced by
adding a drop panel across the top under the
lintel.
c. The air supply from outdoors needs to be
increased. Open the outside air kit if the fireplace
is so equipped, or crack open a door or window.
d. If necessary, seek expert advice. Do not operate
this appliance.
3 Cleaning
Periodic examination and cleaning of the venting
system of the fireplace should be done before initial
use and at least annually by a qualified agency.

10 33362 Rev C 03/03
DYNASTY GAS LOG SET INSTALLATION INSTRUCTIONS
L. REPLACEMENT PARTS
Parts lists with exploded views follow. Always include
correct name, part number and model number of the
appliance when ordering replacement parts. Contact your
local dealer to order parts.
Manual Light Series Gas Logs
2 Appliance Safety
a. To avoid personal injury, do not touch hot surfaces
when the appliance is operating.
b. Always ensure that the fireplace screen is closed
when the appliance is operating.
c. Close supervision is necessary when the
appliance is being used near children.
J. SERVICING
 Repair and replacement work should be done by
a qualified service technician.
 Always shut off the gas supply and make sure
the appliance is cool before beginning any
service operation.
 Always check for gas leaks after servicing.
 Always check for proper venting.
K. OWNER REGISTRATION/
WARRANTY
Please complete and return your owner registration card
to ensure proper warranty coverage. If you wish to
communicate with the factory, write to Heatilator Technical
Services, Hearth & Home Technologies Inc., 1915 W.
Saunders Street, Mt. Pleasant, Iowa 52641.

03/03 33362 Rev C 11
DYNASTY GAS LOG SET INSTALLATION INSTRUCTIONS
metInoitpirseD"63"24
1naPmottoB9204392043
2daehkluB7546275462
3)larutan(ecifirO0478114781
4ebuTsa 3033330333
5ebuT-ssarB,rotcennoCelaM5243152431
6rotalugeR4099240992
7xelF-ssarBrotcennoCelaM9607196071
8ylbmessArenruB7133381333
9ylbmessAetar 8233392333
*01goLtnorF6433305333
*11goLelddiM7433315333
*21goLkcaB6264325333
metInoitpirseD"63"24
*31goLpoT9433335333
*41ylbmessAtroppuSgoLraeR9333304333
*51rotcennoCssarB5234152341
*61ylbmessApotSrepmaD4534145341
*71eniLsaxelF"016965169651
*8189eriF,etilucimreV,kcoR,looW5633356333
*91looWlareniMB33341B33341
*02etilucimreV6478264782
*12kcoRavaL1198211982
*22woleriF89ERIF89ERIF
*32hsilgnE-lebaLlanoitcurtsnI1233312333
*42hcnerF-lebaLlanoitcurtsnI2233322333
* These parts are not shown.
With proper installation and maintenance, your new decorative gas appliance should provide years of trouble-free
service. If you do experience a problem, refer to the troubleshooting guide below. This guide will assist you or a qualified
service technician in the diagnosis of problems and the corrective action to be taken.
M. TROUBLESHOOTING
smotpmyS sesuaCelbissoPnoitAeviterroC
.1niamthgiltonlliwhctaM
niamotsagon;renrub
.renrub
.AevlavffotuhssagniaM
.desolc
.1ehtnodetacolevlavffotuhsehttahterusekaM
.neposienilsaggnimocni
.B.enilsagehtniriA.1setunimeviftiaw;enilsagehtmorfriadeelB
.renrubniamthgilerottpmettadna
.CehtotylppussagoN
.ecnailppa
.1ecnailppaehterusneotgnibmulpehtkcehC
.enilylppussagehtotpudekoohneebsah
DgnitneverpsiegakcolbA
.wolfsag
.1allaC.noitcurtsborofecifirorenrubehttcepsnI
.naicinhcetecivresdeifilauq
REPLACEMENT PARTS CONTINUED)

12 33362 Rev C 03/03
HEATILATOR DECORATIVE GAS LOG LIMITED WARRANTY
Hearth & Home Technologies Inc. (HHT) extends the following warranty for eatilatorâ decorative gas log sets as described herein,
while it is in its location or original installation. Dealers and employees of HHT have no authority to make any warranty or authorize any
remedies in addition to or inconsistent with the terms of this Program. This warranty gives you specific legal rights. You may also have other
rights which vary from state to state.
LIMITED WARRANTY. This eatilator decorative gas log set is comprised of a gas burner assembly with safety pilot valve and ceramic
fiber logs that are manufactured by HHT. This Limited Warranty does not cover any part of the woodburning fireplace system in which this
decorative gas appliance must be installed. This eatilator decorative gas log set is warranted to be free of defects in material and work-
manship for a period of five (5) years from the date of installation. This Limited Warranty extends only to decorative gas log sets installed in
the United States or Canada.
EX LUSIONS AND QUALIFI ATIONS. This Limited Warranty is subject to the following exclusions and qualifications: (1) This Limited War-
ranty does not apply to, and HHT assumes no responsibility for, any damages that result due to the installation or operation of this decora-
tive gas log set not in accordance with both the installation instructions and operating instructions furnished. (2) The decorative gas log set
must be subjected to normal use as explained in the operating instructions and the listing agency identification label attached to the burner
pan assembly. This decorative gas log set is only intended to burn the fuel specified on the listing agency identification label. Use of any
other fuel other than specified on the listing agency identification label can create a life threatening situation and will void this limited war-
ranty. (3) This Limited Warranty applies only if the decorative gas log system has been installed in a vented fireplace that is suitable for
burning wood. Adequate ventilation must be provided to allow proper drafting of the fireplace chimney system. HHT assumes no responsi-
bility for improper performance of the decorative gas log set caused by inadequate draft due to environmental conditions (e.g. wind cur-
rents, downdrafts), tight-sealing construction of the structure, or mechanical devices (e.g. air handling devices that include forced air
furnaces and air conditioning units, exhaust fans and ventilating devices), any and all of which may cause a negative pressure within the
structure where the decorative gas log set is installed. (4) This Limited Warranty applies only to the components of the Appliance manufac-
tured by HHT. HHT expressly excludes from this Limited Warranty any liability hereunder for defects or damage caused by the installation or
use of any parts, devices or components that are not manufactured by HHT. (5) Labor costs to be paid by HHT pursuant to this Limited
Warranty must be approved in advance of the performance of the work by HHT and must not exceed the retail price of the replacement
part. (6) This Limited Warranty will be voided if the decorative gas log set is at any time removed or has been removed from the location in
which it was originally installed. (7) Since building code requirements vary greatly throughout the United States and Canada, users of this
decorative gas log set should determine in advance whether there are any building code restrictions on the installation and use of this
product. HHT makes no representation or warranty regarding building code compliance and shall not be responsible for compliance there-
with.
THERE ARE NO IMPLIED WARRANTIES OF MER HANTABILITY OR FITNESS FOR PARTI ULAR PURPOSE LIMITATION OF LIABILITY. IT
IS EXPRESSLY AGREED AND UNDERSTOOD THAT HHTS OBLIGATION AND PUR HASERS EX LUSIVE REMEDY UNDER THIS LIMITED
WARRANTY, UNDER ANY OTHER WARRANTY, EXPRESSED OR IMPLIED (IN LUDING MER HANTABILITY AND FITNESS FOR PARTI U-
LAR PURPOSE), OR OTHERWISE, SHALL BE LIMITED TO THE REPLA EMENT OR REPAIR Of ONLY HEATILATOR BRAND OMPO-
NENTS AND OPTIONAL OMPONENTS AS SPE IFIED ABOVE. THE DURATION OF ANY IMPLIED WARRANTY IN LUDING MER HANT-
ABILITY AND FITNESS FOR PARTI ULAR PURPOSE APPLI ABLE TO THIS HEATILATOR FIREPLA E APPLIAN E IS LIMITED TO THE
DURATION OF THE FOREGOING WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS SO THE ABOVE WARRANTY MAY NOT APPLY TO YOU. IN NO EVENT SHALL HHT BE RESPONSIBLE FOR ANY IN IDENTAL OR
ONSEQUENTIAL DAMAGES AUSED BY DEFE TS IN THE HEATILATOR DE ORATIVE GAS LOG SET, WHETHER SU H DAMAGE
O URS OR IS DIS OVERED BEFORE OR AFTER REPLA EMENT OR REPAIR, AND WHETHER SU H DAMAGE IS AUSED BY HHT
NEGLIGEN E. SOME STATES DO NOT ALLOW THE EX LUSION OR LIMITATION OF IN IDENTAL OR ONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EX LUSION MAY NOT APPLY TO YOU.
HOW TO OBTAIN SERVI E. To obtain service under this Program, you must:
1. Send written notice of the claimed condition to eatilator Technical Service Department, earth & ome Technologies
Inc., 1915 West Saunders Street, Mt. Pleasant, Iowa 52641.
2. Provide proof of purchase to HHT.
3. Provide HHT reasonable opportunity to investigate the claim, including reasonable opportunity to inspect the Fireplace
prior to any repaid or replacement work and before the Fireplace has been removed from the place of original installa-
tion.
4. Obtain HHTs consent to any warranty work before the work is done.
ADDITIONAL INFORMATION. If you would like information on current EATILATOR products or want to locate a dealer in your area, simply
call 800-843-2848.
2003 earth & ome Technologies Inc., a Division of ON Industries
