ASSEMBLY MANUAL
PASADENA PAVILION 10' x 12' (304,8 x 365,8 cm)
16713
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
- CUSTOMER SERVICE -
Call: 1-800-577-9663 email: [e-mail]
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check with local building department and homeowners association for specic restrictions and/ or requirements before building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your pavilion on a level surface.
• CHECK ALL PARTS
Inventory all parts listed on pages 3. Contact our Customer Service Team if any parts are missing or damaged.
• LEVELING AND ANCHORING
You may choose to anchor your pavilion. See page 6 for optional methods of leveling and anchoring your pavilion.
A Backyard Products Company

2
FINISH

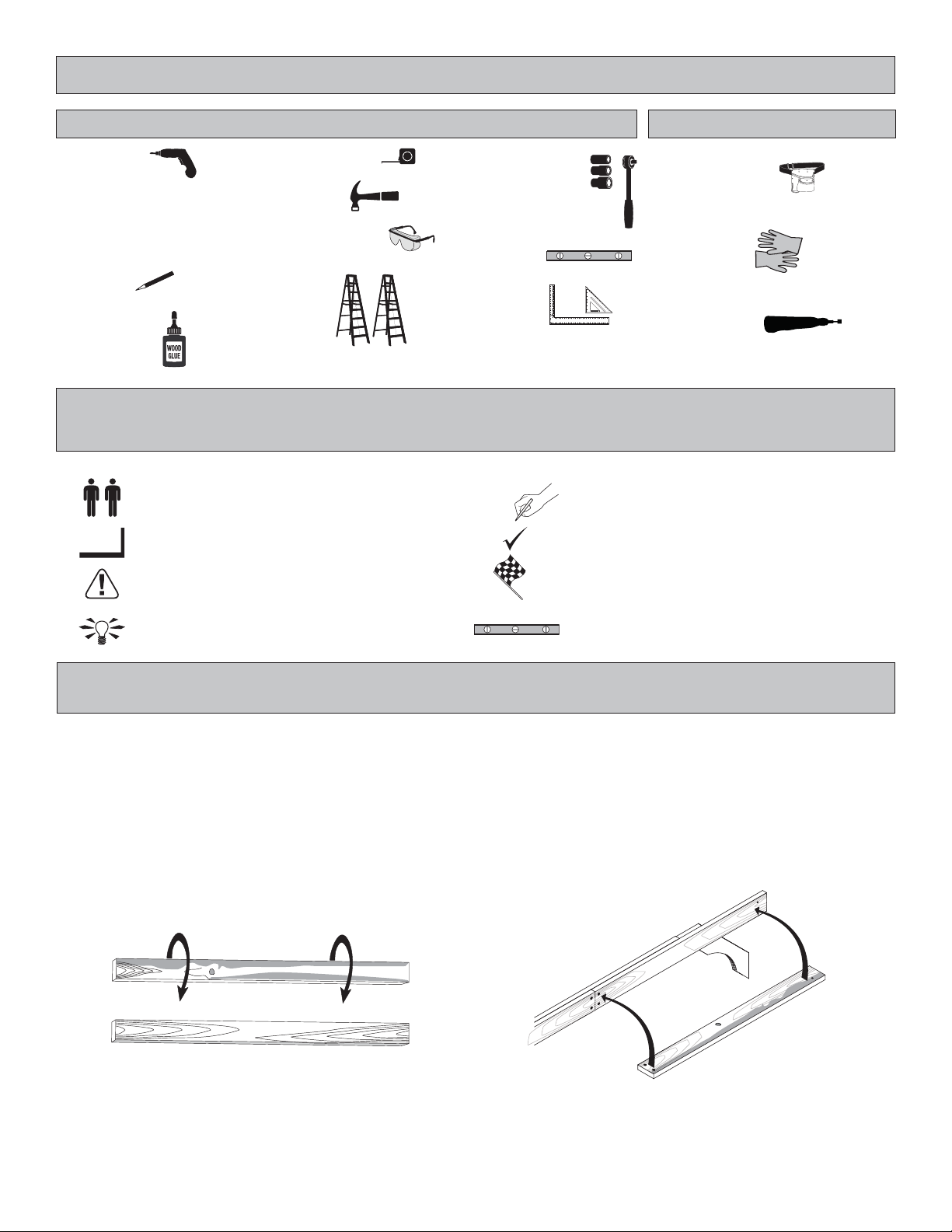

TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
❑Gloves
❑Dremel
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product.
(See Fig. A, B)
❑Safety Glasses
❑Tape Measure
❑Ladder
❑Hammer
❑Level
BEGIN
❑Pencil
❑Drill / Driver
❑#2 Philips Drive Bit
❑Socket/Ratchet ❑Tool Belt/
Nail Pouch
❑Square or
❑1/4" Drill Bit ❑7/16" Socket
❑5/16" Drill Bit ❑1/2" Socket
❑9/16" Drill Bit ❑9/16" Socket
AB
❑Exterior rated
Wood Glue

3
PARTS IDENTIFICATION AND SIZES
POSTS
HEADERS
RIDGE BEAM
RAFTERS
PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
x4
x4
x4
x8
x4
x4
x2
x2
x8
x2
x2
x14
x8
3-3/8 x 3-3/8 x 88-7/8" (8,6 x 8,6 x 225,7 cm)
7/8 x 3-3/8 x 70-3/8" (2,2 x 8,6 x 178,8 cm)
7/8 x 5-3/8 x 83-3/4" (2,2 x 13,7 x 212,7 cm)
1-3/8 x 5-3/8 x 58-3/8" (3,5 x 13,7 x 148,3 cm)
1-3/8 x 5-3/8 x 69" (3,5 x 13,7 x 175,3 cm)
1-3/8 x 5-3/8 x 92-7/8" (3,5 x 13,7 x 235,9 cm)
7/8 x 5-3/8 x 94-3/8" (2,2 x 13,7 x 239,7 cm)
7/8 x 5-3/8 x 46-3/8" (2,2 x 13,7 x 117,8 cm)
7/8 x 5-3/8 x 31-7/8" (2,2 x 13,7 x 81 cm)
1-3/8 x 5-3/8 x 70-7/8" (3,5 x 13,7 x 180 cm)
1-3/8 x 5-3/8 x 71" (3,5 x 13,7 x 180,3 cm)
1-3/8 x 5-3/8 x 33" (3,5 x 13,7 x 83,8 cm)
7/8 x 3-3/8 x 11-7/8" (2,2 x 8,6 x 30,2 cm)
PANEL PARTS LIST
ROOF PANELS
NOTE: Panel parts are not stamped.
Roof panels are 5/8" (1,6 cm) thick.
5/8 x 47-7/8 x 48"
(1,6 x 121,6 x 121,9 cm)
x2
5/8 x 23-7/8 x 48"
(1,6 x 60,6 x 121,9 cm)
x2
5/8 x 23-7/8 x 96"
(1,6 x 60,6 x 243,8 cm)
x2
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
x2
x2 7/8 x 5-3/8 x 32-3/4" (2,2 x 13,7 x 83,2 cm)

4

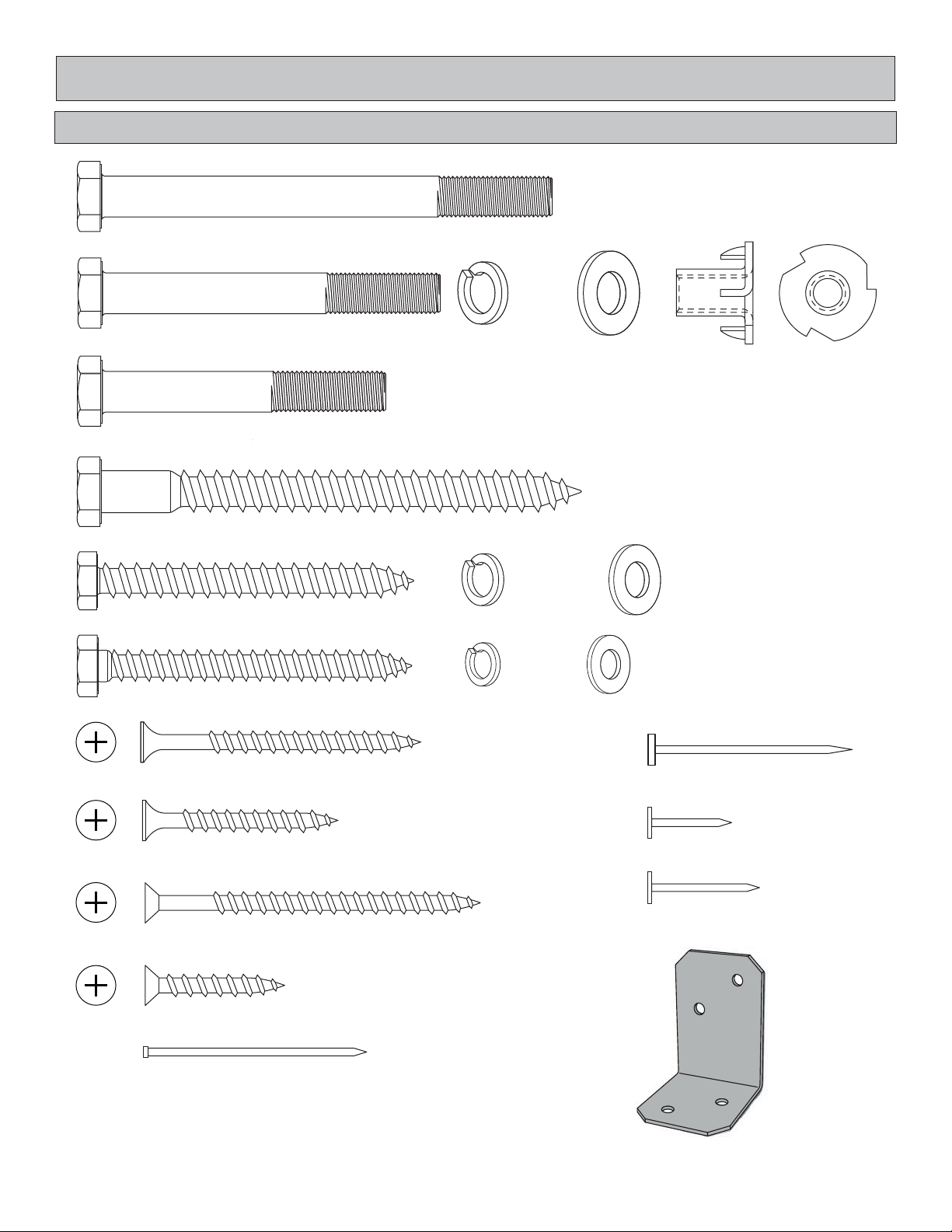

FASTENERS
HARDWARE PARTS LIST
2-1/2" (6,3 cm) x156
3/8" x 4" Hex Bolt (10,2 cm) x8
3/8" x 3"Hex Bolt (7,6 cm) x8
3/8" x 2-1/2"Hex Bolt (6,4 cm) x4
3/8" Flat Washer
x44
3/8" Lock Washer
x44 3/8" T-nut x20
3/8" x 4-1/2" Lag Bolt (11,4 cm) x24
5/16" x 3" Lag Bolt (7,6 cm) x4
5/16"
Flat Washer x4
5/16" Lock Washer x4
1/4" x 3" Lag Bolt (7,6 cm) x8
1/4"
Flat Washer x8
1/4" Lock Washer x8
3" (7,6 cm) x32
1-5/8" (4,1 cm) x50
1-1/4" (3,2 cm) x64
2" (5,1 cm) x36
RooÀng Nails 3/4" (1,9 cm) x 2 Boxes
Nails 2" (5,1 m) x 1 Box
RooÀng Nails 1" (2,5 cm) x 1 Box
HARDWARE IDENTIFICATION AND SIZES
Simpson Hanger x14

5
PAVILION DIMENSIONS / ADDITIONAL MATERIALS
CARE AND MAINTENANCE
❑The wood in your pavilion has been treated with a process called ProWood Micro for resistance to fungal decay and
insect infestation.
❑The color of your pavilion is from a process called MicroShade ™ and involves adding pigment into the wood as it is
pressure treated. This process results in colorant throughout the wood which helps minimize surface markings being
visible. The appearance of your pavilion with MicroShade will last about two years with no stain application. Over time
the color of the pavilion wood will slightly darken.
❑If you want, you may apply a water repellent which will beneÀt the wood and help minimize splitting, checking and
surface cracking.
❑Checking, splitting and surface cracking are characteristics of all wooden structures. This is caused by varying seasonal
temperatures and moisture conditions. To minimize this checking and/or cracking you may coat your pavilion with a
water repellent.
❑A wood stain may be applied to your pavilion if you choose.
❑For minor touch-up we have included sandpaper and some MicroShade concentrate. Refer to page 26 of this manual
for our suggested procedure for minor touch-up.
❑We suggest you inspect all hardware and fasteners used to assemble your pavilion for any deterioration or looseness.
Re-tighten hardware as required.
116"
(294,6 cm)
139-3/4"
(355 cm)
129-1/2"
(328,9 cm)
105-1/4"
(267,3 cm)
INSIDE
POST
INSIDE
POST
OUTSIDE
POST OUTSIDE
POST
83-3/4"
(212,7 cm)
COMPLETING YOUR PAVILION
You will need these additional materials:
DRIP EDGE .......................................................54 Feet
(16,32 m)
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES AND DRIP EDGE.
3-TAB SHINGLES...........................................6 Bundles
To validate your warranty and prevent water damage to roof panels you must install
Drip Edge as speciÀed at the end of this manual.

6
Concrete Anchor
On-Grade Leveling Method
Check anchoring methods with your local building department.
Gravel for drainage
Solid
Masonry block
Concrete/Wood Deck Anchor
Concrete/Wood Deck Anchor

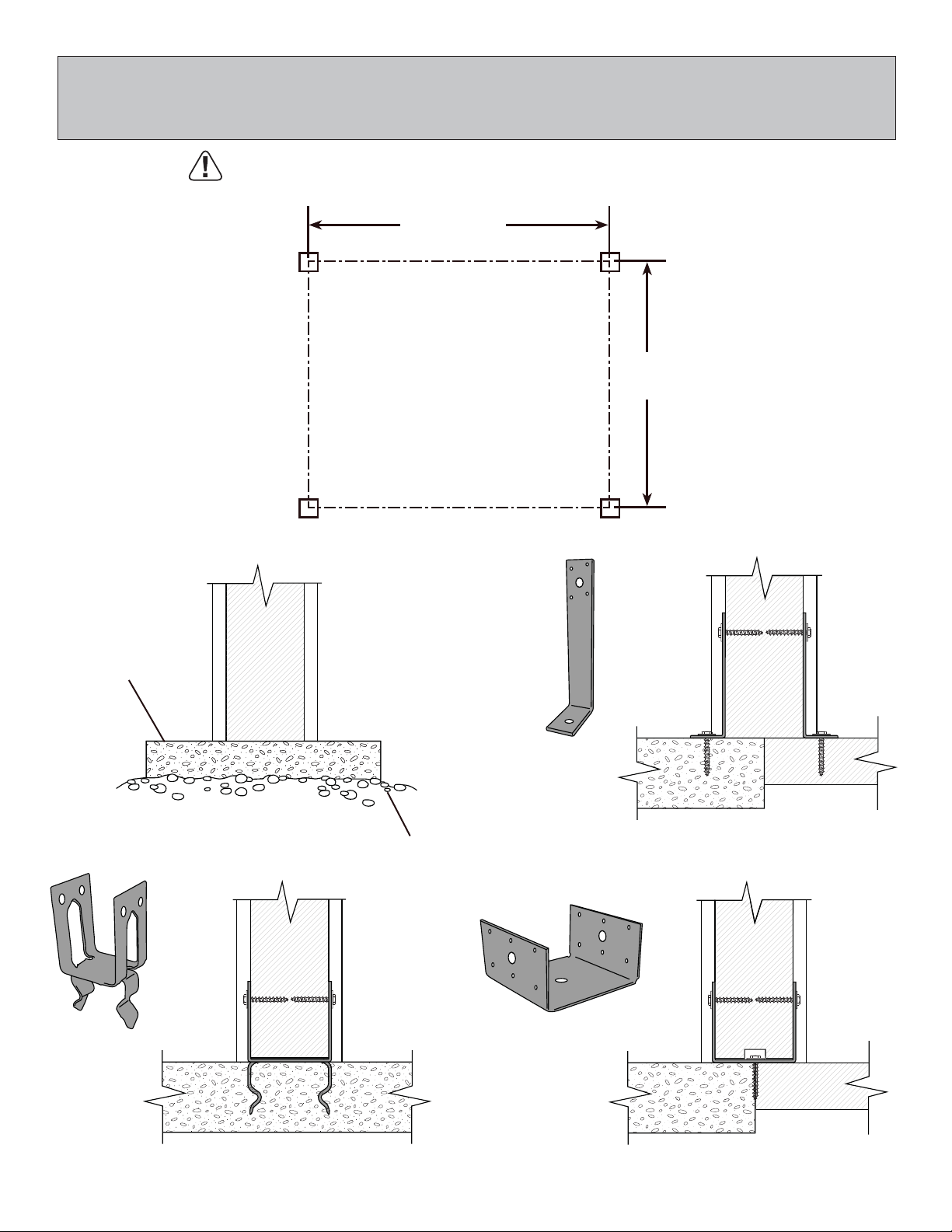

LEVELING AND ANCHORING OPTIONS
There are multiple ways to anchor your Pavilion. A few methods are shown below.
Anchoring materials are not included in this kit.
134-5/8"
(341,9 cm)
MEASUREMENT TO CENTER OF
CORNER POSTS
110-5/8"
(281 cm)

7
FINISH
4
H
2"
(5,1 cm) 1-11/16"
(4,3 cm)
1-11/16"
(4,3 cm)
x4
2
Position post face 7/8 x 5-3/8 x 83-3/4" on top of 3-3/8 x 3-3/8 x 88-7/8" post
ush at end and with a 1” overhang on each side (Fig. A).
CORNER POSTS
PARTS REQUIRED:
Flip post and face over and install a second post face as shown.
Repeat steps 1-3 to assemble three more posts.
Secure using eight 2-1/2” screws on each side. Pre-drilling is optional.
3
1
BEGIN
27-1/4"
(69,2 cm)
Fig. A
1/8" (0,3 cm)
Drill Bit
1"
(2,5 cm)
1"
(2,5 cm)
1"
(2,5 cm)
x64
2-1/2" (6,4 cm)
x4
x8
3-3/8 x 3-3/8 x 88-7/8" (8,6 x 8,6 x 225,7 cm)
7/8 x 5-3/8 x 83-3/4" (2,2 x 13,7 x 212,7 cm)
ENDS FLUSH

8

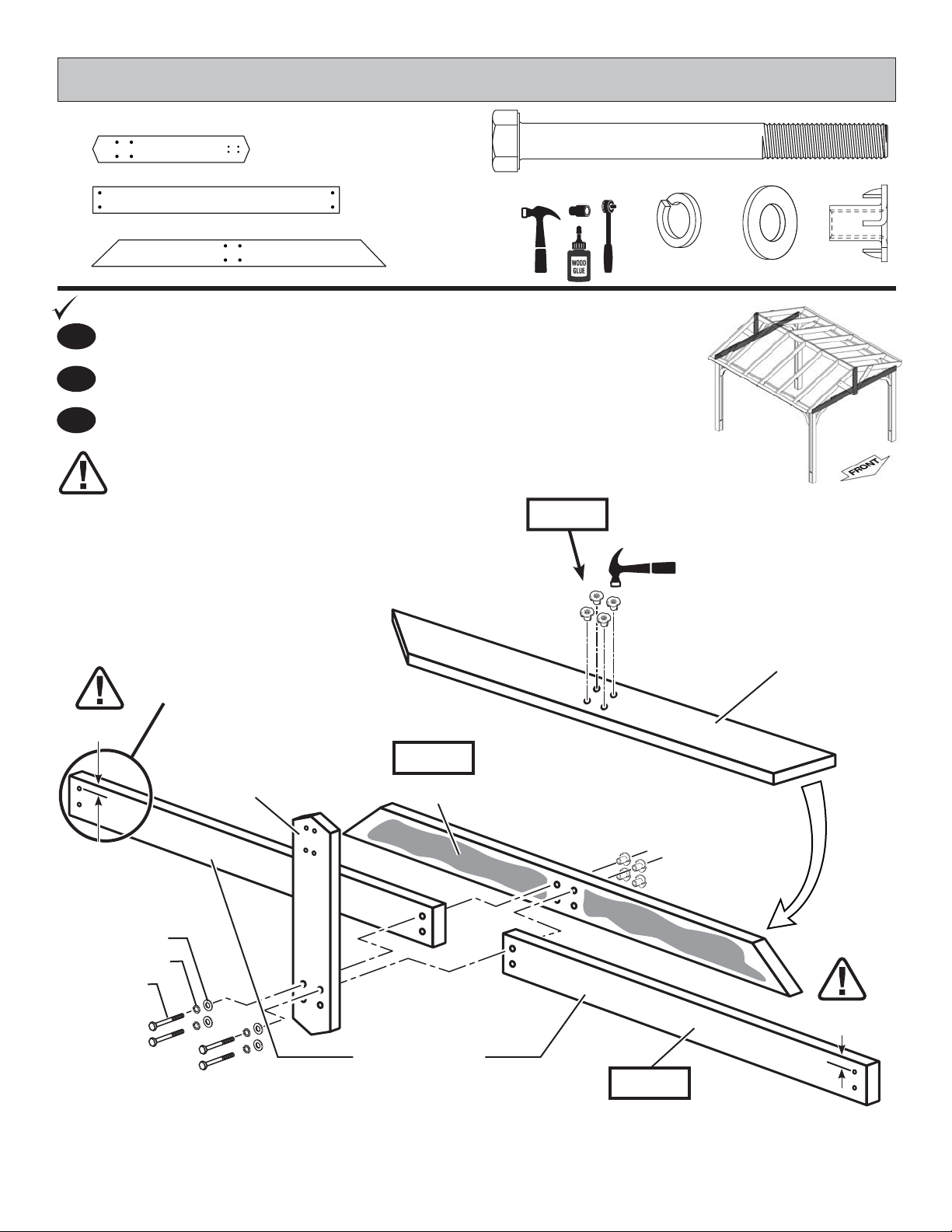

2
3

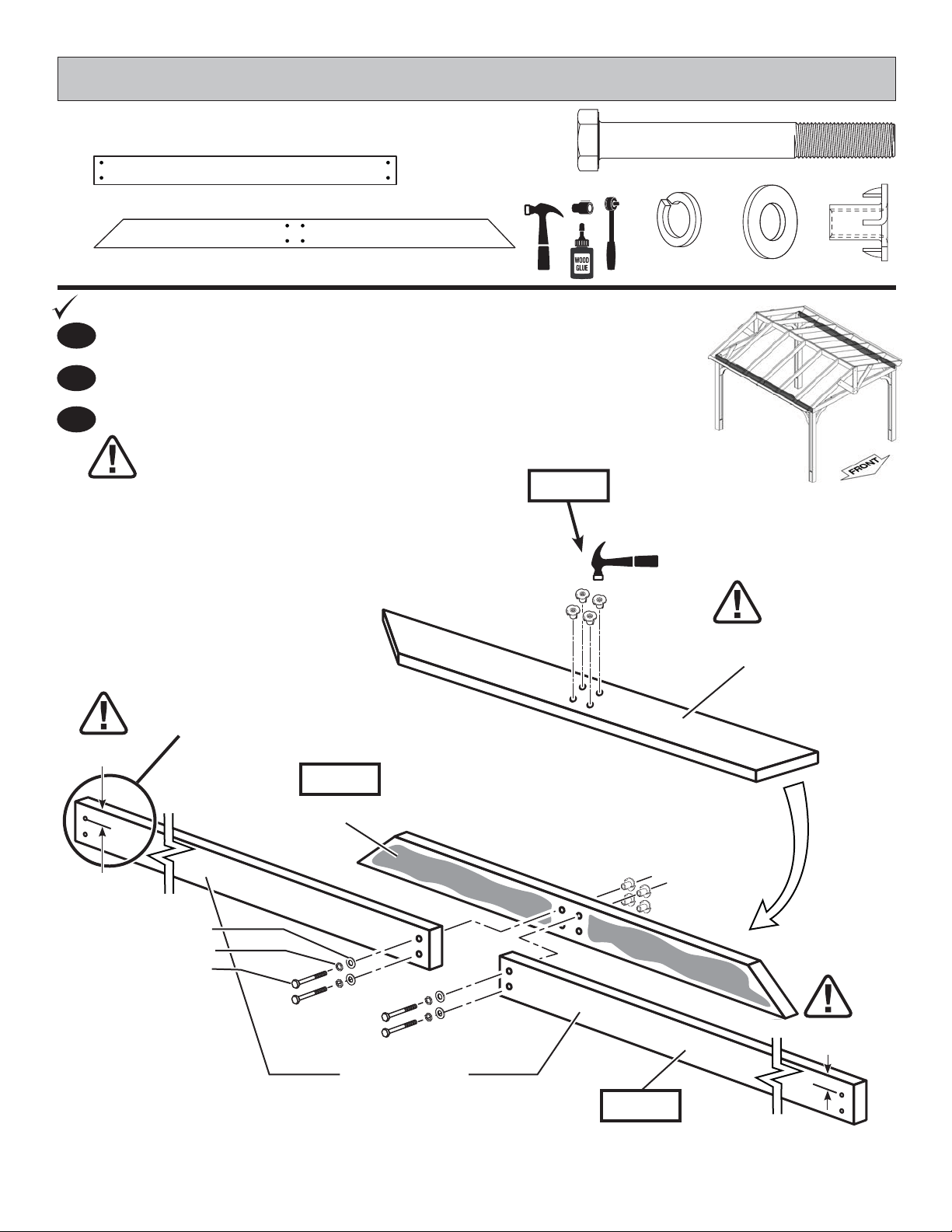

Pound T-nuts into back of 1-3/8 x 5-3/8 x 92-7/8" Sister Header
Spread Glue on Sister Header as shown.
Attach two 1-3/8 x 5-3/8 x 69" to sister header using T-nuts and hex bolts.
SIDE HEADERS
PARTS REQUIRED:
1
BEGIN
x8
x8
x8 x8
Glue
Attach
3/8" x 3" Hex Bolt (7,6 cm)
3/8" Flat Washer
3/8" Lock
Washer
Sister Header
Step 1
Step 2
Step 3
IMPORTANT - Note hole spacing
IMPORTANT: NOTE 2-1/8" spacing on headers.
3/8" T-nut
x2
1-3/8 x 5-3/8 x 92-7/8" (3,5 x 13,7 x 235,9 cm)
1-3/8 x 5-3/8 x 92-7/8" (3,5 x 13,7 x 235,9 cm)
x2
x4
1-3/8 x 5-3/8 x 69" (3,5 x 13,7 x 175,3 cm)
1-3/8 x 5-3/8 x 69"
(3,5 x 13,7 x 175,3 cm)
Flat Washer
Lock Washer
3" Hex Bolt
2-1/8"
(5,4 cm)
2-1/8"
(5,4 cm)

9
PARTS REQUIRED:
FINISH
5
Ensure entire assembly is flush and straight, and stiffen assembly with eight
2-1/2" screws from Sister Header side as shown.
SIDE HEADERS
Step 4
Flush
x16
2-1/2" (6,4 cm)
4
Repeat steps 1-4 to build second Side Header Assemby.
x2
2-1/2" (6,4 cm)
Screws

10
2
3
Pound T-nuts into back of 1-3/8 x 5-3/8 x 70-7/8" Sister Header
Spread Glue on Sister Header as shown.
Attach two 1-3/8 x 5-3/8 x 58-3/8" and 7/8 x 5-3/8 x 32-3/4" to sister header
using four T-nuts and hex bolts as shown.
FRONT / BACK HEADERS
PARTS REQUIRED:
1
BEGIN
x8
x8
x8 x8
3/8" x 4" Hex Bolt (7,6 cm)
3/8" Flat Washer
3/8" Lock
Washer 3/8" T-nut
x2
SisterHeader
1-1/4"
(3,2 cm)
IMPORTANT
Note hole spacing
1-1/4"
(3,2 cm)
Step 1
Glue
Flat Washer
Lock Washer
4"Hex Bolts
Step 2
x2
7/8 x 5-3/8 x 32-3/4" (2,2 x 13,7 x 83,2 cm)
7/8 x 5-3/8 x 32-3/4"
(2,2 x 13,7 x 83,2 cm)
x4
1-3/8 x 5-3/8 x 58-3/8" (3,5 x 13,7 x 148,3 cm)
1-3/8 x 5-3/8 x 58-3/8"
(3,5 x 13,7 x 148,3 cm)
1-3/8 x 5-3/8 x 70-7/8" (3,5 x 13,7 x 180 cm)
1-3/8 x 5-3/8 x 70-7/8"
(3,5 x 13,7 x 180 cm)
Attach
Step 3
IMPORTANT: NOTE 1-1/4" spacing on headers.

11
PARTS REQUIRED:
FINISH
5
Ensure entire assembly is flush, straight and square, and stiffen assembly
with eight 2-1/2" screws from Sister Header side as shown.
FRONT / BACK HEADERS
x16
2-1/2" (6,4 cm)
4
Repeat steps 1-4 to build second Header Assembly.
x2
Step 4
Flush
2-1/2" (6,4 cm)
Screws
90º

12
139-3/4"
(255 cm)
138"
(350,5 cm)
Flush
Flush at corner
3/8" Flat Washer
3/8" Lock Washer 3/8" x 4 1/2" Lag Bolt (11,4 cm)
Flush
Pre-drill Post
Flip
Flip
NOTE:
Angle position
FINISH
6

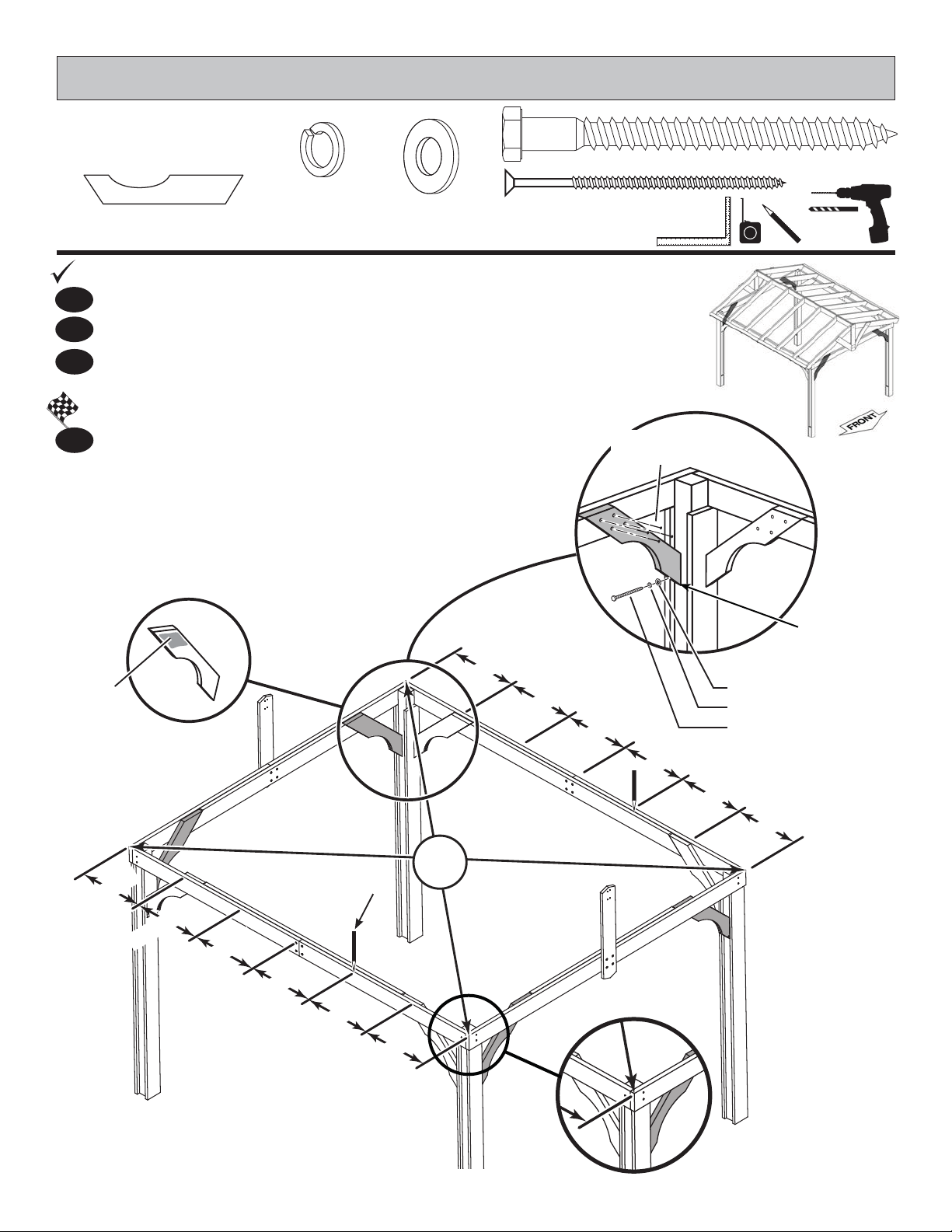

2
Arrange parts as shown on a level surface. Both post assemblies should
be approximately parallel and ush at each end.
SIDE WALL ASSEMBLY
PARTS REQUIRED:
Place Side Header assembly on top of post and ush at corner (Fig. A).
Repeat steps 1-5 to assemble second side.
Secure header to corner posts using two 4-1/2" Lag bolts (Fig. A).
With some assistance carefully ip post and header over to work on opposite side.
Square and Pre-drill two holes in post 1/4" x 2-1/2" DEEP through header's
pre-drilled holes as shown.
3
4
5
1
BEGIN
x2
Fig. A
x8
x8
x8
1/4" (0,6 cm)
Drill Bit
Lock Washer
Flat Washer
4-1/2"
Lag Bolts
90°
90°

13
3/8" Flat Washer
3/8" Lock Washer 3/8" x 4 1/2" Lag Bolt (11,4 cm)
FINISH
4
2
Ensure posts are still square to Header.
CORNER BRACES
PARTS REQUIRED:

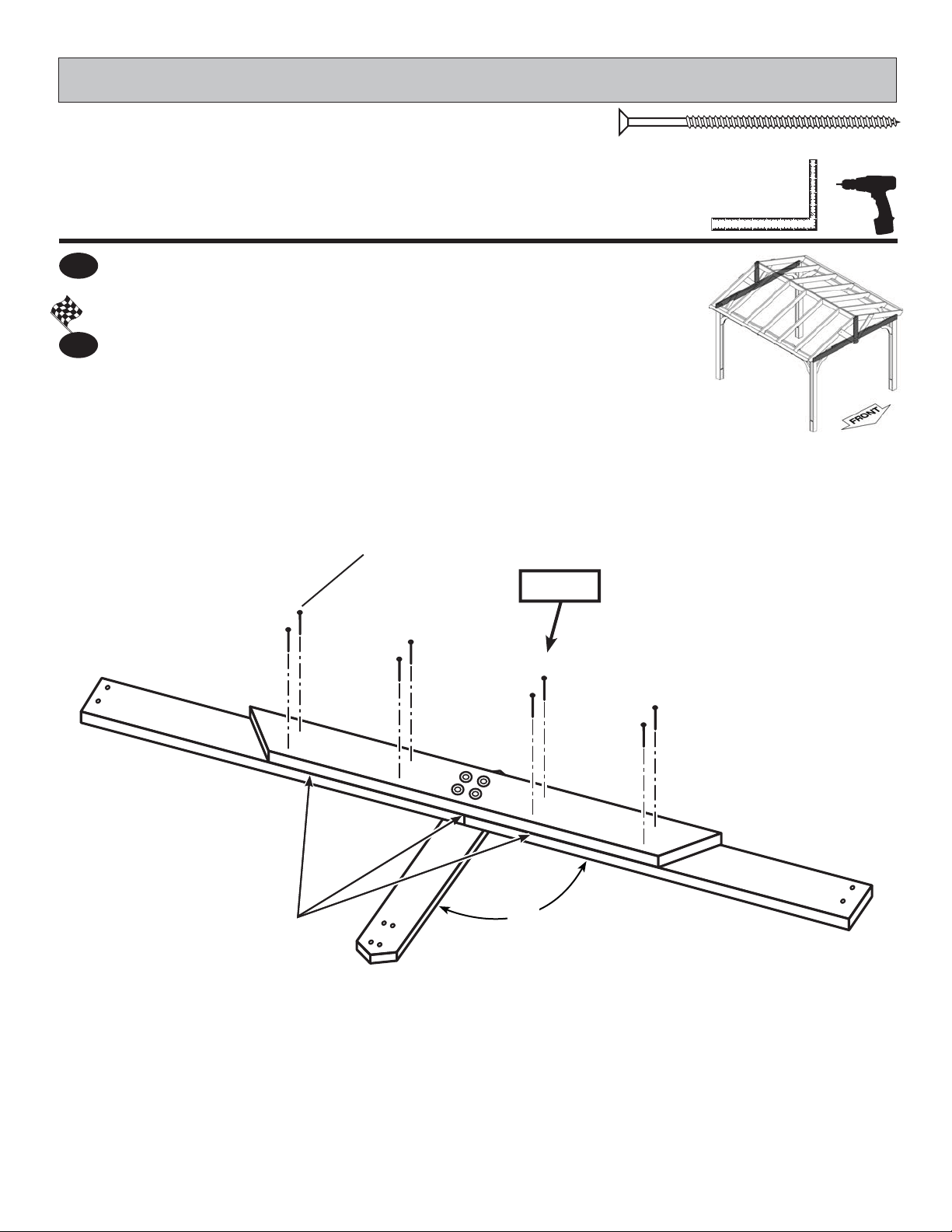

Spread glue on portion of Corner Brace that will connect to Side Header.
Repeat Steps 1-3 to assemble second side.
Attach Corner Braces to Sister Header with four 2-1/2" screws as shown,
Pre-drill 1/4" x 2" DEEP. Attach to Post Assembly with 4-1/2" lag bolt,
3/8"lock washer, and 3/8"at washer as shown (Fig. A).
Check all parts are square before Ànal tightening.
3
1
BEGIN
Fig. A
x4
x4 x4
1/4" (0,6 cm)
Drill Bit
138"
(350,5 cm)
Flush
139-3/4"
(255 cm)
2 1/2"
(6,4 cm)
Screws
4 1/2"
(11,4 cm)
Lag Bolt
Glue
1-3/8" x 5-3/8" x 33"
(3,5 x 13,7 x 83,8 cm)
Pre-drill for
Lag Bolt
Flat Washer
Lock Washer
Flush
90°
x8
1-3/8 x 5-3/8 x 33"
(3,5 x 13,7 x 83,8 cm) x16
2-1/2" (6,4 cm)

14

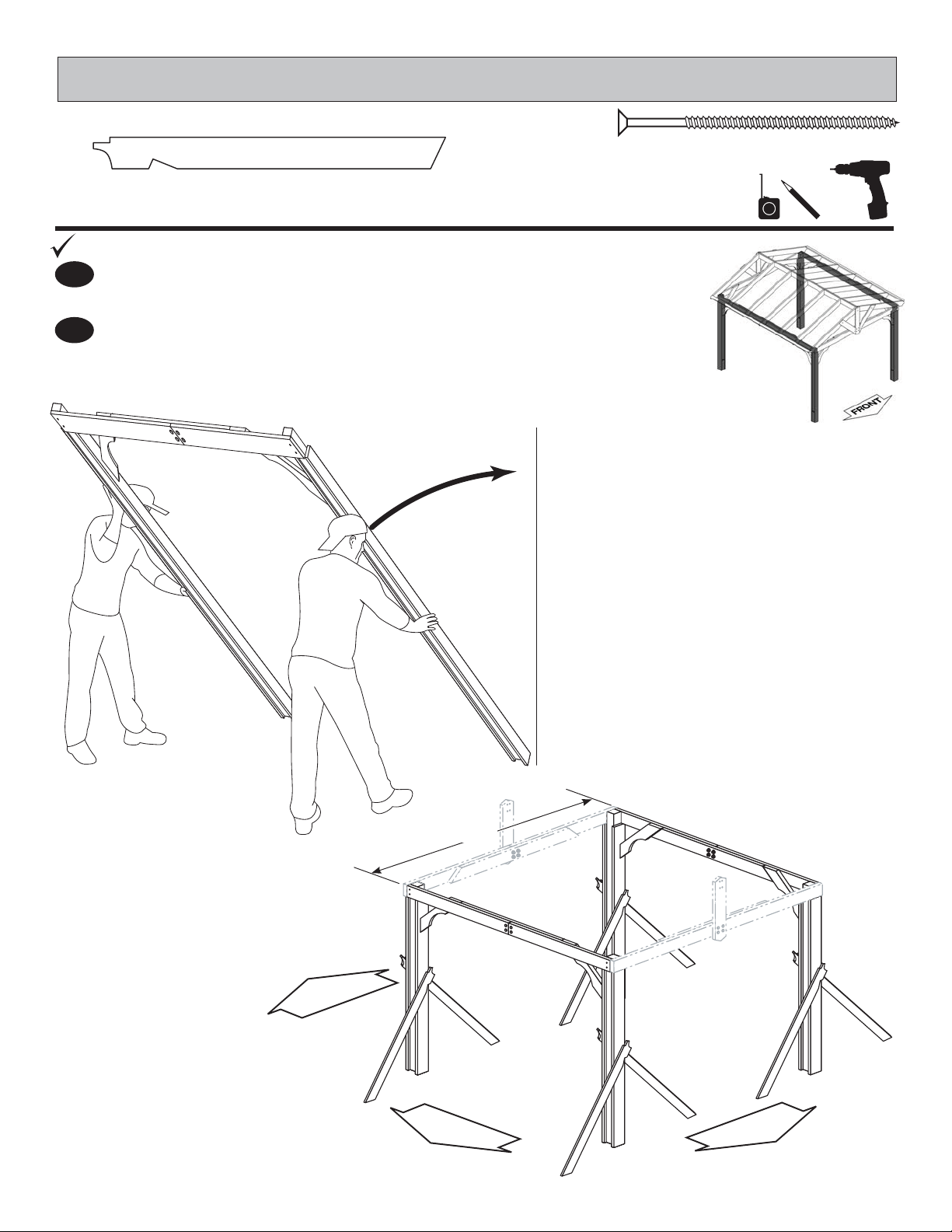

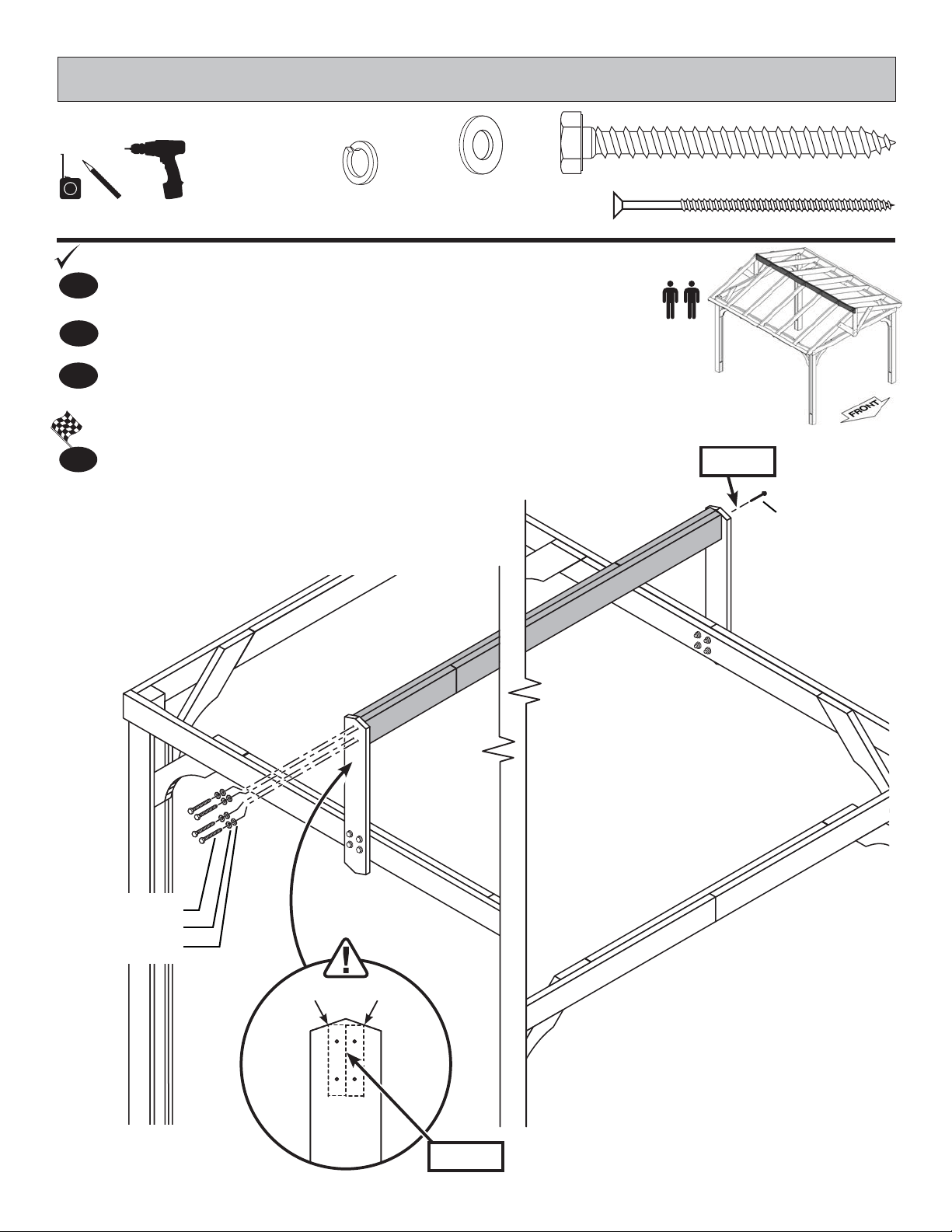

TEMPORARY SUPPORT
2
Raise two Side Walls upright on level ground. Help will be needed to position
and to hold them in place. Maintain square as Front Headers are attached:
For safety, temporarily screw rafters to uprights to secure assembly in vertical
position. Place curved ends toward the top.
ERECTING SIDE WALLS
PARTS REQUIRED:
1
BEGIN
116-3/4"
(296,5 cm)
SIDE
FRONT
BACK
x14
1-3/8 x 5-3/8 x 71" (3,5 x 13,7 x 180,3 cm)
x16
2-1/2" (6,4 cm)
HINT: Place a protective material under rafter end.

15
Using pre-drilled holes in Header as a guide, pre-drill 1/4" x 2" DEEP pilot
holes into the Post Assemblies. Install fasteners as shown (Fig. A).
Repeat Steps 3-5 to attach Back Header
Remove temporary braces.
FRONT HEADER ATTACHMENT
PARTS REQUIRED:
FINISH
6
5
4
3
Place Front Header onto top of Post Faces, as shown, so the edges are ush
with the Side Headers and Posts (Fig. A).
Place Front Header between the two Side Header and Post Assemblies.
All posts must be vertical, and all corners square.
Flush
Flush
3/8" Flat Washer
3/8" Lock Washer 3/8" x 4 1/2" Lag Bolt (11,4 cm)
x8
x8
x8
1/4" (0,6 cm)
Drill Bit
Fig. A
Flat Washer
Lock Washer
4-1/2" Lag Bolt
HINT: Place a protective
material under rafter end.

16
Attach Corner Braces to Headers with four 2-1/2" screws as shown.
Pre-drill Post Assembly 1/4" x 2" DEEP and attach with fasteners as
shown (Fig. B).
Measure and mark side headers as shown.
CORNER BRACE ATTACHMENT
FINISH
4
3
2Spread glue on portion of Corner Brace that will connect to Headers (Fig. A).
Check all parts are square and level. Ensure diagonal measurements are equal.
Fig. A
Fig. B
=
HANDY HINT:
Plan ahead for Rafter install by marking
both Headers now.
Glue
Mark
Lock Washer
Flat Washer
4-1/2" Lag Bolt
1-3/8" x 5-3/8" x 33"
(3,5 x 13,7 x 83,8 cm)
24" (61 cm) 24" (61 cm)
22-3/8" (56,8 cm) 22-3/8" (56,8 cm)
22-3/8" (56,8 cm)
22-3/8" (56,8 cm)
24" (61 cm) 24" (61 cm)
24" (61 cm) 24" (61 cm)
24" (61 cm) 24" (61 cm)
2-1/2" (6,3 cm)
Screw
1
BEGIN
3/8" Flat Washer
3/8" Lock Washer
3/8" x 4 1/2" Lag Bolt (11,4 cm)
PARTS REQUIRED: x4
x4
x4
1/4" (0,6 cm)
Drill Bit
x8
1-3/8 x 5-3/8 x 33" (3,5 x 13,7 x 83,8 cm)
x16
2-1/2" (6,4 cm)
Pre-drill for
Lag Bolt

17
Layout two sets of 94-3/8" and 46-3/8" Ridge Beams as shown.
Measure and mark top of Ridge Beam as shown.
RIDGE BEAM
PARTS REQUIRED:
2
3
Apply glue to underside and attach beams using two 1-5/8" screws
at 22" on center as shown.
Flip assembly and reinforce using two 1-5/8" screws at 22" on center.
NOTE: Offset screws on each side as shown
1
BEGIN
Ridge Beam
Ridge Beam
Glue
22-3/8"
(56,8 cm)
22-3/8"
(56,8 cm)
24" O/C
(61 cm)
24" O/C
(61 cm)
24" O/C
(61 cm)
24" O/C
(61 cm)
Mark
this face
Flush
Offset screws
IMPORTANT:
Note dimension
IMPORTANT
Do not over drive screws
x2
x2
7/8 x 5-3/8 x 94-3/8" (2,2 x 13,7 x 239,7 cm)
7/8 x 5-3/8 x 46-3/8" (2,2 x 13,7 x 117,8 cm)
7/8 x 5-3/8 x 46-3/8"
(2,2 x 13,7 x 117,8 cm)
x28
1-5/8" (4,1 cm)
7/8 x 5-3/8 x 94-3/8"
(2,2 x 13,7 x 239,7 cm)

18
Place Ridge Beam ush to Center Braces (Fig. A), and tack in place with
temporary 2-1/2" screw from Center Brace into each end of Ridge Beam.
Use 1/4" x 3" Lag bolts, Washers, and Lock Washers to attach Ridge Beam
using pilot holes.
Remove temporary screws.
Repeat attachment process with Center Brace in back.
RIDGE BEAM INSTALLATION
PARTS REQUIRED:
2
3
Drill 3/16" x 2" DEEP pilot holes into Ridge Beam through four holes at top of
Center Brace as guides.
1
BEGIN
x8
x8
x8
x2
2-1/2" (6,4 cm)
Beam Flush
1/4" x 3" Lag Bolt (7,6 cm)
1/4" Flat Washer
1/4" Lock Washer
Step 1
Step 1
3" Lag Bolt
1/4" Flat Washer
1/4" Lock Washer
Fig. A
2-1/2" (6,4 cm)
Screws
FINISH
4
