Heat & Glo Heat & Glo XLR-PLUS-N-AU User manual

1Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/11
Model:
XLR-PLUS-N-AU
XLR-PLUS-PB-AU
• DO NOT storeorusegasolineor other flam-
mablevapors andliquidsin thevicinityof this
or any other appliance.
• DO NOT sprayaerosolsinthe vicinity of this
appliance while it is in operation.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
bya qualifiedinstaller,service agency,orthe
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
Owner’s Manual
Installation and Operation
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• DO NOT place articles on or against this appliance.
• Keep clothing, furniture, draperies and other flammable
materials away.
SAI Global
Ref No GSCS20194
AS4553:2008
This is a room sealed appliance and no other ventilation is
required than what is provided.
DO NOT DISCARD THIS MANUAL
NOTICE
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
and maintenance
instructions included.
• Read,understandandfollow
these instructions for safe
installation and operation.

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/112
MODELS: XLR-PLUS-N-AU,
XLR-PLUS-PB-AU
ARE SAI GLOBAL APPROVED FOR
NATURAL GAS, PROPANE OR BUTANE
AS A BALANCED FLUE HEATER.
Refer to the appliance data plates for gas
consumptions and pressures.
Installationof this applianceshouldonlybe
carried out by an authorized person in ac-
cordance with the manufacturer's instruc-
tions. Appliance is to be installed in full
compliance with the National Gas Installa-
tion StandardAS5601, the manufacturer's
instructions, and any local authorities' re-
quirements for gas, electrical and building
regulations.
This appliance and its components are
tested and safe when installed in accor-
dancewith this Installation Manual. Report
to your dealer any parts damaged in ship-
ment, specifically check glass condition.
Thegas logs and flue system components
are in separate packages. Read all in-
structions before starting installation and
follow these instructions carefully during
installationto ensure maximum benefitand
safety. Failure to follow them will void your
warranty and may present a fire hazard.
TheHeat&Glo,a brand of Hearth & Home
Technologies Inc. warranty will be voided
by, and Heat & Glo, a brand of Hearth &
Home Technologies Inc. disclaims any re-
sponsibility for the following actions:
• Installation of any damaged heater or
flue system component
• Modification of the heater or balanced
flue system installation other than as
instructed by Heat & Glo, a brand of
Hearth & Home Technologies Inc.
• Improper positioning of the gas logs or
the glass door
• Installationand/oruse ofany component
part not manufactured or approved by
Heat & Glo, brand of Hearth & Home
Technologies Inc.,not withstanding any
independent testinglaboratory or other
party approval of such componentpart
or accessory.
PLEASE READ THIS MANUAL BEFORE INSTALLING
AND USING THIS APPLIANCE.
IMPORTANT: Read all instructions carefully before starting installation.
Failure to follow these installation instructions may result in a possible fire
hazard and will void the warranty. Save this manual for future reference.
Heat & Glo, a brand of Hearth & Home Technologies, Inc.
7571 215th Street West, Lakeville, MN 55044
Copyright 2009 • Printed in U.S.A.
It is the responsibility of the professionals involved with the service and
installation of the appliance to test the operation of the appliance before
leaving the installation site.

3Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/11
Model Name:___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on fireplace:_____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
A. Congratulations
Congratulationson selectingaHeat &Glogas fireplace,an
elegant and clean alternative to wood burning fireplaces.
TheHeat& Glogasfireplaceyouhave selectedisdesigned
to provide the utmost in safety, reliability, and efficiency.
As the owner of a new fireplace, you’ll want to read and
carefully follow all of the instructions contained in this
owner’s manual. Pay special attention to all cautions and
warnings.
This owner’s manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heat & Glo gas fireplace will give you years of
durable use and trouble-free enjoyment. Welcome to the
Heat & Glo family of fireplace products!
We recommend that you record the following pertinent
information about your fireplace.
Homeowner Reference Information
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
Listing Label Information/Location
Serial Number
Type of Gas
The model information regarding your specific fireplace can be found on
the rating plate usually located in the control area of the fireplace.
Model Number
SAMPLE
SAI Global Certification Nº:
DMS (mm)
xxxx-xxx

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/114
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Table of Contents
A. Congratulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
B. Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . 6
1 Listing and Code Approvals
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
B. Gas Pressure Requirements . . . . . . . . . . . . . . . . . . . . . . . 8
C. High Altitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . . 8
D. Non-Combustible Materials Specification. . . . . . . . . . . . . . 8
E. Combustible Materials Specification . . . . . . . . . . . . . . . . . 8
F. Electrical Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
User Guide
2 Operating Instructions
A. Gas Fireplace Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
B. Your Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C. Clear Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
D. Decorative Doors and Fronts . . . . . . . . . . . . . . . . . . . . . . 10
E. Decorative Media Options . . . . . . . . . . . . . . . . . . . . . . . . 10
F. Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
G. Remote Controls, Wall Controls and Wall Switches. . . . . 10
H. Before Lighting Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . 10
I. Lighting Instructions (IPI) . . . . . . . . . . . . . . . . . . . . . . . . . 11
J. Control Module Operation . . . . . . . . . . . . . . . . . . . . . . . . 12
K. After Fireplace is Lit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
L. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 13
3 Maintenance and Service
A. Maintenance Tasks-Homeowner . . . . . . . . . . . . . . . . . . . 14
B. Maintenance Tasks-Qualified Service Technician . . . . . . 15
Installer Guide
4 Getting Started
A. Typical Appliance System. . . . . . . . . . . . . . . . . . . . . . . . . 16
B. Design and Installation Considerations . . . . . . . . . . . . . . 17
C. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . 17
D. Inspect Appliance and Components. . . . . . . . . . . . . . . . . 17
5 Framing and Clearances
A. Selecting Appliance Location . . . . . . . . . . . . . . . . . . . . . . 18

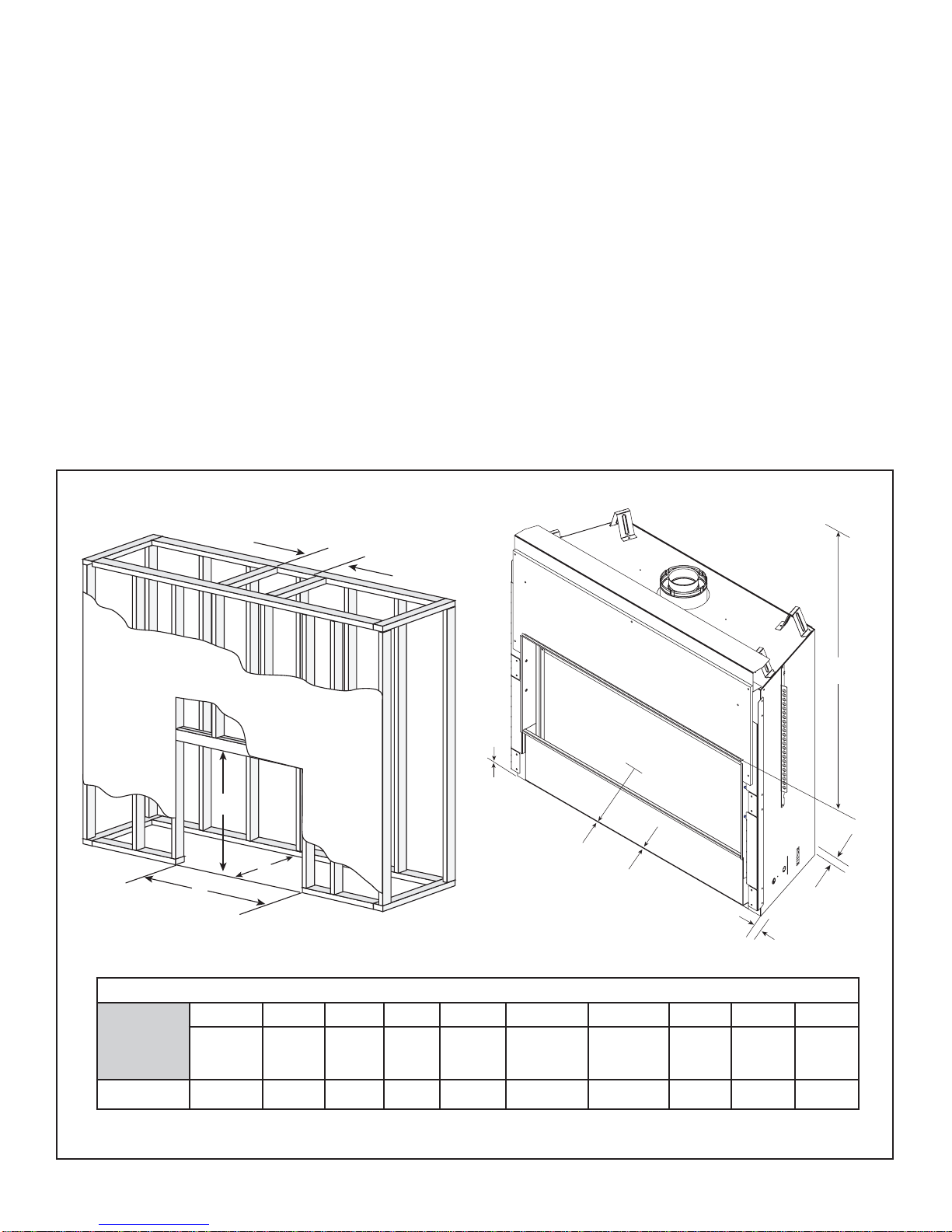

B. Constructing the Appliance Chase. . . . . . . . . . . . . . . . . . 19

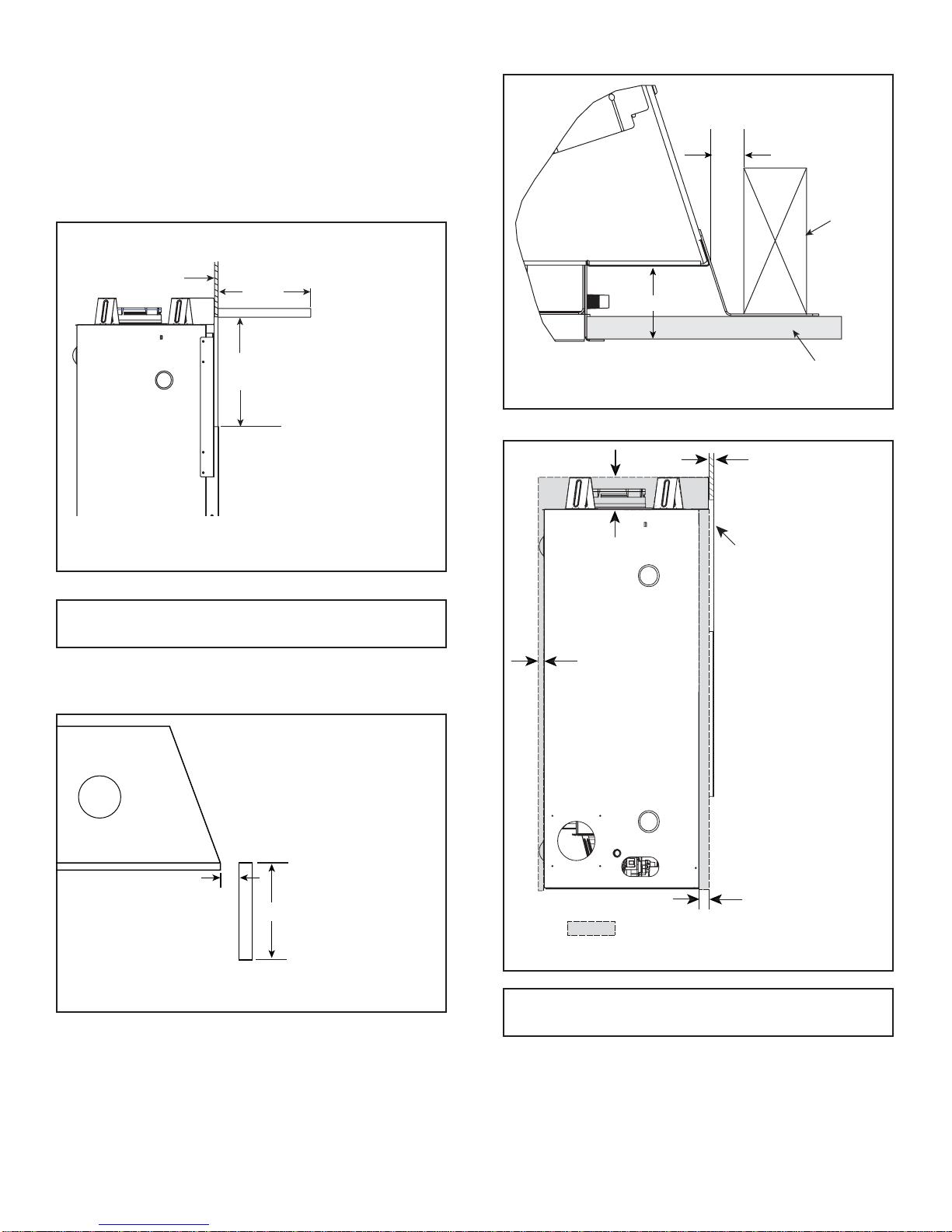

C. Clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
D. Mantel and Wall Projections. . . . . . . . . . . . . . . . . . . . . . . 20
6 Termination Locations
A. Vent Termination Minimum Clearances . . . . . . . . . . . . . . 21
7 Vent Information and Diagrams
A. Approved Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
B. Vent Table Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
C. Use of Elbows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
D. Measuring Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
E. Vent Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8 Vent Clearances and Framing
A. Pipe Clearances to Combustibles . . . . . . . . . . . . . . . . . . 30
B. Wall Penetration Framing. . . . . . . . . . . . . . . . . . . . . . . . . 30
C. Install the Ceiling Firestop . . . . . . . . . . . . . . . . . . . . . . . . 31
D. Install Attic Insulation Shield. . . . . . . . . . . . . . . . . . . . . . . 32
9 Appliance Preparation
A. Top Vent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
B. Securing and Leveling the Appliance. . . . . . . . . . . . . . . . 34
C. Installing the Optional Heat-Zone-240V Kit . . . . . . . . . . . 34
10 Installing Vent Pipe (SLP Pipe)
A. Assemble Vent Sections. . . . . . . . . . . . . . . . . . . . . . . . . . 35
B. Assemble Slip Sections . . . . . . . . . . . . . . . . . . . . . . . . . . 36
C. Secure The Vent Sections . . . . . . . . . . . . . . . . . . . . . . . . 36
D. Disassemble Vent Sections . . . . . . . . . . . . . . . . . . . . . . . 37
E. Install Decorative Ceiling Components . . . . . . . . . . . . . . 37
F. Install Metal Roof Flashing. . . . . . . . . . . . . . . . . . . . . . . . 38
G. Assemble and Install Storm Collar. . . . . . . . . . . . . . . . . . 38
H. Install Vertical Termination Cap . . . . . . . . . . . . . . . . . . . . 39
I. Install Decorative Wall Components . . . . . . . . . . . . . . . . 39
J. Heat Shield Requirements for Horizontal Termination . . . 39
K. Install Horizontal Termination Cap . . . . . . . . . . . . . . . . . . 40
11 Gas Information
A. Gas Pressure Requirements . . . . . . . . . . . . . . . . . . . . . . 41
B. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
C. High Altitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . 42
12 Electrical Information
A. Wiring Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
B. IntelliFire Plus Ignition System Wiring . . . . . . . . . . . . . . . 43
C. Optional Accessories Requirements . . . . . . . . . . . . . . . . 43
D. Junction Cord Information . . . . . . . . . . . . . . . . . . . . . . . . 44
E. Electrical Service and Repair. . . . . . . . . . . . . . . . . . . . . . 44
F. Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

5Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/11
Î= Contains updated information.
13 Finishing
A. Framing and Finishing Instructions . . . . . . . . . . . . . . . . . 45
B. Mantel and Wall Projections. . . . . . . . . . . . . . . . . . . . . . . 48
C. Facing Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
D. Decorative Fronts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
14 Appliance Setup
A. Remove Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . 52
B. Remove the Shipping Materials . . . . . . . . . . . . . . . . . . . . 52
C. Clean the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
D. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
E. Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
F. Install the Mesh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
G. Air Shutter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
H. Media Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
I. Verify Performance of Appliance . . . . . . . . . . . . . . . . . . . 53
15 Troubleshooting
A. IntelliFire Plus Ignition System. . . . . . . . . . . . . . . . . . . . . 54
16 Component Access
A. Decorative Front and Fixed Glass Assembly Removal . . 57
B. Valve Pressure Taps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
C. Control Module Access. . . . . . . . . . . . . . . . . . . . . . . . . . . 57
D. Media Tray Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
E. Burner and Base Pan Removal . . . . . . . . . . . . . . . . . . . . 57
F. Access Through the Valve Assembly. . . . . . . . . . . . . . . . 58
G. Gas Valve Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . 59
H. Pilot Assembly Replacement . . . . . . . . . . . . . . . . . . . . . . 59
17 Reference Materials
A. Appliance Dimension Diagram. . . . . . . . . . . . . . . . . . . . . 60
B. Maintenance Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
C. Vent Components Diagrams . . . . . . . . . . . . . . . . . . . . . . 62
D. Service Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
E. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/116
4021-645C 12-29-10 Page 1 of 2
Hearth & Home Technologies Inc.
LIMITED LIFETIME WARRANTY
Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for
HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership
of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance
will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered compo-
nents manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period,
HHT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of its
obligations under such warranties by replacing the product itself or refunding the verified purchase price of the product
itself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty
is subject to conditions, exclusions and limitations as described below.
WARRANTY PERIOD:
Warranty coverage begins on the date of original purchase. In the case of new home construction, warranty coverage
begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent,
authorized HHT dealer/ distributor, whichever occurs earlier. The warranty shall commence no later than 24 months
following the date of product shipment from HHT, regardless of the installation or occupancy date. The warranty period for
parts and labor for covered components is produced in the following table.
The term “Limited Lifetime” in the table below is defined as: 20 years from the beginning date of warranty coverage for
gas appliances, and 10 years from the beginning date of warranty coverage for wood, pellet, and coal appliances. These
time periods reflect the minimum expected useful lives of the designated components under normal operating conditions.
See conditions, exclusions, and limitations on next page.
Parts Labor Gas Wood Pellet EPA
Wood Coal Electric Venting
XXXXXXX
All parts and material except as
covered by Conditions,
Exclusions, and Limitations
listed
XXX Igniters, electronic components,
and
g
lass
XXXXX Factor
y
-installed blowers
X Molded refractor
y
p
anels
XFire
p
ots and burn
p
ots
5
y
ears 1
y
ear X X Castin
g
s and baffles
7 years 3 years X X X Manifold tubes,
HHT chimne
y
and termination
10
y
ears 1 year X Burners, logs and refractory
Limited
Lifetime 3yearsXXXXX Fireboxandheatexchanger
XXXXXXX All replacement parts
be
y
ond warrant
y
p
eriod
Warranty Period HHT Manufactured Appliances and Venting
1 Year
Components Covered
3 years
2 years
90 Days

7Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/11
4021-645C 12-29-10 Page 2 of 2
WARRANTY CONDITIONS:
• This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of
HHT authorized dealers is available on the HHT branded websites.
• This warranty is only valid while the HHT appliance remains at the site of original installation.
• Contact your installing dealer for warranty service. If the installing dealer is unable to provide necessary parts, contact
the nearest HHT authorized dealer or supplier. Additional service fees may apply if you are seeking warranty service
from a dealer other than the dealer from whom you originally purchased the product.
• Check with your dealer in advance for any costs to you when arranging a warranty call. Travel and shipping charges
for parts are not covered by this warranty.
This warranty is void if:
• The appliance has been over-fired or operated in atmospheres contaminated by chlorine, fluorine, or other damaging
chemicals. Over-firing can be identified by, but not limited to, warped plates or tubes, rust colored cast iron, bubbling,
cracking and discoloration of steel or enamel finishes.
• The appliance is subjected to prolonged periods of dampness or condensation.
• There is any damage to the appliance or other components due to water or weather damage which is the result of, but
not limited to, improper chimney or venting installation.
LIMITATIONS OF LIABILITY:
• The owner’s exclusive remedy and HHT’s sole obligation under this warranty, under any other warranty, express or
implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above. In no
event will HHT be liable for any incidental or consequential damages caused by defects in the appliance. Some states
do not allow exclusions or limitation of incidental or consequential damages, so these limitations may not apply to you.
This warranty gives you specific rights; you may also have other rights, which vary from state to state. EXCEPT TO
THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY
SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE
EXPRESSED WARRANTY SPECIFIED ABOVE.
WARRANTY EXCLUSIONS:
This warranty does not cover the following:
• Changes in surface finishes as a result of normal use. As a heating appliance, some changes in color of interior and
exterior surface finishes may occur. This is not a flaw and is not covered under warranty.
• Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse, scratches, melted items,
or other external sources and residues left on the plated surfaces from the use of abrasive cleaners or polishes.
• Repair or replacement of parts that are subject to normal wear and tear during the warranty period. These parts
include: paint, wood, pellet and coal gaskets, firebricks, grates, flame guides, light bulbs, batteries and the discolor-
ation of glass.
• Minor expansion, contraction, or movement of certain parts causing noise. These conditions are normal and com-
plaints related to this noise are not covered by this warranty.
• Damages resulting from: (1) failure to install, operate, or maintain the appliance in accordance with the installation
instructions, operating instructions, and listing agent identification label furnished with the appliance; (2) failure to
install the appliance in accordance with local building codes; (3) shipping or improper handling; (4) improper opera-
tion, abuse, misuse, continued operation with damaged, corroded or failed components, accident, or improperly/
incorrectly performed repairs; (5) environmental conditions, inadequate ventilation, negative pressure, or drafting
caused by tightly sealed constructions, insufficient make-up air supply, or handling devices such as exhaust fans or
forced air furnaces or other such causes; (6) use of fuels other than those specified in the operating instructions; (7)
installation or use of components not supplied with the appliance or any other components not expressly authorized
and approved by HHT; (8) modification of the appliance not expressly authorized and approved by HHT in writing;
and/or (9) interruptions or fluctuations of electrical power supply to the appliance.
• Non-HHT venting components, hearth components or other accessories used in conjunction with the appliance.
• Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is installed.
• HHT’s obligation under this warranty does not extend to the appliance’s capability to heat the desired space. Informa-
tion is provided to assist the consumer and the dealer in selecting the proper appliance for the application. Consider-
ation must be given to appliance location and configuration, environmental conditions, insulation and air tightness of
the structure.

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/118
A. Appliance Certification C. High Altitude Installations
NOTICE: Ifthe heatingvalue ofthe gashas beenreduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 610 meter elevation:
Reduce input rate 4% for each 305 meters feet above
610 meters.
D. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 ºC and UL763 shall be
considered non-combustible materials.
E. Combustible Materials Specification
Materials made of or surfaced with wood, compressed pa-
per, plant fibers, plastics, or other material that can ignite
and burn, whether flame proofed or not, or plastered or
unplastered shall be considered combustible materials.
F. Electrical Codes
All electrical safety testing has been done following the EN
60335-2-102 standard. Local codes apply.
1
1 Listing and Code Approvals
MODELS: XLR-PLUS-N-AU, XLR-PLUS-PB-AU
LABORATORY: SAI Global
TYPE: Gas Space Heating Appliance
STANDARD: AS4553-2008
The Heat & Glo gas appliances discussed in this Installer’s
Guide have been tested to certification standards and listed
by the applicable laboratories.
This appliance must be installed in accordance with the
rules in force.
NOX Class 5 for G20, NOX Class 5 for G31
B. Gas Pressure Requirements
Pressure requirements for XLR-PLUS fireplaces are
shown in table below.
Two taps are provided on the right hand side of the gas
control for a test gauge connection to measure the inlet
and outlet pressures.
The fireplace and its individual shut-off valve must be dis-
connected from the gas supply piping system during any
pressure testing of the system at test pressures in excess
of 3.4 kPa.
If the fireplace must be isolated from the gas supply pip-
ing system by closing an individual shut-off valve, it must
be of the handle-less type.
Natural Gas Propane Butane
Inlet Pressure 1.13 kPa 2.75 kPa 2.75 kPa
Outlet Gas Pressure 0.80 kPa 2.40 kPa 2.40 kPa
Gas Rate .405 m3/h.134 m3/h.111 m3/h
Maximum Gas Consumption 26 MJ/h 26.0 MJ/h 22 MJ/h
Burner Injector DMS 42 (2.350 mm) DMS .057 (1.450 mm) DMS 55 (1.325)
Pilot Injector Ø .023 (.584 mm) Ø .014 (.356 mm) Ø .010 (.254 mm)
Columnshighlighted ingray =The gascontrol valvesupplied withthis productis approved fora maximum
inlet pressure of 3.4 kPa. For pressures over 3.4 kPa, an in line pressure regulator must be installed
upstream from the gas control valve.

9Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/11

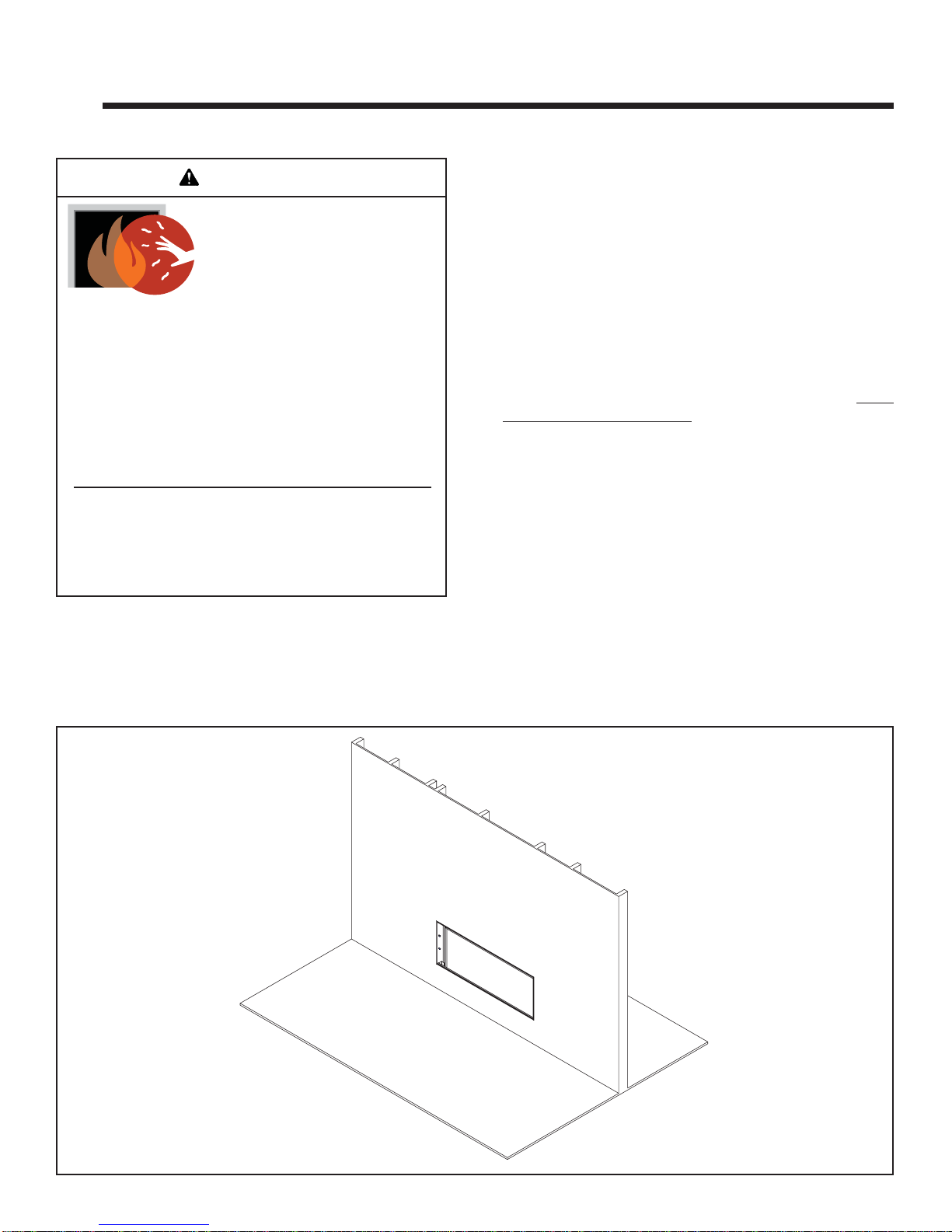

Figure 2.1 General Operating Parts
B. Your Fireplace
WARNING! DO NOT operate fireplace before read-
ing and understanding operating instructions. Failure
to operate fireplace according to operating instructions
could cause fire or injury.
If you expect that small children or vulnerable adults may
come into contact with this fireplace, the following precau-
tions are recommended:
A. Gas Fireplace Safety
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassand othersurfacesare hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
• Install a physical barrier such as:
- A decorative firescreen.
- Adjustable safety gate.
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
• Never leave children alone near a hot fireplace,whether
operating or cooling down.
• Teach children to NEVER touch the fireplace.
• Consider not using the fireplace when children will be
present.
Contact your dealer for more information, or visit: www.
hpba.org/safety-information.
To prevent unintended operation when not using your fire-
place for an extended period of time (summer months,
vacations, trips, etc):
• Remove batteries from remote controls.
• Turn off wall controls.
• Unplug 6 volt adapter plug and remove batteries on IPI
models.
2
2 Operating Instructions
User Guide
CLEAR SPACE
SECTION 2.C.
DECORATIVE DOORS
(NOT SHOWN)
SECTION 2.D.
FIXED GLASS ASSEMBLY
(NOT SHOWN)
SECTION 14.E.
WARNING! Choking Hazard! Keep glass rock media
out of reach of children.

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/1110
C. Clear Space
WARNING! DO NOT place combustible objects in front
of the fireplace or block louvers. High temperatures may
start a fire. See Figure 2.2.
Avoid placing candles and other heat-sensitive objects on
mantel or hearth. Heat may damage these objects.
Figure 2.2 Clear Space
F. Fixed Glass Assembly
See Section 14.E.
D. Decorative Doors and Fronts
WARNING! Risk of Fire! Install ONLY doors or fronts
approved by Hearth & Home Technologies. Unapproved
doors or fronts may cause fireplace to overheat.
This decorative front has been supplied with an
integral barrier to prevent direct contact with the fixed
glass panel. DO NOT operate the fireplace with the
barrier removed.
Contact your dealer or Hearth & Home Technologies if
the barrier is not present or help is needed to properly
install one.
Formore informationrefer to theinstructions suppliedwith
your decorative door or front.
E. Decorative Media Options
This appliance ships standard without a decorative media
option. For installation and removal of these decorative
media options, refer to installation instructions which ship
with the media options.
G. Remote Controls, Wall Controls and Wall
Switches
Follow the instructions supplied with the control installed
to operate your fireplace:
For safety:
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
See your dealer if you have questions.
I. Before Lighting Fireplace
Before operating this fireplace for the first time, have a
qualified service technician:
• Verify all shipping materials have been removed from
inside and/or underneath the firebox.
• Verify that rock media tray is securely fastened to the
base pan.
• Check the wiring.
• Check the air shutter adjustment.
• Ensure that there are no gas leaks.
• Ensurethat theglass issealed andin theproper position
and that the integral barrier is in place.
WARNING! Risk of Fire or Asphyxiation! DO NOT op-
erate fireplace with fixed glass assembly removed.
CLEAR SPACE
3 FT. IN FRONT
OF FIREPLACE
H. IPI Battery Tray/Battery Installation
The IntelliFire PlusTM system has a battery backup option.
Battery longevity and performance will be affected by the
service temperatures of this appliance.
NOTICE: Batteriesshould onlybeused asa powersource
in the event of an emergency such as an outage.

11Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/11

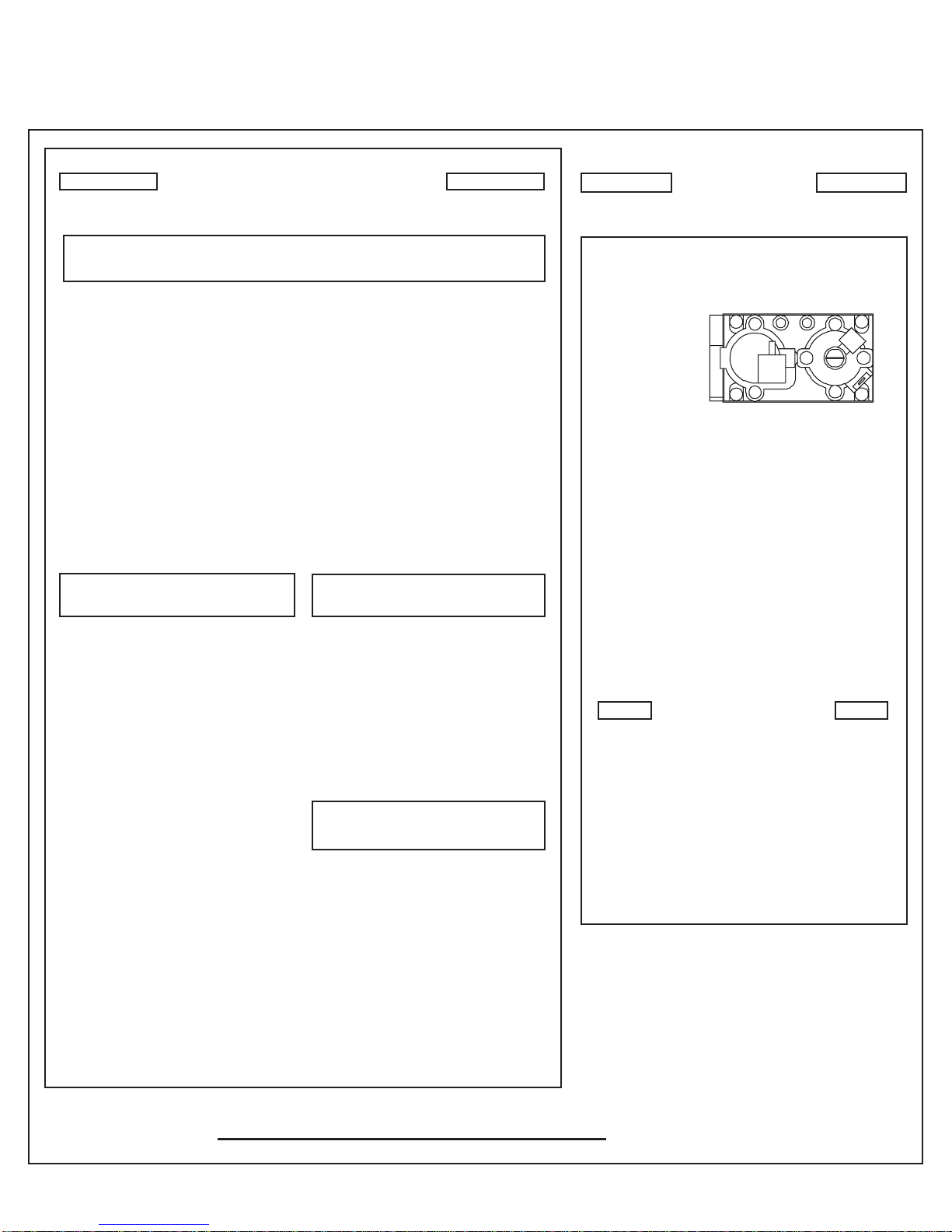

I. Lighting Instructions (IPI)
The IPI system may be operated with four C-cell batteries. When using batteries, unplug the transformer. To prolong battery
life, remove them when using the transformer.
1. This appliance is equipped with an ignition
device which automatically lights the burner.
DO NOT try to light the burner by hand.
2. Wait five (5) minutes to clear out any gas.
Then smell for gas, including near the floor. If
you smell gas, STOP! Follow “B” in the Safety
Information located on the left side of this la-
bel. If you do not smell gas, go to next step.
3. To light the burner:
Equipped with wall switch: Turn ON/OFF switch
to ON.
Equipped with remote or wall control: Press
ON or FLAME button.
Equipped with thermostat: Set temperature to
desired setting.
4. If the appliance does not light after three tries,
call your service technician or gas supplier.
LIGHTING
INSTRUCTIONS (IPI)
TO TURN OFF
GAS TO APPLIANCE
1. Equipped with wall switch: Turn ON/OFF switch
to OFF.
Equipped with remote or wall control: Press
OFF button.
Equipped with thermostat: Set temperature to
lowest setting.
2. Service technician should turn off electric
power to the control when performing service.
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING:If you donotfollow theseinstructionsexactly,a fireorexplosion
may result causing property damage, personal injury or loss of life.
CAUTION:
NOT FOR USE
WITH SOLID FUEL
WARNING:
593-913G
GAS
VALVE
For additional information on operating your
Hearth & Home Technologies fireplace, please refer to www.fireplaces.com.
A. This appliance is equipped with an
intermittent pilot ignition (IPI) device
which automatically lights the burn-
er. DO NOT try to light the burner by
hand.
B. BEFORELIGHTING, smell allaround
the appliance area for gas. Be sure to
smell next to the floor because some
gas is heavier than air and will settle
on the floor.
WHAT TO DO IF YOU SMELL GAS
• DO NOT try to light any appliance.
• DO NOT touch any electric switch; do
not use any phone in your building.
DO NOT CONNECT LINE VOLT-
AGE (110/120 VAC OR 220/240
VAC) TO THE CONTROL VALVE.
Improper installation, adjustment, al-
teration, service or maintenance can
cause injury or property damage. Re-
fer to the owner’s information manual
provided with this appliance.
This appliance needs fresh air for
safe operation and must be installed
so there are provisions for adequate
combustion and ventilation air.
If not installed, operated, and main-
tained in accordance with the manufac-
turer’s instructions, this product could
expose you to substances in fuel or
fuel combustion which are known to the
StateofCaliforniatocausecancer,birth
defects, or other reproductive harm.
Keep burner and control compartment
clean. See installation and operating
instructions accompanying appliance.
Hot while in operation. DO NOT touch.
Keepchildren, clothing, furniture,gaso-
lineandother liquids having flammable
vapors away.
DO NOT operate the appliance with
fixedglassassemblyremoved, cracked
or broken. Replacement of the fixed
glass assembly should be done by a
licensed or qualified service person.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
C. DO NOT use this appliance if any
part has been under water. Imme-
diately call a qualified service tech-
nician to inspect the appliance and
to replace any part of the control
system and any gas control which
has been under water.
For use with natural gas and propane.
A conversion kit, as supplied by the
manufacturer, shall be used to convert
this appliance to the alternate fuel.
Also Certified for Installation in a
Bedroom or a Bedsitting Room.
For assistance or additional informa-
tion, consult a qualified installer, ser-
vice agency or the gas supplier.
Final inspection by
Î

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/1112
J. Control Module Operation
1. Thecontrol modulehas an ON/OFF/REMOTEselector
switch that must be set.
OFFPosition: Appliancewillignore allpowerinputs and
willnot respond toany commandsfrom a wallswitch or
optionalremote. The unitshould bein theOFF position
during installation, service, fuel conversion, and in the
event that the control goes into LOCK-OUT mode as a
result of an error code.
ONPosition: Appliance willignite andrun continuously
in the HI flame setting, with no adjustment in flame
output. This mode of operation is primarily used for
initial installation and inspection.
REMOTE Position: Appliance will initiate commands
from a wired wall switch and/or one of the optional
wireless remote options.
2. Awallswitchcan bewiredinto the controlmodulebrown
and red wires. See Figure 12.1.
3. Thecontrol modulehassafety featurethatautomatically
shuts down the fireplace after 9 hours of continuous
operation without receiving a command from the wall
switch or optional remote.
4. If you intend to use both a wired wall switch and an
optional remote control to operate your fireplace, the
wall switch will override any commands given by the
remote.
5. Module Reset Switch
This module may lock-out under certain conditions.
When this occurs, the appliance will not ignite or
respond to commands. The module will go into
lock-out mode by emitting three audible beeps, then
continuously displaying a RED/GREEN error code at
its status indicator LED.
• Check battery tray. Remove batteries if installed.
Batteries should only be installed for use during power
outages. See Section H.
• Locate the module reset switch. See Figure 2.4 or 2.5.
• Set the module reset switch to the RESET position.
• Wait five(5) minutesto allowpossible accumulatedgas
to clear.
• Set the module reset switch to ON.
• Start the appliance.
WARNING! Risk of Explosion! DO NOT press the mod-
ule reset switch more than one time within a five minute
time period. Gas may accumulate in firebox. Call a quali-
fied service technician.
Figure 2.4 Location of Module Reset Switch - Tonic Front
MODULE RESET
SWITCH
Figure 2.5 Location of Module Reset Switch - Martini Front
MODULE RESET
SWITCH
Figure 2.3 Control Module
NG/LP SETTING
WIRE LEAD FROM REGULATOR CONNECTS HERE
GRAY MODULE
SELECTOR
SWITCH
HI/LOW FLAME
ADJUSTMENT
Note: The HI/LO and LP/NG switches on the control module
are non-functional on the XLR fireplace.

13Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/11
K. After Fireplace is Lit
Initial Break-in Procedure
• The fireplace should be run three to four hours
continuously on high.
• Turn the fireplace off and allow it to completely cool.
• Remove fixed glass assembly. See Section 14.E.
• Clean fixed glass assembly. See Section 3.A.
• Replace the fixed glass assembly and run continuously
on high an additional 12 hours.
This cures the materials used to manufacture the fire-
place.
NOTICE! Open windows for air circulation during fire-
place break-in.
• Some people may be sensitive to smoke and odors.
• Smoke detectors may activate.
L. Frequently Asked Questions
ISSUE SOLUTIONS
Condensation on the glass This is a result of gas combustion and temperature variations. As the fireplace warms, this con-
densation will disappear.
Blue flames This is a result of normal operation and the flames will begin to yellow as the fireplace is allowed
to burn for 20 to 40 minutes.
Odor from fireplace
When first operated, this fireplace may release an odor for the first several hours. This is caused
by the curing of materials from manufacturing. Odor may also be released from finishing materials
and adhesives used near the fireplace. These circumstances may require additional curing related
to the installation environment.
Film on the glass This is a normal result of the curing process of the paint. Glass should be cleaned within 3 to 4
hours of initial burning.Anon-abrasive cleaner such as gas appliance glass cleaner may be neces-
sary. See your dealer.
Metallic noise Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound produced by a furnace or heating duct. This noise does not affect the operation or longevity
of the fireplace.
Wall above appliance feels hot to
the touch. No action necessary. This appliance ships with a non-combustible material attached. Specifica- tions of the attached non-combustible material are listed in Section 1.E.
Glass rock media changes color
or luster This is the normal response to prolonged heat exposure. The glass rock media may lose some of its luster over time. See your dealer for replacement media.

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/1114
Glass Cleaning
Frequency: Seasonally
By: Homeowner
Tools Needed: Protective gloves, glass cleaner, drop
cloth and a stable work surface.
CAUTION! Handle fixed glass assembly with care.
Glass is breakable.
• Avoid striking, scratching or slamming glass
• Avoid abrasive cleaners
• DO NOT clean glass while it is hot
•Preparea workarealarge enoughtoaccommodate fixed
glass assembly and door frame by placing a drop cloth
on a flat, stable surface.
Note: Fixed glass assembly and gasketing may have res-
idue that can stain carpeting or floor surfaces.
•Remove door or decorative front from fireplace and set
aside on work surface.
• See Section 14.E for instructions to remove fixed glass
assembly.
• Clean glass with a non-abrasive commercially available
cleaner.
- Light deposits: Use a soft cloth with soap and water
- Heavy deposits: Use commercial fireplace glass
cleaner (consult with your dealer)
• Reinstall door or decorative front.
3
3 Maintenance and Service
A. Maintenance Tasks-Homeowner
The following tasks may be performed annually by the
homeowner. If you are uncomfortable performing any of
the listed tasks, please call your dealer for a service ap-
pointment.
CAUTION!Risk of Burns!Thefireplace shouldbeturned
off and cooled before servicing.
When properly maintained, your fireplace will give you
many years of trouble-free service. We recommend an-
nual service by a qualified service technician.
Decorative Doors
Frequency: Annually
By: Homeowner
Tools needed: Protective gloves, stable work surface
• Refer to the installation instructions which ship with the
decorative door.
• Assess condition of screen and replace as necessary.
• Inspect for scratches, dents or other damage and repair
as necessary.
•Check that louvers are not blocked.
•Vacuum and dust surfaces.
Venting
Frequency: Seasonally
By: Homeowner
Tools needed: Protective gloves and safety glasses.
• Inspect venting and termination cap for blockage or
obstructionsuch plants,bird nests,leaves, snow,debris,
etc.
• Verifytermination capclearanceto subsequentconstruc-
tion (building additions, decks, fences, or sheds). See
Section 6.
• Inspect for corrosion or separation.
• Verify weather stripping, sealing and flashing remains
intact.
• Inspect draft shield to verify it is not damaged or missing.
Decorative Media Options
Frequency: Maintenance is not required
By: Homeowner
Tools needed: Protective gloves and safety glasses.
• The decorative media options DO NOT require routine
maintenance if they are properly installed. Refer to the
installation instructions which ship the decorative media
to verify correct installation.
Any safety screen or guard removed for servicing must be
replaced prior to operating the fireplace.
Installation and repair should be done by a qualified service
technician only. The fireplace should be inspected before
use and at least annually by a professional service person.
All parts listed in this manual may be ordered from an au-
thorized dealer. A list of available service parts is located in
Section 17.C of this manual and in the installation instruc-
tions included in decorative media.

15Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/11
B. Maintenance Tasks-Qualified Service
Technician
The following tasks must be performed by a qualified ser-
vice technician.
Gasket Seal and Glass Assembly Inspection
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, drop cloth and a stable
work surface.
• Inspect gasket seal and its condition.
• Inspectfixedglass assemblyfor scratchesandnicks that
can lead to breakage when exposed to heat.
• Confirm there is no damage to glass or glass frame.
Replace as necessary.
• Verify that fixed glass assembly is properly retained and
attachment components are intact and not damaged.
Replace as necessary.
Firebox
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, sandpaper, steel wool,
cloths, mineral spirits, primer and touch-up paint.
• Inspect for paint condition, warped surfaces, corrosion
or perforation. Sand and repaint as necessary.
• Replace fireplace if firebox has been perforated.
Control Compartment and Firebox Top
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, vacuum cleaner, dust
cloths
• Vacuum and wipe out dust, cobwebs, debris or pet hair.
Usecaution when cleaning theseareas. Screw tips that
have penetrated the sheet metal are sharp and should
be avoided.
• Remove all foreign objects.
• Verify unobstructed air circulation.
Gas Pressure Information
Frequency: Upon initial installation and gas valve re-
placement or service.
By: Qualified Service Technician
Tools needed: Protective gloves, manometer, flashlight,
screw driver set.
• Gaspressure tapsare accessibleby removingthe deco-
rative front and fixed glass assembly. Refer to Section
11.A for information related to the gas valve and gas
pressure settings.
Burner Ignition and Operation
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, vacuum cleaner, whisk
broom, flashlight, voltmeter, indexed drill bit set, and a
manometer.
• Verify burner is properly secured and aligned with pilot
or igniter.
• Cleanoffburner top,inspect forplugged ports,corrosion
or deterioration. Replace burner if necessary.
• Check for smooth lighting and ignition carryover to all
ports. Verify that there is no ignition delay.
• Inspect for lifting or other flame problems.
• Verify air shutter setting is correct. See Section 14.G for
required air shutter setting. Verify air shutter is clear of
dust and debris.
• Inspect orifice for soot, dirt and corrosion. Verify orifice
size is correct. See Service Parts List for proper orifice
sizing.
• Verify manifold and inlet pressures. Adjust regulator as
required.
• Inspect pilot flame pattern and strength. See Figure 3.1
for proper pilot flame pattern. Clean or replace orifice
spud as necessary.
• Inspect IPI flame sensing rod for soot, corrosion and
deterioration. Clean with emery cloth or replace as
required.
• Verify that there is not a short in flame sense circuit
by checking continuity between pilot hood and flame
sensing rod. Replace pilot as necessary.

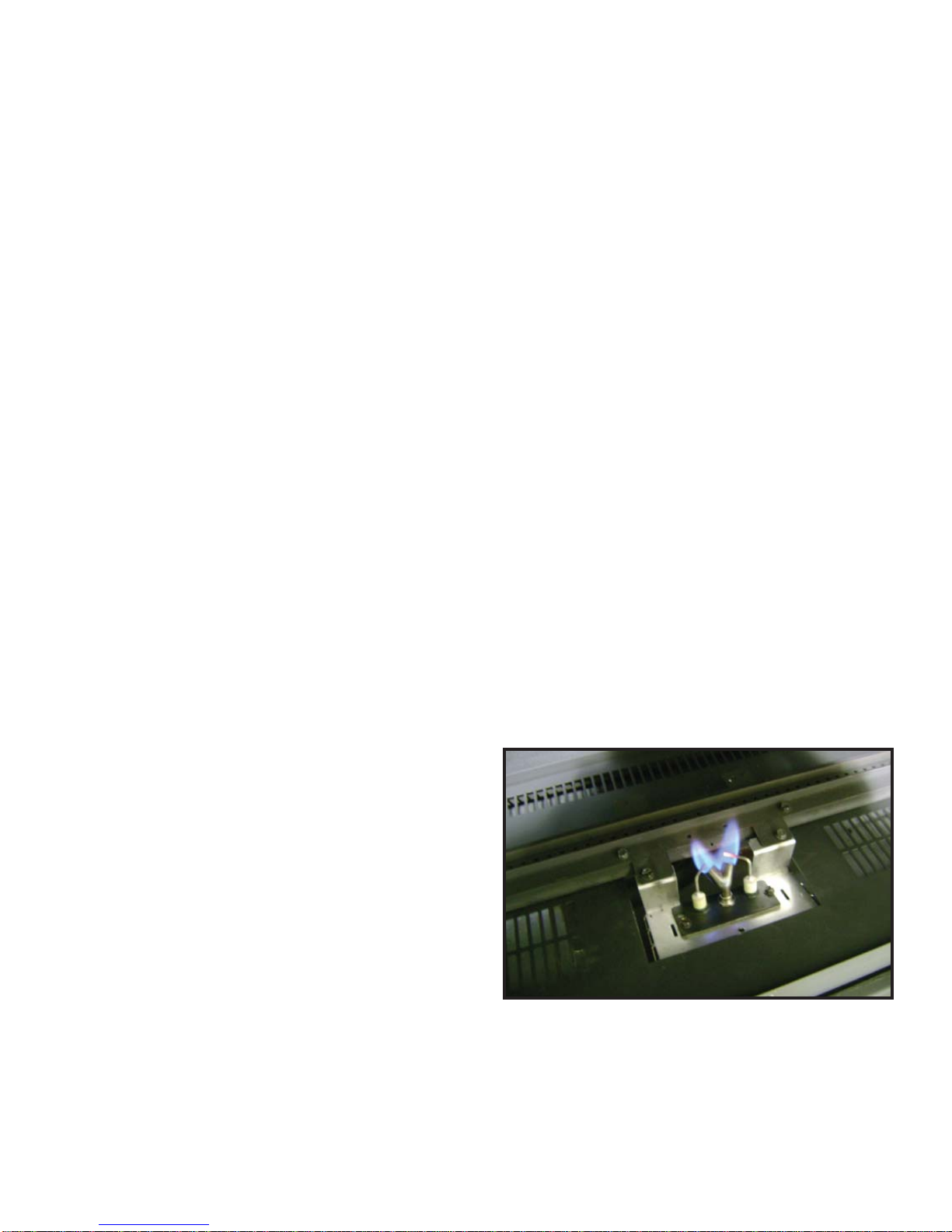

Figure 3.1 IPI Pilot Flame Pattern

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/1116
A. Typical Appliance System
NOTICE: Illustrations and photos reflect typical installations and are for design purposes only. Illustrations/diagrams are not
drawn to scale. Actual product may vary from pictures in manual
Figure 4.1 Typical System
4
4 Getting Started
Installer Guide
HORIZONTAL
TERMINATION CAP
(SECTION 10.K)
WALL PENETRATION
FRAMING (SECTION 8.B)
VERTICAL TERMINATION CAP
(SECTION 10.H)
NON-COMBUSTIBLE ROOF
FLASHING MAINTAINS MINIMUM
CLEARANCE AROUND PIPE
(SECTION 10.F)
STORM COLLAR
(SECTION 10.G)
VENT PIPE
(SECTIONS 7 and 8)
CEILING FIRESTOP
ON FLOOR OF ATTIC
(SECTION 8.C)
FRAMING/HEADER
(SECTION 5)
GAS LINE
(SECTION 11)
OPTIONAL WALL SWITCH
FRAMING HEADED
OFF IN CEILING
JOISTS (SECTION 8.C)
ATTIC INSULATION
SHIELD (NOT SHOWN)
MUST BE USED HERE
TO KEEP INSULATION
AWAY FROM VENT PIPE
IF ATTIC IS INSULATED.
(SECTION 8.D)
VENT PIPE PENETRATES
ROOF PREFERABLY
WITHOUT AFFECTING
ROOF RAFTERS
(SECTION 8.C)
REQUIRED ISOLATION SWITCH: AS5601
LOCATION WITHIN 1 METER OF
FIREPLACE, SUBJECT TO MANTEL
PIECE, ETC. CHECK TO ENSURE IT
REMAINS CLEAR ON ANY MANTEL PIECE
INSTALLATION
HEATER MUST BE INSTALLED AND
FLUE PENETRATION COMPLETE
PRIOR TO FINISH SHEETING
Note: Dual venting configurations
ARE NOT allowed. Appliance MUST
be vented EITHER vertically OR
horizontally.

17Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/11
B. Design and Installation Considerations
Heat & Glo direct vent gas appliances are designed to
operate with all combustion air siphoned from outside of
the building and all exhaust gases expelled to the outside.
No additional outside air source is required.
Before installing, determine the following:
• Where the appliance is to be installed.
• The vent system configuration to be used.
• Gas supply piping.
• Electrical wiring requirements.
• Framing and finishing details.
• Whether optional accessories—devices such as a wall
switch or remote control—are desired.
D. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative doors and
fronts may be shipped in separate packages.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
•Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure Framing material
Pliers High temperature caulking material
Hammer Phillips screwdriver (magnetic)
Gloves Framing square
Voltmeter Electric drill and bits (1/4 in. magnetic)
Plumb line Safety glasses
Level Reciprocating saw
Manometer Flat blade screwdriver
Non-corrosive leak check solution
1/2 - 3/4 in. length, #6 or #8 Self-drilling screws
One 1/4 in. female connection (for optional fan).
Hearth& HomeTechnologiesdisclaimsany responsibility for,
and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/or useofany component partnotapproved
by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualified service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualified
service technician, service agency or your dealer.

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/1118
5
5 Framing and Clearances
A. Selecting Appliance Location
When selecting alocation for theappliance it is important to
consider the required clearances to walls (see Figure 5.1).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of traffic and away from furniture and draperies.
NOTICE: Illustrations reflect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale.Actual installation may vary due to
individual design preference.
254 mm
A
E
ABCTOP VENT
ONE 90ºELBOW
ALCOVE
INSTALLATION
D*
TOP VENT
ONE 90° ELBOW
B
F
Figure 5.1 Appliance Locations
ABC D* E F
Millimeters 1350 1220 1910 See Section D.
Figure 5.5 & 5.6 490 450

19Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/11
B. Constructing the Appliance Chase
Achase is a vertical box-like structure built to enclose the
gas appliance and/or its vent system. In cooler climates
the vent should enclosed inside the chase.
NOTICE: Treatment of ceiling firestops and wall shield
firestops and construction of the chase may vary with the
type of building. These instructions are not substitutes
for the requirements of local building codes. Therefore,
you MUST check local building codes to determine the
requirements to these steps.
Chases should be constructed in the manner of all out-
side walls of the home to prevent cold air drafting prob-
lems. The chase should not break the outside building
envelope in any manner.
C. Clearances
NOTICE: Installappliance onhard metalor woodsurfaces
extending full width and depth. DO NOT install directly
on carpeting, vinyl, tile or any combustible material other
than wood.
WARNING! Risk of Fire! Maintain specified air space
clearances to appliance and vent pipe:
• Insulationandother materialsmustbesecuredto prevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with fireplace or chimney.
• Failureto maintainairspace may cause overheating and
a fire.
Note: Figure 5.2 shows the fireplace installed on the
floor. However, this fireplace can be elevated off the floor
providedthat thefireplaceis properlysupported byframing
materials and the ceiling clearances are maintained.
C
B
D
A
Figure 5.2. Clearances to Combustibles
H
E
MEASURE FROM TOP
OF FIREPLACE OPENING
I
F
J
G
MINIMUM FRAMING DIMENSIONS*
ABCDE F G HIJ
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling Combustible Floor Combustible Flooring Behind Appliance Sides of Appliance Front of Appliance
Millimeters 220 1070 460 1270 790 0 0 30 30 91
NOTE: Frame opening height is greater than plaster opening height.

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. D • 6/1120
D. Mantel and Wall Projections
WARNING! Risk of Fire! Comply with all minimum clear-
ances to combustibles as specified. Framing or finishing
material closer than the minimums listed must be construct-
ed entirely of noncombustible materials (i.e., steel studs,
concrete board, etc).
Figure 5.3 Clearances To Combustible Mantels Or Other
Combustibles Above Appliance
Mantels (Combustible/Non-Combustible)
Figure 5.4 Mantel Leg or Wall Projections
(Acceptable on both sides of opening)
UNLIMITED
TOP VIEW
80 mm
MINIMUM
FRAMING
30 mm
10 mm BUILDING MATERIAL
37 mm
Front Side Finishing Detail
Figure 5.5 Front Side Finishing Detail
360 mm
MIN.
300 mm
MAX.
10 mm
Thick Wall
Sheathing
MEASUREMENT
FROM TOP OF
FIREPLACE
OPENING
Note: For non-combustible fireplace finish material (marble,
stone, etc) specifications refer to Section 13.
Mantel Leg (Combustible/Non-Combustible)
10 mm THICK
WALL SHEATHING
890 mm
25 mm
AIR SPACE
NON-COMBUSTIBLE
BOARD SHIPPED
WITH APPLIANCE
25 mm
Figure 5.6 Non-Combustible Zone
Note: AIR SPACE denoted in Figure 5.6 is defined by the
nailing tabs and top metal standoffs.
