Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
MODEL: 6000TRSI-AUC
AUSTRALIAN GAS ASSOCIATION CERTIFIED
CERTIFICATE NUMBER 5668
THIS MANUAL MUST BE USED FOR INSTALLATION AND RETAINED
BY HOMEOWNER FOR OPERATION AND MAINTENANCE.
HEAT & GLO, a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044, USA, www.heatnglo.com
INSTALLATION AND OPERATION INSTRUCTIONS
THIS PRODUCT MAYBE COVERED BY ONE OR MORE OF THE FOLLOWING PATENTS:
(UnitedStates)4593510,4686807,4766876,4793322,4811534,5000162,5016609,5076254,5113843,5191877,5218953,5263471,5328356,5341794,5347983,5429495,5452708,5542407,
5601073,5613487,5647340, 5688568,5762062,5775408, 5890485,5931661,5941237, 5947112,5996575, 6006743,6019099,6048195, 6053165,6145502, 6170481, 6237588,6296474,
6374822,6413079,6439226,6484712,6543698,6550687,6601579,6672860,6688302B2,6715724B2,6729551,6736133,6748940,6748942,D320652,D445174,D462436;(Canada)1297749,
2195264,2225408; (Australia) 543790;586383; (Mexico) 97-0457; (New Zealand)200265; orother U.S. and foreign patents pending.

2Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
IMPORTANT: Read all instructions carefully before starting installation.
Failuretofollowtheseinstallation instructions mayresult in apossible fire
hazardand will voidthe warranty.Save thismanual for futurereference.
MODEL6000TRSI-AUC
ISAUSTRALIAN GASASSOCIATION
APPROVED FOR NATURALGAS OR PROPANE
ASABALANCED FLUE HEATER.
Referto theappliance dataplates forgas consump-
tionsand pressures.
Installation of this appliance should only be carried
outby an authorized personin accordance withthe
manufacturers instructions.All relevant codes and
regulations laid down by the gas fitting authorities,
municipalbuildingregulations,electrical wiringregu-
lations, and the requirements of the AGA Gas In-
stallationCode must beobserved.
This appliance and its components are tested and
safewhen installed inaccordance with this Installa-
tion Manual. Report to your dealer any parts dam-
aged in shipment, specifically check glass condi-
tion.The gas logs andflue system componentsare
in separate packages. Read all instructions before
PLEASE READ THIS MANUAL BEFORE INSTALLING AND
USING THIS APPLIANCE.
starting installation and follow these instructions
carefullyduringinstallationtoensuremaximum ben-
efit and safety. Failure to follow them will void your
warrantyand may present a fire hazard.
TheHeat& Glowarrantywill bevoidedby,andHeat
& Glo disclaims any responsibility for the following
actions:
• Installationof anydamaged heater orflue sys-
temcomponent
• Modificationof the heateror balancedflue sys-
teminstallationotherthan as instructedbyHeat
& Glo.
• Improperpositioningofthegaslogsortheglass
door
• Installation and/or use of any component part
not manufactured or approved by Heat & Glo,
not withstandinganyindependenttesting labo-
ratory or other party approval of such compo-
nent part or accessory.
Heat & Glo, a brand of Hearth & Home Technologies, Inc.
20802 Kensington Blvd., Lakeville, MN 55044, USA
Copyright 2006 • Printed in U.S.A.
Heat & Glo Quality Systems
registered by SGS ICS

3
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
TABLE OF CONTENTS
1.0 INSTALLATION INSTRUCTIONS. ................................................................... 4
A. Locating theHeater ..................................................................................... 5
B. FramingtheHeater ..................................................................................... 6
C. FlueSystemApprovalsand Installations ...................................................... 8
D. Connectingthe GasSupply ......................................................................... 18

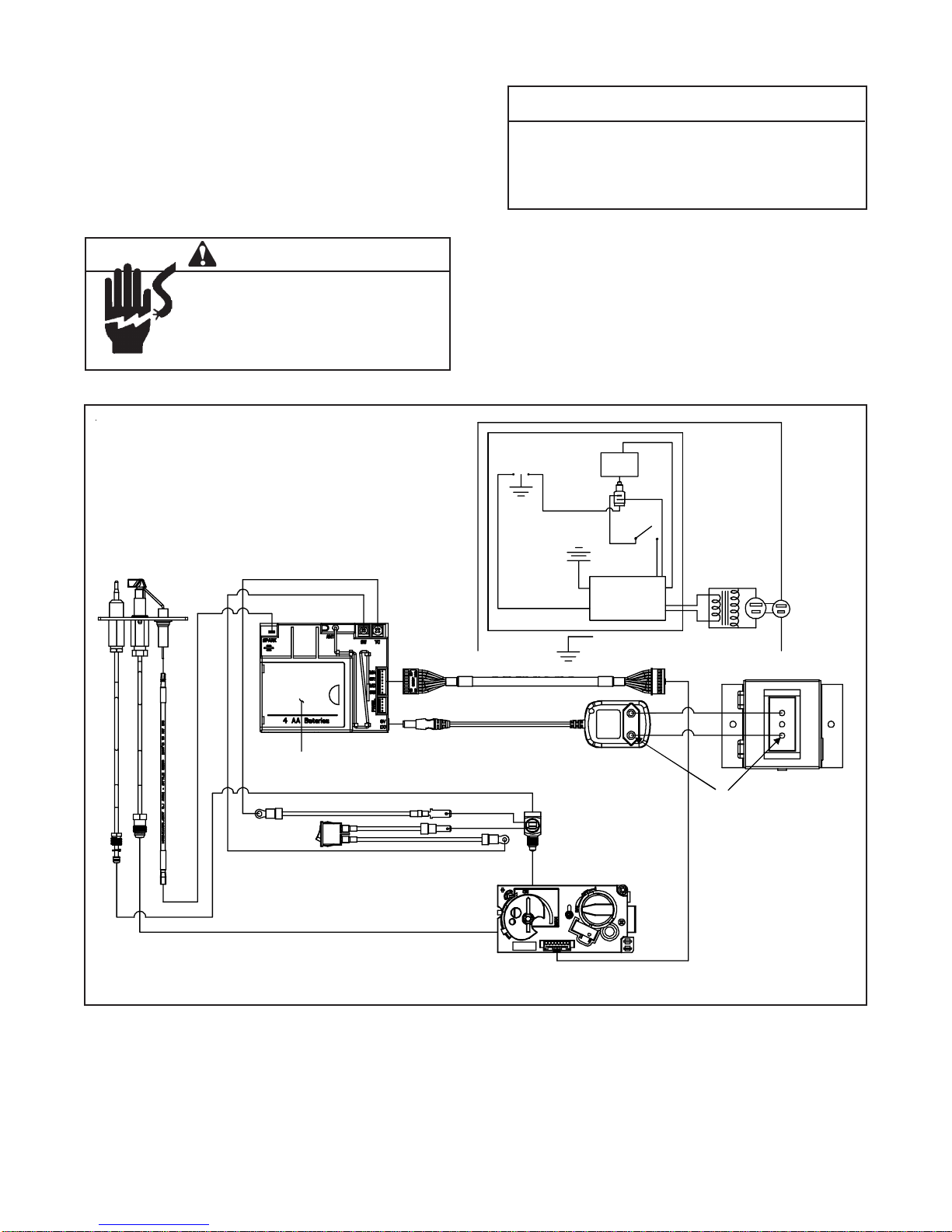

E. Ignition System Wiring ................................................................................. 19
F. MantelClearances ...................................................................................... 21
G. LogPlacement............................................................................................ 22
H. InstallerTesting ............................................................................................ 24
2.0 OPERATING INSTRUCTIONS. ........................................................................ 24
A. Safetyand LightingInformation.................................................................... 26
B. PowerOutage ............................................................................................. 27
C. FanOperation ............................................................................................. 27
3.0 SERVICING AND MAINTENANCE. ................................................................. 28
A. Removalof CoversforServicing ................................................................. 29
B. RemovalofComponentsforService ........................................................... 29
C. PartsReplacement...................................................................................... 29
D. Adjustmentsand ReplacementParts ........................................................... 29
E. Troubleshooting........................................................................................... 30
4.0 REPLACEMENT PARTS. ................................................................................ 33
LimitedWarranty ............................................................................................... 35
Í

4Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
FIGURE1.1 Diagram of the 6000 Series
1.0 INSTALLATION INSTRUCTIONS
When planning a heater installation, it’s necessary
todetermine:
•Where the unit is to be installed.
•The flue system configuration to be used.
•Gas supply piping.
•Electricalwiring.
•Framingand finishing details.
Ifthe heater isto be installedon carpeting ortile, or on
anycombustible materialother thanwood flooring,the
heater should be installed on a metal or wood panel
that extends the full width and depth of the heater.
2-1/2
64
[]
5
126.9
[]
27
686
[]
6-7/8
174
[]
2-3/8
61
[]
Ø8203[]
9-7/8
250[]
28-3/8 722[]
14-1/4 362
[]
21-1/2
547[]
18-3/4
476[]
31-5/8
803[]
41 1043[]
36-1/8
917[]
38
965[]
ELECTRICAL
ACCESS
GAS LINE
ACCESS
TOP
STANDOFFS
GLASS
DOOR
DATA BADGE & LABELS
ELECTRICAL
ACCESS
GAS CONTROLS
AND SWITCHES
GAS LINE
ACCESS
(BEHINDACCESSDOOR)

5
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
Clearance Requirements
The top, back, and sides of the heater are defined by standoffs.
The minimum clearance to a perpendicular wall extending past the face of the heater is
one inch (25 mm).
For6000 SeriesModels, the backof theheater may be recessed 21-1/2inches (546mm)
into combustible construction.
FIGURE 1.2 Heater Dimensions, Locations and Space Requirements
A. Locating the Heater
Thediagram (seeFigure 1.2) showsspace andclearance requirements for locating aheater withina room.
Minimum Clearances from the Heater to
Combustible Materials
Glass Back of Sides of Top of
Front Floor Heater Heater Heater Ceiling
36 inches 0 1/2inch 1/2inch 3-1/2inches 31 inches
(914mm) (13mm) (13mm) (89 mm) (787mm)
1”MIN. (25mm)
C
A
B
D
E
3” (76.2mm)
A B C D E
Inches 42 22 38 53-3/4 76
Millimeters 1066 559 965 1365 1930
Rear Flue
A B C D E
Inches 42 22 36 50-15/16 72
Millimeters 1066 559 914 1294 1829
1” MIN. (25mm)
B
E
1/2” MIN. (12.5mm)
C
D
Top Flue
For minimum clearances, see the direct flue termination clearance diagrams on page 7.
Minimum Clearances from the Flue Pipe to Combustible Materials
For Horizontal Sections For Vertical
Sections At Wall Firestops
Top Bottom Sides 1 inch
(25mm)
Top Bottom Sides
3 inches
(75mm) 1 inch (25mm) 1 inch (25mm) 2-1/2 inches (63.7mm) 1/2 inch (13mm) 1 inch (25mm)

6Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
Framing should be constructed of
2 X 4 lumber or heavier.
ABC DE
42-1/8 in. 38-19/32 in. 22-1/16 in. 26-7/8 in. 47-3/4 in.
(1070mm) (980mm) (560mm) (684mm) (1060mm)
FIGURE1.3 Framing Dimensions
B. Framing the Heater
Framingcan be built before orafter the heater is setin
place. Framing should be positioned to accommodate
wallcoverings andheater facingmaterial. The diagram
belowshows framingreference dimensions.
The framing
headers may rest
on the heater
standoffs.
CAUTION: MEASURE HEATER DIMENSIONSAND
VERIFY FRAMING METHODS AND WALL COVER-
INGDETAILS,BEFORE FRAMING CONSTRUCTION
BEGINS.
* NOTE: Dimension Btaken from finished
hearthframe. DimensionsDand Etaken
frombottom of unit.
B*
A
C
86 mm
76 mm
NON-COMBUSTIBLE ZONE
IS DEFINED BY 76MM ABOVE
THE ELBOW FOR THE ENTIRE
WIDTH AND DEPTH (BEHIND
THE FRONT HEADER) OF
THE FIREBOX.
WALL
STUD
E*
D*

7
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
NOTES: 1. All distances are measured vertically or horizontally along the wall to a point
in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. See clause 5.13.6.6 for restrictions on a flue terminal under a roofed area.
4. See Appendix J, Figure J1(a) and J2(a) for clearances required from a flue
terminal to a LP Gas cylinder. A flue terminal is considered to be a source of ignition.
MINIMUMCLEARANCESREQUIREDFORBALANCED FLUE TERMINALS
ORTHEFLUETERMINALS OF OUTDOORAPPLIANCES
FIGURE1.4
CLEARANCES 'n' (mm)
Space heaters All other appliances
Up to 50 MJ/h
input UP to 50 MJ/h input Over 50 MJ/h & up
to 150 MJ/h
Over 150 MJ/h
input
150 500 1000 1500
a - Below eaves, balconies or other projections: MIN. CLEARANCE (mm)
Appliances up to 50 MJ/h input ........................................................................................... 300
Appliances over 50 MJ/h input ............................................................................................ 500
b - From the ground or above a balcony...................................................................................... 300
c - From a return wall or external corner ..................................................................................... 500
d - From a gas meter (M) ...........................................................................................................1000
e - From an electricity meter or fuse box (P) ............................................................................... 500
f - From a drain or soil pipe......................................................................................................... 150
g - Horizontally from any building structure (unless appliance approved
for closer installation) or obstruction facing a terminal ......................................................... 500
h - From any other flue terminal, cowl, or combustion air intake ............................................... 500
j - Horizontally from an openable window, door, non-mechanical air
inlet, or any other opening into a building, with the exception of
sub-floor ventilation:
Appliances up to 150 MJ/h input ......................................................................................... 500
Appliances over 150 MJ/h input ........................................................................................1500
k - From a mechanical air inlet, including a spa blower .........................................................1500
n - Vertically below an openable window, non-mechanical air
inlet or any other opening into a building, with the exception of ................................. See table
sub-floor ventilation............................................................................................................. below
T = Flue terminal M = Gas meter Shading indicates prohibited
I = Mechanical air inlet P = Electricity meter or fuse box areas for flue terminals

8Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
This model is approved to use DVP-Series flue pipe
components.ADVP-TRAP2TerminationCapmustbe
usedtoterminatefluesystemsinahorizontalposition.
ADVP-TVHWverticalTerminationCapmustbeusedto
terminate flue systems in a vertical position.

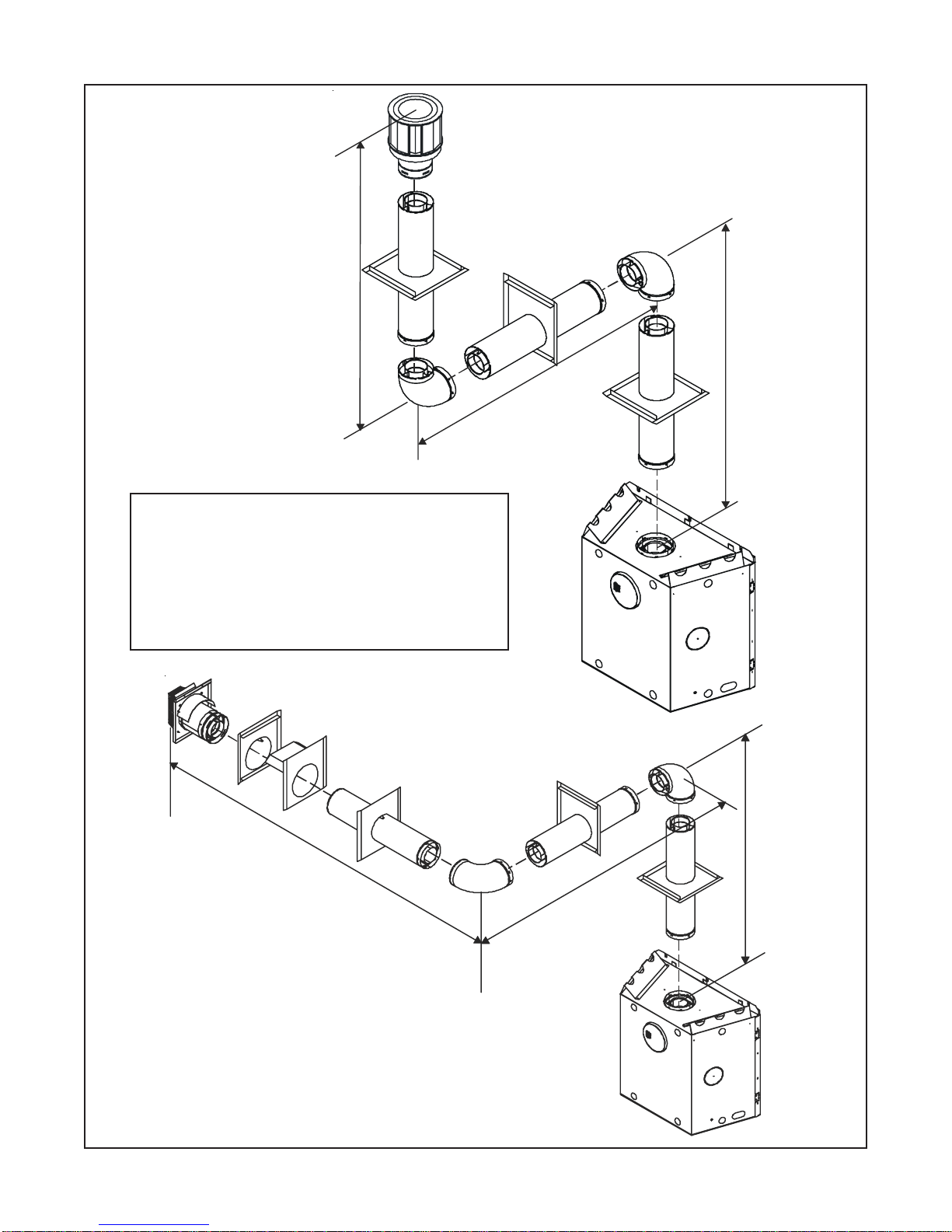

Figures 1.7 through 1.14 show the flue systems ap-
provedforthese models.Approvedflue systemcompo-
nents are labeled for identification. NO OTHER FLUE
SYSTEMS OR COMPONENTS MAY BE USED. De-
tailed installation instructions are included with each
flue termination kit and should be used in conjunction
with this manual.
WARNING: THIS GAS APPLIANCE AND FLUE AS-
SEMBLY MUST BE FLUED DIRECTLY TO THE OUT-
SIDEAND MUSTNEVER BEATTACHEDTOACHIM-
NEYSERVINGASEPARATE SOLIDFUELBURNING
APPLIANCE. EACHGAS APPLIANCE MUSTUSE A
SEPARATE FLUE SYSTEM-COMMON FLUE SYS-
TEMSARE PROHIBITED.
CAUTION: UNDER NO CONDITION SHOULD COM-
BUSTIBLEMATERIALBECLOSER THAN 3 INCHES
(2 1/2 INCHES AT WALL FIRESTOPS) FROM THE
TOPOFTHE8 INCH PIPE OR 1- INCH TO THESIDES
AND THE BOTTOM FOR HORIZONTAL SECTIONS
OF THIS FLUE SYSTEM. VERTICAL SECTIONS OF
THIS SYSTEM REQUIRE A MINIMUM OF 1 INCH
CLEARANCE TO COMBUSTIBLE MATERIALS ALL
AROUND THE 8 INCH PIPE.
For alternative installations, other than depicted, con-
tactyour dealer forfurther information.
Refer to Figure 1.4 for required clearances to flue ter-
minals.
MODEL FLUE TERMINATIONAPPROVALS
6000TRSI-AUC DVP-TRAP2, DVP-TVHW
TABLE 1
FIGURE1.5
VERTICALFLUERESTRICTOR
Ifthe heater installationrequires avertical flueexceed-
ing 4.5m above the unit with no horizontal flue or el-
bows a vertical flue restrictor must be installed (see
Figure1.5).
FIGURE1.6
V
CAP
V
MAX.RUN
36FT.
(10.97m)
STRAIGHT UP VERTICAL FLUE SYSTEM
Figure 1.6 shows straight up vertical flue system ap-
provedfor use on thismodel.
C. FLUE SYSTEM APPROVALS AND
INSTALLATIONS
RESTRICTOR
PLATE

9
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
FIGURE 1.7 Straight Out Horizontal Flueing
HH
MIN.RUN MAX. RUN
13.1"(331mm) 24" (610mm)
H
FIGURE1.8 Flueing with One 90° Elbow
V H
1´ MIN. (0.30 M) 2´ MAX. (0.61 M)
2´ MIN. (0.61 M) 4´ MAX. (1.22 M)
3´ MIN. (0.91 M) 6´ MAX. (1.83 M)
4´ MIN. (1.22 M) 8´ MAX. (2.44 M)
24´ MAX. (7.32 M) 8´ MAX. (2.44 M)
V
H
STRAIGHT OUT HORIZONTALFLUE SYSTEM
Figure 1.7 shows straight out horizontal flue systems
approvedfor use onthis model.
ONE(1)90-DEGREEELBOW
Figures 1.8 and 1.9 show an installation using one (1)
90-degree elbow. Dimension V is listed as MINIMUM
verticaldimensions and dimensionH is listed as corre-
sponding MAXIMUM horizontaldimensions.
TWO(2)90-DEGREEELBOWS
Figures 1.10 and 1.11 show examples of possible in-
stallationsusing two (2) 90-degree elbows. Dimension
V is listed as MINIMUM vertical dimensions, dimen-
sion H is listed as MAXIMUM beginning horizontal di-
mensions,anddimension H+H1islisted ascorrespond-
ing TOTALMAXIMUM horizontaldimensions.
THREE(3)90-DEGREEELBOWS
Figures 1.12 through 1.14 show examples of possible
installationsusing three (3) 90-degree elbows. Dimen-
sions V are listed MINIMUM first vertical dimensions
and dimensions H are listed as beginning MAXIMUM
horizontaldimensions. DimensionsH+H1 andH+H1+H2
arelisted asTOTAL MAXIMUM horizontaldimensions.
DimensionsV+V1are listed asTOTALMAXIMUM ver-
tical dimensions.
ELBOWS
The flue systems installed on this gas heater may
also include one (1), two (2), or three (3) 90 - degree
elbowassemblies.
Figures 1.8 through 1.14 and their corresponding
tables show examples of flue configurations using
elbows. The relationships of vertical rise to horizon-
tal run in flue configurations using elbows MUST be
strictly adhered to.

10 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
FIGURE 1.10 Flueing with Two 90° Elbows
V FT.) H (FT.) H+H1 (FT.)
1' MIN. (0.30 M) 2' MAX. (0.61 M) 4' MAX. (1.22 M)
2' MIN. (0.61 M) 2' MAX. (0.61 M) 8' MAX. (2.44 M)
3' MIN. (0.91 M) 4' MAX.(1.22 M) 12'MAX. (3.66 M)
4' MIN. (1.22 M) 6' MAX. (1.83 M) 16'MAX. (4.88M)
20' MAX. (6.10M) 6' MAX. (1.83 M) 16'MAX. (4.88M)
H
1
V
H
V (FT.) H (FT.)
1' MIN. (0.30 M) 4' MAX. (1.22 M)
2' MIN. (0.61 M) 8' MAX. (2.44 M)
3' MIN. (0.91 M) 12' MAX. (3.66 M)
4' MIN. (1.22 M) 16' MAX. (4.88 M)
V+H= 24’ MAX. (7.32 M)
FIGURE1.9 Flueing with One 90° Elbow
NOTE:A6-inch (152mm) sectionof straight pipemust
needto be attachedtothe fireplace beforea 90o elbow.
H
V

11
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
FIGURE1.11 Flueing with Two 90° Elbows
V FT. H + H1(FT.)
1' MIN. (0.30M) 4' MAX. (1.22 M)
2' MIN. (0.61M) 8' MAX. (2.44 M)
3' MIN. (0.91M) 12' MAX. (3.66 M)
4' MIN. (1.22M) 16' MAX. (4.88 M)
V+H+H1=36'MAX.(10.97 M)
V+V1+H= 36'MAX.(10.97 M)
H
1
H
V
V
V
1
H

12 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
FIGURE1.13 Flueing with three 90° elbows
FLUEING WITH THREE (3) 90° ELBOWS
V H H + H1
1´ MIN. (0.30 M) 2´ MAX. (0.61 M) 3´ MAX. (0.91 M)
2´ MIN. (0.61 M) 4´ MAX. (1.22 M) 6´ MAX. (1.83 M)
3´ MIN. (0.91 M) 6´ MAX. (1.83 M) 9´ MAX. (2.74 M)
4´ MIN. (1.22 M) 8´ MAX. (2.44 M) 12´ MAX. (3.66 M)
8´ MAX. (2.44 M) 12´ MAX. (3.66 M)
NOTE: V + V, MAX. 36´ (10.97 M)
FLUEING WITH THREE (3) 90° ELBOWS
FIGURE1.12 Flueing with three 90° elbows
V H H + H1+ H2
1´ MIN. (0.30 M) 2´ MAX. (0.61 M) 3´ MAX. (0.91 M)
2´ MIN. (0.61 M) 2´ MAX. (0.61 M) 6´ MAX. (1.83 M)
3´ MIN. (0.91 M) 4´ MAX. (1.22 M) 9´ MAX. (2.74 M)
4´ MIN. (1.22 M) 6´ MAX. (1.83 M) 12´ MAX. (3.66 M)
20´ MAX. (6.10 M) 6´ MAX. (1.83 M) 12´ MAX. (3.66 M)
H
V
H
1
V
1
H
H
1
H
2
V

13
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
FLUEING WITH THREE (3) 90° ELBOWS
V (FT.) H + H1(FT.)
1' MIN. (0.30 M) 3' MAX. (0.91 M)
2' MIN. (0.61M) 6' MAX. (1.83 M)
3' MIN. (0.91M) 9' MAX. (2.74 M)
4' MIN. (1.22M) 12' MAX. (3.66 M)
NOTE: V + V1 + H + H1= 32' MAX. (9.75 M)
V (FT.) H + H1 (FT.)
1' MIN. (0.30 M) 3' MAX.(0.91 M)
2' MIN. (0.61 M) 6' MAX.(1.83 M)
3' MIN. (0.91 M) 9' MAX.(2.74M)
4' MIN. (1.22 M) 12' MAX.(3.66 M)
NOTE:V+V1+H+H1= 32' MAX.(9.75 M)
FIGURE1.14 Flueing with three 90° elbows
V
H
H
1
V
1
V
H
H
1
V
1

14 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
1. Attach the Flue Component to the Starting Collars
Toattachthefirst fluecomponent tothe startingcollars
ofthe fireplace:
• Makesure that the heater gasket supplied with the
heater seals between the first flue component and
theouter heater wrap (see Figure 1.16).
• Slidethe male end ofthe inner flue ofthe pipe sec-
tionover the innercollar on theheater.At the same
time,slide theouter flue over the outercollar onthe
heater.Push theflue section intothe appliancecol-
lar until all the lances (see Figure 1.17) have
snappedin place.Tug slightlyon theflue toconfirm
that it has completely locked into place.
• The first 90° elbow installed in the flue system of a
rearflueing heater MUST BE in avertical position.
FIGURE1.17
Figure 1.16 Fiberglass Gasket
FIRST VENT
COMPONENT
FIBERGLASS
GASKET
OUTER
WRAP
!
1. Installing Flue Components
Afterdeterminingwhichsetofstartingcollarswillbeused
(toporrear), followflueinginstructions accordingly.
Flueing Out the Rear Flue
Removethe installed rear seal cap from the rear start-
ing collars by cutting the strap at each end. (See Fig-
ure1.15).Followtheflueconfigurationtablesaccordingly.
Removetheinsulationfromthe REARfiveinchflue,pull
the heat shield out from outside of the firebox.
WARNING: THE TOP HEAT SHIELD (IN-
SIDE THE FIREBOX) MUST REMAIN AT-
TACHED IF THE FLUE SYSTEM IS AT-
TACHED TO THE REAR STARTING COL-
LARS. SEE FIGURE 14.
Flueing Out the Top Flue
Remove the two screws in the top flue collar seal cap
andremove thetop flue collar seal capand two pieces
of insulation inside the top two starting collars (See
Figure1.15).
Remove the heat shield from inside the TOP five inch
fluefrom outside of the firebox.
WARNING: THEREARFLUE COLLAR SEAL
CAPMUSTREMAINATTACHEDTOTHEREAR
FLUE COLLARS IF THE FLUE SYSTEM IS AT-
TACHED TO THE TOP STARTING COLLARS.
Figure 1.15
CUT
HERE
Flueing Out Rear FlueingOut Top
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
HEAT
SHIELD
INSULATION
DISCARD BOTH
PIECES and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
Cut the seal cap
strapand remove white
gasketmaterial.
!

15
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
WARNING: ENSURE THAT THE HEATER GASKET
SUPPLIED WITH THE HEATER SEALS BETWEEN
THE FIRST FLUE COMPONENT AND THE OUTER
HEATERWRAP.
2. Assembling Flue Components
Fire Risk
Exhaust Fumes Risk
Impaired Performance of Appliance
• Overlap pipe slip sections at
least 1-1/2 inches (38.1mm).
• Use pilot holes for screws.
• Screws must not exceed one
inch long.
• Pipe may separate if not properly
joined.
WARNING
Insert the inner flue of sectionAinto the flared inner flue
of section B.
Start the outer flue of section A over the outer flue of
section B (see Figure 1.18). Note: The end of the pipe
sectionswith the lances/tabs on it will face towards the
appliance.
Onceboth inner and outerflues are started, presssec-
tionAontosectionB firmlyuntil alllanceshave snapped
into place. Check to make sure they have snapped to-
gether(see Figure1.19) and the seamsare notaligned
(seeFigure 1.20).Tugslightly onsectionAtoconfirm it
has completely locked into place.
Figure 1.18 Figure 1.19
Figure 1.20 Seams
Note: Make sure that the seams are not aligned to
prevent unintentional disconnection.
A
B
CORRECT
INCORRECT
NOTE: Make sure that seams are NOT aligned to
preventunintentional disconnection.
For elbows that are changing the flue direction, two
screws minimum should be put in the outer flue at the
jointto prevent the elbowfrom rotating.

16 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
10" (254mm)
12" (305mm)
INTERIOR
WALL SHIELD
For Vertical Runs - One firestop is REQUIRED atthe
hole in each ceiling through which the flue passes.
To install firestops for vertical runs that pass through
ceilings:
• Positiona plumb bobdirectly over the center of the
verticalflue component.
• Mark the ceiling to establish the centerpoint of the
flue.
• Drill a hole or drive a nail through this center point.
• Checkthe floorabove forany obstructions,such as
wiringor plumbingruns.
• Reposition the heater and flue system, if neces-
sary, to accommodate the ceiling joists and/or ob-
structions.
• Cuta10" x10" (254mmX254mm) holethrough the
ceiling, using the firestop pipe opening as a guide.
• Frame the hole with framing lumber the same size
as the ceiling joists.
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on
bothsides ofa combustiblewall throughwhich theflue
passes.
Toinstallfirestops(heat shield)for horizontalruns that
passthrough either interior or exteriorwalls:
• Cut a 10-inch by 12-inch (254 mm X 305 mm) hole
throughthe wall.
• Positionthe firestops onboth sides of the hole pre-
viously cut and secure the firestops with nails or
screws.
• Thepipe opening of the firestops MUST BE placed
towards the bottom of the firestop.
• Continuethe flue runthrough the firestop.
FIGURE 1.22 Flue Pipe & Firestop
FIGURE 1.21 Installing Support Brackets
WALL BRACKET
WALL STUD
8 FT.
(2.4m)
FLUE
OUTLET
1 INCH MIN.
(25mm)
3. Install Support Brackets
For Horizontal Runs - The flue system must be
supportedeveryfive (5)feet(1.5m) ofhorizontal run by
a horizontal pipe support. To install support brackets
forhorizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
ForVertical Runs - The flue systemmustbesupported
every eight feet (2.4 M) above the heater flue outlet by
wallbrackets.Toinstallsupportbracketsforverticalruns:
• Attachwall brackets to the fluepipe and securethe
wall bracket to the framing members with nails or
screws.

17
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
FIGURE 1.23 Hole and New Framing Members
If the area above the ceiling is NOT an attic, position
and secure the ceiling firestop on the ceiling side of
thepreviously cut andframed hole.
FIGURE 1.24 Ceiling Firestop (Ceiling Side)
If the area above the ceiling IS an attic, position and
securethefirestopontopofthepreviously framedhole.
For Horizontal Terminations - To attach and secure
the termination to the last section of horizontal flue:
• The rear flue heat shield MUST be placed one inch
abovethe topofthe fluebetween thewall shieldand
the base of the termination cap.
• Onesection ofthe heatshield is attachedto thewall
shield. The other is attached to the termination cap
inthe same manner.
• The heat shield sections will overlap to match the
wallthickness (depth).
• Ifthewall thickness doesnotallow the required1-1/2
inch heat shield overlap, an extended heat shield
mustbe used.The extendedheat shieldwill need to
be cut to the thickness of the wall and be attached
to the wall shield.
• The small leg in the shield rests on top of the flue to
properly space it from the pipe section (see Figure
1.26).
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (254mm)
10” (254mm)
FIGURE 1.26 Flueing through the Wall
EXTERIOR
INTERIOR
Interior
Wall Shield
Inner Flue
Rear Vent
Heat Shield
38mm min.
overlap
Outer Flue
38mm min.
Overlap
FIGURE 1.25 Attic Firestop
• The termination kit should pass through the wall
firestopsfrom the exterior of thebuilding.
C. Flue Termination

18 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
FIGURE1.28
D. CONNECTING THE GAS SUPPLY
Thegas is introduced to theappliance onthe left hand
side. See Figure 1.28.
Afterthe gas pipe installation iscomplete, check care-
fullyall gasconnections for leakswith acommercially-
available,noncorrosive leakcheck solution.Be sure to
rinse off all leak check solution following testing. DO
NOT USEAN OPEN FLAME.
NOTE: THE GAS SUPPLY LINE SHOULD BE
PURGED OF ANY TRAPPED AIR PRIOR TO THE
FIRST FIRING OF THE UNIT.

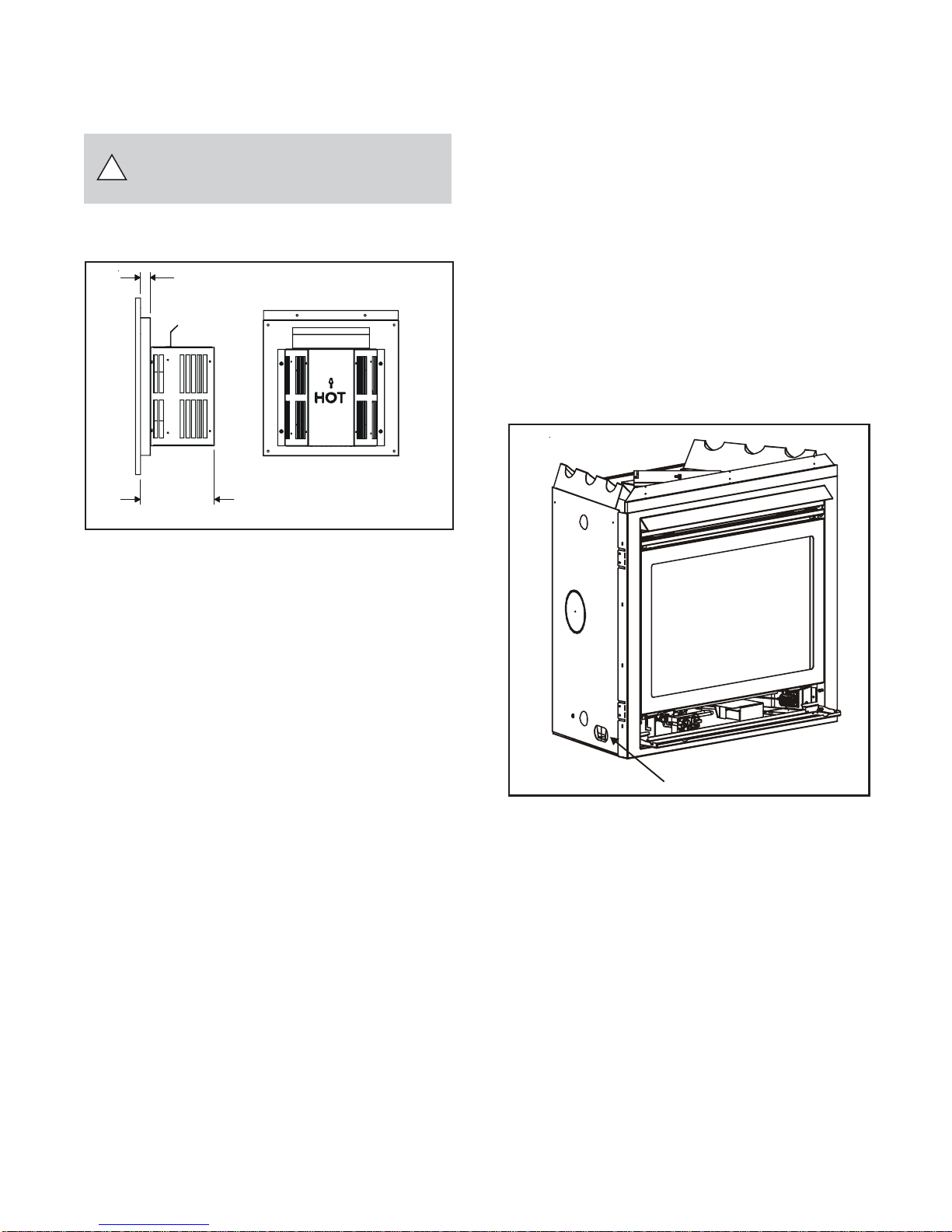

FIGURE 1.27 Termination Cap
ForVertical Terminations-Tolocatetheflueandinstall
the flue sections:
• Locateand mark the flue center point on the under-
side of the roof, and drive a nail through the center
point.
• Make the outline of the roof hole around the center
point nail.
• Thesizeof theroofhole framingdimensionsdepend
onthepitch ofthe roof.ThereMUST BE a 1-inch(25
mm)clearancefrom theverticalflue pipetocombus-
tible materials.
• Markthe roof hole accordingly.
• Coverthe opening ofthe installed fluepipes.
• Cutand frame the roof hole.
• Useframing lumber thesame sizeasthe roofrafters
and install the frame securely. Flashing anchored to
theframe mustwithstandheavy winds.
• Continuetoinstallconcentricfluesectionsupthrough
theroof holeand up pastthe roofline untilyou reach
theappropriate distanceabove the roof.
1” (25mm)
7-1/2”
(192mm)
MINIMUM
!
• Adjust the termination cap to its final exterior posi-
tion on the building and interlock the flue sections.
WARNING: THE TERMINATION CAP
MUST BE POSITIONED SO THAT THE
ARROW IS POINTING UP.
• Use a high-temperature sealant gasket to seal be-
tweenthe pipe and exterior firestop.
CAUTION:FOLLOWTHEREQUIREMENTSOFTHE
AGA GAS INSTALLATION CODE FOR MINIMUM
HEIGHTREQUIREMENTSABOVE THE ROOF.
To seal theroof hole,and to divertrain andsnow from
the flue system:
• Attach a flashing to the roof using nails, and use a
non-hardeningmasticaroundtheedgesoftheflash-
ing base where it meets the roof.
• Attacha storm collarover the flashing joint to form
a water-tight seal. Place non-hardening mastic
around the joint, between the storm collar and the
verticalpipe.
• Slide the termination cap over the end of the flue
pipe and rotate the pipe clockwise 1/4 turn.
GAS LINE
ACCESS

19
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
WARNING
FIGURE1.29
E. IGNITION SYSTEM WIRING
• Thisgasfireplaceis equippedwithan electronic igni-
tion system which operates on a 6 volt system.
• This appliance requires 240 VAC to be wired to the
factoryinstalledjunction box.Checkfactory installed
powercordfor damagebeforeusing.
Shock Risk
• Replace damaged wire with type
105OC rated wire.
• Wire must have high temperature
insulation.
CAUTION
Labelallwiresprior to disconnectionwhenservic-
ing controls. Wiring errors can cause improper
anddangerousoperation.Verifyproperoperation
afterservicing.
IGNITION
MODULE
(6V)
ON/OFF
WALL SWITCH
VALVE
FLAME SPARKER/
SENSOR
ANT.
REMOTE
CONTROL
HOTNEUTRAL
GROUND
BATTERY PORT
VALVE
PILOT
IGNITION MODULE
6VDC
ON/OFF
SWITCH
THERMOCOUPLE
BLOCK
(CONNECTED TO
BACK OF VALVE)
GAS LINE
CONNECTED TO
BACK OF VALVE
PLUG IN

20 Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. G • 12/06
FIGURE1.30
NOTE:IFANYOFTHEORIGINAL
WIREAS SUPPLIED WITH THE
APPLIANCEMUSTBE RE-
PLACED,ITMUSTBE REPLACED
WITH TYPE 105•C RATED WIRE.
FIGURE1.31
Blower Fan
Thisheater has a factory installed blower fan,
electricaljunctionboxes, variable speedrheo-
stat control switch and temperature sensor
switch for the blower fan. These components
arelocatedbehind thelowerdoor.
The factory installed power cord is attached
on the lower front right exterior side of the
heater. Figure 1.30 shows the blower fan,
switches,and blowerfan wiringdiagram. See
Figure1.31 for wireconnection detail.
BROWN
BROWN
BLUE
BLACK
BLUE
BLACK
(HOT) BROWN
(NEUTRAL) BLUE
BLACK
BLACK
BLUE
BROWN
GREEN/YELLOW
BLOWER
TEMPERATURE
SENSOR SWITCH
240VAC JUNCTION BOX
VARIABLE
SPEED
CONTROL
BROWN
BLUE
BLACK
BROWN
BLUE
BROWN
BLUE
BLACK
GREEN/YELLOW
STRIPE
GREEN/YELLOW STRIPE
