Heat & Glo BAY-38HV Assembly instructions

1
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-What to do if you smell gas
 Do not try to light any appliance.
 Do not touch any electrical switch.
 Do not use any phone in your building.
 Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
 If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Model:
BAY-38HV
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
287-900E 5/01
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTURE REFERENCE.
1. This appliance may be installed in an af-
termarket, permanently located, manufac-
tured (mobile) home, where not prohibited
by local codes.
2. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
Please contact your Heat-N-Glo dealer for any
questions or concerns. For the number of your
nearest Heat-N-Glo dealer, please call 952-985-6000.
Printed in U.S.A. Copyright 2001,
Heat-N-Glo, a division of Hearth Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
!
These units MUST use one of the vent systems
described in the Installing the Fireplace section of the
Installers Guide. NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached
to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate
vent system. Common vent systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in place
on the fireplace before the unit can be placed into
safe operation.
DO NOT OPERATE this appliance with the glass door
removed, cracked, or broken. Replacement of the
glass door should be performed by a licensed or
qualified service person. DO NOT strike or slam the
glass door.
The glass door assembly SHALL ONLY be replaced
as a complete unit, as supplied by the gas fireplace
manufacturer. NO SUBSTITUTE material may be
used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass door
when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing must
be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO FOLLOW
these installation instructions may result in a possible
fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the Using
Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been under
water. Immediately CALL a qualified service technician
to inspect the unit and to replace any part of the control
system and any gas control which has been under
water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use and
at least annually by a professional service person.
More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It
is IMPERATIVE that the units control compartment,
burners, and circulating air passageways BE KEPT
CLEAN to provide for adequate combustion and
ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operations.
Due to the high temperature, the appliance should be
LOCATED out of traffic areas and away from furniture
and draperies. Clothing or flammable material
SHOULD NOT BE PLACED on or near the appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should STAY
AWAY to avoid burns or clothing ignition. Young children
should be CAREFULLY SUPERVISED when they are in
the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!

3
TABLE OF CONTENTS
Safety and Warning Information ................................................ 2
Service Parts Lists ..................................................................... 4
Section 1: Approvals and Codes ............................................... 6
Appliance Certification................................................................... 6
Installation Codes .......................................................................... 6
High Altitude Installations ............................................................... 6
Section 2: Getting Started ......................................................... 7
Introducing the Heat-N-Glo Gas Fireplaces .................................. 7
Pre-installation Preparation ........................................................... 7
Section 3: Installing the Fireplace ............................................ 9
Constructing the Fireplace Chase ................................................ 9
Step 1 Locating the Fireplace ................................................... 9
Step 2 Framing the Fireplace.................................................. 10
Step 3 Installing the Vent System ............................................ 12
A. Vent System Approvals ........................................... 12
B. Installing Vent Components .................................... 19
C. Vent Termination .................................................... 22
Step 4 Positioning, Leveling, and
Securing the Fireplace................................................. 25
Step 5 The Gas Control Systems ........................................... 25
Step 6 The Gas Supply Line ................................................... 26
Step 7 Gas Pressure Requirements ...................................... 26
Step 8 Wiring the Fireplace .................................................... 27
Step 9 Finishing ...................................................................... 29
Step 10 Installing Trim, Logs, and Ember Material.................... 30
Installing the Trim ......................................................... 30
Positioning the Logs .................................................... 30
Placing the Ember Material .......................................... 30
Glass Specifications ..................................................... 31
Step 11 Before Lighting the Fireplace ....................................... 31
Step 12 Lighting the Fireplace .................................................. 31
After the Installation ..................................................................... 31
Section 4: Maintaining and Servicing Your Fireplace ......... 32
u= Contains updated information.
u
u

6
Appliance Certification
The Heat-N-Glo fireplace model discussed in this Installers
Guide has been tested to certification standards and listed
by the applicable laboratories.
Certification
MODEL: BAY-38HV
LABORATORY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace
STANDARD: ANSI Z21.50CGA2.22UL307B
Installation Codes
The fireplace installation must conform to local codes. Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
the United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(in the United States), or to the CSAC22.1 Canadian Electric
Code (in Canada).
These models may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
1Approvals and
Codes
High Altitude Installations
U.L. Listed gas fireplaces are tested and approved for
elevations from 0 to 2,000 feet in the U.S.A. and from 0 to
4,500 feet in Canada.
When installing this fireplace at an elevation above 2,000
feet (in the United States), it may be necessary to decrease
the input rating by changing the existing burner orifice to a
smaller size. Input should be reduced four percent (4%) for
each 1,000 feet above sea level, unless the heating value of
the gas has been reduced, in which case this general rule
will not apply. To identify the proper orifice size, check with
the local gas utility.
When installing this fireplace at an elevation between 2,000
and 4,500 feet (in Canada), the input rating must be reduced
by ten percent (10%).
When installing this fireplace at an elevation above 4,500
feet (in Canada), check with local authorities.
Consult your local gas utility for assistance in determining
the proper orifice for your location.
Heat-N-Glo Quality
Systems registered
by SGS ICS

7
2Getting Started
Introducing the Heat-N-Glo Gas Fireplaces
Heat-N-Glo direct vent gas fireplaces are designed to oper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems. Gas fireplace diagrams, including the dimensions,
are shown in this section.
Pre-install Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components are shipped in separate
packages. The gas logs are stretch wrapped to the log
grate. This stretch wrap must be removed before firing.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owners warranty and may present a fire hazard.
The Heat-N-Glo Warranty will be voided by, and Heat-N-Glo
disclaims any responsibility for, the following actions:
 Installation of any damaged fireplace or vent system
component.
 Modification of the fireplace or direct vent system.
 Installation other than as instructed by Heat-N-Glo.
 Improper positioning of the gas logs or the glass door.
 Installation and/or use of any component part not manu-
factured and approved by Heat-N-Glo, not withstanding
any independent testing laboratory or other party approval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, its necessary to
determine:
Where the unit is to be installed.
The vent system configuration to be used.
Gas supply piping.
Electrical wiring.
Framing and finishing details.
Whether optional accessoriesdevices such as a fan,
wall switch, or remote controlare desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

8
Figure 1. Diagram of the BAY-38HV
VENT COLLAR TOP STANDOFFS VENT COLLAR
END GLASS
DOOR
TOP
GRILL
GLASS
DOOR
BOTTOM
GRILL
GAS CONTROLS
& LABELS GAS LINE
ACCES
S
ELECTRICAL
ACCESS
38 3/4
(983mm)
20 7/8
(530mm)
24 15/16
(634mm)
35 1/8
(892mm)
29 1/8
(739mm)
34 5/8
(880mm)
16 7/8 (429mm)
Ø6 5/8
(168mm)
31 1/8 (790mm)
33 3/4 (858mm)

9
3Installing the Fireplace
Step 1. Locating the Fireplace
Space and clearance requirements for locating a fireplace
within a room (see Figure 2).
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Sides or Ends .......... 36 .................... 914
Floor ................................... 0 ....................... 0
Rear Vent............................ 0 ....................... 0
Metal Sides or Ends ........... 0 ....................... 0
Top ................................... 3 1/2 ................... 89
Ceiling* .............................. 36 .................... 914
The distance from the unit to combustible construction is to
be measured from the unit outer wrap surface to the com-
bustible construction, NOT from the screw heads that se-
cure the unit together.
For minimum clearances of direct vent termination (see Fig-
ures 24 and 25).
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................ 25
Horizontal Sections
Top ..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
At Wall Firestops
Top .................................. 2 1/2 ............ 63.7
Bottom .............................. 1/2 ............... 13
Sides ................................. 1 ................ 25
* The clearance to the ceiling is measured from the top
of the unit, excluding the standoffs (see Figure 32).
36”
36” 36”

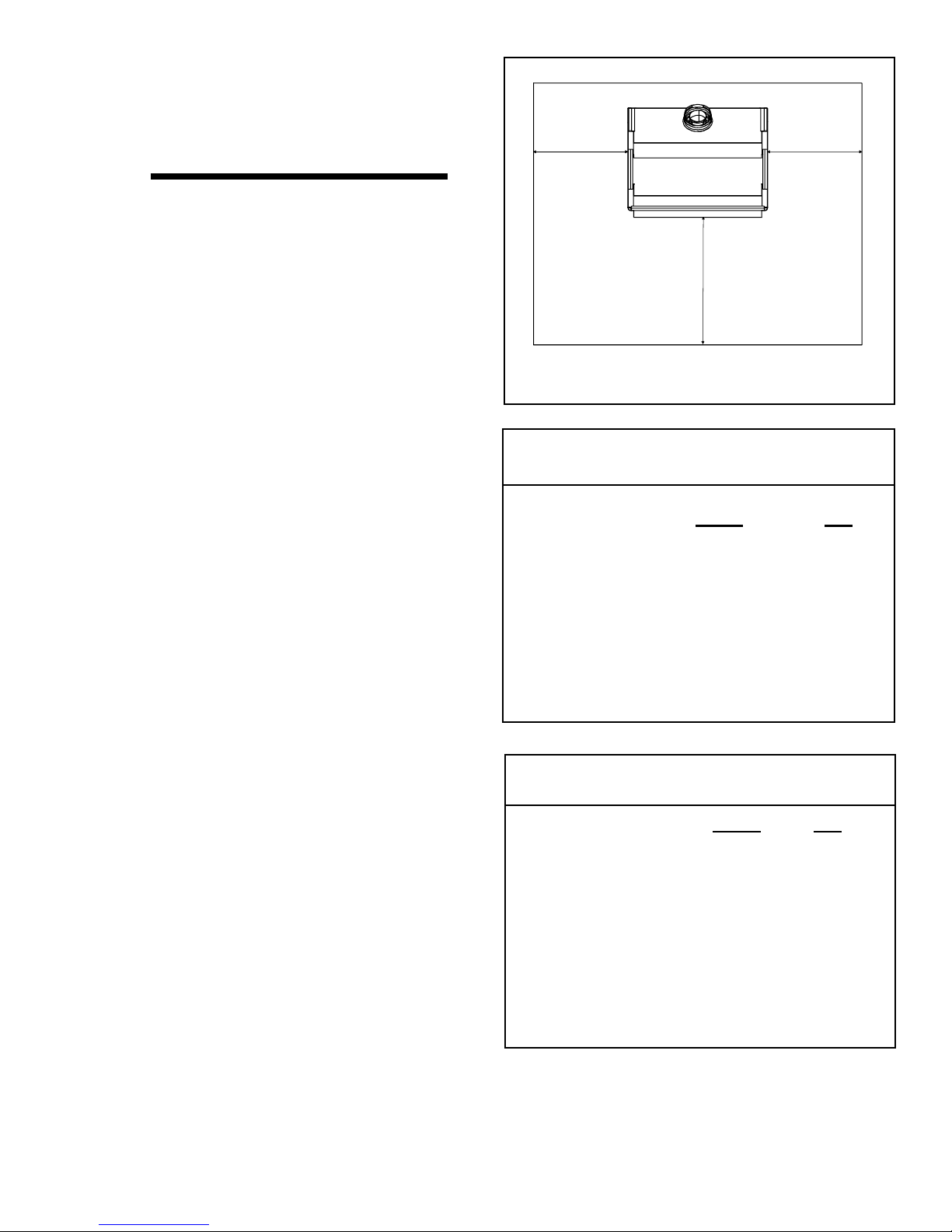

Figure 2. Fireplace Dimensions and Locations
Constructing the Chase
A chase is a vertical box-like structure built to enclose the
gas fireplace and/or its vent system. Vertical vents that run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOP SPACERS AND
CONSTRUCTION OF THE CHASE MAY VARY WITH THE
TYPE OF BUILDING. THESE INSTRUCTIONS ARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDING CODES. THEREFORE, YOUR LOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTS FOR THESE STEPS.
Factory-built fireplace chases should be constructed in the
manner of all outside walls of the home to prevent cold air
drafting problems. The chase should not break the outside
building envelope in any manner.
This means that the walls, ceiling, base plate and cantilever
floor of the chase should be insulated. Vapor and air infiltra-
tion barriers should be installed in the chase as per regional
codes for the rest of the home. Additionally, Heat-N-Glo rec-
ommends that the inside surfaces be sheetrocked and taped
for maximum air tightness.
To further prevent drafts, the firestops should be caulked to
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in-
stalled on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room. Be sure to include spark arrestors for
woodburning units if they are required.
THE CHASE SHOULD BE CONSTRUCTED SO THAT ALL
CLEARANCES TO THE FIREPLACE ARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs. The minimum clearance to a perpendicular wall
extending past the face of the fireplace is one inch (25 mm).
The metal ends of the fireplace may NOT be recessed into
combustible.

10
Figure 4. Vertical and Horizontal Vent Runs
28 15/16”
(734mm)
1” (25mm)
PIPE CLEARANCE
4”
(102mm)
Vertical Vent Run
s
26 7/16”
(671mm)
Horizontal Vent Runs
1 1/2”
(38mm)
FIRESTOP
36 1/8”
Framing should be constructed of 2 X 4 lumber or heavier.
Figure 3. Framing Dimensions
Shows center of 10 x 10 vent framing hole. The center of the
hole is one inch (25.4mm) above the center of the hori-
zontal vent pipe.
37 1/8”
(943mm)
Step 2. Framing the Fireplace
Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
gram below shows framing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
!
WARNING: FRAMING DIMENSIONS ASSUME
USE OF 1/2 INCH THICK WALL COVERING MA-
TERIALS ON EXTERIOR OF FRAMING ONLY
AND NO SHEETROCK ON INTERIOR OF FRAMING.
4A.
4B.
38 3/4
(984mm)
24 3/4
(62mm) 32 3/4
(831mm)
*
* This dimension may need to be adjusted depending on the
venting configuration. See Figure 4 for details. For vertical
runs inside wall per Figure 4A, add 4 inches. For horizontal
clearance to firestop per Figure 4B, add 1-1/2 inches.

11
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93mm) AT EACH JOINT.
Figure 5.

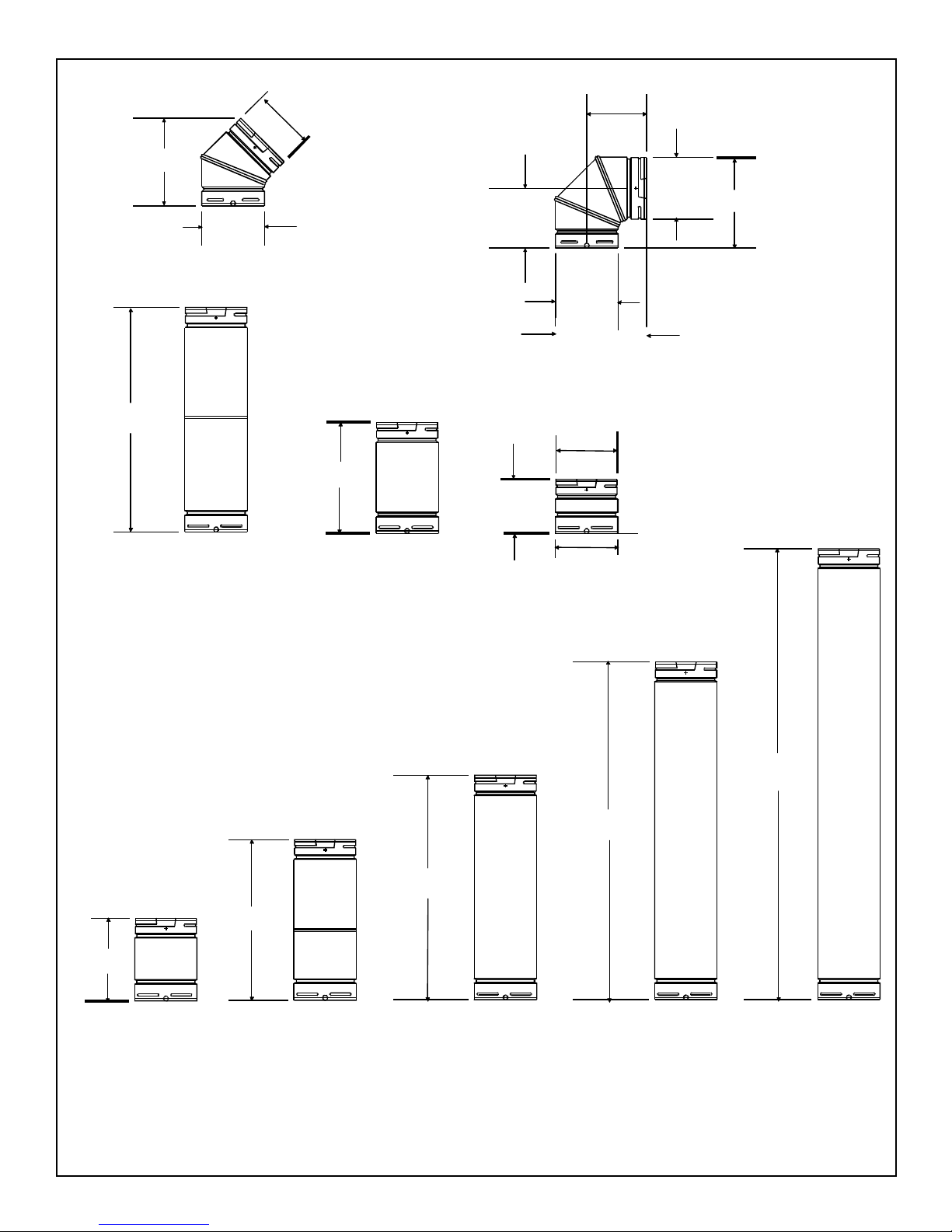

SL-Series Direct Vent Component Specifications (4-inch inner pipe / 6 5/8-inch outer pipe)
9 1/4
6 5/8
6 1/2 6 3/8
6 1/2 9 5/8
9 5/8
6 5/8
6 3/8
8 3/4
SL-09D
12-17
SL-12/17D (SL12-17D) SL-24D SL-36D SL-48D
47 3/4
35 3/4
23 3/4
SL-45D
SL-90D
SL-17/24D
(SL17-24D)
17-24
SL-06DSL-12D
5 3/4
6 5/8
6 1/2
11 3/4

12
Figure 6. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
These models are approved to use SL-series direct vent
pipe components and terminations (see Figures 5 and 6).
Approved vent system components are labeled for identifi-
cation. This pipe is tested and listed as an approved com-
ponent of the fireplace. The pipe is tested to be run inside
an enclosed wall. There is no requirement for inspection
openings at each joint within the wall. There is no required
pitch for horizontal vent runs. NO OTHER VENTING SYS-
TEMS OR COMPONENTS MAY BE USED.
Detailed installation instructions are included with each vent
termination kit and should be used in conjunction with this
Installers Guide.
The flame and ember appearance may vary based on the
type of fuel burned and the venting configuration used.
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90° elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
and tables. Refer to the diagrams on the next several pages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
Termination Kits
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
Figure 7.
NOTE: If the vertical vent component is 10 feet or more,
you may want to install the vertical baffle to improve flame
appearance. Vertical baffle kit (BAF-VERT) is located in
the manual bag. Center the vertical baffle on the four inch
flue and with self tapping screws secure the baffle to the
inside of the firebox (see Figure 7).
VERTICAL BAFFLE
KIT (BAF-VERT)
SLK-01D SLK-TVCD
SLK-01TRD
PVK-80

13

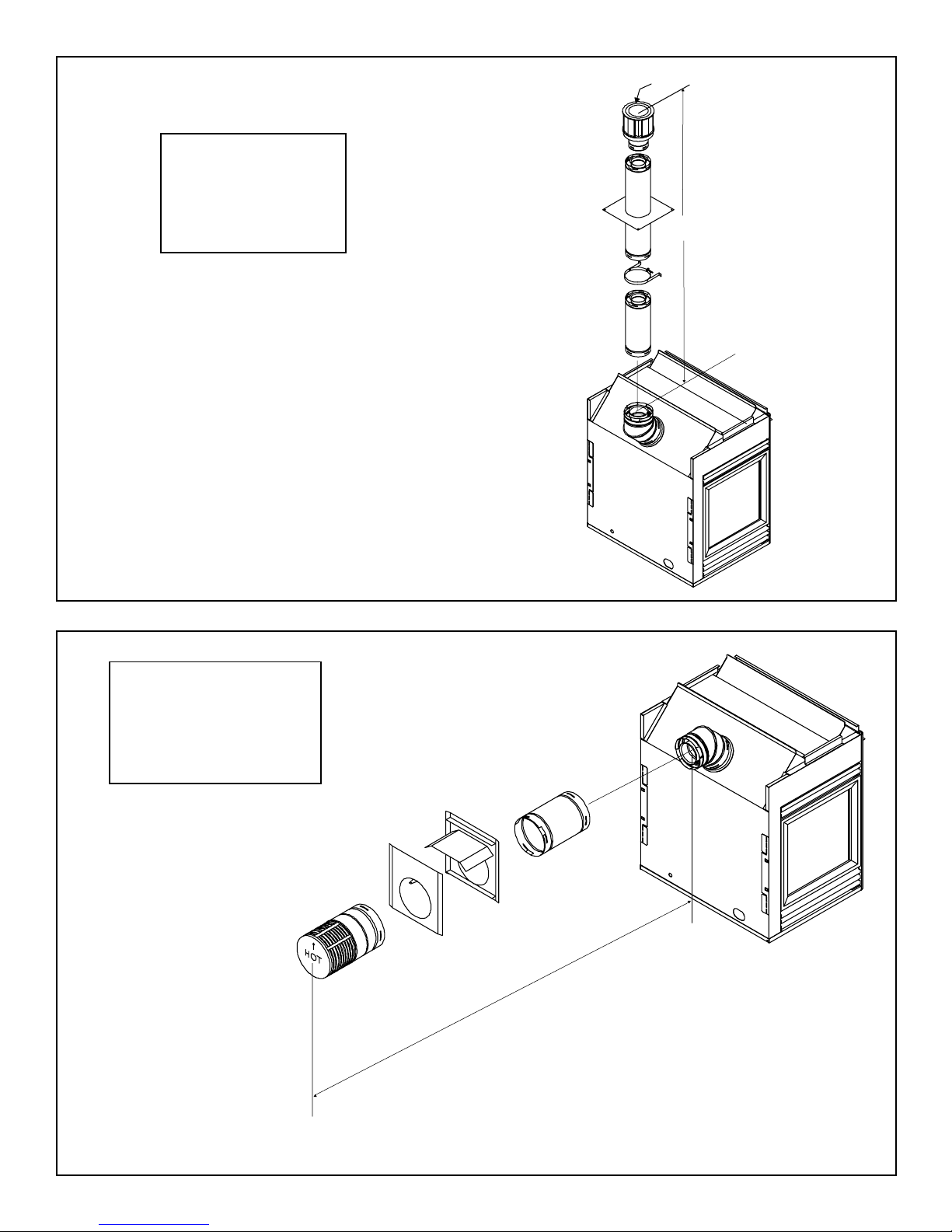

Figure 8. Straight Up Vertical Venting
STRAIGHT UP
VERTICAL VENTING
V (FT.)
40' MAX. (12.4 M)
V
CAP
Figure 9. Straight Out Horizontal Venting
STRAIGHT OUT
HORIZONTAL VENTING
H
Max. Run
24" (610 mm)
H
NOTE: For vertical vent runs of
10 feet or greater the vertical
baffle kit (BAF-VERT) may be
required to improve flame
appearance.
NOTE: For vertical vent runs of 10 feet or
greater the vertical baffle kit (BAF-VERT) may
be required to improve flame appearance.

14
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
4.5' MIN. (1.37m) 3' MAX. (.914m)
6' MIN. (1.86m) 4' MAX. (1.22m)
8' MIN. (2.4m) 5' MAX. (1.5m)
5' MAX. (1.5m)
V + H = 37 MAX. (11.3m)
VENTING WITH
ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.44m)
5 MIN. (1.5m) 10 MAX. (3.05m)
6 MIN. (1.86m) 12 MAX. (3.6m)
7 MIN. (2.13m) 14' MAX. (4.27m)
14' MAX. (4.27m)
V + H = 37 MAX. (11.3m)

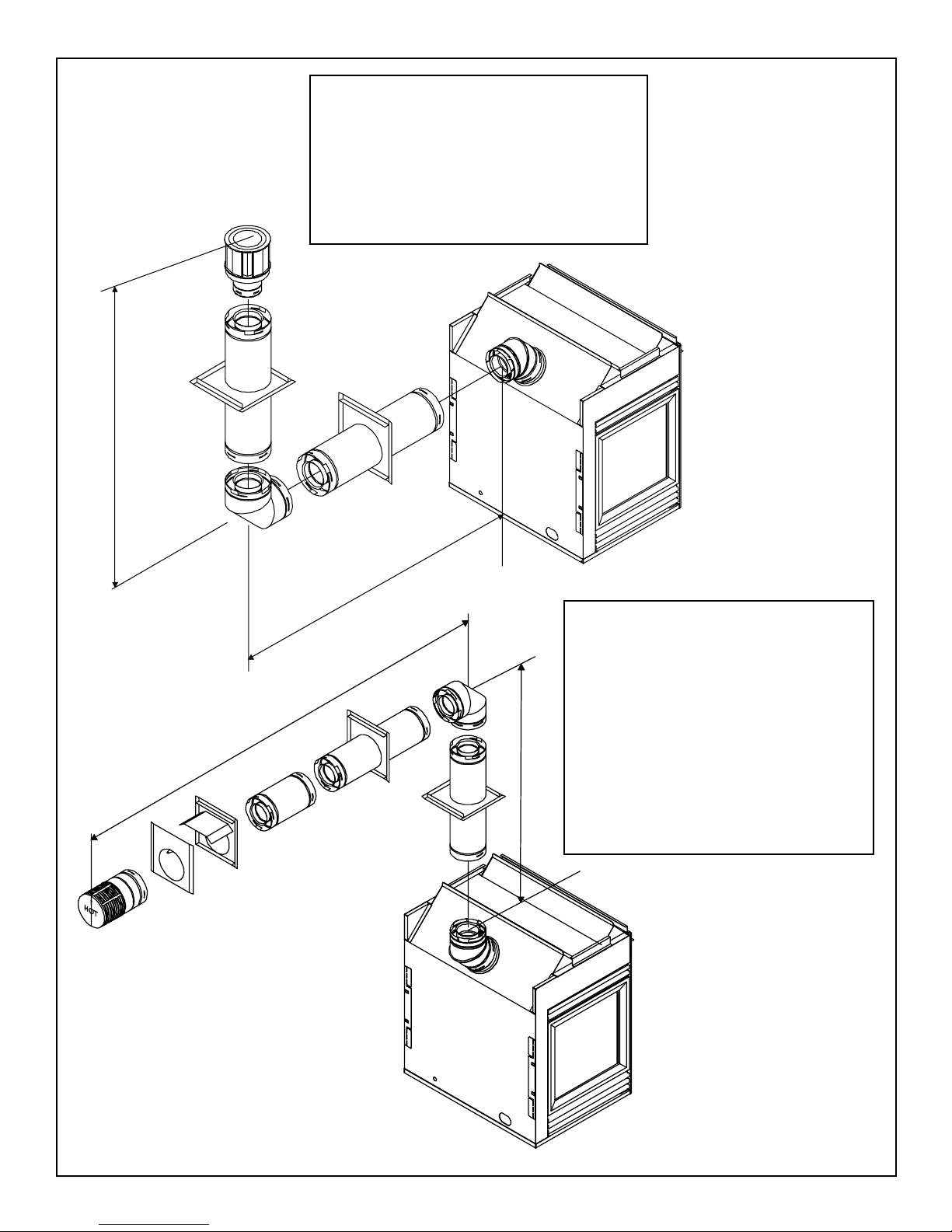

Figure 10. Venting with One 90° Elbow
NOTE: For vertical vent runs of 10
feet or greater the vertical baffle
kit (BAF-VERT) may be required
to improve flame appearance.
V
H
H
V

15
VENTING WITH TWO
(2) 90° ELBOWS
V (FT.) H + H1 (FT.)
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.44m)
5 MIN. (1.5m) 10 MAX. (3.04m)
6 MIN. (1.86m) 12 MAX. (3.6m)
7 MIN. (2.13m) 14' MAX. (4.27m)
14' MAX. (4.27m)
V + H = 37 MAX. (11.3m)
Figure 11. Venting with Two 90° Elbows
NOTE: For vertical vent runs of
10 feet or greater the vertical
baffle kit (BAF-VERT) may be
required to improve flame
appearance.
V
H
H
1 1
H
V
V
1

16
VENTING WITH TWO (2) 90° ELBOWS
V H H + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 2´ MAX. (610 mm)
2´ MIN. (610 mm) 2´ MAX. (610 mm) 4´ MAX. (1.22 m)
3´ MIN. (914 mm) 2´ MAX. (610 mm) 6´ MAX. (1.86 m)
4´ MIN. (1.22 m) 2´ MAX. (610 mm) 8´ MAX. (2.4 m)
5´ MIN. (1.52 m) 2´ MAX. (610 mm) 10´ MAX. (3.04 m)
6´ MIN. (1.86 m) 2´ MAX. (610 mm) 12´ MAX. (3.65 m)
7´ MIN. (2.13 m) 2´ MAX. (610 mm) 14´ MAX. (4.26 m)
14´ MAX. (4.26 m)
V + H + H1 = 37 MAX. (11.3 m)
Figure 12. Venting with Two 90° Elbows
NOTE: For vertical vent runs of 10
feet or greater the vertical baffle kit
(BAF-VERT) may be required to
improve flame appearance.
V
H
1
H

17
Figure 13.
Venting with three 90° elbows
NOTE: For vertical vent runs of 10
feet or greater the vertical baffle kit
(BAF-VERT) may be required to
improve flame appearance.
VENTING WITH THREE (3) 90° ELBOWS
V H H + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 2´ MAX. (610 mm)
2´ MIN. (610 mm) 2´ MAX. (610 mm) 4´ MAX. (1.22 m)
3´ MIN. (914 mm) 2´ MAX. (610 mm) 6´ MAX. (1.86 m)
4´ MIN. (1.22 m) 2´ MAX. (610 mm) 8´ MAX. (2.4 m)
5´ MIN. (1.52 m) 2´ MAX. (610 mm) 10´ MAX. (3.04 m)
6´ MIN. (1.86 m) 2´ MAX. (610 mm) 12´ MAX. (3.65 m)
7´ MIN. (2.13 m) 2´ MAX. (610 mm) 14´ MAX. (4.26 m)
14´ MAX. (4.26 m)
V + H + H1 = 37 MAX. (11.3 m)
V
11
V
H
11
H
H
V
H
11
H
22

18

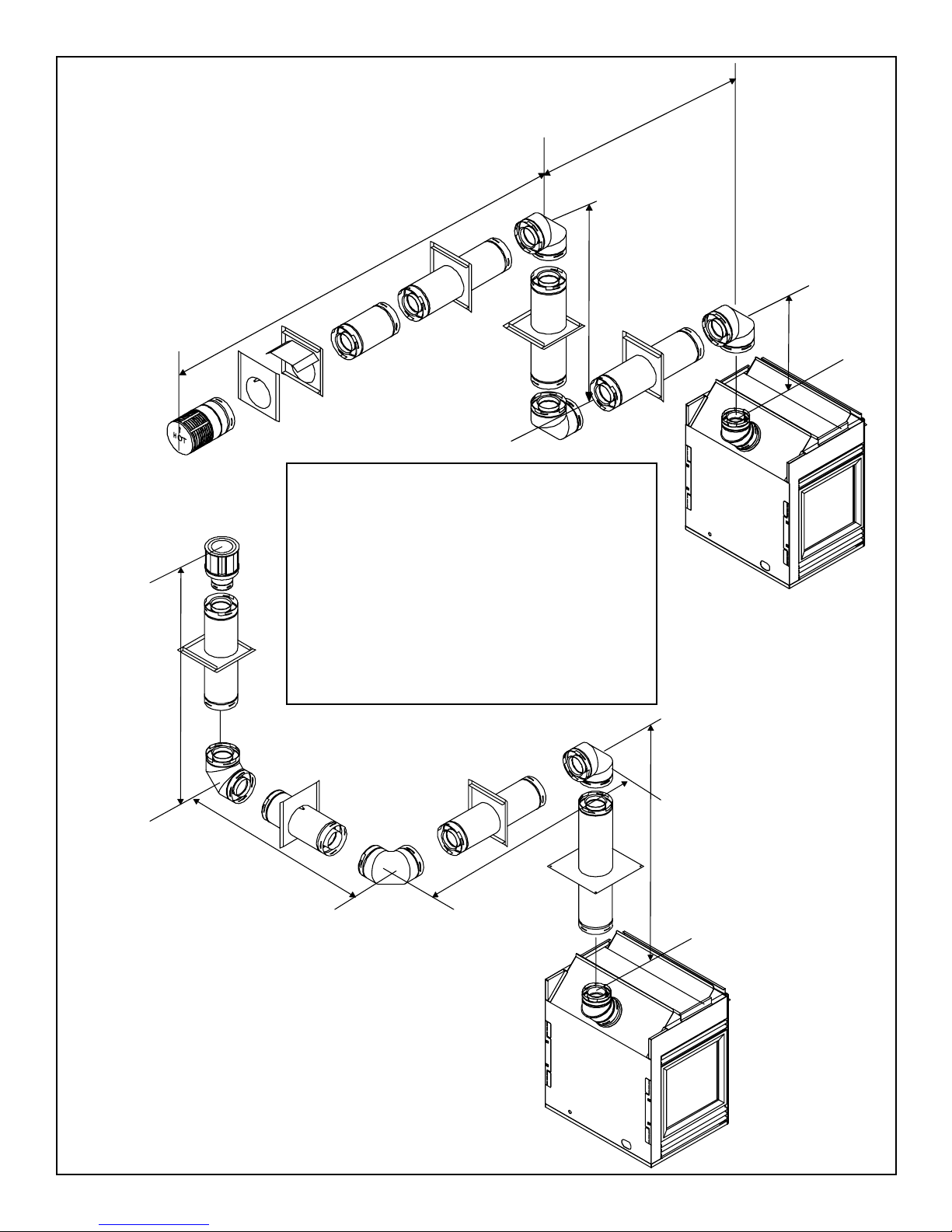

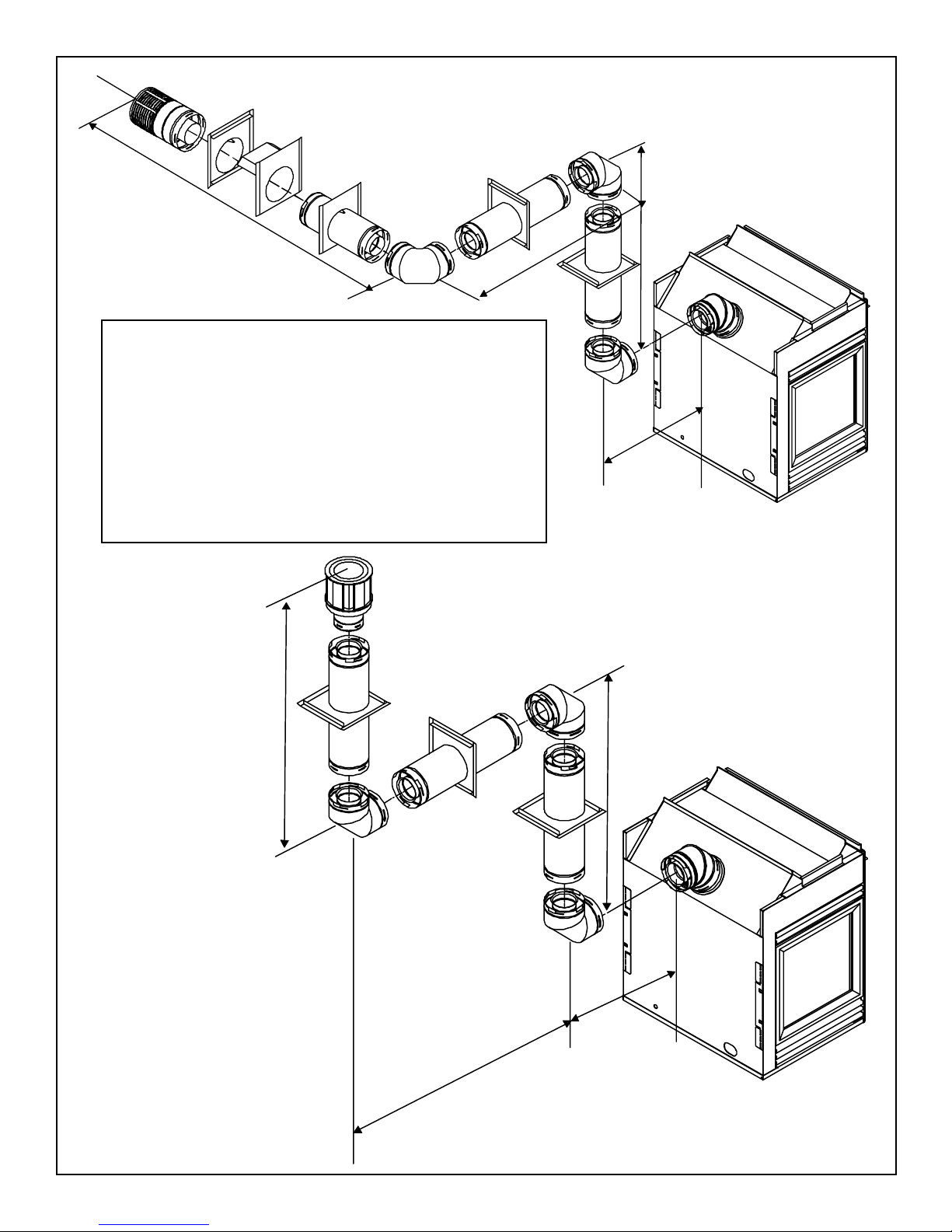

Figure 14. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H + H1 (FT.)
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.44m)
5 MIN. (1.5m) 10 MAX. (3.04m)
6 MIN. (1.86m) 12 MAX. (3.6m)
7 MIN. (2.13m) 14' MAX. (4.27m)
14' MAX. (4.27m)
V + H = 37 MAX. (11.3m)
NOTE: For vertical vent runs of 10 feet or greater
the vertical baffle kit (BAF-VERT) may be
required to improve flame appearance.
H
11
H
V
11
V
V
11
H
11
HV

19
B. Installing Vent Components
!
WARNING: A 3/8 INCH (9.5 MM) BEAD OF
STOVE CEMENT MUST BE PLACED AROUND
THE 4 INCH (102 MM) FIREPLACE STARTING COL-
LAR BEFORE ATTACHING THE FIRST VENT COM-
PONENT. FAILURE TO SEAL THIS JOINT MAY
CAUSE THE FIREPLACE TO OPERATE IMPROPER-
LY. SEE THE DIAGRAM .
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
!
WARNING: ENSURE THAT THE FIBER-
GLASS ROPE GASKET SUPPLIED WITH
THE FIREPLACE SEALS BETWEEN THE FIRST
VENT COMPONENT AND THE OUTER FIREPLACE
WRAP.
If the installation is for a termination cap attached directly
to the fireplace, skip to the sections, Install Firestops and
Vent Termination.
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars
of the fireplace:
 Apply a 3/8 inch (9.5mm) bead of stove cement around
the 4 inch (102mm) fireplace starting collar.
 Make sure that the fireplace rope gasket supplied with
the fireplace seals between the first 6-5/8 inch (168mm)
vent component and the outer fireplace wrap.
 Lock the vent components into place by sliding the con-
centric pipe sections with four (4) equally spaced interior
beads into the fireplace collar or previously installed com-
ponent end with four (4) equally spaced indented sections.
 When the internal beads of each 6-5/8 inch (168mm)
outer pipe line up, rotate the pipe section clockwise about
one-quarter (1/4) turn. The vent pipe is now locked together.

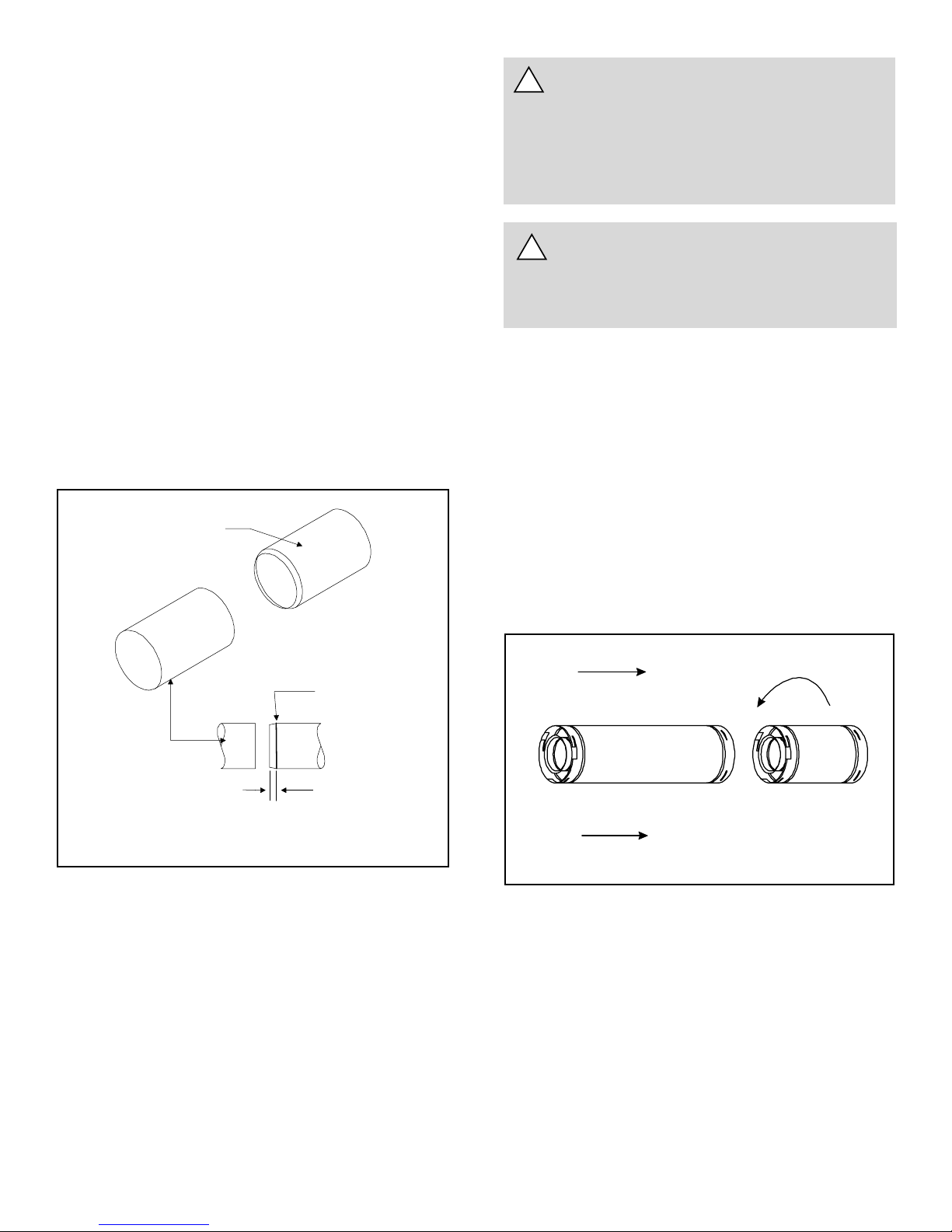

Figure 15. Attaching the First Vent Component
to the Starting Collars
2. Continue Adding Vent Components
 Continue adding vent components, locking each succeed-
ing component into place.
 Ensure that each succeeding vent component is secure-
ly fitted and locked into the preceding component in the
vent system.
 90° elbows may be installed and rotated to any point
around the preceding components vertical axis. If an el-
bow does not end up in a locked position with the preced-
ing component, attach with a minimum of two (2) 1/2
sheet metal screws.
Figure 16. Adding Venting Components

20
3. Install Support Brackets
For Horizontal Runs - The vent system must be supported
every five (5) feet of horizontal run by a horizontal pipe support.
To install support brackets for horizontal runs:
 Place the pipe supports around the vent pipe.
 Nail the pipe supports to the framing members.
1 INCH MIN.
(25.4mm)
FLUE
OUTLET
WALL BRACKET
WALL STUD
8 FT.
(2.4mm)
For Vertical Runs - The vent system must be supported
every eight (8) feet (2.4m) above the fireplace flue outlet by
wall brackets.
To install support brackets for vertical runs:
 Attach wall brackets to the vent pipe and secure the wall
bracket to the framing members with nails or screws.
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sides of a combustible wall through which the vent passes.
NOTE: Model SLK-01TRD does not need an exterior
firestop on an exterior combustible wall. The firestop is
built into the cap.
To install firestops for horizontal runs that pass through
either interior or exterior walls:
 Cut a 10 X 10 (254mm X 254mm) hole through the wall.
NOTE: The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent pipe.
 Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
 The heat shields of the firestops MUST BE placed to-
wards the top of the hole.
 Continue the vent run through the firestops.
Figure 18. Hole and Vent Pipe
Figure 19. Heat Shield, Interior & Exterior Firestops
VENT PIPE
1" (25.4 mm)
10"
(254mm)
10"
(254mm)
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
Figure 17. Installing Support Brackets
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.

21
For Vertical Runs - One ceiling firestop is REQUIRED at
the hole in each ceiling through which the vent passes.
To install firestops for vertical runs that pass through ceilings:
 Position a plumb bob directly over the center of the verti-
cal vent component.
 Mark the ceiling to establish the centerpoint of the vent.
 Drill a hole or drive a nail through this centerpoint.
 Check the floor above for any obstructions, such as wir-
ing or plumbing runs.
 Reposition the fireplace and vent system, if necessary,
to accommodate the ceiling joists and/or obstructions.
 Cut a 10 x 10 (254mm x 250mm) hole through the ceil-
ing, using the centerpoint previously marked.
 Frame the hole with framing lumber the same size as the
ceiling joists.

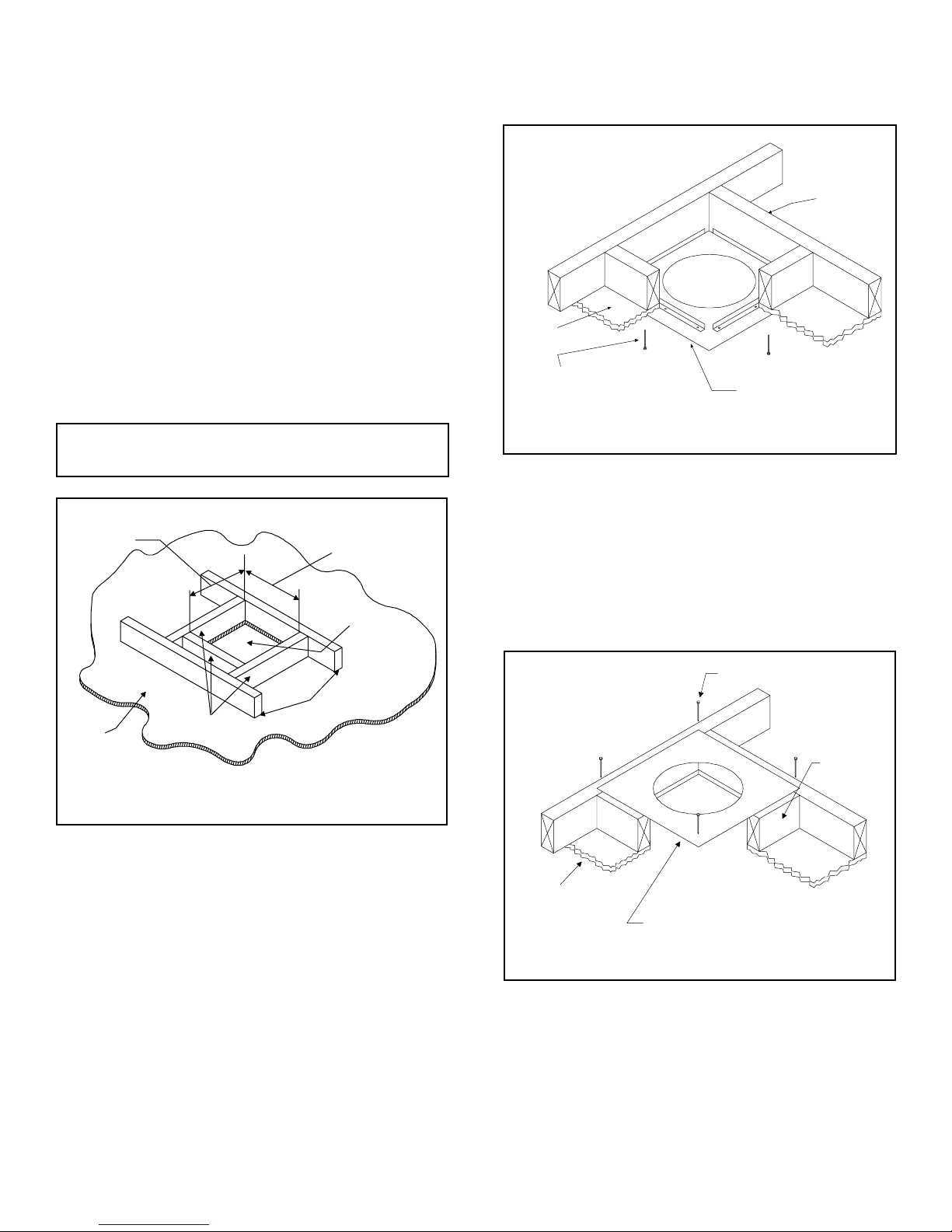

Figure 21. Ceiling Firestop (Ceiling Side)
If the area above the ceiling is NOT an attic, position and
secure the ceiling firestop on the ceiling side of the previously
cut and framed hole.
Figure 20. Hole & New Framing Members
If the area above the ceiling IS an attic, position and secure
the firestop on top of the previously framed hole.
NOTE: Keep insulation away from the vent pipe at least
1 inch (25mm).
While it is not mandatory, it is strongly recommended that
an attic insulation shield be used whenever insulation can
come in contact with the vent pipe. Follow the local building
codes.
Figure 22. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (254mm)
10" (254mm)
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.

22
!
C. Vent Termination
For Horizontal Terminations - To attach and secure the
termination to the last section of horizontal vent:
 Rotate and interlock the ends as described at the begin-
ning of the Installing Vent Components section.
 The termination kit should pass through the wall firestops
from the exterior of the building.
 Adjust the termination cap to its final exterior position on
the building.
WARNING: THE TERMINATION CAP MUST BE
POSITIONED SO THAT THE ARROW IS
POINTING UP.
For roundcap termination kits:
 Use the exterior pipelock hole on the round flange of the
wall firestop to secure the vent pipe in place.
For trapezoidal cap termination kits:
 Using screws secure the cap to the exterior wall through
the flanges in the cap.

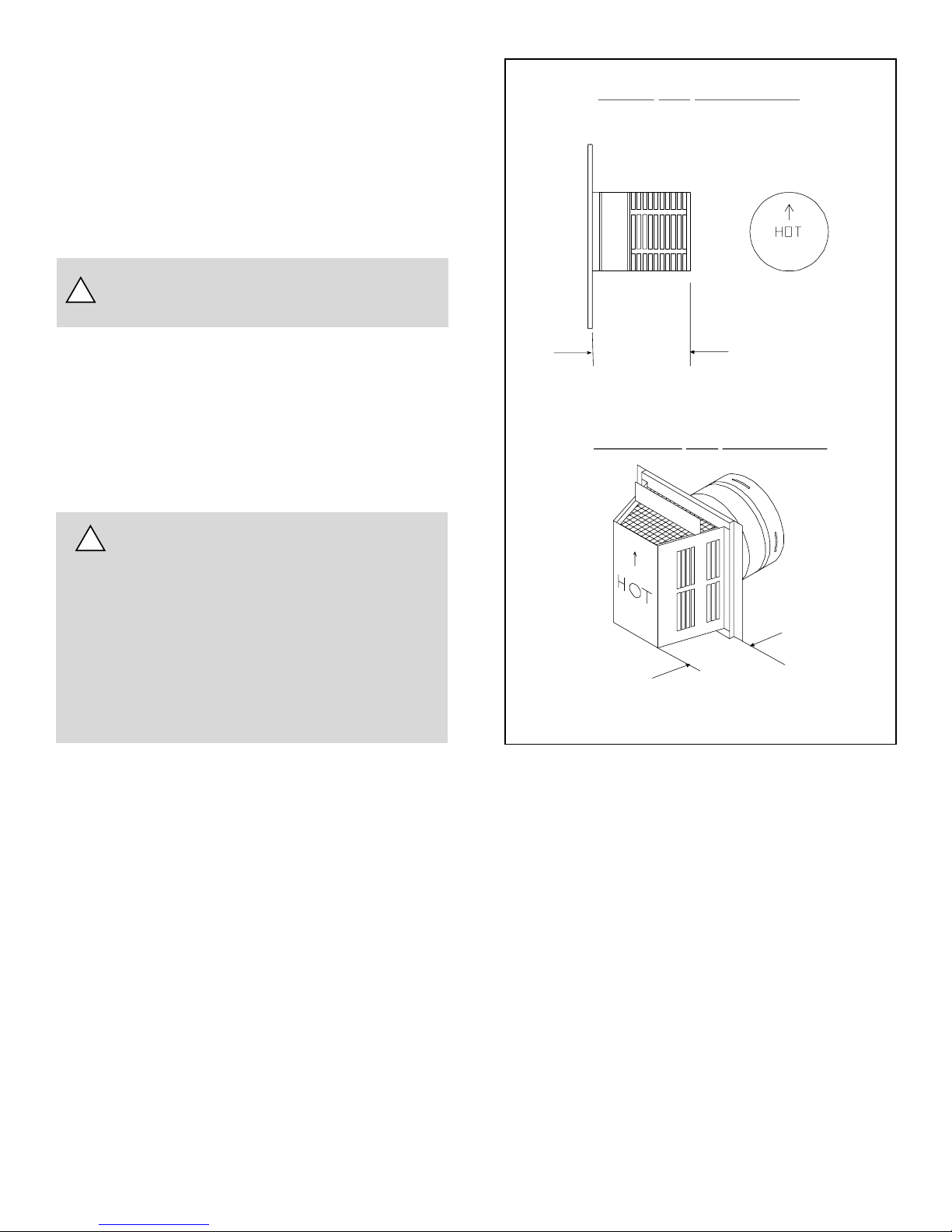

Figure 23. Round & Trapezoid Termination Caps
!
WARNING: THE BOTTOM OF THE VENT
TERMINATION CAP MUST BE A MINIMUM
OF 12 INCHES (305 MM) ABOVE GROUND LEVEL
(GRADE). THE TOP OF THE CAP MUST BE A MIN-
IMUM OF 24 INCHES (690MM) BELOW COMBUS-
TIBLE MATERIAL, SUCH AS A DECK. THE SIDE
OF THE CAP MUST BE A MINIMUM OF 6 INCHES
(152 MM) AWAY FROM A PARALLEL OUTSIDE
WALL. VENTING TERMINALS SHALL NOT BE RE-
CESSED INTO A WALL OR SIDING. SEE FIGURE
24 FOR VENT TERMINATION CLEARANCES.
ROUND CAP TERMINATION
PERFORATION CANNOT BE
INSIDE THE WALL
7 1/2"
(191mm)
MINIMUM
TRAPEZOID CAP TERMINATION
7 1/4"
(184mm)
