Heat & Glo PIER-HVB-CE Assembly instructions

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13 1
Models:
PIER-HVB-CE
ST-HVB-CE
LCOR-HVB-CE
RCOR-HVB-CE
Installers Guide
READ THIS MANUAL BEFORE INSTALLING OR OPERAT-
ING THIS APPLIANCE. THIS INSTALLERS GUIDE MUST
BE LEFT WITH APPLIANCE FOR FUTURE REFERENCE.
Please contact your Heat & Glo dealer with any questions or
concerns. For the number of your nearest Heat & Glo dealer,
please visit www.heatnglo.com.
Printed in U.S.A. Copyright 2013
Heat & Glo, a brand of Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044, USA
0086
This is a room sealed appliance and no other ventilation is
required than what is provided.
These instructions are only valid if the following country symbol is
on the appliance. If this symbol is not present on the appliance,
it is necessary to refer to the technical instructions which will
provide the necessary information concerning the modication
of the appliance to the conditions of use for the country.
These instructions are valid for the following countries: GB, IE
WARNING
This appliance has been supplied with an integral barrier


HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other ammable
materials.
• Keep clothing, furniture, draperies and other ammable
materials away.
• Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the re department.
• Installation and service must be performed
by a qualied installer, service agency, or the
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury, or death.
This product is covered by one or more of the following patents: (United States) 5601073, 5613487, 5647340, 5890485, 5941237, 6006743, 6019099, 6053165,
6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269, 7258116, 7470729, 8147240 or other U.S. and foreign patents pending.
2000-945B


Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13
2
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
Safety and Warning Information
!
!
!
This appliance is intended for use on a gas installation
with a governed meter.
DO NOT place furniture or any other combustible
household objects within 36 inches of the replace
front.
Any safety screen or guard removed for servicing must
be replaced before operating this appliance.
Turn off the gas before servicing this appliance. It
is recommended that a qualied service technician
perform an appliance check-up at the beginning of
each heating season.
   abrasive cleaners on the glass door
assembly. to clean the glass door
when it is hot.
The glass door assembly be replaced
as a complete unit, as supplied by the gas replace
manufacturer.   material may be
used.
   this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed or
qualied service person. strike or slam the
glass door.
The glass door assembly  be in place and
sealed, and the trim door assembly be in place
on the replace before the unit can be placed into safe
operation.
 the external ue cap on a regular basis to
make sure that no debris is interfering with the air ow.
This gas replace and ue assembly ue directly
to the outside and   be attached to a
chimney serving a separate solid fuel burning appliance.
Each gas appliance a separate ue system.
Common ue systems are .
These units  use one of the flue systems
described in the Installing the Fireplace section of
the Installers Guide.   flue systems or
components .
Children and adults should be ALERTED to the hazards
of high surface temperature and should STAY AWAY to
avoid burns or clothing ignition. Young children should
be CAREFULLY SUPERVISED when they are in the
same room as the appliance.
Due to the high temperature, the appliance should be
out of trafc areas and away from furniture
and draperies. Clothing or ammable material 
on or near the appliance.
  the flow of combustion and
ventilation air. Keep the front of the appliance 
of all obstacles and materials for servicing and proper
operations.
Always  the appliance clear and free from
combustible materials, petrol, and other ammable
vapors and liquids.
Installation and repair should be by a
qualied service person. The appliance and ueing
system should be before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive lint
from carpeting, bedding material, etc. It is 
that the unit’s control compartment, burners, and
circulating air passageways    to
provide for adequate combustion and ventilation air.

   this appliance if any part has been
under water. Immediately  a qualied service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
Prior to the rst ring of the replace, READ the Using
Your Fireplace section of the Owners Guide.
READ and UNDERSTAND all instructions carefully
before starting the installation. 
these installation instructions may result in a possible
re hazard and will void the warranty.

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13 3
Table of Contents
Safety and Warning Information ..................................................2
Service Parts List ..........................................................................4
Appliance Certication ................................................................................. 10
Introducing the Heat & Glo Gas Fireplaces ................................................. 10
Pre-install Preparation ................................................................................. 10
Approvals and Regulations........................................................10
Getting Started.............................................................................10
Installation Regulations..............................................................10
Step 1. Locating the Fireplace .................................................................... 14
Installing the Fireplace................................................................14
Step 2. Framing the Fireplace ..................................................................... 14
Step 3. Installing the Flue System .............................................................. 17
A. Flue System Approvals .......................................................... 17
B. Installing Flue Components ................................................... 24
C. Flue Termination .................................................................... 26
Step 4. Positioning, Leveling, and Securing the Fireplace .......................... 29
Step 5. The Gas Control System ................................................................ 29
Step 6. The Gas Supply Line ...................................................................... 30
Step 7. Gas Pressure Requirements .......................................................... 30
Step 8. Wiring the Fireplace ........................................................................ 31
Optional Accessories ................................................................................... 31
Wall Switch .................................................................................................. 31
Step 9. Finishing ......................................................................................... 31
Step 10. Installing Trim, Logs & Ember Material .......................................... 32
Installing the Trim ........................................................................ 32
Attachment of Lower Door Assembly .......................................... 32
Placing the Ember Material ......................................................... 37
Step 11. Before Lighting the Fireplace ....................................................... 38
Step 12. Lighting the Fireplace ................................................................... 38
After the Installation ..................................................................................... 38
Maintaining and Servicing Your Fireplace ................................39
 = Contains updated information



Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13
4
Service Parts
Beginning Manufacturing Date: June 2004
Ending Manufacturing Date: Active
Log Set Assembly
36” Left Corner Gas Fireplace - DV
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please
provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
ITEM DESCRIPTION COMMENTS PART NUMBER
Log Set Assembly LOGS-ST-CE
1 Glass Assembly (End) GLA-MS
2 End Panel Assembly 2069-042
3 Grate Assembly 2068-020
4 Glass Assembly (Side) GLA-6TROC
5 Dress Guard Assembly 2068-040
6 Lower Door 2068-041
7Burner N 2068-011
Burner P & B 2068-013
Hood, Side, Black SRV2005-190
Hood, End, Black SRV2006-194
Mesh Assembly (End) 561-330A
Mesh Assembly (Side) 537-300
Non-combustible Board (Side) 2006-136
Non-combustible Board (Back) 2006-137
Refractory (Side) SRV2005-730
Refractory (End) SRV2005-731
Additional service part numbers appear on following page. 3/13
1
2
3
4
5
67
LCOR-HVB-CE
Service Parts List

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13 5
Service Parts
Beginning Manufacturing Date: June 2004
Ending Manufacturing Date: Active
Log Set Assembly
3-Sided Gas Fireplace - DV
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please
provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
ITEM DESCRIPTION COMMENTS PART NUMBER
Log Set Assembly LOGS-ST-CE
1 Grate Assembly 2068-020
2 Glass Assembly (Side) GLA-6TROC
3 Dress Guard Assembly 2068-040
4 Lower Door 2068-041
5Burner N 2068-011
Burner P & B 2068-013
6 Glass Assembly (End) GLA-MS
7 End Panel Assembly 2069-042
Hood, Side, Black SRV2005-190
Hood, End, Black SRV2006-194
Mesh Assembly (End) 561-330A
Mesh Assembly (Side) 537-300
Non-combustible Board (Side) 2006-136
Non-combustible Board (Back) 2006-137
Refractory (Side) SRV2005-730
Additional service part numbers appear on following page. 3/13
1
2
3
456
7
PIER-HVB-CE

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13
6
Service Parts
Beginning Manufacturing Date: June 2004
Ending Manufacturing Date: Active
Log Set Assembly
36” Right Corner Gas Fireplace - DV
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please
provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
ITEM DESCRIPTION COMMENTS PART NUMBER
Log Set Assembly LOGS-ST-CE
1 Grate Assembly 2068-020
2 Glass Assembly (Side) GLA-6TROC
3 Dress Guard Assembly 2068-040
4 Lower Door 2068-041
5Burner N 2068-011
Burner P & B 2068-013
6 Glass Assembly (End) GLA-MS
7 End Panel Assembly 2069-042
Hood, Side, Black SRV2005-190
Hood, End, Black SRV2006-194
Mesh Assembly (End) 561-330A
Mesh Assembly (Side) 537-300
Non-combustible Board (Side) 2006-136
Non-combustible Board (Back) 2006-137
Refractory (End) SRV2005-731
Refractory (Side) SRV2005-730
Additional service part numbers appear on following page. 3/13
1
2
3
456
7
RCOR-HVB-CE

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13 7
Service Parts
Beginning Manufacturing Date: June 2004
Ending Manufacturing Date: Active
Log Set Assembly
1
2
3
4
56
See-Thru Gas Fireplace - DV
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please
provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
ITEM DESCRIPTION COMMENTS PART NUMBER
Log Set Assembly LOGS-ST-CE
1 Refractory SRV2005-730
2 Grate Assembly 2068-020
3 Glass Assembly (Side) GLA-6TROC
4 Dress Guard Assembly 2068-040
5 Lower Door 2068-041
6Burner N 2068-011
Burner P & B 2068-013
Hood, End, Black SRV2006-194
Mesh Assembly 537-300
Non-combustible Board 2006-136
Additional service part numbers appear on following page. 3/13
ST-HVB-CE

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13
8
Service Parts
Beginning Manufacturing Date: June 2004
Ending Manufacturing Date: Active
#8 Valve Assembly 8.1
8.2
8.3
8.4
8.5
8.6
8.7
8.8
8.9
8.10
8.11
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please
provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
ITEM DESCRIPTION COMMENTS PART NUMBER
8.1 Pilot Assembly N 529-550A
Pilot Assembly P 529-551A
8.2 Pilot Bracket 2068-114
8.3 Flexible Gas Connector 530-302A
8.4 Burner Leg, Pilot Support 2068-112
8.5 Universal Bracket 2068-111
8.6 Valve Bracket 2068-115
8.7 Piezo Ignitor 291-513
8.8 Flex Ball Valve Assembly 302-330A
8.9 Valve N 060-524
Valve P 060-526
8.10 On/ Off Wire Assembly 060-521A
8.11 Burner Leg 2068-113
20" Wire Harness 107-559A
Ori ce N (#33DMS) 582-833
Ori ce P (#51DMS) 582-851
Ori ce B (#53DMS) 582-853
Additional service part numbers appear on following page.
LCOR, PIER, RCOR, & ST-HVB-CE

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13 9
Service Parts
Beginning Manufacturing Date: June 2004
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please
provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
ITEM DESCRIPTION COMMENTS PART NUMBER
Bracket Junction Box 2068-106
Door Stop 2068-144
Fan Kit GFK-240V
Fiber Glass Rope 060-455
Glass Latch Assembly Pkg of 2 33858/2
Junction Box 546-250A
Lava Rock 2005-790
Mineral Wool 050-721
Touch Up Paint TUP-GBK-12
Wall Thermostat Kit MV-STAT
Wall Switch kit, Off White WSK-21
Wall Switch Kit, White WSK-21-W
Conversion Kit N NGK-ST-CE
Conversion Kit P LPK-ST-CE
Conversion Kit B BGK-ST-CE
Pilot Ori ce N 529-512
Pilot Ori ce P 200-2630
Regulator N 230-1570
Regulator P & B 230-1520
LCOR, PIER, RCOR, & ST-HVB-CE

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13 10
Appliance Certication
The Heat & Glo replace models discussed in this Installers
Guide have been tested to certication standards and listed
by the applicable laboratories.
1Approvals and Regulations
2Getting Started
Introducing the Heat & Glo Gas Fireplaces
Heat & Glo direct ue gas replaces are designed to oper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems. Gas replace diagrams, including the dimensions,
are shown in this section.
Pre-install Preparation
This gas replace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The ue system components are shipped in separate pack-
ages. The gas logs are packaged separately and must be
eld installed.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benet. Fail-
ure to follow these instructions will void the owner’s
warranty and may present a re hazard.
The Heat & Glo Warranty will be voided by, and Heat & Glo
disclaims any responsibility for, the following actions:
• Installation of any damaged replace or ue system
component.
• Modication of the replace or direct ue system.
• Installation other than as instructed by Heat & Glo.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not manu-
factured and approved by Heat & Glo, not withstanding
any independent testing laboratory or other party ap-
proval of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a replace installation, it’s necessary
to determine:
• Where the unit is to be installed.
• The ue system conguration to be used.
• Gas supply piping.
• Electrical wiring.
• Framing and nishing details.
• Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the replace is to be installed on carpeting, tile or
any combustible material other than wood ooring,
it should be installed on a metal or wood panel that
extends the full width and depth of the replace.
Installation Regulations
Before installation check that local distribution conditions,
nature of gas and pressure, and adjustment of the
appliance are compatible.
This appliance must be installed with the rules in force,
and used only in a sufciently ventilated space. Consult
instructions before installation and use of this appliance.
Certication
MODELS: PIER-HVB-CE, ST-HVB-CE,
LCOR-HVB-CE, RCOR-HVB-CE
LABORATORY: BSI
TYPE: Gas Fireplace
STANDARD: BS EN 613:2001 (Amd 1)
DIRECTIVE: GAD2009/142/EC

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13
11
Figure 1. Diagram of the PIER-HVB-CE
TOP FLUE
COLLARS
REAR FLUE
COLLARS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
AND LABELS
TOP STANDOFFS
133 mm
306 mm
13 mm
1082 mm
1067 mm
456 mm
816 mm
58 mm
121 mm
102 mm
114 mm
ELECTRICAL
ACCESS
GAS LINE
ACCESS
305 mm
451 mm
245 mm
610 mm
245 mm
882 mm
Ø 204 mm
Ø 204 mm
950 mm
451 mm

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13 12
Figure 2. Diagram of the ST-HVB-CE
133 mm
306 mm
13 mm
1183 mm
1067 mm 820 mm
533 mm
919 mm
58 mm
121 mm
102 mm
114 mm
ELECTRICAL
ACCESS GAS LINE
ACCESS
305 mm
114 mm
64 mm
610 mm
216 mm
882 mm
Ø 204 mm
Ø 204 mm
TOP FLUE
COLLARS
REAR FLUE
COLLARS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
AND LABELS
TOP STANDOFFS

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13
13

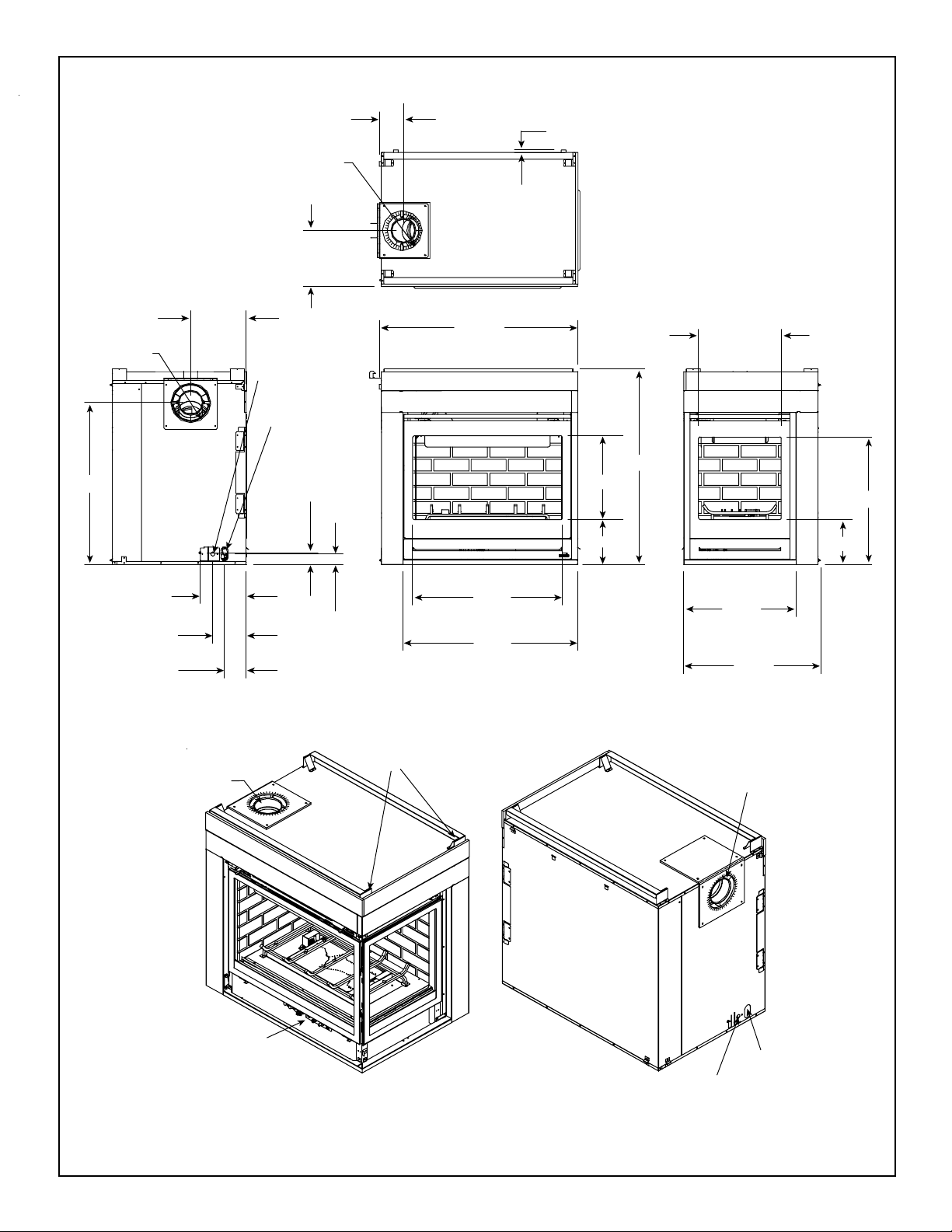

Figure 3. Diagram of the LCOR-HVB-CE and RCOR-HVB-CE
133 mm
306 mm
13 mm
1082 mm
1067 mm
456 mm
816 mm
743 mm
245 mm
612 mm
245 mm
Ø 204 mm
950 mm
451 mm
456 mm
58 mm
184 mm
254 mm
121 mm
305 mm
882 mm
Ø 204 mm
64 mm
TOP FLUE
COLLARS REAR FLUE
COLLARS
ELECTRICAL
ACCESS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
AND LABELS
TOP STANDOFFS

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13 14
3Installing the Fireplace
Step 1. Locating the Fireplace
The diagram below shows space and clearance require-
ments for locating a replace within a room.
Minimum Clearances
from the Fireplace to Combustible Materials
Figure 4. Fireplace Dimensions and Locations
For minimum clearances, see the direct ue termination
clearance diagrams on pages 30 and 31 in this manual.
Step 2. Framing the Fireplace
Fireplace framing can be built before or after the replace is
set in place. Framing should be positioned to accommodate
wall coverings and replace facing material. The diagram
below shows framing reference dimensions.



Minimum Clearances
from the Flue Pipe to Combustible Materials
* The clearance to the ceiling is measured from the top of
the unit, excluding the standoffs (see Figures 37 & 38).
The distance from the unit to combustible construction is
to be measured from the unit outer wrap surface to the
combustible construction, NOT from the screw heads that
secure the unit together.
!
WARNING: FRAMING DIMENSIONS ASSUME
USE OF 1/2 INCH THICK WALL COVERING
MATERIALS ON EXTERIOR OF FRAMING
ONLY AND NO SHEETROCK ON INTERIOR
OF FRAMING.
mm inches
Glass Sides or Ends ..........914 ..................... 36
Floor ....................................0 ........................ 0
Rear Flue ............................13 ......................1/2
Metal Sides or Ends ...........13 ......................1/2
Top ......................................64 .................... 2 1/2
Ceiling* ..............................787 ..................... 31
mm Inches
. ............. 25 .................1
Horizontal Sections
Top .....................................75 ................. 3
Bottom ...............................25 ................. 1
Sides..................................25 ................. 1

Top ................................... 63.7 ............. 2 1/2
Bottom ...............................13 ............... 1/2
Sides..................................25 ................. 1
Clearance Requirements
The top, back, and sides of the replace are dened by
stand-offs. The minimum clearance to a perpendicular wall
extending past the face of the replace is 25 mm (1 in.).
The metal ends of the replace may NOT be recessed into
combustible construction.
914 mm
GLASS
GLASS
GLASS
914 mm
GLASS
GLASS
914 mm
GLASS
914 mm
GLASS
GLASS
GLASS
914 mm
914 mm
914 mm
ST-HVB-CE
TOP VIEW
LCOR-HVB-CE
TOP VIEW
RCOR-HVB-CE
TOP VIEW
PIER-HVB-CE
TOP VIEW

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13
15
PIER-HVB-CE
ST-HVB-CE L & R-COR-HVB-CE
D
A
C
B
E
B
B
CC
AA
Framing should be constructed
of 51 mm x 102 mm (2 in. x 4 in.)
lumber or heavier.
Model A B C D E
PIER-HVB-CE 107 (42-1/8) 108 (42-1/2) 58 (23) 91 (35-3/4) 122 (48)
ST-HVB-CE 121 (47-5/8) 108 (42-1/2) 58 (23) 91 (35-3/4) 122 (48)
L&RCOR-HVB-CE 107 (42-1/8) 108 (42-1/2) 73 (28-3/4) 91 (35-3/4) 122 (48)
Figure 5. Framing Dimensions
NOTE: DIMENSIONS SHOWN IN CENTIMETERS AND (INCHES).
Shows center of 254mm x 305mm (10”x12”) ue framing holes for top and rear ueing.
The center of the hole is 25.4mm (one inch) above the center of the horizontal ue pipe.

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13 16
NOTE: PIPES OVERLAP 32 mm (1-1/4 in.) AT EACH JOINT.
Figure 6. DVP-Series Direct Flue Component Specications (127 mm (5 in.) inner pipe / 203 mm (8 in.) outer pipe)
DVP90ST
320 mm
286 mm
185 mm
32 mm
18 mm
218 mm
DVP36
DVP48
1219 mm
610 mm
914 mm
102 mm
152 mm
DVP4
DVP6
305 mm
DVP12
51 mm MIN.
DVP12A
310 mm MAX.
DVP24
251 mm
45
261 mm
DVP45
362 mm
º

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13
17
Figure 7. Flue System Components and Termination Kits
Step 3. Installing the Flue System
A. Flue System Approvals
These models are approved to use DVP series direct ue
pipe components and terminations (see Figures 6 and 7).
Approved ue system components are labeled for identi-
cation. This pipe is tested and listed as an approved com-
ponent of the replace. The pipe is tested to be run inside
an enclosed wall. There is no requirement for inspection
openings at each joint within the wall. There is no required
pitch for horizontal ue runs. NO OTHER FLUEING SYS-
TEMS OR COMPONENTS MAY BE USED.
Detailed installation instructions are included with each
ue termination kit and should be used in conjunction with
this Installers Guide.
The ame and ember appearance may vary based on the
type of fuel burned and the ueing conguration used.
Identifying Flue Components
The ue systems installed on this gas replace may include
one, two, or three 90° elbow assemblies. The relationships
of vertical rise to horizontal run in ue congurations using
90° elbows MUST BE strictly adhered to. The rise to run
relationships are shown in the ueing drawings and tables.
Refer to the diagrams on the next several pages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the ue system must
be followed if 45° elbows are used.
This model has a 450 elbow built into it. It may be posi-
tioned to ue either horizontal or vertical. Depending on
the installation, decide which direction the elbow should be
facing. Remove the 8 screws from the corner cover plate.
Position the 450 elbow as desired and replace the corner
cover plate with the 8 screws.
HORIZONTAL TERMINATION
WALL FIRESTOPS
90º ELBOW
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
PIPE LENGTH
CEILING FIRESTOP
TERMINATION KITS
DVP-TRAP DVP-TVHW

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13 18
Figure 8
STRAIGHT OUT
HORIZONTAL FLUEING
H
Max. Run
610 mm (24 in.)
Figure 9.
V
TERMINATION CAP
H
STRAIGHT UP
VERTICAL FLUEING
V (FT.)
12.2M MAX. (40 FT.)

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13
19
Figure 11. Flueing with One 90° Elbow
Figure 10. Flueing with One 90° Elbow
V
H
H
V
NATURAL GAS - FLUEING WITH ONE 90° ELBOW
V (FT.) H (FT.)
1’ MIN. (305 mm) 3’ MAX. (914 mm)
2’ MIN. (610 mm) 6’ MAX. (1.83 m)
3’ MIN. (914 mm) 9’ MAX. (2.7 m)
4’ MIN. (1.22 m) 12’ MAX. (3.6 m)
5’ MIN. (1.5 m) 15’ MAX. (4.5 m)
6’ MIN. (1.83 m) 18’ MAX. (5.5 m)
V + H = 40’ MAX. (12.2 m)
PROPANE / BUTANE - FLUEING WITH ONE 90° ELBOW
V (FT.) H (FT.)
1’ MIN. (305 mm) 2’ MAX. (610 mm)
2’ MIN. (610 mm) 4’ MAX. (1.22 m)
3’ MIN. (914 mm) 6’ MAX. (1.83 m)
4’ MIN. (1.22 m) 8’ MAX. (2.4 m)
5’ MIN. (1.5 m) 10’ MAX. (3.0 m)
6’ MIN. (1.83 m) 12’ MAX. (3.6 m)
V + H = 40’ MAX. (12.2 m)
NATURAL GAS
FLUEING WITH ONE 90° ELBOW
V (FT.) H (FT.)
1’ MIN. (305 mm) 3’ MAX. (914 mm)
2’ MIN. (610 mm) 6’ MAX. (1.83 m)
3’ MIN. (914 mm) 9’ MAX. (2.7 m)
4’ MIN. (1.22 m) 12’ MAX. (3.6 m)
5’ MIN. (1.5 m) 15’ MAX. (4.5 m)
V + H = 40’ MAX. (12.2 m)
PROPANE / BUTANE
FLUEING WITH ONE 90° ELBOW
V (FT.) H (FT.)
1’ MIN. (305 mm) 2’ MAX. (610 mm)
2’ MIN. (610 mm) 4’ MAX. (1.22 m)
3’ MIN. (914 mm) 6’ MAX. (1.83 m)
4’ MIN. (1.22 m) 8’ MAX. (2.4 m)
5’ MIN. (1.5 m) 10’ MAX. (3.0 m)
V + H = 40’ MAX. (12.2 m)

Heat & Glo • PIER/ST/L&RCOR-HVB-CE • 2068-900 Rev. o • 3/13 20
Figure 12. Flueing with Two 90° Elbows
H
1
H
V
V
V
1
H
NATURAL GAS
FLUEING WITH TWO 90° ELBOWS
V (FT.) H + H1 (FT.)
1’ MIN. (305 mm) 3’ MAX. (914 mm)
2’ MIN. (610 mm) 6’ MAX. (1.83 m)
3’ MIN. (914 mm) 9’ MAX. (2.7 m)
4’ MIN. (1.22 m) 12’ MAX. (3.6 m)
5’ MIN. (1.5 m) 15’ MAX. (4.5 m)
V + H + h1 = 40’ MAX. (12.2 m)
H + h1 = 15’ MAX. (4.5 m)
PROPANE / BUTANE
FLUEING WITH TWO 90° ELBOWS
V (FT.) H + H1 (FT.)
1’ MIN. (305 mm) 2’ MAX. (610 mm)
2’ MIN. (610 mm) 4’ MAX. (1.22 m)
3’ MIN. (914 mm) 6’ MAX. (1.83 m)
4’ MIN. (1.22 m) 8’ MAX. (2.4 m)
5’ MIN. (1.5 m) 10’ MAX. (3.0 m)
V + H + h1 = 40’ MAX. (12.2 m)
H + h1 = 10’ MAX. (3.0 m)
NATURAL GAS
FLUEING WITH TWO 90° ELBOWS
V + V1(FT.) H (FT.)
1’ MIN. (305 mm) 3’ MAX. (914 mm)
2’ MIN. (610 mm) 6’ MAX. (1.83 m)
3’ MIN. (914 mm) 9’ MAX. (2.7 m)
4’ MIN. (1.22 m) 12’ MAX. (3.6 m)
5’ MIN. (1.5 m) 15’ MAX. (4.5 m)
V + V1 + H = 40’ MAX. (12.2 m)
PROPANE / BUTANE
FLUEING WITH TWO 90° ELBOWS
V + V1(FT.) H (FT.)
1’ MIN. (305 mm) 2’ MAX. (610 mm)
2’ MIN. (610 mm) 4’ MAX. (1.22 m)
3’ MIN. (914 mm) 6’ MAX. (1.83 m)
4’ MIN. (1.22 m) 8’ MAX. (2.4 m)
5’ MIN. (1.5 m) 10’ MAX. (3.0 m)
V + V1 + H = 40’ MAX. (12.2 m)
